Miele CS 7101-1 Operating instructions

Operating and installation instructions
SmartLine gas wok burner

To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.

en-AU, NZ M.-Nr. 11 503 510

This appliance can be used in countries other than those specified on the
appliance and in these operating and installation instructions. It is, however, set
up for connection to the gas and electricity supplies in the countries specified.
For trouble-free operation of the appliance, it is best to use it in the countries
specified for use.

For use in other countries, please contact Miele in your country.

2

Contents

Warning and Safety instructions.......................................................................... 5

Caring for the environment ................................................................................16

Overview............................................................................................................... 17

Wok burner............................................................................................................ 17

Control knobs........................................................................................................ 18

Burner.................................................................................................................... 19

Accessories supplied ............................................................................................ 20

Before using for the first time ............................................................................ 21

Cleaning the SmartLine appliance for the first time .............................................. 21

Switching on the SmartLine appliance for the first time ....................................... 21

Suitable cookware............................................................................................... 22

Tips on saving energy ........................................................................................ 24

Operation.............................................................................................................. 25

Switching on.......................................................................................................... 25

FlameGuard........................................................................................................... 25

Adjusting the flame................................................................................................ 26

Switching off.......................................................................................................... 26

Safety features..................................................................................................... 27

Thermo-electric flame failure device ..................................................................... 27

Cleaning and care ...............................................................................................28

Ceramic surface .................................................................................................... 29

Control knob(s)...................................................................................................... 30

Pan supports ......................................................................................................... 30

Burner.................................................................................................................... 31

Problem solving guide ........................................................................................32

Optional accessories ..........................................................................................34

Service.................................................................................................................. 35

Contact in case of fault ......................................................................................... 35

Data plate .............................................................................................................. 35

Warranty ................................................................................................................ 35

Installation............................................................................................................ 36

Safety instructions for installation ......................................................................... 36

Safety distances.................................................................................................... 37

Detailed dimensions.............................................................................................. 40

3

Contents

Surface-mounted .................................................................................................. 41

Installation notes – surface-mounted.................................................................... 41

Worktop cut-out – surface-mounted..................................................................... 43

Spacer bars – surface-mounted............................................................................ 46

Installation dimensions– Surface-mounted.......................................................... 47

Installation – surface-mounted.............................................................................. 49

Flush-fit ................................................................................................................. 51

Installation notes – flush-fit ................................................................................... 51

Worktop cut-out – flush-fit .................................................................................... 53

Spacer bars – flush-fit ........................................................................................... 56

Installation dimensions–Flush ............................................................................. 57

Installation – flush-fit ............................................................................................. 59

Gas connection ..................................................................................................... 61

Electrical connection ............................................................................................. 64

Burner ratings...................................................................................................... 65

Conversion to another type of gas ....................................................................66

Jet table................................................................................................................. 66

Changing the jets .................................................................................................. 66

Changing the main jets..................................................................................... 66

Changing the small jets.................................................................................... 67

Checking operation ............................................................................................... 67

4

Warning and Safety instructions

This wok complies with all current local and national safety
requirements. However, inappropriate use can lead to personal
injury and damage to property.

Read the operating and installation instructions carefully before
using the wok. They contain important information on safety,
installation, use and maintenance of the appliance. This prevents
both personal injury and damage to the appliance.

In accordance with standard IEC 60335-1, Miele expressly and
strongly advises that you read and follow the instructions in
“Installation” and in “Warning and Safety instructions”.

Miele cannot be held liable for injury or damage caused by non­compliance with these instructions.

Keep these instructions in a safe place and pass them on to any
future owner.

5

Warning and Safety instructions

Correct application

 This wok burner is designed for domestic use and for use in

similar environments by guests in hotel or motel rooms, bed &
breakfasts and other typical living quarters. This does not include
common/shared facilities or commercial facilities within hotels,
motels or bed & breakfasts.

 The wok burner is not suitable for outdoor use.
 It is intended only to cook food and keep it warm. Any other use is

not supported by Miele and could be dangerous.

 This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning its use by a person responsible
for their safety, and are able to recognise the dangers of misuse.

6

Warning and Safety instructions

Safety with children

 Young children must not be allowed to use this appliance.
 Older children may only use the gas wok burner if its operation

has been clearly explained to them and they are able to use it safely.
They must be aware of the potential dangers caused by incorrect
operation.

 Cleaning may only be carried out by older children under the

supervision of an adult.

 Please supervise children in the vicinity of the wok burner and do

not let them play with it.

 The appliance gets hot when in use and remains hot for a while

after being switched off. Keep children well away from the appliance
until it has cooled down and there is no danger of burning.

 Danger of burning!

Do not store anything which might arouse a child's interest in
storage areas above or next to the wok burner. Otherwise children
could be tempted to climb onto the wok burner with the risk of
burning themselves.

 Danger of burning and scalding! Turn the handles of pots and

pans on the cooktop to the side or the rear so that children cannot
pull them down and burn themselves.

 Danger of suffocation! Whilst playing, children may become

entangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.

7

Warning and Safety instructions

Technical safety

 Unauthorised installation, maintenance and repairs (including

removal of any cover) can cause considerable danger for the user.
Installation, maintenance and repairs must only be carried out by a
Miele authorised technician.

 Damage to the wok burner can compromise your safety. Check

the appliance for visible signs of damage. Never use a damaged wok
burner.

 Reliable and safe operation of this appliance can only be assured

if it has been connected to the mains electricity supply.

 The electrical safety of this appliance can only be guaranteed

when continuity is complete between it and an effective earthing
system which complies with local and national safety regulations. It
is most important that this basic safety requirement is present and
tested regularly and, where there is any doubt, the household wiring
system should be inspected by a qualified electrician.

 Before connecting the appliance to the mains electricity supply,

ensure that the connection data on the data plate (voltage and
frequency) matches the mains electricity supply.
This data must correspond in order to avoid the risk of damage to
the appliance. Consult a qualified electrician if in any doubt.

 Do not connect the appliance to the mains electricity supply by a

multi-socket adapter or an extension lead. These are a fire hazard
and do not guarantee the required safety of the appliance.

 For safety reasons, this appliance may only be used after it has

been built in.

 This appliance must not be installed and operated in mobile

installations (e.g. on a ship).

8

Warning and Safety instructions

 Never open the casing of the wok burner.

Touching or tampering with electrical connections or components
and mechanical parts is highly dangerous to the user and can cause
operational faults.

 The manufacturer's warranty will be invalidated if the appliance is

not repaired by a Miele authorised service technician.

 Faulty components must only be replaced by genuine Miele spare

parts. The manufacturer can only guarantee the safety of the
appliance when Miele replacement parts are used.

 The wok burner is not intended for use with an external timer

switch or a remote control system.

 Connection to the gas supply must be carried out by a suitably

qualified and competent gas fitter. If the plug has been removed or
the connection cable is not supplied with a plug, the appliance must
be connected to the mains supply by a suitably qualified electrician.

 If the mains connection cable is damaged, it must be replaced

with a special mains connection cable, available from Miele, by a
Miele authorised service technician or suitably qualified and
competent electrician in order to avoid a hazard (see “Installation ­Electrical connection”).

 During installation, maintenance and repair work, the wok burner

must be completely disconnected from the mains electricity supply.
The gas supply must also be turned off. It is only completely isolated
from the gas and electricity supply when:

– the main circuit breaker has been disconnected, or
– it is switched off at the wall socket and the plug is withdrawn from

the socket. Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains electricity
supply.

– the gas inlet valve is closed.

9

Warning and Safety instructions

 Danger of electric shock!

Do not use the wok if it is faulty, or if the ceramic surface is cracked,
chipped or damaged in any way. Switch it off immediately if any
damage is noticed. Disconnect it from the mains electricity and gas
supply. Call Miele.

 If the wok burner is built in behind a furniture front (e.g. a door), do

not close the door while the wok burner is in use. Heat and moisture
can build up behind the closed door. This can result in damage to
the wok burner, the housing unit and the floor. Leave the furniture
door open until the wok burner has cooled down completely.

 In areas which may be subject to infestation by cockroaches or

other vermin, pay particular attention to keeping the appliance and
its surroundings clean at all times. Any damage caused by
cockroaches or other vermin will not be covered by the warranty.

 DO NOT MODIFY THIS APPLIANCE.
 This cooktop is not suitable for installation and operation with

aftermarket lids or covers fitted.

10

Warning and Safety instructions

Correct use

 The appliance gets hot when in use and remains hot for some

time after being switched off. Do not touch the appliance if there is a
possibility that it could still be hot.

 DO NOT USE THIS APPLIANCE AS A SPACE HEATER.
 Do not use the appliance to heat up the room.

Due to the high temperatures radiated, objects left near the
appliance could catch fire.

 Oil and fat can overheat and catch fire. Do not leave the wok

burner unattended when cooking with oil and fat. If it does ignite, do
not attempt to put the flames out with water.
Switch off the wok burner and use a suitable fire blanket, saucepan
lid, damp towel or similar to smother the flames.

 The cooking process has to be supervised. A short term cooking

process has to be supervised continuously.

 Flames could set the grease filters of a rangehood on fire. Do not

flambé under a rangehood.

 DO NOT USE OR STORE FLAMMABLE MATERIALS IN THE

APPLIANCE STORAGE DRAWER OR NEAR THIS APPLIANCE.
CUTLERY INSERTS MUST BE HEAT-RESISTANT.

 DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS

APPLIANCE WHILE IT IS IN OPERATION.

 DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
 Do not heat an empty pan.
 Do not heat up food in closed containers e.g. tins or sealed jars

on the wok burner, as pressure can build up in the containers,
causing them to explode.

11

Warning and Safety instructions

 Do not cover the wok burner, e.g. with a cooktop cover, a cloth or

protective foil. The material could catch fire, shatter or melt if the
wok burner is switched on by mistake or if residual heat is still
present.

 When the wok burner is switched on, either deliberately or by

mistake, or when there is residual heat present, there is the risk of
any metal items left on the wok heating up, with the danger of
burning. Depending on the material, other items left on the appliance
could also melt or catch fire. Do not use the wok burner as a resting
place.

 You could burn yourself on the hot appliance. Protect your hands

with heat-resistant pot holders or gloves when handling hot pots and
pans. Do not let them get wet or damp, as this causes heat to
transfer through the material more quickly with the risk of scalding or
burning yourself on steam. Be sure to keep all textiles away from the
gas flames. Do not use oversized cloths, tea towels or other similar
materials.

 When using an electrical appliance, e.g. a hand-held food mixer,

near the wok burner, ensure that the cable of the electrical appliance
cannot come into contact with the hot wok burner. The insulation on
the cable could become damaged.

 Even a light object can cause damage in certain circumstances.

Do not drop anything on the ceramic surface.

 Plastic and aluminium foil containers melt at high temperatures.

Do not use plastic or aluminium foil containers on the cooktop.

 When a control knob is pressed down, a spark is generated on the

ignitor. Do not press down the control knob while you are cleaning or
touching the wok or the burner in the vicinity of an ignitor.

 If a rangehood is installed above the wok burner, ensure that the

burner is always covered with a pan when in use. Otherwise flames
could reach the rangehood, parts of which could then be damaged
or even set on fire.

12

Warning and Safety instructions

 Switch the burner off when a pan is removed, even for a short

time.

 Make sure all the components of the gas burner have been

correctly assembled before switching on.

 Only use pans with a diameter that falls within the minimum and

maximum diameters given for the burner (see “Pans”). A pan which
is too small will be unstable on the pan support. If the diameter is too
large, heat emitted from the bottom of the pan may damage the
worktop, walls with poor heat resistance (e.g. panelled walls), or
parts of the wok burner. Miele cannot be held liable for this type of
damage.

 Ensure that the flames from the burner do not spread out beyond

the base and up the sides of the pan.

 Do not use pans with very thin bases. Failure to comply may result

in damage to the wok burner.

 The pan supports supplied with the appliance must always be

used. Never place a pan on the burner itself.

 Replace the pan supports carefully to avoid scratching the surface

of the cooktop.

 Do not use or store flammable materials near this appliance.
 Remove all grease spatters and other combustible (food) residues

from the wok burner as soon as possible. They are a fire hazard.

 The use of the wok burner creates heat, moisture and combustion

products in the room where it is installed. Make sure that the
appliance is installed in a location with sufficient ventilation. Natural
ventilation openings should not be blocked. Alternatively, a
mechanical ventilation device (e.g. a rangehood) can be installed.

 If the wok burner is used for very long periods of time, additional

ventilation of the room may be necessary, e.g. by opening windows
or doors, or running the rangehood on the highest setting.

13

Warning and Safety instructions

 If the appliance has not been used for a long period of time it

should be thoroughly cleaned before it is used again. It is also
advisable to have the appliance tested by a qualified person for
safety.

 If you are operating a gas cooking appliance directly next to the

downdraft extractor, the FlameGuard must be placed between the
downdraft extractor and the appliance.

14

Warning and Safety instructions

Cleaning and care

 Do not use a steam cleaning appliance to clean this wok burner.

Pressurised steam could reach the electrical components and cause
a short circuit.

15

Caring for the environment

Disposal of the packing material

The transport and protective packaging
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.

Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.

Disposing of your old appliance

Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.

Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances. You are also responsible for
deleting any personal data that may be
stored on the appliance prior to
disposal. Please ensure that your old
appliance poses no risk to children
while being stored prior to disposal.

16

Wok burner

a

Burner

b

Pan support

c

Operating controls

Overview

17

Overview

Control knobs

a

Burner off
The gas supply is turned off

b

Strongest flame
The outer and inner burners are on the highest setting

c

Strong flame
The outer burner is on the lowest setting, the inner burner on the highest setting

d

Over-ignition position
The outer burner is ignited by changing from position (5) to position (3)
NB: Position (4) is a transitional setting. Continuous operation of the burner is
not recommended between positions (5) and (3).

e

Weak flame
The outer burner is off, the inner burner is on the highest setting

f

Weakest flame
The outer burner is off, the inner burner is on the lowest setting

18

Burner

a

b

c

e

f

d

Overview

a

Outer burner cap

b

Inner burner cap

c

Burner head

d

Burner base

e

Flame failure device

f

Ignitor

19

Overview

Accessories supplied

The accessories supplied with your
appliance, as well as a range of optional
ones, are available to order from Miele
(see “Optional accessories”).

Wok ring

The wok ring supplied gives additional
stability to the wok, especially to woks
with a rounded base.

Combination trivet

The combination trivet supplied must
be used if you are using pans with a
smaller base diameter than that
specified in the chart for suitable pans.

FlameGuard

For fitting in place between the
downdraft extractor and a gas cooking
appliance.

20

Before using for the first time

 Please stick the extra data plate for

the appliance supplied with this
documentation in the space provided
in the “Service” section of this
booklet. Alternatively, the additional
label can be stuck near the appliance
if the appliance markings are not
visible after installation.

 Remove any protective wrapping and

stickers (except the data plate).

Cleaning the SmartLine appliance for the first time

 Clean all removable parts of the

burner(s) with a solution of warm
water and a small amount of
washing-up liquid applied with a soft
sponge. Dry all parts thoroughly after
cleaning and then reassemble the
burners (see “Cleaning and care ­Burners”).

 Clean the ceramic surface with a

damp cloth, and then wipe dry.

Switching on the SmartLine appliance for the first time

The metal components have a
protective coating. Smells and possibly
some vapours may occur when the
SmartLine appliance is used for the first
time.

The smell and any vapours given off do
not indicate a faulty connection or
appliance and they are not hazardous
to health.

21

Suitable cookware

Notes on the use of different sized
utensils

Min. base diameter
pots / pans = 14cm

Max. rim diameter
pots / pans = 30cm

– Refer to the information above and

ensure that the pan diameter falls
within the minimum and maximum
diameters given for the burner. A pan
base which is too small will be
unstable on the pan support. If the
pan diameter is too large, flames can
spread out to the sides and damage
or burn the worktop, wall claddings or
surrounding units and also parts of
the appliance. Miele cannot be held
liable for this type of damage.

– Remember when purchasing new

pans that manufacturers usually refer
to the diameter at the top of the pan
in their documentation.

– Do not use pots or pans with base

supports.

– Any heat-resistant pans can be used

on a gas burner.

– Pans with thick bases are preferable

as these distribute heat more evenly.
With thin bases, there is a danger of
food overheating in places. Stir the
food frequently.

– Always place cookware on the pan

support supplied with the appliance.
Never place it directly on the burner.

– Position the pan centrally on the pan

support so that it sits securely and
cannot tip. A little movement is quite
normal and not a cause for concern.

22

Wok ring

 Use the wok ring supplied to give

additional stability to pans, especially
to woks with a rounded base.

 Place the wok ring on the pan

support so that it sits securely in
position and cannot move (see
diagram).

The wok is unique among cookware in
that it has a small base diameter and a
large rim diameter (usually 35-40cm).
Woks are ideal for use on the wok
burner.

Suitable cookware

Combination trivet

Use the small trivet supplied for small
pans. The pan will then be stable on the
burner and not tip over.

23

Tips on saving energy

– Use a pan lid whenever possible to

minimise heat loss.

– Wide, shallow pans are preferable to

tall, narrow ones. They will heat up
faster.

– Cook with as little water as possible.

– Reduce the power setting once the

water has come to the boil or the oil
is hot enough to fry in.

– Use a pressure cooker to reduce

cooking times.

24

Operation

Switching on

If you are operating a gas cooking
appliance next to a downdraft
extractor, this will affect the gas
cooking appliance's function.

Place the FlameGuard between the
gas cooking appliance and the
downdraft extractor.

 Risk of fire due to overheated

food!
Unattended food can overheat and

ignite.
Do not leave the wok unattended

whilst it is being used.

 Press in the relevant control knob and

turn it anti-clockwise to the large
flame symbol. The ignition electrode
will “click” and ignite the gas.

When a control knob is activated, a
spark is automatically generated on all
burners. This is normal and does not
indicate a fault.

 When a flame is visible, keep the

control knob pressed in for 5–
10seconds, and then let it go.

 If the burner has not ignited or goes

out, turn the control knob to the
position. Aerate the room or wait for
at least oneminute before trying
again. Try keeping the control knob
pressed in for a little longer the next
time.

Switching on during a power outage

If there is an interruption to the
electricity supply, the gas can be
ignited manually, e.g. with a match.

 Press down the relevant control knob

and turn it anti-clockwise to the large
flame symbol.

 Hold the control knob pressed down

and light the gas at the burner with a
match.

 Keep the control knob pressed down

for a further 5-10seconds and then
release it.

FlameGuard

 Fit the magnetic FlameGuard in

position next to the downdraft
extractor when you are operating a
gas cooking appliance directly next to
the extractor.

 If the burner does not ignite the

second time, turn the control back to
the position and see “Problem
solving guide”.

25

Operation

Adjusting the flame

As the outer part of the flame is much
hotter than the centre, the tips of the
flames should stay beneath the pan
base. Flame tips which extend beyond
the sides of the pan merely warm up
the air in the room and can damage
pan handles and increase the risk of
injury.

There is a stopper at the 6 o'clock
position to prevent you turning the
control knob to the high or low setting
unintentionally. Press the control knob
down lightly to move past this stopper.

 Adjust the flame so that it does not

spread out beyond the sides of the
pan.

Switching off

 Turn the control knob clockwise to

the position.

This stops the flow of gas and
extinguishes the flame.

 To move from the high to the low

setting, turn the control anti­clockwise until it stops. Then press it
down and continue to turn it past the
resistance before releasing it. You can
now select the setting you require.

 To move from the low to the high

setting, turn the control clockwise
until it stops. Then press it down and
continue to turn it past the resistance
before releasing it. You can now
select the setting you require.

26

Thermo-electric flame failure device

Your wok burner is equipped with a
thermo-electric flame failure device. If
the gas flame is extinguished, e.g. by
food boiling over or by a draught, the
gas supply is switched off. This
prevents the release of gas. If you turn
the control knob to the position, the
burner is ready for use again.

The thermo-electric flame failure
device operates independently from
the electricity supply. This means that
it will still work if the wok burner is
used during a power cut.

Safety features

27

Cleaning and care

 Risk of burning due to hot

surfaces!
The surfaces will be hot after use.
Switch the wok burner off.
Allow the surfaces to cool down

before cleaning the wok burner.

 Risk of damage due to moisture

ingress.
The steam from a steam cleaning

appliance could reach electrical
components and cause a short
circuit.

Do not use a steam cleaner to clean
the wok burner.

The use of unsuitable cleaning
agents can cause the surfaces to
discolour or alter. All surfaces are
susceptible to scratching.

Remove any residual cleaning agent
immediately.

Never use abrasive sponges or
cleaning agents.

When a control knob is pressed
down, a spark is generated on the
ignitor. Do not press down the
control knob while you are cleaning
or touching the wok or the burner in
the vicinity of an ignitor.

Unsuitable cleaning agents

To avoid damaging the surfaces of the
appliance, do not use:

– cleaning agents containing soda,

alkalines, ammonia, acids or
chlorides

– cleaning agents containing descaling

agents

– stain and rust removers

– abrasive cleaning agents, e.g.

powder cleaners and cream cleaners

– solvent-based cleaning agents

– dishwasher cleaner

– oven sprays

– grill and oven cleaners

– glass cleaning agents

– hard, abrasive brushes or sponges

(e.g. pot scourers), or sponges which
have been previously used and still
contain abrasive cleaning agents

– dirt erasers

Allow the SmartLine appliance to
cool down before cleaning.

 Clean the SmartLine appliance and

accessories after each use.

 Dry the SmartLine appliance

thoroughly every time after cleaning
to avoid limescale residue.

28

Cleaning and care

Ceramic surface

 Risk of damage by pointed

objects.
The seal between the SmartLine

appliance and the worktop could
suffer damage.

Do not use pointed objects for
cleaning.

Do not use washing-up liquid to
clean the appliance. Using washing­up liquid will not remove all soiling
and residues.

Cleaning with washing-up liquid can
result in an invisible film that can lead
to discolouration of the ceramic
glass. This discolouration cannot be
removed.

Clean the ceramic surface regularly
with a proprietary ceramic glass
cleaning agent.

 Remove any coarse soiling with a

damp cloth and more stubborn
soiling with a glass scraper.

 Then clean the ceramic glass surface

with the Miele ceramic and stainless
steel cooktop cleaner (see “Optional
accessories”) or with a proprietary
ceramic glass cleaner applied with
kitchen paper or a clean cloth. Do not
apply the cleaner while the cooktop is
still hot, as this can result in marking.
Please follow the cleaning agent
manufacturer's instructions.

Residues can burn onto the cooktop
the next time it is used and cause
damage to the glass ceramic surface.
Ensure that all cleaner residues are
removed.

 Spots caused by limescale, water

and aluminium residues (spots with a
metallic appearance) can be removed
using the Miele ceramic and stainless
steel cooktop cleaner.

 Risk of burning due to hot

surfaces.
The surfaces get hot during use.
Wear oven gloves when removing

residues of sugar, plastic or
aluminium foil from a hot cooktop
with a glass scraper.

 Should any sugar, plastic or

aluminium foil spill or fall onto a hot

cooking zone while it is in use, first
switch off the appliance.

 Then carefully scrape off these

residues immediately whilst they are
still hot, using a shielded scraper
blade suitable for use on glass.

 Afterwards, clean the glass ceramic

surface in its cooled state, as
described above.

 Finally wipe the cooktop with a damp

cloth and dry it with a soft, dry cloth.

29

Cleaning and care

Control knob(s)

 Clean the control knob(s) using a

solution of warm water and a little
washing-up liquid applied with a soft
sponge. Stubborn soiling should be
soaked first.

 Dry the control knob(s) with a clean

cloth.

Pan supports

 Remove the pan supports.
 Clean the pan supports in the

dishwasher or with a solution of warm
water and a little washing-up liquid
applied with a soft sponge. Stubborn
soiling should be soaked first.

 After cleaning, dry the pan supports

thoroughly with a clean cloth.

30

Cleaning and care

a

b

c

e

f

d

Burner

Do not clean any parts of the burners
in a dishwasher.

The surface of the burner caps will
become more matt over time. This is
normal and does not indicate damage
to the burner caps. Nor will it affect
the operation of the cooktop.

 The burner should be dismantled and

then cleaned by hand using a
solution of warm water and a little
dishwashing liquid applied with a soft
sponge.

 Clean any soiling from the flame

openings.

 Danger of explosion!

Blocked flame openings can cause a
dangerous build-up of gas in the
base of the cooktop which could
ignite and cause an explosion. This
can lead to damage to the appliance
and injury.

Ensure the flame openings are kept
clean at all times.

 Parts of the burner that cannot be

removed should be wiped clean with
a damp cloth only.

 The ignitor and the flame failure

device should be very carefully wiped
clean using a well wrung out cloth.

The surface of the burner caps will
become more matt over time. This is
normal and does not indicate damage
to the burner caps. Nor will it affect
the operation of the cooktop.

 Place the burner head onto the

burner base so that the flame
failure device and the ignitor
extend through their respective holes
in the burner head. The burner head
must click into place correctly.

 Then place the burner caps and

in position.

Do not let the ignitor get wet. If it gets
wet, it will not spark.

 Finally dry everything thoroughly with

a clean cloth. Make sure that the
flame openings are completely dry.

Ensure that all parts of the burner are
reassembled in the correct order.

31

Problem solving guide

With the help of the following guide, minor faults in the performance of the
appliance, some of which may result from incorrect operation, can be remedied
without contacting Miele. This will save you time and money because you won't
need a service call.

Please note that a call-out charge will be applied to unnecessary service visits
where the problem could have been rectified as described in these operating
instructions.

Problem Possible cause and remedy

The burner does not
ignite when the cooktop
is being used for the
first time or after it has
not been used for a
longer period.

The burner does not
light after several
attempts.

The gas flame goes out
after being lit.

The flame suddenly
looks different.

32

There could be an air lock in the gas pipe.
 You may need to make several attempts before the

burner ignites successfully.

There is a fault.
 Turn all of the control knobs clockwise to the 

position and interrupt the power supply to the
cooktop for a few seconds.

The burner is not correctly assembled.
 Assemble the burner correctly.

The gas shut-off valve is closed.
 Open the gas shut-off valve.

The burner is wet and/or dirty.
 Clean and dry the burner.

The flame openings are blocked and/or wet.
 Clean and dry the flame openings.

The flames do not touch the flame failure device and
the burner does not get hot enough:
The burner parts are not positioned correctly.

 Position the burner parts correctly.

The flame failure device is dirty.
 Remove any soiling.

The burner parts are not positioned correctly.
 Position the burner parts correctly.

The burner head or the holes in the burner cap are
dirty.

 Remove any soiling.

Problem solving guide

Problem Possible cause and remedy

The gas flame goes out
during operation.

The ignitor on the
burner does not spark.

The burner parts are not positioned correctly.
 Position the burner parts correctly.

The mains circuit breaker has tripped.
 If it has, contact a qualified electrician or Miele.

There is food residue stuck between the ignitor and
the burner cap.
The flame failure device is dirty.

 Remove any soiling (See “Cleaning and care”).

33

Optional accessories

Miele offers a range of useful
accessories, as well as cleaning and
conditioning products for your
appliance.

These products can be ordered from
the Miele online shop.

They can also be ordered directly from
Miele (see end of this booklet for
contact details).

FlameGuard

For fitting in place between the
downdraft extractor and a gas cooking
appliance.

Original Miele ceramic and
stainless steel cleaner 250ml

Removes heavy soiling, limescale
deposits and aluminium residues.

Original Miele all purpose microfibre cloth

34

Removes finger marks and light soiling.

Service

Contact in case of fault

In the event of any faults which you cannot remedy yourself, please contact Miele.

Contact information for Miele can be found at the end of this booklet.

Please quote the model and serial number of your appliance when contacting
Miele. This information can be found on the data plate.

Data plate

Adhere the extra data plate supplied with the appliance in the space below. Make
sure that the model number matches the one specified on the back cover of these
operating and installation instructions.

Warranty

The manufacturer's warranty for this appliance is 2years.

For further information, please refer to your warranty booklet.

35

*INSTALLATION*

Installation

Safety instructions for installation

 Damage from falling objects.

Take care not to damage the SmartLine appliance when fitting wall units or a
rangehood above it.

Fit the wall units and the rangehood before the SmartLine appliance.

 The room in which the SmartLine appliance is installed must

conform to all relevant local and national building regulations and
safety regulations.
In Australia and New Zealand, gas installations must be in
accordance with AS/NZS 5601.

 The veneer or laminate coatings of worktops (or adjacent kitchen

units) must be treated with 100°C heat-resistant adhesive which will
not dissolve or distort. Any splashbacks must be of heat-resistant
material.

 An electric fryer must not be installed directly next to a gas

cooktop as the gas flames could ignite the fat in the fryer. It is
essential to maintain a distance of at least 288mm between these
two appliances.

 The SmartLine appliance must not be installed over a fridge,

fridge-freezer, freezer, dishwasher, washing machine, washer-dryer
or tumble dryer.

 When installing the SmartLine appliance, make sure that the gas

pipe and mains connection cable cannot come into contact with hot
appliance parts.

 The mains connection cable and any flexible gas connection pipes

must be installed in such a way so that they do not come into
contact with any moving kitchen parts (e.g. a drawer) after the
SmartLine appliance has been installed, and that they cannot be
subjected to any mechanical action which could cause damage.

 Carefully observe the safety clearances listed on the following

pages.

36

*INSTALLATION*

Installation

Safety distances

Safety distance above the SmartLine

A minimum safety distance must be
maintained between the SmartLine and
the rangehood above it. See the
rangehood manufacturer's operating
and installation instructions for details.

If the manufacturer's instructions are
not available for the rangehood, a
minimum safety distance
as per AS/NZS 5601.1 must be
maintained.

Clearance underneath the appliance

A minimum safety clearance of 30mm
must be provided underneath the
appliance.

Please note that clearance must also be
provided for the installation of the
flexible gas connection hose and mains
electrical cable if the appliance is to be
installed above a closed surface (e.g.
an oven).

For any flammable objects, e.g. utensil
rails, wall units etc., a minimum safety
distance of 600mm must be
maintained between these objects and
the highest part of the SmartLine below.

When two or more appliances which
have different safety distances are
installed together below a
rangehood, you should observe the
greatest safety distance.

37

*INSTALLATION*

Installation

Safety distances to the sides and back of the appliance

Ideally the appliance should be installed
with plenty of space on either side.
There may be a wall at the rear and a
tall unit or wall on one side (right or left).
On the other side, however, no tall unit
or wall should stand higher than the
appliance. Before installing the
appliance, check that the location
provides the required clearances from
combustible material and, if necessary,
provide protection to adjacent surfaces
as required by regulations.

Not allowed

Recommended

38

Not recommended

Not recommended

*INSTALLATION*

A gas appliance shall be installed such
that the surface temperature of any
nearby combustible surface* will not
exceed 65°C above ambient.

The minimum clearance from a
combustible surface shall be a 200mm
horizontal distance from the periphery
of any gas burner (AS/NZS 5601.1).

If that horizontal clearance is less than
200mm, that vertical surface must be
protected by a non-combustible
material for 150mm above the top of
the edge of the nearest burner for the
full dimension of the cooktop (depth,
width).

Installation

X Height from worktop surface to the

top of the edge of the burner

The shown area indicates the protected
surface, which may be ceramic tiles or
other approved material.

*Combustible surface:
A material which will ignite and burn,
and includes material which has been
flameproofed.

39

*INSTALLATION*

Installation

Detailed dimensions

Height of pan supports above the worktop surface

a

Vertical distance

b

Worktop surface

c

Pan support

The vertical distance from the top of the pan supports to the surface of the
worktop is 37mm.

40

*INSTALLATION*

Installation

Surface-mounted

Installation notes – surface-mounted

Sealing between the SmartLine appliance and the worktop

The SmartLine appliance and
worktop may be damaged if the
appliance needs to be removed after
it has been sealed with a sealant.

Do not use any sealant between the
SmartLine appliance and the
worktop.
The sealing strip under the edge of
the top part of the appliance
provides a sufficient seal for the
worktop.

Tiled worktop

Grout lines and the hatched area
underneath the SmartLine appliance
frame must be smooth and even. If they
are not, the SmartLine appliance will
not sit flush with the worktop and the
sealing strip underneath the top part of
the appliance will not provide a good
seal between the appliance and the
worktop.

Sealing strip

Dismantling the SmartLine appliance
for service purposes may damage
the sealing strip underneath the edge
of the SmartLine appliance.

Always replace the sealing strip
before reinstalling the cooktop.

41

*INSTALLATION*

Installation

Installing several SmartLine appliances

The gaps between the individual
SmartLine appliances must be sealed
with a silicone sealant that is heat­resistant to at least 160°C. With flush­fit installation, the gap between the
SmartLine appliance(s) and the worktop
must also be sealed with a silicone
sealant that is heat-resistant to at least
160°C.
After installation, the SmartLine
appliances must be easily accessible
from below, so that the bottom half of
the casing can be removed for
maintenance. If the SmartLine
appliances are not accessible from
below, the sealant must be removed so
that they can be removed.

Combination with a downdraft extractor

If the SmartLine appliance is installed in
combination with a downdraft extractor,
the latter must be installed first.

42

*INSTALLATION*

B

500

+1

ß

R 4

B

10

0

10

Worktop cut-out – surface-mounted

Installation

Information for calculating the cut-out

The appliances overlap the worktop by 10mm.

When installing several appliances, a distance of 2mm must be observed between
the individual appliances.

Calculating cut-out dimensionB
1 appliance = width of the appliance minus 10mm on the right, minus 10mm on
the left
Several appliances = total width of the appliances plus 2mm distance between
the appliances, minus 10mm on the right, minus 10mm on the left.

Some examples are illustrated below.

43

*INSTALLATION*

Installation

Installation with a downdraft extractor

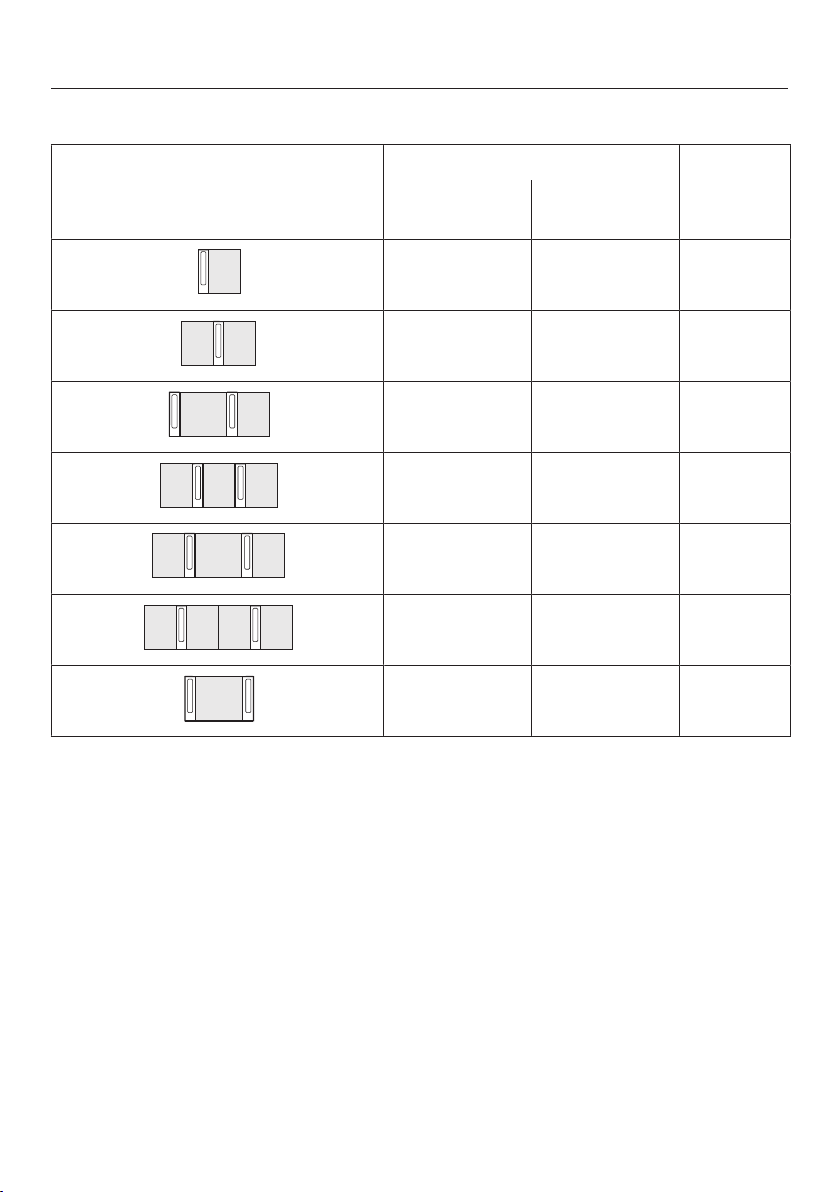

Sample combinations Numberxwidth [mm] Dimension

Cooking

appliances

1 x 378 1 x 120

Downdraft

extractor

B

[mm]

480

+1

2 x 378 1 x 120

1x378

2 x 120

1x620

3 x 378 2 x 120

2x378

2 x 120

1x620

4 x 378 2 x 120

1 x 620 2 x 120

860

1224

1362

1604

1742

844

+1

+1

+1

+1

+1

+1

44

*INSTALLATION*

Installation without a downdraft extractor

Sample combinations Numberxwidth [mm] DimensionB

Cooking appliances

1 x 378

Installation

[mm]

+1

358

2 x 378

1x378
1x620

3 x 378

2x378
1x620

4 x 378

738

980

1118

1360

1498

+1

+1

+1

+1

+1

45

*INSTALLATION*

Installation

Spacer bars – surface-mounted

When installing several SmartLine appliances, an additional spacer bar must be
fitted in between the individual appliances.

The clips supplied with the spacer bars are only required for installing a
CSDA700xFL.

Installing 3 appliances and 2 spacer bars

46

*INSTALLATION*

Installation dimensions– Surface-mounted

All dimensions in this instruction booklet are given in mm.

Distances from burner to the edge of the appliance

Installation

47

*INSTALLATION*

Installation

a

Front

b

Mains connection box with mains connection cable, L=2000mm

c

Gas connection R½ ISO 7-1 (DINEN10226)

48

*INSTALLATION*

Installation

Installation – surface-mounted

Preparing the worktop

 Create the worktop cut-out.

Remember to maintain the minimum
safety distances (see "Installation –
Safety distances").

 Seal the cut surfaces of wooden

worktops with a suitable sealant to

avoid swelling caused by moisture.
The sealant must be heat-resistant.

Make sure the sealant does not
come into contact with the top
surface of the worktop.

Fitting the spacer bars

Use the middle screw holes if one of the
following SmartLine appliances is
installed to the right or left of the spacer
bar: CS7611, CS 7641, CS7101(-1),
CS7102(-1)

Wooden worktops

 Position the spacer bars flush onto

the upper edge of the cut-out.

 Secure the spacer bars with the

3.5x25mm wood screws supplied.

Granite and marble worktops

You will need heavy-duty double­sided tape (not supplied) to secure the
spacer bars.

 Stick the tape along the top edge of

the worktop cut-out.

 Position the spacer bars flush onto

the upper edge of the cut-out.

 Press the spacer bars firmly into

place.

49

*INSTALLATION*

Installation

Installing the SmartLine appliance

 Stick the supplied sealing strip under

the edge of the SmartLine appliance.
Do not apply the sealing strip under
tension.

 Feed the mains connection cable

down through the worktop cut-out.

 Position the SmartLine appliance in

the worktop cut-out. When doing this,
make sure that the seal of the
appliance sits flush with the worktop
on all sides. This is important to
ensure an effective seal with the
worktop.

 If the seal does not meet the worktop

correctly on the corners, carefully
scribe the corner radii (≤R4) with a
jigsaw.

Do not use any additional sealant
(e.g. silicone) on the SmartLine
appliance.

 Connect the SmartLine appliance to

the mains electrical supply.

Unsuitable sealant can damage
natural stone.

For natural stone worktops and
natural stone tiles, only use silicone
sealant that is specially formulated
for natural stone. Please follow the
manufacturer's instructions.

Checking operation

 After installation, ignite all burners to

check that they are operating
correctly:

– The flame must not go out on the

lowest setting, or when the control is
turned quickly from the highest to the
lowest setting.

– On the highest setting, the flame

must have a distinctive and visible
core.

 If required, connect the SmartLine

appliance to the gas supply (see
“Installation – Gas connection”).

 Check that the SmartLine appliance

works.

 Seal the gaps between the individual

appliances with a silicone sealant that
is heat-resistant to at least 160°C.

50

*INSTALLATION*

Installation

Flush-fit

Installation notes – flush-fit

Flush-fit installation is only possible in
natural stone (granite, marble), solid
wood and tiled worktops. For
installation in worktops made of other
materials, please consult the relevant
manufacturer as to whether their
worktops are suitable for flush-fit
installation.

The internal width of the base unit
underneath the appliance must be at
least as wide as the inner worktop cut­out (see “Installation – Installation
dimensions – Flush”), so that the
SmartLine appliance is easily
accessible from underneath after
installation and the bottom half of the
casing can be removed for
maintenance. If the appliance is not
freely accessible from below after
installation, the sealant must be
removed so that the appliance can be
removed.

Natural stone worktops

The SmartLine appliance is set directly
in the cut-out.

Solid wood worktops, tiled worktops,
glass worktops

The SmartLine appliance is set on a
wooden frame inside the cut-out. The
frame must be provided on site and is
not supplied with the appliance.

Sealing strip

Dismantling the SmartLine appliance
for service purposes may damage
the sealing strip underneath the edge
of the SmartLine appliance.

Always replace the sealing strip
before reinstalling the cooktop.

51

*INSTALLATION*

Installation

Installing several SmartLine appliances

The gaps between the individual
SmartLine appliances must be sealed
with a silicone sealant that is heat­resistant to at least 160°C. With flush­fit installation, the gap between the
SmartLine appliance(s) and the worktop
must also be sealed with a silicone
sealant that is heat-resistant to at least
160°C.
After installation, the SmartLine
appliances must be easily accessible
from below, so that the bottom half of
the casing can be removed for
maintenance. If the SmartLine
appliances are not accessible from
below, the sealant must be removed so
that they can be removed.

Combination with a downdraft extractor

If the SmartLine appliance is installed in
combination with a downdraft extractor,
the latter must be installed first.

52

*INSTALLATION*

B

A

524

500

+

1

+1

ß R 4

B

A

0 2

12

0

10

5,5

+

0,5 *

0 2

B

A

12

0

10

5,5

+

0,5 *

Worktop cut-out – flush-fit

Installation

Natural stone worktop Wooden worktop

0.5

+

* 7

mm with CS7611FL

Information for calculating the cut-out

The appliances overlap the stepped cut-out by 10mm.

When installing several appliances, a distance of 2mm must be observed between
the individual appliances.

Calculating cut-out dimensionA
1 appliance = width of the appliance plus 2mm on the right, plus 2mm on the left.
Several appliances = total width of the appliances plus 2mm distance between
the appliances, plus 2mm on the right, plus 2mm on the left

Calculating cut-out dimensionB = cut-out dimension A minus 12mm on the right,
minus 12mm on the left.

Some examples are illustrated below.

53

*INSTALLATION*

Installation

Installation with a downdraft extractor

Sample combinations

Numberxwidth [mm]

Cooking

appliances

Downdraft

extractor

DimensionA

[mm]

DimensionB

[mm]

1 x 378 1 x 120

2 x 378 1 x 120

1x378

2 x 120

1x620

3 x 378 2 x 120

2x378

2 x 120

1x620

4 x 378 2 x 120

1 x 620 2 x 120

504

884

1248

1386

1628

1766

868

+1

+1

+1

+1

+1

+1

+1

480

860

1224

1362

1604

1742

844

+1

+1

+1

+1

+1

+1

+1

54

*INSTALLATION*

Installation without a downdraft extractor

Installation

Sample
combinations

Numberxwidth

[mm]

Cooking

appliances

1 x 378

2 x 378

1x378
1x620

3 x 378

2x378
1x620

4 x 378

DimensionA

[mm]

+1

382

+1

762

+1

1004

+1

1142

+1

1384

+1

1522

DimensionB

[mm]

+1

358

+1

738

+1

980

+1

1118

+1

1360

+1

1498

55

*INSTALLATION*

Installation

Spacer bars – flush-fit

When installing several SmartLine appliances, an additional spacer bar must be
fitted in between the individual appliances.

The clips supplied with the spacer bars are only required for installing a
CSDA700xFL.

Installing 3 appliances and 2 spacer bars

56

*INSTALLATION*

Installation dimensions–Flush

All dimensions in this instruction booklet are given in mm.

Distances from burner to the edge of the appliance

Installation

57

*INSTALLATION*

Installation

a

Front

b

Mains connection box with mains connection cable, L=2000mm

c

Stepped cut-out (for detailed illustrations, see “Installation – Worktop cut-out –
flush-fit”)

d

12mm wooden frame (not supplied, for detailed illustrations, see “Installation –
Worktop cut-out – flush-fit”)

e

Gas connection R½ ISO 7-1 (DINEN10226)

58

*INSTALLATION*

Installation

Installation – flush-fit

Preparing the worktop

 Create the worktop cut-out.

Remember to maintain the minimum
safety distances (see "Installation –
Safety distances").

 Seal the cut surfaces of wooden

worktops with a suitable sealant to

avoid swelling caused by moisture.
The sealant must be heat-resistant.

Make sure the sealant does not
come into contact with the top
surface of the worktop.

 For wooden worktops, secure the

wooden frames 5.5mm below the
upper edge of the worktop.
For CS7611FL, the wooden frame
must be secured 7mm under the
upper edge of the worktop.

Fitting the spacer bars

Use the middle screw holes if one of the
following SmartLine appliances is
installed to the right or left of the spacer
bar: CS7611, CS 7641, CS7101(-1),
CS7102(-1)

Wooden worktops

 Position the spacer bars flush onto

the lower step of the stepped cut-out.

 Secure the spacer bars with the

3.5x25mm wood screws supplied.

Granite and marble worktops

You will need heavy-duty double­sided tape (not supplied) to secure the
spacer bars.

 Stick the tape onto the lower step of

the stepped cut-out.

 Position the spacer bars flush onto

the lower step of the stepped cut-out.

 Press the spacer bars firmly into

place.

59

*INSTALLATION*

Installation

Installing the SmartLine appliance

 Stick the supplied sealing strip under

the edge of the SmartLine appliance.
Do not apply the sealing strip under
tension.

 Feed the mains connection cable

down through the worktop cut-out.

 Position the SmartLine appliance in

the worktop cut-out. When doing this,
make sure that the seal of the
appliance sits flush with the worktop
on all sides. This is important to
ensure an effective seal with the
worktop.

 Connect the SmartLine appliance to

the mains electrical supply.

 If required, connect the SmartLine

appliance to the gas supply (see
“Installation – Gas connection”).

 Check that the SmartLine appliance

works.

 Seal the gaps between the individual

SmartLine appliances and between
the appliances and the worktop with
a silicone sealant that is heat­resistant to at least 160°C.

Checking operation

 After installation, ignite all burners to

check that they are operating
correctly:

– The flame must not go out on the

lowest setting, or when the control is
turned quickly from the highest to the
lowest setting.

– On the highest setting, the flame

must have a distinctive and visible
core.

Unsuitable sealant can damage
natural stone.

For natural stone worktops and
natural stone tiles, only use silicone
sealant that is specially formulated
for natural stone. Please follow the
manufacturer's instructions.

60

*INSTALLATION*

Installation

Gas connection

 Risk of explosion due to an

incorrect gas connection.
If the gas connection is carried out

incorrectly, it may result in gas
leakage.

Connection to the gas supply must
only be undertaken by an authorised
and registered gas installer in strict
accordance with current local and
national safety and building
regulations. The installer is
responsible for ensuring that the
appliance functions correctly when
installed.

 Risk of explosion due to an

incorrect conversion.
If the conversion to another type of

gas is carried out incorrectly, it may
result in gas leakage.

Conversion from one type of gas to
another must only be undertaken by
an approved and registered gas
installer in strict accordance with
current local and national safety and
building regulations. The installer is
responsible for ensuring that the
appliance functions correctly when
installed.

The gas connection must be
installed so that connection can be
made either from inside or outside
the kitchen furniture unit. Every
appliance must have its own
isolating valve. The isolating valve
must be easily accessible and visible
(by opening the cabinet door if
necessary).

Check with your local gas supplier
about the type of gas supplied and
compare this information with the
type of gas quoted on the
appliance's data plate.

The cooktop is not connected to an
exhaust flue.

When installing and connecting the
appliance, please observe the
relevant regulations and ensure it has
adequate ventilation once installed.

The gas connection must be made in
accordance with national and local
regulations.

Special provisions of the local gas
supplier as well as building
regulations must also be observed.

 Risk of heat damage.

Gas connections, gas hoses or pipes
and mains connection cables can be
damaged if exposed to heat from the
cooktop.

After installation make sure that
neither the gas hose/pipe nor the
mains cable can come into contact
with hot parts of the appliance and
that the gas hose/pipe and
connections on the cooktop cannot
come into contact with hot exhaust
fumes.

61

*INSTALLATION*

Installation

 Risk of explosion due to

damaged gas hoses and pipes.
Gas can leak from damaged flexible

gas hoses.
Attach flexible gas hoses in such a

way that the hose assembly is not
exposed to high temperatures
exceeding the maximum
recommended by the hose
manufacturer, subjected to strain,
kinking, permanent deformation or
damage by vermin.

Connect the cooktop to the gas
supply in accordance with national
and local regulations. Check the gas
connection for any leaks.

The gas pressure must be set by an
approved gas fitter and a full
operational test and a test for
possible leakages must be carried
out by the gas fitter after installation.

Connecting the cooktop

The cooktop is supplied with a ¹/₂"
threaded gas connection. There are two
connection options:

– Fixed connection.

– Flexible hose class B or D which

complies with AS/NZS1869 and
must be certified. The minimum inner
diameter(Ø) must be 10mm and the
maximum length 1200mm.

 Risk of explosion due to gas

leakage.
Unsuitable sealant will not ensure the

required leak protection for
connections.

Ensure that a suitable sealant is
used.

Depending on country of destination,
this appliance is set up for connection
to natural gas or ULPG. See adhesive
label on the appliance:

– G = NG (natural gas)

– LP = ULPG (Propane/Butane)

Depending on country of destination,
jets are supplied for conversion to a
different type of gas. If the appropriate
jets have not been supplied with the
appliance, you will need to contact
Miele. Conversion to another type of
gas is described in the section
“Conversion to another type of gas”.

62

*INSTALLATION*

a

b

~ 60

a

Installation

Setting the gas pressure

The gas pressure must be set by the
authorised gas fitter as shown on the
data plate:
Natural gas 1.0 kPa
ULPG (Propane/Butane) 2.75 kPa

The gas pressure must be set with the
largest burner operating at maximum
setting.

For ULPG models

For natural gas models

The gas regulator is only included with
appliances which are set up for
connection to natural gas. The
regulator must be connected directly
to the appliance.

a

Pressure Test Point

 Loosen the screw in the test point

until it is free in its housing. The
screw is retained in this position.

a

Connection R¹/₂" with test point

b

Connection R¹/₂" with test point and
90° angle
When using a 90° angle the building­in depth will increase to the depth of
the elbow used.

 Connect the hose from the pressure

gauge.

 Reassemble one of the large burners,

turn on the gas and manually light the
burners.

 Disconnect the hose from the

pressure gauge and screw in the test
point screw.

 For natural gas models: Connect the

gas regulator directly to the
appliance.

63

*INSTALLATION*

Installation

Electrical connection

We recommend that you connect the
SmartLine appliance to the mains via a
suitable switched electrical socket. This
simplifies servicing. The socket must be
easily accessible after the SmartLine
appliance has been installed.

 Danger of injury!

Installation, repairs and other work
by unqualified persons could be
dangerous. Miele cannot be held
liable for unauthorised work.
Miele cannot be held liable for
damage or injury (e.g. electric shock)
caused by the lack of or inadequacy
of an on-site earthing system.

If the plug is removed from the
connection cable or if the cable is
supplied without a plug, the
SmartLine appliance must be
connected to the electricity supply
by a suitably qualified electrician.

If the socket is no longer accessible,
or if a hard-wired connection is
planned, an additional means of
disconnection must be provided for
all poles in accordance with the
wiring rules. Suitable means of
disconnection include switches with
an all-pole contact gap of at least
3mm. These include miniature circuit
breakers, fuses and relays. The
connection data can be found on the
data plate. Please ensure this
information matches the household
mains electricity supply.

After installation, ensure that all
electrical components are shielded
and cannot be accessed by users.

Total power output

See data plate.

Connection data

The connection data is given on the
data plate. Please ensure this
information matches the household
mains supply.

Residual current device

For extra safety, it is advisable to
protect the SmartLine appliance with a
suitable residual current device (RCD)
with a trip range of 30mA.

WARNING
THIS APPLIANCE MUST BE
EARTHED

Replacing the mains connection cable

 Danger of electric shock!

Incorrect connection to the electricity
supply may result in an electric
shock.

The mains connection cable must
only be replaced in accordance with
current local and national safety
regulations.

When replacing the mains connection
cable, it must be replaced with cable
type H05VV-F by a Miele authorised
service technician or a suitably qualified
and competent electrician in order to
avoid a hazard. These cables are
available from Miele.

64

Burner ratings

Nominal ratings

Gas type Highest setting Lowest setting

MJ/h MJ/h

Natural gas 16.0 0.7

ULPG 14.3 0.6

65

*INSTALLATION*

Conversion to another type of gas

 Risk of explosion due to an

incorrect conversion.
If the conversion to another type of

gas is carried out incorrectly, it may
result in gas leakage.

Conversion from one type of gas to
another must only be undertaken by
an authorised and registered gas
installer in strict accordance with
current local and national safety and
building regulations. The installer is
responsible for ensuring that the
appliance functions correctly when
installed. Disconnect the cooktop
from the electricity supply and turn
off the gas supply.

Jet table

The jet markings refer to a ¹/₁₀₀mm
bore diameter.

Gas type 

Main jet Small jet

Natural gas 2 x 1.20 / 0.90 0.88 / 0.42

ULPG 2 x 0.67 / 0.46 0.52 / 0.23

Changing the jets

 Disconnect the cooktop from the

electricity supply and turn off the gas
supply.

When converting to another type of
gas, both the main and small jets
need to be changed.

Changing the main jets

 Remove the burner caps and

burner head.

 Using an M7 socket spanner,

unscrew the main jets.

 Fit the correct jets securely (see jet

table).

 Secure the jets against inadvertent

loosening with sealing wax.

66

*INSTALLATION*

a

c

b

Conversion to another type of gas

Changing the small jets

 Remove the burner components.
 Unscrew the burner's fixing screws.
 Pull the control knob off.
 Loosen the fixing nuts on the

underside of the appliance.

 Carefully remove the underside of the

appliance.

 Fit the correct jets securely (see jet

table).

 Secure the jets against inadvertent

loosening with sealing wax.

Checking operation

 Check all gas fittings for leaks.
 Reassemble the cooktop.
 Ignite all burners to check that they

are operating correctly.

– The flame must not go out on the

lowest setting, or when the control is
turned quickly from the highest to the
lowest setting.

– On the highest setting, the flame

must have a distinctive and visible
core.

 Adhere the label supplied with the

jets over the old label stating the type
of gas being used.

a

Ignition switch

b

Small jet with smaller diameter

c

Small jet with larger diameter

 Remove the ignition switch.
 Using a small screwdriver, unscrew

the two small jets in the gas
fitting.

 Pull out the jets with a pair of pliers.

67

Miele Experience Centre and
Head Office Melbourne:

1 Gilbert Park Drive
Knoxfield, VIC 3180

Miele Experience Centre South Melbourne:

206-210 Coventry Street
South Melbourne, VIC 3205

Miele Experience Centre and Office Sydney:

3 Skyline Place
Frenchs Forest, NSW 2086

Miele Experience Centre and Office Brisbane:

Tenancy 4C, 63 Skyring Terrace
Newstead, QLD 4006

Miele Experience Centre and Office Perth:

83-85 Sir Donald Bradman Drive
Hilton, SA 5033

Miele Experience Centre and Office Adelaide:

Miele Australia Pty. Ltd. Miele New Zealand Limited

Level 2, 10 College Hill
Freemans Bay, Auckland 1011

Miele Experience Centre
Auckland:

8 College Hill
Freemans Bay, Auckland 1011

Miele Global Headquarters
Germany
Miele & Cie. KG

Carl-Miele-Straße 29
33332 Gütersloh
Federal Republic of Germany

Head Office:

IRD 98 463 631

ACN 005 635 398
ABN 96 005 635 398

Miele Experience Centre Gold Coast:

131 Ferry Road
Southport, QLD 4215

Miele Experience Centre
Wellington:

183 Featherston Street
Wellington 6011

0800 464 353 (0800 4 MIELE)

www.miele.co.nz

205-207 Stirling Highway
Claremont, WA 6010

1300 464 353 (1300 4 MIELE)

www.miele.com.au

CS7101-1

M.-Nr. 11 503 510 / 00en-AU, NZ
