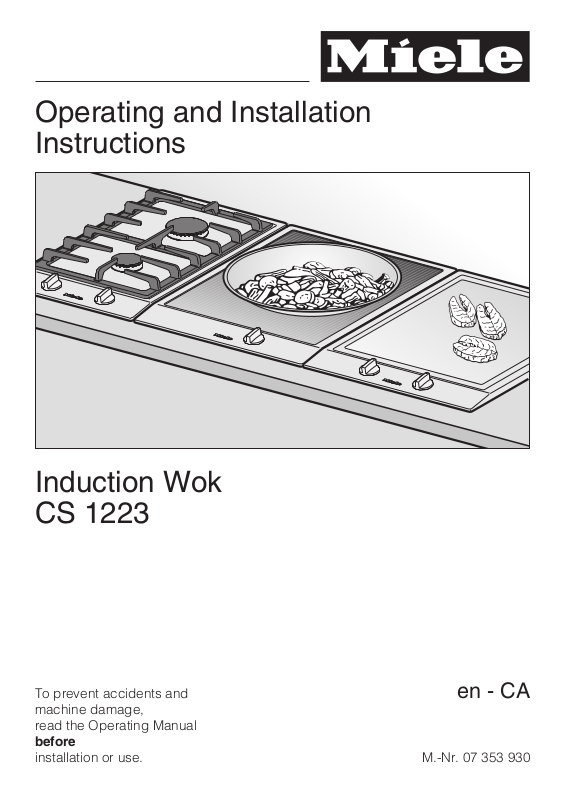

Operating and Installation
Instructions
Induction Wok
CS 1223
To prevent accidents and
machine damage,
read the Operating Manual
before
installation or use.
en-CA
M.-Nr. 07 353 930
Contents
IMPORTANT SAFETY INSTRUCTIONS.................................3
Description of the unit..............................................8
Before using for the first time........................................9
Induction........................................................10
How it works......................................................10
Noises ..........................................................11
Cookware........................................................11
Use ............................................................12
Turning the combiset On/Off .........................................12
Residual heat indicator .............................................12
Settings .........................................................13
Auto-heat ........................................................13
Booster function...................................................14
Safety features ...................................................15
Child Safety Lock..................................................15
Safety cut-out.....................................................15
Overheating protection .............................................16
Cleaning and care ................................................17
Frequently asked questions .......................................19
Technical Service.................................................21
SAFETY INSTRUCTIONS FOR INSTALLATION.........................24
Installation ......................................................27
Installation dimensions .............................................28
Cutout..........................................................29
Installation of multiple appliances .....................................30
Attach the spring clips and support bars ...............................33
Installing the appliance .............................................35
Sealing ..........................................................36
Tiled surfaces ....................................................36
Electrical connection..............................................37
Help protect our environment.......................................38
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING- When using your
appliance follow basic
precautions, including the
following:
Read all instructions before
installation or use to prevent
injury and appliance damage.
Correct usage
Only use the combiset for residential
~
cooking, and for the purposes
described in this manual.
Other uses are not permitted and can
be dangerous. The manufacturer will
not be held liable for damage caused
by unauthorized use or improper
operation of any kind.
This appliance conforms to all
uniform safety codes and
regulations. The manufacturer
cannot be held responsible for
damage or injury caused by
improper use of this appliance.
Keep these operating instructions
in a safe place and pass them on
to any future user.
SAVE THESE INSTRUCTIONS
Persons who lack physical, sensory
~
or mental abilities, or experience with
the appliance should not use it without
supervision or instruction by a
responsible person.
3
IMPORTANT SAFETY INSTRUCTIONS
Children
Activate the Child Safety Lock so
~
that the combiset cannot be turned on
inadvertently.
Children should not be left
~
unattended in an area where the
appliance is in use. Never allow
children to sit or stand on any part of
the appliance.
Caution: Do not store items of interest
to children in cabinets above the
appliance. Children climbing on the
appliance to reach these items could
be injured.
The appliance is hot during use and
~
remains so for some time after being
switched off. Keep children away from
the appliance.
Ensure that any packing material, is
~
disposed of safely and kept out of the
reach of children. Danger of
suffocation!
Keep all pots and pans out of the
~
reach of children. Danger of burning or
scalding.
Technical Safety
Installation, repair and maintenance
~
work should be performed by a Miele
authorized service technician. Work by
unqualified persons could be
dangerous and may void the warranty.
Before installing the combiset,
~
check for externally visible damage.
Do not operate a damaged appliance.
To guarantee the electrical safety of
~
this appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician. The manufacturer
will not be held responsible for
damages caused by the lack, or
inadequacy, of an effective grounding
system.
Before installation, make sure that
~
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
appliance damage. Consult a qualified
electrician if in doubt.
Do not use an extension cord to
~
connect this appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance.
Do not use the appliance until it has
~
been properly installed in the
countertop.
4
IMPORTANT SAFETY INSTRUCTIONS
Install the appliance so that the
~
power cord does not come into contact
with any portion of the cooktop which
may become hot during use.
Before servicing, disconnect the
~
appliance from the main power supply.
Do not operate any appliance with a
~
damaged cord or plug, or if the
appliance has been damaged in any
manner. Contact Miele’s Technical Ser
vice Department.
Under no circumstances open the
~
outer casing of the appliance.
The combiset must not be installed
~
outdoors.
While the appliance is under
~
warranty repairs should only be
performed by an authorized service
technician. Otherwise the warranty is
void.
In the event of any damage to the
~
appliance, it must be turned off immediately and disconnected from the main
power supply. Contact Miele’s
Technical Service Department.
Do not use the appliance until it has
been repaired. Ensure power is not
supplied to the appliance until repair
work is completed.
Do not cook on a broken combiset.
~
Any breakages or cracks in the ceramic
surface of the appliance are defects
and must be treated as such. If the
combiset should break, cleaning
solutions and spills may penetrate the
broken combiset and create a risk of
electric shock. Do not use the
appliance until it has been repaired.
-
Defective components should be
~
replaced by Miele original spare parts
only. Only with these parts can the
manufacturer guarantee the safety of
the appliance.
5
IMPORTANT SAFETY INSTRUCTIONS
Safety
Individuals with a pacemaker or
~
similar medical device:
Please note that an electromagnetic
field develops when the combiset is
turned on. It is not likely that this will
affect the pacemaker or similar device.
If in doubt contact the manufacturer of
the device or your doctor.
Keep magnetized items, e.g. credit
~
cards, disks, etc. away from the
combiset while in operation. Damage
may result.
Do not touch the combiset or the
~
surrounding areas during or immediately after use. The combiset may be hot
even though it is dark in color. Wait until
the residual heat indicators go out.
Protect your hands with oven mitts
~
or potholders when using the
appliance. Use only dry, heat resistant
potholders. Moist or damp potholders
used on hot surfaces can result in
steam burns. Do not let the potholder
touch the hot heating elements. Do not
use towels or other bulky items near the
appliance.
Do not heat unopened containers.
~
Built-up pressure may cause the
container to burst and result in injury.
Do not flambé under an exhaust
~
hood. Flames could be drawn up into
the hood by the suction and the grease
filters may ignite.
Only use the wok supplied with the
~
appliance. See "Use - Cookware".
Risk of fire.
Do not store items on the appliance
~
when not in use. Items could melt or
catch fire from residual heat or if the
appliance is turned on inadvertently.
Always switch the cooking zone(s) off
after use.
Flammable materials should not be
~
stored on or near the appliance.
If there is a drawer directly
~
underneath the appliance, ensure that
there is sufficient space between the
drawer, its contents and the underside
of the appliance to ensure sufficient
ventilation.
Metallic items kept in a drawer
~
under the combiset can become hot
when the appliance is used for a longer
period of time. Use caution.
Never cover the appliance with a
~
cloth. A fire may result.
Be aware of loose fitting or hanging
~
garments when operating the
appliance, they may present a fire
hazard.
Never leave a combiset unattended
~
at high settings or when cooking with oil
or fat. Overheated oil could ignite.
Always heat oil slowly, monitoring it as it
heats.
Never heat an empty pan unless the
~
pan manufacturer states that you can
do so.
Do not use water on grease fires.
~
Smother or use a dry chemical or
foam-type extinguisher on any fire or
flame.
6
IMPORTANT SAFETY INSTRUCTIONS
Make certain that the power cords of
~
small appliances do not come in
contact with the appliance. The
insulation of the cable could become
damaged. Danger of electric shock!
Be careful not to drop anything on
~
the ceramic surface of the combiset.
Even lightweight objects may cause
damage.
Pot and pan handles should be
~
turned inward and not extend over the
countertop to reduce the risk of burns,
ignition of flammable materials, and
spills.
Do not use pots or pans with
~
pronounced edges or ridges on the
ceramic combiset. These could scratch
the combiset permanently. See
"Cookware" for more information. Grains
of salt and sand can cause scratches.
Make sure that the bases of any pots
and pans are clean, free of any fat or
oils, and are dry.
To prevent burns and breathing
~
difficulty, allow the combiset to cool
before cleaning. Some cleaners may
produce toxic fumes if applied to a hot
surface.
Do not use a steam cleaner to clean
~
this appliance. Steam could penetrate
electrical components and cause a
short circuit.
Do not allow solid or liquid sugar,
~
pieces of plastic or foil to fall on the
burners when they are hot. If these
residues are allowed to cool on the
ceramic surface pitting or even
cracking may occur.
Any spills should be removed as
~
quickly as possible to prevent them
from burning on and becoming difficult
to remove.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these
Important Safety instructions.
SAVE THESE INSTRUCTIONS
AND REVIEW THEM
PERIODICALLY
Keep the combiset clean. Salt,
~
sugar, and grit can cause scratches.
When wiping spills on a hot
~
combiset with a wet sponge or cloth, be
careful to avoid steam burns.
Do not let flammable materials,
~
i.e. cooking grease, accumulate on the
appliance.
7
Description of the unit
a Wok burner C113/4" (30 cm)
Rating in watts: 2400 W
with Booster: 3200 W
b Wok pan (included)
c Control knob
d Indicators
Indicators
f On/Off indicator
g Booster indicator
h "Residual Heat" indicator
8
e Display
ß No wok on burner
A Auto-heat
F Fault (see "Frequently
asked questions")
C / 0 Safety cut-out feature
(see "Safety features")
I Booster "On"
H Overheating protection
(see "Safety features")
L Child safety lock
(see "Safety features")
Before using for the first time
Clean the combiset
Before using for the first time, clean
^
the appliance with a damp cloth and
dry with a soft cloth.
Do not use liquid dish soap to clean
the combiset, this may cause
permanent blue discolorations.
Heat the appliance
When the combiset is first connected to
the power supply, and after a power
failure, all indicators in the display will
light up for approx. 1 second. The
combiset can be used as normal once
the indicators go out.
Metal components of the appliance
have a protective coating which may
give off a slight odor the first time
the appliance is heated.
The smell will dissipate after a short
time and does not indicate a faulty
connection or appliance defect.
9
Induction
How it works
An induction coil is located under the
burner. When the burner is switched
on, this coil creates a magnetic field
which impacts directly on the base of
the pan and heats it up. The burner
itself is heated indirectly by the heat
given off by the pan.
This appliance will only work properly
when the wok pan (supplied) is used
(see "Cookware").
The burner will not work:
if it is switched on without the wok
–
pan in place.
– if the wok pan is taken off the burner
when it is switched on.
If this happens, ß will flash in the
display.
If the wok pan is placed on the burner
within 3 minutes, the ß will go out and
you can continue cooking as normal.
Be careful not to place cutlery or
other metal objects on the combiset.
When the appliance is switched on,
or when there is residual heat
present, there is the risk of metal
objects heating up quickly.
Beware of burns.
Depending on the material, other
objects left on the combiset could
also melt or catch fire.
Turn the burner off after use.
If the wok pan is not placed on the
burner, the burner and the combiset will
switch off automatically after 3 minutes.
0 will flash alternately with C in the
display.
To use the burner again as normal, first
turn the control knob to "0".
10
Induction
Noises
The following noises can occur when
the induction wok is in use.
Higher power settings may cause a
–
buzz. This will decrease or cease
altogether when the power setting is
reduced.
You may hear a clicking sound from
–
the electronic switches, especially on
lower settings.
The appliance has a cooling fan to help
extend the life of the electronics. When
the combiset is being used at high
levels for a long period of time, this will
come on and you will hear a whirring
sound. The fan may continue to run
after the appliance has been switched
off.
Cookware
Only the wok pan supplied should be
used with this appliance. The wok pan
is designed specifically for this
induction wok.
There is a danger of fat or food
,
overheating and burning if other
woks are used.
11
Use
Turning the combiset On/Off
Do not leave the appliance
,
unattended while in use.
To turn the combiset on turn the control
knob clockwise a to the desired power
level.
To turn the combiset off turn the control
knob counterclockwise b to "0".
The knob must only be turned
clockwise to turn the burner on and
counterclockwise to turn the burner
off.
Residual heat indicator
The residual heat indicator will go out
once the combiset has cooled to a safe
temperature.
As long as the residual heat
indicator is lit do not touch or place
any heat sensitive items on the
burner. Danger of burns, and fire
hazard.
When the combiset is turned on the
On/Off indicator lights up. Once the
combiset has reached a factory set
temperature the residual heat indicator
will light.
When the combiset is turned off the
On/Off indicator will go out.
12
Use
Settings
Use for Power
level
Keeping food warm,
Melting chocolate, etc.
Warming food 3 - 6
Stir-frying 7- 9
1-2
Auto-heat
Continued
power level
1 0:15
2 0:15
3 0:25
4 0:50
5 2:00
6 5:50
7 2:50
8 2:50
9-
Heat-up time
(approx.)
min : sec
When Auto-heat has been activated,
the burner switches on automatically at
the highest setting and then switches to
the continued power level which was
selected. The "heat-up" time depends
on which continued power level has
been chosen (see table).
Taking the wok off the burner while
Auto-heat is in operation interrupts the
function. It will resume if the wok is
placed back on the burner within
3 minutes.
To activate Auto-heat
^ Turn the control knob
counterclockwise as far as it will go
and hold until an A appears.
^ Turn the control knob clockwise to
the desired continued power level.
Once Auto-heat has been activated the
continued power level must be set
within 10 seconds. After this time the
level cannot be changed.
Changing the continued power level
after 10 seconds will deactivate the
Auto-heat function.
During the Auto-heat phase an A will
show in the display.
13
Use
Booster function
The induction wok is equipped with a
booster function to temporarily increase
the power level. When the Booster is
activated the burner will operate at
power level 9 with an extra boost of
power for 10 minutes.
Taking the wok pan off the burner while
the booster is in operation interrupts the
booster function. It will resume if the
pan is placed back on the burner within
3 minutes.
If the wok reaches the maximum
temperature before the 10 minutes
has elapsed, the booster function
will switch off and the appliance will
resume at power level 9.
This function only works with the
supplied wok, which ensures that
the appliance will switch off if it gets
too hot.
Activating the booster function
Turn the control knob past power
^
level 9 to BI, then back to 9.
I appears in the display and the B
indicator lights up.
After 10 minutes the burner will
automatically switch back to power
level 9, the I symbol and the B indicator
will go out.
Deactivating the booster function
The booster function can be turned off
early if desired.
^ Turn the control knob past power
level 9 to BI; or simply reduce the
power level.
14
Safety features
Child Safety Lock
Keep children away from the
combiset for their own safety.
The combiset has a Child Safety Lock
to prevent children from turning on the
burners.
To activate the Child Safety Lock:
Turn the control knob
^
counterclockwise as far as it will go,
and hold until L appears in the
display.
If the control knob is touched after the
lock is activated an L will appear in the
display for 3 seconds.
To deactivate the Child Safety Lock:
^ Turn the control knob
counterclockwise as far as it will go,
and hold until the L goes out and 0
appears briefly in the display.
Safety cut-out
The combiset has a safety cut-out
feature in case it is not turned off after
use.
If the burner is heated for an unusually
long period of time (see table), and the
power level settings are not adjusted,
the combiset will turn itself off
automatically and the residual heat
indicator will light.
C and 0 will flash alternately in the
burner display.
To use the combiset again, first turn
^
the control knob to "0".
The On/Off indicator and the display
will go out.
Power level Maximum
operating hours
110
25
35
44
53
62
72
82
91
15
Safety features
Overheating protection
The induction coils are fitted with an
overheating protection feature. This
prevents the induction coils from
overheating by:
If the booster function is being used,
–
it will be switched off.
If the temperature continues to rise
–
after the booster function is switched
off, the power level will be reduced.
If the temperature still continues to
–
rise after the power level has been
reduced, the appliance will switch off
and an H will appear in the display.
^ Turn the control knob to "0".
Once the H has gone out the combiset
can be used again as normal.
If the control knob is not turned back to
"0", C and 0 will flash in the display once
the burner has cooled. To use the
combiset again, first turn the control
knob to "0".
Overheating can be caused by:
using the appliance for too long at
–
the maximum power level.
there being insufficient ventilation to
–
the appliance.
If a drawer is installed directly under
the combiset, sufficient space must be
kept between the drawer and its
contents and the underside of the
appliance in order to ensure sufficient
ventilation of the appliance.
If the overheating protection feature
triggers again, contact Miele Technical
Service.
16
Cleaning and care
Do not use a steam cleaner to clean
this appliance. Steam could
penetrate electrical components and
cause a short circuit. Pressurized
steam could cause permanent
damage to the surface and to
components for which the
manufacturer cannot accept
responsibility.
Do not use any sharp pointed
objects which could damage the
seal between the ceramic surface,
the surrounding frame and the
countertop.
Never use abrasive cleaners,
caustic (oven) cleaners, dishwasher
detergent, scouring pads, steel wool
or hard brushes. They will damage
the surface.
The ceramic surface can be cleaned
using a cleaner for ceramic
surfaces. Follow the manufacturer’s
instructions.
Clean any spills immediately before
they become difficult to remove.
Clean the appliance regularly,
preferably after each use. Allow the
appliance to cool before cleaning.
Ceramic surfaces
Wipe off any soiling using a damp
^
cloth. Stubborn soiling is best
removed with a shielded scraper
blade.
^ Apply a ceramic cleaner (available
from Miele) using a soft cloth or
paper towel.
^ To remove any limescale deposits or
metallic residue apply a ceramic
cleanser using a soft cloth or use a
shielded scraper blade if necessary.
^ After cleaning wipe the ceramic
surface with a damp cloth and dry.
A cleaner with a special additive to
prevent water marks and smears on the
ceramic surface may be used.
Make sure that no cleaner residue
remains on the ceramic surface by
carefully wiping the combiset with a
damp cloth. They may damage the
combiset or produce toxic fumes
when heated.
Be sure that pot and pan bases are
clean and dry.
After cleaning dry the ceramic
surface with a soft cloth to prevent a
build up of limescale deposits.
Any melted solids like sugar, plastic or
aluminum foil should be removed as
soon as possible, while the burner is
still warm. If they are allowed to harden
the combiset may become pitted.
^
Turn the burner off.
^
Using a shielded scraper blade,
scrape the melted item immediately
off the burner while it is still hot.
Use caution: Danger of burns!
^
Allow the combiset to cool and clean
as previously described.
17
Cleaning and care
Stainless steel
Clean stainless steel surfaces with
warm water and liquid dish soap
applied with a non-abrasive sponge
and then wipe dry with a soft cloth.
Soak baked or hardened spills first to
loosen them.
Stainless steel surfaces can be cleaned
using a non-abrasive stainless steel
cleaner (available from Miele).
To help prevent resoiling, a conditioner
for stainless steel can also be used.
Apply sparingly with even pressure.
Do not use stainless steel cleaner on
or around the printing, it may rub
off. Use only a soft sponge with
some dish liquid and warm water to
clean this area.
18
Frequently asked questions
Repairs should only be carried out by an authorized technician in
,
accordance with local and national safety regulations. Unauthorized repairs
could cause injury or appliance damage. The manufacturer cannot be held
responsible for unauthorized work.
What if the appliance does not heat up after it is turned on?
Possible fault Solution
The Child safety lock is activated. See "Child safety lock".
The Overheating protection feature has
activated.
The main fuse has blown. Check the main fuse.
If none of the above is the case, turn the control to "0", and disconnect the
appliance from the electrical supply for 1 minute.
Reconnect the power and turn the appliance on. If it still does not heat, contact
Miele Technical Service.
What if ß appears in the display?
Possible fault Solution
The burner is turned but the wok is not
placed on it.
What if F and 01 flash alternately in the display?
Possible fault Solution
The control knob is either damaged or
stuck.
What if F and a number flash alternately in the display?
Contact Miele Technical Service.
See "Overheating protection".
Remove the fuse or "trip" the circuit
breaker.
Turn the burner off and place the wok
on the burner.
If this is not the case contact Miele
Technical Service.
19
Frequently asked questions
What if the combiset turns itself off automatically?
Possible fault Solution
Either the "Safety cut-out" feature or the
"Overheating protection" feature has
been activated.
What if one of the following errors occurs:
- The booster function turns off automatically ahead of time.
- C and 0 flash alternately in the display.
Possible fault Solution
The overheating protection feature has
been activated.
The food does not cook when using auto-heat.
Possible fault Solution
Large amounts of food are being
cooked.
The cooling fan continues to run after the combiset was turned off.
Possible fault Solution
This is not a fault. The fan continues to run until the
See "Overheating protection" or "Safety
cut-out".
See "Overheating protection".
Select a higher continued power level
or begin cooking at the highest level
and turn the power back by hand.
appliance has cooled sufficiently. It will
turn off automatically.
20
In the event of a fault which you cannot
easily fix yourself, please contact the
Miele Technical Service Department at
the address on the back of this booklet.
When contacting Technical Service
please quote the serial number and
model of the appliance. This
information is visible on the silver data
plate supplied with the appliance.
Technical Service
21
22
Installation Instructions
IMPORTANT: SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE
To prevent accidents
and machine damage
read these instructions
before
installation or use.
SAFETY INSTRUCTIONS FOR INSTALLATION
Note to the installer:
Please leave this instruction book
with the consumer for the local
electrical inspector’s use.
The minimum distances given in
these Installation Instructions must
be observed in order to ensure safe
operation. Failure to do so increases
the risk of fire.
The cabinetry and venting hood
should be installed first to prevent
damage to the appliance.
The countertop must be bonded
~
with heat resistant (212 °F/100 °C)
adhesive to prevent distortion or
dissolving.
Any back splashes must be
heat-resistant as well.
The appliance must not be installed
~
over a dishwasher, washer, dryer,
refrigerator or freezer. Heat radiated by
the appliance may damage them.
To eliminate the risk of burns or fire
~
by reaching over heated surfaces
cabinet storage space above the
appliance should be avoided. If cabinet
storage is necessary, the risk can be
reduced by installing a venting hood to
project horizontally a minimum of 5"
(127 mm) beyond the bottom of the
cabinets.
This appliance has not been
~
designed for maritime use or for use in
mobile installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
installation in these applications. Please
contact the Miele Technical Service
Department with specific requirements.
You must ensure the power cord for
~
the appliance will not be subject to any
mechanical strain after installation.
If a protective base is installed
~
beneath the appliance, a minimum
distance of 1
top of the protective base and the
bottom of the appliance must be
maintained.
The appliance must not be
~
permanently sealed into the countertop
when installed. The sealing strip under
the edge of the appliance provides a
sufficient seal for the countertop. See
"Sealing".
Keep this instruction book in a safe
place for reference and pass it on to
any future user.
9
/16" (40 mm) between the
24
SAFETY INSTRUCTIONS FOR INSTALLATION
Safety distances above the
appliance
The minimum safety distance given by
the hood manufacturer must be
maintained between the combiset and
the hood above it. See the installation
instructions of the hood for these safety
measurements.
If the hood manufacturers instructions
are not available or if flammable objects
are installed over the combiset (e.g.
cabinets, utensil rail, etc.), a minimum
safety distance of 30" (760 mm) must
be maintained.
If there is more than one appliance
beneath a hood (e.g. wok burner
and electric combiset), and they
have different minimum safety
distances always observe the
greater distance.
25
SAFETY INSTRUCTIONS FOR INSTALLATION
Safety distances to the sides
of the appliance
The appliance should only be installed
as shown in the illustrations, while
maintaining the required safety
distances shown. Do not install the
appliance between two tall cabinets,
this is a fire hazard.
A distance of at least 2" (50 mm) must
be kept between the countertop cut-out
and the rear wall because of the high
temperatures radiated.
The minimum distance a between the
worktop cut-out and a wall or tall unit to
the right or left of it is:
2" (50 mm) for CS 1112
CS 1122
CS 1212
CS 1221
CS 1223
CS 1326
CS 1411
6" (150 mm) for CS 1312
CS 1322
CS 1421
recommended
2"
(50mm)
not recommended
2 "
(50 mm)
1
10" (250 mm) for CS 1011
CS 1012
CS 1028
26
not permitted
Installation
Safety distance when installing the appliance near a wall with trim or a back
splash
A minimum distance of 2" (50 mm) between the trim or back splash and the
countertop cut-out if required.
This distance is only necessary if these items are made of combustible materials
e.g. wood. If the trim or back splash is made of a non-combustible material, the
required safety distance can be reduced by the thickness of the wall covering
material.
a Wall frame
b Sheet rock or wall board
c Trim or back splash
d Countertop
e Countertop cut-out
f 2" (50 mm) minimum clearance
27
Installation
Installation dimensions
a Spring clips
b Appliance front
c Installation height
d Power supply box with connection cableL=78
28
3
/4" (2000 mm)
Cut out
Make the worktop cut-out for one or
^
more appliances as applicable.
Remember to maintain a minimum
safety distance from the back wall,
as well as from any tall unit or side
wall to the right or left of the
appliance(s).
See also "SAFETY INSTRUCTIONS
FOR INSTALLATION".
Seal the cut surfaces with a suitable
^
sealant to avoid swelling caused by
moisture.
The materials used must be heat
resistant.
Installation
If during installation the seal around
the frame does not sit flush with the
countertop in the corners, the corner
radius, maximum
be carefully filed down to fit.
3
/16" (4 mm), can
29
Installation
Installation of multiple
appliances
When installing more than one combiset appliance, a support bar b must be
installed between the appliances.
Countertop cut-out
two appliances
19
(500 m
D
b
A
For the installation of two appliances
the width of the countertop cut-out D is
the sum of A and C.
A, B and C = appliance widths
5
11
/16", 15" or 2211/16"
(288 mm, 380 mm or 576 mm)
minus
overhang
5
/16"(8mm)to allow for the
+
-
1
11/16"
m
)
C
Countertop cut-out
three appliances
D
19
(500 mm)
11/16"
+
-
1
b
C
B
A
For the installation of three appliances
the width of the countertop cut-out D is
the sum of A and B and C.
If more than three appliances are
being installed, you will need to add,
A, B or C for each additional
appliance.
D = width of the countertop cut-out
30
Installation
Sample calculations for a countertop cut-out for three appliances
A
appliance width
minus
5
/16"(8mm)
11"
(280 mm)
11"
(280 mm)
11"
(280 mm)
145/8"
(372 mm)
145/8"
(372 mm)
145/8"
(372 mm)
223/8"
(568 mm)
223/8"
(568 mm)
223/8"
(568 mm)
B
appliance widthCappliance width
minus5/16"(8mm)
115/16"
(288 mm)
15"
(380 mm)
2211/16"
(576 mm)
115/16"
(288 mm)
15"
(380 mm)
2211/16"
(576 mm)
115/16"
(288 mm)
15"
(380 mm)
-22
11"
(280 mm)
145/8"
(372 mm)
223/8"
(568 mm)
11"
(280 mm)
145/8"
(372 mm)
223/
8'
(568 mm)
11"
(280 mm)
145/8"
(372 mm)
3
/8"
(568 mm)
D
Countertop
cut-out
333/8"
(848 mm)
405/8"
(1032 mm)
561/16"
(1424 mm)
37"
(940 mm)
441/4"
(1124 mm)
11
/16"
59
(1516 mm)
443/4"
(1136 mm)
52"
(1320 mm)
443/4"
(1136 mm)
31
Installation
3/16"
1"-1
(25-30mm)
(50mm)2"(50mm)
a
2"
3/16"
1"-1
D
2"
(50mm)
(25-30mm)
2"
(50mm)
a
19
(500 m
11/16"
+
-
1
m
)
a
b
c
a
c
a
a
11" / 14 /
A
22
5/8"
(280/372/568mm)
3/8"
5/16"
11 /15"/
(288/380/576mm)
B
11/16"
22
C
22
5/8"
11"/14 /
(280/372/568mm)
a Spring clips
b Support bars
c Space between support bar and countertop
An additional support bar is required for each additional appliance. The position
for attachment of an additional spacing strip depends on the width of the
appliance B.
3/8"
32
Attach the spring clips and
support bars
Installation
Wood or solid surface countertops
3/16"
1"-1
(25-30mm)
a
Granite countertop
3/16"
1"-1
(25-30mm)
c
a
b
^
Place the supplied spring clips a
and the support bars b at the
marked positions as shown above,
by laying them on the upper edge of
the cut-out and then securing them
with the
(supplied).
1
/8" x 1" (3.5 x 25 mm) screws
c
b
^
Position and attach the spring clips
a and support bars b with strong,
double-sided tape c.
The screws are not needed for granite
countertops.
33
Installation
Coat the edges of the spring clips a,
^
d
a
b
^
and the space d between the
strips b and the countertop with
silicone (supplied).
34
Installing the appliance
Feed the power cord down through
^
the cut-out.
Then place the front side of the
^
appliance in the countertop cut-out.
Then with a hand on each side of the
^
appliance press down evenly on the
edges until it clicks into position.
When doing so make sure that the
appliance seal sits tightly on the
countertop to ensure it is sealed
correctly. Do not permanently seal
into the countertop.
^ Connect the appliance to the main
power supply.
^ Turn the appliance on and check the
function.
The appliance can be lifted out
using a special tool.
The appliance can also be pushed
up and out from underneath. Note
that the rear will need to be pushed
out first.
Installation
35
Installation
Sealing
The appliance must not be permanently
sealed into the countertop when
installed. The sealing strip under the
edge of the appliance provides a
sufficient seal for the countertop.
If the appliance is sealed into
position, the countertop or appliance
could be damaged if it needs to be
removed for maintenance or service.
Tiled surfaces
The grouting a and shaded area under
the appliance frame must be flat and
even, so that the frame will lie evenly
and the sealing strip under the edge of
the upper part of the appliance can
provide an adequate seal against the
countertop.
36
CAUTION: Before installation or
,
servicing, disconnect the power
supply by either removing the fuse,
shutting off the main power supply
or manually "tripping" the circuit
breaker.
Installation work and repairs should
only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and service by unqualified
persons could be dangerous and
the manufacturer will not be held
responsible.
Before connecting the appliance to
the power supply, make sure that
the voltage and frequency listed on
the data plate correspond with the
household electrical supply. This
data must correspond to prevent
appliance damage. Consult an
electrician if in doubt.
Electrical connection
Power supply
Be sure your electrical supply
^
matches the data plate.
The combiset is equipped with a
flexible metal conduit encasing 3 wires
ready for connection to a grounded
power supply.
A dedicated line and junction box
should be used to connect the
combiset to a 15 A circuit.
Black wire: connect to L1 (hot)
Red wire: connect to L2 (hot)
Green wire: connect to GND (ground)
240 V, 60 Hz, 15 A fuse rating.
Be sure the power outlet is accessible
after installation.
For further information, see the wiring
diagram provided with the appliance.
, WARNING:
THIS APPLIANCE MUST BE
GROUNDED!
Only operate the combiset after it
has been installed into the
countertop.
Installer:
Please leave these instructions with
the consumer.
37
Help protect our environment
Disposal of packing materials
The cardboard box and packing
materials are biodegradable and
recyclable. Please recycle.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of an old appliance
Old appliances contain materials that
can be recycled. Please contact your
local recycling authority about the
possibility of recycling these materials.
Before discarding an old appliance
disconnect it from the electrical supply
and cut off the power cord to prevent it
from becoming a hazard.
38
39
