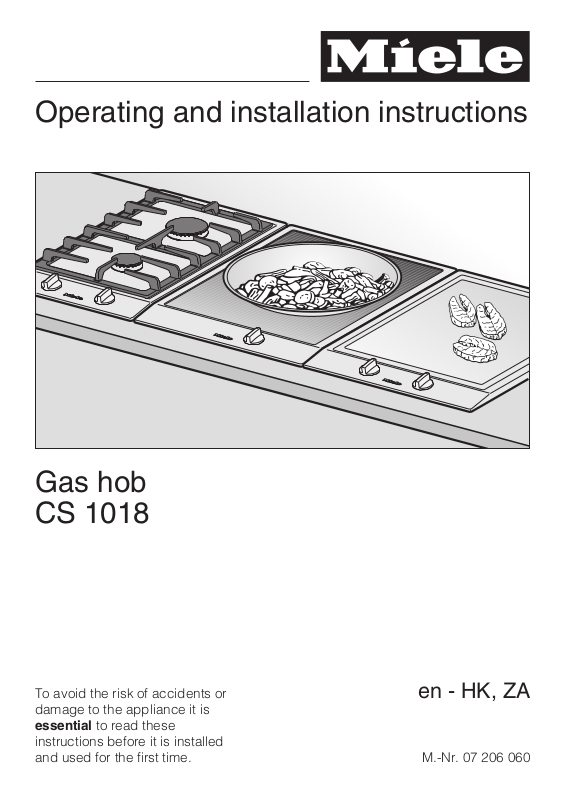

Operating and installation instructions
Gas hob
CS 1018
To avoid the risk of accidents or
damage to the appliance it is
essential to read these
instructions before it is installed
and used for the first time.
en - HK, ZA
M.-Nr. 07 206 060
G This appliance can be used in countries other than those specified on the
appliance. It is, however, set up for connection to the gas and electricity
supplies in the countries specified. For use in other countries please contact
the Miele spare parts or customer service department in your country.
D Das Gerät ist auch für den Gebrauch in anderen als auf dem Gerät
angegebenen Bestimmungsländer zugelassen. Die landesspezifische
Ausführung und die Anschlussart des Gerätes haben wesentlichen Einfluss auf
den einwandfreien und sicheren Betrieb. Für den Betrieb in einem anderen als
auf dem Gerät angegebenen Bestimmungsland wenden Sie sich bitte an den
für das Land zuständigen Kundendienst.
E El aparato está autorizado para el uso en países diferentes a los países de
destino indicados. La ejecución específica para cada país y el tipo de
conexión del aparato influyen de forma decisiva en el funcionamiento correcto
y seguro. Para el funcionamiento en un país diferente al país de destino
indicado en el aparato, consulte al Servicio Post-venta autorizado para el país.
F Cet appareil est également homologué dans des pays différents de ceux
mentionnés sur l'appareil. Pour que l'appareil fonctionne parfaitement et en
toute sécurité, il est important de disposer de l'exécution spécifique au pays et
du type de raccordement approprié. Pour le fonctionnement dans un pays
autre que celui spécifié sur l'appareil, veuillez vous adresser au service
après-vente du pays où sera installé l'appareil.
I L'apparecchio può essere usato anche in paesi diversi da quello indicato
sull'apparecchio stesso. Tuttavia, le varianti specifiche di un determinato paese
e il tipo di allacciamento alla rete hanno un'importanza fondamentale per il suo
sicuro e corretto funzionamento. Per questo se si vuole usare l'apparecchio in
un paese diverso rivolgersi al servizio di assistenza tecnica Miele del paese in
cui si intende usarlo.
M Het apparaat is ook toegelaten voor gebruik in andere landen dan de landen
die op het apparaat vermeld staan. De specifieke uitvoering en de aansluitwijze
zijn van groot belang voor het goed en veilig functioneren. Neem daarom
contact op met de Technische Dienst van de fabrikant in uw land als u het
apparaat in een land wilt gebruiken dat niet op het apparaat vermeld staat.
2
Gas-heated appliances
Safety precautions to take if you smell gas
ß Turn off the gas emergency control valve immediately.
This is usually located near the gas meter.
ß Eliminate all sources of ignition in a safe manner.
Do not smoke, light cigarette lighters or matches.
ß Do not operate electrical lights or switches, i.e. do not switch them "On" or "Off".
ß Open all doors and windows to ventilate the area.
ß If the smell of gas persists, evacuate the building.
3
Inhalt
Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Front view.........................................................6
Burner ...........................................................7
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Switching on, adjusting the flame and switching off .......................22
Suitable pans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Energy saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
General notes ....................................................28
Stainless steel surfaces .............................................29
Pan supports, control knobs .........................................29
Burner ..........................................................30
Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Safety instructions for installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Appliance and building-in dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Preparing the worktop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Installation of several appliances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
4
Inhalt
Fixing the spring clamps and spacer bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Installing / removing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
General installation tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Gas connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
LPG Gas Connection for HK .........................................49
LPG Gas Connection for SG .........................................49
Conversion to another type of gas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Jet table .........................................................52
Changing the jets..................................................53
To change the main jet ...........................................53
To check the first intake of air......................................55
To change the small jets..........................................56
After changing the jets..............................................57
After sales service, data plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
5
Guide to the appliance
Front view
a Wok burner
b Pan support
c Control knob
6
Burner
g Inner burner cap
h Outer burner cap
i Burner ring
Guide to the appliance
j Burner head
k Ignition safety device
l Ignitor
m Burner base
Position of burner components
The burner will only function properly when the components are correctly
positioned:
Notch a on the burner cap must sit in groove b of the burner head.
Notch c on the burner head must sit in groove d on the burner base.
When the components are in the correct position, they are steady and cannot
be twisted from side to side.
7
Guide to the appliance
Accessories supplied
The accessories supplied with your CombiSet appliance as
well as a range of optional ones are available to order (see
"Optional accessories").
Wok ring
The wok ring supplied with your appliance can be used in
instances where extra stability is required. It is particularly
suitable for woks with a rounded base.
8
Warning and Safety instructions
This appliance complies with all current local and
national safety requirements. Improper use can,
however, present a risk of both personal injury and
material damage.
To avoid the risk of accidents and damage to the
appliance, please read these instructions carefully
before installation and before using it for the first time.
They contain important notes on installation, safety,
use and maintenance.
Keep these instructions in a safe place and ensure
that new users are familiar with the content. Pass
them on to any future owner.
9
Warning and Safety instructions
Correct application
This hob is not designed for commercial use. It is
~
intended for use in domestic households and in similar
working and residential environments such as:
Shops
–
Offices and showrooms
–
and by residents in establishments such as:
– Hostels and guest houses.
The hob is intended for domestic use only to cook
~
food and keep it warm.
Any other use is not supported by the manufacturer
and could be dangerous. Miele cannot be held liable
for damage resulting from incorrect or improper use or
operation.
The hob is not intended for outdoor use.
~
The hob can only be used by people with reduced
~
physical, sensory or mental capabilities or lack of
experience and knowledge if they are supervised
whilst using it, or have been shown how to use it in a
safe way and understand the hazards involved.
10
Warning and Safety instructions
Safety with children
The hob is not a toy! To prevent the risk of injury, do
~
not let children play with the appliance or its controls.
Children under 8 years of age must be kept away
~
from the hob unless they are constantly supervised.
Children 8 years and older may use the hob only if
~
they have been shown how to use it in a safe way and
understand the hazards involved.
The hob gets hot when in use and remains hot for
~
quite a while after being switched off. Keep children
well away from the appliance until it has cooled down
and there is no danger of burning.
Do not store anything which might arouse a child's
~
interest in storage areas above or next to the hob.
Otherwise they could be tempted into climbing onto the
appliance with the risk of burning themselves.
Keep all pans out of reach of children. Turn pan
~
handles inwards away from the edge of the hob.
Danger of burning or scalding.
Packaging, e.g. cling film, polystyrene and plastic
~
wrappings, must be kept out of the reach of babies
and young children. Danger of suffocation. Dispose of
or recycle all packaging safely as soon as possible.
11
Warning and Safety instructions
Technical safety
Before installation, check the hob for visible signs of
~
damage. Do not install and use a damaged appliance.
It could be dangerous.
The electrical safety of the hob can only be
~
guaranteed if correctly earthed. It is most important that
this basic safety requirement is observed and regularly
tested, and where there is any doubt, the household
wiring system should be inspected by a qualified
electrician.
Miele cannot be held liable for the consequences of an
inadequate earthing system (e.g. electric shock).
Before connecting the hob to the mains electricity
~
supply, make sure that the data quoted on the data
plate match the household mains supply, otherwise the
appliance could be damaged. Consult a qualified
electrician if in any doubt.
For safety reasons, the hob may only be used after it
~
has been built in.
Do not open the casing of the hob.
~
Tampering with electrical connections or components
and mechanical parts is highly dangerous to the user
and can cause operational faults.
12
Warning and Safety instructions
The connection to the gas supply should only be
~
undertaken by an registered gas installer under the gas
safety regulations (Registration of Gas Installers and
Gas Contractors). If the appliance is supplied without a
plug, or if the plug is removed, it must be connected to
the mains electricity supply by a suitably qualified and
competent electrician in strict accordance with current
local and national safety regulations. The manufacturer
cannot be held liable for damage caused by incorrect
installation or connection.
Installation, maintenance and repairs may only be
~
carried out by a suitably qualified and competent
person in strict accordance with current national and
local safety regulations.
Repairs and other work by unqualified persons could
be dangerous. The manufacturer cannot be held liable
for unauthorised work.
During installation, maintenance and repair work, the
~
hob must be disconnected from the gas supply and
mains electricity supply.
While the hob is under guarantee, repairs should
~
only be undertaken by a service technician authorised
by Miele. Otherwise the guarantee is invalidated.
13
Warning and Safety instructions
Faulty components must only be replaced by
~
genuine Miele original spare parts. The manufacturer
can only guarantee the safety of the appliance when
Miele replacement parts are used.
If the connection cable is damaged, it must be
~
replaced by a suitably qualified electrician with a
special connection cable of type H 05 V V-F (pvc
insulated), available from Miele.
The hob is not intended for use with an external timer
~
switch or a remote control system.
Do not connect the hob to the mains electricity
~
supply by a multi-socket adapter or an extension lead.
These do not guarantee the required safety of the
appliance (e.g. danger of overheating).
Do not use the hob if it is faulty. Switch it off immedi-
~
ately and disconnect it from the mains electricity supply
and the gas supply. Call the Service Department.
14
Warning and Safety instructions
Correct use
The hob gets hot when in use and remains hot for
~
quite a while after being switched off. Do not touch it
whilst it could still be hot.
If a cooker hood is installed above the hob, ensure
~
that the burners are always covered with a pan when in
use. Otherwise flames could reach the cooker hood,
parts of which could then be damaged or set on fire.
Do not leave the hob unattended whilst it is being
~
used. Oil and fat are potential fire hazards as they can
ignite if overheated.
If oil or fat does catch fire, do not attempt to put out
~
the flames with water. Use a suitable fire blanket,
saucepan lid, damp towel or similar to smother the
flames.
Do not use the hob to heat up the room. Due to the
~
high temperatures radiated, objects near the appliance
could catch fire. The life of the appliance could also be
reduced.
15
Warning and Safety instructions
Use heat-resistant pot holders or gloves when using
~
the hob. Ensure that they do not come into contact with
the flames. Do not use large cloths, tea towels or
similar as the ends could touch the flames and catch
fire. Do not let the gloves get damp or wet, as this
causes heat to transfer through the material more
quickly with the risk of scalding or burning yourself.
Do not flambé under a cooker hood. The flames
~
could set the cooker hood on fire.
Do not use the hob as a resting place for anything.
~
When the appliance is switched on either deliberately
or by mistake, or when there is residual heat present,
the article could melt or catch fire.
Where several appliances are installed side by side
~
Do not place hot pots or pans on the cover strip as this
can damage the seal.
Do not cover the hob, e. g. with a hob cover, a cloth
~
or protective foil. The material could catch fire, shatter
or melt if the appliance is switched on by mistake or if it
is still warm.
Do not use plastic or aluminium foil containers.
~
These melt at high temperatures and could catch fire.
Do not heat up unopened tins of food on the hob, as
~
pressure will build up in the tin, causing it to explode.
This could result in injury and scalding or damage.
16
Warning and Safety instructions
Make sure all the components of the gas burners
~
have been correctly assembled before switching on.
Pans must be the correct size for the burner they are
~
used on (see "Suitable pans"). A pan which is too small
will be unstable on the pan support. If the pan diameter
is too large, flames can spread out to the sides and
damage or burn the worktop, wall claddings or
surrounding units and also parts of the hob. Miele
cannot be held liable for this type of damage.
Ensure that the flames from the burner do not spread
~
out beyond the base and up the sides of the pan.
Unless the pan manufacturer states that you can do
~
so, do not use pans with very thin bases on the hob,
and never heat up empty pans as they could get
damaged. This could also damage the appliance.
The pan support supplied must always be used.
~
Pans must not be placed directly on the burner.
Do not store any inflammable objects near the hob.
~
Remove splashes of fat and other food debris from
~
the surface as soon as possible. These are a fire
hazard.
Replace the pan supports carefully to avoid
~
scratching the surface of the hob.
17
Warning and Safety instructions
Using the hob will cause a build-up of heat and
~
moisture in the room in which it is installed. Ensure that
the room has sufficient natural or mechanical means of
ventilation, e.g. an extractor.
If the hob is used for very long periods of time
~
additional ventilation of the room may be necessary,
e.g. by opening windows or doors, or running the
extractor on the highest setting.
When using an electrical appliance, e.g. a hand-held
~
food blender, near the hob, ensure that the cable of the
electrical appliance does not come into contact with
the hot hob. The insulation on the cable could become
damaged, giving rise to an electric shock hazard.
Spray canisters, aerosols and other inflammable
~
substances must not be stored in a drawer under the
hob. Cutlery inserts must be heat-resistant.
Always ensure that food is sufficiently cooked or
~
reheated. Some foods may contain micro-organisms
which are only destroyed by thorough cooking at a
sufficiently high temperature for long enough.
Therefore, when cooking or reheating food such as
poultry, it is particularly important that the food is
completely cooked through. If in doubt, select a longer
cooking or reheating time.
18
Warning and Safety instructions
Avoid allowing liquids or foods containing salt to spill
~
onto the hob. If salty foods or liquids do get on the hob,
they should be removed as soon as possible to avoid
the risk of corrosion.
If the hob is installed behind a kitchen furniture door,
~
it may only be used with the furniture door open.
Only close the door when the appliance is switched.
If the hob has not been used for a long period of
~
time it should be thoroughly cleaned before it is used
again. It is also advisable to have the appliance tested
for safety.
Miele cannot be held liable for damage caused by
non-compliance with these Warning and Safety
instructions.
19
Caring for the environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection/recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
20
Please stick the extra data plate for the
appliance supplied with this
documentation in the space provided in
the "After sales service" section of this
booklet.
Cleaning for the first time
Remove any protective foil and
^
stickers.
Clean all removable parts of the
^
burners with a solution of warm water
and a little washing-up liquid applied
with a soft sponge. Dry all parts
thoroughly after cleaning and then
reassemble the burners (see
"Cleaning and care").
^ Clean the stainless steel trough with
a damp cloth, and then wipe dry.
Metal components have a protective
coating which may give off a slight
smell when heated up for the first time.
The smell and any vapours will
dissipate after a short time, and do not
indicate a faulty connection or
appliance.
Before using for the first time
21
Operation
Switching on, adjusting the
flame and switching off
The control knob is used to ignite the
burner and regulate the strength of the
flame.
ß The gas supply is turned off
ß Ignition setting
& Stongest flame
Both the inner and the outer burners
operate on full output.
& (2x) Strong flame
The outer burner operates on low
output and the inner burner on high
output.
/ Weak flame
The outer burner is switched off,
The inner burner operates on high
output.
/ Weak flame
The outer burner is switched off,
The inner burner operates on low
output.
The burner can only be switched on
by pressing in the control and
turning it anti-clockwise. It is
switched off by turning the control
clockwise. The outer flame ring can
only be switched on and off by
pressing down on the control and
turning it in the appropriate
direction.
The following will cause damage to
the appliance:
- Switching on the burner without
pressing the control down,
- Switching the burner on by
turning the control clockwise,
- Switching the outer flame ring
on or off without pressing the
control down,
- Switching the burner off by
turning the control
anti-clockwise.
The manufacturer will not accept
liability for any damaging resulting
from incorrect operation.
22
Operation
Switching on
The control for the burner must be
^
pressed in and turned anti-clockwise
to the ignition position a to switch
on.
When the flame ignites, keep the
^
control pressed in for 8-10 seconds,
and then let it go.
If the flame goes out, repeat the
procedure, keeping the control pressed
in for a few extra seconds.
In the event of a power cut
If there is an interruption to the
electricity supply the gas can be
ignited with a match:
base. Flame tips which extend beyond
the sides of the pan merely warm up
the air in the room and can also
damage pan handles and increase the
risk of injury.
There is a resistance at the 6 o'clock
position to prevent you turning the
control to the high or low setting
unintentionally. To move from the high
to the low setting, you need to press the
control down to be able to pass the 6
o'clock position.
^ To move from the high to the low
setting, turn the control anticlockwise until it meets a resistance.
Then press it down and continue to
turn it past the resistance before
releasing it. You can now select the
setting you require.
^
Press in the relevant control and turn
it anti-clockwise to the large gas
symbol.
^
Hold the control pressed in and light
the gas at the burner with a match.
^
Keep the control pressed in for a
further 8-10 seconds and then
release it.
Regulating the flame
Control the flame so that it does not
spread out beyond the sides of the
pan. As the outer part of the flame is
much hotter than the centre, the tips of
the flames should stay beneath the pan
^
To move from the low to the high
setting, turn the control clockwise
until it meets a resistance. Then
press it down and continue to turn it
past the resistance before releasing
it. You can now select the setting you
require.
Switching off
^
Turn the control clockwise to position
ß b.
This stops the flow of gas and the flame
goes out.
23
Suitable pans
Min. base diameter
Pots/pans=15cm
Max. rim diameter
Pots/pans=28cm
Use the correct sized pans for your
–
appliance. A pan which is too small
will be unstable on the pan support.
If the pan base diameter is too large,
flames can spread out to the sides
and damage or burn the worktop,
wall claddings or surrounding units
and also parts of the hob. Miele
cannot be held liable for this type of
damage.
– Remember when purchasing new
pans that manufacturers usually refer
to the diameter at the top of the pan
in their documentation.
– Any heat-resistant pans can be used
on a gas burner.
Place pans securely on the pan rest
–
so they cannot tip. to minimise the
risk of tipping.
Do not use pots or pans with legs,
–
e.g. dutch ovens.
– Pans with thick bases are preferable
as these distribute heat more evenly.
With thin bases, there is a danger of
food overheating in places. Stir the
food frequently.
–
Always place pans on the pan
support supplied. Pans must not be
placed directly on the burner.
24
Wok ring
Use the Wok ring supplied to give
additional stability especially to woks
with a rounded base.
Make sure that the wok ring is located
securely in its correct position. See
illustration.
Woks have a small base diameter and
large top diameter, generally between
35-40cm.
Suitable pans
25
Energy saving tips
Use a pan lid whenever possible to
–
minimise heat loss.
Cook with as little water as possible.
–
Cooking times are greatly reduced
–
when using a pressure cooker.
Turn the flame down promptly to a
–
lower setting when the pan has come
to the boil.
Wide, shallow pans are preferable to
–
tall, narrow ones. They will heat up
faster.
26
Thermo-electric ignition
This appliance has a thermo-electric
ignition safety device. If the flame goes
out, for example if food has boiled over
or if there is a sudden draught, the
supply of gas to the burner will be cut
off.
To use the burner again, turn the
^
control clockwise to the "ß" position,
and then switch it back on as normal.
The safety cut-out operates
independently from the electricity
supply. This means that it will still work
if the hob is used during a power cut.
Safety
27
Cleaning and care
General notes
Do not use a steam cleaning
,
appliance to clean this appliance.
The steam could reach electrical
components and cause a short
circuit.
The appliance should be cleaned after
each use. Let it cool down to room
temperature.
To avoid water marks and limescale
deposits use a soft cloth to dry surfaces
that have been cleaned with water.
Food which boils over onto the hot hob
can cause the burner components and
the stainless steel surface of the hob to
discolour. Remove any soiling
immediately.
To avoid damaging the surface of
your appliance, do not use:
cleaning agents containing soda,
–
alkalines, ammonia, acids or
chlorides,
cleaning agents containing
–
descaling agents,
stain or rust removers,
–
abrasive cleaning agents, e.g.
–
powder cleaners and cream
cleaners,
solvent-based cleaning agents,
–
– dishwasher cleaner,
– grill and oven cleaners,
– glass cleaning agents,
– hard, abrasive brushes or sponges,
e.g. pot scourers, or sponges which
have been previously used with
abrasive cleaning agents,
– sharp pointed objects
(these can damage the seal between
the frame and the worktop)
28
–
melamine eraser blocks.
Cleaning and care
Stainless steel surfaces
Clean stainless steel surfaces with a
solution of warm water and a little
washing-up liquid applied with a soft
sponge. In the case of stubborn
dried-on soiling, soak first.
Finally, dry with a soft cloth.
If necessary a ceramic hob and
stainless steel cleaning agent can be
used (see "Optional accessories").
Apply with even pressure following the
direction of the "grain".
Do not use stainless steel cleaning
agents on printed surfaces. This
would rub off the print. These areas
should be only cleaned with a
solution of warm water and a little
washing-up liquid applied with a soft
sponge.
A conditioning agent for stainless steel
can be used after cleaning to help keep
your appliance looking good (see
"Optional accessories").
Apply sparingly with a soft cloth
following the instructions on the
packaging.
Pan supports, control knobs
Remove the pan supports. Clean
stainless steel surfaces with a solution
of warm water and a little washing-up
liquid applied with a soft sponge.
Stubborn soiling should be soaked first.
After cleaning dry all surfaces with a
clean cloth.
Do not clean the pan supports in a
dishwasher.
29
Cleaning and care
Burner
Do not clean any parts of the burner
in a dishwasher.
The burner should be dismantled and
then cleaned by hand using a solution
of warm water and a little washing-up
liquid applied with a soft sponge.
Parts of the burner that cannot be
removed should be wiped clean with a
damp cloth only.
The ignitor and ignition safety device
should be very carefully wiped clean
using a well wrung out cloth.
Do not let the ignitor get wet. If it gets
wet it will not spark.
After cleaning dry all surfaces with a
clean cloth.
Make sure that the flame slits are clean
and completely dry.
The surfaces of the two burner caps
will become more matt with time. This
is quite normal and will not affect the
operation of the hob.
To reassemble the burner
After cleaning the burner, it must be
reassembled in the correct order.
^ Place burner head j on to burner
base m so that the ignition safety
device k and the ignitor l extend
through their respective holes in the
burner head.
The notch on the burner cap a must
sit in the groove b of the burner
head.
The notch c on the burner head
must sit in the groove d of the burner
base.
30
^
Place burner ring i in position.
^
Then place burner cap g and h in
position.
Repairs to the gas and electrical
,
components of this appliance must
only be carried out by a suitably
qualified and competent person to
ensure safety. Repairs and other
work by unqualified persons could
be dangerous. The manufacturer
cannot be held liable for
unauthorised work.
What to do if...
... the burner does not ignite after
several attempts.
Check whether
– the burner is correctly assembled.
Problem solving guide
.... the ignitor on the burner does not
spark.
Check whether
the mains fuse has blown. If it has,
–
contact a qualified electrician or the
Miele Customer Contact Centre.
food deposits have lodged
–
themselves between the ignitor and
the burner cap, or on the ignition
safety device.
Remove any food deposits carefully
(see "Cleaning and care").
food has adhered to the ignition
–
safety device.
Remove any food deposits carefully
(see "Cleaning and care").
– the gas supply tap is turned on.
– the burner is dry and clean.
– the flame slits are dry and
unblocked.
... the gas flame goes out after being
lit.
During the ignition process, the flames
need to touch the ignition safety device
so that it heats up.
If the flames do not touch the ignition
safety device, check that
–
the burner cover is correctly in
position.
–
there is no soiling on the ignition
safety device. If there is, remove it
carefully (see "Cleaning and care").
... the flame suddenly looks different.
Check that the burner is correctly
assembled.
31
Optional accessories
Miele offer a comprehensive range of useful accessories as
well as cleaning and conditioning products for your Miele
appliances.
These can be ordered online at:
or from Miele (see back cover for contact details)
Ceramic and stainless steel hob cleaner 250 ml
Removes heavy soiling, limescale deposits and light
discolouration
Stainless steel conditioning agent 250 ml
Removes water marks, flecks and finger prints.
Helps keep the hob looking good for longer.
32
Safety instructions for installation
This appliance must be installed and
connected to services in
accordance with local and national
safety and building regulations.
To avoid the risk of damaging the
hob fit the wall units and extractor
hood before installing it.
The room in which the gas hob is
~
installed must be at least 20 m
with a door or window in it which can
be opened to the outside air.
3
in size
Ensure that the gas pipe and
~
electrical cable are installed in such a
way that they do not touch any parts of
the appliance which become hot. This
could cause damage.
The electrical cable and any flexible
~
gas connection pipes must be installed
in such a way so that they do not come
into contact with any moving kitchen
parts (e.g. a drawer), and cannot
become trapped.
Observe carefully the safety
~
distances given on the following pages.
The veneer or laminate coatings of
~
worktops (or adjacent kitchen units)
must be treated with 100 °C
heat-resistant adhesive which will not
dissolve or distort.
Any backmoulds must be of
heat-resistant material.
This appliance must not be used in
~
a non-stationary location (e.g. on a
ship).
An electric fryer must not be
~
installed directly next to a gas hob, as
the gas flames could ignite the fat in the
fryer. It is essential to maintain a
distance of at least 288 mm between
these two appliances.
A gas hob may not be built in over a
~
fridge, fridge freezer, freezer,
dishwasher, washing machine or
tumble dryer.
The hob may only be installed
~
above a Miele oven if the worktop is at
least 40 mm thick.
All dimensions in this instruction booklet
are given in mm.
33
Safety instructions for installation
Safety distance above the appliance
A minimum safety distance must be
maintained between the appliance and
the cooker hood above it. See the
cooker hood manufacturer's operating
and installation instructions for details.
If the manufacturer's instructions are
not available for the cooker hood, a
minimum safety distance of at least
760 mm must be maintained. For any
flammable objects, e.g. utensil rails,
wall units etc. a minimum distance of at
least 760 mm must be maintained
between them and the appliance
below.
Safety Distance below the Hob
There should be at least 30 mm height
or plenty of space reserved at the
bottom of the gas hob for the
installation of the flexible gas
connection pipe and electrical cable. It
also avoids any possible hindrance
towards the movement of all moveable
kitchen parts (e.g. drawer).
When two or more appliances are
installed together below a cooker hood,
e.g. an electric hob and a gas wok
combiset, which have different safety
distances given in their installation
instructions you should select the
greater distance of the two.
34
Safety instructions for installation
Safety distances to the sides of the
hob
Ideally the hob should be installed with
plenty of space on either side. There
may be a wall at the rear and a tall unit
or wall at one side. On the other side,
however, no unit or divider should stan
d higher than the hob (see illustrations).
Due to the high temperatures radiated
by the hob, it is essential that a
minimum distance of 50 mm is
maintained between the worktop
cut-out and the back wall.
The minimum distance a between the
worktop cut-out and a wall or tall unit to
the right or left of it is:
40 mm for CS 1212 / CS 1212-1
CS 1221
CS 1234 / CS 1234-1
CS 1223
-
recommended
50 mm for CS 1112
CS 1122
CS 1134
CS 1326 / CS 1327
CS 1411
100 mm for CS 1012 / CS 1012-1
CS 1013 / CS 1013-1
150 mm for CS 1421
CS 1312
CS 1322
200 mm for CS 1034 / CS 1034-1
250 mm for CS 1011
CS 1018
CS 1021
CS 1028
not recommended
not allowed
35
Safety instructions for installation
Safety distance when installing the appliance near a wall with additional
niche cladding
A minimum safety distance must be maintained between the worktop cut-out and
any niche cladding to protect it from heat damage.
If the niche cladding is made from a combustible material (e. g. wood) a
minimum safety distance e of 50 mm must be maintained between the cut-out
and the cladding.
If the niche cladding is made from a non-combustible material (e. g. metal,
natural stone, ceramic tiles) a minimum safety distance e of 50 mm less the
thickness of the cladding must be maintained between the cut-out and the
cladding.
Example: 15 mm niche cladding
50 mm - 15 mm = minimum safety distance of 35 mm
a Masonry
b Niche cladding
Dimension x = thickness of niche cladding material
c Worktop
d Worktop cut-out
e Minimum safety distance
for combustible materials is 50 mm
for non-combustible materials is 50 mm less dimension x
36
CS 1018
Appliance and building-in dimensions
a Spring clamps
b Front
c Building-in depth
d Mains connection box with mains connection cable, L = 1440 mm
e Gas connection R 1/2 - ISO 7-1 (DIN EN 10226)
37
Preparing the worktop
Make the worktop cut-out for one or
^
more appliances as applicable.
Remember to maintain a minimum
safety distance from the back wall,
as well as from any tall unit or side
wall to the right or left of the hob.
See "Safety instructions for
installation".
Seal the cut surfaces with a suitable
^
heat-resistant sealant to avoid
swelling caused by moisture.
The materials used must be
heat-resistant.
If, during installation, you find that the
seals on the corners of the frame are
not flush with the worktop surface,
the corner radius (ß R4) can be
carefully scribed to fit.
38
Installation of several appliances
When installing two or more appliances next to each other a spacer bar b must
be used between each one.
See "Fitting the spacer bars and support brackets".
Worktop cut-out
- two appliances
When installing two appliances, the
width of the cut-out required D is
calculated by adding dimensions A and
C.
A = appliance width (288 mm or 380 mm or 576 mm) less 8 mm
B = appliance width (288 mm or 380 mm or 576 mm)
C = appliance width (288 mm or 380 mm or 576 mm) less 8 mm
D = width of worktop cut-out
Worktop cut-out
- three appliances
When installing three appliances the
width of the cut-out required (D) is
calculated by adding dimensions A, B
and C.
When installing more than three
appliances for each additional
appliance add the relevant appliance
width (288 mm or 380 mm or
576 mm) to dimensions A, B and C.
39
Installation of several appliances
Worktop cut-out calculation example for three appliances
A
Appliance width
less 8
280 288 280 848
280 380 372 1032
280 576 568 1424
372 288 280 940
372 380 372 1124
372 576 568 1516
568 288 280 1136
568 380 372 1320
568 - 568 1136
All dimensions are given in mm
Appliance
width
B
Appliance width
C
less 8
D
Worktop
cut-out
40
Installation of several appliances
a Spring clamps
b Spacer bars
c Gap between spacer bar and worktop
d Cover strips
The illustration shows a worktop cut-out with spring clamps a and spacer bars b
for 3 appliances.
An additional spacer bar is required for each additional appliance. The position
for securing each additional spacer bar will depend on the width of appliance B
(288 mm / 380 mm / 576 mm).
41
Fixing the spring clamps and spacer bars
Wooden worktops
^
Position the spring clamps supplied
a and spacer bars b on the top
edge of the cut-out in the positions
marked.
^
Secure the spring clamps and
spacer bars with the 3.5 x 25 mm
screws supplied.
42
Fixing the spring clamps and spacer bars
Granite and marble worktops
The screws are not required for
granite or marble worktops.
^
Position and secure the spring
clamps a and spacer bars b using
strong, double-sided adhesive tape
c.
^
Apply silcone to the side edges and
the lower edges of spring clamps a
and spacer bars b.
^
Then fill gap e between the spacer
bars and the worktop with silicone.
43
Installing / removing the appliance
Installing the appliance
Feed the connection cable down
^
through the cut-out.
Starting at the front, position the
^
appliance in the worktop cut-out.
Using both hands, press down
^
evenly on the sides of the appliance
until it clicks into position. When
doing this make sure that the seal
under the appliance sits flush with
the worktop on all sides. This is
important to ensure an effective seal
all round. Do not use sealant.
^ Push the appliance to the side until
the holes in the spacer bar can be
seen.
Starting at the front, position the next
^
appliance in the worktop cut-out.
Connect the appliance(s) to the
^
mains (see "Electrical connection")
and to the gas supply (see "Gas
connection").
Check that the appliance(s) work(s).
^
Removing the appliance
If the appliance is accessible
underneath, it can be pushed up out of
the cut-out from below. It must be
pushed up from the back first.
If the appliance is not accessible
underneath, take hold of the appliance
with both hands at the back, pull it
forwards, then lift it up and out.
^
Fit the cover strip d into the holes in
the spacer bar b.
44
General installation tips
Seal between the appliance and the
worktop
The sealing strip under the edge of the
top part of the appliance provides a
sufficient seal for the worktop.
The appliance must not be sealed
with sealant (e.g. silicone).
This could result in damage to the
appliance or the worktop if it ever
needs to be removed for servicing.
Tiled worktop
Grout lines a and the hatched area
underneath the surface of the
appliance must be smooth and even. If
they are not, the appliance will not sit
flush with the worktop and the sealing
strip underneath the top part of the
appliance will not provide a good seal
between the appliance and the
worktop.
45
Electrical connection
All electrical work should be carried
out by a suitably qualified and
competent person, in strict
accordance with current local and
national safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous. The manufacturer
cannot be held liable for
unauthorised work.
Ensure power is not supplied to the
appliance until after installation or
repair work has been carried out.
The appliance must only be
operated when built-in. This is to
ensure that all electrical parts are
shielded. Live parts must not be
exposed.
Do not connect the appliance to the
mains electricity supply by an
extension lead. These do not
guarantee the required safety of the
appliance.
Connection should be made via a
suitable isolator or a double pole fused
spur connection unit which complies
with national and local safety
regulations and the on/off switch should
be easily accessible after the appliance
has been built in.
If the switch is not accessible after
installation (depending on country) an
additional means of disconnection must
be provided for all poles.
For extra safety it is advisable to install
a suitable residual current device
(RCD).
When switched off there must be an
all-pole contact gap of 3 mm in the
isolator switch (including switch, fuses
and relays).
Important
This appliance is supplied for
connection to a single phase 230 V
50 Hz supply with a 3-core cable.
The wires in the mains lead are
coloured in accordance with the
following code:
Please make sure that the connection
data quoted on the data plate match
the household mains supply.
46
Green/yellow = earth
Blue = neutral
Brown = live
WARNING
THIS APPLIANCE MUST BE
EARTHED
Important
The electrical safety of this appliance
can only be guaranteed when
continuity is complete between it and
an effective earthing system, which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and regularly tested and where
there is any doubt, the electrical wiring
in the home should be tested by a
qualified electrician. The manufacturer
cannot be held liable for the
consequences of an inadequate
earthing system such as an electric
shock.
If the connection cable is damaged, it
must be replaced by a suitably
qualified electrician with a special
connection cable of type H 05 V V-F
(pvc insulated), available from the Miele
Service Department.
Electrical connection
The manufacturer cannot be held
liable for damage which is the direct
or indirect result of incorrect
installation or connection.
47
Gas connection
Connection to the gas supply, or
conversion from one type of gas to
another, should only be undertaken
by an registered gas installer under
the gas safety regulations
(Registration of Gas Installers and
Gas Contractors).
Only use approved stainless steel
braided flexible tubing bearing
EMSD Approval marking for
connection up to gas supply point.
Every appliance should have its own
easily accessible isolating valve.
Safety regulations demand that a
pressure test point is installed near a
gas hob to allow an engineer to test
the pressure, following servicing.
The gas connection must be
installed so that connection can be
made either from inside or outside
the kitchen unit, and the isolating
valve must be easily accessible and
visible (by opening one of the
kitchen unit doors if necessary).
Check with your local gas supplier
about the type of gas and its
calorific value, and compare this
information with the type of gas
quoted on the data plate.
The gas installation must be carried
out so that the connection is not
subject to high temperatures when
the appliance is in use.
It is particularly important that the
flexible gas connection pipes and
isolator valves do not come into
contact with hot gas exhaust fumes.
Neither the flexible gas connection
pipe nor the electrical cable must
come into contact with any parts of
the appliance which get hot, as this
could damage the flexible gas
connection pipe or the electrical
cable.
Flexible gas connection pipes and
cables must be installed so that they
do not impede moving kitchen parts
(e.g. drawers), which must be able
to move freely without hindrance.
The installer is responsible for
ensuring that the appliance
functions correctly when installed.
A test for possible leakages must be
carried out after installation.
48
Gas connection
The gas hob is normally suitable for
connection to either Town Gas, Natural
Gas or Liquid Petroleum Gas.
Depending on your country, the gas
hob is supplied ready for connection to
Town Gas, Natural Gas or Liquid
Petroleum Gas (see label on
appliance).
Depending on country, the appropriate
set of jets for conversion to an
alternative type of gas is included with
the hob.
Depending on the country, the gas
governor (MDG ELITRE with model no.
EL-125) comes with the hob.
If the jets you require are not supplied,
please contact your Miele dealer or the
Service Department.
Conversion to another type of gas is
described under "Conversion to another
type of gas".
LPG Gas Connection for SG
Elbow joint connection
a elbow join
b gasket
c nozzle
d ring
e rubber hose
The gasket depicted above is to
prevent gas leakage. After installation,
turn on the gas supply and use soap
solution (never use naked flame) to
check for gas leakage.
LPG Gas Connection for HK
Stainless steel braided flexible hose
connection
Please use approval stainless steel
braided flexible tubing bearing EMSD
Approval marking (such as EMSD
APPROVA GTXXXX and gas
accessories and gas cock for
connection from ½ PT connect up to
gas supply point).
49
Gas connection
Town Gas Connection:
Please use approved stainless steel
braided flexible tubing bearing EMSD
approval marking (such as EMSD
APPROVAL GTXXXX and gas cock for
connection connect from½“G
connector to governor, and connect up
to gas supply point.
Warning
Under the Gas Safety (Registration
of Gas Installors and Gas
Contractor) Regulations, only
registered gas installors (registered
to the appropriate class) employed
by registered gas contractors can
personally carry out gas installation
work. "Gas Installation Work"
includes the fabrication, connection,
or replacement of gas pipework,
appliances and fitting.
Please do not use aluminium cover.
50
Gas connection
Connecting the appliance
The gas connection of the appliance
has a 1/2" tapered screw thread.
Connection can be made by:
an appropriate rigid connection
–
a flexible gas connection pipe
–
in accordance with DIN 3383
Section 1
A flexible gas connection pipe must
not exceed 2 m in length.
A suitable sealant must be used to
ensure that the connection is secure.
Using a 90° angle
c Gas connection R 1/2 - ISO 7-1 (DIN
EN 10226)
d 90° angle
Using a 90° angle will increase the
building-in depth in the area of the
gas connection by approx. 60 mm.
51
Conversion to another type of gas
Connection to the gas supply, or conversion from one type of gas to
,
another, should only be undertaken by an registered gas installer employed
by Registered Gas Contractor under the gas safety regulations (Registration
of Gas Installers and Gas Contractors).
When converting to a different type of gas, the main burner jet and the small
burner jets have to be changed.
Nominal rating at high setting
Gas type kW
Town Gas (10 mbar)
Natural Gas (20 mbar)
Liquid Petroleum Gas (29 mbar)
Nominal rating at low setting
Gas type kW
Town Gas (10 mbar)
Natural Gas (20 mbar)
Liquid Petroleum Gas (29 mbar)
Screw in the new jets according to the following table.
5.40
5.30
5.15 / 375 g/h
0.20
0.25
0.20
Jet table
Main jet*
C
Town Gas 3.80 / 1.00
(II)
Natural Gas 1.60 / 0.58
(R)
Liquid Petroleum Gas 1.05 / 0.34
(E)
Small jet
C
0.90 / 0.54
0.70 / 0.38
0.60 / 0.23
* The jet markings refer to 1/100 mm of the jet diameter.
52
Conversion to another type of gas
Changing the jets
Disconnect the gas hob from the
electricity supply by switching off at
the socket and withdrawing the plug
or by disconnecting the mains fuse.
Turn off the gas supply.
The top of the appliance has to be
removed before the jets can be
changed.
To change the main jet
^ Whilst counterholding it in place with
an SW 13 spanner, unscrew the main
jet anti-clockwise from its housing
using an SW 10 spanner (see
illustration).
^ Screw in the new main jet, once
again using the spanner to
counterhold the jet housing.
^
Remove burner caps gh, burner
ring i and burner head j.
^
Pull the control knob off.
^
Loosen screws n.
^
Remove the upper section of the
appliance carefully.
53
Conversion to another type of gas
To change the jet for the inner burner
d Jet disc (main jet for the inner
burner)
e Air intake sleeve
f Vent
Whilst counterholding it in place with
^
an SW 12 spanner, remove screw c
from fitting b using an SW 8
spanner.
Whilst counterholding it in place with
^
an SW 12 spanner, remove screw
fitting b from fitting a with another
SW 12 spanner.
Remove jet disc d from fitting a,
^
and replace with the correct jet disc
(see jet table).
Adjust air intake sleeve e until the
^
two vents f havea2mmgapas
illustrated.
Reassemble the parts in the reverse
order and check for leaks by operating
the burner without the upper part of the
hob in place (use a match to ignite the
flame).
54
Conversion to another type of gas
To check the first intake of air
a Retaining nut
b Air intake sleeve
Gap X must measure:
For Town Gas: 13 mm
For Natural Gas: 6 mm
For Liquid Petroleum Gas : 13 mm
If it does not:
Loosen the retaining nut, adjust the
–
air intake sleeve, and tighten the
retaining nut again.
Finally secure the jet against
–
inadvertent loosening with sealing
wax.
Reassemble the hob in the reverse
–
order.
The flame must not go out on the lowest
setting, or when the control is turned
quickly from a high to a low setting.
On the highest setting the flame must
have a distinctive and visible core.
55
Conversion to another type of gas
To change the small jets
^ Using a small screwdriver, unscrew
small jet g in the gas fitting.
^ Pull out the jet with a pair of pliers.
^ Fit the correct jets securely (see jet
table).
Finally secure the jets against
inadvertent loosening with sealing wax.
56
Conversion to another type of gas
After changing the jets
Reassemble the burner parts in the
^
reverse order,
Check all gas fittings for leaks by
^
operating the burner without the
upper section of the hob in place
(use a match to ignite the flame).
Remove the loose burner parts again.
^
Replace the upper section of the
^
hob.
Screw the burner bases into place,
^
and replace the other parts of the
burner. Take care to reassemble the
different parts in the correct order.
^ Replace the control knob.
^ Finally ignite the burner to check that
it is operating correctly.
The flame must not go out on the lowest
setting, or when the control is turned
quickly from a high to a low setting.
On the highest setting, the flame must
have a distinctive and visible core.
Stick the label supplied with the jets
^
above the label stating the type of
gas being used.
57
After sales service, data plate
In the event of any faults which you cannot remedy yourself, or if the appliance is
under guarantee, please contact:
Your Miele dealer, or
–
the Miele Customer Contact Centre (see back cover for address).
–
Please note that telephone calls may be monitored and recorded to improve
our service.
When contacting Miele, please quote the model and serial number of your
appliance which are given on the data plate.
N.B. A call-out charge will be applied for service visits where the problem
could have been resolved as described in these instructions.
Space in which to stick the extra data plate supplied with the appliance. Ensure
that the model number is the same as the one on the front of these instructions.
58
59
Alteration rights reserved/ 0414
M.-Nr. 07 206 060 / 09
M.-Nr. 07 206 060 / 09
Loading...
