Miele CS 1013-1 Operating instructions

Operating and installation instructions

Gas hob
CS 1013-1

To avoid the risk of accidents or
damage to the appliance it is
essential to read these
instructions before it is installed
and used for the first time.

en - HK, ZA

M.-Nr. 09 029 800

G This appliance can be used in countries other than those specified on the

appliance. It is, however, set up for connection to the gas and electricity
supplies in the countries specified. For use in other countries please contact
the Miele spare parts or customer service department in your country.

D Das Gerät ist auch für den Gebrauch in anderen als auf dem Gerät

angegebenen Bestimmungsländer zugelassen. Die landesspezifische
Ausführung und die Anschlussart des Gerätes haben wesentlichen Einfluss auf
den einwandfreien und sicheren Betrieb. Für den Betrieb in einem anderen als
auf dem Gerät angegebenen Bestimmungsland wenden Sie sich bitte an den
für das Land zuständigen Kundendienst.

E El aparato está autorizado para el uso en países diferentes a los países de

destino indicados. La ejecución específica para cada país y el tipo de
conexión del aparato influyen de forma decisiva en el funcionamiento correcto
y seguro. Para el funcionamiento en un país diferente al país de destino
indicado en el aparato, consulte al Servicio Post-venta autorizado para el país.

F Cet appareil est également homologué dans des pays différents de ceux

mentionnés sur l'appareil. Pour que l'appareil fonctionne parfaitement et en
toute sécurité, il est important de disposer de l'exécution spécifique au pays et
du type de raccordement approprié. Pour le fonctionnement dans un pays
autre que celui spécifié sur l'appareil, veuillez vous adresser au service
après-vente du pays où sera installé l'appareil.

I L'apparecchio può essere usato anche in paesi diversi da quello indicato

sull'apparecchio stesso. Tuttavia, le varianti specifiche di un determinato paese
e il tipo di allacciamento alla rete hanno un'importanza fondamentale per il suo
sicuro e corretto funzionamento. Per questo se si vuole usare l'apparecchio in
un paese diverso rivolgersi al servizio di assistenza tecnica Miele del paese in
cui si intende usarlo.

M Het apparaat is ook toegelaten voor gebruik in andere landen dan de landen

die op het apparaat vermeld staan. De specifieke uitvoering en de aansluitwijze
zijn van groot belang voor het goed en veilig functioneren. Neem daarom
contact op met de Technische Dienst van de fabrikant in uw land als u het
apparaat in een land wilt gebruiken dat niet op het apparaat vermeld staat.

2

Gas-heated appliances
Safety precautions to take if you smell gas

ß Turn off the gas emergency control valve immediately.

This is usually located near the gas meter.

ß Eliminate all sources of ignition in a safe manner.

Do not smoke, light cigarette lighters or matches.

ß Do not operate electrical lights or switches, i.e. do not switch them "On" or "Off".

ß Open all doors and windows to ventilate the area.

ß If the smell of gas persists, evacuate the building.

3

Inhalt

Guide to the appliance .............................................5

Warning and Safety instructions .....................................7

Caring for the environment.........................................13

Before using for the first time.......................................14

Operation .......................................................15

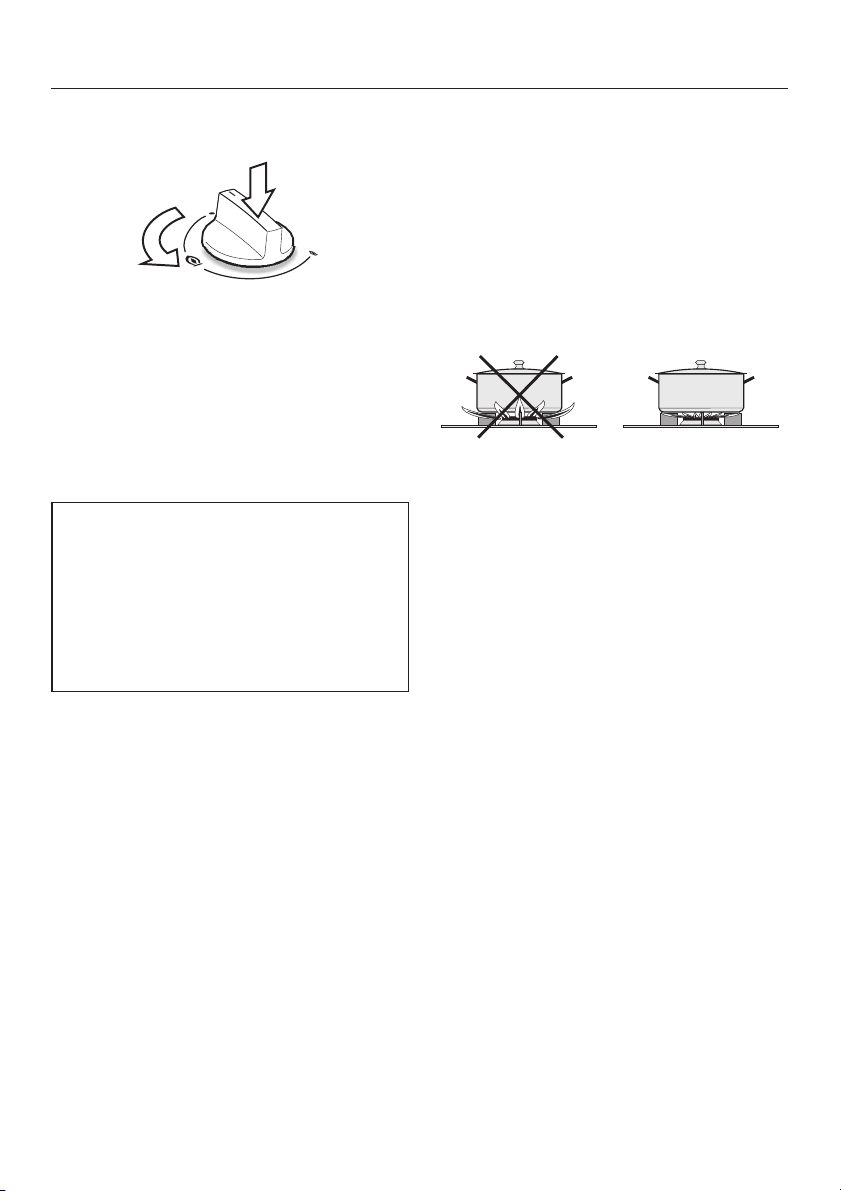

Switching on, adjusting the flame and switching off .......................15

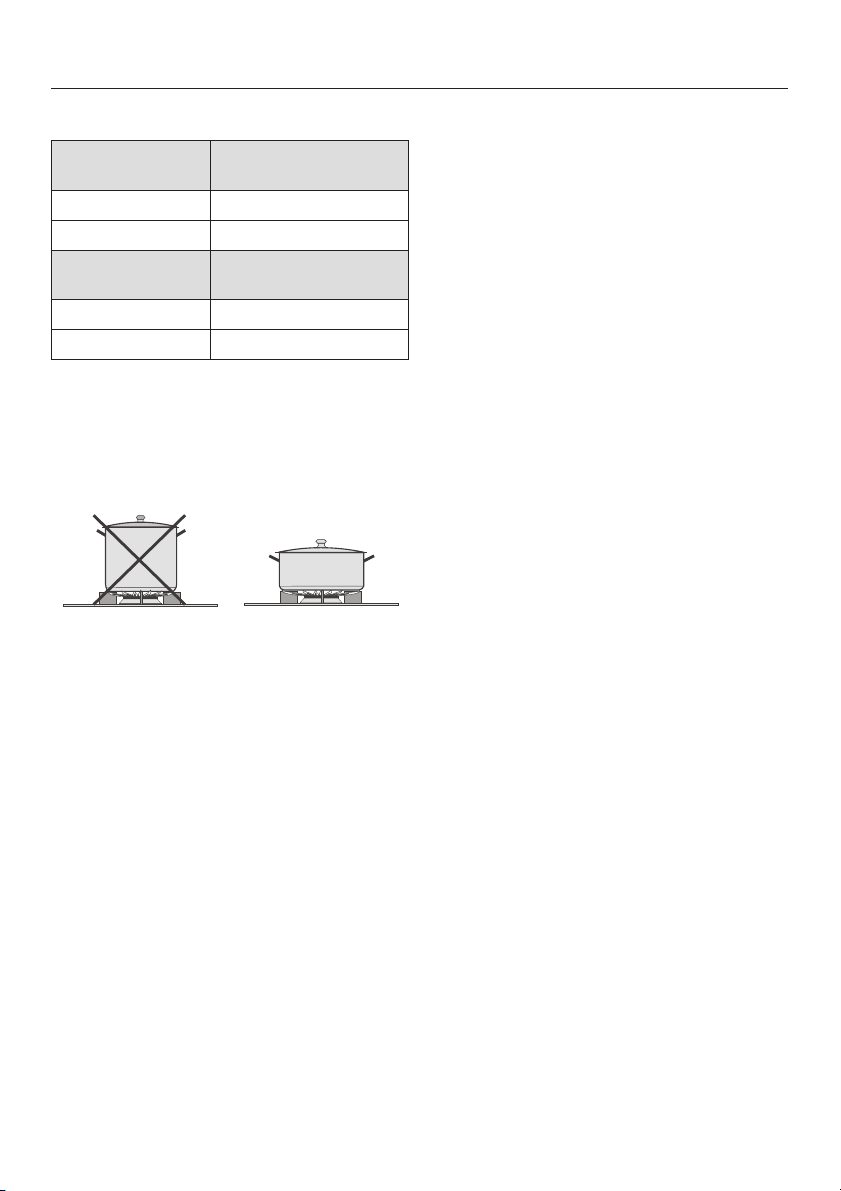

Pans ...........................................................17

Safety ..........................................................18

Cleaning and care ................................................19

General notes ....................................................19

Stainless steel surfaces .............................................20

Pan supports, control knobs .........................................20

Burner ..........................................................21

Problem solving guide ............................................22

Optional accessories..............................................23

Safety instructions for installation...................................24

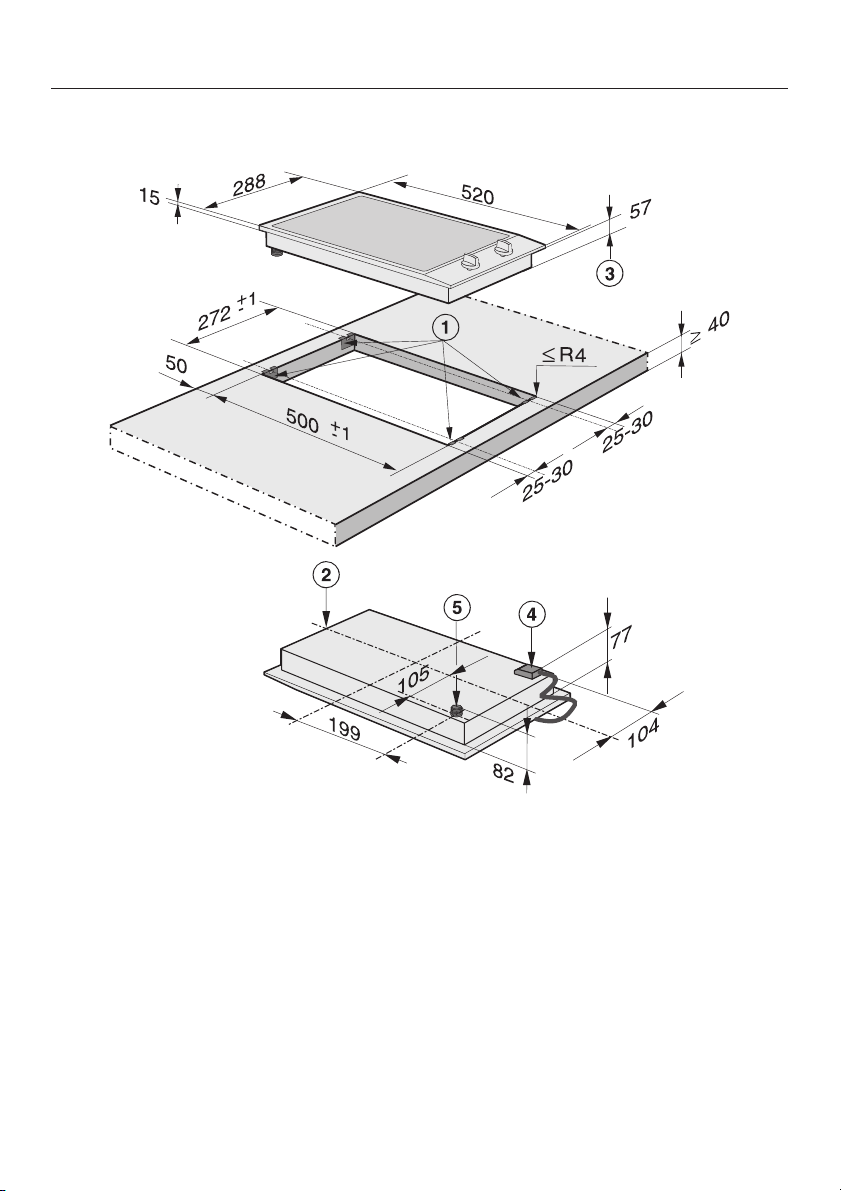

Appliance and building-in dimensions ...............................28

Preparing the worktop.............................................29

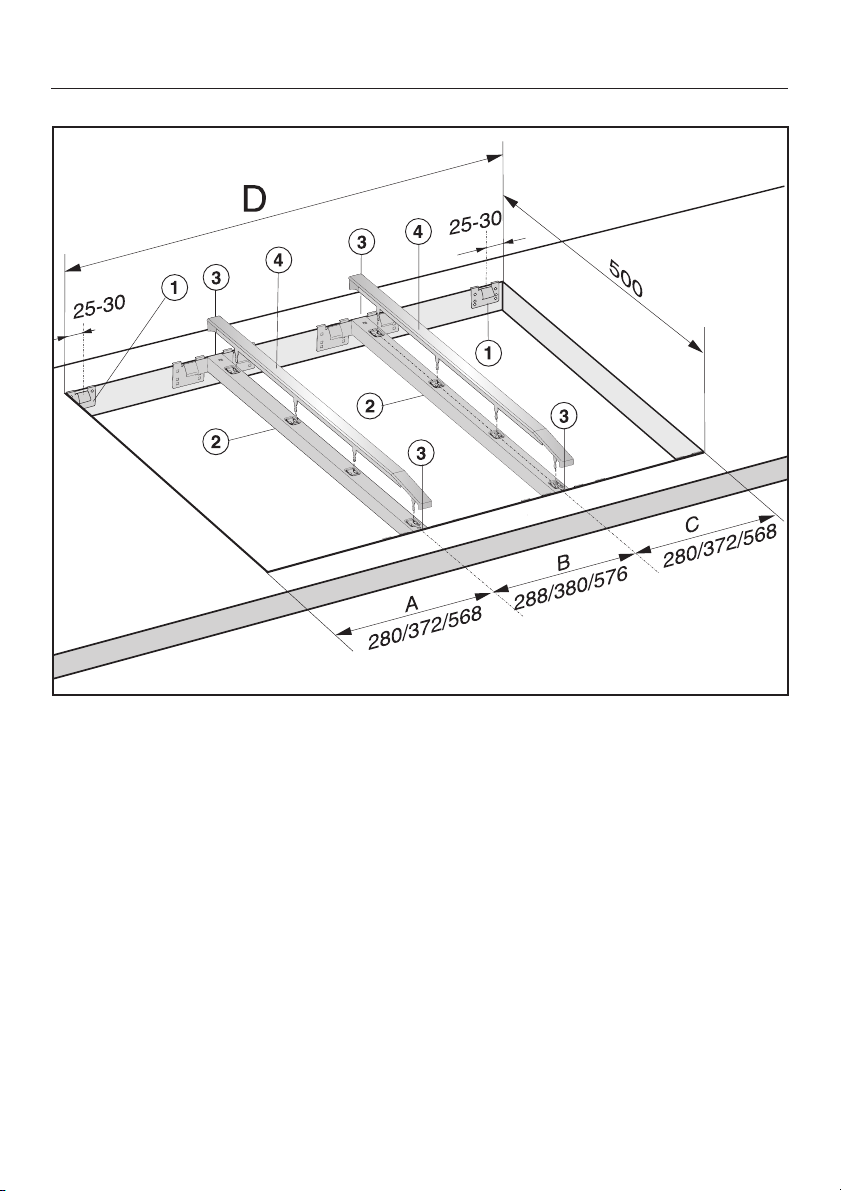

Installation of several appliances....................................30

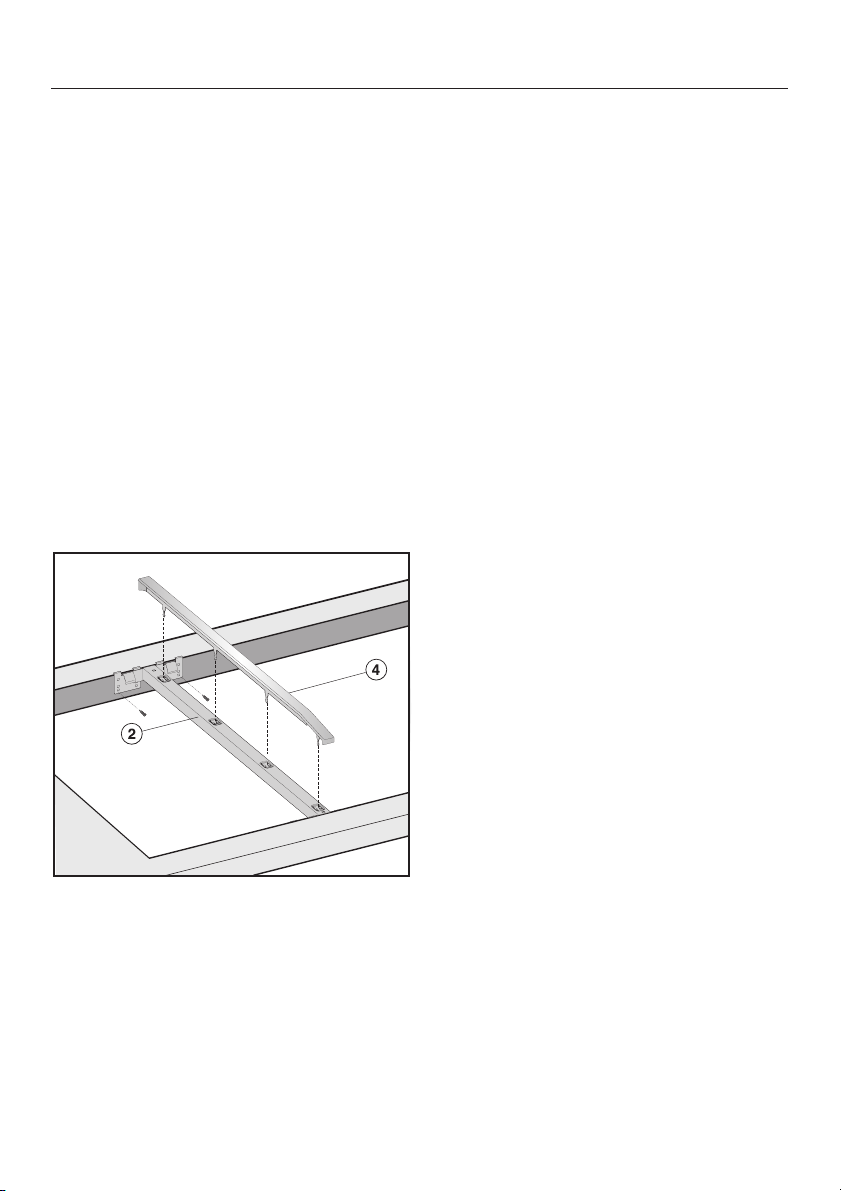

Fixing the spring clamps and spacer bars ............................33

Installing / removing the appliance ..................................35

General installation tips ...........................................36

Electrical connection..............................................37

Gas connection ..................................................39

LPG Gas Connection for HK .........................................40

LPG Gas Connection for SG .........................................40

Conversion to another type of gas...................................43

Jet table ......................................................43

Changing the jets..................................................44

After changing the jets..............................................45

After sales service, data plate ......................................46

Technical Data ...................................................47

4

Front view

Guide to the appliance

a Large burner

b Normal burner

c Pan support

d Symbols to indicate which

gas burner the control is for

Controls:

e rear

f front

5

Guide to the appliance

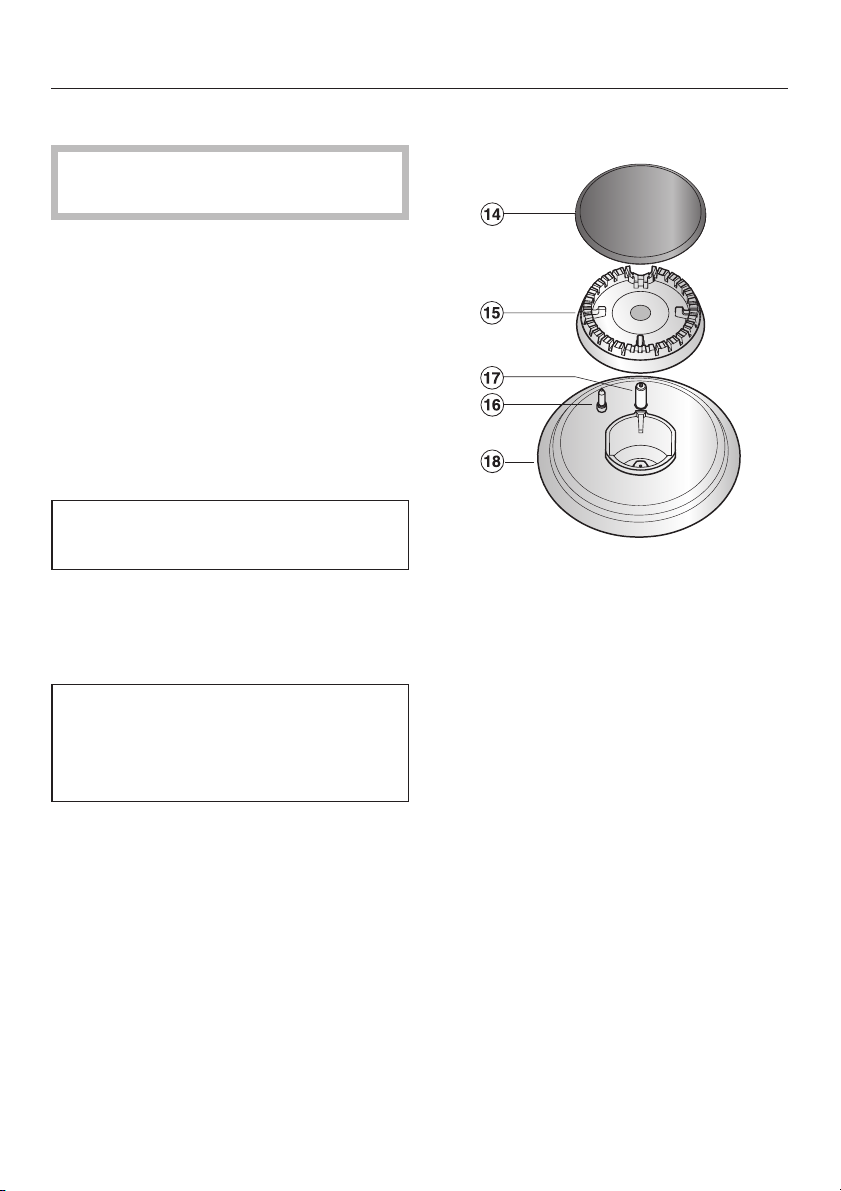

Burner

n Burner cap

o Burner head

p Ignitor

q Ignition safety device

r Burner base

6

Warning and Safety instructions

This appliance complies with all
current local and national safety
requirements. Improper use can,
however, present a risk of both
personal injury and material
damage.

To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before installation and before using
it for the first time. They contain
important notes on installation,
safety, use and maintenance.

Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner.

Correct application

This hob is not designed for

~

commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as:

Shops

–

Offices and showrooms

–

and by residents in establishments
such as:

Hostels and guest houses.

–

The hob is intended for domestic

~

use only to cook food and keep it warm.
Any other use is not supported by the
manufacturer and could be dangerous.
Miele cannot be held liable for damage
resulting from incorrect or improper use
or operation.

The hob is not intended for outdoor

~

use.

The hob can only be used by

~

people with reduced physical, sensory
or mental capabilities or lack of
experience and knowledge if they are
supervised whilst using it, or have been
shown how to use it in a safe way and
understand the hazards involved.

7

Warning and Safety instructions

Safety with children

The hob is not a toy! To prevent the

~

risk of injury, do not let children play
with the appliance or its controls.

Children under 8 years of age must

~

be kept away from the hob unless they
are constantly supervised.

Children 8 years and older may use

~

the hob only if they have been shown
how to use it in a safe way and
understand the hazards involved.

The hob gets hot when in use and

~

remains hot for quite a while after being
switched off. Keep children well away
from the appliance until it has cooled
down and there is no danger of
burning.

Do not store anything which might

~

arouse a child's interest in storage
areas above or next to the hob.
Otherwise they could be tempted into
climbing onto the appliance with the
risk of burning themselves.

Keep all pans out of reach of

~

children. Turn pan handles inwards
away from the edge of the hob. Danger
of burning or scalding.

Packaging, e.g. cling film,

~

polystyrene and plastic wrappings,
must be kept out of the reach of babies
and young children. Danger of
suffocation. Dispose of or recycle all
packaging safely as soon as possible.

8

Warning and Safety instructions

Technical safety

Before installation, check the hob for

~

visible signs of damage. Do not install
and use a damaged appliance. It could
be dangerous.

The electrical safety of the hob can

~

only be guaranteed if correctly earthed.
It is most important that this basic
safety requirement is observed and
regularly tested, and where there is any
doubt, the household wiring system
should be inspected by a qualified
electrician.
Miele cannot be held liable for the
consequences of an inadequate
earthing system (e.g. electric shock).

Before connecting the hob to the

~

mains electricity supply, make sure that
the data quoted on the data plate
match the household mains supply,
otherwise the appliance could be
damaged. Consult a qualified
electrician if in any doubt.

The connection to the gas supply

~

should only be undertaken by an
registered gas installer under the gas
safety regulations (Registration of Gas
Installers and Gas Contractors). If the
appliance is supplied without a plug, or
if the plug is removed, it must be
connected to the mains electricity
supply by a suitably qualified and
competent electrician in strict
accordance with current local and
national safety regulations. The
manufacturer cannot be held liable for
damage caused by incorrect
installation or connection.

Installation, maintenance and

~

repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.

For safety reasons, the hob may

~

only be used after it has been built in.

Do not open the casing of the hob.

~

Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user and can
cause operational faults.

During installation, maintenance and

~

repair work, the hob must be
disconnected from the gas supply and
mains electricity supply.

While the hob is under guarantee,

~

repairs should only be undertaken by a
service technician authorised by Miele.
Otherwise the guarantee is invalidated.

9

Warning and Safety instructions

Faulty components must only be

~

replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.

If the connection cable is damaged,

~

it must be replaced by a suitably
qualified electrician with a special
connection cable of type H 05 V V-F
(pvc insulated), available from Miele.

The hob is not intended for use with

~

an external timer switch or a remote
control system.

Do not connect the hob to the mains

~

electricity supply by a multi-socket
adapter or an extension lead. These do
not guarantee the required safety of the
appliance (e.g. danger of overheating).

Do not use the hob if it is faulty.

~

Switch it off immediately and
disconnect it from the mains electricity
supply and the gas supply. Call the
Service Department.

Correct use

The hob gets hot when in use and

~

remains hot for quite a while after being
switched off. Do not touch it whilst it
could still be hot.

If a cooker hood is installed above

~

the hob, ensure that the burners are
always covered with a pan when in use.
Otherwise flames could reach the
cooker hood, parts of which could then
be damaged or set on fire.

Do not leave the hob unattended

~

whilst it is being used. Oil and fat are
potential fire hazards as they can ignite
if overheated.

If oil or fat does catch fire, do not

~

attempt to put out the flames with water.
Use a suitable fire blanket, saucepan
lid, damp towel or similar to smother the
flames.

Do not use the hob to heat up the

~

room. Due to the high temperatures
radiated, objects near the appliance
could catch fire. The life of the
appliance could also be reduced.

Use heat-resistant pot holders or

~

gloves when using the hob. Ensure that
they do not come into contact with the
flames. Do not use large cloths, tea
towels or similar as the ends could
touch the flames and catch fire. Do not
let the gloves get damp or wet, as this
causes heat to transfer through the
material more quickly with the risk of
scalding or burning yourself.

Do not flambé under a cooker hood.

~

The flames could set the cooker hood
on fire.

Do not use the hob as a resting

~

place for anything. When the appliance
is switched on either deliberately or by
mistake, or when there is residual heat
present, the article could melt or catch
fire.

Where several appliances are

~

installed side by side
Do not place hot pots or pans on the
cover strip as this can damage the
seal.

10

Warning and Safety instructions

Do not cover the hob, e. g. with a

~

hob cover, a cloth or protective foil. The
material could catch fire, shatter or melt
if the appliance is switched on by
mistake or if it is still warm.

Do not use plastic or aluminium foil

~

containers. These melt at high
temperatures and could catch fire.

Do not heat up unopened tins of

~

food on the hob, as pressure will build
up in the tin, causing it to explode. This
could result in injury and scalding or
damage.

Make sure all the components of the

~

gas burners have been correctly
assembled before switching on.

Pans must be the correct size for the

~

burner they are used on (see "Suitable
pans"). A pan which is too small will be
unstable on the pan support. If the pan
diameter is too large, flames can
spread out to the sides and damage or
burn the worktop, wall claddings or
surrounding units and also parts of the
hob. Miele cannot be held liable for this
type of damage.

Ensure that the flames from the

~

burner do not spread out beyond the
base and up the sides of the pan.

Unless the pan manufacturer states

~

that you can do so, do not use pans
with very thin bases on the hob, and
never heat up empty pans as they
could get damaged. This could also
damage the appliance.

Do not store any inflammable

~

objects near the hob.

Remove splashes of fat and other

~

food debris from the surface as soon as
possible. These are a fire hazard.

Replace the pan supports carefully

~

to avoid scratching the surface of the
hob.

Using the hob will cause a build-up

~

of heat and moisture in the room in
which it is installed. Ensure that the
room has sufficient natural or
mechanical means of ventilation, e.g.
an extractor.

If the hob is used for very long

~

periods of time additional ventilation of
the room may be necessary, e.g. by
opening windows or doors, or running
the extractor on the highest setting.

When using an electrical appliance,

~

e.g. a hand-held food blender, near the
hob, ensure that the cable of the
electrical appliance does not come into
contact with the hot hob. The insulation
on the cable could become damaged,
giving rise to an electric shock hazard.

Spray canisters, aerosols and other

~

inflammable substances must not be
stored in a drawer under the hob.
Cutlery inserts must be heat-resistant.

The pan support supplied must

~

always be used. Pans must not be
placed directly on the burner.

11

Warning and Safety instructions

Always ensure that food is

~

sufficiently cooked or reheated. Some
foods may contain micro-organisms
which are only destroyed by thorough
cooking at a sufficiently high
temperature for long enough.
Therefore, when cooking or reheating
food such as poultry, it is particularly
important that the food is completely
cooked through. If in doubt, select a
longer cooking or reheating time.

Avoid allowing liquids or foods

~

containing salt to spill onto the hob. If
salty foods or liquids do get on the hob,
they should be removed as soon as
possible to avoid the risk of corrosion.

If the hob is installed behind a

~

kitchen furniture door, it may only be
used with the furniture door open.
Only close the door when the appliance
is switched off and the residual heat
indicators have gone out.

If the hob has not been used for a

~

long period of time it should be
thoroughly cleaned before it is used
again. It is also advisable to have the
appliance tested for safety.

Miele cannot be held liable for
damage caused by non-compliance
with these Warning and Safety
instructions.

12

Caring for the environment

Disposal of the packing
material

The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.

Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.

Disposal of your old appliance

Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.

Please dispose of it at your local
community waste collection/recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.

13

Before using for the first time

Please stick the extra data plate for the
appliance supplied with this
documentation in the space provided in
the "After sales service" section of this
booklet.

Cleaning for the first time

Remove any protective foil and

^

stickers.

Clean all removable parts of the

^

burners with a solution of warm water
and a little washing-up liquid applied
with a soft sponge. Dry all parts
thoroughly after cleaning and then
reassemble the burners (see
"Cleaning and care").

^ Clean the stainless steel trough with

a damp cloth, and then wipe dry.

Metal components have a protective
coating which may give off a slight
smell when heated up for the first time.
The smell and any vapours will
dissipate after a short time, and do not
indicate a faulty connection or
appliance.

14

Switching on, adjusting the
flame and switching off

The control knob is used to ignite the
burner and regulate the strength of the
flame.

ßThe gas supply is turned off

& strong flame

/ weak flame

The burners can only be switched
on by pressing in the appropriate
control and turning it anti-clockwise,
and switched off by turning the
control clockwise.

The following will cause damage to
the appliance:

- Switching on the burner without
pressing the control down,

- Switching the burner on by
turning the control clockwise,

- Switching the burner off by
turning the control
anti-clockwise.

Operation

The manufacturer will not accept
liability for any damaging resulting
from incorrect operation.

15
