Operating instructions
Coin control unit
C 4065
To avoid the risk of accidents or damage to the machine it is
essential to read these instructions before installing,
commissioning and using it for the first time.
G
M.-Nr. 05 706 101
2 M.-Nr. 05 706 101
Contents
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Description of the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
General information about the C 4065 Coin control unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Access to programming level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Exit from programming level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
List of input positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Display example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Display total day count of all coins (without entering into programming level). . . . . . . . . . . . . 11

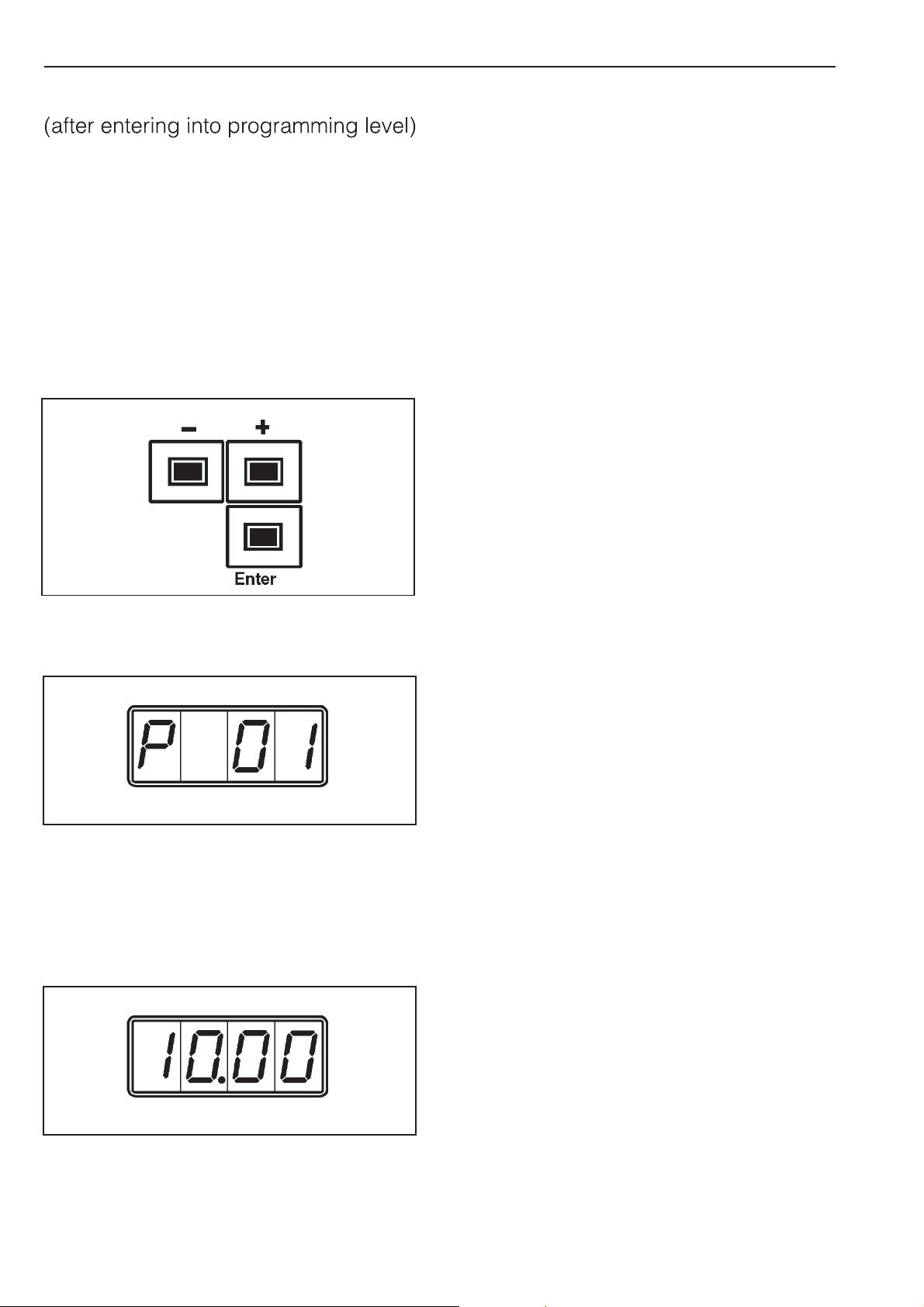

Display total day count of all coins (after entering into programming level). . . . . . . . . . . . . . . 12
Programming example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
To change the main time (in timed operation) from the standard option
of 60 minutes to 30 minutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Displays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Total day count of all coins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Displays in programme operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Display before and after programme access has been granted. . . . . . . . . . . . . . . . . . . . . . . . 16
Programming in timed operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Programming the main time
Input position P03 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Programming coin time for the coin
Input position P08 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Special functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Programming the brightness of the display
Input position P23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Abbreviated operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
M.-Nr. 05 706 101 3
Warning and Safety instructions
Read the operating and programming in
structions before using the coin control
unit for the first time.
They contain important information about
the safety, use and maintenance of the
machine. This way you will avoid the risk
of accidents and damage to the machine.
Keep these operating and programming
instructions in a safe place and ensure
that new users are familiar with the con
tent. Pass them on to any future owner of
the machine.
Before connecting the machine to the
mains supply make sure that the con
nection data on the data plate (fusing, volt
age and frequency) matches the mains elec
tricity supply.
The electrical safety of this appliance
can only be guaranteed when continuity
is complete between the appliance and an
effective earthing system which complies
with local and national safety regulations. In
case of doubt consult a suitably qualified
person. The manufacturer cannot be held liable for the consequences of an inadequate
earthing system (e.g. electric shock).
-
-
-
-
-
The machine is only completely isolated
from the electricity supply either when it
is switched off at the isolator switch or the
mains fuse has been withdrawn.
Do not install the machine in rooms
where temperatures below freezing may
occur. Temperatures below freezeing may
impair the functioning of the machine.
Do not use a high pressure cleaner or
hose to clean the machine.
Faulty components must only be ex
changed for Miele original spare parts.
Only when these parts are fitted can the
safety standards of the machine be guaran
teed.
Using accessories
Accessory parts may only be fitted when
expressly approved by Miele. If other
parts are used, guarantee, performance and
product liability claims may be invalidated.
Empty the coin box daily.
If coins are not emptied regularly they
will build-up and prevent the control unit
from functioning properly.
-
-
Do not use this machine if there is any
sign of external damage, e.g. to the ca-
ble insulation, until it has been repaired.
If the connection cable is damaged in
any way it must be replaced by a suit
ably qualified technician to ensure safety. Do
not use the machine if there is any sign of
damage, until it has been repaired.
Under no circumstances should the
housing of the machine be opened.
Tampering with electrical connections or
components and mechanical parts is highly
dangerous to the user and can cause me
chanical faults.
Repairs to electrical appliances should
only be carried out by a suitably quali
fied and competent person in accordance
with local and national safety regulations.
Unauthorised repairs could result in unfore
seen dangers for the user, for which the
manufacturer cannot accept liability.
-
-
-
-
4 M.-Nr. 05 706 101
Disposal of the packing material
The transport and protective packing has
been selected from materials which are envi
ronmentally friendly for disposal and can
normally be recycled. Packaging e.g. cling
film, polystyrene and plastic wrappings must
be kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these materials
away, please ensure that they are recycled.
Disposal of your old machine
Electrical and electronic machines often
contain materials which, if handled or dis
posed of incorrectly, could be potentially
hazardous to human health and to the envi
ronment. They are, however, essential for the
correct functioning of your machine. Please
do not therefore dispose of it with your
household waste.
-
-
Caring for the environment
-
Please dispose of it at your local community
waste collection/recycling centre, and en
sure that it presents no danger to children
while being stored for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a com
petent person. The plug must be rendered
useless, and the cable cut off directly be
hind it to prevent misuse.
-
-
-
M.-Nr. 05 706 101 5
Description of the machine
General information about the C 4065 Coin control unit
The C 4065 Coin control unit is fitted with a mechanical coin acceptor and is set ex-works to
operate using one pound or 20 pence coins (depending on coin acceptor) in the U.K.
The C 4065 can be used as a timer or programme control unit for Miele laundry machines.
For programme operation (standard setting):
As a control unit for machines which are fitted with a programme timer or an electronic control
unit where a complete programme sequence is required (e.g. a wash programme).
For timed operation*:
As a control unit allowing laundry machines to be used for specific lengths of time only (e.g. a
period of ironing).
* Reprogramming necessary on the coin control unit.
Coin control unit C 4065
a Display
b Programming buttons
c Coin feed
d Coin return button
e Coin return slot
f Connection cable
g Coin box
h Front panel
i Lock
Before inserting coins make sure you have to correct amount of money. Avoid making
overpayments. The coin control unit does not give change!
Only use one pound or 20 pence coins (depending on coin acceptor) in this machine.
6 M.-Nr. 05 706 101
Description of the machine
Display
The display can show the following:
the amount of money to be inserted,
–
the operating status of the connected ap
–
pliance (programme operation, time oper
ation),
any input positions and options,
–
counter status and
–
test and service information.
–
Programming buttons
The progamming buttons are used for se
-
-
lecting various input positions and setting
different options.
The " + " and " - " buttons
These buttons are used to select the individ
ual input positions and to change the option
values.
-
-
Each time the button is pressed the display
changes by one digit.
If the button is kept pressed in the display
will change continuously.
Further functions:
" + " button
Access to read the counter contents from
outside programming level.
" - " button
To delete the counter contents and reset the
settings.
" Enter " button
This button has several functions.
–
Access to programming level.
–
Jumping from input position to option.
–
Saving the option and
returning to the input position.
–
Selecting the counter status outside pro
gramming level.
M.-Nr. 05 706 101 7
-
Programming
Access to programming level
Before you begin, first ensure that:
the machine is switched on and
–
washer extractor or tumble dryer doors are
–
shut.
Press and release the " Enter " button 4
^
times within 5 seconds .
The option for the input position then ap
pears to the right of the display (e.g. " 1 ").
Selecting an " Option "
^ Press the " + " or " - " button until the re-
quired option (1,2,3,4 …9999) shows in
the display (e.g. " 2 " for timed operation).
Saving the " Option "
^ Press the " Enter " button.
-
The letter " P " (code for programming level)
will appear on the left hand side of the display. The " 01 " on the right of the display
shows the first input position.
Selecting an " Input position "
^
Press the " + " or " - " button until the re
quired input position (00, 01, 02 …25)
shows in the display (e.g. " 04 ").
^
Press the " Enter " button.
-
" P 04 " will appear in the display.
Option " 2 " has been saved in input posi
tion " 4 ".
Exit from programming level
There are three possible ways of exiting:
–
Switch the machine off.
–
Exit will occur automatically if you do not
press any programming buttons for 50
seconds.
-
–
By selecting Input position "00" and press
ing the " Enter " button.
8 M.-Nr. 05 706 101
-
Programming
List of input positions
Options can be progammed in and the counter status queried in the input positions.
Any changes made to standard options must be entered in the "Standard" column.
K = Input can be carried out by the operator or a service technician.
S = Input can only be carried out by a service technician.
Input
posi
tion
P 00
P 01
P 02
P 03
P 04 S
P 05 S
P 06 S
-
Display
(Standard)
Note Explanation of individual functions Options Further
K Exit from programming level Page
K Display total day count of all
K Display total sum of all coins (amount) - can
K For programme operation
coins (amount) - deletable with " - " button
not be deleted
changes depend on programming of the dec
imal places.
For timed operation:
Main time in minutes
(Only if input position 4 is set to time operation)
- can be changed depending on the programmed coin time. Up to 1440 times the
programmed coin time and in coin time value
steps.
1 Programme operation
2 Timed operation
Number of decimal places to be shown
Only when showing amounts of money.
1 two decimal places (e.g. 4.00)
2 no decimal places (e.g. 4)
For programme operation:
Notification
1 Programme end with 230 V Signal OFF
(AUS) (also with power cut)
2 Programme end with 230 V Signal ON (EIN)
Standard
-
-
2.00 GBP Page
1
2
1
2
1
2
3
explana
tions
7
Pages
10, 11,
14
16
-
3 Programme end only with power cut
P 07
P 08
S For Programme operation:
Storage time
Can be changed in seconds from 2 to 180
seconds.
K For timed operation:
Coin time for the coin in channel 1
(which is programmed)
Can be changed in minutes from 1 to 120
minutes.
180 Sec. 2 - 180
seconds
30 min. 1 - 120
minutes
Page
16
- Continued next page -
M.-Nr. 05 706 101 9
Programming
Input
posi
tion
P 09 S
P 10
P 17
P 23
P 24
-
Display
(Standard)
Note Explanation of individual functions Options Further
S For timed operation:
S Coin recognition for channel 1
K Display brightness level
S Reset to standard settings
For timed operation:
Later payment mode
1 Coin requirement (always full main time)
2 Minimum coins inserted (first money for
main time, then 0 1 minute extra purchase op
tion according to amount of money added
later
3 Short time purchase according to amount of
money inserted as a proportion of time at 0 1
minute can be purchased)
Time access / Time stop
1 Time access direct with coin insertion
2 Time access with 230 V Signal OFF (AUS)
Time stop with 230 V Signal ON (EIN)
3 Time access with 230 V Signal ON (EIN)
Time stop with 230 V Signal OFF (AUS)
4 Time access with 230 V Signal OFF (AUS)
with storage function via the switch on the
main relay
5 Time access with 230 V Signal ON (EIN) with
storage function via switch on time on the
main relay
Can be changed from 1 to 7
Stan
-
dard
1
-
1
1.00 or
0.20*
GBP
3 1 - 7
Si
explana
tions
2
2
3
2
3
4
5
Page
17
-
*) Depends on coin acceptor being used
10 M.-Nr. 05 706 101
Display example
Display total day count of all coins
General
The contents of the total day count for coins
(amount) and the total count for coins can
be called up without going into program
ming level. It is also possible to delete the
total day count without going into program
ming level.
Before you begin, first ensure that:
The machine is switched on and washer
–
extractor or tumble dryer doors are shut.
-
-
Contents of the total sum count (cannot be
deleted)
Press and release the " Enter " button.
^
The total amount, e.g. 78.00 GBP is shown in
the display.
To delete the total day count
This can only be deleted if it has been se
lected and is visible in the display. It does
not matter which digits are showing in the
display.
-
^ Press the " + " button in for approx. 5 sec-
onds and then release it.
Contents of total day count for coins
(amount) - (can be deleted) The total amount
for the day, e.g. 25.00 GBP is shown in the
display.
^ Press the " - " button in until two horizontal
bars appear in the display.
^
Then release the " - " button.
The counter contents have now been de
leted and "0.00" shows in the display.
Exit from the display
There are three possible ways of exiting:
–
Isolate the coin control unit from the mains
supply (e.g. by switching off at the on-site
mains switch).
–
Exit will occur automatically if you do not
press the "Enter" button for 50 seconds.
–
After the total count display (i.e. the final
display in the sequence) Press the "Enter"
button.
-
M.-Nr. 05 706 101 11
Display example
Display total day count of all coins
Before you begin, first ensure that:
The machine is switched on and washer
–
extractor or tumble dryer doors are shut.
The coin control unit will display the amount
to pay, e.g. 2.00 GBP. 5 wash programmes
at 2.00 GBP have been purchased.
Larger amounts (over 99.00 or 99.80 GBP
depending on coin acceptor being used)
are shown scrolling across the screen.
Amounts with 4 digits or less do not rotate in
the display.
To delete the total day count:
Press the " - " button in for approx. 5 sec
^
onds.
Exit from programming level
There are three possible ways of exiting:
Switch the machine off.
–
Exit will occur automatically if you do not
–
press any programming buttons for 50
seconds.
By selecting Input position "00" and press
–
ing the " Enter " button.
-
-
^ Press and release the " Enter " button 4
times within 5 seconds .
The letter " P " (code for programming level)
will appear on the left hand side of the dis
play, and the first input position will show on
the right hand side of the display.
^
Press the " Enter " button again once.
-
The total amount, e.g. 10.00 GBP is shown
in the display.
12 M.-Nr. 05 706 101
Programming example
To change the cost from the standard op
tion of 2.00 GBP to 3.00 GBP
Before you begin, first ensure that:
The machine is switched on and washer
–
extractor or tumble dryer doors are shut.
The coin control unit will display the pro
grammed amount of 2.00 GBP.
-
-
Press the " + " button until the amount
^
" 3.00 GBP " shows in the display.
Changes are dependent on coins accepted
by the mechanical coin acceptor or the
amount programmed under P17.
Press the " Enter " button.
^
" P 03" will appear in the display.
^ Press and release the " Enter " button 4
times within 5 seconds .
The letter " P " (code for programming level)
will appear on the left hand side of the dis
play. The " 01 " on the right of the display
shows the first input position.
^
Press the " + " button until input position "
03 " shows in the display.
^
Press the " Enter " button.
-
The display will change from " P 03 " to 3.00
GBP after approx. 50 seconds.
The new price of 3.00 GBP is now stored
in memory.
The display will show the standard pro
grammed amount of 2.00 GBP.
M.-Nr. 05 706 101 13
-
Programming example
To change the main time (in timed
operation) from the standard option
of 60 minutes to 30 minutes
Before you begin, first ensure that:
The machine is switched on and washer
–
extractor or tumble dryer doors are shut.
Timed operation must previously have
–
been programmed via input position "4".
The display will show the coin value for the
programmed time, e.g. 1.00 GBP*
Press the " + " button until input position
^
" 03 " shows in the display.
Press the " Enter " button.
^
The display will show the standard pro
grammed main time of 60 minutes.
Press the " - " button once.
^
-
^
Press and release the " Enter " button 4
times within 5 seconds .
The letter " P " will appear on the left hand
side of the display. The " 01 " on the right of
the display shows the first input position.
The display will now show the new programmed main time.
^ Press the " Enter " button.
" P 03" will appear in the display.
The display will change from " P 03 " to
show the coin value for the programmed
time, e.g. 1.00 GBP* after approx. 50 sec
onds.
The new main time of 30 minutes is now
stored in memory.
-
*) Depends on coin acceptor being used
14 M.-Nr. 05 706 101
Displays
Total day count of all coins
The total day count counter adds up all coin
payments according to the coins received.
The total day count can be deleted.
To display the total day count
In order to view the contents of the total
^
day count input position 1 has to be se
lected.
To display the contents of the total day
^
count press the " Enter " button. If the sum
is a 5 figure number or more, it will be
shown scrolling across the screen from
right to left starting with the highest value
position.
Once the lowest value has scrolled across
and nothing is left in the display (position 9)
the process will repeat itself.
An amount of 178.00 GBP would look like this:
-
To delete the total day count
This can only be deleted if it has been se
lected and is visible in the display. It does
not matter which digits are showing in the
display.
Press the " - " button in until two horizontal
^
bars appear in the display.
Then release the " - " button.
^
The counter contents have now been deleted and "0.00" shows in the display.
-
1. 2.
3. 4.
5. 6.
7. 8.
9. 10.
Total sum count
The total sum count counter adds up the
amount of money received according to the
coins received.
The total sum count cannot be deleted.
^ In order to view the contents of the total
sum count proceed in the same way as for
viewing the total day count.
11.
......etc.
M.-Nr. 05 706 101 15
Displays in programme operation
Display before and after programme
access has been granted
In programme operation the amount of
money to be inserted appears in the display
after the machine (e.g. washer extractor) has
been switched on and before free access
has been granted to the programme.
The display will show an amount such as
2.00 GBP. The number of decimal places de
pends on how they were programmed (in
this example 1 . 2 decimal places).
The point will disappear after a maximum of
3 minutes (see P07).
-
The display will count down to " 0.00 " as you
feed the coins in.
After approx. 2 seconds the display will
move into a dynamic state.
1. 2.
3. 4.
The two middle positions show a rotating cir
cle (to represent a rotating drum) and a
point. If this point is visible in the display you
can open the drum door (e.g. to add items
of laundry) without losing your money.
-
16 M.-Nr. 05 706 101
Programming the main time
The main time can only be altered in steps to
match the coin time of the coins required.
The limits for this time lie between once and
1440 times.
Programming coin time for the coin
Coin time for the coin can be programmed
between 1 and 120 minutes.
This coin time also appears in the display
whenever programming option "time access
direct with coin insertion" is selected (see
page 9, Input position P 10).
Programming in timed operation
The amount of money required for the main
time is calculated as follows:
Programmed main time in minutes divided
by the relevant programmed coin time in
minutes.
For example:
To calculate the cost of a standard programmed main time of 80 minutes and a
coin time of 10 minutes at 1.00 GBP* multiply the main time by the cost and divide it by
the time.
80 minutes x 1.00 GBP*
10 minutes
= 8.00 GBP
*) Depends on coin acceptor being used
M.-Nr. 05 706 101 17
Special functions
Programming the brightness of the
display
The brightness of the display can be ad
justed if required. A setting can be chosen
between 1 and 7.
Changing the setting changes the bright
ness immediately. This way you can check
the brightness level before saving it in mem
ory.
-
-
-
18 M.-Nr. 05 706 101
Do not use a high pressure cleaner or
,
hose to clean the machine.
The stainless steel outer casing should be
cleaned using a suitable proprietary stain
less steel cleaning agent. Do not use abra
sive cleaning agents as they will damage the
surface material.
If you are unsure about a particular product
or need further advice please contact your
nearest Miele Sales office. See back page
for address.
-
-
Cleaning and maintenance
Plastic components should be cleaned us
ing a suitable mild cleaning agent, applied
with a soft damp cloth. Rub dry with a soft
cloth after cleaning.
The coin control unit requires no mainte
nance.
-
-
M.-Nr. 05 706 101 19
After sales service
In the event of any faults please contact
your Dealer or the nearest Service Depart
ment.
When contacting the Service Department
please quote the model and serial number of
your machine.
-
This information is given on the data plate lo
cated at the back of the coin control unit or
inside the unit behind the coin/token box.
Sometimes a coin is not accepted by the
coin control unit when it is first inserted.
This may be because the coin has been
damaged or is worn down.
^ Try again using a different coin.
-
20 M.-Nr. 05 706 101
Abbreviated operating instructions
Before starting to use the C 4065 coin control unit:
Instructions on how to use the coin control unit with a Miele washer extractor, dryer or Miele ro
tary ironer are also given in the Instruction Booklet supplied with the relevant machine.
It is important to operate the unit in the correct order, as shown below. Otherwise coins will
be lost.
Washer-extractors, dryers and rotary ironers
The following will show in the display on the coin control unit if the machine is operated in the
correct order
The coin control unit will display the amount to pay, e.g. 2.00 GBP.
Before inserting coins make sure you have to correct amount of money. Avoid making
overpayments. The coin control unit does not give change!
Only use one pound or 20 pence coins in this machine.
-
^ Insert coins.
The display will count down to " 0.00 " as you feed the coins in.
About 2 seconds later the display will change and show a rotating circle or the amount of time
purchased if in timed operation, e.g. 45 minutes of ironing time.
The machine is now ready to start.
^
Press the Start h button.
Or the " On I " button on the HM 5316.
When the programme has finished the display on the coin control unit will show that it is ready
to accept coins again.
M.-Nr. 05 706 101 21
22 M.-Nr. 05 706 101
M.-Nr. 05 706 101 23
Alteration rights reserved / 05.07
M.-Nr. 05 706 101 / V04
Loading...
