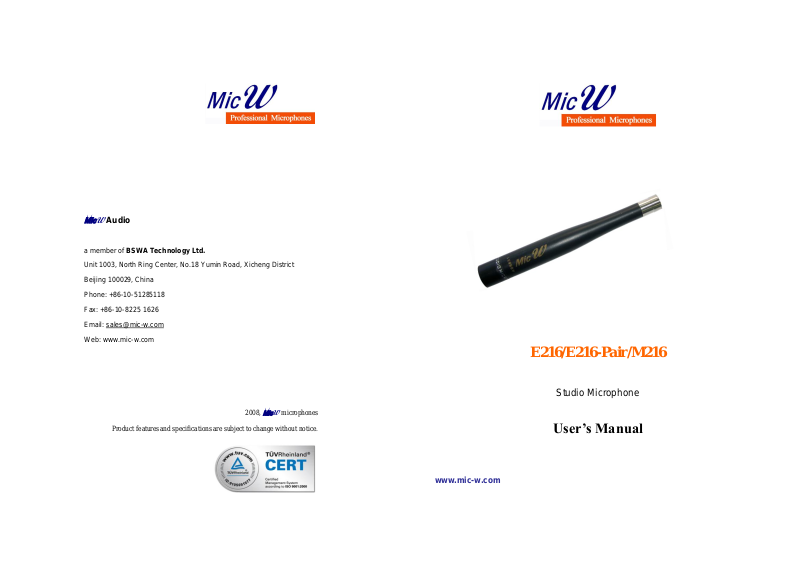

MicW M216 User Manual

MicW

Audio

a member of BSWA Technology Ltd.
Unit 1003, North Ring Center, No.18 Yumin Road, Xicheng District
Beijing 100029, China
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.mic-w.com

2008,

MicW

microphones

Product features and specifications are subject to change without notice.

E216/E216-Pair/M216

Studio Microphone

User’s Manual

www.mic-w.com

MICROPHONE E216/E216-Pair/M216

Capsule diameter

12.7 mm

Polar pattern

Omni

Sensitivity (±2dB)

32mv/Pa; -30 dB re. 1v/Pa

Frequency Response

20 Hz ~ 20kHz

Power Supply

48 V Phantom power

Total harmonic distortion
(THD)

＜1% up to 135 dB SPL peak
Thermal Noise

＜23 dBA

Output impedance

＜75 Ohm

Length

155mm

weight

155g

Connector

3-pin XLR

8. SPECIFICATIONS:

9. Contents in the case

 E216/E216-Pair/M216 microphone(s);
 Wind screen;
 User’s manual..

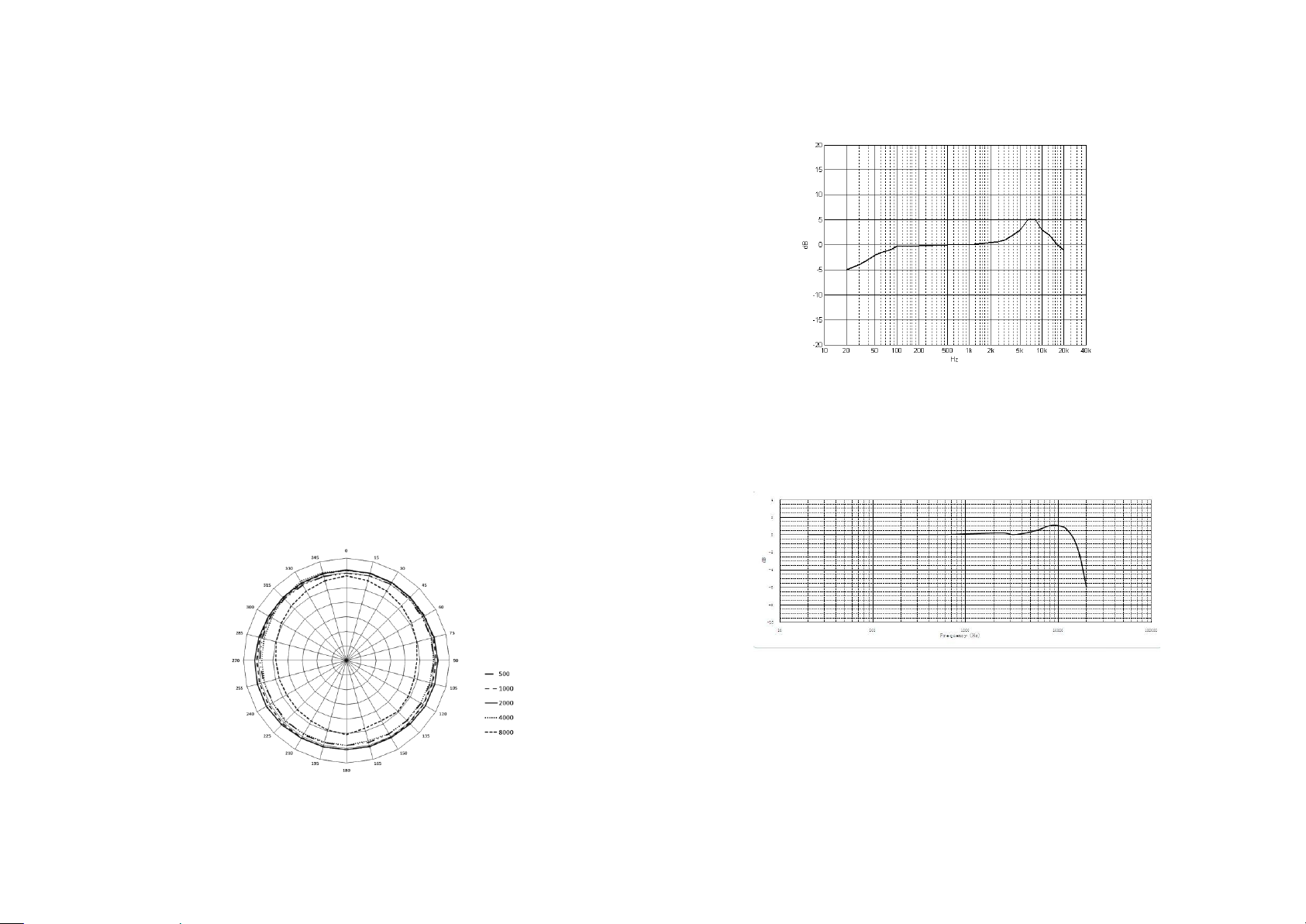

Polar Pattern

1. INTRODUCTION

Welcome to use

MicW

E216 has outstanding characteristics that make the microphone a valuable tool

in the studio, measurement and on the stage.

2. SAFETY INSTRUCTION

It is important to read all safety precautions and operating instructions before
attempting to operate the unit. Keep all safety precautions and operating instructions
for future reference.

Warning:

Condenser microphones are extremely moisture-sensitive. Never use your
microphone in close proximity to water (e.g. bath tubs, wash basins, sinks, washing
machines, pools, etc.). When doing voice recordings, always use the enclosed
windscreen to safely protect the capsule from moisture.

Please don’t touch the vibration parts especially the diaphragm behind the protection
grid. Don’t move the capsule when it is in operation. Take care not to drop your
microphone as this can lead to severe damage.
damage caused by the user.

After each use, place it back into its protective casing. Then, lay the small bag
containing the moisture-absorbing crystals on top of the microphone head.

3. POWER SUPPLY

Phantom power (+48 V) is required to operate your microphone. We assume no
liability for damage caused to your E216 through defective phantom power. Before
activating phantom power, mute your playback system and connect the E216 to the
microphone input of your mixing console. After activating phantom power, the E216
requires several seconds to stabilize itself.

MicW

series professional microphones!

MicW

assumes no liability for any

4. APPLICATIONS

The

MicW

E216 is a state-of-the-art stereo kit. Therefore, it is particularly well-suited for
stereo recordings. Regardless of whether you are milking an entire ensemble or a single
sound source (e.g. drums, piano or background
