Studio Microphone
User’s Manual
Version：V1.00
Page 2
MICROPHONE CN201/CN201-Pair
Capsule Diameter
12.7 mm
Polar Pattern
omni
Sensitivity (±2 dB)
40 mV/Pa; -28 dB re.
1V/Pa
Frequency Response
20 Hz ~ 20k Hz
Power Supply
48 V Phantom power
Total Harmonic
Distortion (THD)
＜1% up to 130 dB
SPL peak
Thermal Noise
＜18 dBA
Output Impedance
＜200 Ohm
Length
22 mm
Weight
34 g
Connector
3-pin XLR
1、 SPECIFICATIONS

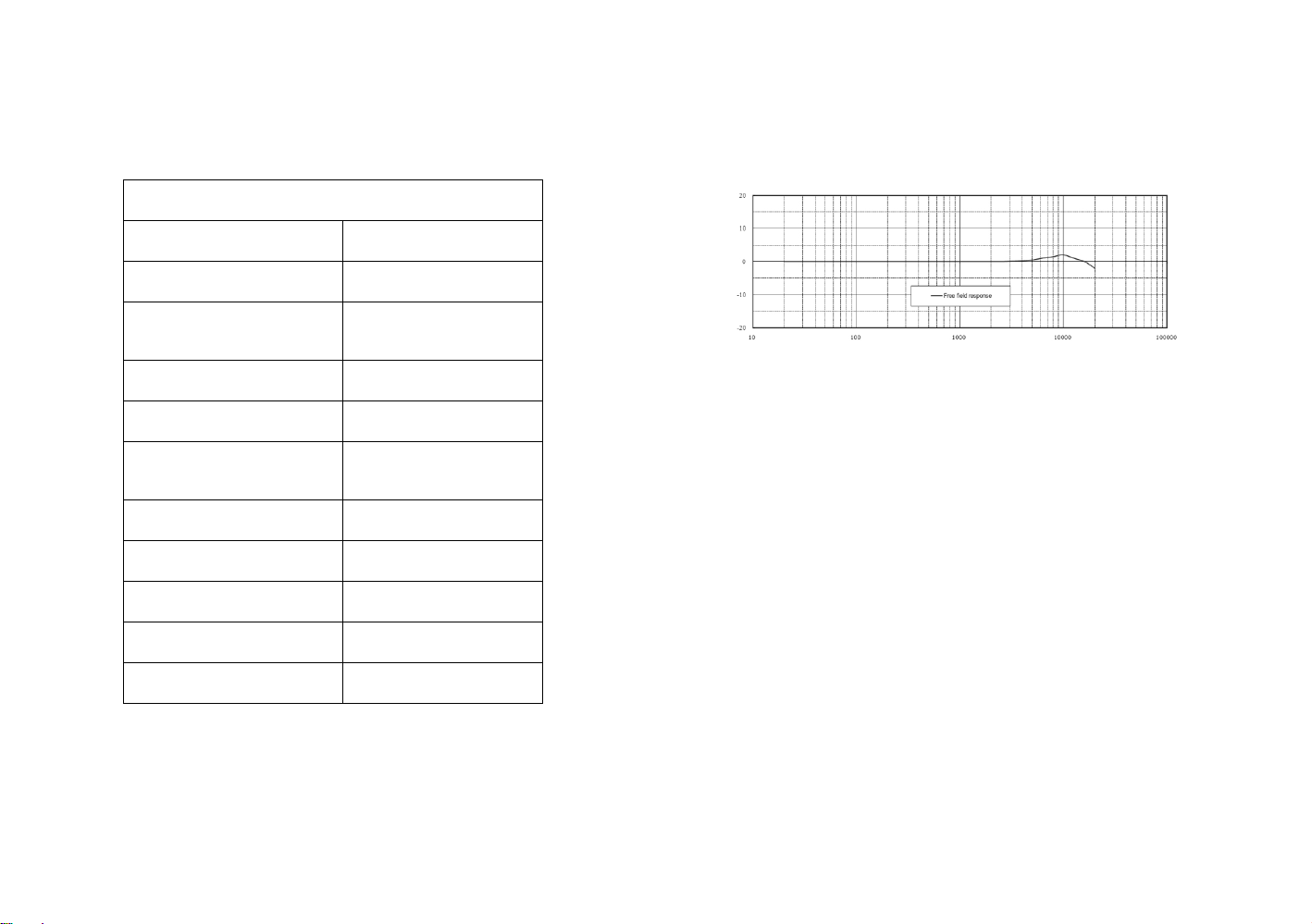

Frequency Response of CN201
9、 Packing List
CN201 Pair
Clips
Case
User’s manual
Page 3
2、INTRODUCTION
Welcome to use
The
MicW
uses similiar 1/2” capsule as N201.
The CN201 is suitable for the most critical recording
applications requiring extreme performance and environmental
stability. The N201 has the flat frequency response from 20 Hz
to 20k Hz, with low noise floor of 18 dB (A).
MicW
series professional microphones!
CN201 is compact omni directional microphone that
3、SAFETY INSTRUCTION
It is important to read all safety precautions and operating
instructions before attempting to operate the unit. Keep all
safety precautions and operating instructions for future
reference.
Warning:
Condenser microphones are extremely moisture-sensitive.
Never use your microphone in close proximity to water (e.g.
bath tubs, wash basins, sinks, washing machines, pools, etc.).
When doing voice recordings, always use the enclosed
windscreen to safely protect the capsule from moisture.
Please don’t touch the vibration parts especially the diaphragm
behind the protection grid. Don’t move the capsule when it is in
operation. Take care not to drop your microphone as this can
lead to severe damage. MicW assumes no liability for any
damage caused by the user.
After each use, place it back into its protective casing. Then,
lay the small bag containing the moisture-absorbing crystals on
top of the microphone head.
Page 4
4、POWER SUPPLY
Polar pattern
gold-plated connectors, if possible.
Phantom power (+48 V) is required to operate your
microphone. We assume no liability for damage caused to your
HN101 through defective phantom power. Before activating
phantom power, mute your playback system and connect the
HN101 to the microphone input of your mixing console. After
activating phantom power, the HN101 requires several seconds
to stabilize itself.
5、 APPLICATIONS
The
MicW
CN201 is a state-of-the-art stereo kit. Therefore, it is
particularly well-suited for stereo recordings. Regardless of
whether you are miking an entire ensemble or a single sound
source (e.g. drums, piano or background vocals), this
microphone lets you achieve outstanding spatial impressions in
every recording session.
Of course, you can use
matched CN201 microphones as well. Each pair is guaranteed
to the sensitivity match within 0.5dB and phase match within
5°.
MicW
CN201 -pair that feature two
6、MICROPHONE INSTALLATION
Use a clip to fix the CN201.
7、 AUDIO CONNECTION
To connect the CN201 to your equipment, use a balanced XLR
microphone cable with the following pin assignment: Pin 1 =
shielding, pin 2 = +, pin 3 = -. Since all contact points of the
CN201 are gold-plated, your microphone cable should feature

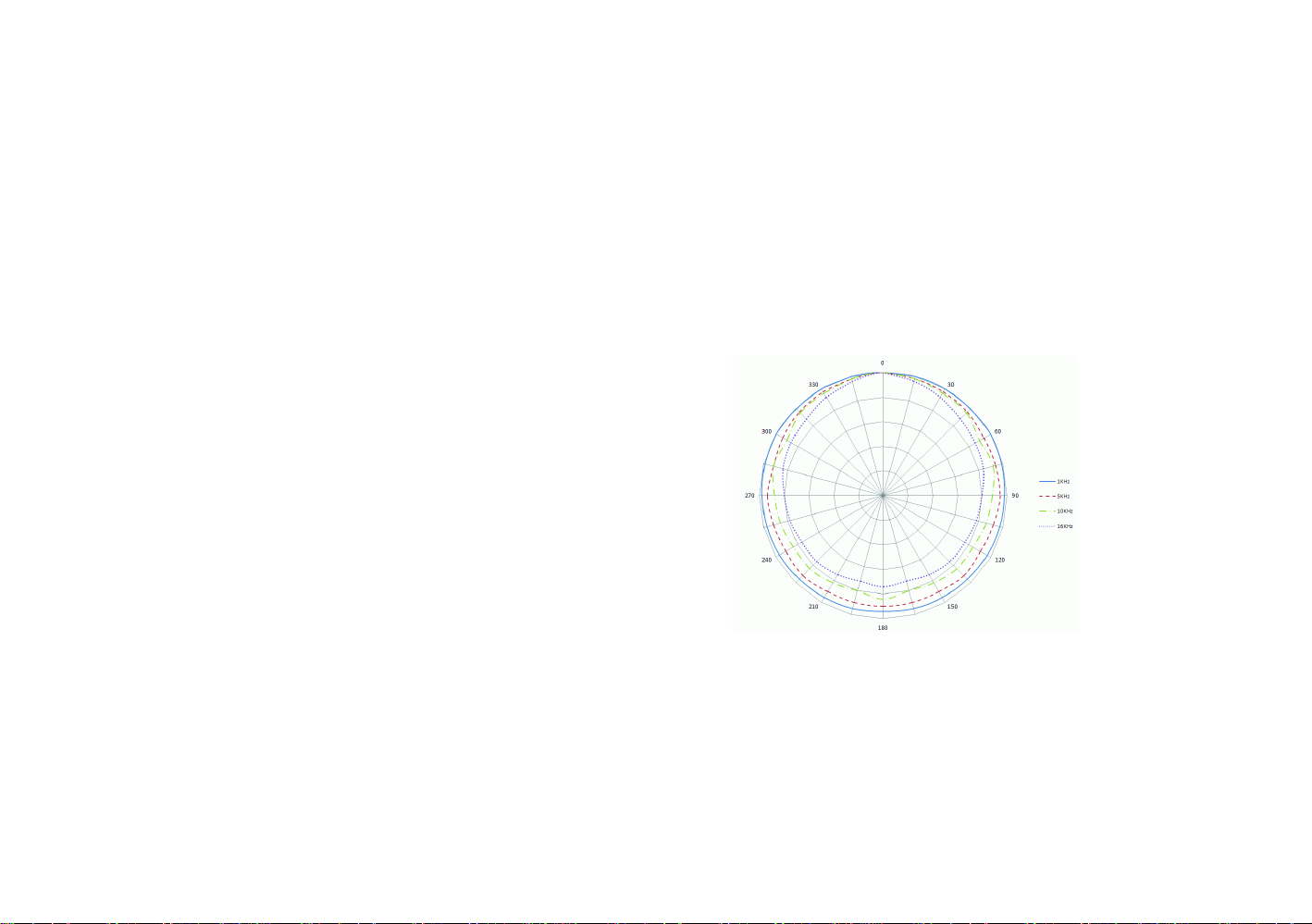

8、 DIRECTIONAL CHARATERISTIC
The microphone features a capsule with Omni pickup pattern.
Microphones with this polar pattern are most sensitive to sound
coming from in each angle of the microphone.
