Page 1
MicW
Audio
a member of BSWA Technology Ltd.
Unit 1003, North Ring Center, No.18 Yumin Road, Xicheng District
Beijing 100029, China
Phone: +86-10-51285118
Fax: +86-10-8225 1626
Email: [email protected]
Web: www.mic-w.com
MicW
microphones
Product features and specifications are subject to change without notice.
www.mic-w.com

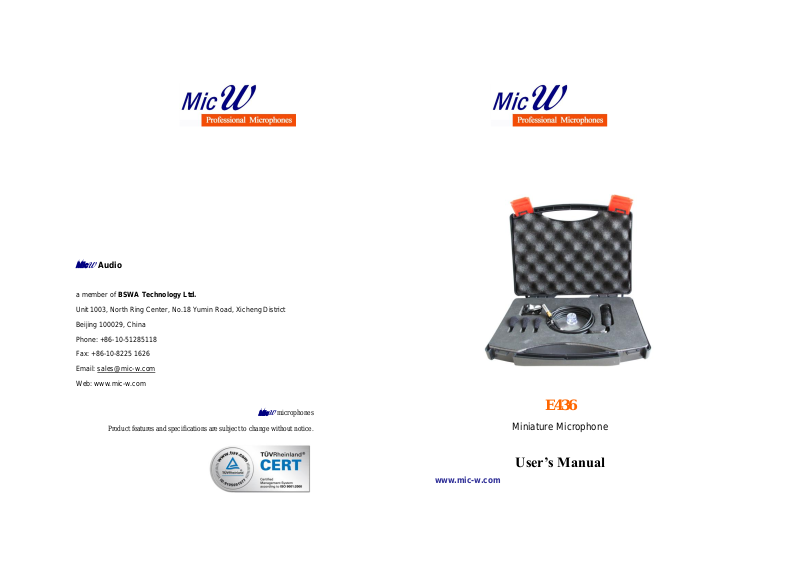

E436
Miniature Microphone
User’s Manual
Page 2
MICROPHONE E436
Capsule diameter
7.0mm
Principle of operation
Pressure
Polar Pattern
Omni
Sensitivity (±2 dB)
12 mV/Pa; -38.5 dB re. 1V/Pa
Frequency Response
20 Hz ~ 20 kHz
Power Supply
48 V Phantom power with
PI48 Adaptor
Total Harmonic Distortion
(THD)
＜1% up to 135 dB SPL
Thermal Noise
＜32 dBA
Output Impedance
＜200 Ohm
Dimensiions
7mm×28mm
Weight
4g
Connector
3-pin XLR
10. SPECIFICATIONS
11. PACKING LIST
1 E436 microphone
1 PI48 Adaptor
2 CL011—Collar Clip
4 WS095—Wind Screen
2 SM011/012—Surface Mount
4 Double-sided adhesive
1 User’s manual
1. INTRODUCTION
Welcome to use
MicW
E436 is a miniature clip-on microphone which has outstanding characteristics in
vocal and instrument recording with omni-directional polar pattern. It is ideal for
close-recording with matched accessories and for outdoor use with high moisture
resistance.
MicW
series professional microphones!
2. SAFETY INSTRUCTION
The microphones use pre-polarized capsules which were tested at high temperature and
high humidity environment for more than 24 hours before the factory release. The
microphones are very stable against temperature and humidity. It is safe to operate the
microphones from -20 to 50 C and humidity up to 95%.
3. POWER SUPPLY
Phantom power (+48 V) is required to operate your microphone. We assume no liability
for damage caused to your E436 through defective phantom power. Before activating
phantom power, mute your playback system and connect the E436 to the microphone
input of your mixing console. After activating phantom power, the E436 requires several
seconds to stabilize itself.
4. APPLICATIONS
The E436 is shipped with a number of accessories. It is easy to install E436 on the
instruments. The stereo pair kit of E436 is also available.
.
5. AUDIO CONNECTION
To connect the E436 to your equipment, use a balanced XLR microphone cable with the
following pin assignment: Pin 1 = shielding, pin 2 = +, pin 3 = -. Since all contact points
of the E436 are gold-plated, your microphone cable should feature gold-plated connectors,
if possible.
Page 3

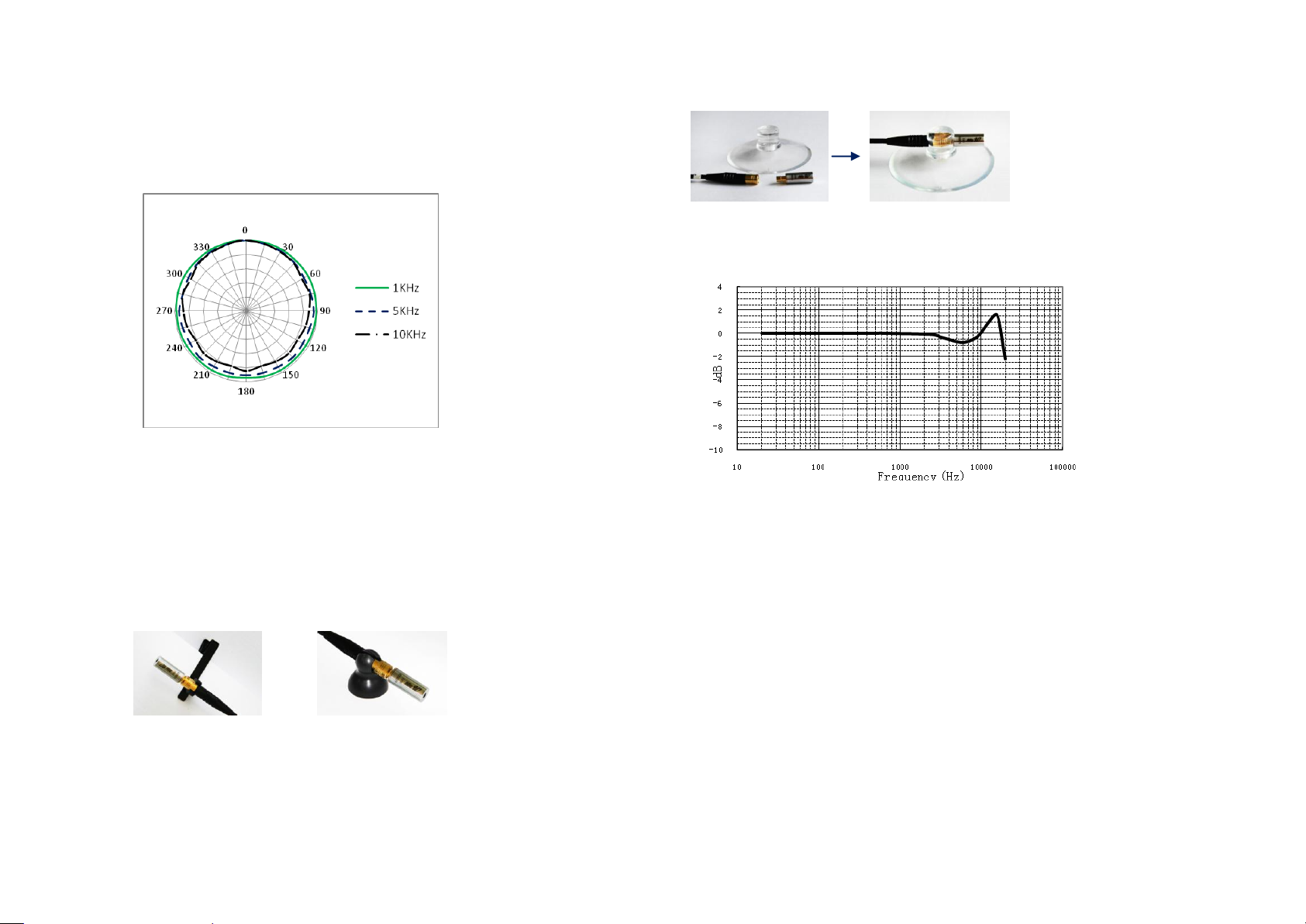

6. DIRECTIONAL CHARACTERRISTIC
Typical Frequency Response of E436
Polar pattern
The E436 is an omni-directional microphone. The microphones with this polar pattern
are most sensitive to sound coming from in each angle of the microphone.
7. MICROPHONE INSTALLATION
The E436 is connected to PI48 by the SMB connector. The SMB connector is a pull-and
push type of connector. You can simply push E436 into PI48 as shown in the figures. There
are a number of installation kits included for your application.
With surface mount(SM011) .
8. FREQUENTCY RESPONSE
The typical frequency response is given in the following chart.
9. WARRANTY POLICY
MicW Audio warrants that its Products will be free from defects in material and
workmanship for one (1) year from the date of purchase by the Original Purchaser.
With collar-clip(CL012) With surface mount(SM012)
