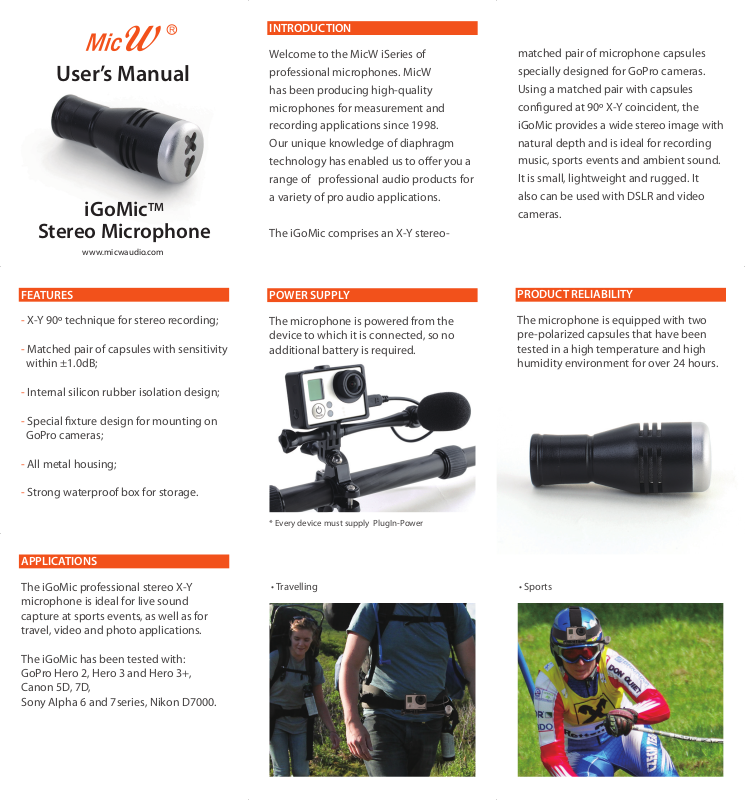

MicW IGOMIC, IGOMIC KIT User manual
User’s Manual
iGoMicTM
Stereo Microphone
www.micwaudio.com
INTRODUCTION
Welcome to the MicW iSeries of
professional microphones. MicW
has been producing high-quality
microphones for measurement and
recording applications since 1998.
Our unique knowledge of diaphragm
technology has enabled us to oer you a
range of professional audio products for
a variety of pro audio applications.
The iGoMic comprises an X-Y stereo-
matched pair of microphone capsules
specially designed for GoPro cameras.
Using a matched pair with capsules
congured at 90º X-Y coincident, the
iGoMic provides a wide stereo image with
natural depth and is ideal for recording
music, sports events and ambient sound.
It is small, lightweight and rugged. It
also can be used with DSLR and video
cameras.
FEATURES
- X-Y 90º technique for stereo recording;
- Matched pair of capsules with sensitivity
within ±1.0dB;
- Internal silicon rubber isolation design;
- Special xture design for mounting on
GoPro cameras;
- All metal housing;
- Strong waterproof box for storage.
APPLICATIONS
The iGoMic professional stereo X-Y
microphone is ideal for live sound
capture at sports events, as well as for
travel, video and photo applications.
The iGoMic has been tested with:
GoPro Hero 2, Hero 3 and Hero 3+,
Canon 5D, 7D,
Sony AIpha 6 and 7series, Nikon D7000.
POWER SUPPLY
The microphone is powered from the
device to which it is connected, so no
additional battery is required.
* Every device must supply PlugIn-Power
• Travelling • Sports
PRODUCT RELIABILITY
The microphone is equipped with two
pre-polarized capsules that have been
tested in a high temperature and high
humidity environment for over 24 hours.
POLAR PATTERN
0
345
10dB
195 165
180
15
30
150
330
315
300
285
270 90
255
240
225
210
Polar Pattern of XY microphone
1kHz
FREQUENCY RESPONSE
Typical frequency responses are shown in
45
60
75
105
120
135
the following chart
10
-10
-30
-50
-70
-90
10 100 1000 10000 100000
Typical Frequency Response of iGoMic
.
MICROPHONE INSTALLATION
On DSLR
The CB030M 3.5mm
jack stereo cable
is custom made
for use with GoPro
Hero2 and DSLR
cameras.
The PP013 mic
holder (not
included in the box)
is required for use
with DSLR cameras.
On GoPro HERO 3 & 3+
Place the iGoMic into the mic holder
(PP011). The small rubber suspension on
the holder secures the iGoMic in order
to avoid any rattling noises or contact
sound during recording.
SPECIFICATIONS
Type Electret Condenser
Capsules Matched pair cardioid
Principle of Operation
Polar Pattern XY coincident
Sensitivity(±3dB) -42 dB
Frequency Response 20Hz – 20 KHz
Maximum SPL 115dB
S/N ratio >55dB
Impedance <2.2Kohm
Power supply Plug and Play
Operating Temperature
Diameters
Length 51mm
Weight 16g
Connector
Output Channels Stereo Left and Right
iGoMic Stereo Microphone
Two capsules in XY stereo
-20ºC - +50 ºC
20mm (Max); 14 mm (Min)
3.5 mm Stereo mini (female)
Screw the mic holder to the GoPro as
shown below:
Connecting the mini USB cable to the
iGoMic and GoPro camera.
* The cable through hole is required when using the
waterproof housing. Making the appropriate insert
must be carried out by the end-user.
WHAT'S IN THE BOX
iGoMic contents the following items:
CB031U mini
USB (30cm)
WS022 Windscreen
iGoMic stereo microphone
CB030M (30cm)
3.5mm stereo
cable (male mini
jack)
PP011 Mic holder
CL020 Rubber ring
Spare part for
PP011
WARRANTY POLICY
MicW Audio warrants that its products
will be free from defects in material and
workmanship for two (2) years from
the date of purchase by the Original
Purchaser. The iGoMic is NOT waterproof.
CE MARKING
The MicW iGoMic Stereo
Microphone conforms
to the relevant CE mark
directives approved
by the European
commission
a member of BSWA Technology Ltd.
Unit 1003, North Ring Center No.18 Yumin Road,
Xicheng District, Beijing 100029, China
Phone: +86-10-5128 5118
Fax: +86-10-8225 1626
Email: sales@micwaudio.com
Web: www.micwaudio.com
Product features and specications are subject to change without notice
