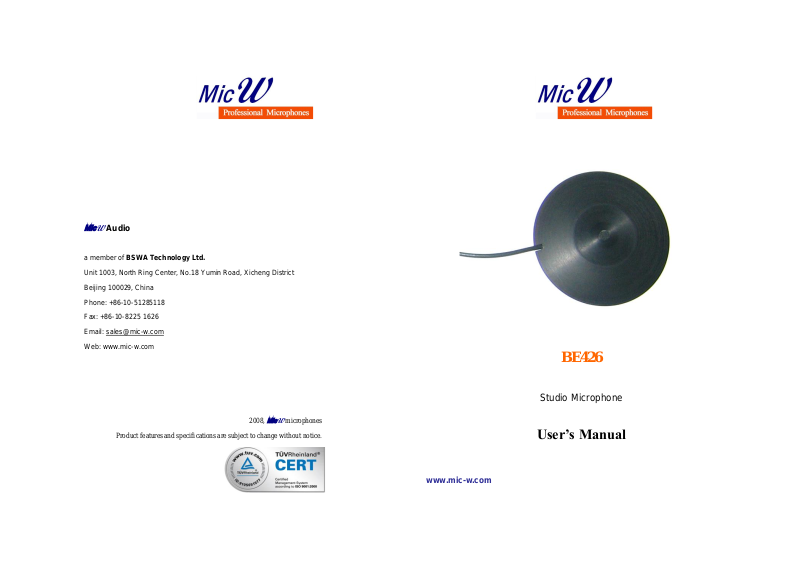

MicW BE426 User Manual

MicW

Audio

a member of BSWA Technology Ltd.
Unit 1003, North Ring Center, No.18 Yumin Road, Xicheng District
Beijing 100029, China
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.mic-w.com

2008,

MicW

microphones

Product features and specifications are subject to change without notice.

www.mic-w.com

BE426

Studio Microphone

User’s Manual

MICROPHONE BE426

Capsule diameter

7 mm

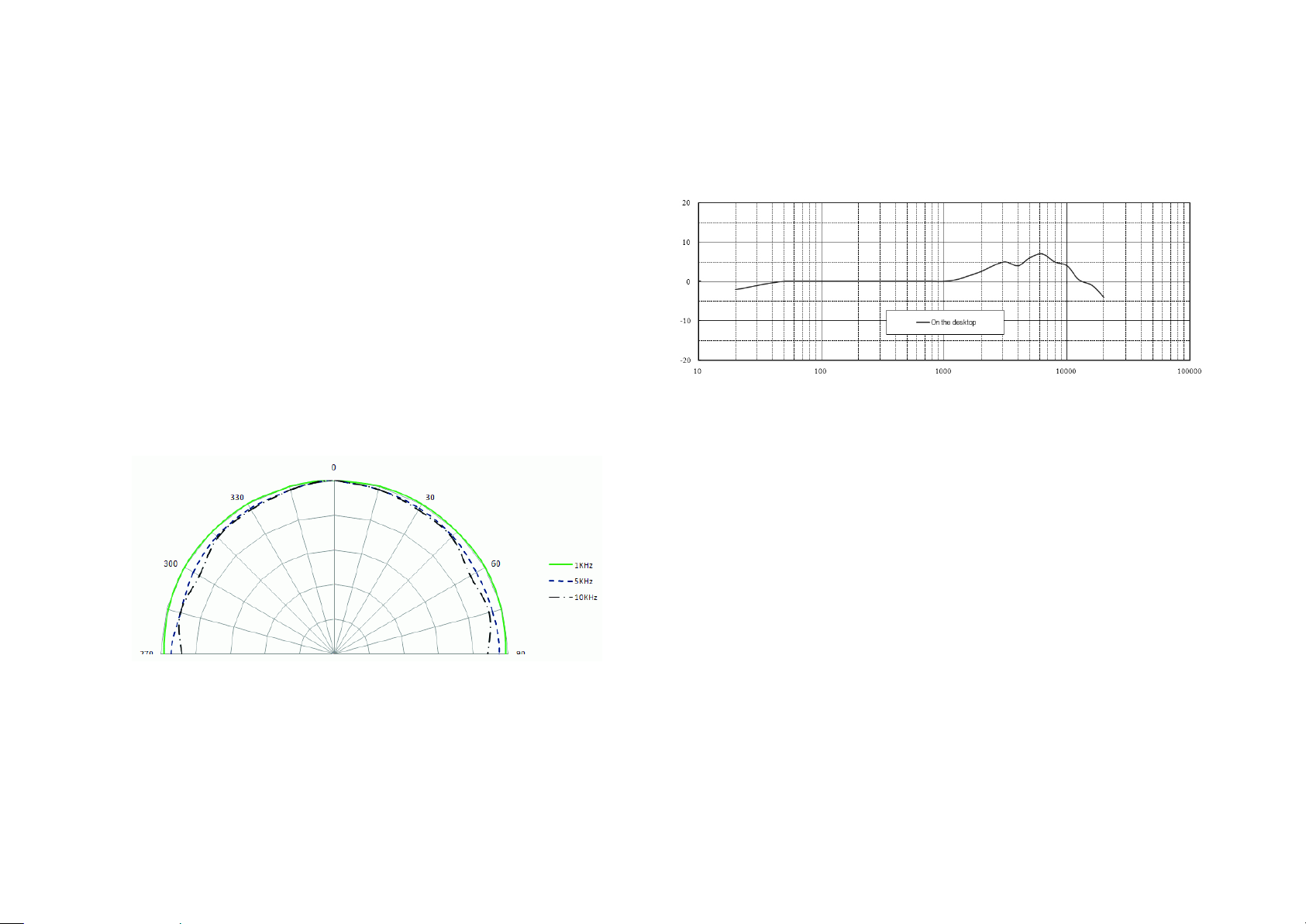

Polar pattern

Omni

Sensitivity (±2dB)

50mv/Pa; -26 dB re. 1v/Pa

Frequency Response

20 Hz ~ 20kHz

Power Supply

48 V Phantom power

Total harmonic distortion
(THD)

＜1% up to 127 dB SPL peak
Thermal Noise

＜30 dBA

Output impedance

＜200 Ohm

Length

60 mm x 8 mm

weight

23g

Connector

3-pin XLR

8. SPECIFICATIONS:

9. Contents in the case

 B E426 microphone;
 User’s manual..

1. INTRODUCTION

Welcome to use

MicW

BE426 has outstanding characteristics that make the microphone a valuable

tool in the studio and on the stage.

2. SAFETY INSTRUCTION

It is important to read all safety precautions and operating instructions before
attempting to operate the unit. Keep all safety precautions and operating
instructions for future reference.

Warning:

Condenser microphones are extremely moisture-sensitive. Never use your
microphone in close proximity to water (e.g. bath tubs, wash basins, sinks,
washing machines, pools, etc.). When doing voice recordings, always use the
enclosed windscreen to safely protect the capsule from moisture.

Please don’t touch the vibration parts especially the diaphragm behind the
protection grid. Don’t move the capsule when it is in operation. Take care not to
drop your microphone as this can lead to severe damage.
liability for any damage caused by the user.

After each use, place it back into its protective casing. Then, lay the small bag
containing the moisture-absorbing crystals on top of the microphone head.

3. POWER SUPPLY

Phantom power (+48 V) is required to operate your microphone. We assume no
liability for damage caused to your BE426 through defective phantom power.
Before activating phantom power, mute your playback system and connect the
BE426 to the microphone input of your mixing console. After activating phantom
power, the BE426 requires several seconds to stabilize itself.

4. APPLICATIONS

Regardless of whether you are miking an entire ensemble or a single sound source
(e.g. drums, piano or background vocals), this microphone lets you achieve
outstanding spatial impressions in every recording session.

MicW

series professional microphones!

MicW

assumes no
