Microsoft WS-2 User Manual

User Guide

Nokia Treasure Tag (WS-2)

Issue 1 EN

Get started

Learn how to start using your proximity sensor.

About your proximity sensor

Nokia Treasure Tag (WS-2) is a proximity sensor which helps you easily find your misplaced valuables.

Slip the sensor in your bag, or use the strap to attach it to your keys. If you leave your items behind,
your phone notifies you. If you do lose your stuff, you can check on a map where to start looking.

You get the best experience when using the sensor with a Nokia Lumia phone with Windows Phone

8. The proximity sensor is compatible with Windows Phone 8 phones with the Nokia Treasure Tag app
(available in both Nokia Store and Windows Phone Store) and Bluetooth 4.0 or higher. A full list of
compatible devices can be seen at Windows Phone Store.

Read this user guide carefully before using the product. Also, read the user guide for the device that
you connect to the product.

Keys and parts

Get to know your proximity sensor.

1NFC area
2 Silicone strap with loop
3Multifunction key
4 Battery cover
5 Silicone strap without loop

The surface of this product is nickel-free.

Switch your sensor on or off

You can switch your sensor on or off.

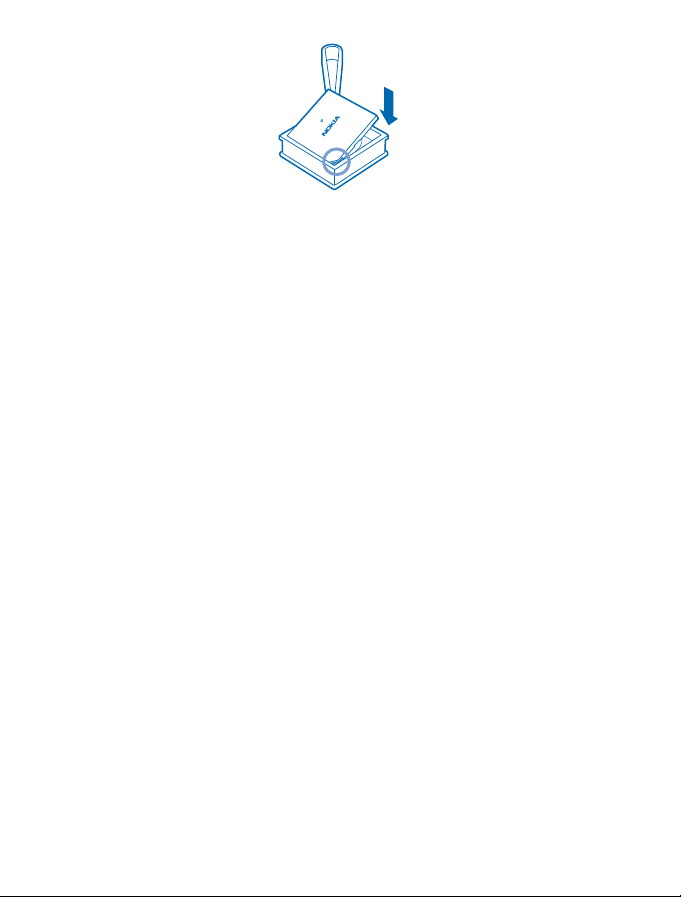

Your sensor is switched on automatically once the battery is inserted.

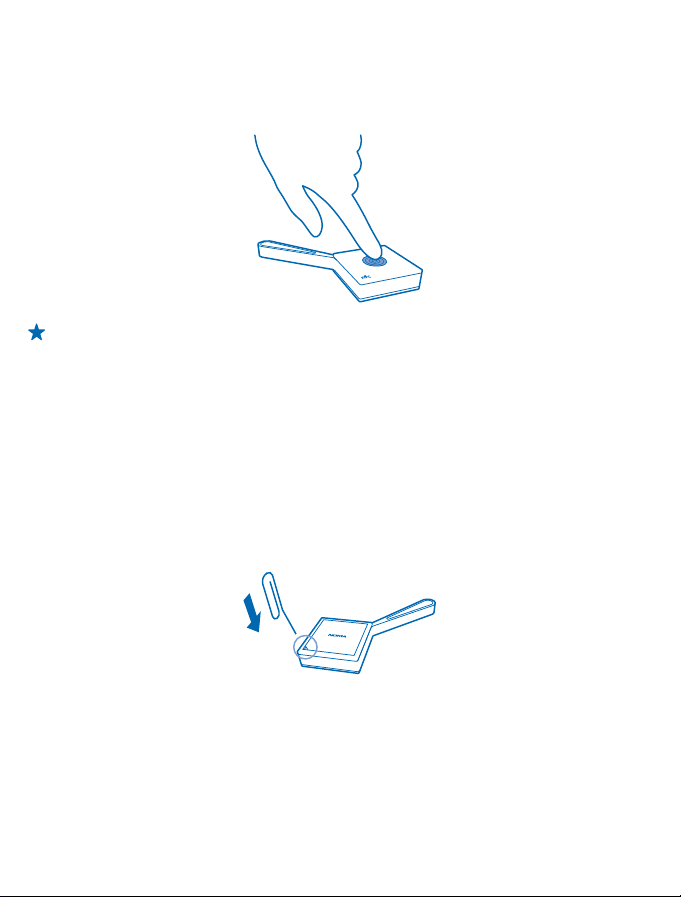

To switch your sensor off or back on again, press the multifunction key for 3 seconds.

To switch your sensor off, you can also remove the battery.

© 2013 Nokia. All rights reserved.

2

Change the strap

Your sensor comes with two silicone straps: one with a loop for attaching, one without.

1. Pull the strap from the sensor. You can use a paperclip or similar tool to carefully pry the edge of
the strap from the groove.

2. Place the sensor in the other strap and carefully stretch and pull the strap into place.

© 2013 Nokia. All rights reserved.

3

Pair and connect

Before you can use your sensor, you need to pair and connect it to your phone.

You can connect your sensor to your phone using either NFC or Bluetooth. Make sure your sensor is
switched on.

Your sensor can be connected to one phone at a time. To locate the phone previously connected to
your sensor, press the multifunction key. If you want to connect it to another phone, restore the
factory settings first.

You can disconnect your sensor from your phone. For more info, see your phone's user guide.

Pair your sensor using NFC

Pair you sensor with your phone quickly using NFC.

1. Make sure you've switched on NFC on your phone.

For more info on NFC, see your phone's user guide.

2. Touch the NFC areas of your sensor and phone together.

3. Follow the instructions shown on your phone.

Pair your sensor using Bluetooth

If your phone doesn't have NFC, you can pair your sensor with your phone using Bluetooth.

You need the Nokia Treasure Tag app to use the sensor. You can download the app from Nokia Store
or Windows Phone Store.

1. Make sure you've switched on Bluetooth on your phone.

For more info on Bluetooth, see your phone's user guide.

© 2013 Nokia. All rights reserved.

4
