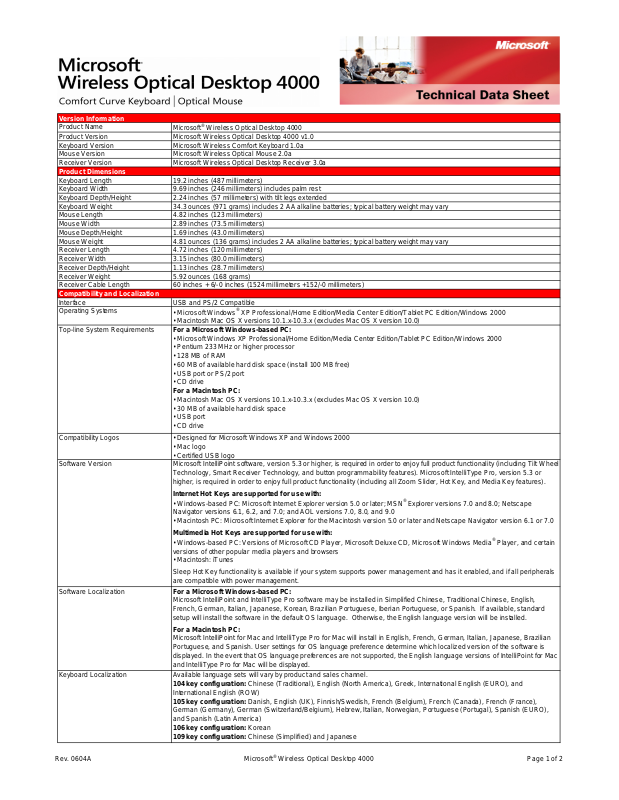

Microsoft WIRELESS OPTICAL DESKTOP 4000 DATASHEET

Version Information

(

)

Product Name

Microsoft

Wireless Optical Desktop 4000 Product Version Microsoft Wireless Optical Desktop 4000 v1.0 Keyboard Version Microsoft Wireless Comfort Keyboard 1.0a Mouse Version Microsoft Wireless Optical Mouse 2.0a Receiver Version Microsoft Wireless Optical Desktop Receiver 3.0a

Product Dimensions

Keyboard Length 19.2 inches (487 millimeters) Keyboard Width 9.69 inches (246 millimeters) includes palm rest Keyboard Depth/Height 2.24 inches (57 millimeters) with tilt legs extended Keyboard Weight 34.3 ounces (971 grams) includes 2 AA alkaline batteries; typical battery weight may vary Mouse Length 4.82 inches (123 millimeters) Mouse Width 2.89 inches (73.5 millimeters) Mouse Depth/Height 1.69 inches (43.0 millimeters) Mouse Weight 4.81 ounces (136 grams) includes 2 AA alkaline batteries; typical battery weight may vary Receiver Length 4.72 inches (120 millimeters) Receiver Width 3.15 inches (80.0 millimeters) Receiver Depth/Height 1.13 inches (28.7 millimeters) Receiver Weight 5.92 ounces (168 grams) Receiver Cable Length 60 inches + 6/-0 inches (1524 millimeters +152/-0 millimeters)

Compatibility and Localization

Interface USB and PS/2 Compatible Operating Systems

• Microsoft Windows

• Macintosh Mac OS X versions 10.1.x-10.3.x

Top-line System Requirements

For a Microsoft Windows-based PC:

XP Professional/Home Edition/Media Center Edition/Tablet PC Edition/Windows 2000

excludes Mac OS X version 10.0

• Microsoft Windows XP Professional/Home Edition/Media Center Edition/Tablet PC Edition/Windows 2000

• Pentium 233 MHz or higher processor

• 128 MB of RAM

• 60 MB of available hard disk space (install 100 MB free)

• USB port or PS/2 port

• CD drive

For a Macintosh PC:

• Macintosh Mac OS X versions 10.1.x-10.3.x (excludes Mac OS X version 10.0)

• 30 MB of available hard disk space

• USB port

• CD drive

Compatibility Logos • Designed for Microsoft Windows XP and Windows 2000

• Mac logo

• Certified USB logo

Software Version Microsoft IntelliPoint software, version 5.3 or higher, is required in order to enjoy full product functionality (including Tilt Wheel

Technology, Smart Receiver Technology, and button programmability features). Microsoft IntelliType Pro, version 5.3 or higher, is required in order to enjoy full product functionality (including all Zoom Slider, Hot Key, and Media Key features).

Internet Hot Keys are supported for use with:

• Windows-based PC: Microsoft Internet Explorer version 5.0 or later; MSN

Explorer versions 7.0 and 8.0; Netscape

Navigator versions 6.1, 6.2, and 7.0; and AOL versions 7.0, 8.0, and 9.0

• Macintosh PC: Microsoft Internet Explorer for the Macintosh version 5.0 or later and Netscape Navigator version 6.1 or 7.0

Multimedia Hot Keys are supported for use with:

• Windows-based PC: Versions of Microsoft CD Player, Microsoft Deluxe CD, Microsoft Windows Media

Player, and certain

versions of other popular media players and browsers

• Macintosh: iTunes Sleep Hot Key functionality is available if your system supports power management and has it enabled, and if all peripherals

are compatible with power management.

Software Localization

For a Microsoft Windows-based PC:

Microsoft IntelliPoint and IntelliType Pro software may be installed in Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Korean, Brazilian Portuguese, Iberian Portuguese, or Spanish. If available, standard setup will install the software in the default OS language. Otherwise, the English language version will be installed.

For a Macintosh PC:

Microsoft IntelliPoint for Mac and IntelliType Pro for Mac will install in English, French, German, Italian, Japanese, Brazilian Portuguese, and Spanish. User settings for OS language preference determine which localized version of the software is displayed. In the event that OS language preferences are not supported, the English language versions of IntelliPoint for Mac and IntelliType Pro for Mac will be displayed.

Keyboard Localization

Available language sets will vary by product and sales channel. 104 key configuration: Chinese (Traditional), English (North America), Greek, International English (EURO), and International English (ROW) 105 key configuration: Danish, English (UK), Finnish/Swedish, French (Belgium), French (Canada), French (France), German (Germany), German (Switzerland/Belgium), Hebrew, Italian, Norwegian, Portuguese (Portugal), Spanish (EURO), and Spanish (Latin America)

106 key configuration: Korean 109 key configuration: Chinese (Simplified) and Japanese

Rev. 0604A

Microsoft

Wireless Optical Desktop 4000

Page 1 of 2

Tracking Technology

)

Mouse Tracking System Microsoft-proprietary optical technology Imaging Rate Dynamically adaptable to 6000 frames per second X-Y Resolution 400 points per inch (15.75 points per millimeter) Tracking Speed Up to 36 inches (914 millimeters) per second

Wireless Technology

Wireless Platform 27 MHz Radio Frequency (RF) Wireless Channels • Keyboard: 27.095 MHz channel 0, 27.195 MHz channel 1

• Mouse: 27.145 MHz Mouse channel 1

Wireless IDs • Keyboard: Over 65,000 random identification codes

• Mouse: Over 65,000 random identification codes

Wireless Range 6 feet (1.83 meters) typical. Note: RF range is affected by many factors, such as nearby metallic objects and relative

positioning of the keyboard, mouse, and receiver.

Product Feature Performance

QWERTY Key Life 1,000,000 actuations per key Zoom Slider Life 250,000 actuations in either direction Hot Key Features Web/Home, Calendar, Mail, Messenger, My Documents, Show My Favorites, My Favorites 1, My Favorites 2, My Favorites 3,

My Favorites 4, My Favorites 5, Calculator, Log Off, and Sleep

Hot Key Life 500,000 actuations per key Media Key Features Mute, Volume -, Volume +, Play/Pause, Stop (Media), Previous Track, and Next Track Media Key Life 500,000 actuations per key Enhanced Function Key Features Help, Undo, Redo, New, Open, Close, Reply, Forward, Send, Spell, Save, and Print Typing Speed 1000 characters per minute Mouse Button Features 3 buttons including scroll wheel button Right & Left Button Life 1,000,000 actuations at no more than 4 actuations per second Wheel Button Life 150,000 actuations at no more than 4 actuations per second Mouse Scrolling Features Tilt wheel enables vertical and horizontal scrolling Wheel Vertical Scrolling Life • 100,000 revolutions (away from user)

000 revolutions (towards user

• 100 Wheel Horizontal Scrolling Life 350,000 actuations per side at no more than 4 actuations per second Storage Temperature & Humidity -40 °F (-40 °C) to 140 °F (60 °C) at < 5% to 65% relative humidity (non-condensing) Operating Temperature & Humidity 14 °F (-10 °C) to 104 °F (40 °C) at <5% to 80% relative humidity (non-condensing)

Power Requirements

Battery Type and Quantity • Keyboard: 2 AA alkaline batteries (included)

• Mouse: 2 AA alkaline batteries (included) Battery Life • Keyboard: 6 months typical

• Mouse: 6 months typical

Certification Information

Country of Manufacture Keyboard and Receiver: Thailand and Mouse: People's Republic of China (PRC) ISO 9002 Qualified Manufacturer Yes FCC ID This device complies with part 15 of the FCC Rules and Industry Canada RSS-210. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Tested to comply with FCC standards. For home and office use. Model numbers: 1027, Wireless Optical Comfort Keyboard 1.0; 1008, Wireless Optical Mouse 2.0; and 1029, Wireless Optical Desktop Receiver 3.0. FCC IDs: C3K1027 and C3K1008.

Agency and Regulatory Approvals • FCC Declaration of Conformity (USA)

• UL and cUL Listed Accessory (USA and Canada)

• RSS-210 and ICES-003 data on file (Canada)

• TUV-T Certificate (European Union)

• R&TTE Declaration of Conformity, Safety and EMC (European Union)

• GOST Certificate (Russia)

• VCCI Certificate (Japan)

• ACA/MED Declaration of Conformity (Australia and New Zealand)

• BSMI and DGT Certificates (Taiwan)

• MIC Certificate (Korea)

• CMII Certificate (China)

• NOM Certificates (Mexico)

• SABS Certificate (South Africa)

• CB Scheme Certificate (International)

• WHQL (International) ID: 890572

Results stated herein are based on internal Microsoft t es t ing. Individual res ult s and perf orm anc e m ay vary. Any device images shown are not ac t ual s i ze. T his doc um ent is prov ided f or inf orm at ional purposes only and is subject to change without notice. Micros of t m akes no w arrant y, express or im plied, w it h t his doc um ent or t he inf orm at ion c ont ained herein. Rev iew any public use or publicat ions of any data herein with your local legal counsel.

©2006 Microsoft Corporation. All rights reserved. Microsoft, the IntelliEye logo, IntelliMouse, MSN, the Laser Technology logo, the Optical Technology logo, Natural, Windows, and Windows NT are either registered trademarks or trademarks of Microsoft Corporation in t he U.S. and/ or other countries. Mac and the Mac logo are trademarks of Apple Computer, Inc., registered in the U.S. and/or other countries. The names of actual companies and products mentioned herein may be trademarks of their respect iv e ow ners.

Rev. 0604A

Microsoft

Wireless Optical Desktop 4000

Page 2 of 2
