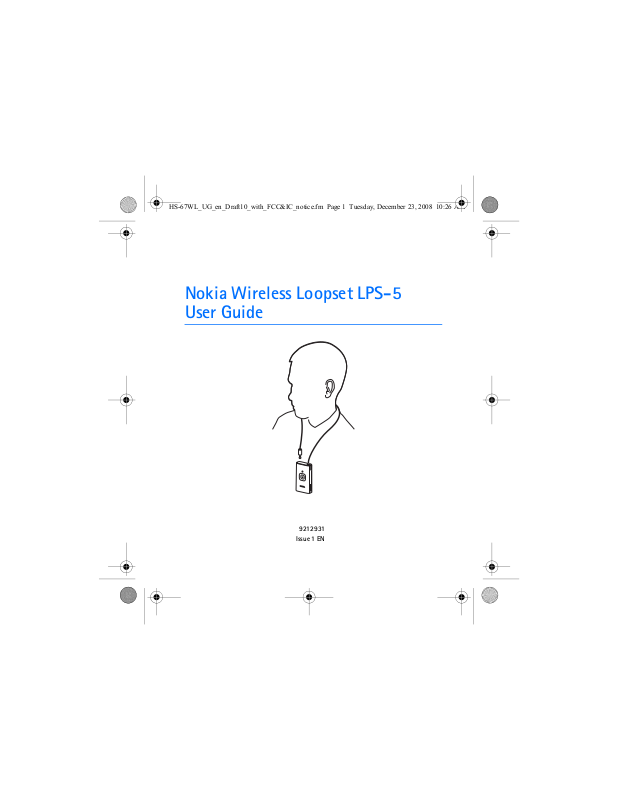

Nokia Wireless Loopset LPS-5
User Guide

9212931

Issue 1 EN

HS-67WL_UG_en_Draft10_with_FCC&IC_notice.fm Page 2 Tuesday, December 23, 2008 10:26 AM

DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this HS-67WL product is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/
EC. A copy of the Declaration of Conformity can be found at http://
www.nokia.com/phones/declaration_of_conformity/.

© 2008 Nokia. All rights reserved.

Nokia, Nokia Connecting People and the Nokia Original Accessories logo are trademarks or
registered trademarks of Nokia Corporation. Other product and company names mentioned
herein may be trademarks or tradenames of their respective owners.

Reproduction, transfer, distribution, or storage of part or all of the contents in this document in
any form without the prior written permission of Nokia is prohibited.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and
improvements to any of the products described in this document without prior notice.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO CIRCUMSTANCES
SHALL NOKIA OR ANY OF ITS LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME
OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER
CAUSED.

THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY
APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS
OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW
IT AT ANY TIME WITHOUT PRIOR NOTICE.

The availability of particular products may vary by region. Please check with your Nokia dealer
for details.

HS-67WL_UG_en_Draft10_with_FCC&IC_notice.fm Page 3 Tuesday, December 23, 2008 10:26 AM

Export controls
This device may contain commodities, technology or software subject to export laws and
regulations from the US and other countries. Diversion contrary to law is prohibited.

9212931/Issue 1 EN

HS-67WL_UG_en_Draft10_with_FCC&IC_notice.fm Page 4 Tuesday, December 23, 2008 10:26 AM

Contents

1. Introduction ......................... 5

Bluetooth wireless technology........... 6

2. Get started ........................... 7

Keys and parts......................................... 7

Charge the battery ................................ 7

Switch the loopset on or off............... 8

Switch on.............................................. 8

Switch off ............................................. 9

Pair and connect to another

device ........................................................ 9

Disconnect the loopset .................. 11

Reconnect the loopset ................... 11

3. Basic use............................. 12

Set up ..................................................... 12

4

Adjust the loopset volume................ 12

Adjust the sidetone volume ............. 12

Select vibration mode........................ 13

Calls ........................................................ 13

Manage two calls................................ 14

Listen to music..................................... 15

Message indication............................. 15

Clear settings or reset........................ 15

Troubleshooting................................... 16

4. Battery and charger
information 17

FCC/Industry Canada

notice...................................... 21

HS-67WL_UG_en_Draft10_with_FCC&IC_notice.fm Page 5 Tuesday, December 23, 2008 10:26 AM

Introduction

1. Introduction

The Nokia Wireless Loopset LPS-5 is designed for people with hearing aids
to use their compatible mobile phone or music player together with a
telecoil (T-coil) equipped hearing aid.

When using the loopset for calling, you can speak directly into the
internal microphone, and you do not need to hold the phone near your
ear.

You can use this inductive loopset with compatible devices that support
Bluetooth wireless technology. The loopset wirelessly transmits sound
from the phone to a hearing aid that is in T mode. The quality of sound
depends on the type of hearing aid used and is affected by
electromagnetic disturbances from the surroundings.

Read this user guide carefully before using the loopset. Also, read the user
guide for the device that you connect to the loopset.

For the latest version of the user guide and additional information related
to your Nokia product, see www.nokia.com/support or your local Nokia
website. For more information about loopsets and other accessibility
solutions, see www.nokiaaccessibility.com (in English).

The product may contain small parts. Keep them out of the reach of small
children.

The surface of this device is nickel-free.

5

HS-67WL_UG_en_Draft10_with_FCC&IC_notice.fm Page 6 Tuesday, December 23, 2008 10:26 AM

Introduction

■ Bluetooth wireless technology

Bluetooth wireless technology allows you to
connect compatible devices without cables. The
loopset and the other device do not need to be
in line of sight, but they should be within 10
metres (33 feet) of each other. The closer the
loopset and the other device are to each other,
the better the performance. The optimal
operating range is shown in dark grey in the
picture. The connection is subject to
interference from distance and obstructions (shown in light grey) or other
electronic devices.

The loopset is compliant with the Bluetooth Specification 2.1 + EDR
supporting the Headset Profile 1.1, the Hands-Free Profile (HFP) 1.5, and
the Advanced Audio Distribution Profile (A2DP) 1.0. Check with the
manufacturers of other devices to determine their compatibility with this
device.

<10m

6

HS-67WL_UG_en_Draft10_with_FCC&IC_notice.fm Page 7 Tuesday, December 23, 2008 10:26 AM

Get started

2. Get started

■ Keys and parts

The loopset contains the following parts:

1. Neck loop

2. Indicator light (inside the rubber
sleeve at the top)

3. Volume keys

4. Microphone

5. Multifunction key

6. Charger connector

Before using the loopset, you must
charge the battery and pair the loopset
with a compatible device.

Parts of the device are magnetic. Metallic materials may be attracted to the device.
Do not place credit cards or other magnetic storage media near the device, because
information stored on them may be erased.

1

1

■ Charge the battery

Before charging the battery, carefully read “Battery and charger
information”, p. 17.

2

4

11

3

5

6

7
