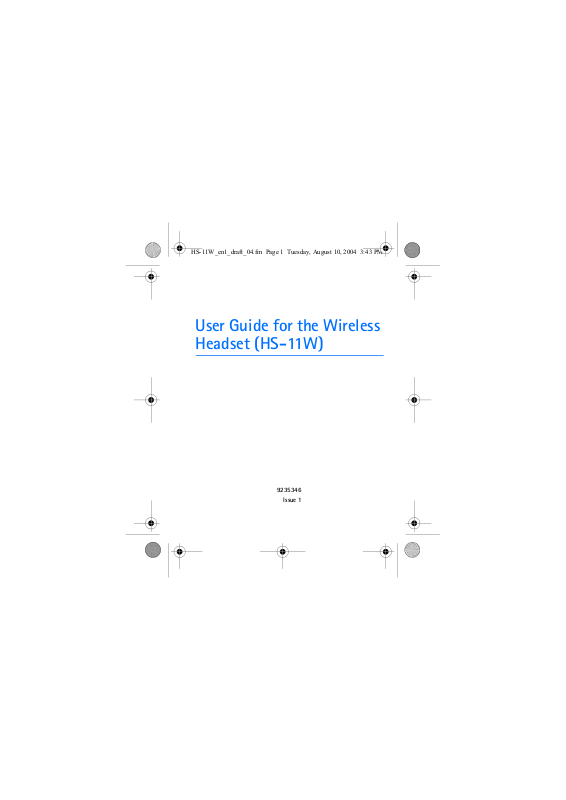

User Guide for the Wireless Headset (HS-11W)

9235346

Issue 1

HS-11W_en1_draft_04.fm Page 2 Tuesday, August 10, 2004 3:43 PM

DECLARATION OF CONFORMITY

We, NOKIA CORPORATION declare under our sole responsibility that the product HS-11W is in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/declaration_of_conformity/.

Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited.

Nokia and Nokia Connecting People are registered trademarks of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

HS-11W_en1_draft_04.fm Page 3 Tuesday, August 10, 2004 3:43 PM

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.

The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you.

In some countries there may be restrictions in using Bluetooth devices. Check with your local authorities.

9235346 / Issue 1

HS-11W_en1_draft_04.fm Page 4 Tuesday, August 10, 2004 3:43 PM

Contents

1. Introduction.............................................................. 6

Bluetooth wireless technology........................................................... 6

2. Getting started ......................................................... 8

Overview................................................................................................... 8

Chargers and batteries ......................................................................... 9

Charging the battery........................................................................... 10

When the battery charge falls low.............................................. 11

Switching the headset on or off...................................................... 11

Pairing the headset with a compatible phone ............................ 12

Disconnecting the headset from the phone ............................. 13

Connecting the paired headset to your phone ....................... 14

Troubleshooting.................................................................................... 15

3. Using the headset................................................... 17

Placing the headset on the ear........................................................ 17

Making a call......................................................................................... 17

Redialling the last dialled number.................................................. 17

Voice dialling......................................................................................... 18

HS-11W_en1_draft_04.fm Page 5 Tuesday, August 10, 2004 3:43 PM

Contents

Answering and ending a call............................................................ 18

Rejecting a call..................................................................................... 18

Automatic answer ............................................................................... 19

Adjusting the earphone volume ...................................................... 19

Muting an ongoing call ..................................................................... 19

Switching the call between phone and headset ........................ 20

Using the headset with several phones ........................................ 20

Resetting the headset ........................................................................ 21

4. Battery information................................................ 23

Charging and Discharging................................................................. 23

Care and maintenance................................................ 26

FCC Notice - Nokia Wireless Headset HS-11W...... 28

HS-11W_en1_draft_04.fm Page 6 Tuesday, August 10, 2004 3:43 PM

Introduction

1. Introduction

The Wireless Headset HS-11W can be connected to a compatible phone that supports Bluetooth technology. This allows you freedom to make and receive calls while on the move or in the office.

Read this user guide carefully before using the headset. In addition to this user guide, read also the user guide for your phone, which provides important safety and maintenance information. Keep the headset out of reach of small children.

■ Bluetooth wireless technology

The Bluetooth technology makes it possible to connect compatible communication devices without using cables. A Bluetooth connection does not require that the phone and the headset be in line of sight, but both devices

HS-11W_en1_draft_04.fm Page 7 Tuesday, August 10, 2004 3:43 PM

Introduction

should be within 10 metres of each other. Connections

can be subject to interference from obstructions, such as

walls, or other electronic devices.

The Wireless Headset HS-11W is specially designed for

compatible Nokia phones that support Bluetooth

technology. The headset can, however, be used with any

compatible Bluetooth devices that support the

compatible Handsfree or Headset profiles. (A profile is a

set of Bluetooth commands that the phone uses to

control the headset).

The Wireless Headset HS-11W is compliant with the

Bluetooth Specification 1.1 supporting the following

profiles: Headset Profile 1.1, Handsfree Profile 1.0.

However, interoperability between the Wireless Headset

HS-11W and other Bluetooth-enabled products is not

guaranteed because it depends on compatibility. Check

with the manufacturers of other devices to determine

their compatibility with this device.

HS-11W_en1_draft_04.fm Page 8 Tuesday, August 10, 2004 3:43 PM

Getting started

2. Getting started

Note: The use of wireless devices may be restricted in

some situations. Observe any restrictions and obey all signs and instructions concerning use of wireless devices.

■ Overview

The headset contains the following parts, as shown in Figure 1???.

Power key (1): Switches the headset on and off. You can also mute or unmute the ongoing call by pressing the power key briefly.

Earphone (2): Relays the caller’s voice.

Indicator light (3): Displays the current status of the

headset.

HS-11W_en1_draft_04.fm Page 9 Tuesday, August 10, 2004 3:43 PM

Getting started

Volume key (4): Increases or decreases the earphone

volume during a call.

Microphone (5): Picks up your voice.

Answer/end key (6): Answers or ends the call. This key

can also be used for voice dialling, redialling and

switching an active call between the headset and the

compatible phone.

Charger connector (7)

Before you can start using the headset, you must:

• Charge the battery

• Pair a compatible phone with the headset

■ Chargers and batteries

Check the model number of any charger before using it with this

device. The Wireless Headset HS-11W is intended for use with

the following chargers: AC-1, ACP-12, and LCH-12.

+ 19 hidden pages
