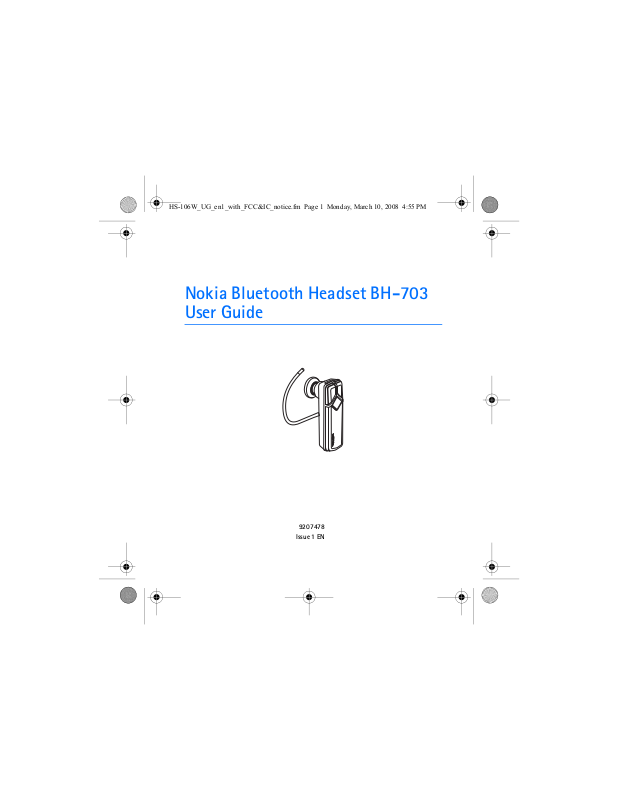

Nokia Bluetooth Headset BH-703 User Guide

9207478

Issue 1 EN

HS-106W_UG_en1_with_FCC&IC_notice.fm Page 2 Monday, March 10, 2008 4:55 PM

DECLARATION OF CONFORMITY Hereby, NOKIA CORPORATION declares that this HS-106W product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/declaration_of_conformity/.

Nokia, Nokia Connecting People and the Nokia Original Accessories logo are registered trademarks of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

To the maximum extent permitted by applicable law, under no circumstances shall Nokia or any of its licensors be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.

The availability of particular products may vary by region. Please check with your Nokia dealer for details.

HS-106W_UG_en1_with_FCC&IC_notice.fm Page 3 Monday, March 10, 2008 4:55 PM

Export controls This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited.

9207478/Issue 1 EN

HS-106W_UG_en1_with_FCC&IC_notice.fm Page 4 Monday, March 10, 2008 4:55 PM

Contents

1. Introduction ......................... 5

Bluetooth wireless technology........... 5

2. Get started ........................... 7

Overview................................................... 7

Chargers.................................................... 7

Charge the battery ................................ 8

Switch the headset on or off.............. 9

Pair the headset ..................................... 9

Disconnect the headset ................. 10

Reconnect the headset .................. 10

Troubleshooting................................... 10

3. Basic use............................. 12

Change the earplug............................ 12

Place the headset on the ear ........... 12

Carry the headset in the strap ........ 14

Calls ........................................................ 14

Adjust the headset volume............... 15

Mute or unmute the microphone... 15 Switch the call between

the headset and mobile device ....... 16

Clear pairings or reset the headset 16

4. Battery information........... 17

Care and maintenance........... 19

FCC/Industry Canada notice.. 21

HS-106W_UG_en1_with_FCC&IC_notice.fm Page 5 Monday, March 10, 2008 4:55 PM

Introduction

1. Introduction

With the Nokia Bluetooth Headset BH-703, you can make and receive calls while on the move. You can use the headset with compatible devices that support Bluetooth wireless technology.

Read this user guide carefully before using the headset. Also, read the user guide for your mobile device that you connect to the headset. It provides important safety and maintenance information. Check www.nokia.com/support or your local Nokia website for additional information related to your Nokia product.

This product may contain small parts. Keep them out of the reach of small children.

■ Bluetooth wireless technology

Bluetooth wireless technology allows you to connect compatible devices without cables. The mobile device and the headset do not need to be in line of sight, but the maximum distance between the devices should be 10 metres (33 feet). The closer the mobile device and the headset are to each other, the better the performance. The optimal operating range is shown in dark grey in the picture. The connection is

<10m

HS-106W_UG_en1_with_FCC&IC_notice.fm Page 6 Monday, March 10, 2008 4:55 PM

Introduction

subject to interference from obstructions (shown in light grey) or other electronic devices.

The headset is compliant with the Bluetooth Specification 2.1 + EDR supporting the following profiles: Headset Profile 1.1 and Hands-Free Profile 1.5. Check with the manufacturers of other devices to determine their compatibility with this device.

HS-106W_UG_en1_with_FCC&IC_notice.fm Page 7 Monday, March 10, 2008 4:55 PM

Get started

2. Get started

■ Overview

The headset contains the following parts:

1. Indicator light

2. Charger connector

3. Multifunction key

4. Touch-sensitive area for volume adjustment

5. Earpiece with a changeable earplug

6. Earloop

7. Microphone

Before you can start using the headset, you must charge the battery and pair the headset with a compatible device.

Parts of the headset are magnetic. Metallic materials may be attracted to the headset. Do not place credit cards or other magnetic storage media near the headset, because information stored on them may be erased.

■ Chargers

The headset is intended for use with the AC-6 and DC-6 chargers.
