User’s Guide for the Wireless Headset (HDW-3)

9233095

Issue 1

hdw-3_1en.fm Page 2 Wednesday, May 26, 2004 1:15 PM

DECLARATION OF CONFORMITY We, NOKIA CORPORATION declare under our sole responsibility that the product HDW-3 is in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can be found from http://www.nokia.com/phones/declaration_of_conformity/.

Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited.

Nokia is a registered trademark of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.

The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you.

9233095 / Issue 1

hdw-3_1en.fm Page 3 Wednesday, May 26, 2004 1:15 PM

Contents

1. Introduction ......................... 4

Bluetooth wireless technology .......... 4

Chargers and batteries ......................... 5

The card in the sales package ............ 5

2. Getting started..................... 6

Overview................................................... 6

Charging the battery ............................ 7

When the battery charge

falls low................................................. 8

Changing the battery............................ 8

Switching the headset on or off ..... 10

Taking the headset into use

for the first time .................................. 10

Adjusting the headset

to your ear ............................................. 12

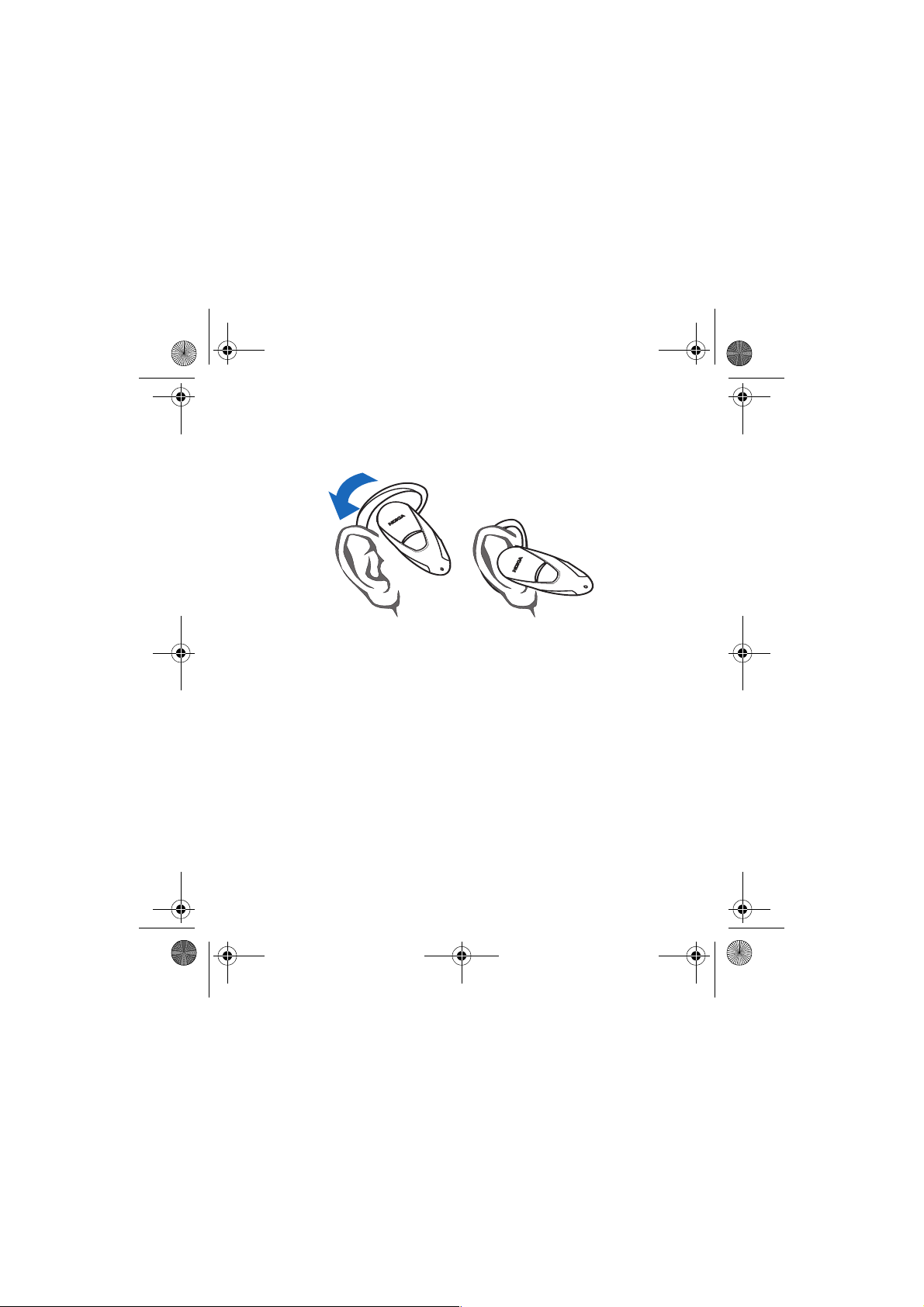

Placing the headset on the ear........ 13

Troubleshooting.................................... 13

3. Using the headset .............. 14

Connecting the paired headset

to your phone ....................................... 14

Making a call ........................................ 15

Voice dialling........................................ 15

Redialling the last dialled

number................................................... 15

Answering a call.................................. 15

Ending a call......................................... 16

Rejecting a call.................................... 16

Automatic answer............................... 16

Adjusting the earphone volume ..... 16

Switching the call between

phone and headset............................. 16

Disconnecting the headset

from the phone.................................... 17

Reconnecting the paired

headset to your phone................... 17

Using the headset with

several phones ..................................... 18

Using the headset with

several paired phones..................... 18

Resetting the headset........................ 18

4. Battery information ........... 20

Care and maintenance ...............22

Contents

hdw-3_1en.fm Page 4 Wednesday, May 26, 2004 1:15 PM

Introduction

1. Introduction

The Wireless Headset HDW-3 can be connected without wires to a compatible phone that supports Bluetooth wireless technology. This gives you complete freedom for making and receiving calls while on the move or at the office.

Read this user’s guide carefully before using the headset. More detailed information is provided by your phone's own user's guide. Do not use this Wireless Headset (HDW-3) user’s guide in place of the user’s guide for your phone, which provides important safety and maintenance information.

■ Bluetooth wireless technology

Since Bluetooth devices communicate using radio waves, your Bluetooth phone and headset do not need to be in a line of sight. The two devices only need to be within a maximum of 10 meters of each other, although the connection can be subject to interference from obstructions, such as walls, or from other electronic devices.

The headset is specially designed for Nokia phones that support Bluetooth wireless technology. The headset can, however, be used with any compatible Bluetooth devices that support the Handsfree or Headset profile. (Here, "Profile" means a set of Bluetooth commands that your phone uses for controlling the headset.)

hdw-3_1en.fm Page 5 Wednesday, May 26, 2004 1:15 PM

Introduction

The headset provides the best performance when it is used with a compatible Nokia phone. If you use the headset with a phone produced by another manufacturer, all the functions described in this user’s guide may not be available.

In some countries, there may be restrictions on using Bluetooth devices. Check with your local authorities.

■ Chargers and batteries

Check the model number of any charger before use with this device. The Wireless Headset HDW-3 is intended for use with the following chargers: ACP-7, ACP-8, ACP-9, ACP-12 and LCH-12.

Warning! Use only batteries and chargers approved by Nokia for use with this particular accessory. The use of any other types will invalidate any approval or warranty, and may be dangerous.

For availability of approved batteries and chargers, please check

with your dealer.

When you disconnect the power cord of any enhancement, grasp and pull the plug, not the cord.

■ The card in the sales package

The card contains the Bluetooth passcode 0000 you need for pairing your phone with the headset. Keep this card in a secure place.

For instructions on using the passcode, see Taking the headset into use for the first time on page 10.

hdw-3_1en.fm Page 6 Wednesday, May 26, 2004 1:15 PM

Getting started

2. Getting started

■ Overview

The headset contains the following parts:

1 - Power key: Switches the headset on and off.

2 - Answer/end key: Answers or ends the call. This key can also be used

for voice dialling, redialling and switching an active call between the headset and the phone.

3 - Indicator light: Displays the current status of the headset.

4 - Volume up: Increases the earphone volume during a call.

5 - Volume down: Decreases the earphone volume during a call.

hdw-3_1en.fm Page 7 Wednesday, May 26, 2004 1:15 PM

Getting started

6 - Earphone: Relays the caller’s voice.

7 - Microphone: Picks up your voice.

8 - Charger connector

9 - Battery door

10 - Earloop

■ Charging the battery

The headset has a rechargeable NiMH battery (part number 0774291). If you need to replace the battery, you can purchase a new one from your nearest authorised dealer.

To charge the battery:

1. Connect the charger cable to the headset. For a list of compatible chargers, see Chargers and batteries on page 5.
