MD 112

User Manual

Congratulations on the purchase of the speaker system. With the right care and attention, this system will give you trouble free operation. Prior to first use, please read this manual instruction carefully and follow its instructions to ensure proper and safe operation.

Explanation of Graphical Symbols:

The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated “dangerous voltage” within the product's enclosure that

English Deutsch

Русский Polska

9 16 23

may be of sufficient magnitude to constitute an electric shock to a person or persons. The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

Warnings:

Caution: To prevent the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel only. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

SAFETY INSTRUCTIONS

Please read all instructions herein, and retain for future reference. Please do not attempt to open the speaker and change the battery within as it might cause a small rupture. Please heed all safety warnings. Please install in accordance with the manufacturer instructions. Please adjust volume control to a comfortable level to avoid damaging your hearing and the product itself.

GENERAL WARNING

To reduce the risk of electric shock: Do not expose this product to rain or moisture. Do not use the speakers near water, and do not immerse in any liquid or pour/spill any liquid on it. Do not block the openings in the speaker housing/cabinet, never push/insert any objects

into the speaker vents/slots because of fire or electric shock hazards. Provide sufficient space around the speakers for proper ventilation. Do not install near any heat sources such as radiator, heat register, stove, or other devices such as amplifier that produce heat. Do not defeat the safety purpose of the polarized plug. A polarized plug has 2 blades with one wider than the other. The wider blade is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement. Protect the power cord from being stepped on, or pinched particularly at plugs, multiple plug, and the point of exit. For added protection during lightning storms, unplug the speakers from the electrical outlet and turn off the computer. Cleaning - Unplug the speakers from the computer and electrical outlet before cleaning them with a damp cloth.

Lightning - for added protection during lightning storms, unplug the speakers from the electrical outlet and turn off the computer. Refer to all servicing to qualified service personnel only.

Unplug this product when unused for long periods of time. Location - Place the speakers in a stable location so that it will not fall causing

damage to the speakers or bodily harm.

Care

Please do not throw the product into any fire as it might result in personal injury

Please do not store or place this product in damp or high temperature environment

Please do not short circuit the product as it could damage the product and render it inoperable

Please do not place this product within reach of children below 3 years of age

Please do not insert any conductive items into the speaker as it could damage the product

Introduction

Designed beautifully and compact with excellent sound, the Microlab MD112 is ideal for everyone on the move. It allows you to be entertained while on-the-go with amplified sound. The miniature speaker system allows you to connect to your mobile phone, Mp3, Mp4, DVD player, or your notebook and PC. Change your music playbacks to enjoyable powered acoustic and low noise quality sound. Full multimedia functions with FM radio and media reader for digital music playback.

Features

• Compact and ideal for travel

• Speaker for your notebook, media player or mobile phone (3.5mm stereo)

• FM radio (87.5 MHz to 108.0 MHz)

• Digital media playback with SD interface

• Great sound in a small design

• Rechargeable battery for efficient energy use

• 3.5mm stereo interface that connects to Mp3, Mp4, Mobile phones, and other media players or even your notebook and PC

• Lanyard loop for wrist strap

Packing list

• MD112 speaker

• Mini USB cable

• Audio cable, 3.5mm

• User manual

• Lanyard loop

Illustrations

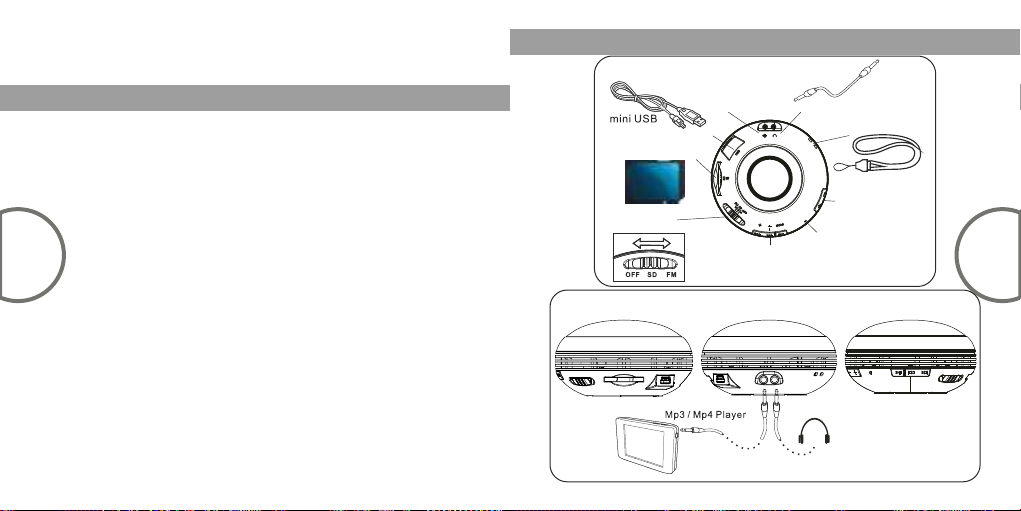

Bottom view

Connection

From media player or notebook:

1. Use the included 3.5mm stereo cable and connect to the MD112 AUX audio input socket.

2. Plug the opposite 3.5mm stereo plug to your playback device such as Mobile phone, Mp3/Mp4, DVD player or Notebook or PC.

Using earphones:

1. Plug the earphones 3.5mm plug to the 3.5mm output socket.

2. The MD112 main speaker will mute to enable private listening via your earphones.

SD interface:

1. The SD interface lets you listen to digital media music via your storage media card.

2. Listen to digital music files in Mp3 and WMA formats.

3. Insert the SD memory card with its gold fingers facing upward. Depress the card till you hear a click sound.

4. To remove, depress the card and let go. It will eject the card outwards.

Side views

3.5mm stereo plug to playback device.

Charging

1. Prior to initial use, please charge the MD112 for 4 hours to enhance the rechargeable battery life.

2. Subsequently please charge till the red LED change to green colour to indicate full charge. Please note, if the USB is reconnected, the system will illuminate in red first for several seconds before returning to green again. This is a normal operating condition.

Operation

1. Switch on the power on the MD112 by positioning the level to SD, or FM mode.

2. Ensure all the connections are correctly inserted.

3. To listen music from your media player or notebook, please ensure the 3.5mm audio input is plugged in.

4. Start the playback device and adjust the volume to your preferred listening level.

5. To listen to music from your SD card, please remove the 3.5mm audio plug and insert the SD card. If both are present, the system will use the source from the 3.5mm audio input socket. The SD card source will automatically stop playback.

6. Once the SD card is inserted, the speaker will automatically play the music files in its storage.

7. Depress the FW button to advance to next track. Depress for several seconds to fast forward the playback track.

8. Depress the REW button to skip backward the track. Depress for several

seconds to fast reverse the playback track.

9. Depress the Play button to start the playback, or stop during a playback

function.

10. SD card capacity is supported up to 32 GB size in storage.

11. The SD slot is recognized as a "Removable Disk" in Windows operating system. Connect the speaker to the notebook via USB cable and the SD card contents are read in the operating system. This allows complete file management to be carried out on the SD storage with ease. Copy, move, and even rename your music files from your notebook. If the SD memory card is removed from the speaker, the Windows operating system will immediately recognized the removal.

12. For FM broadcast, switch to FM mode and the last tuned station will be broadcast.

13. Depress the Play button to change the preset stations. Each depress of the Play button will enable you to skip to the next station in a loop.

14. Depress for several seconds to scan the entire FM range from 87.5 MHz to 108.0 MHZ. Up to 20 preset stations will be automatically saved. During scanning, the blue LED will blink rapidly. If a station is found, the blue LED will remain steady.

15. To scan the stations, depress the FW button for several seconds and it will scan the higher frequencies till it receives the next station in strength. Depress the FW button

higher frequencies till it receives the next station in strength. Depress the FW button once, and it will jump 100 kHz upward the range.

16. Depress the REW button for several seconds to scan downward the frequency range. Depress REW button once and it will jump backward 100 kHz downward the range.

17. To end the playback or broadcast, switch the power level to off position.

Technical Information

Amplifier

Output power, RMS Frequency response Signal/Noise ratio, dB Input sensitivity, mV

Speakers

Tweeter driver type Tweeter rated power

Interfaces

Output Input

Dimensions

Product dimensions mm

Product Net weight kg

1 Watt RMS 150 Hz -20 kHz > 60 dB < 400 mV

2", 4 ohm 2 Watt

86.5 mm diameter x 48 mm 120 g
