Installation and user
manual
CleanWave
12÷280 kVA
English
MGE-UPS CleanWave - Installation and user manual Page 2/13
Version 2.1 - 21/04/05 - (JME)
INDEX
1. INTRODUCTION.....................................................................................................3
2. PRESENTATION ....................................................................................................3
2.1. General presentation................................................................................................................................ 3
2.2. Range......................................................................................................................................................... 5
2.3. Technical specifications...........................................................................................................................6
3. SAFETY ..................................................................................................................7
3.1. Integration in housing.............................................................................................................................. 7
3.2. Cooling......................................................................................................................................................7
3.3. Electrical connections .............................................................................................................................. 7
3.4. Access to the filter....................................................................................................................................7
4. ELECTRICAL ENGINEERING................................................................................8
4.1. Electrical schematic ................................................................................................................................. 8
4.2. Electrical protections............................................................................................................................... 8
4.3. Wiring ....................................................................................................................................................... 8
5. INSTALLATION AND STARTING ..........................................................................9
5.1. Handling.................................................................................................................................................... 9
5.2. Electrical connections ..............................................................................................................................9
5.3. Energising............................................................................................................................................... 10
6. MAINTENANCE....................................................................................................11
7. TROUBLESHOOTING..........................................................................................12
8. CONTACT.............................................................................................................12
MGE UPS SYSTEMS CleanWave - Installation and user manual Page 3/13
Version 2.1 - 21/04/05 - (JME)
1. INTRODUCTION
The present document is a user manual for the zero-sequenced filters CleanWave.
It is intended to the persons responsible for the installation, the use and the maintenance of the filters.
Each of these aspects is detailed in a specific chapter here under.
2. PRESENTATION
2.1. GENERAL PRESENTATION
The CleanWave filter exists in 2 versions :
IP00 : Basic version to be integrated by the customer.
IP21 : "Turn-key" version integrated in its housing.
The IP00 version of the Cleanwave
filter appears as follows:
1
2
4
3
5
Fig. 1
Fig. 2
9
7
8
3
4
6
1 Lo element
2 Zo element
3 Upstream (mains) terminals (1 - 4 )
4 Downstream (load) terminals (5 - 8 )
5 Fixation for optional current transformer for upstream
and downstream neutral current measurements
6 Lifting rings
7 Earth terminal
8 Identification plate
9 Temperature switches terminals
MGE UPS SYSTEMS CleanWave - Installation and user manual Page 4/13
Version 2.1 - 21/04/05 - (JME)

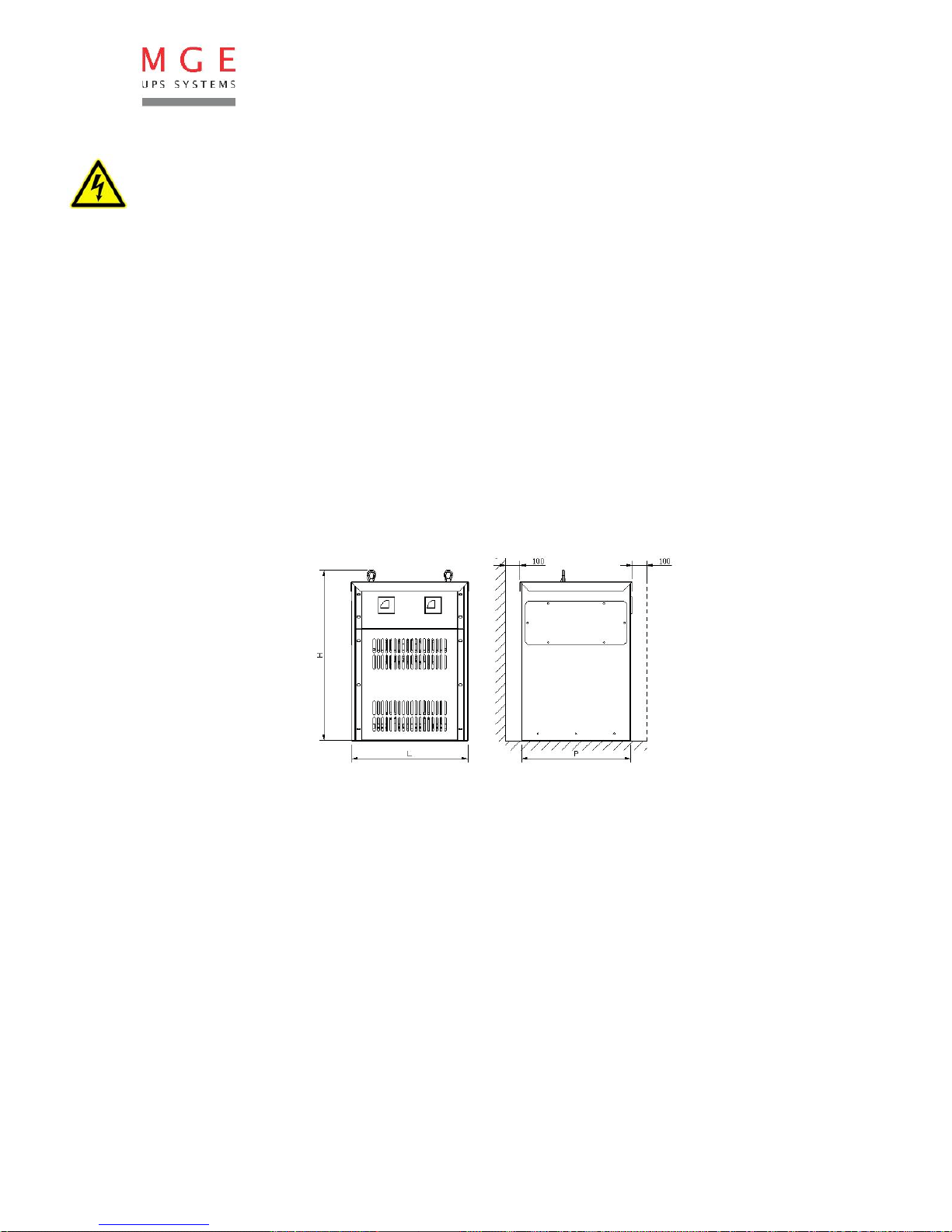

The IP21 version of the CleanWave filter appears as follows :
10
11
14
12
17
15
16
13
Fig. 3
10 Lifting rings
11 Upstream current display
12 Downstream current display
13 Removable top panel
14 Side panel for cabling
15 Ventilation grid
16 Removable front panel
17 Identification plate
Inside the housing, the filter is identical to the IP00 version shown on Fig. 1.
