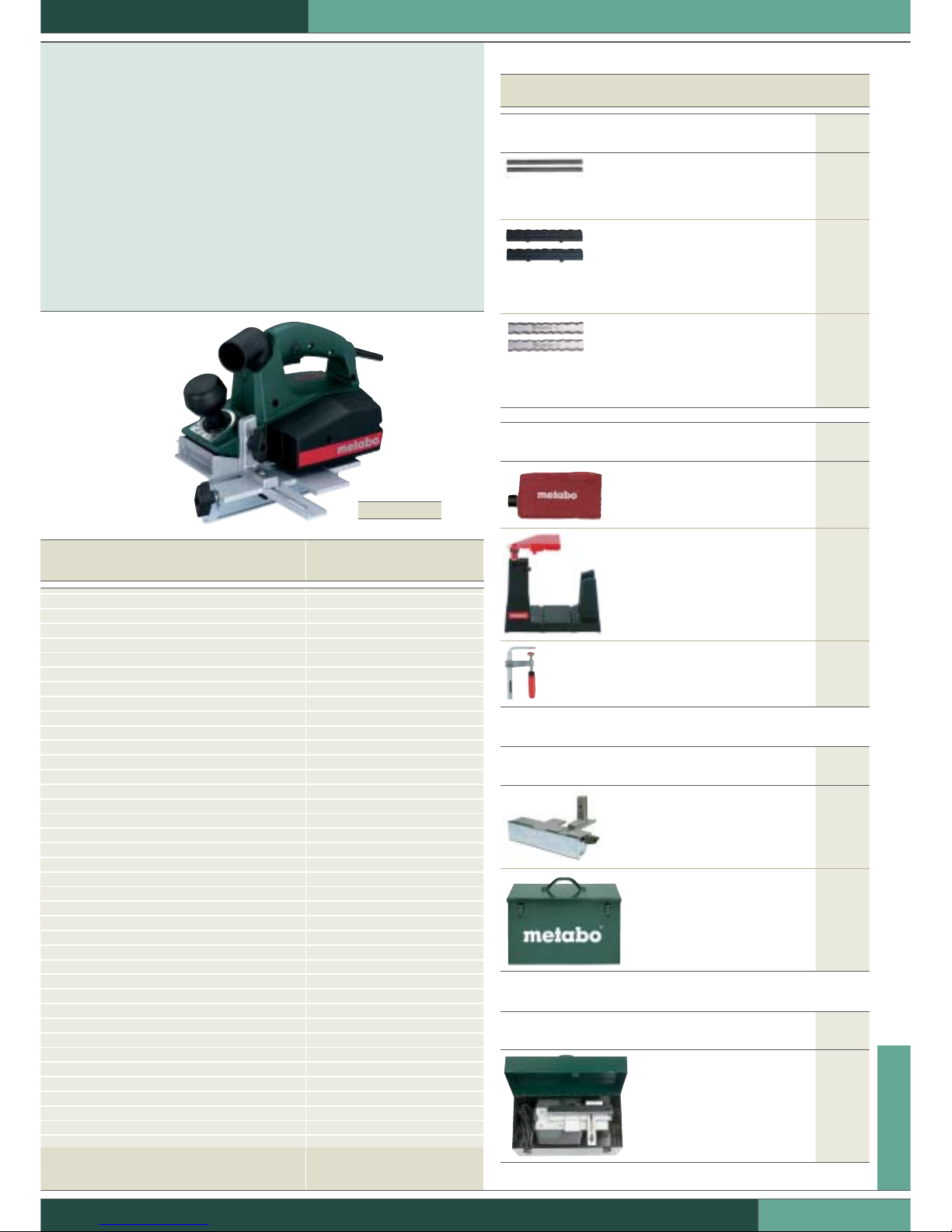

ROUTERS AND PLANERS
Every Metabo is checked thoroughly before leaving our factory. This precision pays off
for our customers, especially with routers and planers. Their areas of application require
absolute precision. Adjustments, trimming or dressing jobs demand precision to the
millimetre. With routers, the safety aspect is also of importance. Good for whoever relies
on Metabo. Metabo. Work. Don’t play.
FOR PROS
WITH PROFILE.
| 177
ROUTERS AND PLANERS
178 |
Of E 1812Of E 1229
Signal
OFE 738
ROUTERS
Special advantages
Dial gauge for fine tuning the moulding/
routing depth with 0.1. mm precision
Three-level stop to preselect up to
3 different moulding/routing depths
Vario Constamatic (VC) full-wave
electronics
Vario Tacho Constamatic (VTC) full-wave
electronics
Overload protection
Precise parallel guide/ripping fence
guided in prisms with fine adjustment
Can also be used in combination with
the precision guide rail 6.31213
Bayonet fitting of motor section
in moulding/routing adapter
Motor section suitable for actuating
flexible shafts
Motor section for fixed use in
routing-drilling stand 700
Comparative device characteristics
Maximum stroke height 50 mm 50 mm 80 mm
No load speed 10.000 - 27.000 /min 5.000 - 25.500 /min 8.000 - 22.000 /min
Rated input power 710 W 1.200 W 1.800 W
Output power 430 W 780 W 1.200 W
Rated load speed 19.500 /min 25.500 /min 22.000 /min
Collet bore of collet chuck 8 mm 8 mm 12 mm
Weight (without mains cable) 3 kg 3,4 kg 5,1 kg
Standard equipment Parallel guide/ripping fence,
extraction connector,
open-jawed spanner
Dial gauge for fine adjustment,
fine adjustment parallel guide/
ripping fence, extraction
connector, open-jawed spanner
Fine adjustment parallel guide/
ripping fence, extraction
connector, open-jawed spanner
Type OFE 738 Of E 1229 Signal Of E 1812
Order no. 6.00738 6.01229
6.01812
COMMON FEATURES
Sturdy 2-column guide
Robust plastic-covered aluminum die cast bearing flange
Hardened and ground interchangeable collect chuck
for precise concentricity of tools
Spindle lock for easy router bit change
Very suitable for moulding/routing heat-sensitive
materials and plastics
Thumbwheel for preselection of speed
Turn the machine on and off without releasing the handle
Aluminum die cast base plate with coating for easy sliding
Parallel guide/ripping fence guided in prisms
Auto-stop carbon brushes
External dust extraction outlet
710 Watt
Electronic Router
OFE 738
1200 Watt
Electronic Router
Of E 1229 Signal
1800 Watt
Electronic Router
Of E 1812
| 179
FME 737
Comparative device characteristics
No load speed 10.000 - 27.000 /min
Rated input power 710 W
Output power 430 W
Rated load speed 19.500 /min
Collet bore of collet chuck 8 mm
Weight (without mains cable) 1,4 kg
Standard equipment 2 open-jawed spanner
Type FME 737
Order no. 6.00737
EQUIPMENT FEATURES
Robust plastic-covered aluminum die cast bearing flange
Hardened and ground interchangeable collect chuck
for precise concentricity of tools
Vario Constamatic (VC) full-wave electronics
Thumbwheel for preselection of speed
Auto-stop carbon brushes
Motor section for fixed use in routing-drilling stand 700
Suitable for actuating flexible shafts
710 Watt Electronic
Router and Grinder Motor
FME 737
ROUTERS, ROUTER AND GRINDER MOTORS
Collets
Collet bore Order
no.
For OFE 738, Of E 1229 Signal,
FME737
and die grinders
3 mm 6.31947
1/8" (3.18 mm) 6.31948
6 mm 6.31945
1/4" (6.35 mm) 6.31949
8 mm 6.31946
For Of E 1812
6 mm 6.31565
1/4" (6.35 mm) 6.31566
8 mm 6.31567
3/8" (9.53 mm) 6.31568
10 mm 6.31571
12 mm 6.31569
1/2" (12.7 mm) 6.31570
Accessories for router Of E 1812
Order
no.
Socket driver /connector
With shaft Ø 12 mm
and thread M 12 x 1 for
router bits with M 12 x 1
female thread
6.31574
Circle-cutting centering pin
For inserting in one of the
bars of the router's parallel
guide/ripping fence,
for milling circular grooves
and similar work
6.31573
Template followers
For engraving text etc.
using a template clamped
on to the workpiece with
guide bush
Diameter: 17 mm 6.31575
Diameter: 24 mm 6.31576
Diameter: 27 mm 6.31577
Diameter: 30 mm 6.31578
Diameter: 40 mm 6.31579
