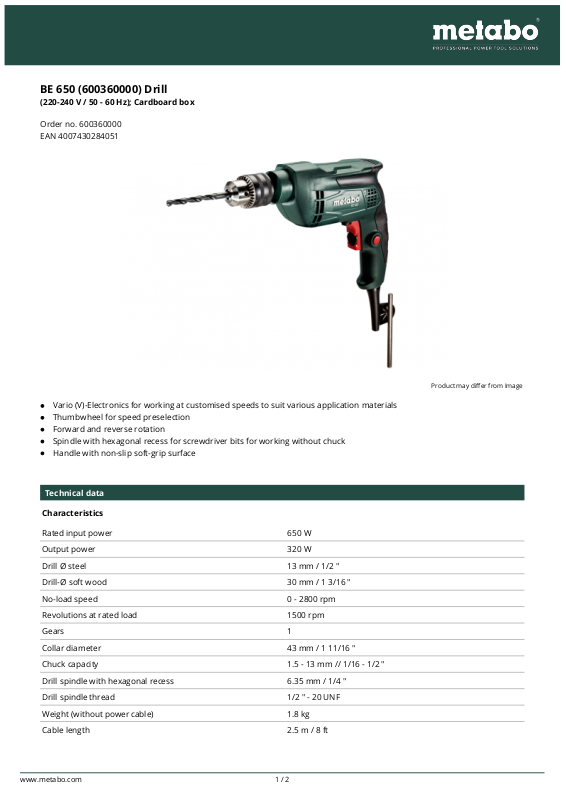

BE 650 (600360000) Drill

(220-240 V / 50 - 60 Hz); Cardboard box

Order no. 600360000
EAN 4007430284051

Vario (V)-Electronics for working at customised speeds to suit various application materials
Thumbwheel for speed preselection
Forward and reverse rotation
Spindle with hexagonal recess for screwdriver bits for working without chuck
Handle with non-slip soft-grip surface

Technical data

Characteristics

Rated input power 650 W

Output power 320 W

Drill Ø steel 13 mm / 1/2 "

Drill-Ø soft wood 30 mm / 1 3/16 "

No-load speed 0 - 2800 rpm

Revolutions at rated load 1500 rpm

Gears 1

Collar diameter 43 mm / 1 11/16 "

Chuck capacity 1.5 - 13 mm // 1/16 - 1/2 "

Drill spindle with hexagonal recess 6.35 mm / 1/4 "

Drill spindle thread 1/2 " - 20 UNF

Weight (without power cable) 1.8 kg

Cable length 2.5 m / 8 ft

Product may differ from Image

www.metabo.com 1 / 2

Vibration

Drilling in metal 4.8 m/s²

Uncertainty of measurement K 1.5 m/s²

Noise emission

Sound pressure level 85 dB(A)

Sound power level (LwA) 96 dB(A)

Uncertainty of measurement K 3 dB(A)

Scope of delivery

Geared chuck

Chuck key
