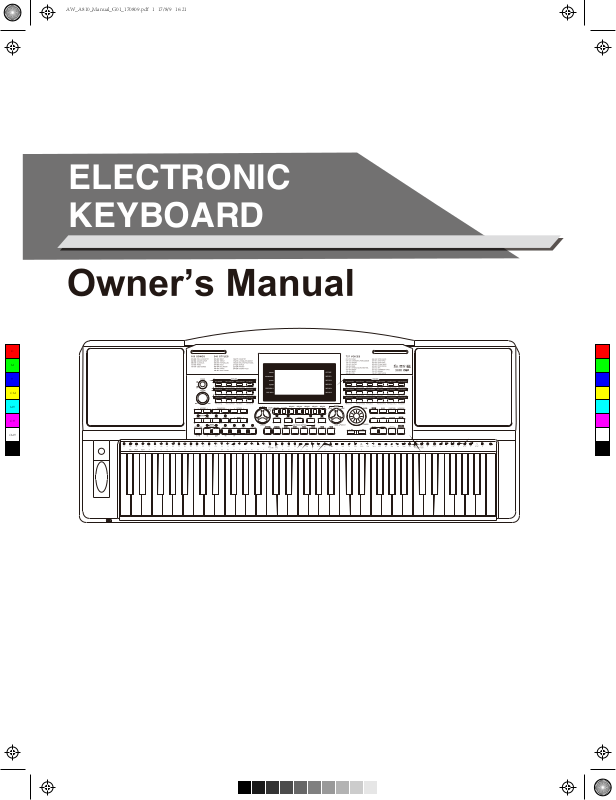

Medeli A810 Owner’s Manual

AW_A810_Manual_G01_170809.pdf 1 17/8/9 16:21

ELECTRONIC KEYBOARD

CMY

AW_A810_Manual_G01_170809.pdf 2 17/8/9 16:21

INFORMATION FOR YOUR SAFETY!

THE FCC REGULATION WARNING (for USA)

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules.

These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency

PLEASE READ CAREFULLY BEFORE PROCEEDING

Please keep this manual in a safe place for future reference.

Power Supply

Please connect the designated DC adaptor to an AC outlet of the correct voltage.

PRECAUTIONS

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that

interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or

Do not connect it to an AC outlet of voltage other than that for which your instrument is intended.

Unplug the DC power adaptor when not using the instrument, or during electrical storms.

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

CMY

Increase the separation between the equipment and

receiver.

Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician

for help.

Unauthorized changes or modification to this system can

void the user's authority to operate this equipment.

Connections

Before connecting the instrument to other devices, turn off the power to all units. This will help prevent malfunction and / or damage to other devices.

Location

Do not expose the instrument to the following conditions to avoid deformation, discoloration, or more serious damage: Direct sunlight Extreme temperature or humidity Excessive dusty or dirty location Strong vibrations or shocks Close to magnetic fields

Interference with other electrical devices

Radios and televisions placed nearby may experience reception interference. Operate this unit at a suitable distance from radios and televisions.

CAUTION

The normal function of the product may be disturbed

by Strong Electro Magnetic Interference. If so, simply

reset the product to resume normal operation by

following the owner's manual. In case the function

could not resume, please use the product in other

location.

Cleaning

Clean only with a soft, dry cloth. Do not use paint thinners, solvents, cleaning fluids, or chemical-impregnated wiping cloths.

Handling

Do not apply excessive force to the switches or controls.

Do not let paper, metallic, or other objects into the instrument. If this happens, remove the electric plug from the outlet. Then have the instrument inspected by qualified service personnel.

Disconnect all cables before moving the instrument.

AW_A810_Manual_G01_170809.pdf 3 17/8/9 16:21

Contents

Panel & Display Description

Front Panel............................................................................4

Rear Panel............................................................................6

Pedal Function

Volume Pedal......................................................................24

Sustain Pedal (Assignable).................................................24

Display...................................................................................6

Album.................................................................................24

Setup

Power Supply........................................................................7

Setting a Music Stand...........................................................7

Connecting a Sustain Pedal..................................................7

Connecting a Volume Pedal..................................................7

Other Functions

Tune....................................................................................25

Beat.....................................................................................25

Split Point............................................................................25

Pedal Assign.......................................................................26

Connections

Connecting a pair of Headphones.........................................8

Connecting an Audio Equipment...........................................8

Connecting an MP3/CD Player.............................................8

Connecting a Computer........................................................8

Connecting a MIDI Device....................................................8

Connecting a USB Flash Drive.............................................8

Fade In................................................................................26

Fade Out ............................................................................26

Harmony..............................................................................26

Reverb Level.......................................................................26

Chorus Level.......................................................................27

MIDI In.................................................................................27

MIDI Out..............................................................................27

Auto Power Off....................................................................27

Playing the Demos..............................................................9

Registration Memory

Playing Voices

Playing Voices.......................................................................9

Playing Two Voices Simultaneously-DUAL.........................10

Playing Different Voices with Both Hands-LOWER.............10

Registering the Panel Settings............................................28

Recalling the Registered Panel Settings.............................28

Selecting a Registration Bank.............................................28

Freezing the Accompaniment Parameter............................28

Touch...................................................................................10

CMY

Sustain.................................................................................11

Pitch Bend...........................................................................11

Modulation...........................................................................11

Transpose............................................................................11

Octave.................................................................................11

Piano Mode.........................................................................12

Metronome..........................................................................12

Freesolo..............................................................................12

Auto Accompaniment

Playing Auto Accompaniment (rhythm track only)...............13

Playing Auto Accompaniment (all tracks)............................13

Accompaniment Sections....................................................13

Playing Different Accompaniment Sections.........................14

Song Recording

Start Recording...................................................................29

Stop Recording...................................................................30

Play back Recording...........................................................30

Delete Recording.................................................................30

Song

Listening to the Songs........................................................31

Song Control.......................................................................31

Lesson Mode......................................................................31

Chord Dictionary

DICT1 (Chord Learning Mode)............................................33

DICT2 (Chord Testing Mode)..............................................33

Fade In/Out.........................................................................14

Accompaniment Volume.....................................................15

Chord Fingering..................................................................15

Tempo.................................................................................16

One Touch Setting...............................................................16

Connecting USB Flash Drive

Common Operation.............................................................34

Play.....................................................................................34

Load....................................................................................35

Save....................................................................................36

Harmony.............................................................................17

Delete..................................................................................36

Format.................................................................................36

IFX.......................................................................................18

Keyboard and ASCII Character Relative Table...................36

Performance Assistant

What's the performance assistant?.....................................19

Enter the Performance Assistant.........................................19

Guitar Mode........................................................................19

Playing in the Guitar Mode..................................................20

Piano Mode.........................................................................20

Playing in the Piano Mode..................................................21

Exit the Performance Assistant...........................................21

Synth

Enter the synth....................................................................22

Create user voice................................................................22

Exit the synth.......................................................................22

DSP Effect..........................................................................23

Mixer...................................................................................23

MIDI

What's MIDI?.......................................................................37

MIDI Terminals....................................................................37

Downloading Data from the Computer................................37

Troubleshooting................................................................38

Specifications....................................................................39

Appendices

Voice List.............................................................................40

Style List..............................................................................47

Song List ............................................................................50

Demo List............................................................................52

Album List...........................................................................53

Chord List............................................................................54

MIDI Implementation Chart.................................................55

AW_A810_Manual_G01_170809.pdf 4 17/8/9 16:21

Panel & Display Description

Front Panel

1. POWER BUTTON

CMY

Turn the power on and off.

2. VOLUME Knob

Adjust the master volume.

3. STYLE SELECT BUTTON

Select directly a preset style

4. ACCOMP +/- BUTTON

Adjust the Accompaniment volume.

5. TRANSPOSE +/- BUTTON

SONG MODE：

12. START/STOP BUTTON

Start or stop playing the song.

13. PAUSE BUTTON

Pause or continue playing a song.

14. REPEAT A/B BUTTON

Set the beginning and the end for a loop section of a selected song.

15. REW BUTTON

Rewind the song.

15 16

19. LEFT HAND BUTTON

Choose to practice the left hand part in Lesson Mode.

20. RIGHT HAND BUTTON

Choose to practice the right hand part in Lesson Mode. CHORD DICTIONARY BUTTON Hold the button to enter the Chord Dictionary.

21. LESSON BUTTON

Enter the lesson mode.

Adjust the Transpose value.

22. RECORD BUTTON

Enter the record mode.

6. OCTAVE+/- BUTTON

16. FF BUTTON

Fast forward the song.

Adjust the Octave value.

23. ACCOMP BUTTON

Select the accomp track to record.

24. MELODY 1-5 BUTTON

Select the melody1-5 track to record.

25. PERFORM. BUTTON

Turn the Performance Assistant function on and off.

7. SYNC STOP BUTTON

Turn the Sync Stop on and off.

8. SYNC START BUTTON

Turn the Sync Start on and off.

9. FADE BUTTON

Turn the Fade in or Fade out on.

STYLE MODE：

12. START/STOP BUTTON

Start or stop playing the style.

13. INTRO1/ENDING1 BUTTON

Play the Intro or Ending 1.

14. INTRO2/ENDING2 BUTTON

Play the Intro or Ending 2.

10. A.B.C. BUTTON

Turn the A.B.C. function on and off.

11. TEMPO+/- BUTTON

Adjust the current tempo.

15. FILL A BUTTON

Play the fill-in pattern A.

16. FILL B BUTTON

Play the fill-in pattern B.

17. FILL C BUTTON

Play the fill-in pattern C.

18. FILL D BUTTON

Play the fill-in pattern D.

26. FREEZE BUTTON

Freeze the style's parameter when a memory is recalled.

27. O.T.S. BUTTON

Enter the One Touch Setting Mode.

28. IFX BUTTON

Turn the Insert Effect on and off. Hold the button to enter the Insert Effect menu.

AW_A810_Manual_G01_170809.pdf 5 17/8/9 16:21

Panel & Display Description

33 34

29. SYNTH BUTTON

Enter the Synth menu.

CMY

30. BANK BUTTON

Select a bank.

31. STORE BUTTON

Save current panel settings to one of the memories.

32. M1-M6 BUTTON

41. MIXER BUTTON

Enter mixer menu.

42. FUNCTION BUTTON

Enter function menu.

43. HARMONY BUTTON

Turn the harmony effect on and off.

44. DUAL BUTTON

Turn the Voice R2 on and off.

33. STYLE BUTTON

Enter the Style Mode.

45. LOWER BUTTON

Turn the Voice L on and off.

34. VOICE BUTTON

Enter the Voice Mode.

46. SUSTAIN BUTTON

Turn the sustain on and off.

35. SONG BUTTON

Press it to enter the Song Mode. Hold it to turn on the Album function.

47. DSP BUTTON

Turn the DSP effect on and off.

41 42 43

44 45 46 47

48 49 50

50. TOUCH BUTTON

Enter the Touch Setting menu.

51. USB DEVICE BUTTON

Enter the USB Device menu

52. LCD Display

show all the important settings for the current operation.

53. MODULATION BUTTON

Apply a vibrato effect.

54. PITCH BEND

Bend notes up or down.

55. PHONES

Connect headphones to the unit.

56. USB Port

Connect a USB flash drive.

36. VOICE SELECT BUTTON

Select directly a preset voice.

48. PIANO BUTTON

Turn the piano mode on and off.

57. FreeSolo

Turn the FreeSolo function on

37. DATA DIAL

Increase and decrease the value.

49. METRO BUTTON

Turn the metronome on and off.

and off.

38. ENTER BUTTON

Enter Menu or Confirm.

39. - / NO,+/YES BUTTON

Decrease or Increase the value.

40. EXIT BUTTON

Exit Menu or Cancel.

AW_A810_Manual_G01_170809.pdf 6 17/8/9 16:21

Setup

Rear Panel

1. USB JACK

Connect to a computer.

4. MIDI OUT

Transmit MIDI messages to

7 8

7. AUX.OUT

Connect the audio equipment.

an external MIDI device.

2. MIDI THRU

Relays MIDI message it has received at the MIDI IN Jack.

3. MIDI IN

Receive MIDI messages from

5. SUSTAIN JACK

Connect a sustain pedal.

6. VOLUME JACK

Connect a volume pedal.

8. AUX.IN

Connect an external audio source, such as an MP3 or CD player.

9. DC 12V

Connect DC 12V power adaptor.

an external MIDI device.

CMY

LCD

13 14

24 25

29 30

32 34

1. TOUCH

2. CHORD DICT.

3. SYNTH

4. ALBUM

5. PERFORM.H

6. FREE SOLO

7. SERIAL NUMBER

8. VOICE/STYLE/DEMO/SONG

9. DIR/FILE

10. RECORD

11. TREBLE CLEF

12. BASS CLEF

13. USB

14. USB DEVICE

15. STRING

16. MEASURE

17. BEAT

18. TEMPO

19. CHORD

20. MEMORY

21. FREEZE

22. ONE TOUCH SETTING

23. MEMORY BANK

24. A.B.C.

25. FADE

26. SECTION A/B/C/D

27. NUMBERED NOTATION

28. LESSON

29. LEFT HAND

30. RIGHT HAND

31. DUAL

32. LOWER

33. HARMONY

34. DSP

35. SUSTAIN

36. ACCOMP 37-41. MELODY1--5

AW_A810_Manual_G01_170809.pdf 7 17/8/9 16:21

Setup

This section contains information about setting up your instrument and preparing to play. Please go through this section

POWER

carefully before turning the power on.

Power Supply

1. Before connecting to power supply, please set the [POWER]

switch to OFF and set the master volume to minimum level.

2. Connect the AC adaptor to the DC 12V jack of this keyboard.

3. Plug the AC adaptor into an AC outlet.

4. Press the [POWER] button, the LCD will be lit, which indicates the

USB

instrument is powered on.

5. If you are ready to turn off the instrument, press the [POWER]

switch again.

Notes:

1. In order to save energy, the instrument will automatically shutdown in 30 minutes if it is not used. (Please refer to Auto Power Off).

2. For your safety, please unplug the instrument when it is not in use

CMY

or during a thunderstorm.

Setting a Music Stand

A music stand is supplied with the instrument. You can easily attach it to the instrument by inserting it into the slots at the rear of the panel.

AUX.I N

Connecting a Sustain Pedal

An optional footswitch can be plugged into the sustain jack and be used to switch sustain on or off. Simply by pressing the pedal, you will have a natural sustain as you play.

Connecting a Volume Pedal

An optional volume control can be plugged into the volume jack for adjusting the volume of sound.

AW_A810_Manual_G01_170809.pdf 8 17/8/9 16:21

Connections

Connecting a pair of Headphones

A standard pair of stereo headphones can be plugged in here for private practice or late-night playing. The internal stereo speaker system is automatically shut off when a pair of headphones is plugged into the PHONES jack.

Note:

Do not listen with the headphones at high volume for long periods of time.Doing so may cause hearing loss.

Connecting an Audio Equipment

The rear-panel AUX.OUT jack delivers the output of the instrument to a keyboard amplifier, stereo sound system, a mixing console, or tape recorder. Use an audio cable to connect the AUX OUT jack of the instrument to the audio INPUT jack of the external equipment.

Note:

To avoid damaging the speakers, please set the master volume to minimum level before connecting the power and other devices.

CMY

Connecting an MP3/CD Player

Connect the audio output of an MP3/CD player or other audio source to the stereo AUX.IN jack on the rear panel. The input signal is mixed with the instrument signal, allowing you to play along.

Connecting a Computer

The instrument receives and transmits MIDI messages via the USB connector. Please use a standard USB cable to connect the USB jack of the instrument to the USB port of a computer.

Alternatively, use a commercially available MIDI interface to connect the instrument to a computer via the MIDI connectors.

Connecting a MIDI Device

Connect the MIDI OUT of other Device to the MIDI IN jack on the rear panel, the instrument will receive MIDI messages from the external device and work as a sound source. Connect the MIDI IN of other Device to the MIDI OUT jack on the rear panel, the instrument will transmit MIDI messages to the external device and work as a MIDI controller.

Connecting a USB Flash Drive

Connect a USB flash drive to the instrument, you can save the data you’ve created such as memory settings, recorded data to the USB flash drive, or load and play back files saved in the USB flash drive on the instrument. Note: To avoid error or damaging the USB flash drive, do not remove it when reading or writing is in progress.

AW_A810_Manual_G01_170809.pdf 9 17/8/9 16:21

The instrument features several wonderful demos. Please refer to DEMO LIST.

1. Press the [STYLE] and [VOICE] buttons simultaneously to start

playing the demo.

2. Select a demo song.

Use the data dial, the [+/YES] button or the [-/NO] button to select a demo song.

3. Set a volume level with the [VOLUME] knob.

4. Press the [STYLE] and [VOICE] buttons simultaneously again or

press the [START/STOP] button to stop playing and exit the demo mode.

Note:

In the DEMO mode, only the following buttons will work: START/STOP, TEMPO+, TEMPO-, +/YES, -/NO, VOLUME, POWER ON/OFF.

Playing the Demos

CMY

The keyboard has a variety of remarkably realistic built-in voices. Please refer to Voice List.

Playing Voices

1. Press the [VOICE] button

Enter the VOICE mode. LCD shows VOICE R1 and the current voice number and name.

2. Select a voice.

Use the data dial, the [+/YES] button, the [-/NO] button to select the voice you want to play. You can also use the Voice Select Button to select a preset voice.

3. Play the voice.

You can play the keyboard and listen to the wonderful voice.

Note:

Each Voice Select button has two preset voices. Press it repeatedly to shift between the upper and lower preset voice.

In voice selection, if you have selected the upper voice of a Voice button, pressing another button will directly select its upper voice. In the same way, if you have selected a lower voice, pressing another button will select its lower voice.

AW_A810_Manual_G01_170809.pdf 10 17/8/9 16:21

Playing Voices

Playing two Voices Simultaneously-DUAL

1. Press the [DUAL] button.

It turns on the Dual function. “VOICE R2” and “DUAL” light up on display. LCD shows the current dual voice number and name.

2. Selecting a voice for VOICE R2.

Use the data dial, [+/YES] and [-/NO] button, or Voice Select buttons to select a dual voice.

3. Play the voices.

Play the keyboard, and you will hear two different voices being played together, just like two different instruments being played at the same time.

Note:

When the keyboard is split, only the right hand area will have the Dual voice function.

Playing Different Voices with Both HandsLOWER

1. Press the [LOWER] button.

CMY

It turns on the Lower function. The keyboard is split into the left and right areas, each with a different voice. “VOICE L” and “LOWER” light up on display. LCD shows the current lower voice number and name.

2. Selecting a voice for VOICE L.

Use the data dial, the [+/YES] button or the [-/NO] Button to select a lower voice.

3. Play the voices.

Play the keyboard with both hands, and you will hear two different voices from the two areas.

Split Point

The key that separates voice L and voice R1/R2 is called the “split point”. The split point is set to F#3 at the factory setting. However you can assign it to any other key. Please refer to Other Functions.

Touch

The keyboard is equipped with a touch response feature that lets you dynamically and expressively controls the level of the voice with your playing strength, just as on an acoustic instrument. The keyboard features 5 touch types to choose from: off,1-5.

1. Press the [TOUCH] button. The LCD shows the current touch level.

2. Use the data dial, the [+/YES] button, the [-/NO] button or the

[TOUCH] button to change the touch response level. Default level of touch response is 3. If the value is set to OFF, that means no touch response to keyboard.

AW_A810_Manual_G01_170809.pdf 11 17/8/9 16:21

Sustain

1. When the sustain is turned on, “SUSTAIN” lights up on display, and all

notes you play will have a longer sustain.

2. Press the [SUSTAIN] button to turn the SUSTAIN effect ON or OFF. Note:

When using a sustain pedal, you can produce a much stronger and more natural sustain effect than by using the [SUSTAIN] button.

Pitch Bend

Use the pitch bend wheel to bend notes up (roll the wheel away you) or down(roll the wheel toward you ) while playing the keyboard.The pitch bend wheel is self-centering and will automatically return to normal pitch when released.

Playing Voices

With the pitch bend wheel, you can easily imitate the pitch bend effect of the guitar, violin, saxophone or other instruments, and make your performance more vivid.

Modulation

CMY

The Modulation function applies a vibrato effect to notes played on the keyboard. Press the [MODULATION] button while playing the keyboard then you will hear the vibrato effect.

Transpose

Transpose function allows the overall pitch of the instrument to be transposed up or down by a maximum of one octave in semitone steps.

1. Press [TRANSPOSE +] or [TRANSPOSE -] to adjust the value from

-12 to +12 semitones.

2. Press [TRANSPOSE +] and [TRANSPOSE -] or press [+/YES] and

[-/NO] simultaneously, it will set the value to default: 0.

Octave

The Octave function will shift the pitch up or down by 2 octaves for voice R1, R2 and L respectively.

1. Press [OCTAVE +] or [OCTAVE -] to change the octave value over the

range of -2 to +2.

2. Press [OCTAVE +] and [OCTAVE -] or press [+/YES] and[-/NO]

simultaneousl, it will set the value to default: 0.

Note:

After adjusting the octave, notes in the highest and lowest keyboard range may not sound normally. This is normal.

AW_A810_Manual_G01_170809.pdf 12 17/8/9 16:21

Playing Voices

Piano Mode

The Piano Mode will set instantly the entire keyboard to piano voice. All parameters will be optimized for piano performance just by pressing a single button.

1. Press [PIANO] button to enter or exit the piano mode.

2. In the PIANO mode, if you start a style, it only plays the rhythm part.

Metronome

The metronome provides a steady beat to help you practice at a preset tempo.

1. Press the [METRO] button to turn the metronome on.

2. Press the [METRO] button again to turn the metronome off.

3. Set the time signature of metronome. Please refer to Other Functions.

Notes:

1. If you turn on the metronome during style playback, the metronome sound will start from the next beat and its time signature will match the current style.

2. In Recording, you can turn on the metronome, but the metronome

CMY

sound will not be recorded.

Freesolo

The FreeSolo function allows you to switch voice in an exceptionally fast, accurate and seamless way, faithfully reproducing the special effects of an acoustic instrument, and making your performance more real and exciting.

1. Turn on the FreeSolo function.

Press the [FreeSolo] button to turn on the function. “FREE SOLO” lights up on display. It will automatically disable the A.B.C. function, the Dual and Lower function.

2. Select a voice to play.

Use the data dial or the [+/Yes]/[-/No] button to select a voice for FreeSolo.

3. Play in the FreeSolo mode.

In FreeSolo mode, please use the right hand area to play and use the left hand area to switch voice.

● Press and hold a white key in the left hand area to activate the first

special voice pattern. Release the key to restore the basic voice.

● Press and hold a black key in the left hand area to activate the

second special voice pattern. Release the key to restore the basic voice.

● Press simultaneously two or more white keys in the left hand area to

activate the first special voice pattern. It will keep using the special voice even after releasing the keys.

● Press simultaneously two or more black keys in the left hand area to

activate the second special voice pattern. It will keep using the special voice even after releasing the keys.

4. Turn off the FreeSolo function.

Press one of the Voice select buttons or the [FreeSolo] button, it will exit the mode. The "FREE SOLO" indicator lights off.

AW_A810_Manual_G01_170809.pdf 13 17/8/9 16:21

Auto Accompaniment

The auto accompaniment feature puts a full backing band at your fingertips. All you have to do is play the chords with your left hand , and the accompaniment will automatically play along, instantly following the chords you play. With auto accompaniment, even a solo performer can enjoy playing with the backing of entire band or orchestra. The instrument features a variety of styles. Try selecting some of the different styles (Refer to Style List) and play with the auto accompaniment.

Playing Auto Accompaniment (rhythm track only)

1. Press the [STYLE] button.

Enter the STYLE mode. “STYLE” lights up on display. LCD shows the current style number and name.

2. Select a style.

Use the Data Dial, the [+/YES] button, the [-/NO] button to select a style. Also, you can use the Style Select Button to select a style.

3. Press the [START/STOP]button to start the rhythm tracks of the auto

accompaniment.

Note:

CMY

Each Style select button has two preset styles. Press it repeatedly to shift between the upper and lower preset style. In style selection, if you have selected the upper style of a Style button, pressing another button will directly select its upper style. In the same way, if you have selected a lower style, pressing another button will select its lower style.

Playing Auto Accompaniment (all tracks)

1. Press the [STYLE]button.

2. Select a style

3. Press the [A.B.C.] button to turn on the A.B.C. function. The keyboard

will be split into two areas. Play the chords in the left hand area.

4. Turn the Sync Start function on.

Press the [SYNC START] button, then play a chord in the left hand area to start the auto accompaniment. When you play a different chord, the accompaniment will change along.

Alternatively, press the [START/STOP] button to start the rhythm part. Then play a chord in the left hand area, the chord part will start as well.

5. Press the [START/STOP] button to stop the accompaniment.

Accompaniment Sections

There are various types of Auto Accompaniment sections that allow you to vary the arrangement of the accompaniment to match the song you are playing.

They are: Intro (1, 2), Main (A, B,C,D), Fill-in (A, B,C,D) and Ending(1,

2). By switching among them during your performance you can easily produce the dynamic elements of a professional-sounding arrangement in your performance.

AW_A810_Manual_G01_170809.pdf 14 17/8/9 16:21

Auto Accompaniment

INTRO Section

The intro is an opening section of the song. When the intro pattern finished, the system will automatically shift to the main section.

MAIN Section

The main is an important section of the song. And it plays an accompaniment pattern and repeat infinitely until another section's button is pressed.

FILL IN Section

Auto fill in function automatically adds a fill to your performance. When the fill-in is finished,accompaniment shifts to the Main section (A,B,C,D).

ENDING Section

Ending is used for the ending of the song. When the ending is finished, accompaniment automatically stops.The length of the ending differs depending on the selected style.

Playing Different Accompaniment Sections

1. Press the [STYLE] button.

2. Select a style.

3. Turn the A.B.C. on.

CMY

4. Turn SYNC START on.

5. Press the [FILL A] button.

6. Press the [INTRO/ENDING] button.Now the A flashes on LCD, the

style is ready to play.

7. It will start the accompaniment as soon as you start playing in Chord

section.When the playback of the Intro 1 is finished, it automatically leads into Main A section.

8. Press the [FILL B]/[FILL C]/[FILL D] button. A fill-in plays,

automatically followed by the Main B/C/D section.

9. Press the [INTRO/ENDING] again to play an Ending Section. When

the ending is finished, the auto accompaniment automatically stops.

Note:

Hold down the FILL A/B/C/D button when the style is playing, the selected FILL pattem repeats continuously until button is released. Press FILL A/B/C/D when style stops, it will select a Main section, the icon A/B/C/D on LCD will be lit.

Fade In/Out

Fade In

Starting the style with fade in produces a smooth beginning, the volume increases from low to high. When style stops, press the [FADE] button to turn on the fade-in function. The button LED lights up.

Fade Out

Stopping the style with fade out produces a smooth ending, the volume decreases from high to low. When style is playing, press the [FADE] button to turn on the fade-out function. The button LED will flash until the style stops.

Fade In/Out Time

The default fade-in/fade-out time setting is 10 seconds. You can set the time in Other Functions.

AW_A810_Manual_G01_170809.pdf 15 17/8/9 16:21

Accompaniment Volume

1. Press [ACCOMP+] or [ACCOMP-] button to adjust the accompaniment

volume over the range of 0 to 127.

2. Press [ACCOMP +] and [ACCOMP-] button simultaneously to turn off

ACCOMP volume.

3. Press [ACCOMP +] and [ACCOMP-] button simultaneously again to

turn on ACCOMP volume.

Chord Fingering

Chord Basics

A chord, in music, is any harmonic set of three or more notes that is heard as if sounding simultaneously. The most frequently encountered chords are triads. A triad is a set of three notes that can be stacked in thirds. When stacked in thirds, the triad's members, from lowest pitched tone to highest, are called: the Root, the Third, and the Fifth.

Auto Accompaniment

Triad Type

There are following basic triad types:

CMY

Major Triad

A root with a major third added above and a perfect fifth will consist as a “Major Triad”.

Minor Triad

A root with a minor third added above and a perfect fifth

will consist as a “Minor Triad”. Augmented Triad Diminished Triad

A root with a major third added above and an

augmented fifth will consist as an “Augmented Triad”.

A root with a minor third added above and a diminished

fifth will consist as a “Diminished Triad”.

Chord Inversion

We define this chord its root is not in the bass (i.e., is not the lowest note) as an inversion chord. When the root is in the bass, we call the chord: root-position chord. If we put the Third and Fifth in the root position, then it forms “Inversion”, we call this chord “Inversion Chord”. See the following major triad and its inverted chord.

Chord Name

The chord name contains two parts content: Chord root and Chord type.

Single Finger

Single finger type not only can detect single finger but also can detect multi finger. And the single finger makes it easily to play chords through only one, two or three keys. Including major, minor, seventh, and minor seventh chord. Refer to relevant picture on the right for details.

AW_A810_Manual_G01_170809.pdf 16 17/8/9 16:21

Auto Accompaniment

Multi-finger

Multi finger type only can recognize those chords have listed in the chord list, and also can be found in the dictionary function.

CMY

Tempo

Each style of the instrument has been set with a default or standard tempo; however, this can be changed by using the [TEMPO+]/[TEMPO-] buttons.

1. Change the tempo

Use the [TEMPO+] or [TEMPO-] button to change the tempo. Or use the Data Dial to make a quick change when the value is flashing on LCD.

2. To restore the default tempo setting, press the [TEMPO+]/[TEMPO-]

buttons simultaneously.

One Touch Setting

When One Touch Setting is switched on, you can instantly recall all auto accompaniment related settings including voices selection and digital effects simply with a single touch of a button.

1. Press the [O.T.S.] button to turns on the One Touch Setting for

current style.

2. Press one of the [ONE TOUCH SETTING] buttons [M1]-[M4].

Various panel settings (such as voice, effect, etc.) that match the selected style can be instantly recalled. Auto accompaniment is automatically turned on in O.T.S. mode.

3. Play the keyboard.

One Touch Setting parameter list:

Part ON/OFF (VOICER1,R2,L) Voice Number (VOICER1,R2,L) Voice Volume (VOICER1,R2,L) Voice Reverb Level (VOICER1,R2,L) Voice Chorus Level (VOICER1,R2,L)

AW_A810_Manual_G01_170809.pdf 17 17/8/9 16:21

The Harmony function will automatically add harmony effect to the notes you play in the right hand area, instantly enriching your performance with a more harmonic expression.

1. Turn on the harmony function.

Press the [HARMONY] button to turn on the harmony function. “HARMONY” lights up on display. The LCD shows the current harmony type.

2. Play with harmony effect.

Turn on the A.B.C. function, then play a chord in the left hand area. It will add harmony effect to the notes as soon as you play in the right hand area.

3. Turn the harmony off.

Press the [HARMONY] button again to turn off the function. LCD will show “OFF” and the “HARMONY” lights off.

Harmony

4. Set the harmony type.

You can set the harmony type in Other Functions.

Note:

Harmony types “1+5” and “octave” are always available, but the rest are

CMY

not selectable until the A.B.C function is turned on.

+ 39 hidden pages

Medeli A810 Owner’s Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
