Meade LX200 R User Manual

Instruction Manual

8", 10", 12", 14", 16" LX200®R

Advanced Ritchey-Chrétien Telescopes

with GPS and AutoStar®II Hand Controller

(800) 626-3233

www.meade.com

WARNING!

Never use a Meade

LX200R

™

Telescope to look at the Sun!

Looking at or near the Sun will cause instant and irreversible damage to your eye. Eye damage is often painless, so there is no warning to the observer that damage has occurred until it is too late. Do not point the telescope at or near the Sun. Do not look through the telescope or SmartFinder

™

as it is moving.

Children should always have adult supervision while observing.

Quick-Start Guide .......................................................... 4

Telescope Features ...................................................... 6

AutoStar

II Features ...................................................... 9

Getting Started ..............................................................12

Parts Listing ..............................................................12

How to Attach the Tripod to the Telescope ..............12

How to Assemble Your Telescope ............................13

Choosing an Eyepiece ..............................................14

Mounting and Adjusting the Viewfinder ....................15

Observing ......................................................................16

Observing by Moving the Telescope Manually ........16

Terrestrial Observing ................................................16

Observing Using AutoStar II's Arrow Keys................16

Focusing the Eyepiece with the Microfocuser ..........17

Slew Speeds ............................................................17

Observe the Moon, Astronomical Observing ..........18

To Track an Object Automatically..............................18

Moving Through AutoStar II’s Menus ..................18

Automatic Alignment ............................................18

Observe a Star Using Automatic Tracking ..........20

Go To Saturn ............................................................20

Using the Guided Tour ..............................................20

Basic AutoStar II Operation............................................22

AutoStar II Navigation Exercise ................................22

Navigating AutoStar II ..............................................23

AutoStar II Menus ........................................................24

Menu Tree ................................................................24

Objects Menu............................................................25

Event Menu ..............................................................26

Glossary Menu, Utilities Menu ..................................27

Setup Menu ..............................................................28

Hot Button Menus ....................................................31

Advanced AutoStar II Features ......................................32

Adding Observing Sites ............................................32

Creating User Objects ..............................................33

Observing Satellites, Landmarks ..............................34

Identify ......................................................................35

Browse ......................................................................36

Alternate Alt/Az Alignment Methods ..........................37

Initialize AutoStar II (for Alternate Alignments) ........37

Easy (Two-Star) Alignment ......................................37

Two-Star Alt/Az Alignment ........................................37

To Set the Home Position Manually ....................38

One-Star Alt/Az Alignment ........................................38

Periodic Error Correction ..........................................39

Photography ..................................................................40

Optional Accessories ......................................................43

Maintenance ..................................................................46

Specifications ................................................................49

Appendix A: Equatorial (Polar) Alignment ......................52

Appendix B: Latitude Chart ............................................57

Appendix C: How to Create Your Own Guided Tour ......58

Appendix D: Training the Drive ......................................62

Appendix E: The Moon Menu ........................................63

Appendix F: 16" LX200R Features ................................64

Appendix G: 14" LX200R Features ................................68

Appendix H: De-rotater and Microfocuser Assembly ....69

Appendix I: Smart Mount................................................70

Basic Astronomy ............................................................72

CONTENTS

WARNING!

Never use a Meade

LX200®R Telescope to

look at the Sun! Looking at or near the Sun

will cause instant and irreversible damage to your eye. Eye damage is often painless, so there is no warning to the observer that damage has occurred until it is too late. Do not point the telescope or its viewfinder at or near the Sun. Do not look through the telescope or its viewfinder as it is moving. Children should always have adult supervision while observing.

Caution: Use care to install batteries in the orientation indicated by illustration in the battery slots of the battery holder. Follow battery manufacturer's precautions. Do not install batteries backwards or mix new and used batteries. Do not mix battery types. If these precautions are not followed, batteries may explode, catch fire, or leak. Improperly installed batteries void your Meade warranty.

If you are anxious to use your telescope for the first time, read the QUICK-START GUIDE on pages 4 and 5.

® The name "Meade," the Meade logo, LX200 and Autostar are trademarks registered with the U.S. Patent and Trademark Office and in principal countries throughout the world.

Patents:

US 7,092,156 US 7,079,317 US 6,304,376 US 6,392,799 US 6,563,636 D 422,610 Patent Pending.

16" LX200®R Users: See APPENDIX F, page 64, for features unique to the 16" model.

14" LX200®R Users: See APPENDIX G, page 68, for features unique to the 14" model.

- 4 -

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

QUICK-START GUIDE

It is recommended that you attach the supplied tripod to the LX200R for observing. Perform the telescope and AutoStar II setup indoors in the light so that you become familiar with the parts and operation before moving the telescope outside into the dark for observing. The setup is the same for the standard field tripod and the giant field tripod.

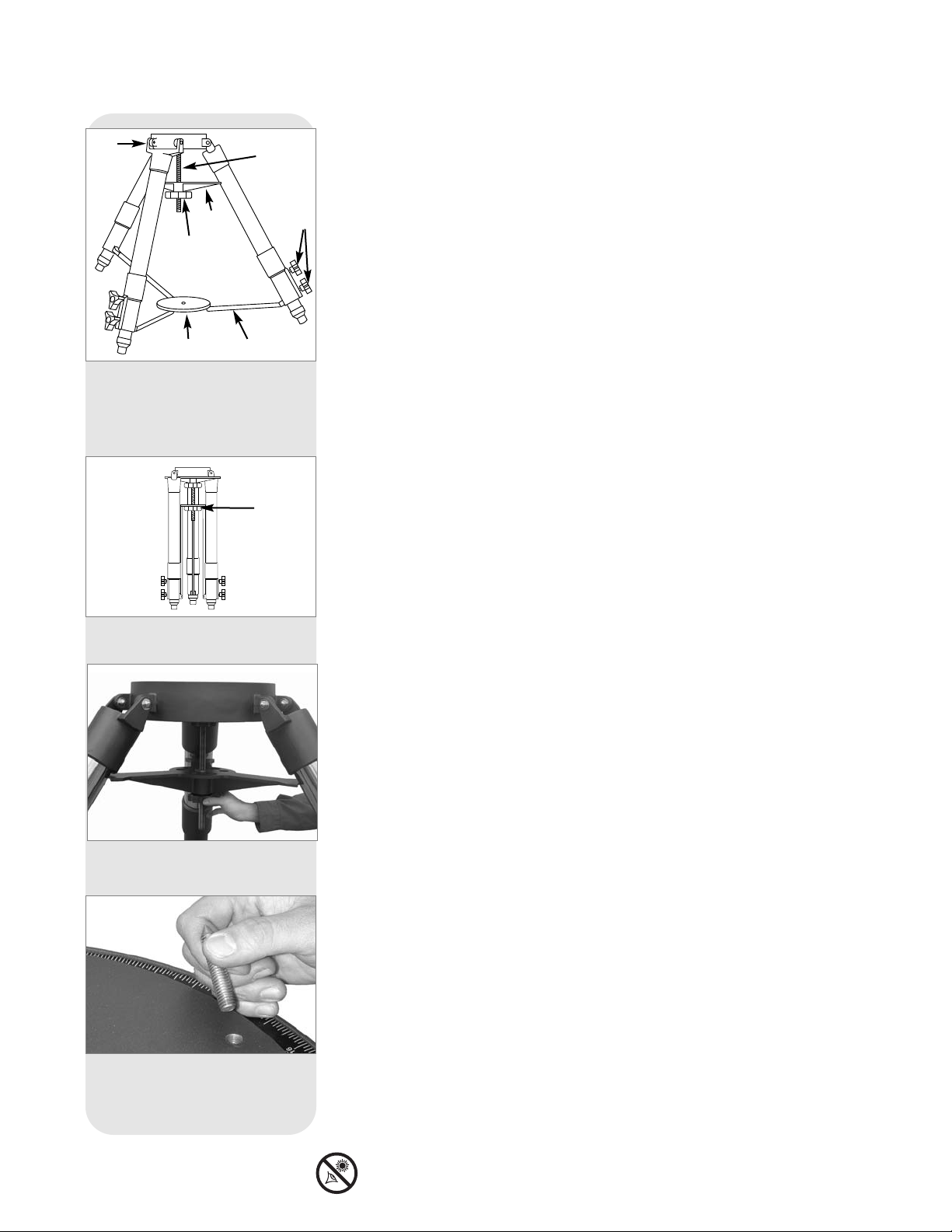

1. Remove the field tripod from the shipping carton. Stand the tripod vertically with the tripod feet down and with the tripod still fully collapsed. Grasp two of the tripod legs and, with the full weight of the tripod on the third leg, gently pull the legs apart to a fully open position.

3. Remove the threaded rod from the tripod head. A small piece of plastic holds the threaded rod in place. Remove the small plastic bag that is stapled to the threaded rod. This bag contains the "C" clip retainer and an extra clip.



2. Thread in two lock-knobs on each leg (six total) near the foot of each tripod leg. Use the lockknobs to vary the height of the inner, extendible tripod leg sections. Tighten the locks to a firm feel only; do not overtighten.

Remove the spreader bar (see above figure) from the shipping carton. Slide the spreader bar onto the threaded rod. Slide the rod through the tripod base. Position the spreader bar so that its three arms line up with the three tripod legs.

5. Take the LX200R from its packaging and place the entire telescope onto the top of the tripod head, inserting the threaded rod into the central hole in the bottom of the drive base of the telescope. Tighten the tension knob (see above figure) to a firm feel only; firm tightening of the tension knob is sufficient to result in rigid positioning of the tripod legs.



Battery Compartment



6. Remove the covers of the battery compartments located on the fork arms (one on each fork arm) and carefully lift the battery holders from their compartments, being mindful of the connector wires. Insert four (user-supplied) C-cell batteries into each battery holder, oriented as shown on the diagram on the battery holder. Return the battery holders to their respective compartments. Replace the covers when you are done.

Spreader Bar

Slide rod through Tripod base

Line up with leg

Tension Knob

4. Place the "C" clip into the slot in the threaded rod above the tripod head—this clip holds the threaded rod in place.

“C” Clip in slot

Threaded Rod



Tripod Base





- 5 -

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

9. Tighten, to a firm feel only, the R.A. and Dec. locks. Remove the dust cover from the end of the telescope tube.

Place the 26mm eyepiece (F) into the diagonal prism (G) and tighten the attachment thumbscrew (E) to a firm feel only.

Sight along the side of the telescope’s main tube to locate an object. Rotate the mirror lock knob (9, Fig. 1) towards the “Unlock” position, until it feels loose—the telescope is shipped with the mirror locked. Use the telescope’s coarse focus knob (6, Fig. 1) to bring the object into focus. Practice using the AutoStar II Arrow keys to center an object in the telescope’s field of view.

11.

“Press 0 to align or Mode for Menu” displays. You

can use the Arrow keys to slew (move) the telescope up, down, right, or left. To change the telescope’s slew speed, press the Speed key and then the Number keys. "9" is the fastest speed and "1" is the slowest speed. See page 17 for more details. Or you can

Press “0” to begin Automatic

Alignment.

See page 18 for more information.

7. Press the computer control panel power switch to OFF, if necessary. Remove the AutoStar II handbox and the AutoStar II coil cord from the packing materials. Plug one end into the HBX port of the telescope's computer control panel and plug the other end into the coil cord port on the AutoStar II handbox.

10. Press the Power Switch on the computer control panel to the ON position. The copyright message lights on AutoStar II's LCD display.



Slew Speeds:

Speed 9: Fast

. .

Speed 5: Medium

. .

Speed 1: Slow

Arrow Keys

Number Keys

R.A.

Lock

Dec. Lock

Display























8. Attach microfocuser: Remove the dust cap from the rear cell port (A) of the telescope (Note: Telescope not shown for clarity). Thread the microfocuser adapter (B) into the rear cell port thread. Slide the microfocuser (C) over the microfocuser adapter and tighten the three hex screws on the microfocuser (K) using the provided hex keys.

Important Note:

The Microfocuser is shipped with the microfocuser adapter (B) threaded to the SC accessory adapter (L). Unthread the adapters from each other before attaching the microfocuser. Set aside the SC accessory adapter. For more information about the SC accessory adapter, see

SC OPTIONAL ACCESSORY USERS

, page

14.

1.25" Diagonal Prism Users: If using the 1.25" diagonal prism (G), slide the 1.25" adapter (D) into the microfocuser. Line up the thumbscrew into the groove in the microfocuser (I, also see Fig. 7a and 7b, page 14). Slide the 1.25" diagonal prism into the adapter (D). Tighten the adapter thumbscrew (H) to a firm feel only. Tighten the microfocuser thumbscrews (I) to a firm feel only.

2.0" Diagonal Mirror Users: If using the 2.0" diagonal mirror, slide the mirror directly into the microfocuser (C). Tighten the microfocuser thumbscrews (I) to a firm feel only.



Speed Key

ON/OFF

HBX Port









- 6 -

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

TELESCOPE FEATURES

AutoStar II Hand Controller.

See page 9.

(not shown, on left fork arm)

Fig. 1: The

LX200R

Telescope; Computer Control Panel (inset); AutoStar II Handbox (inset).







 







c d

g h

i j

1@ 1#

(not shown)

- 7 -

LX200R: YOUR PERSONAL WINDOW TO THE UNIVERSE

The Meade LX200R models are extremely versatile, high-resolution telescopes. With pushbutton controls, precision GPS alignment, zero image-shift microfocusing, truelevel and North electronic sensors, automatic tracking of celestial objects, periodic error correction for both axes, and a library of 145,000+objects in the AutoStar II database, the

LX200R models offer unmatched state-of-the-art performance.

Observe the feather structure of an eagle from 50 yards or study the rings of the planet Saturn from a distance of 800 million miles. Focus beyond the Solar System on ancient star clusters, remote galaxies, and stars recently discovered to have planets orbiting about them. Meade

LX200R telescopes are capable of growing with your inter-

est and can meet the requirements of the most demanding advanced observer.

B Eyepiece: Place the Series 5000 26mm 5-element

Plössl

eyepiece into the 90°

diagonal prism (3, Fig. 1) and tighten in place with the eyepiece thumbscrew (2, Fig. 1). The eyepiece magnifies the image collected in the optical tube.

C Eyepiece Thumbscrew: Tightens the eyepiece (1, Fig. 1) in place. Tighten to a

firm feel only.

D 1.25" Diagonal Prism (or 2" Mirror): Provides a more comfortable right angle view-

ing position. A 2" diagonal mirror with a 1.25" adapter is standard with the 12" model. See page 14 for information about attaching the prism or mirror to the microfocuser.

E Diagonal Prism Thumbscrew: Tightens the diagonal prism in place. Tighten to

a firm feel only.

F Rear Cell Port: The microfocuser assembly threads onto this port. G Coarse Manual Focus Knob:

Moves the telescope’s primary mirror in a finely-

controlled motion

to achieve coarse image focus. The LX200R telescopes can be focused on objects from a distance of about 25 ft. to infinity. Rotate the focus knob counterclockwise to focus on distant objects, and clockwise to focus on nearby objects.

H Fork Arms: This heavy-duty mount holds the optical tube securely in place. I Battery Compartments: Insert four user-supplied C-cell batteries into each com-

partment (one compartment on each fork arm; eight batteries total).

J Primary Mirror Lock: Rotate this knob towards the "Lock" position and adjust the

tension to a firm feel; this action serves to lock in the coarse focus and also to prevent mirror flop. Use in conjunction with the Zero Image-Shift Microfocuser (see

2$).

1) Right Ascension (R.A.) Slow-Motion Control: Make fine adjustments in the

Right Ascension,

i.e.

, the horizontal axis, by turning this control with the R.A. Lock

(see  below) in the unlocked position. Set the R.A. Lock to a "partially locked" position to create a comfortable drag for the R.A. Slow Motion Control.

Caution: Do not operate the R.A. Slow Motion Control with the R.A. Lock in the fully locked position, as such operation may result in damage to the internal gear system and also cause you to lose alignment.

1! Right Ascension (R.A.) Setting Circle: See APPENDIX A, page 55, for detailed

information.

1@ Right Ascension (R.A.) Lock: Controls the manual horizontal rotation of the tel-

escope. Turning the R.A. lock counterclockwise unlocks the telescope, enabling it to be freely rotated by hand about the horizontal axis. Turning the R.A. lock clockwise locks the telescope, prevents the telescope from being rotated manually, and engages the horizontal motor drive for AutoStar II operation.

1# Computer Control Panel (see Fig. 1 inset):

A. ON/OFF Switch: Turns the computer control panel and AutoStar II ON

or OFF. The red power indicator LED next to the switch illuminates when power is supplied to the AutoStar II handbox, the microfocuser, and to the telescope’s motor drives (the LED can be turned off in the Panel Light menu; see page 27).

Caution:

Using products other than standard Meade accessories may cause damage to the telescope’s internal electronics and may void the Meade warranty.

Want to learn more

about the eyepieces

available for your

LX200R

telescope?

See OPTIONAL ACCESSORIES, pages

43, 44, and 45.

Want to learn more

about the Right

Ascension and Declination setting circles? See page 55.

Want to learn more

about focusing your telescope? See pages 17 and 31.

See page X.

Want to learn more about the primary mirror lock?

See

MIRROR MIRROR

page 37.

Want to learn how to

install the batteries? See page 13.

Want to learn how to

attach the microfocuser assembly to the rear cell port of your

LX200R

telescope?

See

HOW TO ASSEM-

BLE YOUR TELESCOPE

pages 13 and 14.

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

- 8 -

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

B. 12vDC Power Connector: Provides a connection so that the telescope

assembly may be powered from a standard 115v AC home outlet using the optional #547 Power Adapter with Cable or the optional 12v DC #607 Cigarette Lighter Adapter. See

OPTIONAL ACCESSORIES, page 44.

C. Focus Port: Plug the microfocuser into this port. Control the microfo-

cuser through the AutoStar II menus. See

HOT BUTTON MENUS, page

31, and

2$ below.

D. Reticle Port: Plug the optional reticle eyepiece into this port. Control

the reticle through the AutoStar II menus. See

HOT BUTTON MENUS

page 31. Also see OPTIONAL ACCESSORIES, page 44.

Note: See the instruction sheets that are included with the focuser, the reticle, and the autoguider for more details.

E. 12vDC Output: Use the 12vDC output to power telescope accessories. F. Handbox (HBX) Port: Plug the AutoStar II coil cord into this port. G. RS232 Ports (2): Provides connection with a PC and for current and

future Meade accessories. Your PC can control your

LX200R telescope

using serial commands. Go to the Meade website (www.meade.com) to download the latest serial commands and device pinouts.

H. Autoguider Port: Plug the optional autoguider into this port. See the

instruction sheet that came with your autoguider for more information.

1$ Tiltable AutoStar II Holder: Attach to fork handles (see 1% below). Holds your

handbox in a convenient location.

1% Fork Handles: Use to lift optical tube assembly or to rotate the telescope when

attached to the tripod.

1^ Declination (Dec.) Slow-Motion Control: Make fine adjustments in Declination

(altitude) by turning this control with the Dec. Lock (see

1& below) in the locked

position. In order for this control to operate properly, power must be off.

1& Dec. Lock: Controls the manual vertical movement of the telescope. Turning the

Dec. lock counterclockwise unlocks the telescope enabling it to be freely rotated by hand about the vertical axis. Turning the Dec. lock clockwise (to a firm feel only) prevents the telescope from being moved manually, but engages the vertical motor drive for AutoStar II operation.

1* Dust Cover: Gently pry the dust cover from the front lens of the telescope.

Note: The dust cover should be replaced after each observing session and the power turned off to the telescope. Verify that any dew that might have collected during the observing session has evaporated prior to replacing the dust cover.

1( Optical Tube: The main optical component that gathers the light from distant

objects and brings this light to a focus for examination through the eyepiece.

2) Declination (Dec.) Setting Circle (on left fork arm): See APPENDIX A, page 55,

for detailed information.

2! Viewfinder Collimation Screws: Use these six screws to adjust the alignment of

the viewfinder.

2@ 8 x 50mm Viewfinder: A low-power, wide-field sighting scope with crosshairs that

enables easy centering of objects in the telescope eyepiece.

2# GPS Receiver (see page 21 for photo): Receives information transmitted from

Global Positioning System satellites. See pages 18, 19, and 21 for more information.

2$ 4-Speed Zero Image-Shift Microfocuser: Allows precise image focus during

visual, CCD, and astrophotographic applications. Maintains precise image centering on even the smallest CCD chips. Operates at four speeds: Fine to fast using the Arrow keys of the AutoStar II hand controller. Plug microfocuser into the Focus port (13C, Fig. 1).

2% Tube Adapters: The optical and mechanical axes of the LX200R telescope have

been carefully aligned at the factory to ensure accurate object pointing. Do not loosen or remove the optical tube assembly from the tube adapters. The resulting misalignment of the axes will result in inaccurate slewing of the telescope in the GO TO mode.

Want to learn more about

attaching and aligning the viewfinder? See

page 15.

Definitions

Throughout this manual, you will notice the terms "Alt/Az," "Right Ascension," and "Declination." Alt/Az or more properly, altazimuth, is frequently used to refer to altitude or Declination (the up-and-down vertical movement of the telescope) and azimuth or Right Ascension (the side-to-side horizontal movement of the telescope). Right Ascension is abbreviated as "R.A." and Declination

Want to learn more

about the Zero Image Shift Microfocuser? See pages 13, 14, and

30.

Caution:

When loosening the Dec. lock, be sure to support the optical tube (19, Fig. 1). The weight of the tube could cause the tube to swing through the fork arms suddenly.

Important Note:

After the telescope is aligned (see page 18), the Dec. slow motion control

may be used and the telescope will remain in alignment. However, if the R.A. slow motion control

is used after the telescope has been aligned, alignment will be lost and the telescope will need to be realigned.

- 9 -

Fig. 2: The AutoStar II Handbox.

AUTOSTAR II FEATURES

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.















  



Want to learn more about

downloading the latest updates of AutoStar II software from the Meade website? See

page 3o.

Tour the Cosmos with Just the Push of a Button

Control of the LX200R telescope models is through the operation of the standard AutoStar II system. Nearly all functions of the telescope are accomplished with just a few pushes of AutoStar II’s buttons.

Because the AutoStar II system uses flash (rewritable) memory, your system will be able to grow when new features and enhancements become available. Download the latest satellite data, star and object catalogs, tours, serial commands list, and software revisions, directly from the Meade website (www.meade.com). (Requires the optional

LX200 Interface Cable. See OPTIONAL ACCESSORIES, page 45.)

Some of the major features of the AutoStar II system are:

 Automatically move the telescope to any of the more than 145,000 objects stored

in the object library, including:

Library # of Objects

New General Catalog (NGC): 7,840 Index Catalog (IC): 5,386 Messier Catalog (M): 110 Caldwell Catalog: 109 Named Objects: 227 Herschel Catalog: 400 Abell Catalog of Galaxy Clusters: 2,712 Arp Catalog of Irregular Galaxies: 645 Uppsala Galaxy Catalog: 12,940 Morphological Catalog of Galaxies: 12,939 General Catalog of Variable Stars: 28,484 SAO: 17,191 Hipparcos Star Catalog: 17,325

 Take a guided tour of the best celestial objects to view on any given night of the year.  Control your LX200R with your PC using an RS232 interface.  Align your telescope automatically using GPS (Global Positioning System).  Access a glossary of astronomical terms.  Mount the telescope in the “Alt/Az” mode (altitude—azimuth, or vertical—

horizontal) for fully automatic tracking of celestial objects.

- 10 -

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

The AutoStar II system provides control of virtually every telescope function. The AutoStar II handbox has soft-touch keys designed to have a positive feel. The LCD (Liquid Crystal Display) is backlit with red LEDs (Light Emitting Diodes) for easy viewing in the dark. The backlit display, key arrangement, and sequential menu structure make AutoStar II extremely user friendly.

B 2-Line LCD Display: This screen displays AutoStar II's menus and information about

the telescope.

• Top line: Lists the primary menu.

• Bottom line: Displays other menus that may be chosen, menu options, tel-

escope status, or information about a function that is being performed.

c ENTER Key: Press to go to the next menu level or to choose an option in a menu.

The ENTER key is similar to the RETURN or ENTER key on a computer. See

MOV-

ING THROUGH AUTOSTAR II'S MENUS, page 18 and AUTOSTAR II MENUS, page 24.

d MODE Key: Press to return to the previous menu or data level. The top menu level is

“Select Item." The MODE key is similar to the ESCAPE key on a computer.

Note: Pressing MODE repeatedly while in the “Select Item” level moves AutoStar II to the topmost screen: “Select Item: Object.”

Note: If MODE is pressed and held for two seconds or more, information about the telescope's status displays.When the status displays, press the Scroll keys (7, Fig. 2) to display the following information:

• Right Ascension and Declination (astronomical) coordinates

• Altitude (vertical) and Azimuth (horizontal) coordinates

• Local Time and Local Sidereal Time (LST)

• Timer and Alarm Status

• Date

• Site coordinates

• Battery status Press MODE again to return to the previous menu.

e GO TO Key: Press to slew (move) the telescope to the coordinates of the currently

selected object. While the telescope is slewing, the operation may be aborted at any time by pressing any key except GO TO. Pressing GO TO again resumes the slew to the object. Also, press during the alignment or GO TO procedures to activate a "spiral search."

f Arrow Keys: The Arrow keys have several functions. Press an Arrow key to slew the

telescope in a specific direction (up, down, left, and right), at any one of nine different speeds. See

SLEW SPEEDS, page 17. Use the Up and Down Arrow keys to move the

telescope vertically up and down. The Left Arrow key rotates the telescope horizontally counterclockwise, while the Right Arrow key rotates it clockwise (unless reversed for Southern Hemisphere use). Also, use the Arrow keys to scroll through numbers 0 through 9 and the alphabet. The Down Arrow key begins with the letter "A;" the Up Arrow key begins with digit "9."

Additionally, use the Arrow keys to to move the cursor across the display: Use the Right or Left Arrow key (5, Fig. 2) to move the cursor from one number to the next in the display.

g Number Keys: Press to input digits 0 to 9. Each Number key also has a specific func-

tion, which is printed on each key (these are commonly known as "hot buttons"—see page 31):

1 SPEED: Changes the slew speeds. To operate, press Speed and then a Number key (1 is the slowest speed, 9 is highest speed). 2 CALD (Caldwell): Press to display the Caldwell catalog on the AutoStar II handbox.

3 M (Messier): Press to display the Messier catalog library. 4 FOCUS: Press to display the Focus Control menu.

Want to learn more

about using the GO TO function? See page 20.

Want to learn how to perform a spiral search? See page 20.

Want to learn

more about the Focus menu? See page 31.

Want to learn more

about changing slew

SPEED

FOCUS

- 11 -

5 SS: Press to display the Solar System library. 6 STAR: Press to display the Star library. 7 RET (Reticle): Press to display the Reticle Control menu. 8 IC: Press to display the Index Catalog library. 9 NGC (New General Catalog): Press to display the NGC catalog library. 0 LIGHT: Press to turn on and off the red utility light on the top of

the hand-box.

h Scroll Keys: Press to access options within a selected menu. The menu is dis-

played on the first line of the screen. Options in the menu are displayed, one at a time, on the second line. Press the Scroll keys to move through the options. Press and hold a Scroll key to move quickly through the options.

The Scroll keys also control the speed of text scrolling on the AutoStar II display. When text is scrolling, press and hold the Up Scroll key for a faster display speed and the Down Scroll key for a slower display speed.

i ? Key: Press to access the "Help" file. "Help" provides on-screen information on

how to accomplish whatever task is currently active.

Press the ? key and then follow the prompts on the display to access details of AutoStar II functions in the Help feature. The Help system is essentially an onscreen instruction manual.

If you have a question about an AutoStar II operation,

e.g.

, INITIALIZATION,

ALIGNMENT,

etc.,

press the ? key and follow the directions that scroll on the second line. When satisfied with the Help provided, press MODE to return to the original screen and continue with the chosen procedure.

j Coil Cord Port: Plug one end of the AutoStar II coil cord (10, Fig. 2) into this port

located at the bottom of the AutoStar II handbox.

1) Coil Cord: Plug one end of the AutoStar II coil cord into the HBX port (13F, Fig. 1)

of the computer control panel of the telescope and the other end into the AutoStar II coil cord port. See

j above.

1! Utility Light: Use this built-in red light to illuminate star charts and accessories

without disturbing your eye's adaptation to darkness. Press "0" to turn the light on and off.

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

Join an Astronomy Club, Attend a Star Party

One of the best ways to increase your knowledge of astronomy is to join an astronomy club. Check your local newspaper, school, library, or telescope dealer/store to find out if there’s a club in your area.

At club meetings, you will meet other astronomy enthusiasts with whom you will be able to share your discoveries. Clubs are an excellent way to learn more about observing the sky, to find out where the best observing sites are, and to compare notes about telescopes, eyepieces, filters, tripods, and so forth.

Often, club members are excellent astrophotographers. Not only will you be able to see examples of their art, but you may even be able to pick up some “tricks of the trade” to try out with your

LX200R telescope. See page 41 for more information about photogra-

phy with the LX200R.

Many groups also hold regularly scheduled Star Parties at which you can check out and observe with many different telescopes and other pieces of astronomical equipment. Magazines such as

Sky & Telescope

and

Astronomy

print schedules for many popular

Star Parties around the United States and Canada.

LX200R TIPS

Want to learn more

about the Reticle menu? See page 31.

RET

Tip: When an astronomical

term appears in [brackets], press ENTER for a

definition or more detailed information. Press MODE to return to the scrolling AutoStar II Help display.

If a celestial object's name appears in brackets (and your telescope is aligned), press ENTER and then GO TO to slew the telescope to the object.

- 12 -

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

Parts Listing

Getting the telescope ready for first observations requires only a few minutes. When first opening the packing box, note carefully the following parts:

 LX200R Telescope with fork mount system  AutoStar II handbox and interface coil cord; handbox holder  Microfocuser assembly  8 x 50mm viewfinder assembly  Eyepiece holder and 1.25" diagonal prism ( 8", and 10" models)  1.25" Adapter and 2" diagonal mirror (12" model only)  Series 5000 26mm 5-element

Plössl

eyepiece, in a plastic storage container

 Variable height tripod and mounting base (12" model only: Giant variable tripod)  Set of hex keys

How to Attach the Tripod to the Telescope Assembly

The telescope’s fork mount base (also called a drive base) attaches directly to the field tripod. The telescope in this way is mounted in an “altazimuth” (“altitude-azimuth,” or “vertical-horizontal”) format.

The field tripod also can be used in conjunction with the optional equatorial wedge (see

EQUATORIAL WEDGE, page 56) for long exposure astrophotography. The equa-

torial wedge permits alignment of the telescope’s polar axis with the Celestial Pole (or North Star).

2. Thread in the 6 lock-knobs (2 on each tripod leg) near the foot of each tripod leg (5, Fig. 3). These lock-knobs are used to fix the height of the inner, extendible tripod leg sections.

Note: Tightening to a firm-feel is sufficient; over-tightening may result in stripping of the knob threads or damage to the tripod legs, and results in no additional strength.

3. The spreader bar has been removed for shipment. To install, first remove the threaded rod (2, Fig. 3) from the tripod head (1, Fig. 3); a small piece of plastic holds the threaded rod in place. Remove the small plastic bag that is stapled to the threaded rod. This bag contains the “C” clip retainer and an extra clip.

4. Slide the spreader bar (4, Fig. 3) onto the threaded rod (note the correct orientation as shown in Fig. 4) and position the threaded rod back through the tripod head. Place the clip retainer ( a “C” clip) into the slot in the threaded rod above the tripod head. This clip holds the threaded rod in place.

5. Position the spreader bar so that the 3 arms of the spreader bar line up with the 3 tripod legs.

6. Place the entire telescope onto the top of the tripod head, and insert the threaded rod into the central hole in the bottom of the drive base of the telescope. Tighten the tension knob (Fig. 4); firm tightening of the tension knob is sufficient to result in rigid positioning of the tripod legs.

7. To vary the tripod height, loosen the 6 leg lock-knobs, slide the 3 inner tripod leg sections out to the desired height, and firmly re-tighten (but do not overtighten) the 6 lock-knobs.

To collapse the tripod (after removing the telescope and equatorial wedge, if applicable) for storage, follow these steps:

1. Rotate the spreader bar 60° from its assembled position, so that one spreader bar arm is located between each adjacent pair of tripod legs.

2. At the base of the tripod is a 3-vane extension strut system, with a circular hub at its center (6, Fig. 3). Grasp the tripod head (1, Fig. 3) with one hand and, with the

GETTING STARTED

Fig. 3: Tripod components: (1) Tripod Head; (2) Threaded Rod; (3) Tension Knob; (4) Spreader Bar; (5) Lock Knobs; (6) Strut Hub

Fig. 4: Attaching the telescope to the tripod. Note the orientation of the spreader bar.













- 13 -

other hand, pull directly “up” on the central hub of the extension strut system. This operation will cause the tripod legs to move inward to a collapsed position.

Notes Concerning the Tripod:

If the tripod does not seem to extend or collapse easily, do not force the tripod legs in or out. By following the instructions above, the tripod will function properly, but if you are unclear on the proper procedure, forcing the tripod into an incorrect position may damage the extension strut system.

Do not overtighten the 6 lock-knobs used to fix the inner tripod leg sections at various heights. Tighten to a firm feel only.

Be sure the spreader bar (4, Fig. 3) is not upside-down on the threaded rod.

How to Assemble Your Telescope

Assembly of the LX200R telescope requires eight C-cell (user-supplied) batteries or the optional #547 Power Adapter with Cable connected to a standard 115v home outlet or to an optional #607 Cigarette Lighter Adapter (see

OPTIONAL ACCESSORIES, page 45).

Plug an adapter into the 12vDC In port of the computer control panel (13B, Fig. 1).

To install batteries:

1. Position the optical tube: Turn the Dec. lock (17, Fig. 1) counterclockwise to unlock the the optical tube (19, Fig. 1) and move it through the fork arms. Move the optical tube to the position depicted in Fig. 1 and turn the Dec. lock clockwise to a firm feel to relock the position of the optical tube.

2. Install batteries: Remove the battery compartment covers (8, Fig. 1) and carefully remove the battery holders, being mindful of the connector wires. Insert four user-supplied C-cell batteries into each battery holder, oriented as shown on the diagram on the battery slots inside the battery holder. Return the battery holders to their respective compartments and replace the covers. (See Fig. 5.)

3. Plug in the AutoStar II handbox: Be certain that the power switch on the computer control panel (13A, Fig. 1) is in the OFF position. Plug the coil cord of the

AutoStar II handbox into the HBX port (13F, Fig. 1

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

Caution:

Use care to install batteries as indicated by the battery compartment. Follow battery manufacturer's precautions. Do not install batteries backwards or mix new and used batteries. Do not mix battery types. If these precautions are not followed, batteries may explode, catch fire, or leak. Improperly installed batteries void your Meade warranty. Always remove the batteries if they are not to be used for a long period of time.

Fig. 5: Battery installation.





















Fig. 6: Microfocuser and eyepiece assembly. (A) Rear cell of telescope (shown separate from the telescope assembly for the sake of clarity, see 5, Fig. 1); (B) Microfocuser adapter; (C) Microfocuser; (D) 1.25" accessory adapter. SC accessory adapter (L) may be used in this position instead if the telescope accessories are being used. Do not use either adapter if using a 2" diagonal diagonal mirror; (E) Eyepiece holder thumbscrew; (F) Eyepiece (Note: Your eyepiece make look different than the one pictured here); (G) 1.25 "Diagonal Prism. 2" diagonal mirror may also be used in this position (12" models); (H) Adapter Thumbscrew; (I) Microfocuser Thumbscrews; (J) Microfocuser bearings; (K) Hex screws; (L) Microfocuser SC Accessory Adapter (see margin note).





Note:

The microfocuser is shipped with the microfocuser adapter (B) threaded to the SC accessory adapter (L). Unthread the adapters from each other before attaching the microfocuser.

Tip:

Although you can set up the telescope to face any direction to perform Automatic Alignment, you will achieve optimal performance when the computer control panel faces South.

- 14 -

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

Note: The AutoStar II handbox and the microfocuser do not require batteries; the telescope supplies their power.

Attach microfocuser: Remove the dust cap from the rear cell port (5, Fig. 1) of the telescope. Thread the microfocuser adapter (B, Fig. 6) onto the rear cell port thread. Slide the microfocuser (C, Fig. 6) over the microfocuser adapter and tighten the three hex screws (K, Fig. 6) using the provided hex key.

5. Attach Diagonal (or accessories)

1.25" Diagonal Prism Users: If using the 1.25" diagonal prism (G, Fig. 6), slide the 1.25" adapter (D, Fig. 6) into the microfocuser. Line up the thumbscrew into the groove in the microfocuser (Fig. 7a and 7b). Tighten the microfocuser thumbscrews (I, Fig. 6) to a firm feel only. Slide the 1.25" diagonal prism into the adapter (D, Fig. 6). Tighten the accessory adapter thumbscrew (H, Fig. 6) to a firm feel only.

SC Optional Accessory Users: If using any of the optional accessories (such as the Off-Axis Guider, T-Adapter, etc.; see page 44) with the

LX200R SC models, slide

the supplied SC accessory adapter (L, Fig. 6) into the microfocuser. Line up the groove on the side of the adapter with either of the microfocuser thumbscrews (Fig. 8a and 8b) and tighten that thumbscrew to a firm feel only. Slide the optional accessory into the accessory adapter. Tighten the other microfocuser thumbscrew to a firm feel only.

2.0" Diagonal Mirror Users: If using the 2.0" diagonal mirror, slide the mirror directly into the microfocuser. The adapters (H and L, Fig. 6) are not required. Tighten the thumbscrews (I, Fig. 6) to a firm feel only.

Plug in the microfocuser: Plug the microfocuser into the Focus port (13C, Fig. 1).

Note: If you wish to mount a camera directly to the microfocuser, you need to attach an optional T-Adapter to the microfocuser.See

OPTIONAL ACCES-

SORIES

, page 44.

Important Note: The microfocuser is carefully adjusted at the factory. If it become necessary to adjust the microfocuser, it must be performed by factory trained technicians. If the microfocuser is improperly adjusted, performance will degrade and damage will result. Damage due to improper adjustments not authorized by the factory will not be covered under warranty.

6. Insert eyepiece: Remove the Series 5000 26mm 5-element

Plössl

eyepiece (1,

Fig. 1) from its container and place it in the diagonal prism (G, Fig. 6) or diagonal mirror

Tighten the eyepiece holder thumbscrew (2, Fig. 1) to a firm feel only.

Rotate the mirror lock knob (9, Fig. 1) towards the “Unlock” position, until it feels loose—the telescope is shipped with the mirror locked.

7. Remove dust cover: Remove the dust cover (18, Fig. 1) from the optical tube assembly (19, Fig. 1) by gently prying it off.

8. Attach the handbox holder: Remove the handbox holder from the plastic bag. If necessary, loosen the lock knob (A, Fig. 10a) and place the clamp (B, Fig. 10a) about one of the fork arm handles (15, Fig. 1). Tighten the lock knob to a firm feel. Slide the AutoStar II handbox into the holder (C, Fig. 10a). You may also snap the handbox into the holder: Slide one side of the handbox into the holder and then firmly press the other side of the handbox into the holder until it snaps in place. Adjust the tilt of of the holder by loosening the lock knob and then moving the holder clamp to the desired angle. Retighten the lock knob.

Choosing an Eyepiece

A telescope’s eyepiece magnifies the image formed by the telescope’s main optics. Each eyepiece has a focal length, expressed in millimeters, or “mm.” The smaller the focal length, the higher the magnification.

For example

: An eyepiece with a focal length of 9mm has a higher magnification than an eyepiece with a focal length of 26mm.

Your telescope comes supplied with a Series 5000 26mm 5-element

Plössl

eyepiece

which gives a wide, comfortable field of view with high image resolution.

Low power eyepieces offer a wide field of view, bright, high-contrast images, and eye relief during long observing sessions. To find an object with a telescope, always start

Fig. 9: Microfocuser and 1.25 diagonal prism with eyepiece completely assembled.

Fig. 7a: Microfocuser groove. Fig. 7b: Microfocuser adapter thumbscrew in groove.

Groove

Fig. 8a: SC adapter groove. Fig. 8b: Line up SC adapter groove with microfocuser thumbscrew. groove.

Groove

Line up

Fig. 10a: Handbox holder: (A) Lock knob; (B) Clamp; (C) Holder. Fig. 10b: Handbox holder attached to fork arm handle.







- 15 -

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

Fig. 11: Viewfinder Assembly.

Collimation Screws

Mounting Slot

Viewfinder Eyepiece

Track

Fig. 12: Viewfinder collimation screws and eyepiece.

Fig. 13a & 13b: Jupiter; examples of the right amount of magnification and too much magnification.

Thumbscrews

with a lower power eyepiece such as the 26mm Plössl. When the object is located and centered in the eyepiece, you may wish to switch to a higher power eyepiece to enlarge the image as much as practical for prevailing seeing conditions. For information about optional eyepieces for the your telescope, see

OPTIONAL ACCESSORIES,

page 43. The power, or magnification of a telescope is determined by the focal length of the tel-

escope and the focal length of the eyepiece being used (an eyepiece's focal length is printed on the side of the eyepiece). To calculate eyepiece power, divide the telescope's focal length by the eyepiece's focal length.

For example

: A 26mm eyepiece is

supplied with

LX200R models. The focal length of the 8" f/10 LX200R is 2000mm (see

SPECIFICATIONS, pages 46 through 48).

Eyepiece Power = Telescope focal length ÷ Eyepiece focal length Eyepiece Power = 2000mm ÷ 26mm Eyepiece Power = 77

The eyepiece power, or magnification is therefore 77X.

Note: For a list of magnification ratings of the eyepieces available for the

LX200R

telescopes, see

OPTIONAL ACCESSORIES

, page 43.

Mounting and Adjusting the Viewfinder

To align the viewfinder, perform steps 1 through 5 during the daytime; perform step 6 at night.

1. Slide the track on the bottom of the viewfinder into the slot in the viewfinder

mounting assembly. See Fig. 11. To secure the viewfinder to the mounting assembly, tighten the two thumbscrews (Fig. 11) to a firm feel only.

2. If you have not already done so, insert the Super Plössl 26mm eyepiece into the

diagonal prism.

3. Unlock the R.A. (12, Fig. 1) and Dec. (17, Fig. 1) locks so that the telescope

moves freely on both axes.

4. Point the telescope at some well-defined and stationary land object at least 200

yards distant, such as the top of a telephone pole or street sign. Center the object in the telescope eyepiece. Re-tighten the R.A. and Dec. locks.

5. Look through the viewfinder eyepiece (Fig. 12) and loosen or tighten, as appro-

priate, one or more of the viewfinder collimation screws (Fig. 12) until the viewfinder crosshairs are precisely centered on the object you previously centered in the telescope eyepiece.

6. Check this alignment on a celestial object, such as the Moon or a bright star, and

make any necessary refinements, using the method outlined in steps 3 through 5.

Note: Seeing conditions vary widely from night-to-night and site-to-site. Turbulence in the air, even on an apparently clear night, can distort images. If an image appears fuzzy and ill-defined, back off to a lower power eyepiece for a more well-resolved image (see Fig. 13a and 13b).

Too Much Power?

Can you ever have too much power? If the type of power you’re referring to is eyepiece magnification, yes, you can! The most common mistake of the beginning observer is to “overpower” a telescope by using high magnifications which the telescope’s aperture and atmospheric conditions cannot reasonably support. Keep in mind that a smaller, but bright and well-resolved image is far superior to one that is larger, but dim and poorly resolved (see Figs. 13a and 13b). Powers above 400X should be employed only under the steadiest atmospheric conditions.

AutoStar II can calculate the best eyepiece for you to use. Try out the “Eyepiece Calc” feature in the Utilities menu.

Most observers should have three or four additional eyepieces to achieve the full range of reasonable magnifications possible with the LX200R telescopes. See

OPTIONAL ACCESSORIES, page 43.

LX200R TIPS

Tip:

Because the space between the GPS receiver and the viewfinder is a bit tight, it is helpful if you tighten the front, bottom viewfinder collimation thumbscrew first and use the other screws to set the alignment. However, if you determine you need to adjust the front thumbscrew, choose an alignment object that allows you to slightly elevate or rotate the telescope to a convenient position for adjustment of this thumbscrew.

GPS Receiver

- 16 -

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

Important Note:

Objects appear upsidedown and reversed left-forright when observed in the viewfinder. Objects viewed through the telescope eyepiece when inserted into the diagonal prism and microfocuser assembly appear right-side-up, but reversed left-for-right.

This image inversion is of no consequence when observing astronomical objects and, in fact, all astronomical telescopes yield inverted images.

During terrestrial observing, where a fully-correctly-oriented image (right-side-up and correct left-for-right) is desirable, an optional #928 45° Erecting Prism is available. See OPTIONAL

ACCESSORIES, page 44.

NEVER point the telescope directly at or

near the Sun at any time! Observing the Sun, even for the smallest fraction of a second, will result in instant and irreversible eye damage, as well as physical damage to the telescope itself.

Warning:

Do not look through the telescope's eyepiece or viewfinder while it is rapidly moving. Children should always have adult supervision while observing.

Want to learn more about

Slew Speeds? See Slew Speeds, this page.

Note:

Viewing conditions vary widely from night-to-night and siteto-site. Turbulence in the air, even on an apparently clear night, can distort images. Low-power eyepieces, such as the 26mm Plössl supplied with your telescope, are better suited to resolving images in poor viewing conditions.

OBSERVING

Observing by Moving the Telescope Manually

If you wish to observe a distant land object, such as a mountain top or a bird, you can observe by merely pointing the telescope and looking through the eyepiece.

1. Loosen the telescope’s R.A. lock (12, Fig. 1) and Dec. lock (17, Fig. 1).

2. Move your telescope to observe distant street signs, mountains, trees, and other structures. Use your viewfinder to help site-in on an object.

3. Center the object in the viewfinder’s crosshairs and then in the telescope eyepiece. When the object is centered in your eyepiece, remember to re-tighten the R.A. and Dec. locks.

4. To move telescope in the R.A. and Dec. axes again, remember to loosen the R.A. lock and tighten the Dec. lock. Then rotate the manual slow motion control knobs (10, Fig. 1) and (16, Fig. 1) .

5. Practice focusing objects using the coarse focus knob (6, Fig. 1).

Important Note: The telescope is shipped with the mirror locked. Before using the coarse focus knob , rotate the mirror lock knob (9, Fig. 1) towards the "unlock" position, until it feels loose.

For more precise focusing, see

FOCUSING THE EYEPIECE

, page 17.

6. Once you get a feel for how your telescope moves and focuses, try to view something more challenging, like a bird or a distant moving train.

You can also observe stars and objects in the night sky using this method, but note that objects begin to slowly drift across the eyepiece field. This motion is caused by the rotation of the Earth. As you become familiar with the AutoStar II handbox operation, you can counteract the drift using the automatic tracking feature in the AutoStar II Setup menu (see

TO TRACK AN OBJECT AUTOMATICALLY, page 18), or by using

AutoStar II's GO TO capabilities (see

GO TO SATURN, page 20).

Terrestrial Observing

The LX200R models are excellent high-resolution terrestrial (land) telescopes. Viewing terrestrial objects requires looking along the Earth's surface through heat waves. These heat waves often cause degradation of image quality. Lower power eyepieces, like the Series 5000 26mm 5-element

Plössl

eyepiece, magnify these heat waves less than higher power eyepieces. Therefore, lower power eyepieces provide a steadier, higher quality image. If the image is fuzzy or ill-defined, reduce to a lower power eyepiece, where the heat waves do not have such an effect on image quality. Observing in early morning hours, before the ground has built up internal heat, produces better viewing conditions than during late afternoon hours.

Observing Using AutoStar II's Arrow Keys

You may observe land and astronomical objects using AutoStar II's Arrow keys to move the telescope.

1. Tighten the R.A. and Dec. locks (12 and 17, Fig. 1).

2. Verify that AutoStar II is properly connected to your telescope. See

HOW

ASSEMBLE YOUR TELESCOPE,

page 13.

3. Flip the telescope power switch to the ON position.

The AutoStar II screen is activated and a copyright message displays briefly, followed by a short beep. Then AutoStar II takes a few moments to start up the system.

4. A message displays that warns not to look at the Sun. At the end of this message,

press the key prompted by AutoStar II to signify that the message has been read and understood.

5. "Automatic Alignment" displays. Press any AutoStar II key to abort automatic

alignment.

6. The Arrow keys are now activated. Press the Arrow keys (5, Fig. 2) to slew

(move) the telescope up, down, right, or left.

7. Press the Speed key (Number key "1") and then a Number key (6, Fig. 2) to

change the telescope’s slew speed. ("1" is the slowest speed, "9" is highest speed.)

8. Use the viewfinder (22, Fig. 1) to locate an object and practice using the AutoStar

II’s Arrow keys to center the object in the telescope’s field of view.

- 17 -

9. Bring the object into focus (see below).

Focusing the Eyepiece Using the Microfocuser

The LX200R zero image-shift microfocuser (24, Fig. 1) allows you to obtain the most precise image focus possible during visual, photographic, and CCD applications, maintaining precise and "jiggle-free" image centering on even the smallest CCD chips.

To use the microfocuser:

1. Perform this part of the procedure during the daytime, without the eyepiece assembly (eyepiece, diagonal, etc.) attached to the microfocuser. Press the AutoStar II Focus button and then the Up and Down Arrow keys. Observe the microfocuser drawtube as it travels in and out. When the drawtube reaches the furthest extension of its travel, listen for a change in the pitch of the motor. Notice that the drawtube's maximum extension is about a half-inch out from the microfocuser. Set the drawtube so that it extends about a quarter-inch (about halfway).

2. When you begin your viewing session, attach the eyepiece assembly. See pages 13 and 14 for details.

3. Make sure that the microfocuser is plugged into the computer control panel focus port (13C, Fig. 1).

4. Point the telescope at a bright star.

5. Rotate the mirror lock knob (9, Fig. 1) towards the "unlock" position, until it feels loose. Use the coarse focus control (6, Fig. 1) to achieve a rough focus of the star.

6. Rotate the mirror lock knob towards the "lock" position and adjust the tension to a firm feel; this action serves to lock in the coarse focus.

Important Note: Do not use or bump the coarse focus knob once you have set the coarse focus. If you do so, repeat steps 5 and 6 above to reset the coarse focus.

7. Press the Focus key (Number key "4"). "Focus Control: Speed: Fast" displays. Press the Up or Down Scroll keys to cycle through the four speed options. Press ENTER to select the desired speed. Or press one of the following Number keys after pressing the Focus key to change the speed:

Key # Speed Key # Speed

1 or 2 Fine 6 or 7 Medium 3, 4, or 5 Slow 8 or 9 Fastest

8. Use the Arrow keys to bring the star into fine focus.

9. You may need to repeat this procedure when you change eyepieces.

Slew Speeds

AutoStar II has nine slew speeds that move the optical tube at rates that are directly proportional to the sidereal rate and have been calculated to accomplish specific functions. Press the Speed key (Number key "1") and then press a Number key to change the slew speed, which is shown for about two seconds on AutoStar II’s display.

The nine available speeds are:

Number Key 1 = 1x = Guide Rate, programmable (see

Tip at left)

Number Key 2 = 2x = 2 x sidereal (0.5 arc-min/sec or 0.008°/sec) Number Key 3 = 8x = 8 x sidereal (2 arc-min/sec or 0.033°/sec) Number Key 4 = 16x = 16 x sidereal (4 arc-min/sec or 0.067°/sec) Number Key 5 = 64x = 64 x sidereal (16 arc-min/sec or 0.27°/sec) Number Key 6 = 128x = 30 arc-min/sec or 0.5°/sec Number Key 7 = 1.5° = 90 arc-min/sec or 1.5°/sec Number Key 8 = 3° = 180 arc-min/sec or 3°/sec Number Key 9 = Max = 480 arc-min/sec or 8°/sec)

Speeds 1, 2, or 3: Best used for fine centering of an object in the field of view of a higher power eyepiece, such as a 12mm or a 9mm eyepiece. Speeds 4, 5, or 6: Enable centering of an object in the field of a low-to-moderate power eyepiece, such as the standard Super Plössl 26mm.

Speeds 7 or 8: Best used for rough centering of an object in the viewfinder. Speed 9: Moves the telescope quickly from one point in the sky to another.

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

Tip:

The slowest speed, 1x, may be changed using the Guiding Rate menu. This menu allows you to change the speed by entering a percentage of the speed (either more or less than 100%). This function may be useful in guiding the telescope during CCD and longexposure photography. See

GUIDING RATE

, page

29, for more information.

See

MIRROR MIRROR

, page 38, for more information about the microfocuser and the primary mirror lock.

- 18 -

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

Observe the Moon

Point your telescope at the Moon (note that the Moon is not visible every night) and practice using the Arrow keys, the microfocuser and the slew speeds to view different features. The Moon contains many interesting features, including craters, mountain ranges, and fault lines. The best time to view the Moon is during its crescent or half phase. Sunlight strikes the Moon at an angle during these periods and adds a depth to the view. No shadows are seen during a full Moon, making the overly bright surface to appear flat and rather uninteresting. Consider the use of a neutral density Moon filter when observing the Moon. See page 45. Not only does it cut down the Moon's bright glare, but it also enhances contrast, providing a more dramatic image.

Astronomical Observing

Used as an astronomical instrument, your telescope has many optical and electromechanical capabilities. It is in astronomical applications where the high level of optical performance is readily visible. The range of observable astronomical objects is limited only by the observer’s motivation.

To Track an Object Automatically

As the Earth rotates beneath the night sky, the stars appear to move from East to West. The speed at which the stars move is called the sidereal rate. You can setup your telescope to move at the sidereal rate so that it automatically tracks (follows) the stars and other objects in the night sky. If the telescope is not tracking an astronomical object, the object will drift out of the eyepiece field of view. The tracking function automatically keeps an object centered in the telescope’s eyepiece.

To automatically track objects, you need to learn how the AutoStar II keypad operates in order to move through its menus. You'll need to initialize and align your telescope.

Moving Through AutoStar II’s Menus

The AutoStar II database is organized in levels for quick and easy navigation.

 Press ENTER (2, Fig. 2) to go deeper into AutoStar II's menu levels.  Press MODE (3, Fig. 2) to move back toward the top menu level.  Press the Scroll keys (7, Fig. 2) to move up and down through the options avail-

able for each level.

 Press the Arrow keys (5, Fig. 2) to enter characters and digits. The Arrow keys

are also used to move the telescope.

 Use the Number keys to enter digits.

Automatic Alignment (Auto Align™) Feature

AutoStar II offers four methods of altazimuth (alt/az) alignment; this section describes how to initialize and align your telescope using Automatic Alignment. (For a description of the other alt/az alignment methods, see pages 37 and 38. For information about equatorial (polar) alignment, see

APPENDIX A, page 52.)

To prepare your telescope for Automatic Alignment:

1. Tighten the R.A. and Dec. locks (12 and 17, Fig. 1).

2. Verify that AutoStar II is properly connected to your telescope. See

HOW TO

ASSEMBLE YOUR TELESCOPE

page 13.

3. Flip the telescope power switch to the ON position.

When you slide the On/Off switch to “On” on your telescope’s computer control panel, a version screen briefly appears, followed by “Welcome to AutoStar.”

4. “Press 0 to align or Mode for Menu.” displays. Press “0” to begin Automatic Alignment. (If you wish to choose a manual alignment method, keep pressing Mode to go through the menus to find other alignments.)

Note: AutoStar II initializes the Smart Drive if "On" has been previously performed PEC training and you have "parked" the telescope. If you have parked it, AutoStar II will remember its position on the worm gear. If you do not park the scope and turn it off, it will not remember its position. See

PARKING THE

TELESCOPE

, page 28 and

PEC TRAINING

, page 39.

Definition: Initialization is a proce-

dure that ensures that AutoStar II operates correctly. When you first use AutoStar II, it doesn't yet know where the observation location site is or the time or date of the observation session.

During the automatic alignment procedure, the system calculates these parameters automatically.

AutoStar II uses this information to precisely calculate the location of celestial objects (such as stars and planets) and to move your telescope correctly for various operations.

Tip:

When multiple choices are available within an AutoStar II menu option, the current option is usually displayed first and highlighted by a right pointing arrow (>).

Important Note:

Press any key on the AutoStar II handbox to abort the GPS fix.

Press MODE repeatedly until "Select Item" displays and use the AutoStar menu options to choose a manual alignment or to find an AutoStar option, such as "Brightness."

- 19 -

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

5. "Automatic Alignment" displays. The system now performs the following routines (press any AutoStar II key to abort Automatic Alignment; see

IMPORTANT NOTE, at

the bottom left of page 18.) :

Caution: As the telescope performs the following operations, it will swing and rotate. Keep a safe distance from the telescope.

The telescope now finds the level and tilt position of the telescope, and also detects where true North is. It may not actually level or tilt the telescope or point to North—it is just detecting these positions. This make take a minute or two.

a. Finds the home position. Moves the telescope to find the "home" position.

When the home position is found, the system knows the limiting positions of the telescope and can avoid tangling cables and over-rotating the telescope.

b. Detects “level” of the base of the telescope; finds tilt and tip. To detect

level, AutoStar II must calculate "level" at three compass points. See

FINDING

TRUE LEVEL in on page 21.

AutoStar II also determines the positioning (

i.e.,

tilt and tip) of the optical tube.

c. Finds North. Locates magnetic North, then calculates true North. See

FINDING TRUE NORTH, page 21.

d. Attempts a "GPS Fix." The GPS receiver attempts to acquire and sync up

with signals from GPS satellite system. "Getting GPS Fix" displays. See

THE

GLOBAL POSITIONING SYSTEM on page 21.

After performing these operations, AutoStar II now knows:

 The telescope's limiting positions  Where level is for the telescope The location of true North  The observing site's location  The date and time

Note: Press any key to abort the GPS fix. You will then be prompted to enter the time, date and location.

e. Once the level, tilt and North are detected, the telescope will “Go To” 2 alignment

stars. The telescope will go to these stars in order to orient itself to the sky. Once it has done this, it will be able to point to any of the more than 145,000 stars in its database.

“Automatic Alignment: Selecting Star” and “Slewing” display. Finally, when it is close to the alignment star “Center Brightest Star: Press ENTER” displays. Use the Arrow keys to center the alignment star in the eyepiece. The alignment star will be the brightest star in that area of the sky (and hence, “brightest star”). When the alignment star is entered, press ENTER.

Note: If you press the “?” key while “Ctr Brightest Star” displays, the alignment star that AutoStar has chosen will display. For example, “Arcturus: Press ENTER” may display. Note: If you have an obstruction, such as a tree or a building blocking your view of the alignment star, or if you have any doubts at all about the star that has been chosen, no problem. Just press the Scroll Down key and AutoStar will find another star to align upon.

Which One’s the Alignment Star?

If AutoStar II has chosen an alignment star with which you are unfamiliar, how can you be sure if the star in your eyepiece is really the alignment star?

The rule of thumb is that an alignment star is usually the brightest star in that area of the sky. If you perform a GO TO to an alignment star and you're not sure if you have located the alignment star or it isn't in the eyepiece, look through your viewfinder. When you view an alignment star in the viewfinder, it stands out dramatically from the rest of the stars in that portion of the sky. The viewfinder will help you locate a star more quickly than the eyepiece, because it has a much wider field of view than the eyepiece. Using AutoStar II, set the slew speed to 6 or higher and use the Arrow keys to center the alignment star in the viewfinder. If your viewfinder has been aligned with the telescope, the alignment star should now be in the eyepiece. Set the slew speed to 4 or less and center the star in the eyepiece. Also see the "Spiral Search" tip, page 20.

LX200R TIPS

Important Note:

The Daylight Saving menu enables or disables the Daylight Savings Time setting: Remember to turn this setting off or on the two days a year when Daylight Saving changes. See

TIMING IS

EVERYTHING

, page 28.

Important Note:

Once the telescope is aligned, only use the Arrow keys to move the telescope. Once the telescope has been aligned, do not loosen the telescope locks (12 and 17, Fig. 1), or move the base manually, or alignment will be lost.

Important Notes:

It is recommended that you do not attempt a GPS fix indoors.

It is also recommended that you

CALIBRATE SEN-

SORS

the first time your telescope takes a GPS fix. See page 29 for more information.

- 20 -

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

6. The telescope now slews to the second alignment star. AutoStar displays “Center Brightest Star: Press ENTER” displays. Use the Arrow keys to center the alignment star in the eyepiece. When the second alignment star is centered, press ENTER.“

7. “Alignment successful” displays. If “Alignment Unsuccessful” displays, perform the procedure over again.

Observe a Star using the Automatic Tracking Feature

Now that your telescope has been aligned, you are able to track celestial objects. In this example, the AutoStar II Arrow keys are used to find a star, and then Auto Star II's tracking capability automatically keeps the star centered in your telescope's eyepiece.

1. When Automatic Alignment is completed (as described in the previous section), "Select: Object" displays on AutoStar II.

2. Select a bright star from one of the Object menus. You may choose any unobstructed, bright star for the purposes of this example. Use the viewfinder (22, Fig.

1) to help line up on the star. Use AutoStar II's Arrow keys to center the star in the eyepiece. The tracking motors will then keep the star you have chosen in the center of the eyepiece.

Go To Saturn

This exercise demonstrates how to select a celestial object, the planet Saturn, for viewing from AutoStar II’s Solar System library. Objects in the eyepiece should maintain their position even though the Earth is rotating beneath the stars. In other words, the telescope tracks the chosen objects.

Note: Saturn is not visible the entire year; you may need to choose another object from any of AutoStar II's many object libraries; however, the procedure, as described below, remains the same.

1 After the telescope is aligned, press Number key "5."

2. “Solar System: Mercury” displays. Keep pressing the Scroll Down key until “Solar System: Saturn” displays.

3. Press ENTER. “Calculating” displays. Then “Saturn” and a set of coordinates displays. Note that Saturn’s (and other planets’) coordinates change throughout the year.

4. Press GO TO. “Saturn: Slewing...” displays and the telescope slews until it finds Saturn. You may need to use the Arrow keys to center Saturn precisely in the eyepiece. AutoStar II then automatically moves the telescope so that it "tracks" Saturn (or whatever other object you may have chosen);

i.e.,

Saturn remains

centered in the eyepiece.

Using the Guided Tour

The Guided Tour feature is an easy and fun method of exploring AutoStar II's GO TO capabilities. This example demonstrates using “Tonight’s Best” Guided Tour.

1. After observing Saturn, keep pressing MODE until “Select Item: Object” displays again.

2. Press the Scroll Down key twice. “Select Item: Guided Tour” displays.

3. Press ENTER. “Guided Tour: Tonight’s Best” displays. Press ENTER.

Note: If you wish to try out other Guided Tours, press the Scroll Down key to scroll through other tour choices. When the tour you wish to select displays, press ENTER.

4. “Tonight’s Best: Searching...” displays. After calculating, “Tonight’s Best: Jupiter” displays.

Note: Different objects may be displayed on a tour list on any given night.

Press ENTER to display information about the object. Press GO TO to move the telescope to the object.

Important Note:

While performing the automatic tracking procedure, only use the Arrow keys to move the telescope. Once the telescope has been aligned, do not loosen the telescope locks (12 and 17, Fig. 1), or move the base manually, or alignment will be lost.

Tip: To manually enter the R.A. and Dec. coordinates of an object:

Press and hold MODE for two seconds or more. The R.A. and Dec. coordinates display. Press GO TO. "Object Position" and a set of coordinates displays. Then enter the R.A. and Dec. coordinates of any celestial object using Number keys. As soon as the coordinates are entered, AutoStar II slews the telescope to the coordinates. Note that the telescope must be initialized for this procedure to operate properly.

Tip:

The GO TO key also allows you to perform a "spiral search." A spiral search is useful when the telescope slews to an object, but that object is not visible in the eyepiece after the telescope finishes its search. (This sometimes occurs during an alignment procedure.)

Press GO TO when the telescope stops slewing. The telescope begins to move in a spiral pattern at a very slow speed around the search area. Look through the eyepiece and when the object does become visible, press MODE to stop the spiral search. Then use the Arrow keys to center the object.

- 21 -

5. Press MODE to return to the Tour list. Press the Scroll keys to scroll through the list. Press ENTER when you find the next object you wish to observe.

6. Press and hold down MODE for two seconds to leave the Guided Tour menu.

Other Guided Tours are available, such as "How Far is Far" and "A Star's Life." If you have programming skills, you may wish to create a custom Guided Tour. See

CREATE

YOUR OWN GUIDED TOUR, page 58.

The Global Positioning System

The Global Positioning System (GPS) is comprised of 24 satellites orbiting the Earth that are constantly transmitting their precise position and time. The system provides highly accurate, worldwide positioning and navigation information for any number of applications.

GPS receivers on the Earth acquire signals from three to twelve satellites to determine the precise latitude, longitude, and time of the receiver. (Accuracy of the receiver's position may be within 10 to 15 feet.) As AutoStar II uses latitude, longitude, and time information to calculate the positions of celestial objects, GPS is an ideal tool for aligning your

LX200R

telescope.

Detecting True Level

To detect level of the base of the telescope, AutoStar II must calculate the tip and tilt of the telescope at three compass points and then compensate for it. Finding level involves the geometric calculations of a "plane." In order to define a plane, three positions are necessary. This is not unlike building a table: For a table to stand level and solid, it must have a minimum of three legs. AutoStar II makes gravitational measurements to make a precise determination of true level.

Finding True North

Locating True North is one of the most important ingredients in the alignment of a telescope. True North is the axis—the pole—which the Earth spins about and is a key reference for the motion of the Earth.

As you look at the night sky, the stars seem to move; in fact, if you watched long enough or took a long time-exposure photograph, you'd realize that the stars seem to revolve around one point—the pole or True North. When AutoStar II knows where True North is and also knows the time, it can calculate the location of all the other objects in the sky.

One traditional way to find True North is to locate the North Star, Polaris, which lies very close to True North. Another way to calculate True North is to use gyroscopes or accelerometers.

The

LX200R determines True North by using a magnetic North sensor. The

sensor locates magnetic North. Magnetic North is not True North, but a measurement of the magnetic lines of the Earth. Magnetic North may deviate several degrees from True North. But AutoStar II, using the observation site location determined by the GPS and magnetic North information, can calculate the position of True North.

Some areas are subject to magnetic disturbances, and the magnetic field of the Earth changes slightly from year to year. AutoStar II allows you to adjust for discrepancies in the local magnetic field using the "Calibrate Sensors" option in the Telescope menu. See page 29 for more information.

LX200R INFO

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

Fig. 14:

LX200R

GPS Receiver.

GPS

Receiver

- 22 -

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

It is important to understand that menu selections are set in a loop (Fig. 16

This means that pressing the Scroll Down key (7, Fig. 2) cycles down through all the available options within a given category, then returns to the first option. The Scroll Up key (7, Fig. 2) cycles up through the options in the opposite order. Note that this capability is a quick way to get to an option that is near the bottom of the list. The following example demonstrates this capability.

Example:

To navigate to the “Select Item: Setup” menu option when the “Select Item: Object” menu is displayed:

1. Press the Scroll Down key five times or the Scroll Up key once.

The screen in Fig. 17 displays two lines of information. The top line shows the current menu level. The second line displays an option which may be selected within that menu level. Some options are choices that select the next menu level down. The Scroll keys move up and down within the list of available options, showing one option at a time.

When the desired option is displayed on the second line, press the ENTER key to choose that option and move down one menu level.

Press the MODE key to leave a level;

e.g.,

the wrong menu option is chosen.

Important Note: No matter how many levels into AutoStar II are traveled, each press of the MODE key moves up a level, until the top level, "Select Item," is reached. Once in the Select Item level, press MODE to return to the topmost level, "Select Item: Object."

AutoStar II Navigation Exercise

To demonstrate how the AutoStar II menu structure works, the following exercise calculates Sunset time so an evening observing session can be planned.

To Calculate Sunset time:

1. Press the MODE key several times, until “Select Item: Object” is displayed.

2. Press the Scroll Down key once to display the “Event” option in the “Select Item” menu.

3. Press the ENTER key to choose the "Event" option and move down a level. "Event: Sunrise" is displayed.

BASIC AUTOSTAR II

Select Item: Setup

Select Item: Utilities

Select Item: Glossary

Select Item: Guided Tour

Select Item: Event

SETUP MENU

Automatic alignment permits all telescope operations with only minimal setup.

UTILITIES MENU

Calculate eyepiece magnifications; set timer alerts; create your own landmark survey.

GLOSSARY

What is an elliptical galaxy? How far away is the Sun? Expand your knowledge of astronomy by displaying terms and definitions, and other information.

OBJECT MENU

Want to see Mars? The Orion nebula? The Andromeda galaxy? Select from over 145,000 objects and press GO TO to move the telescope automatically to an object.

EVENT MENU

Display the time of past, present, and future astronomical events, such as Moon phases or meteor showers.

GUIDED TOUR

Autostar II escorts you on a tour of tonight's best celestial objects at your viewing location.

Select Item: Object

Autostar II

The Universe of

Autostar II

Fig. 15: The AutoStar II Universe: The six primary categories listed in the Select Item menu of AutoStar II.

Fig. 17: Menu options display on the second line. Use the Scroll keys to move up or down through the list of options. Press ENTER to select the desired option.

Fig. 16: Menus set in a loop.

- 23 -

4. Press the Scroll Down key once to display the "Sunset" option in the Event menu.

5. Press the ENTER key to choose the "Sunset" option and move down another level.

6. AutoStar II calculates the Sunset time based on the current date, time, and location. AutoStar II then displays the results of the calculation.

7. Press MODE once to start moving back up through the AutoStar II levels. The first level up is the Event menu.

8. Press MODE again to move up another level. This is the top level, "Select Item."

9. Press MODE again to return to the starting point of "Select Item: Object."

Navigating AutoStar II

AutoStar II's menus are organized for quick and easy navigation:

 Press ENTER to go deeper into AutoStar II's menu levels.  Press MODE to move back toward the top menu level.  Press Number key "1" to engage the Speed mode, and then press Number keys

1 through 9 to change speeds.

 Press Number key "4" to access the Focus menu.  Press Number key "7" to access the Reticle menu.  Press the Scroll keys to move up and down through the options or lists.  Press the Arrow keys to move the cursor across the display.  Press the Help (?) key to access on-line help.

Tip:

When multiple choices are available within a menu option, the current option is usually displayed first and highlighted by a right pointing arrow (>).

Look into the Future

The AutoStar II Date option in the Setup menu is much more than just an entry of today's date; with it you can look far into the future or learn about past events. AutoStar II can calculate the date and times of future events and, except for eclipses, past events as well (based on the current calendar system).

E.g.,

a Sunrise on March 6, 2043 A.D. or the Vernal Equinox in 1776 A.D. To use this feature, enter the desired date in the Setup menu or select an option in the Event menu.

AutoStar II, using the Event menu, can calculate dates and times for Sunrises, Sunsets, Moonrises, Moonsets, Moonphases, Solar and Lunar Eclipses (for the next 100 years), meteor showers, equinoxes and solstices, and the minimums of Algol.

One very practical use of the Event menu is to check the Sunset option to determine when you can begin your astronomical observing session.

LX200R TIPS

Looking at or near the Sun will cause irreversible damage to your eye. Do not point this telescope at or near the Sun. Do not look through the telescope as it is moving.

+ 53 hidden pages
