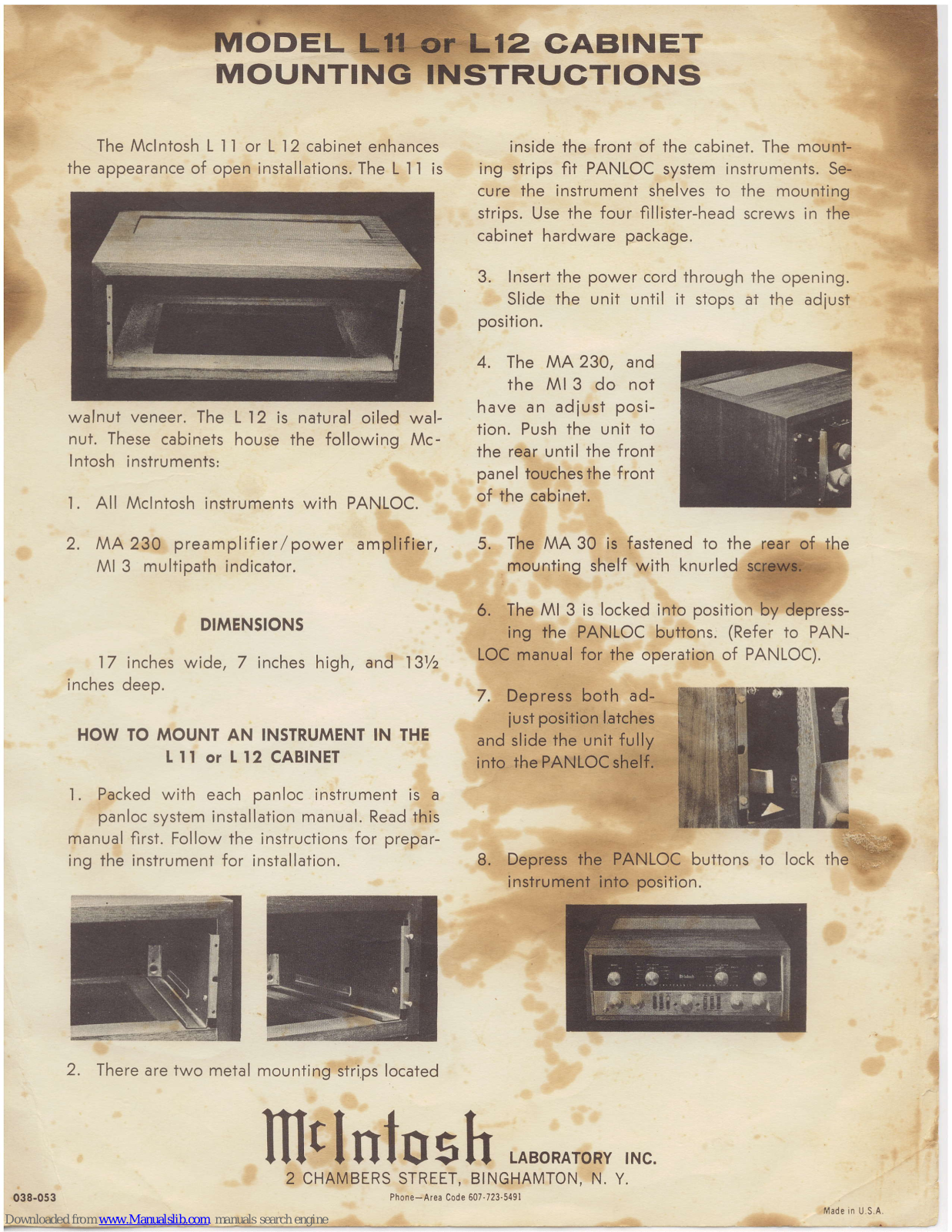

MOUNTING
I
The Mclntosh L I
I or L l2 cabinet
enhances
the
appearance of open installations.
The L
'l
1 is
walnut
veneer.
The L
l2 is natural
oiled wal-
nut.
These
cabinets
house the followino Mc-
Intosh
instruments;
l.
All Mclntosh
instruments with PANLOC.
2. MA
230
preamplifier
/
power
amplif
ier,
Ml 3 multioath
indicator.
DIMENSIONS
17 inches wide, 7 inches
high,
and
13Vz
inches
deeo.
HOW TO
MOUNT
AN INSTRUMENT IN THE
L
Il or L 12 CABINET
l. Packed
with
each
panloc
instrument is a
panloc
system installation manual. Read this
manual
first. Follow the insiructions
for prepar-
ing the
instrument
for installation.
2.
There
are
iwo
metal mounting
strips
located
I2
CABINET
STRUCTIONS
inside the front of the cabinet. The mount-
ing strips flt
PANLOC
system
instruments. Se-
cure the instrument shelves
to
the mounting
strips.
Use
the four fillister-head
screws in the
cabinet
hardware
package.
3.
Insert
the
power
cord through
the opening.
Slide
the unit until it
stops at the
adiust
position.
4. The
MA 230, and
the Ml 3 do not
have
an adiust
posi-
tion. Push
the
unit
to
the rear until
the front
panel
touchesthe
front
of
the
cabinet.
5. The
MA
30 is
mounting shelf
fastened to the
rear of the
-
6.
The
Ml
3 is
locked into
position
by depress-
ing
the PANLOC buttons.
(Refer
to PAN-
LOC
manual for the operation of
PANLOC).
7. Depress both adiust
position
latches
and slide
the
unit fully
into
the PANLOC shdfG*r
";i:-:,,
.
'*d4,,'-
Depress the PANLOC buttons
instrument
into
position.
8.
ffft I ntu
g
h
LAB'RAT'RY,Nc
2 CHAMBERS STREET, BINGHAMTON, N.
Y.
Phone-Area Code 607.723'5491
fVad€
in
LJ.S.A.
