M-B MSV3 Operation Manual

Download

Operation Manual

Multi-Service Vehicle

(MSV)

MSV

M-B MSV3

0714A

MSV Division

M-B Companies, Incorporated

1615 Wisconsin Avenue

New Holstein, Wisconsin 53061

800.558.5800

www.m-bco.com

PN 904-183260

Table of Contents

Safety ............................................................................. 4

Hazard Denitions ..................................................... 4

Identication of Safety Labels ................................... 4

General Safety .......................................................... 5

Pre-Start-Up Safety ................................................... 5

Pressurized Systems Safety ..................................... 5

The Manual ............................................................... 6

Required Operator Training ....................................... 6

Work Area .................................................................. 6

Maintenance Safety ................................................... 6

General Information ..................................................... 7

Introduction ................................................................ 7

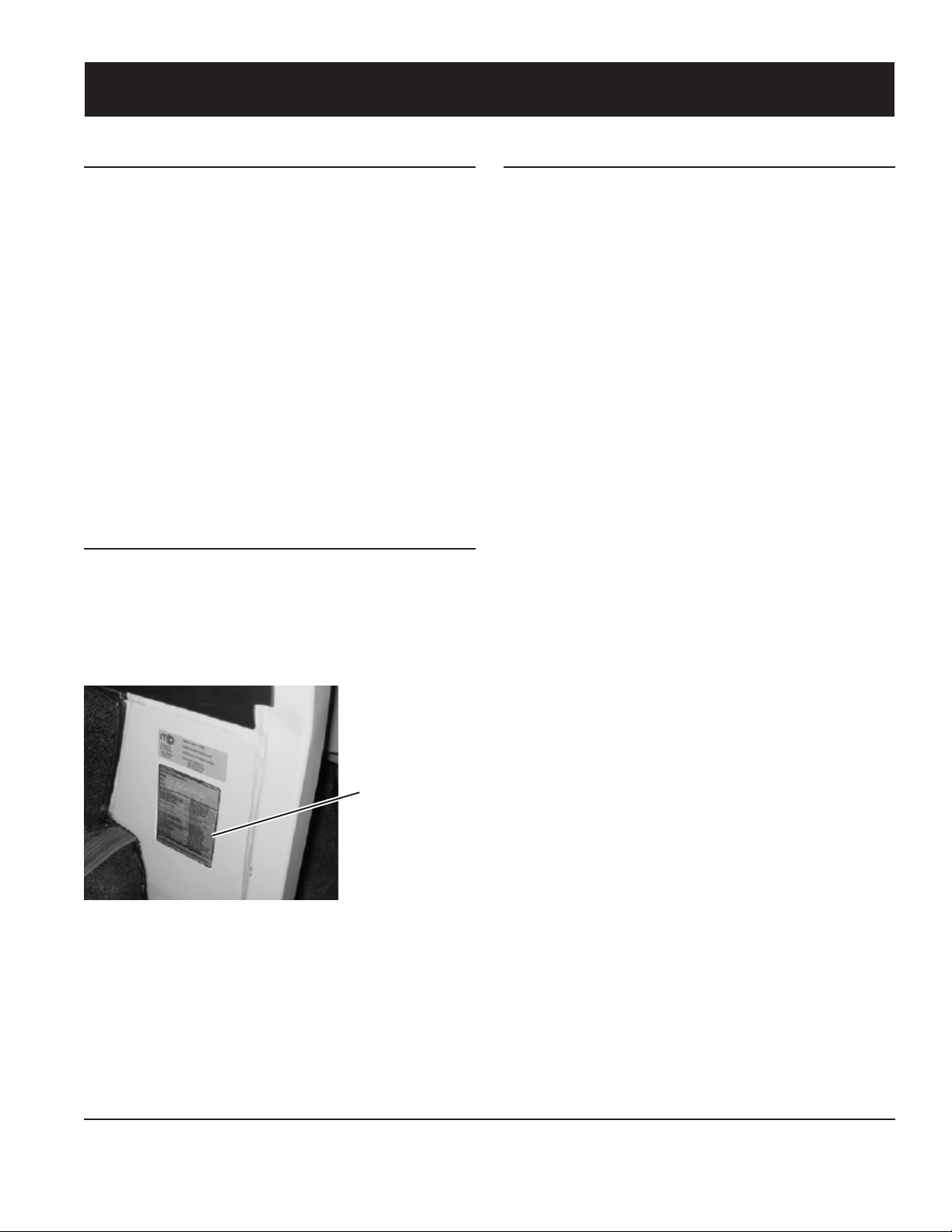

Machine Identication ................................................ 7

Customer Service ...................................................... 7

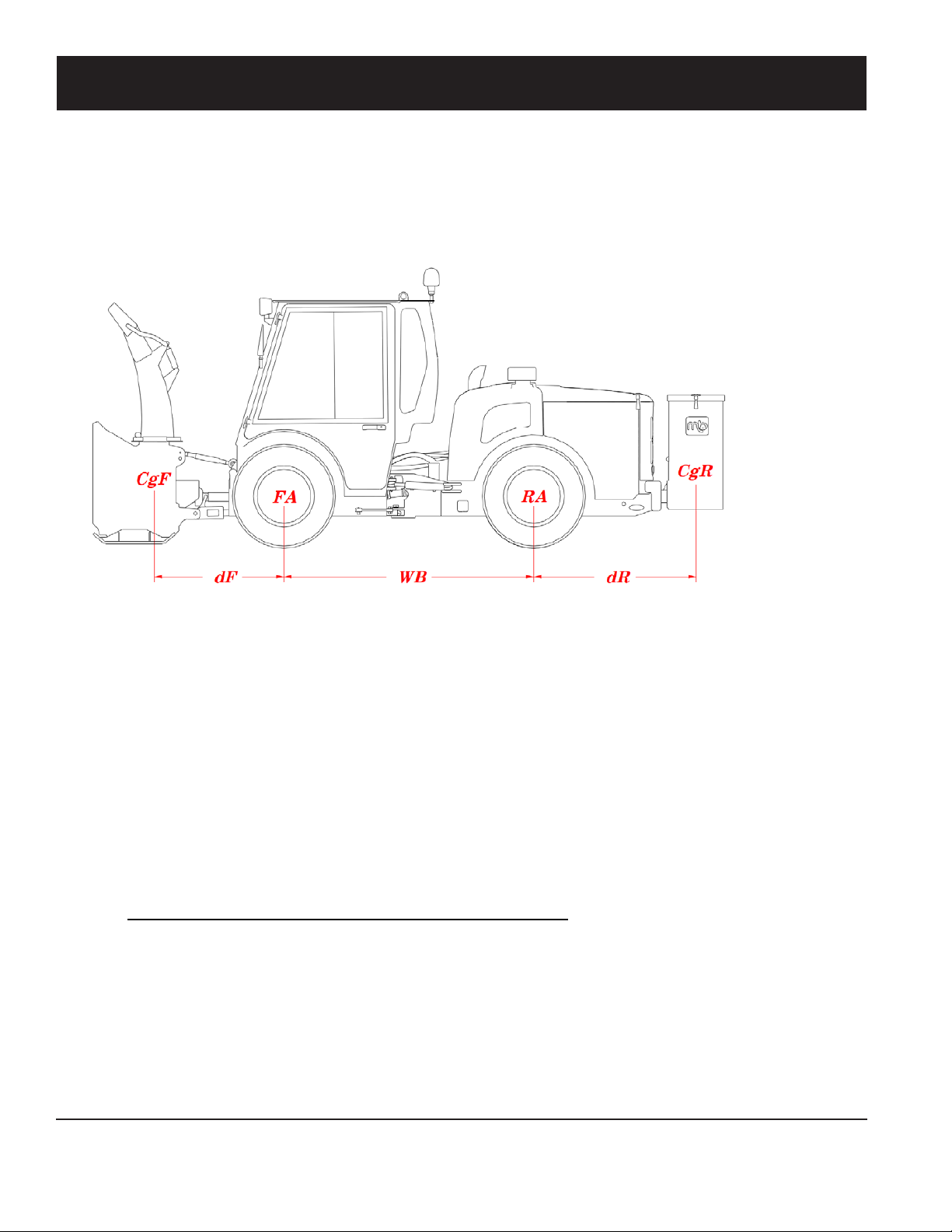

Ballast Calculations ..................................................... 8

Vehicle Information ...................................................... 9

Introduction ................................................................ 9

Operation ..................................................................... 10

Introduction .............................................................. 10

Operator Cab Controls ............................................ 10

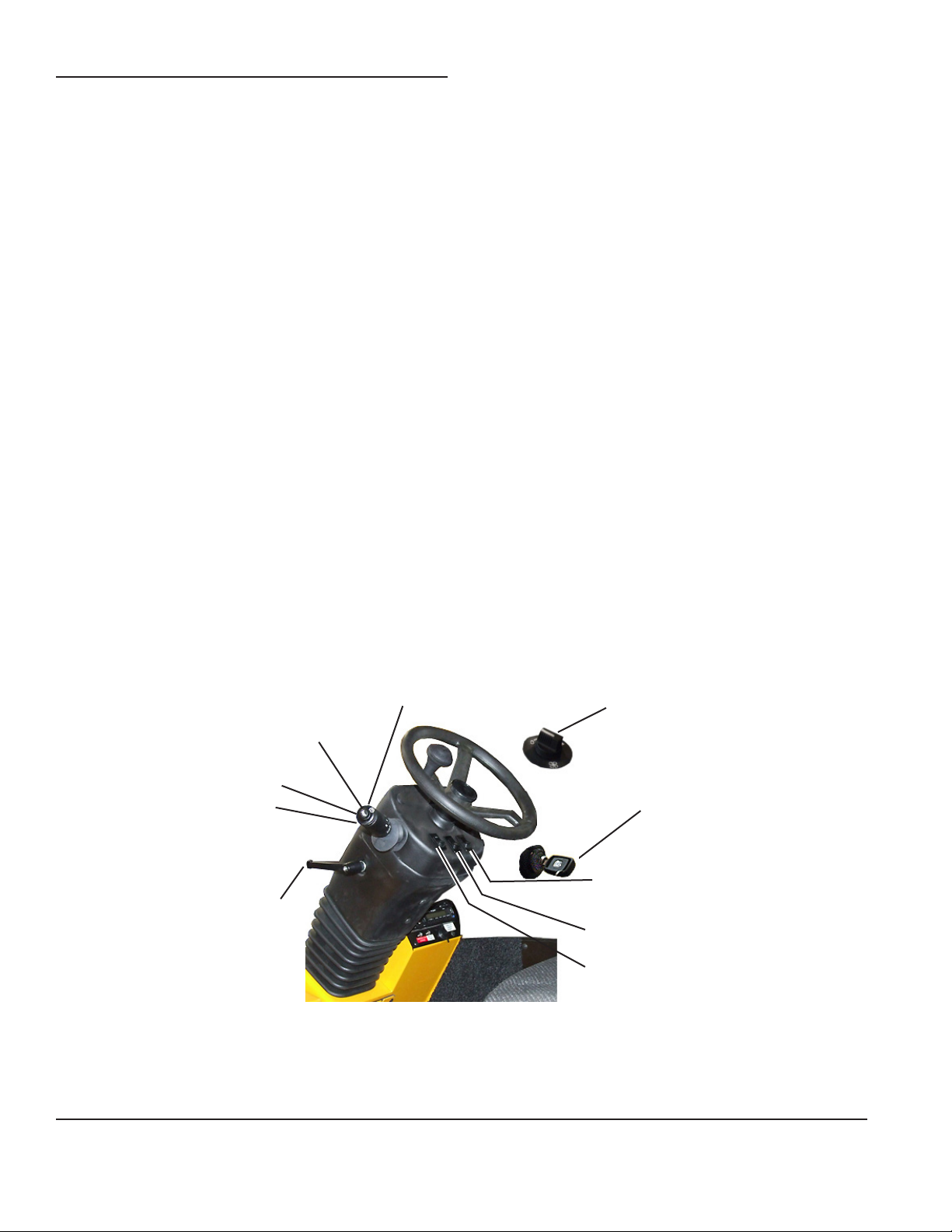

Steering Column ...................................................... 12

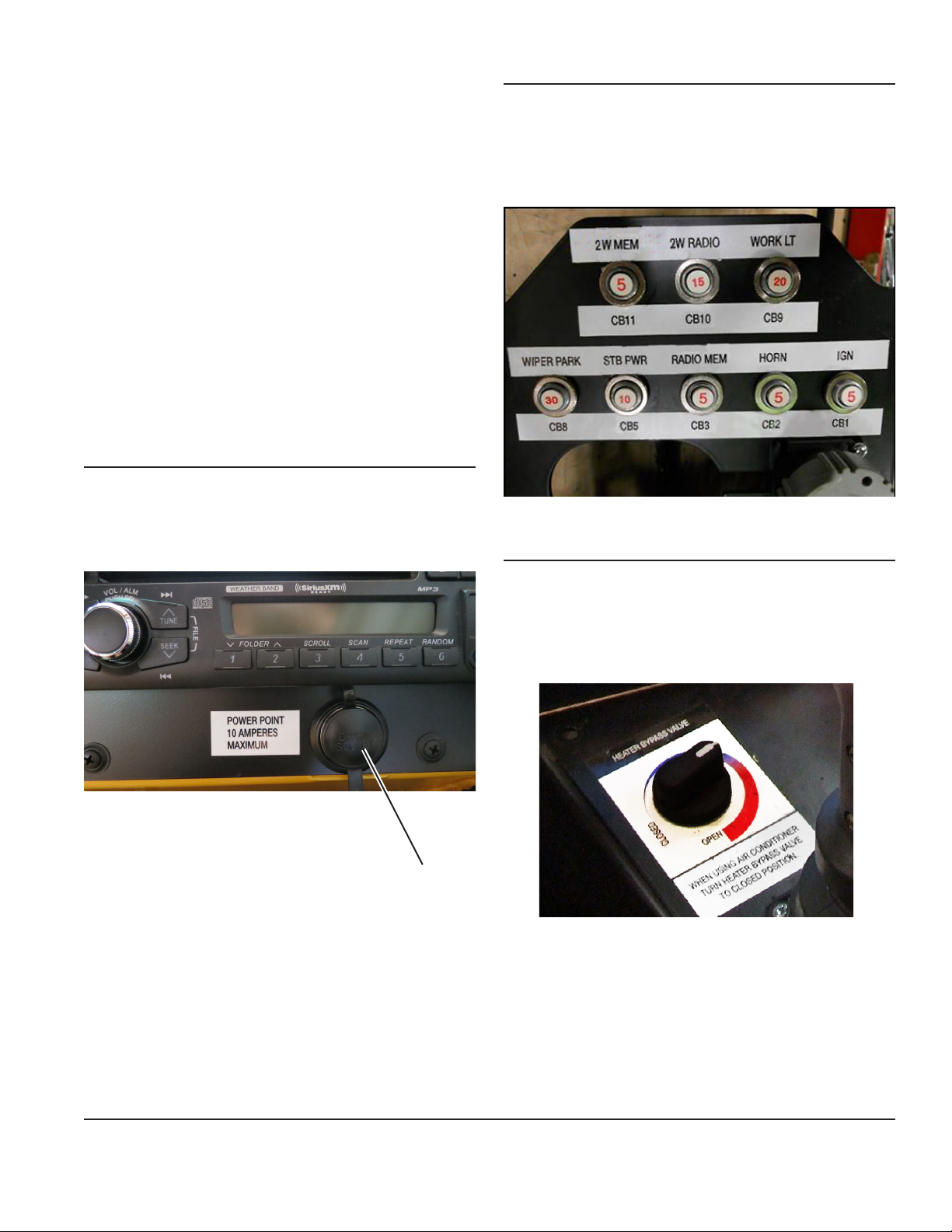

Radio Console ......................................................... 13

Circuit Breakers ....................................................... 13

Heater Bypass ......................................................... 13

Monitor Diagnose-Control (Plus+1®) ...................... 14

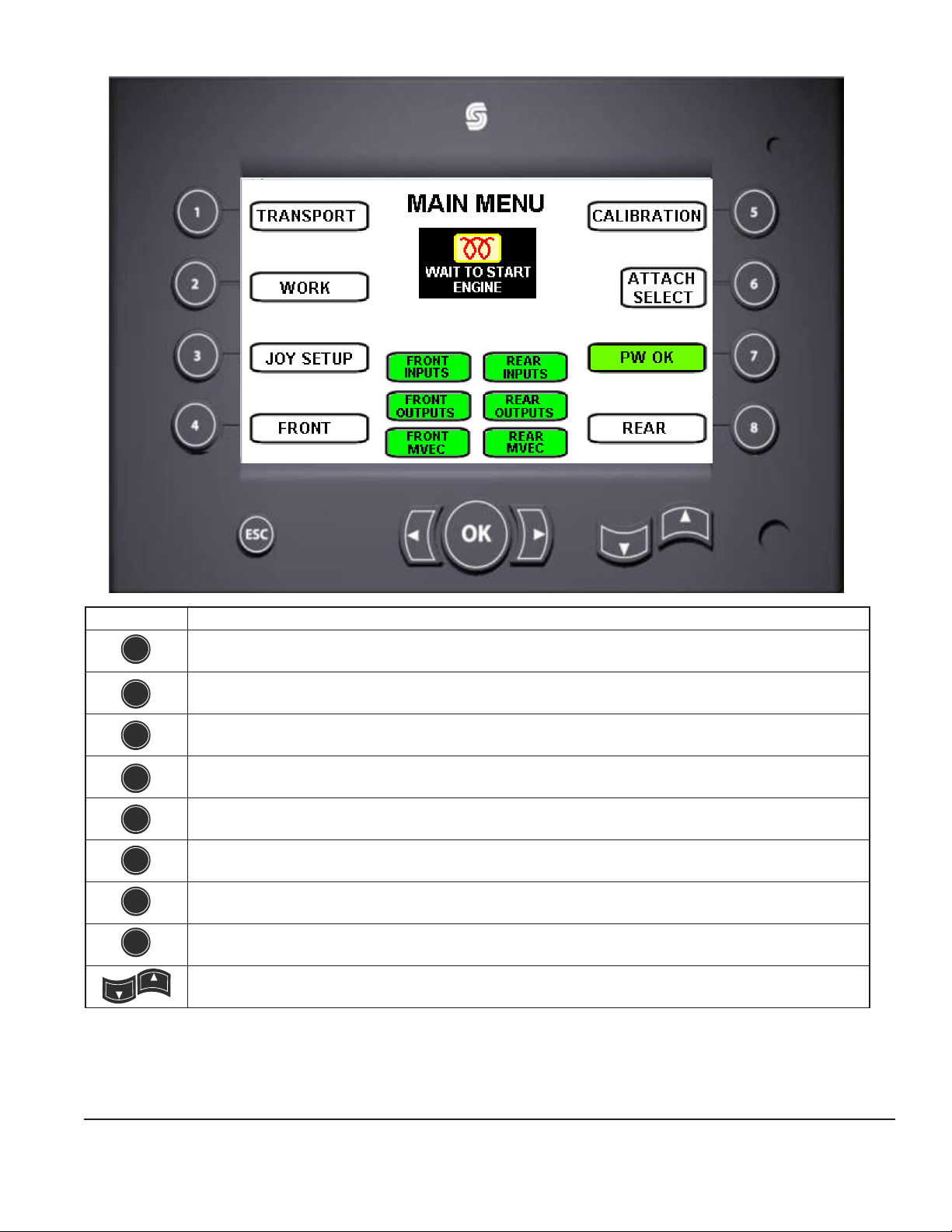

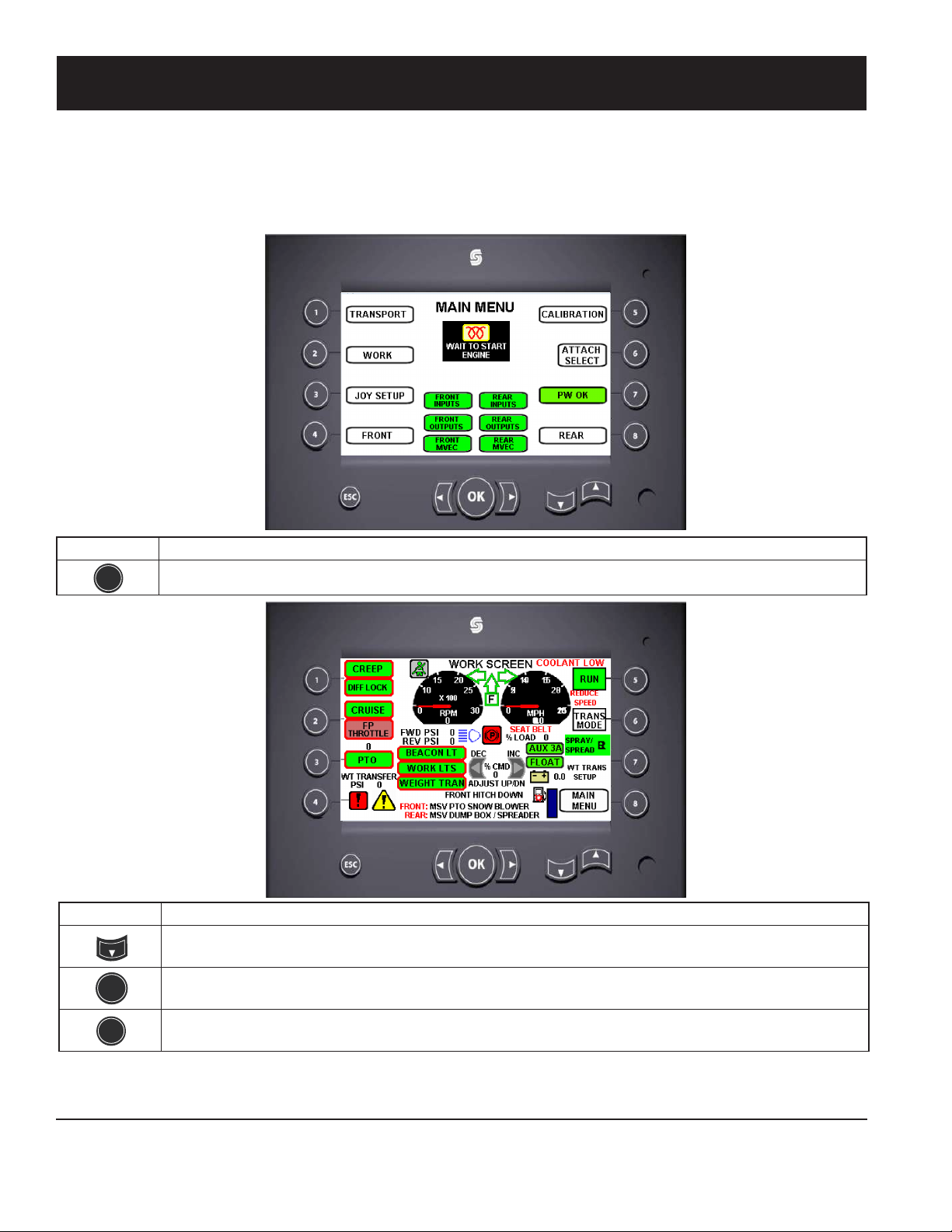

Main Menu ............................................................... 16

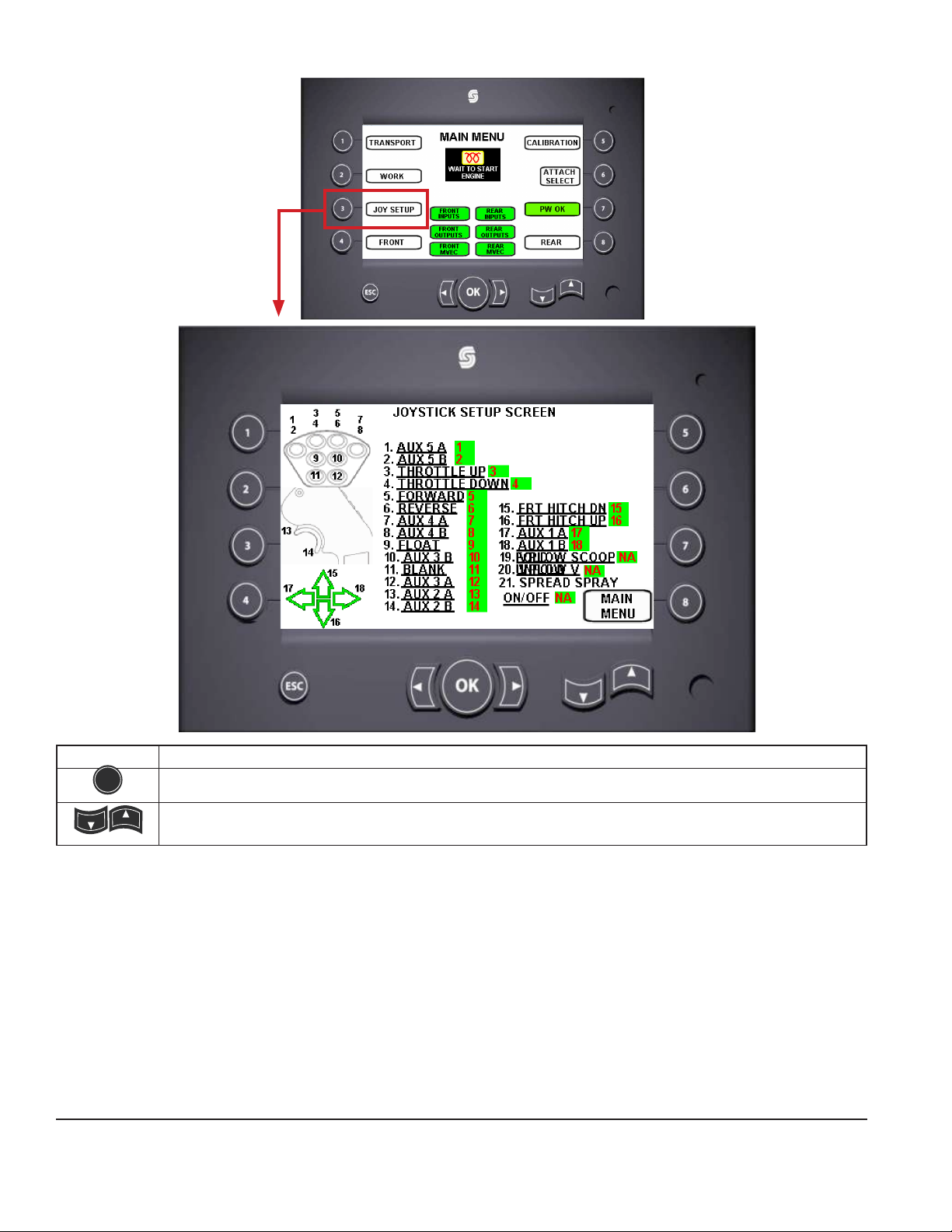

Joystick Diagnostics ................................................ 17

Lighting/Electrical .................................................... 18

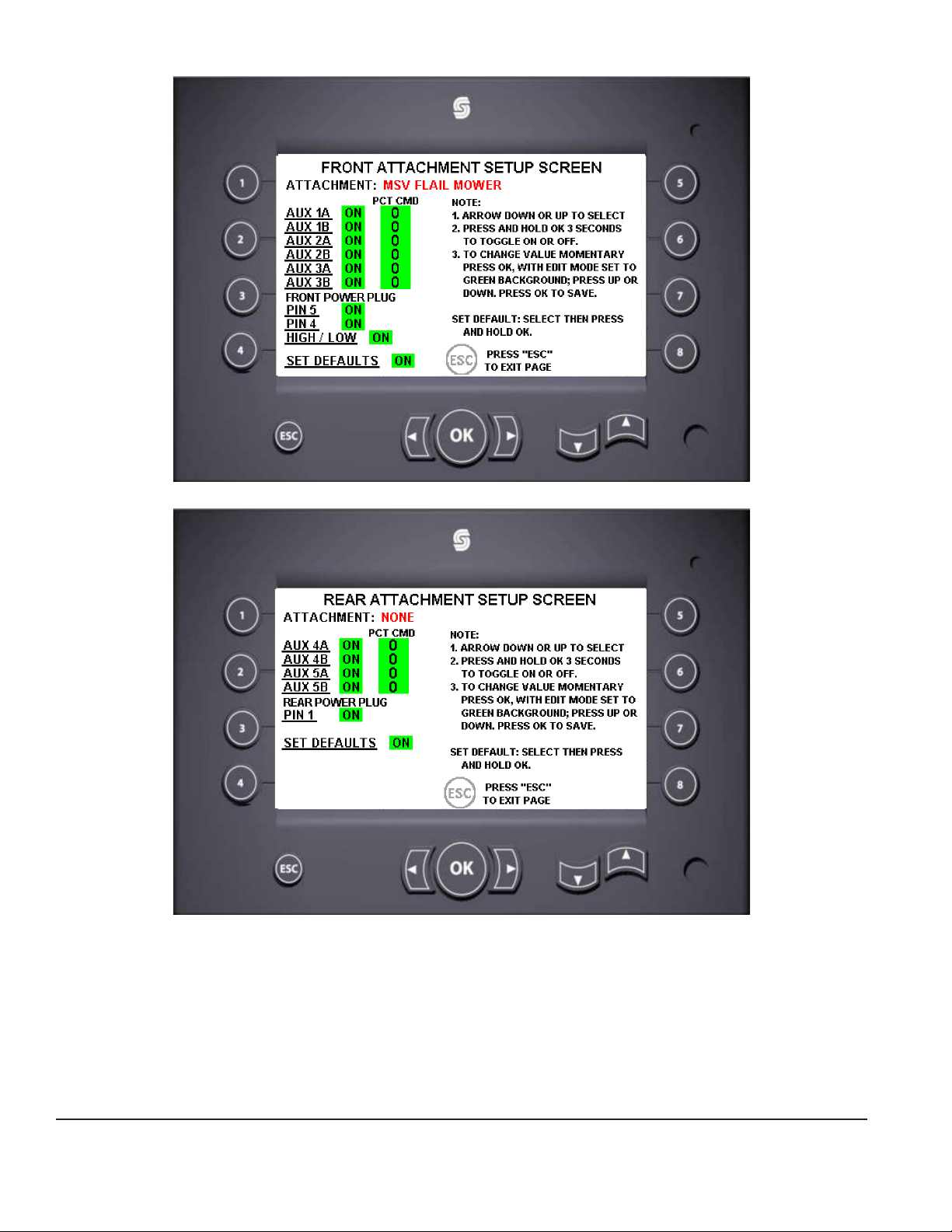

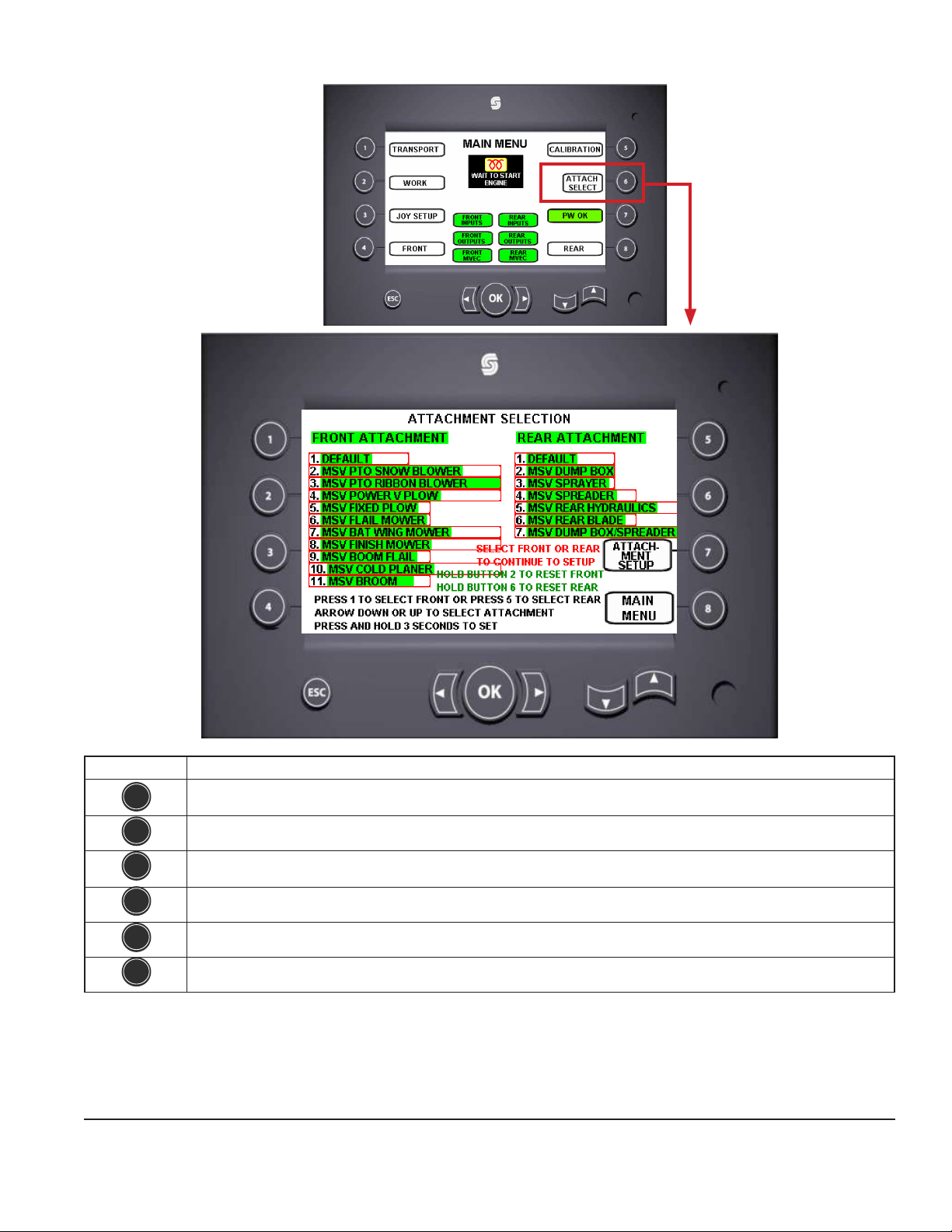

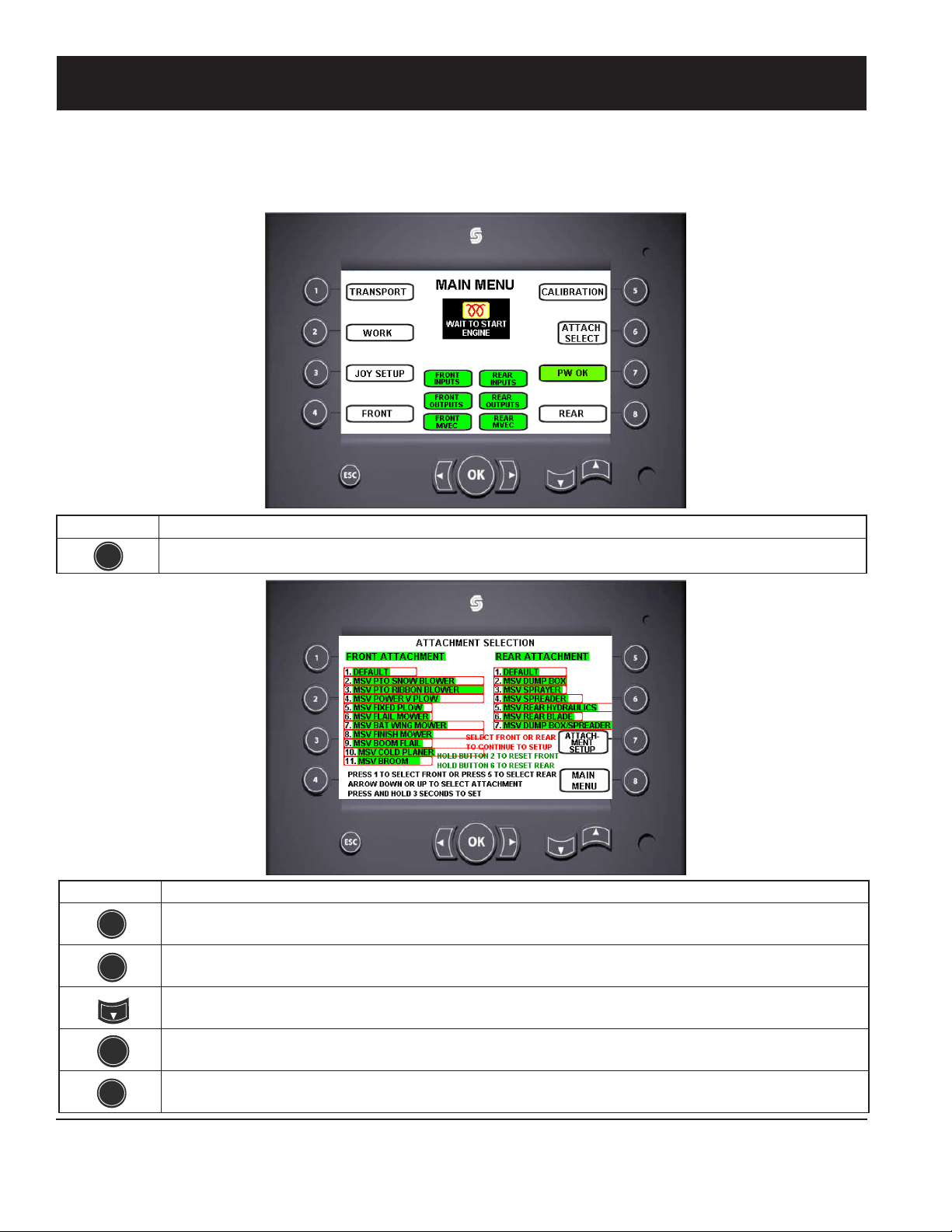

Attachment Selection .............................................. 19

System Hydraulics ................................................... 22

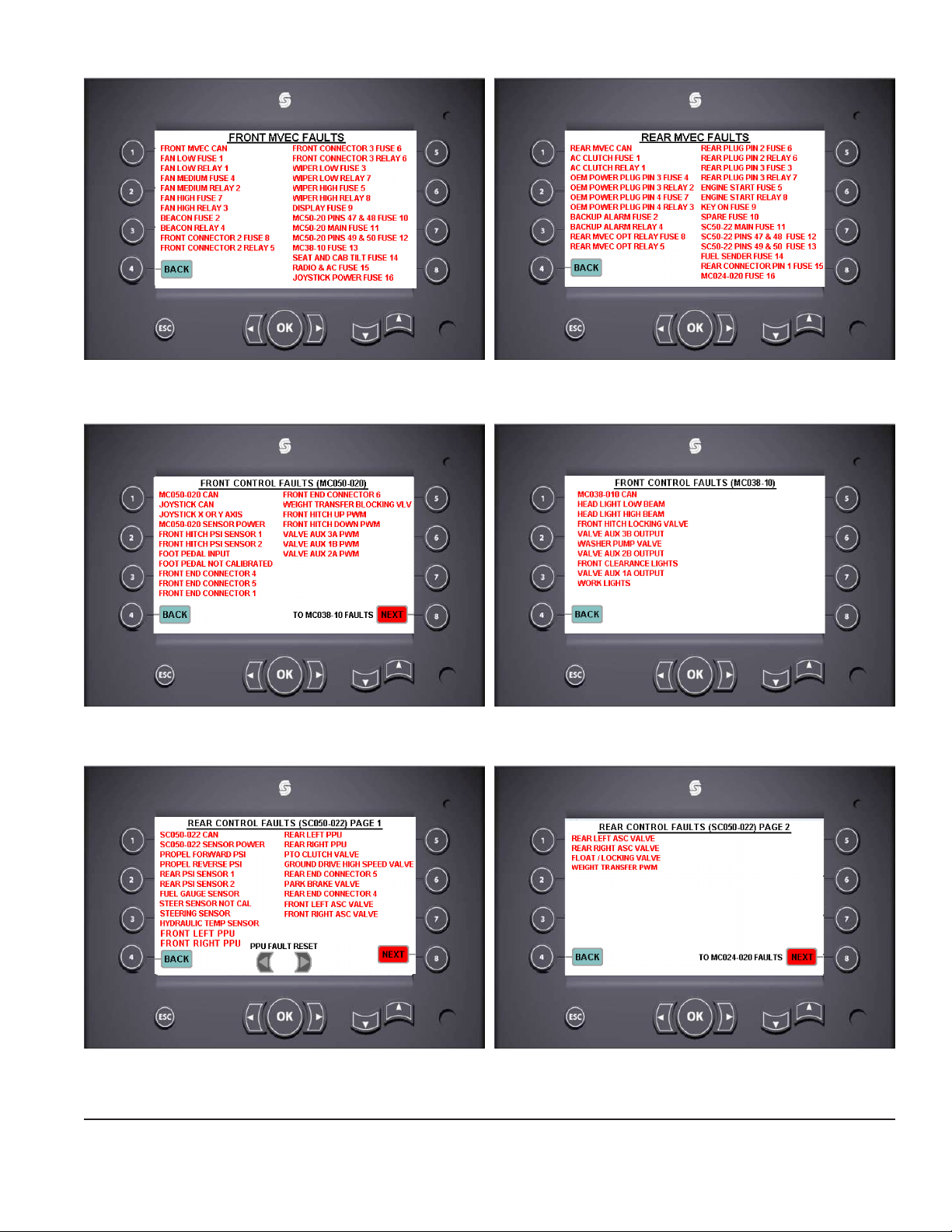

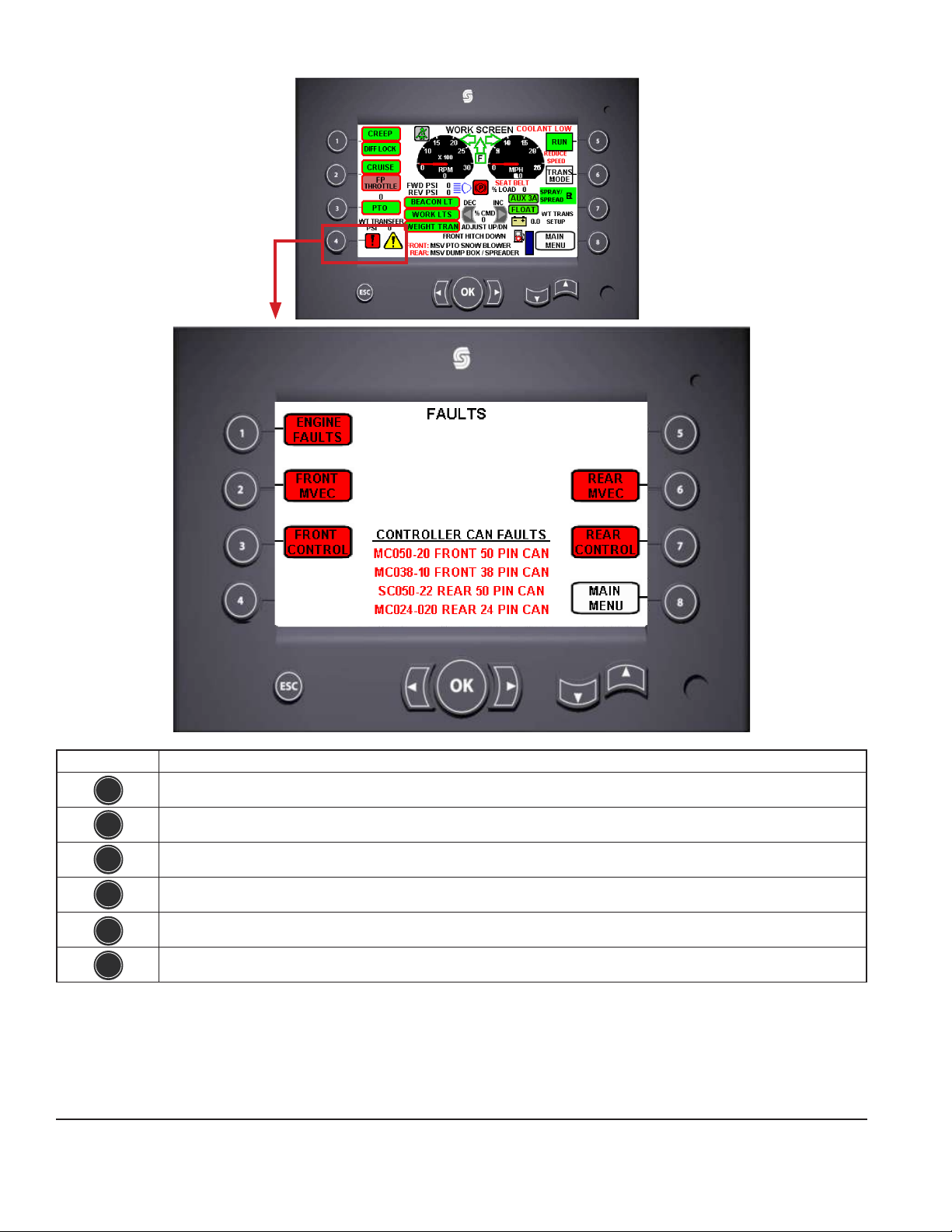

Vehicle Diagnostics ................................................. 23

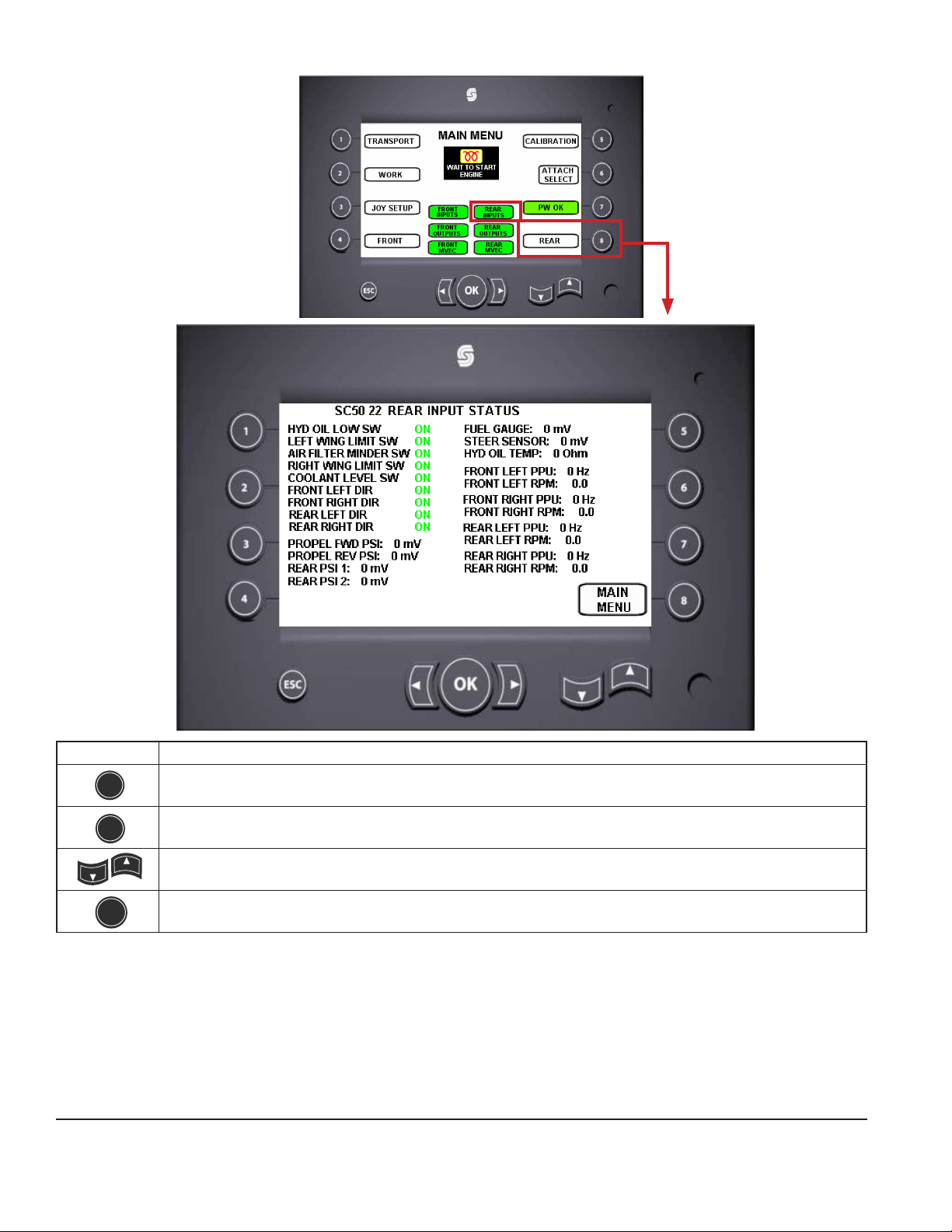

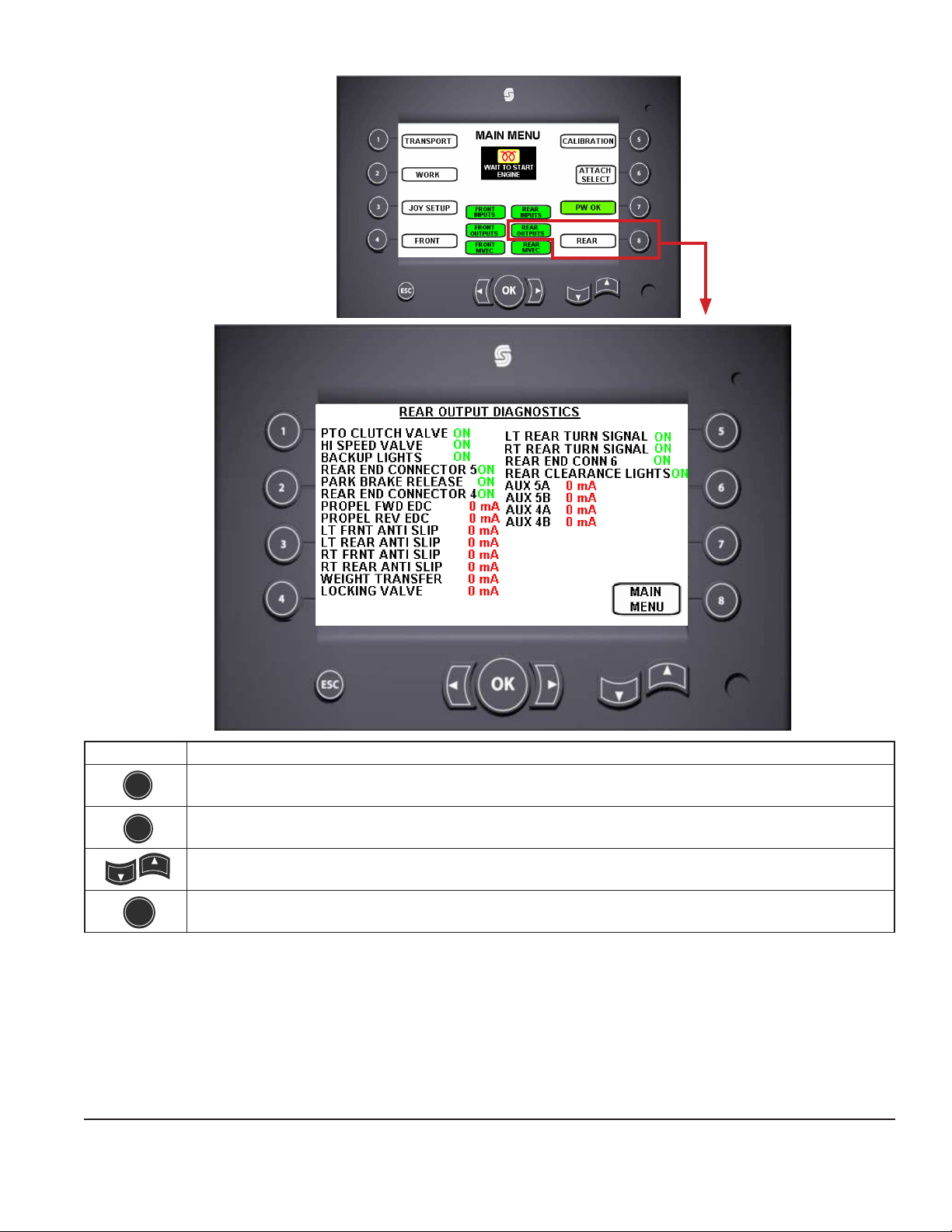

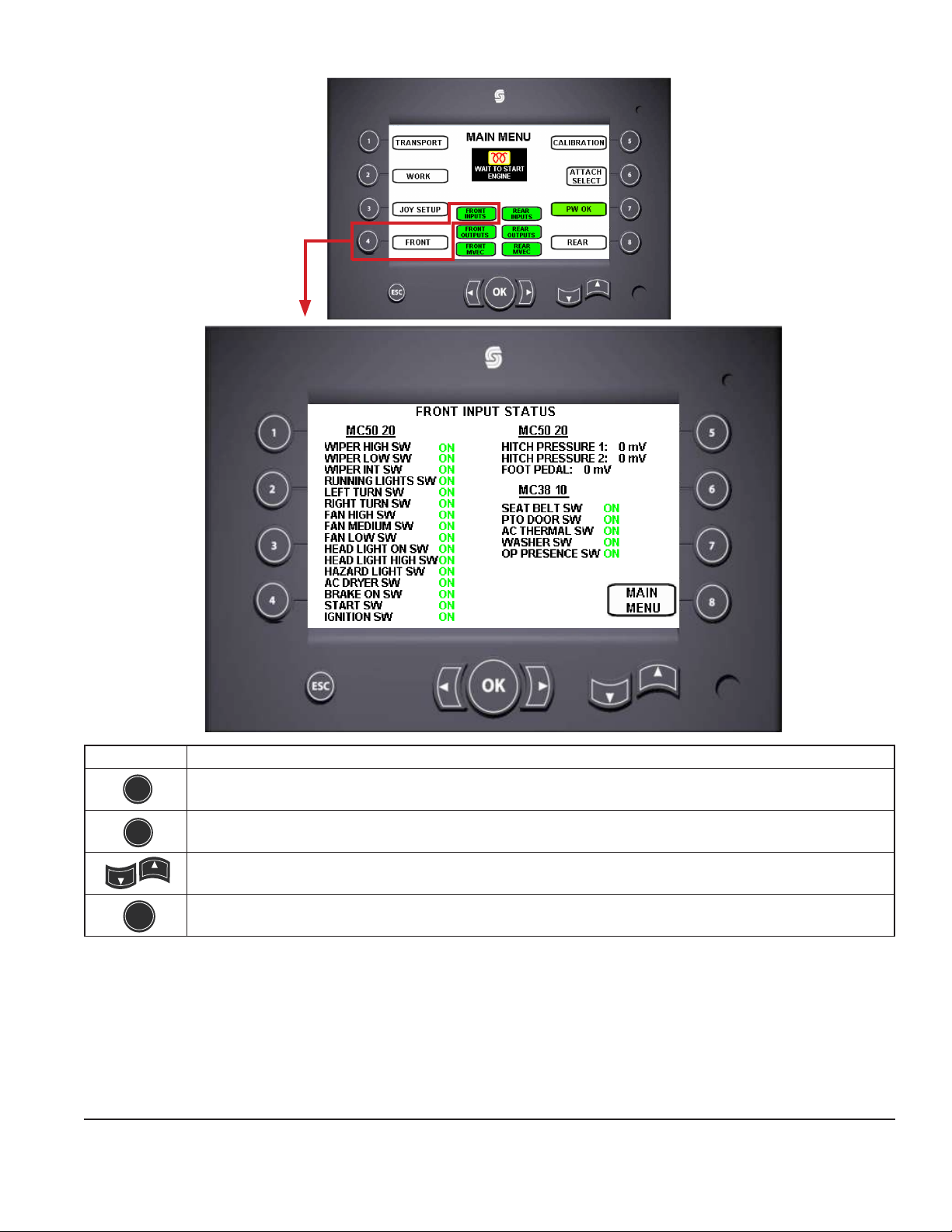

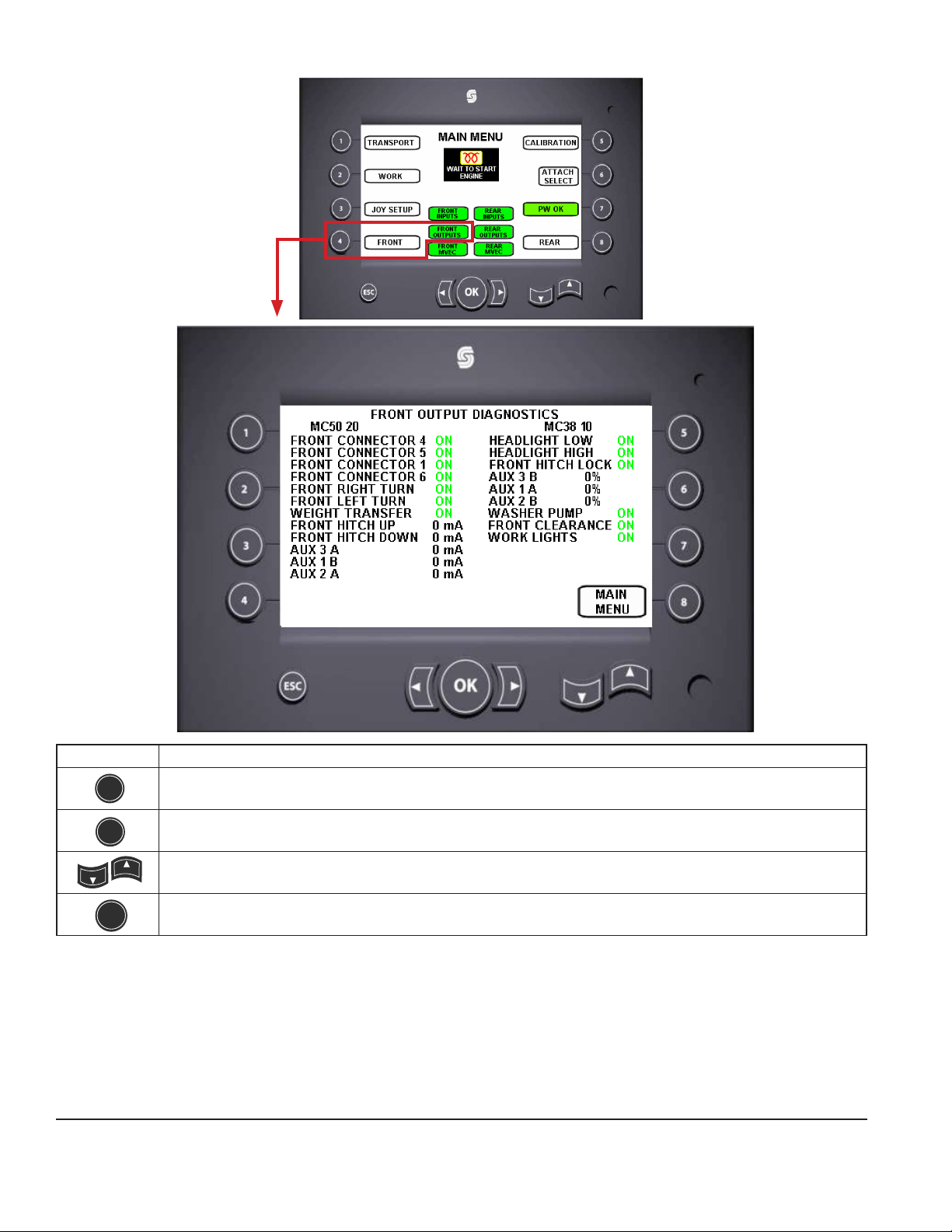

Input/Output Diagnostics ......................................... 23

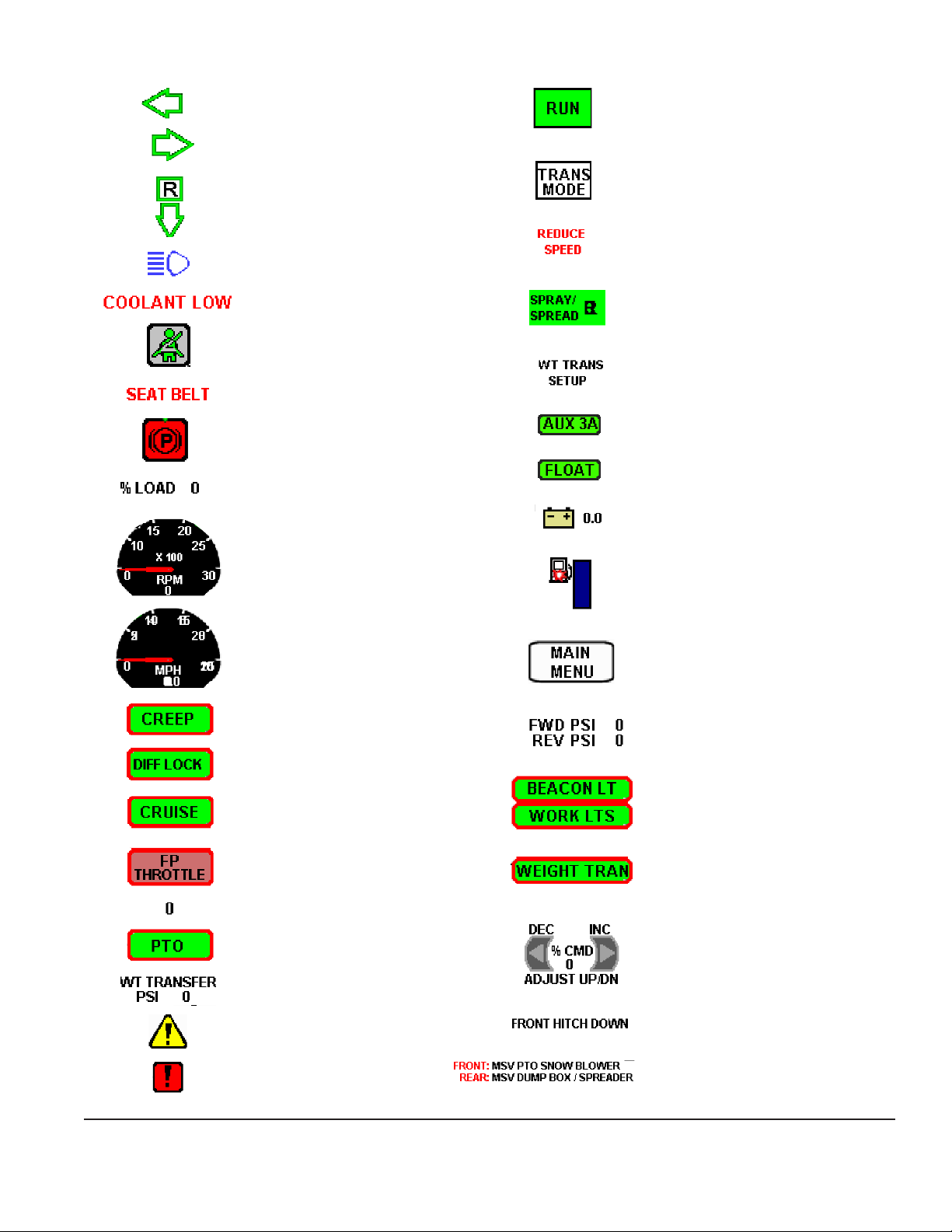

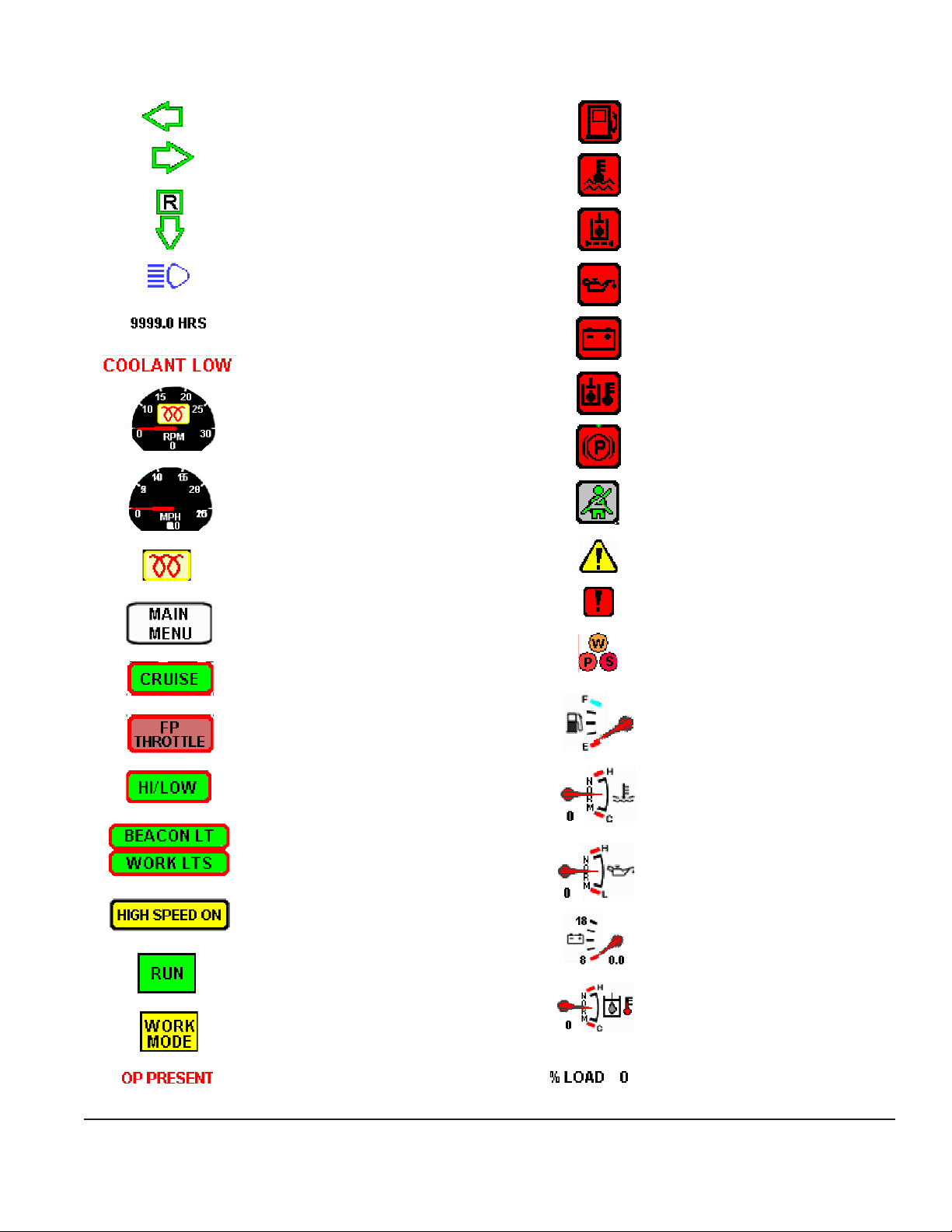

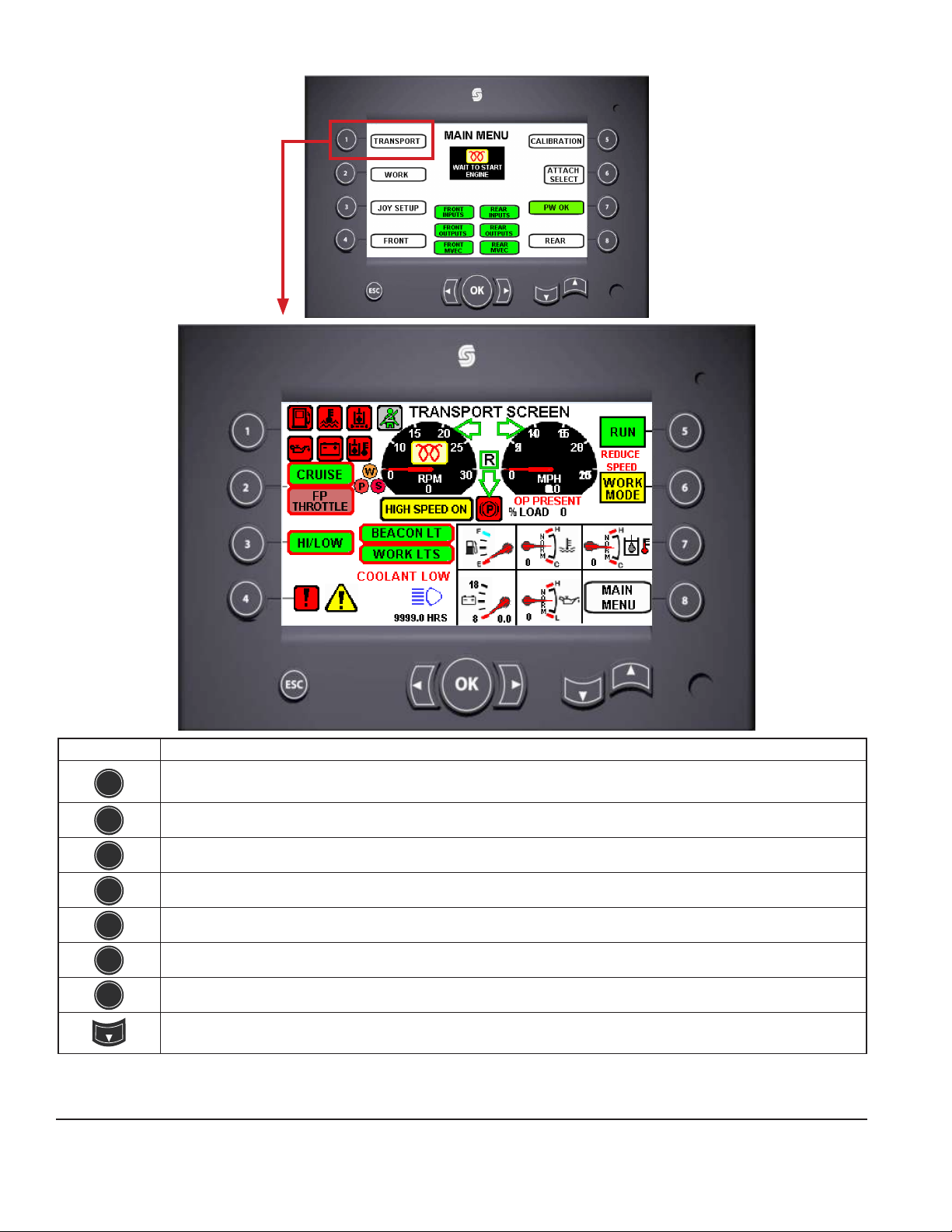

Vehicle Display ....................................................... 23

Engine Diagnostics .................................................. 24

Advanced Engine Diagnostics ................................. 25

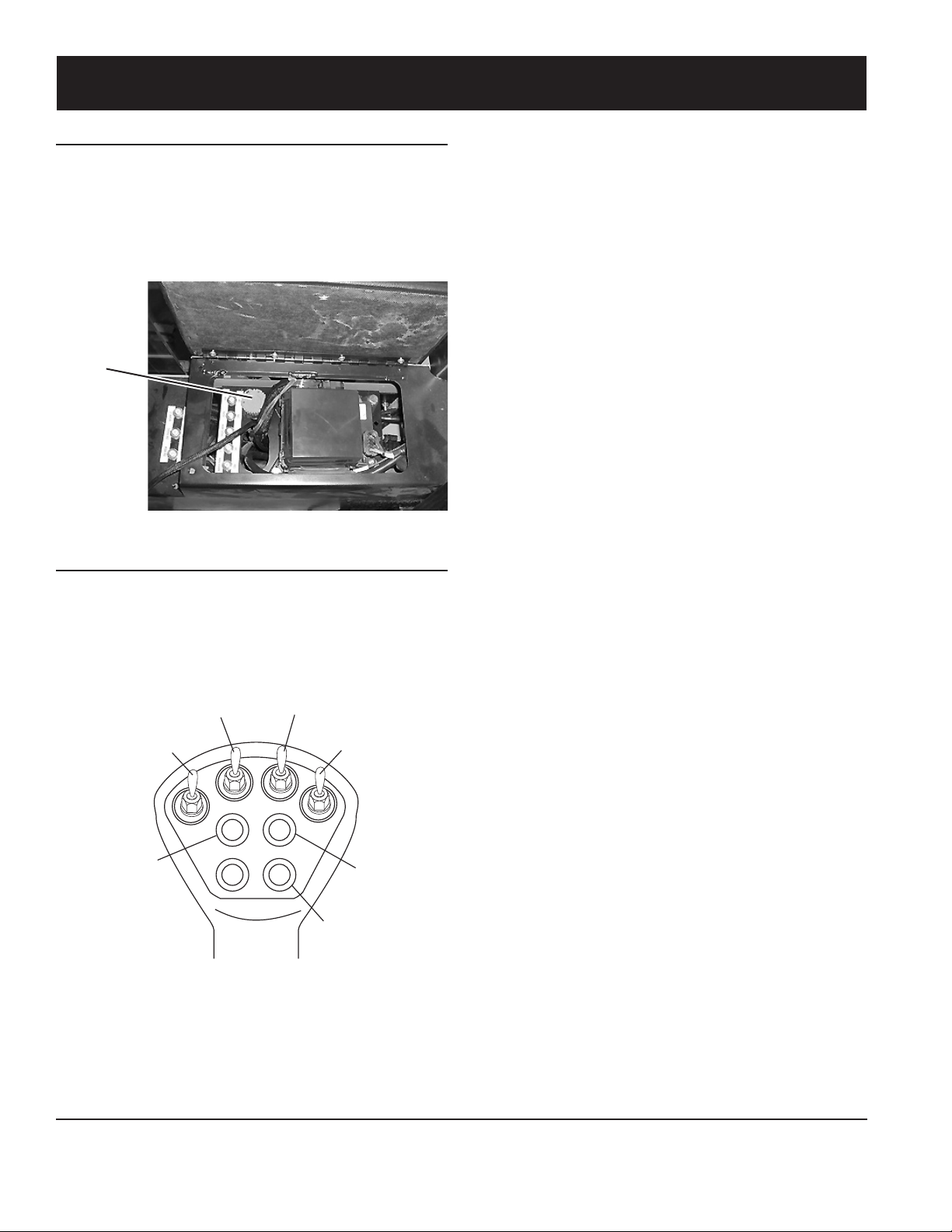

Joystick Layout ........................................................ 25

Setup ....................................................................... 25

Pre-Start Up ............................................................ 26

Start-Up Procedure ................................................. 26

Cold Weather Starting ............................................. 26

After Starting Engine ............................................... 27

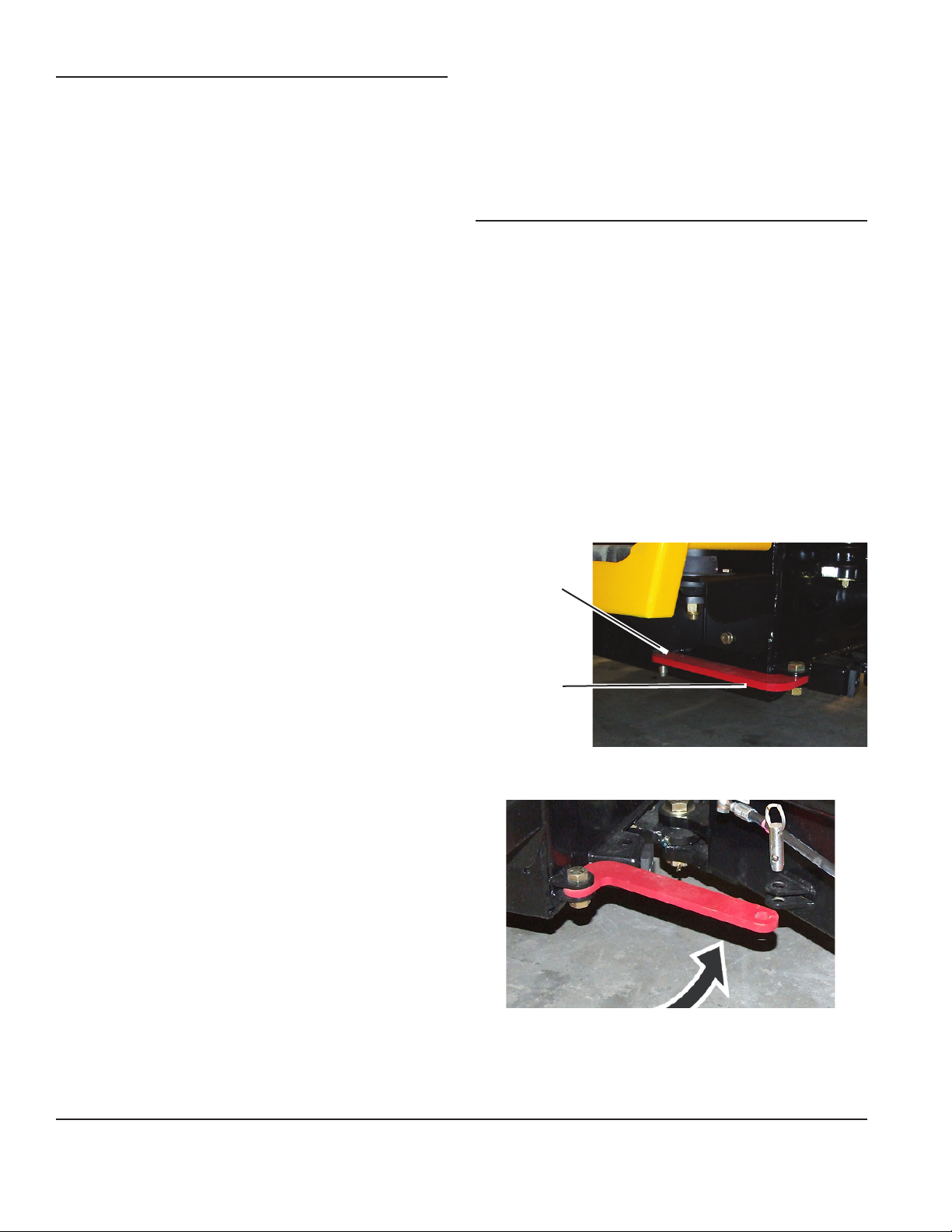

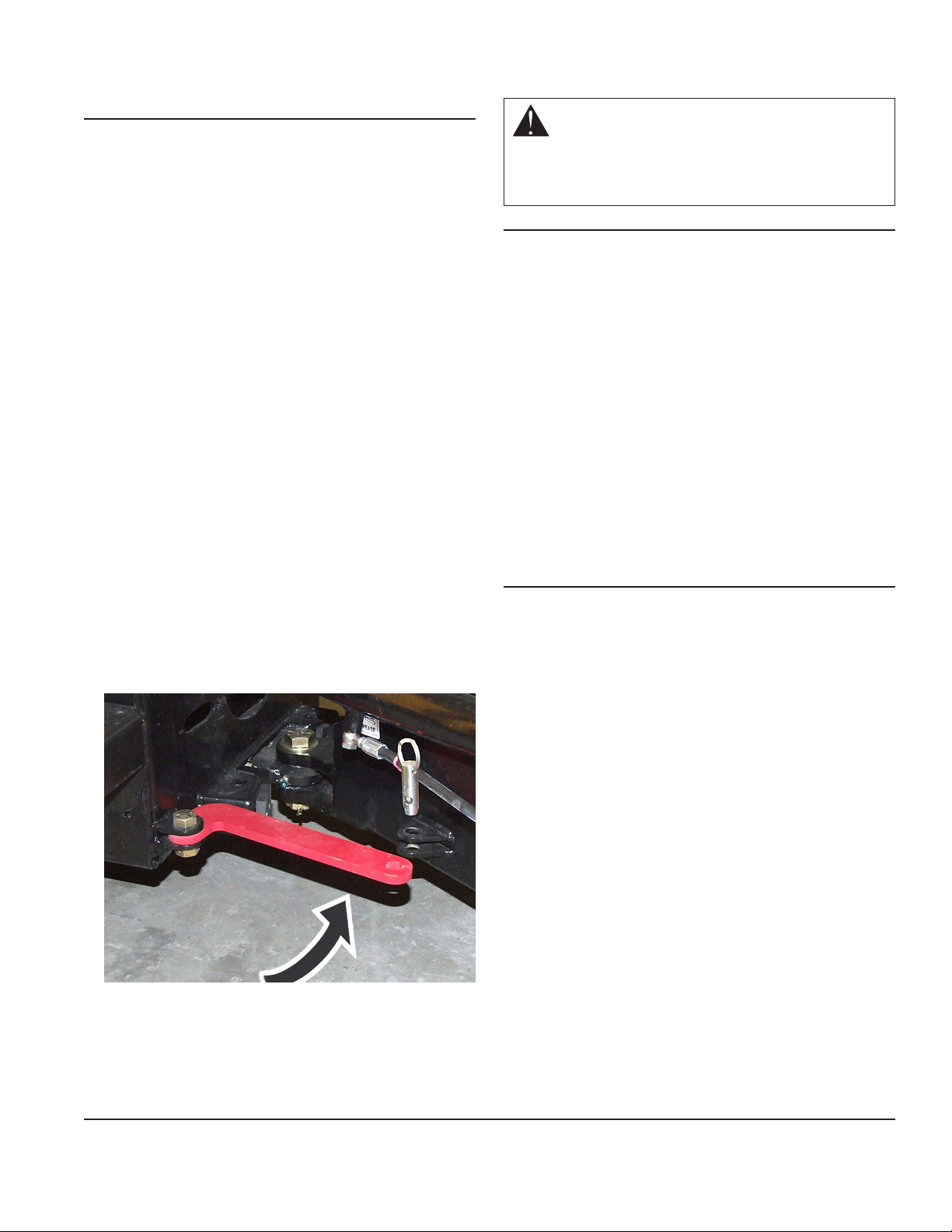

Safety Link ............................................................... 27

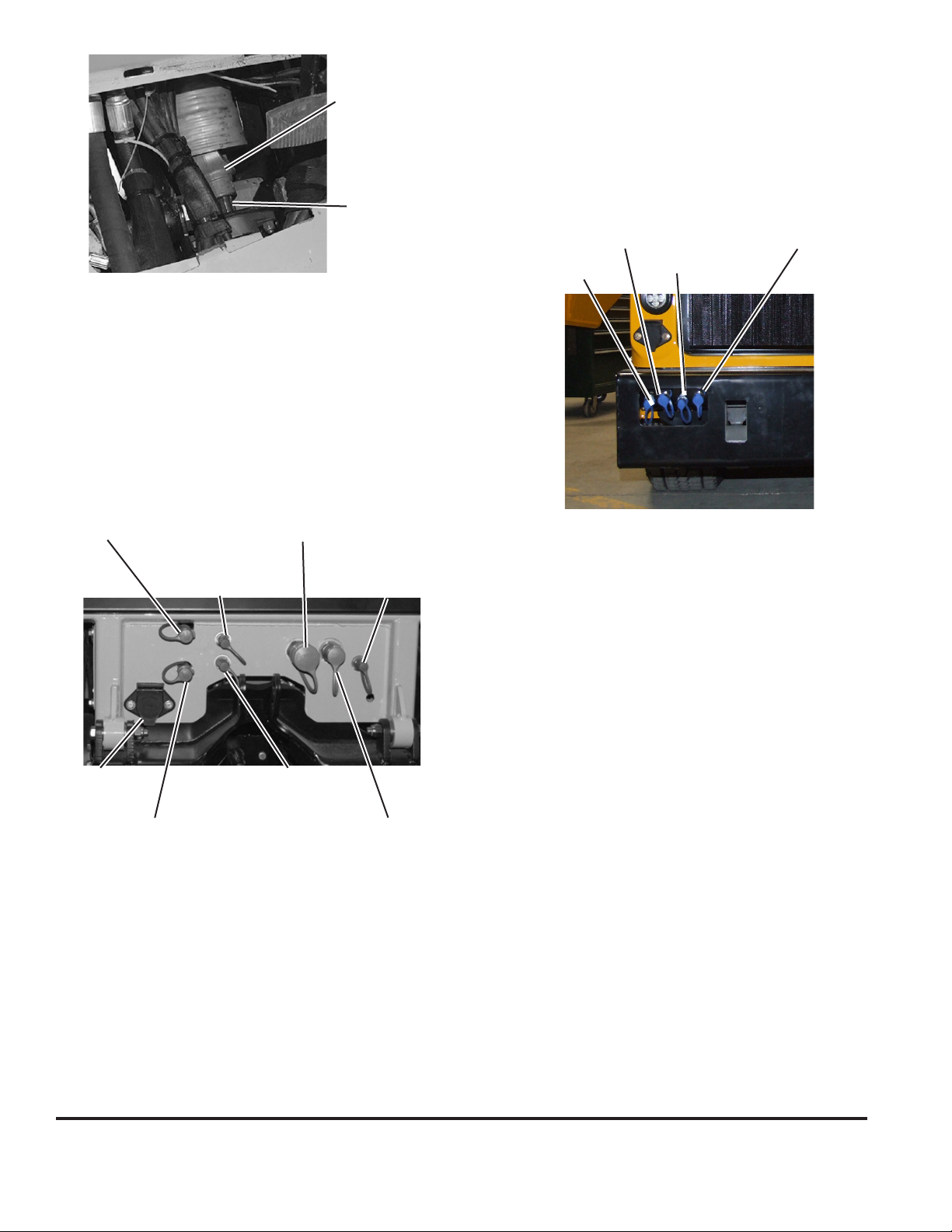

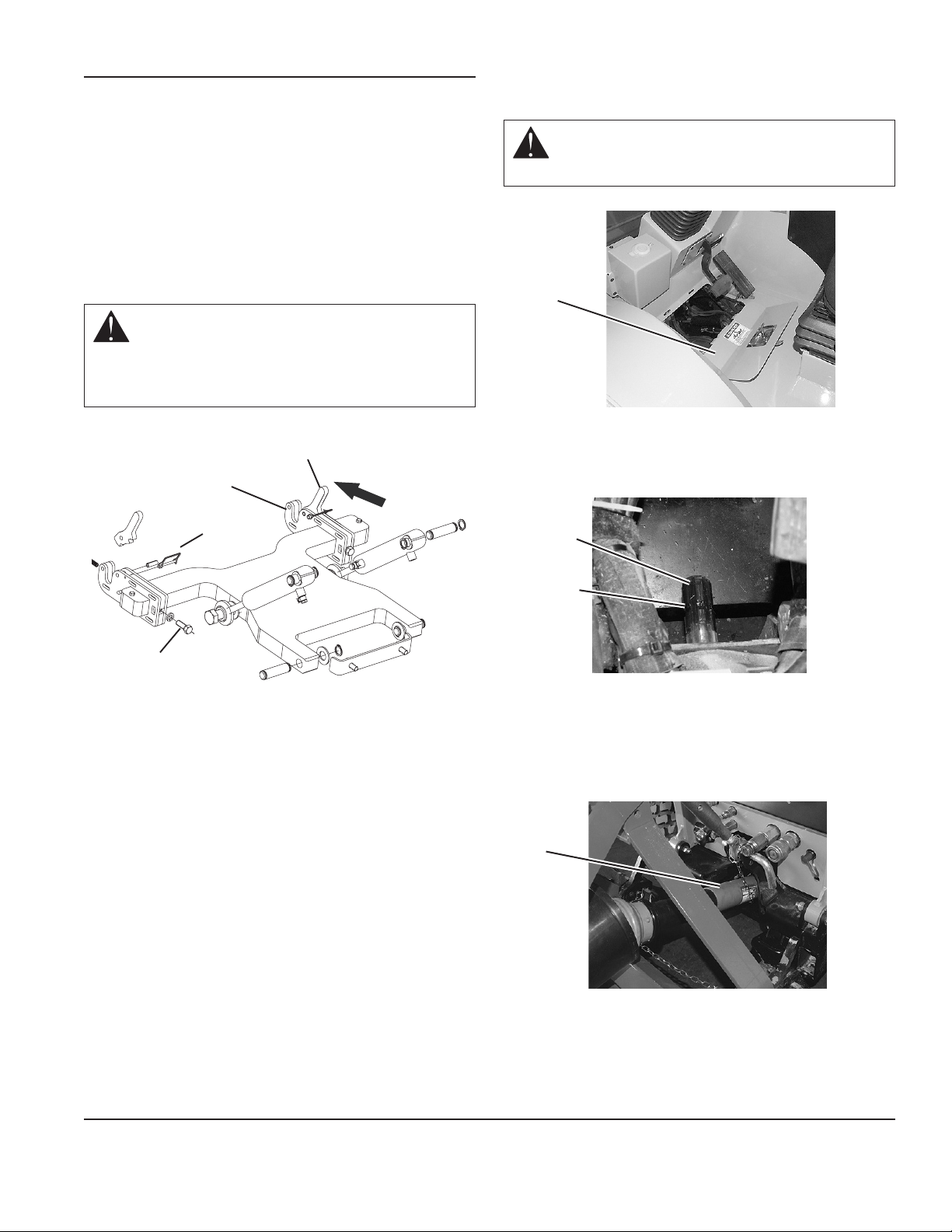

Front Attachment Connections ................................ 28

Maintenance ................................................................ 30

Preventative Maintenance ....................................... 30

Replacement Parts / Warranty ................................... 32

M-B Multi-Service Vehicle • 2 • Table of Contents

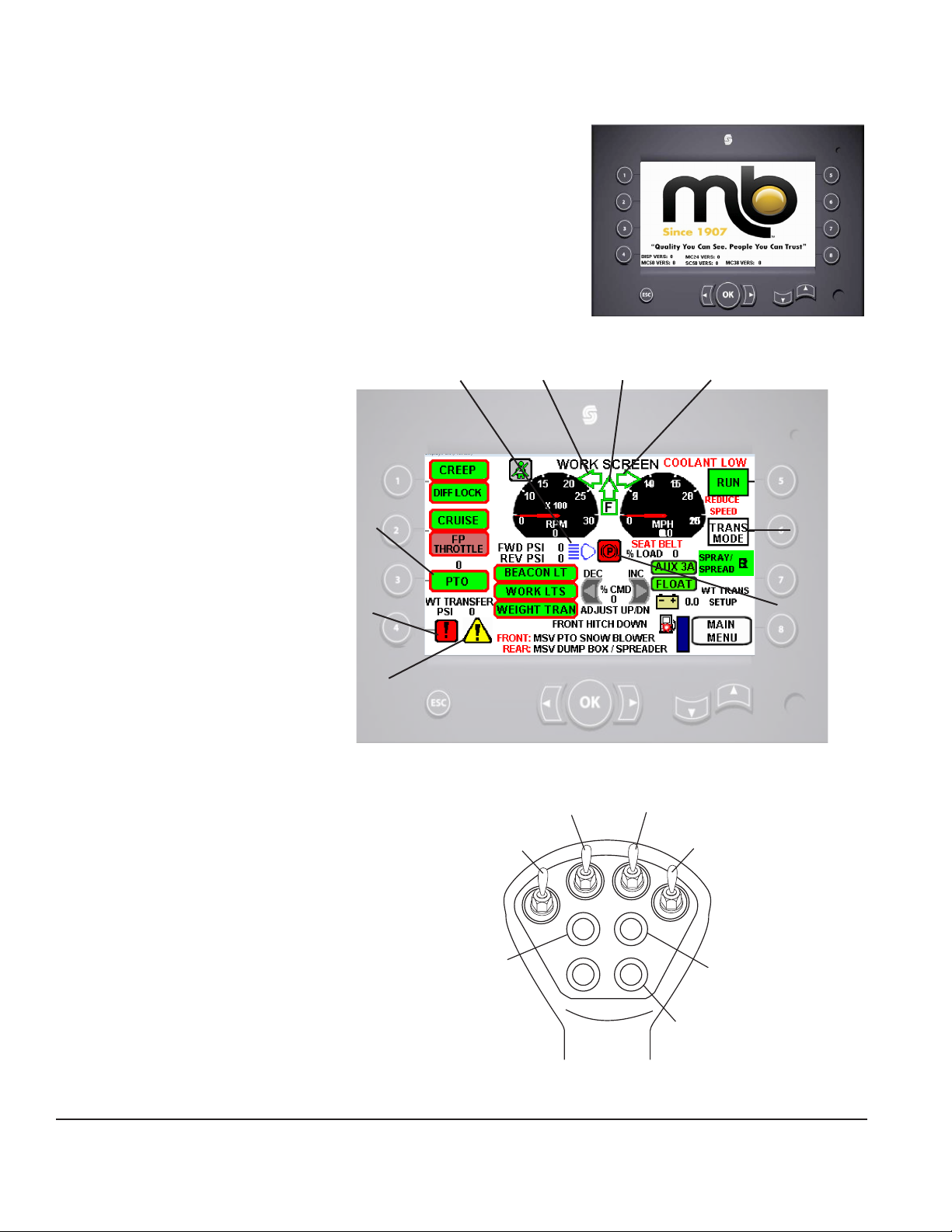

Quick Reference User Guide

HOW TO START

• Sit in seat, fasten seatbelt and insert key.

• Turn key to ON. Wait for screen to display STARTUP (10 seconds).

• Place foot on brake and turn key to START position.

• Hold key in START position for a couple of seconds to start the engine.

If key is turned to START too soon, the tractor will not start.

The key must then be reset by turning it to OFF - leave off for 5 seconds and

then back to ON.

SHUTDOWN

• Turn off PTO.

• Turn off hydraulics.

• Turn key to OFF and release seatbelt to exit tractor.

PARKING BRAKE

• Engages/Disengages automatically when pressing

and releasing accelerator pedal.

when PTO

FORWARD/REVERSE

• Using the joystick, push the 3rd toggle switch from the left UP for forward or DOWN for

Indicates

Engine Fault

reverse.

THROTTLE (Work Mode)

Indicates Non-

Critical Fault

• Use the 2nd toggle switch

from the left on joystick to throttle UP

(push upward) or to throttle DOWN (pull downward).

RAISE/LOWER FRONT ATTACHMENT

• While tractor is running, pull back on

joystick to raise front attachment.

• Lower attachment by pushing forward on joystick.

GREEN

engaged

Headlight

High Beam

Forward - Front Hitch Down Backward - Front Hitch Up

Up - Aux 5A

Down - Aux 5B

Left Turn

Signal

Throttle Up/Down

Forward

Neutral

Reverse

Shift Forward/Reverse

Right Turn

Signal

Switch between

Work and

Transport mode

Parking Brake

ON/OFF

Up - Aux 4A Down - Aux 4B

ON/OFF REAR ELECTRICAL/ HYDRAULIC ATTACHMENTS

• Turn rear electrical attachment (IE Sprayer) ON and OFF with 1st toggle

switch on left.

• Turn rear hydraulic ON and OFF with 1st toggle switch on right.

M-B Multi-Service Vehicle • 3 • Reference Guide

Float mode

On/O

Left - Aux 1A Trigger Up - Aux 2A

Aux 3B

Aux 3A

Right - Aux 1A Trigger Down - Aux 2B

Notes

M-B Multi-Service Vehicle • 4 • Reference Guide

Quick Reference User Guide

This page can be removed and kept in the operator’s cab.

HOW TO START

• Sit in seat, fasten seatbelt and insert key.

• Turn key to ON. Wait for screen to display STARTUP (10 seconds).

• Place foot on brake and turn key to START position.

• Hold key in START position for a couple of seconds to start the engine.

If key is turned to START too soon, the tractor will not start.

The key must then be reset by turning it to OFF - leave off for 5 seconds and

then back to ON.

SHUTDOWN

• Turn off PTO.

• Turn off hydraulics.

• Turn key to OFF and release seatbelt to exit tractor.

PARKING BRAKE

• Engages/Disengages automatically when pressing

and releasing accelerator pedal.

when PTO

engaged

FORWARD/REVERSE

• Using the joystick, push the 3rd toggle switch from the left UP for forward or DOWN for

Indicates

Engine Fault

reverse.

THROTTLE (Work Mode)

Indicates Non-

Critical Fault

• Use the 2nd toggle switch

from the left on joystick to throttle UP

(push upward) or to throttle DOWN (pull downward).

RAISE/LOWER FRONT ATTACHMENT

• While tractor is running, pull back on

joystick to raise front attachment.

• Lower attachment by pushing forward on joystick.

GREEN

Headlight

High Beam

Forward - Front Hitch Down Backward - Front Hitch Up

Up - Aux 5A

Down - Aux 5B

Left Turn

Signal

Throttle Up/Down

Forward

Neutral

Reverse

Shift Forward/Reverse

Right Turn

Signal

Switch between

Work and

Transport mode

Parking Brake

ON/OFF

Up - Aux 4A Down - Aux 4B

ON/OFF REAR ELECTRICAL/ HYDRAULIC ATTACHMENTS

• Turn rear electrical attachment (IE Sprayer) ON and OFF with 1st toggle

switch on left.

• Turn rear hydraulic ON and OFF with 1st toggle switch on right.

M-B Multi-Service Vehicle • 5 • Reference Guide

Float mode

On/O

Left - Aux 1A Trigger Up - Aux 2A

Aux 3B

Aux 3A

Right - Aux 1A Trigger Down - Aux 2B

Notes

M-B Multi-Service Vehicle • 6 • Reference Guide

Avoid Abrupt Maneuvers

and Excessive Speed

Travel at Low Speed

When Turning

Always Wear Safety Belt

390-172409

WARNING:

HIGHER ROLLOVER RISK

Safety

WARNING:

Read this manual and any attachment owner’s

manuals before using this equipment. Failure

to do so can result in serious injury or death. Call your dealer if you have any questions.

DANGER

HAZARD DEFINITIONS

For your safety, and to assure the long life of your equipment, be sure you understand the following signal

words which will be seen throughout this manual:

• DANGER: Alerts you to an immediate hazard, which

will always result in severe personal injury and

possible death if it is not avoided.

• WARNING: Alerts you to a hazard which will result

in a serious personal injury or possible death in

some cases, if not avoided.

• CAUTION: Alerts you to a potential hazard which

may result in a serious personal injury if not

avoided. It also alerts against an unsafe practice

that will permanently damage equipment or property.

• IMPORTANT: Points out a proper use that will avoid

damage to the machine, and/or will extend the life of

its parts.

• NOTE: Suggests how to use or adjust the equipment for best product results.

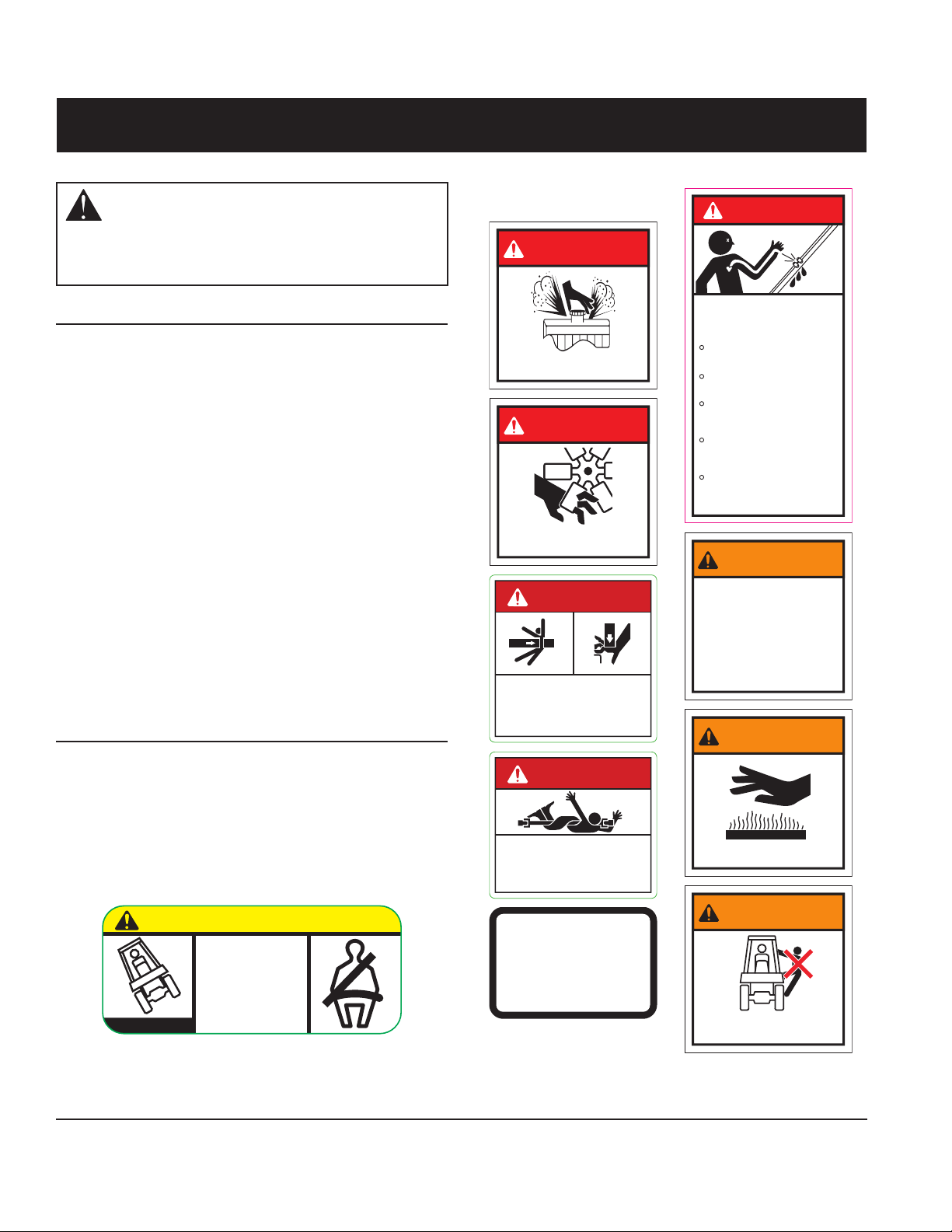

IDENTIFICATION OF SAFETY LABELS

Safety labels are strategically located around the vehicle

to prevent potential hazards. The labels are a permanent

part of the equipment. If they become separated from

the product or illegible, contact M-B Companies Inc. for replacements. Understand the information the labels are communicating before operating or maintaining the equipment.

HOT FLUID UNDER

PRESSURE

390-152998

DANGER

CUTTING/SEVERING OF FINGERS OR HAND - FAN

390-152993

DANGER

To prevent serious injury or death from pinching:

• Keep all persons and objects clear while any part of this machine is in motion.

DANGER

ROTATING DRIVELINE HAZARD

To prevent serious injury or death from rotating driveline:

• Keep all guards in place when operating.

• Keep hands, feet, hair and clothing away from moving parts.

390-157202

390-157201

DO NOT GO NEAR

HYDRAULIC OIL LEAKS

When checking for hydraulic system leaks, observe only.

Never use your hands to check for leaks.

Hydraulic oil from a pin hole leak can puncture your skin and cause serious injury, gangrene, or death.

If injured by hydraulic oil under pressure, seek medical attention immediately.

Oil can be hot and can cause severe burns.

WARNING

Uneven terrain at

higher speeds may

cause vehicle to

become unstable

WARNING

HOT SURFACE

390-152995

390-157200

390-152994

WARNING

EMERGENCY

PUSH TO STOP

PULL TO RUN

390-134607

M-B Multi-Service Vehicle • 7 • Safety

NO RIDERS OR

HANGERS ON

390-152996

GENERAL SAFETY

• This manual should be available during operation.

• Extra copies of this manual are available for purchase through M-B Customer Service.

• To avoid serious injury or death, do not modify

equipment. Any modications made to equipment can be dangerous and can void equipment warranty.

• Never defeat a safety device to make a task easier.

• Never deface or remove factory-installed safety labels. If a label ever becomes lost, damaged, or illegible, report this condition to a supervisor and obtain a replacement label from the Customer Service department of M-B Companies, Inc.

• Always wear proper apparel when operating

equipment; safety glasses, face shield or goggles,

ear protection, and dust mask. Tie hair back. Never

wear loose clothing or jewelry that could get caught

in moving parts.

• Never operate equipment with covers or guards

removed. Rotating parts can cause severe injury. Keep hands, feet, hair, jewelry and clothing away

from all moving parts.

• Understand the operation of hydraulic and pneumatic controls.

• Understand which adjustments are operator and which are maintenance adjustments.

• Always shut OFF equipment when left unattended.

• Never operate or work around equipment if under

the inuence of alcohol, drugs or medications.

WARNING:

Batteries give off ammable fumes that can explode resulting in personal injury.

Electrolyte is an acid and can cause personal injury if it contacts skin or eyes.

PRE-START-UP SAFETY

• Install any covers or guards which may have been removed for shipping purposes or maintenance.

• Before starting equipment, walk around equipment,

making a visual inspection that all safety devices are properly installed and secured.

• Check that all hardware, fasteners, hydraulic ttings, etc. are in good condition and properly fastened. Replace any fatigued or damaged items with proper

replacements.

• Personnel who are not required to be in the

work area should be kept away. Never start the equipment unless you are absolutely certain that everyone in the area is clear of the machine and

aware it is being started.

• Follow the manufacturer’s recommended start-up procedure.

PRESSURIZED SYSTEMS SAFETY

• Do not disassemble a pressurized system unless properly trained and equipped with adequate

tooling.

• Familiarize yourself with the proper method of

relieving pressure from pneumatic or hydraulic systems. Never perform maintenance on, or disassemble, pressurized systems without rst locking out power to these systems and then

relieving pressure to them.

• Oils and uids can be very hot under pressure.

Use caution and allow the system to cool before

beginning maintenance work.

• Never operate or pressurize one of these systems with worn or damaged components. Replace hoses,

ttings, valves or other components which appear

defective.

• Never adjust pressurized systems beyond recommended levels to achieve higher operating pressures.

Figure 1

• Always use the safety link whenever transporting or performing work on the vehicle. Closing the

safety link will prevent unexpected movement of the

articulation joint.

M-B Multi-Service Vehicle • 8 • Safety

THE MANUAL

It is the purpose of this manual to provide complete instructions for the operation of the M-B Multi-Service Vehicle.

Directional Reference

All reference to left, right, front, or rear are given from the operator in the operator position and facing the

direction of your unit.

REQUIRED OPERATOR TRAINING

Original purchaser of this unit was instructed by the

seller on safe and proper operation. If unit is to be used

by someone other than original purchaser; loaned, rented or sold, ALWAYS provide this manual and any needed safety training before operation.

The Operator Must Understand:

• How to operate all controls

• The functions of all controls

• How to STOP in an Emergency

• Speed Ranges

WORK AREA

• ALWAYS check overhead and side clearances carefully before operation. ALWAYS be aware of trafc when operating along streets and curbs.

• Keep area of operation clear. Stay alert for hidden hazards.

• DO NOT run engine in an enclosed area. Always provide good ventilation.

• Abnormal Vibrations are a warning of trouble. Striking a foreign object can damage unit. Stop unit and engine. Wait for all moving parts to stop.

Inspect unit and make any necessary repairs before

restart.

• Protect eyes, face, and head from objects that may be thrown from unit. Wear appropriate hearing protection.

• Avoid Sharp Edges. Sharp edges can cause

serious injury. Wear gloves to service unit when

handling sharp edges.

• ALWAYS keep hands and feet away from all moving parts during operation. Moving parts can cause

serious injury or death.

• Be aware of the surroundings. Look for blind spots from which pedestrians or vehicles may suddenly appear.

• Locate the emergency stop on the vehicle.

• Do not operate in crowded pedestrian areas. This

equipment may cause serious injury or death if safety rules are not followed.

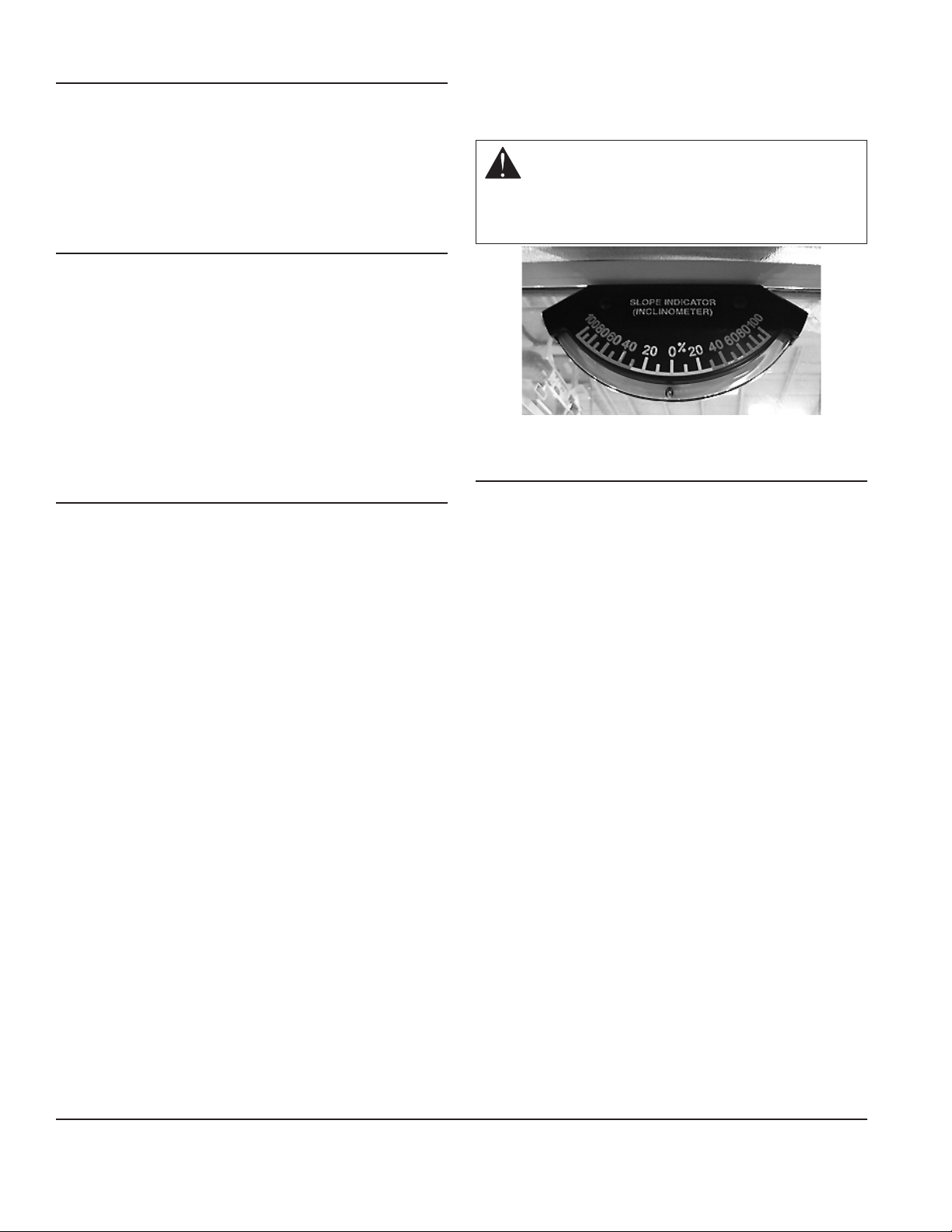

• The M-B Multiple Service Vehicle (M-B MSV) uses a level gauge. The gauge helps the operator determine the angle or slope of the surface being driven on. The gauge shows percent of grade.

WARNING:

During normal operation the M-B MSV must not exceed 30% grade to either side. Adding

any attachment to the M-B MSV will affect the

safe maximum grade.

Figure 2

MAINTENANCE SAFETY

• Do not remove guards while operating. After maintenance work, be sure all guards and other

safety devices are installed and in proper working

order.

• Never clean, lubricate, or adjust equipment while it is moving, has the potential to move or when engine is running.

• Always release pressure from pressurized systems before disassembling.

• Allow ample time for heated components to cool before working on or working close to them. Use temperature sticks or other appropriate devices to test temperatures.

• ALWAYS maintain unit in safe operation condition.

• Check the conditions of the unit at the end of each

day and repair any damage or defects.

• Keep all fasteners properly torqued and in safe operating condition.

• Before maintenance, adjustments, or service

(except where specically recommended), shut off

engine, and secure from moving.

Storage

ALWAYS clean and lubricate equipment before extended storage. Disconnect the battery cables. Clean and lubricate equipment every 6 months during prolonged

storage.

M-B Multi-Service Vehicle • 9 • Safety

General Information

INTRODUCTION

Thank you for choosing M-B Companies, Inc. as your

equipment manufacturer and supplier. As part of our commitment to total customer satisfaction, we have strived to ensure that the information contained within this manual is complete and representative of the

equipment you have purchased. The manual cannot, however, anticipate every possible contingency to be

met in the installation, operation and maintenance for

your equipment. If you require additional information

not included in this manual, please contact our Service Department at:

Customer Service Department

c/o M-B Companies, Inc.

1615 Wisconsin Ave.

PO Box 200

New Holstein, WI 53061

Phone: 1-888-558-5801 or 1-800-558-5800

Fax: 920-898-4588

MACHINE IDENTIFICATION

Each machine manufactured by M-B Companies, Inc. has an identication plate mounted to it as shown in Figure 3. This plate contains the serial number of your M-B equipment. Copy the information from the plate on your equipment into the appropriate space in Figure 3.

This information is important to have available when communicating with M-B.

CUSTOMER SERVICE

The serial number on your equipment is essential

for proper service support. When contacting M-B

Companies regarding service support, always provide

the product serial number. This number is located on

the identication plate mounted on your equipment,

and should also have been recorded in the Machine

Identication section.

Customer Service Department

c/o M-B Companies, Inc.

1615 Wisconsin Ave.

PO Box 200

New Holstein, WI 53061

Phone: 1-888-558-5801 or 1-800-558-5800

Fax: 920-898-4588

Vehicle

Certication Label

Figure 3

M-B Multi-Service Vehicle • 10 • General Information

Ballast Calculations

Adding Attachments will affect the stability, performance, characteristics, and reduces safe operating grades.

 Never exceed the max rating of the weakest component: GVWR, max axle ratings, or tire capacity.  Never operate with less than 25% of the total load on the front axle.  All calculations should be verified by weighing the MSV with the attachments on a certified scale.  Attachments such as sanders and sprayers should be checked when filled with desired particulate.  A scale must be used to determine axle weights when using a dump body.  Ballast Types include: Fluid filled tires, wheel weights, or another attachment.

NOTE: All weights in pounds; all dimensions in inches.

CW= Curb Weight for MSV-100501; 6620 lbs, Front-2140 lbs, Rear-4480 lbs

TW =FA+RA including attachments and or ballast.

WB = Wheel Base; 81in for MSV

TFA= Total Front Axle Weight

TRA= Total Rear Axle Weight

CgF= Weight at the center of gravity of front attachment or ballast

CgR= Weight at the center of gravity of rear attachment or ballast

FA = Front Axle

RA = Rear Axle

dF = dimension from center of front axle to Center of gravity on front attachment or ballast

dR = dimension from center of rear axle to Center of gravity on rear attachment or ballast

ሾ࡯ࢍࡲ ൈሺࢊࡲ ൅ ࢃ࡮ሻ൅ሺ૛૚૝૙ ൈ ࢃ࡮ሻെሺ࡯ࢍࡾ ൈ ࢊࡾሻሿ

ࢀࡲ࡭ ൌ

ࢃ࡮

ࢀࢃ ൌ ࡲ࡭ ൅ ࡾ࡭

ࢀࡾ࡭ ൌ ࢀࢃ െ ࢀࡲ࡭

If unsure of calculations, contact M-B Customer Support 1-800-558-5800

M-B Multi-Service Vehicle • 11 • Ballast Calculations

Vehicle Information

INTRODUCTION

This section provides information that is specic to the M-B MSV. Each sub-section describes a component or system to give the reader a reasonable understanding

of the topic. If a more in-depth knowledge is needed, contact M-B Companies Customer Support.

M-B Multi-Service Vehicle • 12 • Vehicle Information

Operation

INTRODUCTION

This section of the manual describes the function of the

controls typically provided with the MSV. Because of

the unique and complex nature of this equipment, this

document may not be an exact representation of the controls on your equipment.

Controls which are not part of the standard or optional M-B controls package, but which are unique to an

individual attachment may not be listed. Separate

manuals are created for attachments.

M-B Companies Inc. reserves the right to modify the

function or location of the operator controls. Please call our Customer Service Department before operating

the machinery if you have any questions regarding the controls on your MSV.

OPERATOR CAB CONTROLS

The operator cab has several controls that are used to operate the M-B MSV. This section details the controls

that the operator uses to provide comfort and safety. The joystick and the Plus+1® interface are described in

another section.

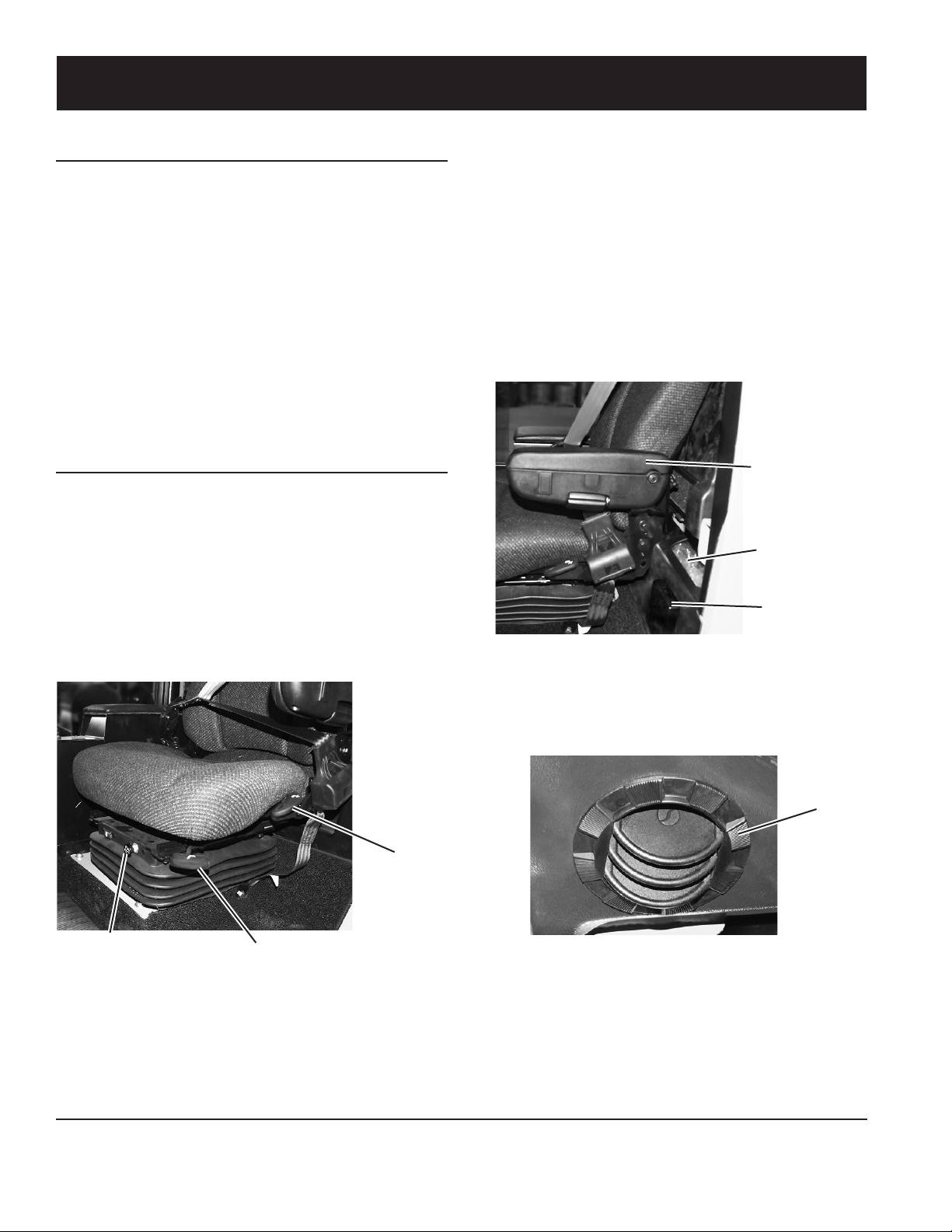

Operator Seat

The seat is cushioned by an airbag that absorbs bumps and vibration. The rmness of the cushion is adjusted

using a knob located at the front of the seat and below the operators legs (Figure 4).

With the engine running, the rmness is adjusted by rotating the knob up for rmer or down for less rm.

When the engine is off rotating the knob down releases air.

Two levers on the side of the seat control forward/back

and seat back position.

Move the front lever to release the seat and move the seat to the new position. Release the lever to lock.

Lift the rear lever to release the seat back. Reposition

the seat back and release the lever to lock.

The cab also has a cup holder, document storage

compartments and a ip down armrest (Figure 5).

Flip Down

Armrest

Document

Storage

Cup Holder

Figure 5

Air Vents

There are several air vents throughout the cab. The vents can be rotated and the blades move to direct

airow (Figure 6).

Rotating

Ring

Seat Back

Adjust Seat Air Cushion

M-B Multi-Service Vehicle • 13 • Operation

Forward/Back

Figure 4

Figure 6

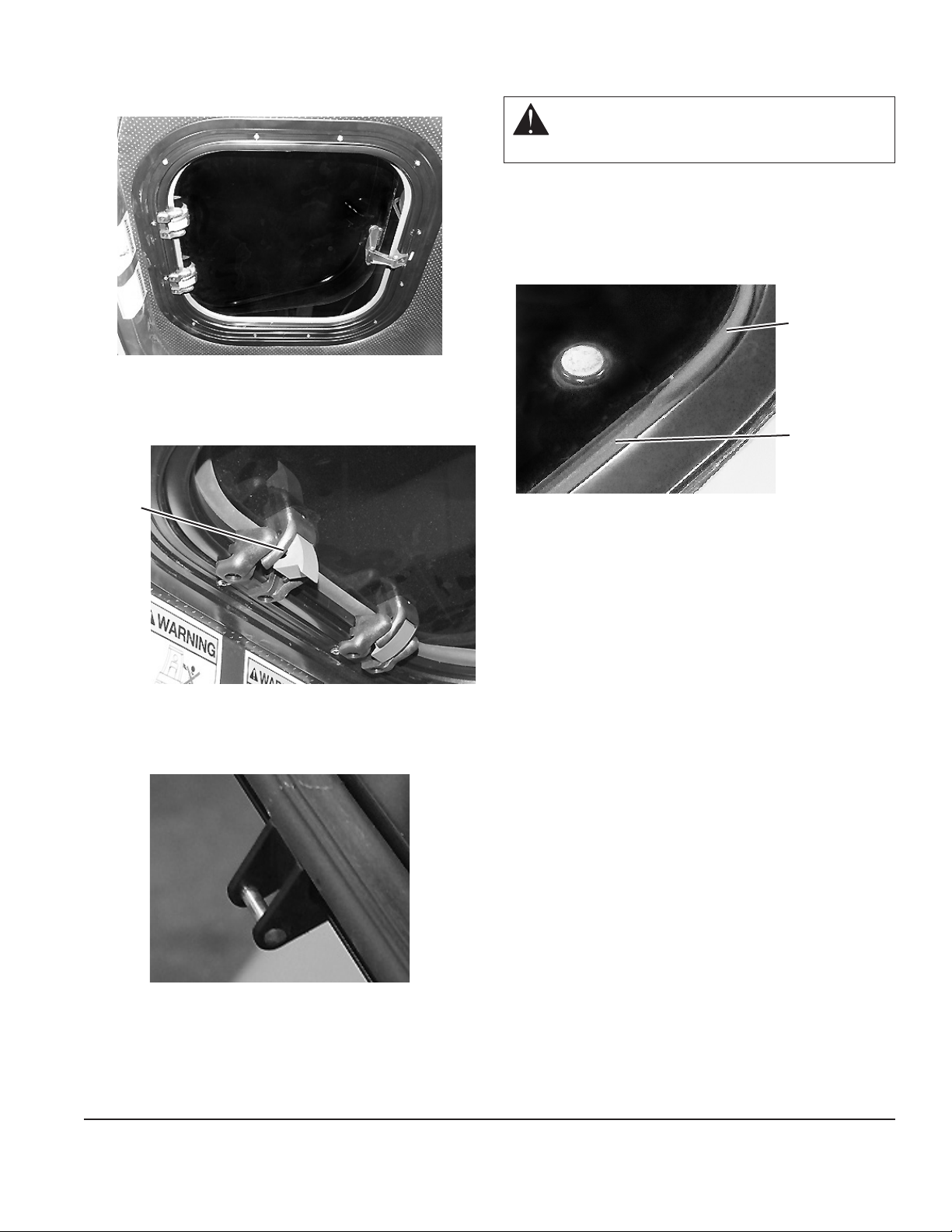

Sunroof

The sunroof can be opened by ipping the rear latch and

pushing up on the back half of the window (Figure 7).

Figure 7

The window can be removed completely. The two front latches are opened by pulling down on the center piece

(Figure 8).

To replace the window, position it on top of the opening seal.

CAUTION:

The seal must be in proper location or it will leak.

Move the latches into position. Secure the front two by

snapping the levers into the hinge point. The rear latch should be positioned so the open clip is over the post. Then push that end onto the post.

Open the window and inspect the seal. The front edge of

the window must lay at on the seal (Figure 10).

Seal Pushed

Out

Seal Correct

Clip

Open

Figure 8

Open the rear latch. Pull down sharply on the end

attached to the roof. The latch will pull free from the connection leaving the post (Figure 9).

Figure 10

With the window open the seal can be pulled into position.

Figure 9

Remove the window and store in a safe place.

M-B Multi-Service Vehicle • 14 • Operation

STEERING COLUMN

Several controls are located on the steering column. The left side has controls for; windshield squirter, horn, wiper, headlight high beams and the steering wheel tilt (Figure 11).

The right side and the top end of the column have

controls for; fan, keyswitch, lights, hazard lights and air

conditioning (Figure 11).

Key Switch

Very similar to an automotive key switch, there are three positions; OFF, ON, and START. When the key switch

is OFF, all vehicle functions except the horn are off. After

the engine is started the keyswitch releases to ON (run).

IMPORTANT: The engine will not start unless Plus+1®

is ready. Turn the key to ON and wait for Plus+1® to start up (approximately 15 seconds). If the key is turned to START before Plus+1® is ready, the key must be reset. Turn the key to OFF, wait 5 seconds, then back to ON. When Plus+1® is ready the engine preheater will be ready. The engine can then be started.

To start the engine the operator must be in the seat and the seat belt must be fastened. The Plus+1® must be showing the main operating screen.

Windshield Squirter

The ring at the end of the lever activates the windshield

squirter. Press in on the ring. Washer uid will be

pumped as long as the ring is pressed. The wipers will start moving then stop when the ring is pressed. See Figure 11.

Horn

The horn will work regardless of the key switch position.

Press in on the button at the end of the lever. See Figure 11.

Wiper

Rotating the barrel of the lever will activate the wipers. From the off position rotate the barrel up (clockwise) one notch for low speed. Rotate two notches for high speed wipers. Rotate the barrel down (counterclockwise) for intermittent wipers. See Figure 11.

Headlight High Beams

When the headlights are on, push down on the lever to change between low and high beam settings. See Figure 11.

Fan

The fan pulls air through the lter cartridge and into the

cab. Rotating vents distribute the air. The switch has four positions; OFF, LOW, MEDIUM, and HIGH. See Figure 11.

Push center

for horn

Push outer ring for windshield washer

Rotate for Wipers:

High

Low

Off Intermittent

Steering Column

Tilt/Telescope

Push down for

headlight

high beams

Fan:

Off

Low

Medium

High

Key Switch: Off

On Start

Exterior Lights: Off

Running Headlights

Hazard Flashers: Off On

Air Conditioning: Off On

Figure 11

M-B Multi-Service Vehicle • 15 • Operation

Steering Column Tilt/Telescope

The steering column can be tilted and telescoped toward

or away from the operator. Hold the steering wheel with

one hand. Move the lever to unlock. Tilt or telescope the steering column to a comfortable position. Release the lever to lock the column in the new position. See Figure 11.

Switches

There are switches for the exterior lights, hazard ashers

and air conditioning. These rocker switches are located at the top of the steering column. See Figure 11.

• Air Conditioning - On/Off

• Hazard Flashers - On/Off

When the lights are ashing, the turn signal arrows

on the Plus+1® display will ash.

• Exterior Lights - Off/Running/Headlights

When the switch is moved to a position it will stay

until it is pushed again.

RADIO CONSOLE

The radio is on the right side of the steering column. Another feature is a 12 volt 10 amp power point socket. It is similar to an automotive outlet where accessories can be plugged in. See Figure 12.

CIRCUIT BREAKERS

Located under the right armrest are push-to-reset circuit

breakers (Figure 13).

If a circuit breaker trips or trips repeatedly, maintenance personnel should be notied. A circuit breaker that

needs to be reset more than once is an indication of an electrical problem that requires repair.

Figure 13

HEATER BYPASS

In front of the joystick is an adjustment for bypassing

the heater. When this knob is rotated the temperature of incoming air is raised or lowered. Opening the valve increases heat.

IMPORTANT: This adjustment should be closed

when the air conditioning is on.

Accessory Plug-in

12 volt

10 amp

Figure 12

M-B Multi-Service Vehicle • 16 • Operation

Figure 14

Operation - Plus+1® Controls

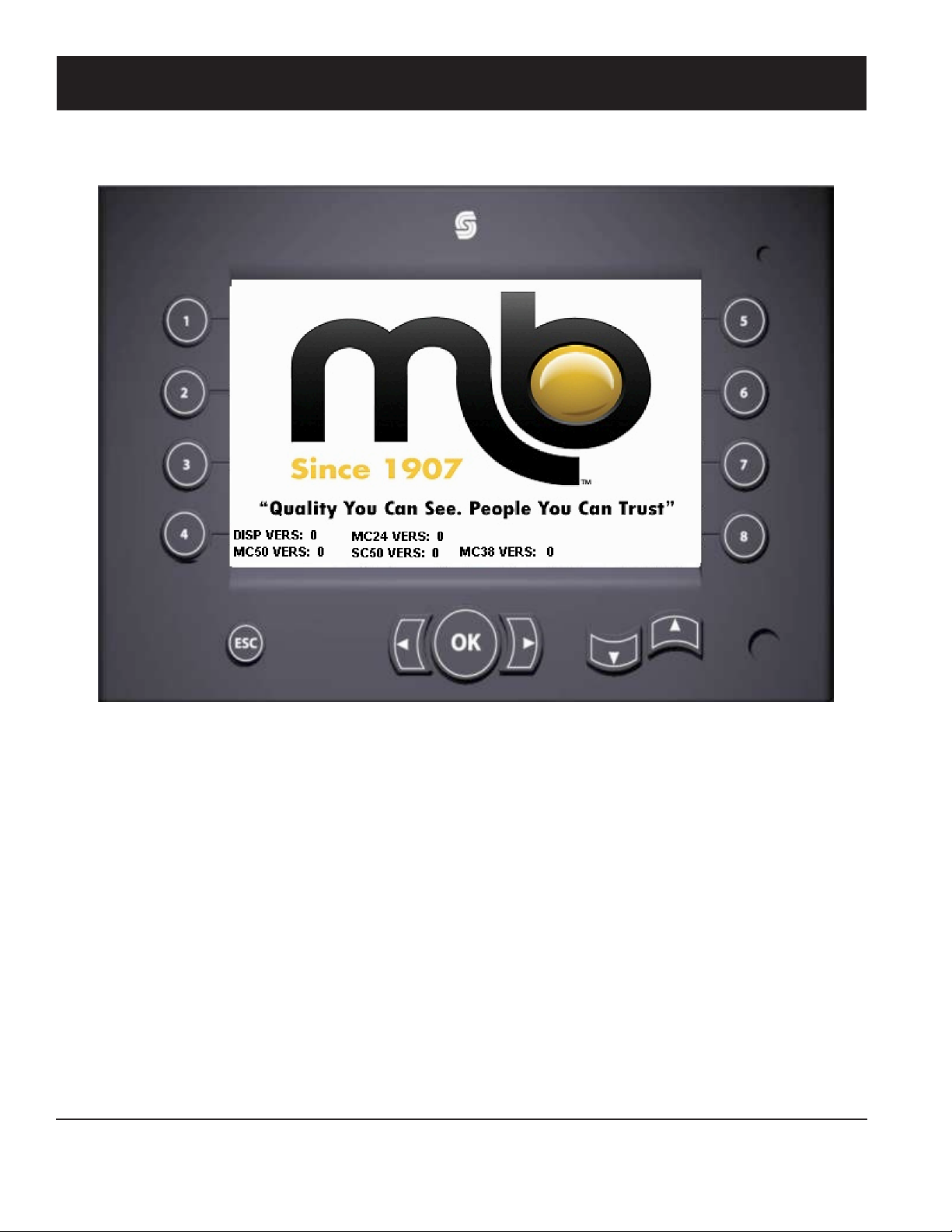

Open Screen

M-B Multi-Service Vehicle • 17 • Operation

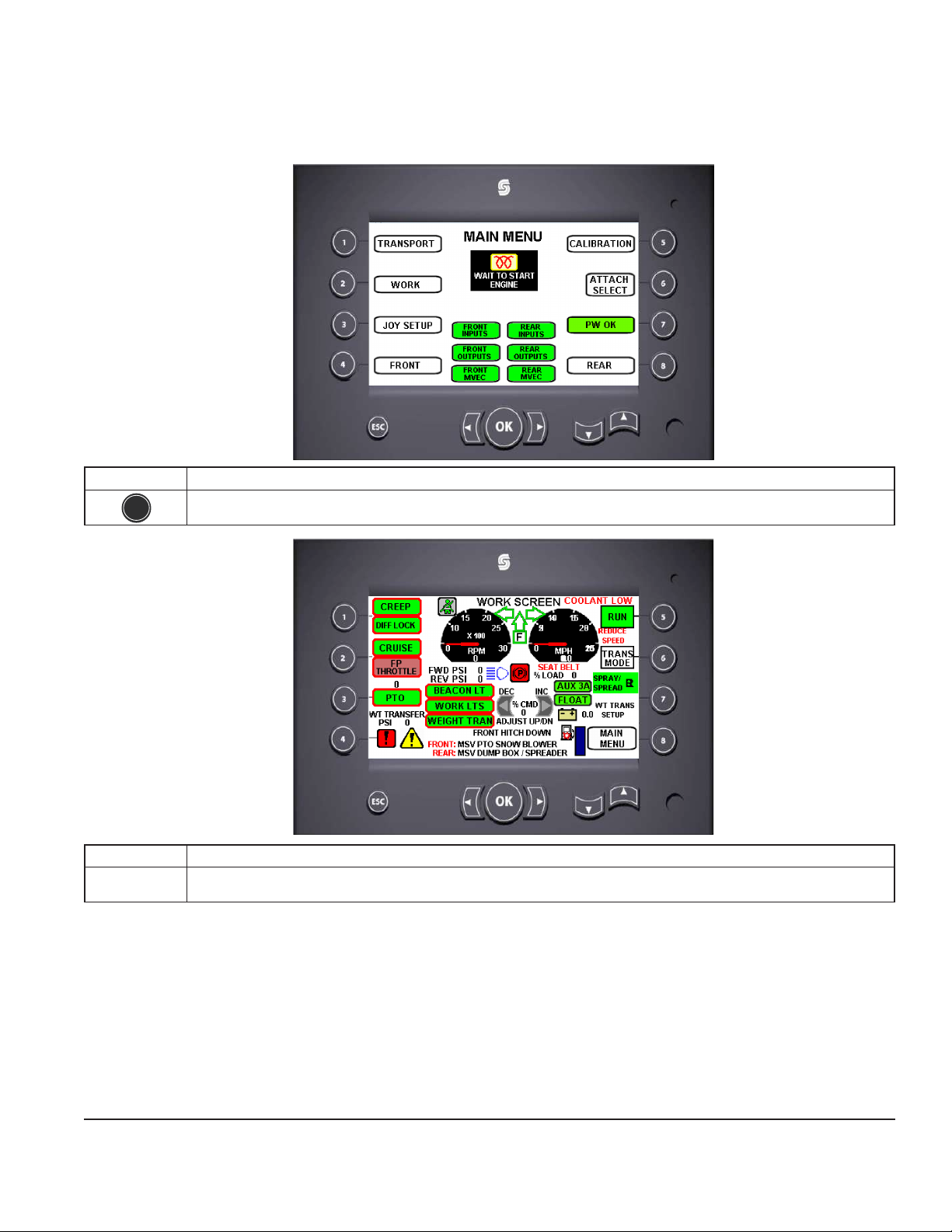

Main Menu Screen

Button Function

Access Transport Mode (Refer to Page 19 )

Access Work Mode (Refer to Page 21 )

Access Joystick Setup (Refer to Page 23)

Access Front Inputs, Outputs, and MVEC Status Screens -

Use Up and Down arrows to access each section (Refer to Pages 24-26)

Access Calibration Screen (Refer to Page 27)

Access Attachment Selection Screen (Refer to Pages 28-29)

Access Password Screen - If showing “PW OK” Password access has be granted (Refer to Page 30)

Access Rear Inputs, Outputs, and MVEC Status Screens -

Use Up and Down arrows to access each section (Refer to Page 31-33)

Up and Down arrow keys will cycle through the screen functions as well.

M-B Multi-Service Vehicle • 18 • Operation

Transport Mode Screen

Button Function

Turns on cruise control function of MSV. To engage cruise control press “OK”. To disengage press brake pedal or “OK” button

again. To return to foot pedal throttle (FP Throttle) arrow down. Pressing okay will activate joystick throttle control.

Actives low speed, pressing again will return to high speed mode

Access to faults screens (Refer to page #)

Brings MSV to idle. Pressing again brings MSV back to last RPM level

Access to work screen mode – may have to reduce speed

NOT USED

Returns to Main Menu

Activates beacon light controls. Pressing “OK” turn on/off beacon light.

Arrow down again to access rear work light controls. Pressing “OK” will turn on /off the rear work lights, if equipped.

Icons in uppers left corner of screen will light up red when a warning has occurred.

A beep with occur every minute when a warning light is illuminated.

M-B Multi-Service Vehicle • 19 • Operation

Transport Screen Icons

Left Signal Indicator

Right Signal Indicator

Vehicle Drive Status

Headlight High Beam Indicator

Hour Meter

Alarms Display

Engine RPM

Vehicle Speed

Glow Plugs

Low Fuel Warning

High Engine Temperature

Service Hydraulic Filter

Oil Pressure Warning

Low Batttery Voltage

High Hydraulic Oil Temperature

Parking Break Engaged

Seat Belt

Engine Fault

Main Menu

Cruise

Foot Pedal Throttle

Hi/Low Range Selection

Lights - select to turn on

Indicates when in High Speed

Quick Stop - Quick Idle

Vehicle Ground Drive

System Faults

System receiving signal from

engine ECM

Fuel Gauge

Engine Coolant Guage

Engine Oil Gauge

Low Battery Gauge

Hydraulic Oil

Operator is present

Current horsepower load being

used by engine

M-B Multi-Service Vehicle • 20 • Operation

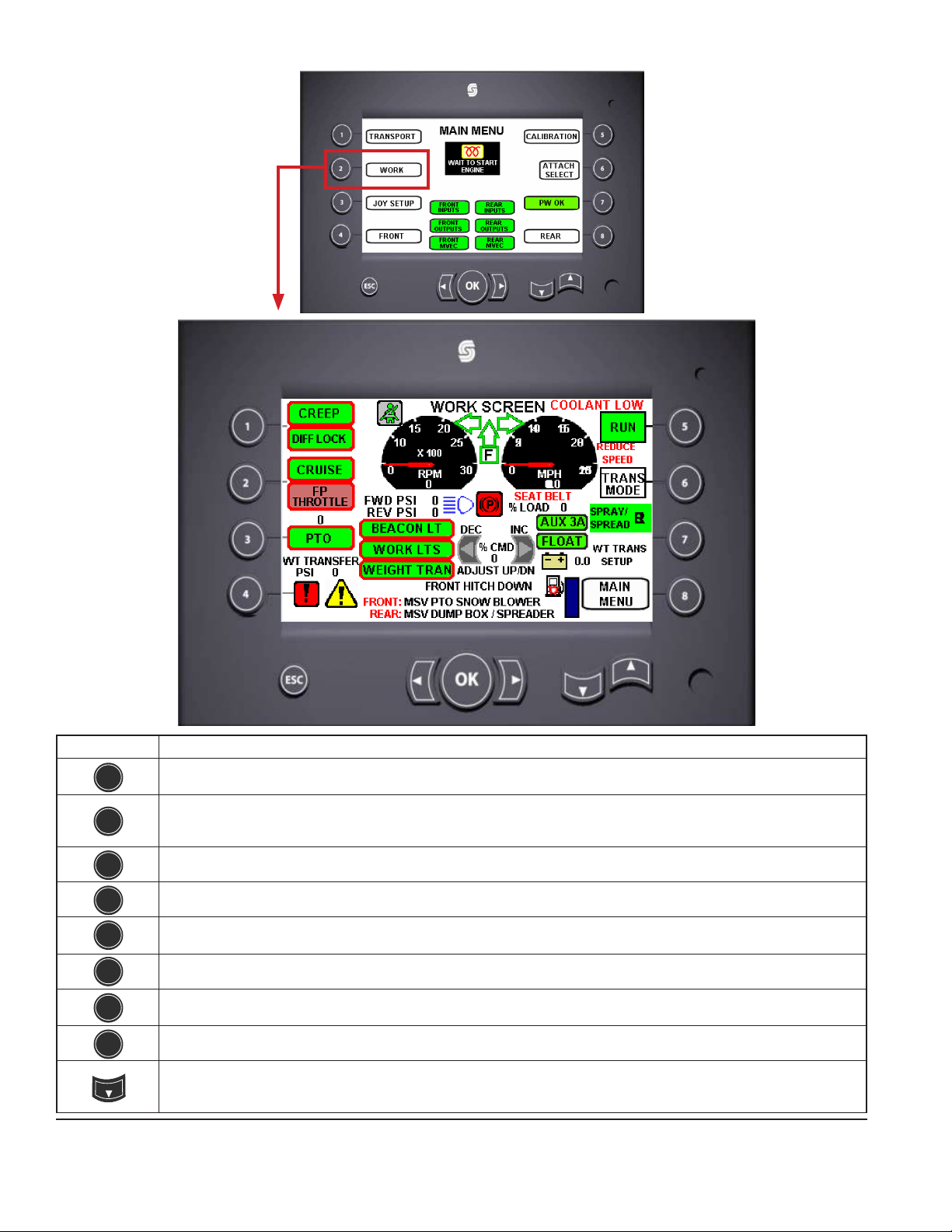

Work Mode Screen

Button Function

Press to select creep mode, press “OK” to engage creep mode. Utilize creep mode to connect attachments.

Press again to select diff lock mode, press “OK” to engage. Diff lock is used to reduce wheel slippage, use only under 7 MPH.

Turns on cruise control function of MSV. To engage cruise control press “OK”. To disengage press brake pedal or “OK” button again. Press again to activate foot pedal throttle, press “OK” to engage

Energizes PTO icon. Press “OK” to activate PTO icon. MSV must be under 1200 RPM to activate

Access to faults screens (Refer to pages 35-36)

Brings MSV to idle. Turns off any attachment. Pressing again will return MSV to previous RPM and turn back on the attachments that were previously on.

Access to transportation screen mode

Access to weight transfer setup screen. Must have weight transfer function selected.(Refer to page 34)

Returns to Main Menu

Activates beacon light controls. Pressing “OK” turn on/off beacon light. Arrow down against to access rear work light controls. Pressing “OK” will turn on /off the rear work lights, if equipped.

Arrow down again to active weight transfer function (Refer to page 34)

M-B Multi-Service Vehicle • 21 • Operation

Work Screen Icons

Left Signal Indicator

Right Signal Indicator

Vehicle Drive Status

Headlight High Beam Indicator

Alarms Display

Seat Belt connected (green)

Seat Belt not connected

Parking Break Engaged

Current horsepower load being

used by engine

Quick Stop - Quick Idle

Vehicle Ground Drive

Speed too high. Switch to Work Mode. Must stop to switch modes.

Spray/Spreader on (green)

Speader Speed 0-6

Setup Weight Transfer

Aux 3A on (green)

Hitch in Float Mode (green)

Voltage

Engine RPM

Vehicle Speed

Creep Mode ON (green)

Diff lock engaged (green)

Cruise engaged (green)

Foot Pedal Throttle active (green)

PTO RPM

PTO engaged (green)

Amount of weight on front hitch

Fuel Level

Main Menu

Pressure level to ground drive

Lights - select to turn on (green)

Weight Transfer engaged (green)

Adjustment for Weight Transfer

Engine Fault

System Faults

Function being operated by joystick

Current front and rear attachment selection

M-B Multi-Service Vehicle • 22 • Operation

Joystick Setup Screen

Button Function

Returns to Main Menu

Cycle through each function. Press “OK” to select function. Press up/down again to place the position of the function. Function must not be active on other selections. Place NA on the functions you do not want to use. Functions 3, 4, 5 and 6

cannot be moved.

The numbers on the left side of each function are the default numbers. Place the number in the right to set back

factory default. Functions 19, 20, and 21 are bonus functions that must be assigned an unused number.

M-B Multi-Service Vehicle • 23 • Operation

Front Input Screen

Button Function

Returns to Main Menu

Press to highlight Front Inputs

Cycle through Front Inputs, Outputs and MVEC

Press to access highlighted option

Displays the status of the front inputs.

M-B Multi-Service Vehicle • 24 • Operation

Front Output Screen

Button Function

Returns to Main Menu

Press to highlight Front Inputs

Cycle through Front Inputs, Outputs and MVEC

Press to access highlighted option

Displays the status of the front ouptuts and what voltage or current it is modulating.

M-B Multi-Service Vehicle • 25 • Operation

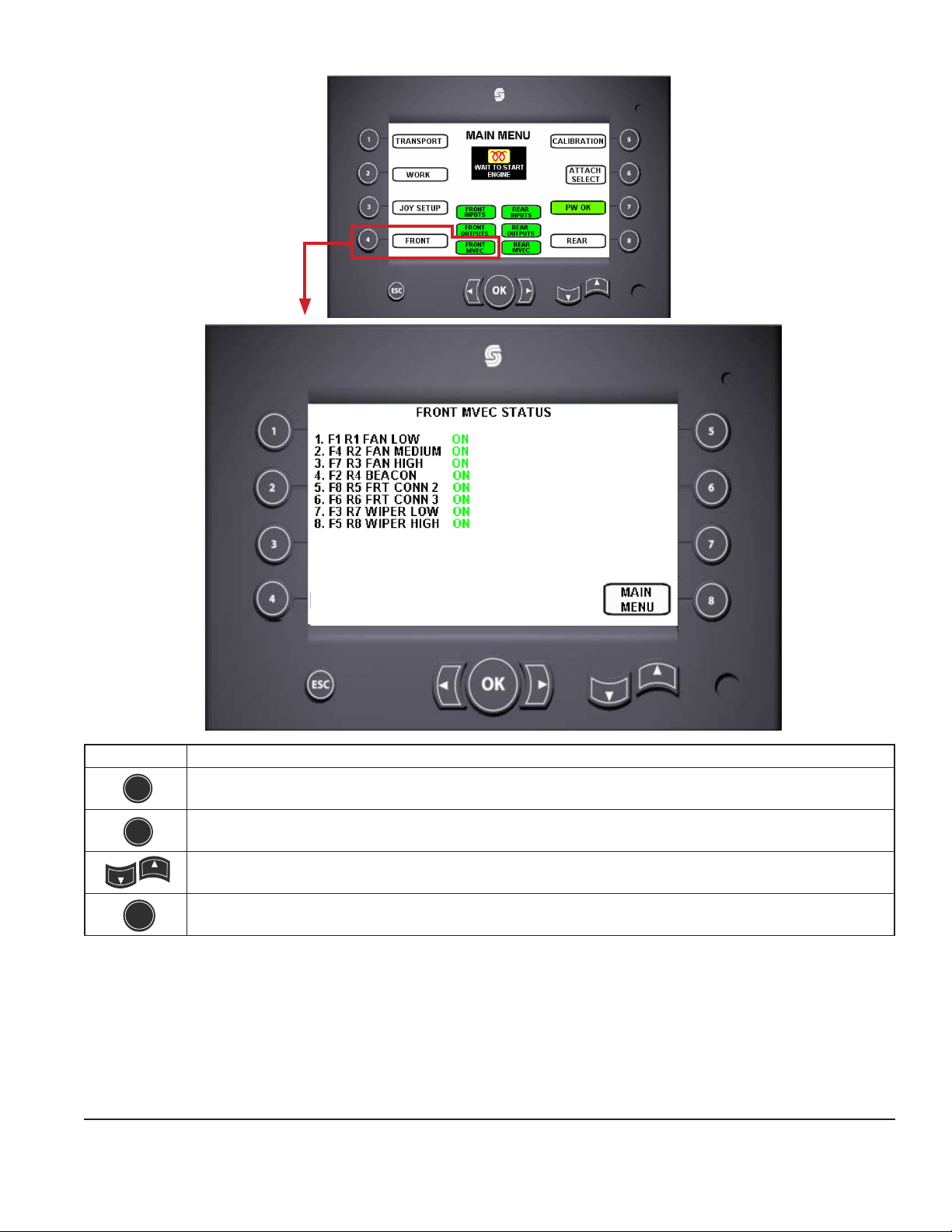

Front MVEC Screen

Button Function

Returns to Main Menu

Press to highlight Front Inputs

Cycle through Front Inputs, Outputs and MVEC

Press to access highlighted option

Displays the status of the front MVEC.

M-B Multi-Service Vehicle • 26 • Operation

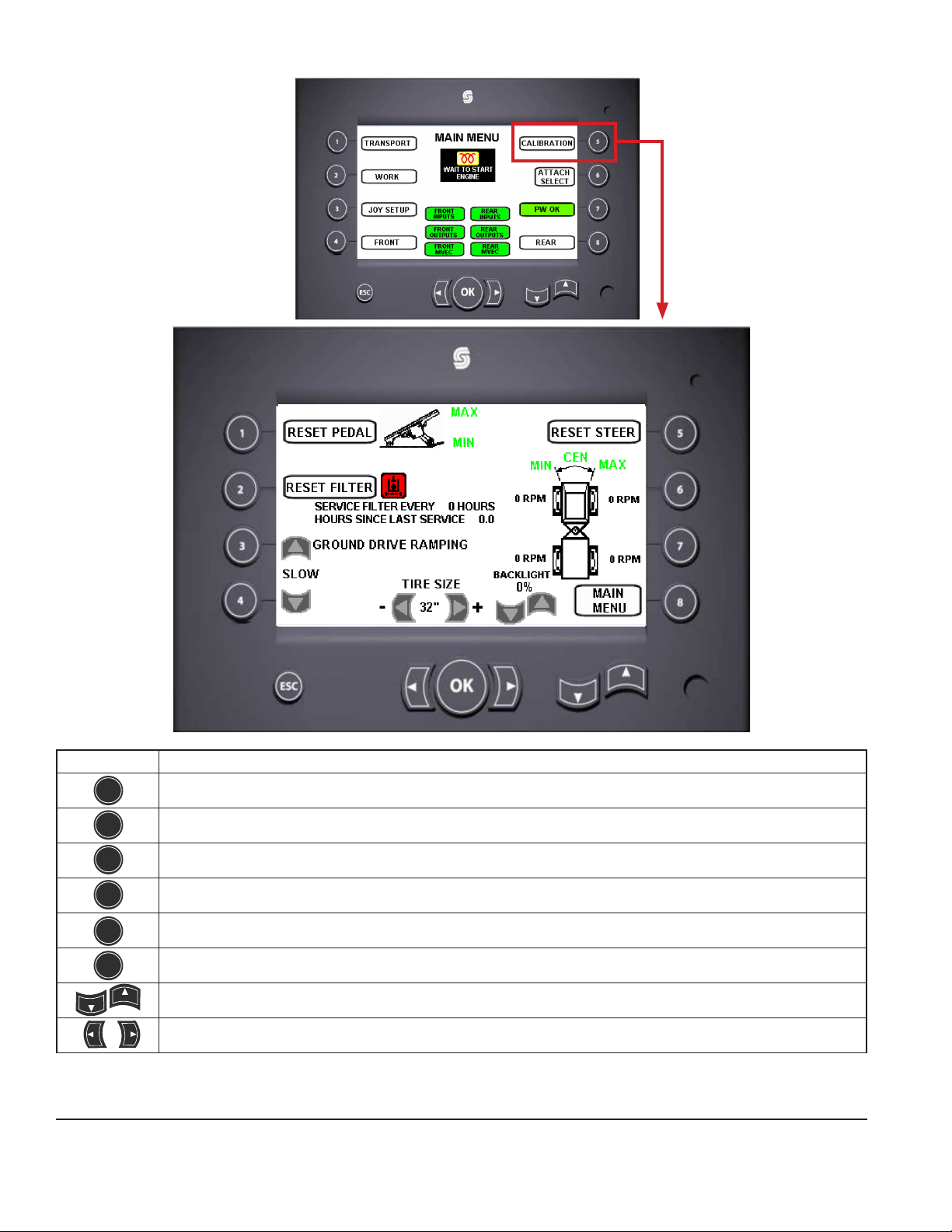

Calibration Screen

Button Function

Resets foot pedal settings. Allows you to recalibrate foot pedal

Resets hydraulic lter notice

Cycles between slow, medium and high ground drive ramping

Resets steering cylinders

Returns to Main Menu

Change screen brightness

Change tire size

M-B Multi-Service Vehicle • 27 • Operation

Attachment Selection Screen

Button Function

Front attachment selection

Arrow up/down to cycle through attachments. Press and hold “OK” for three seconds to select attachment

Press and hold to reset front attachment

Rear attachments selection

Arrow up/down to cycle through attachments. Press and hold “OK” for three seconds to select attachment

Press and hold to reset rear attachment

Access attachment setup screen. This function is only accessible with password clearance from the main menu screen.

Returns to Main Menu

Each selection illuminate in red when a fault is registered.

M-B Multi-Service Vehicle • 28 • Operation

Attachment Selection Screen

Once you have your attachment selected on the attachment selection screen you can access the attachment setup screen only with password clearance from the main menu screen.

M-B Multi-Service Vehicle • 29 • Operation

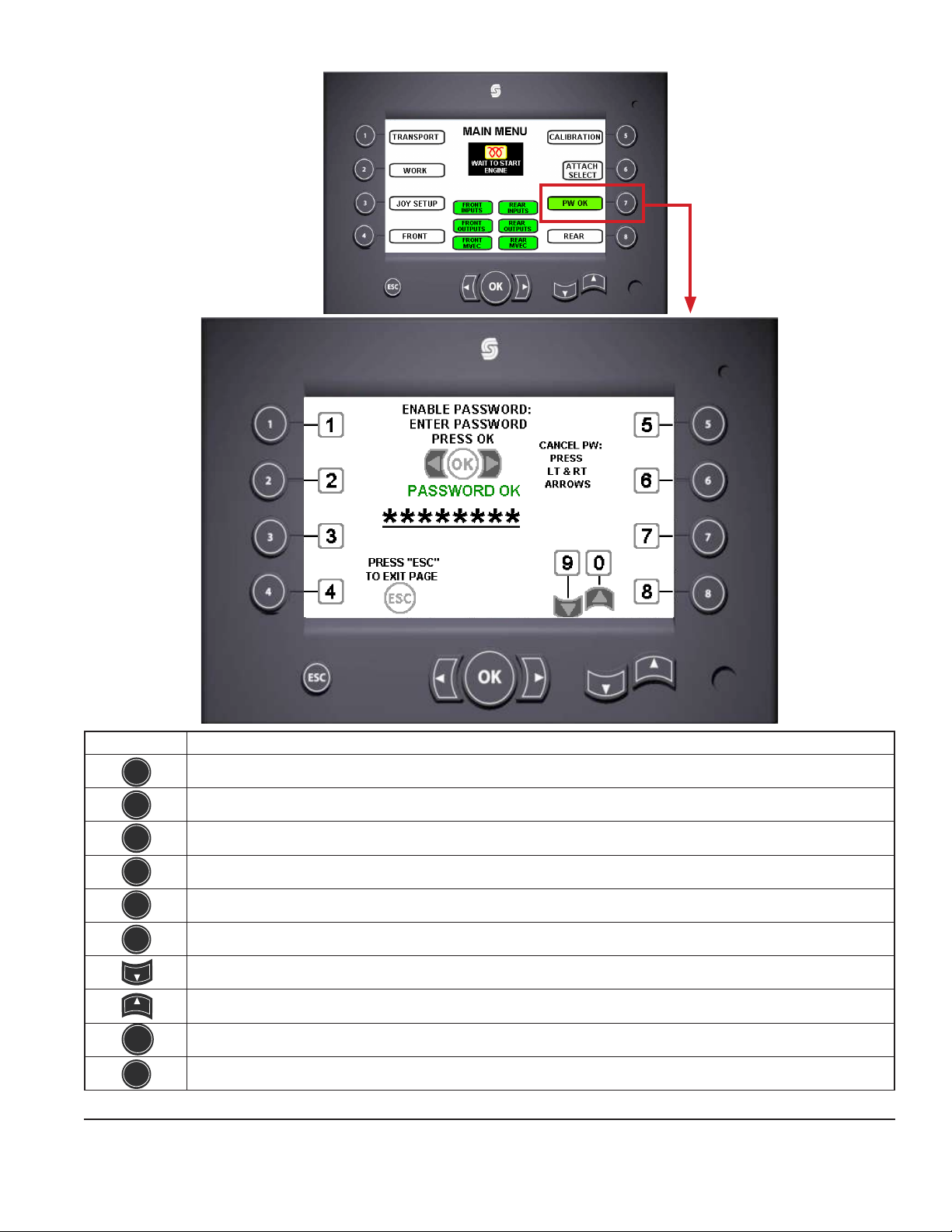

Password Screen

Button Function

esc

Submit Password

Returns to Main Menu

Only accessible when password has been provided by M-B

M-B Multi-Service Vehicle • 30 • Operation

Rear Input Screen

Button Function

Returns to Main Menu

Press to highlight Rear Inputs

Cycle through Rear Inputs, Outputs and MVEC

Press to access highlighted option

Displays the status of the rear input and frequency.

M-B Multi-Service Vehicle • 31 • Operation

Rear Output Screen

Button Function

Returns to Main Menu

Press to highlight Rear Inputs

Cycle through Rear Inputs, Outputs and MVEC

Press to access highlighted option

Displays the status of the rear output and frequency.

M-B Multi-Service Vehicle • 32 • Operation

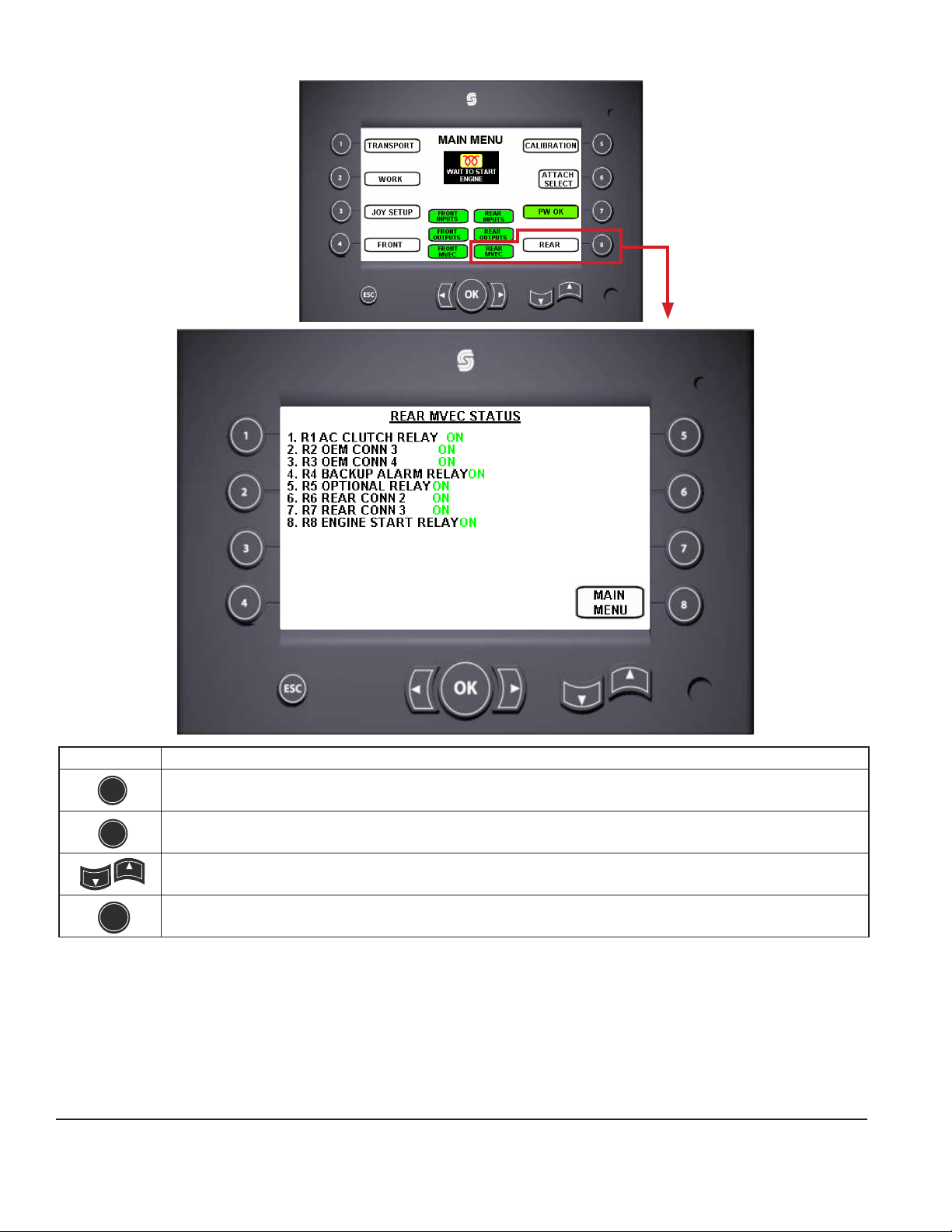

Rear MVEC Screen

Button Function

Returns to Main Menu

Press to highlight Rear Inputs

Cycle through Rear Inputs, Outputs and MVEC

Press to access highlighted option

Displays the status of the rear MVEC.

M-B Multi-Service Vehicle • 33 • Operation

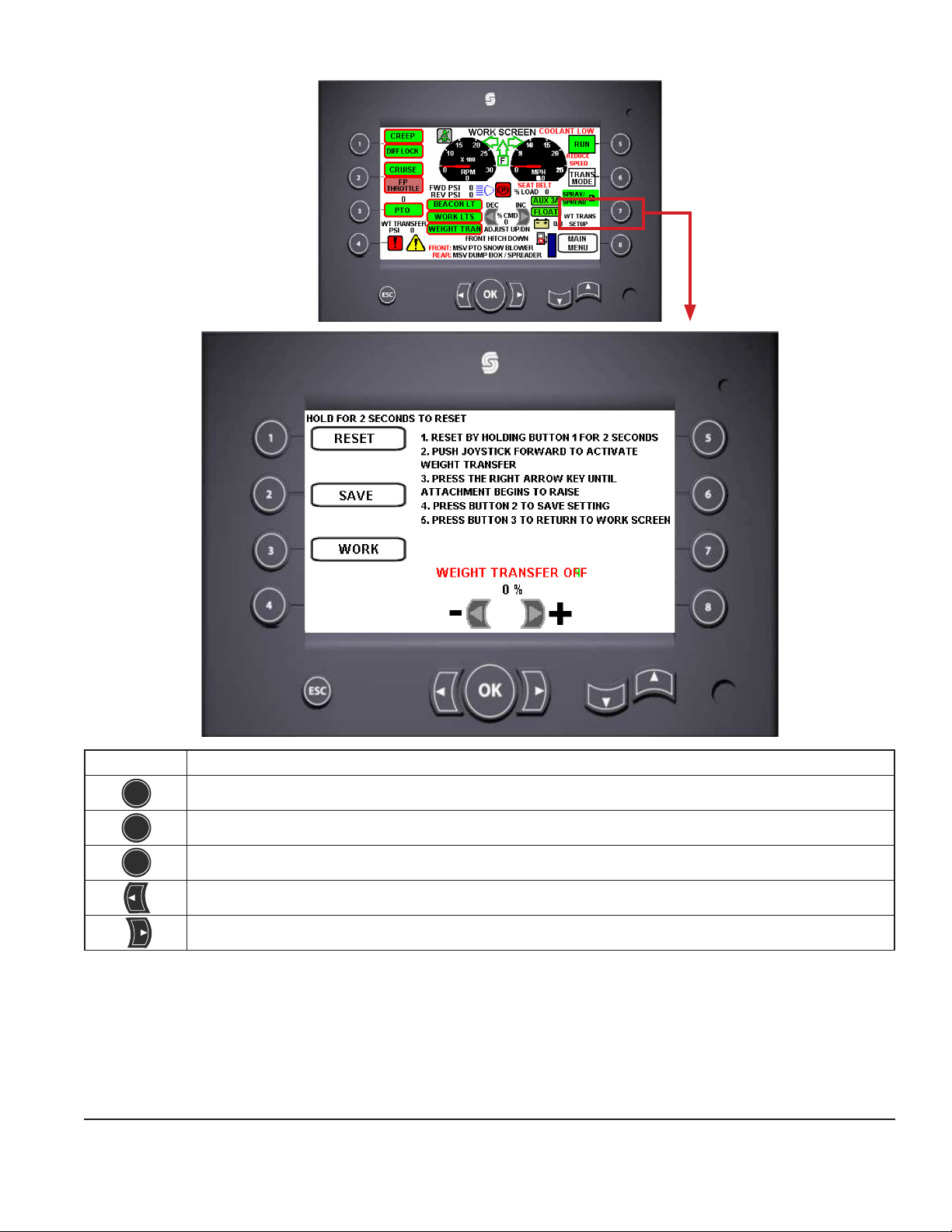

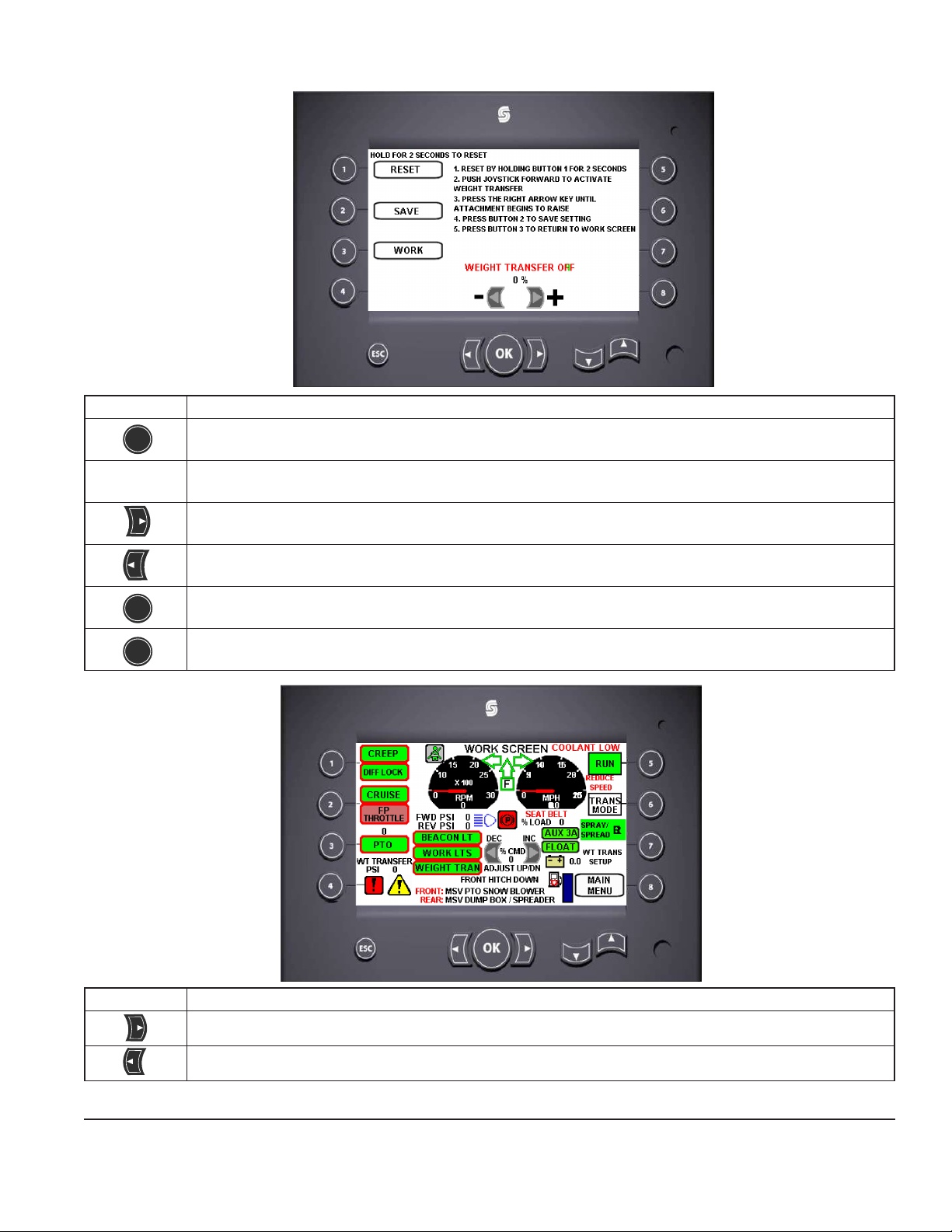

Weight Transfer Screen

Button Function

Reset weight transfer conguration by holding for two seconds

Save settings

Return to work mode screen

Decrease weight transfer

Increase weight transfer

M-B Multi-Service Vehicle • 34 • Operation

Faults Screen

Button Function

Access to Engine Faults

Access to Front MVEC Faults

Access to Front Control Faults

Access to Rear MVEC Faults

Access to Rear Control Faults

Access to Return to Main Menu

M-B Multi-Service Vehicle • 35 • Operation

Faults Screens

Front MVEC Faults Screen

When highlighted in RED shows an active fault

Front Control Faults Screen

When highlighted in RED shows an active fault

Rear MVEC Faults Screen

When highlighted in RED shows an active fault

Rear Control Faults Screen

When highlighted in RED shows an active fault

M-B Multi-Service Vehicle • 36 • Operation

Operation - Attachment Selection Examples

The following examples apply once the initial attachment setup has been performed by M-B or a factory trained MSV dealer.

This setup includes adjusting outputs to the optimum levels.

Selecting the Ribbon Snow Blower Attachment

Connect the Ribbon Snow Blower and the hydraulic hoses to the desired auxiliary hydraulics.

Button Function

Attachment Selection screen

Press and hold for two seconds to reset front attachment

Front attachment selection

Press two times to highlight MSV PTO Ribbon Blower

Press and hold for three seconds to set attachment

Return to Main Menu

M-B Multi-Service Vehicle • 37 • Operation

Selecting the Ribbon Snow Blower attachment (continued)

Button Function

Enter Work Mode

Select PTO, Engine RPM must be below 1200 RPM to activate PTO.

Press “OK” to use PTO (engages Impeller), PTO RPM shows above PTO icon. Increase PTO RPM’s by increasing engine RPM’s.

User Dened Press user dened button on joystick to turn on Aux 3A function to engage ribbon.

Increase engine RPM to desired speeds and begin using attachments.

M-B Multi-Service Vehicle • 38 • Operation

Operation - Attachment Selection Examples

The following examples apply once the initial attachment setup has been performed by M-B or a factory trained MSV dealer.

This setup includes adjusting outputs to the optimum levels.

Selecting the Rear Spreader Attachment

Connect the Rear Spreader and the hydraulic hoses.

Button Function

Attachment Selection screen

Press and hold for two seconds to reset rear attachment

Rear attachment selection

Press three times to highlight MSV Spreader

Press and hold for three seconds to set attachment

Return to Main Menu

M-B Multi-Service Vehicle • 39 • Operation

Selecting the Rear Spreader Attachment (continued)

Button Function

User Dened Press user dened button to engage Aux 4A to turn on rear spreader.

Enter Work Mode

Increase engine RPM to desired speeds and begin using attachments.

M-B Multi-Service Vehicle • 40 • Operation

Operation - Weight Transfer Example

The following examples apply once the initial attachment setup has been performed by M-B or a factory trained MSV dealer.

This setup includes adjusting outputs to the optimum levels.

Initial set up of the Weight Transfer feature

After your attachments are connected and set up follow these steps. Steps need to be done when switching between

attachments.

Button Function

Work mode screen

Arrow down three times

Press “OK” to turn on Weight Transfer

Access Weight Transfer setup screen

M-B Multi-Service Vehicle • 41 • Operation

Initial set up of the Weight Transfer feature (continued)

Button Function

Joystick

Forward

Hold for two seconds to reset weight transfer

Push joystick forward to activate weight transfer

Press multiple times until attachment begins to raise

Press until attachment stops rising. This sets 100% of the attachment weight on the hitch.

Press to save settings

Return to Work Mode screen

Button Function

Decrease weight transfer (decreases weight on front wheels)

Increase weight transfer (increases weight on front wheels)

Increase engine RPM to desired speeds and begin using attachments.

M-B Multi-Service Vehicle • 42 • Operation

Operation

ADVANCED ENGINE DIAGNOSTICS

The engine has diagnostic information that can be viewed using the Plus+1® displays. The engine manufacturer provides a second level of diagnostic information. Refer to the engine documentation for hardware requirements and access to that level. The communication port is located below the right side arm rest (Figure 35).

Diagnostic

Port

Figure 35

JOYSTICK LAYOUT

The Joystick Layout screen is used to display all current joystick functions. Some functions will change depending on the Attachments selected. The layout shown results

when None is selected in the Attachment Selection screen.

Forward - Front Hitch Down Backward - Front Hitch Up

Throttle Up/Down

Up - Aux 5A

Down - Aux 5B

Float mode

On/O

Left - Aux 1A Trigger Up - Aux 2A

Shift Forward/Reverse

Up - Aux 4A Down - Aux 4B

Aux 3B

Aux 3A

Right - Aux 1A Trigger Down - Aux 2B

Figure 36

M-B Multi-Service Vehicle • 43 • Operation

PRE-START UP

Before performing any of the following

inspections, make sure that the vehicle engine

is shut down, the ignition key is removed, and

all personnel in the work area are aware that the equipment is being inspected and must not be started.

Never check for hydraulic leaks by hand. Hydraulic uid under pressure can penetrate skin.

Trying to start the engine prior to the Startup screen

WARNING:

appearing may cause delays. Engine will not crank until

manifold heater is at starting temperature. Colder temps

will cause delays.

1. Start the engine.

2. Use Plus+1® to determine if the correct attachments

are congured in the controls

3. With the engine idling, operate the attachments until

the system warms up.

4. Return to the main screen for operation.

Inspect all hydraulic lines for evidence of leaking, loose ttings, and frayed or damaged

hoses.

Check hydraulic cylinders for broken or loose parts, especially cotter pins on the hydraulic cylinders.

Check the hydraulic oil level. A sight gauge

is located on the side of the reservoir for this

purpose. Add uid as necessary.

All access doors are secured in place.

Visually inspect for uid leaks under the vehicle.

Check engine uids.

Check for faults on screen.

Inspect attachments for damage and proper connection.

START-UP PROCEDURE

Key Switch

The key switch on the steering column is used to

initialize Plus+1® controller and start the engine. The engine will not start until Plus+1® has booted up and the

intake manifold heater has properly warmed.

To start the MSV the operator must be seated. Turn

the key switch to the on position. Watch the screen of

Plus+1®. After an M-B splash screen the start up screen

will appear. Turn the key to start the engine.

IMPORTANT: The engine will not start unless

Plus+1® is ready. Turn the key to ON and wait for Plus+1® to start up (approximately 15 seconds). If the key is turned to START before Plus+1® is ready, the key must be reset. Turn the key to OFF and back to ON. When Plus+1® is ready the engine preheater will be ready. The engine can then be started.

COLD WEATHER STARTING

Before Starting the Engine

NOTE: Do not use a torch to heat a compartment.

This causes res, burns wiring, gaskets and

seals, or melts protective plastic. When using canvas covers, do not install them near exhaust systems. This helps to

prevent res.

Manually Sprayed Ether Starting Aids

DANGER:

Do not use manually sprayed Ether starting aids. Using a spray type starting aid may cause the air intake to explode and cause personal injury.

Intake Air Heater

The engine has a grid heater in the air intake tube just before the intake manifold. This heater is controlled as

needed by the engine electronics. Do not bypass or

force the heater on.

M-B Multi-Service Vehicle • 44 • Operation

AFTER STARTING ENGINE

Whenever a machine has been parked for a long period

of time, some of the systems will cool to below normal operating temperatures. Always warm the machine systems before operating the machine at full operation

Damage to engine valve control components can result from engine operation for short intervals during operation

in very cold weather conditions. If the engine is not allowed to warm completely, the engine can be damaged by repeated starting and stopping.

To avoid damage, always run the engine until the coolant

temperature is at least 180°F (82°C).

After the engine is warm, warm up the other systems. Start with the hydraulics. Run the engine at less than one-third throttle, and slowly move the control lever to lift the attachment. Initially, lift the control lever for a few inches (centimeters). Lower the attachment slowly.

Continue the sequence: raising, lowering, extending, and

retracting. Extend the travel during each cycle. Perform this operation for all hydraulic circuits. Alternate between

all of the attachments.

Exercise the transmission and the power train. If you

cannot move the control for the transmission, perform the following steps:

• Engage the parking brake or apply the brake pedal.

• Run the engine slightly above LOW IDLE.

• Shift the transmission several times from

FORWARD to REVERSE.

Release the brake. Move the equipment forward

and backward for several feet (meters). Exercise the

machine for several minutes.

To reduce the total warm up time, start exercising the

entire machine before you complete the hydraulic warm

up time.

Operate under light load until the systems reach normal

operating temperatures.

If the engine temperature is not high enough enclose the engine and block the radiator. A thermostat that opens at a higher temperature will not increase the engine temperature if the engine is not under load.

To prevent seal damage and gasket damage, keep the engine crankcase breather pipe clear of blockage.

In extreme conditions, use a canvas over the engine compartment. Heat the engine area with a space

heater. This will aid in starting the engine. Extending the canvas over the hydraulic components will provide initial

warming of the components.

Multigrade lubricants (10W30) may be used successfully

at ambient temperatures below the pour point of the

oil. However, in order to use this oil, you must leave the

engine running at low idle. This helps keep lubricants and compartments warm for the engine and for the transmission. Running the engine at low idle will not

keep the hydraulic systems warm.

SAFETY LINK

The chassis for the MSV articulates or pivots in the middle. This is used to help maneuver the MSV and provides a smaller turning radius.

During maintenance it is advisable to lock-out the articulation of the chassis.

To lock the Chassis:

1. Pull straight ahead to align the chassis.

2. Locate the safety link on the frame behind the cab

(Figure 37 Safety Link Open).

3. Pull out the removable pin (Figure 38).

4. Swing the link to meet the back half and insert the pin.

When the safety link is not in use, it should be stored

against the front frame.

Removable

Safety Link

Figure 37 Safety Link Open

Figure 38

M-B Multi-Service Vehicle • 45 • Operation

FRONT ATTACHMENT CONNECTIONS

Front Hitch Connections

IMPORTANT: For best performance each

attachment must be setup by M-B or your authorized MSV dealer prior to use.

The attachment hitch has two hooks with hitch clamps.

Up and down movement is supplied by two hydraulic cylinders.

The hitch hooks will slide side-to-side to align with various attachments.

CAUTION:

If the attachment is not centered on the vehicle

damage may occur. Keep the hitch hooks tightened in place. The hydraulic hoses must

be kept clear from all interference points.

Clamp Lock

Hook

Open

Front Power Take Off (PTO)

The front attachment PTO is accessed thru a panel under the operators feet (Figure 40).

WARNING:

Turn the engine off before opening the access panel.

Remove the panel.

PTO Access

Panel

Figure 40

The drive spline is visible

NOTE: The spline (Figure 41) should have a coating

of grease before attaching the PTO shaft.

Lock Pin

Locking Bolt

Figure 39

To connect an attachment:

1. Pull the MSV close to the attachment.

2. Adjust the hooks side-to-side as needed using the locking bolt on the back side. Pull the handle forward to open the clamp locks.

3. Drive the MSV forward with the hooks lowered. Putting the MSV in Creep Mode will assist in this.

4. The hooks should t into the arms of the attachment.

Lift the hitch in position so the hooks engage and lift

the attachment.

5. Push the clamp locks back completely.

6. Insert the safety pins. Most attachments will have a top link as a third connecting point. This link is

normally used to level the attachment.

Some attachments may be different. Review the instructions with each attachment. Hydraulic, PTO, and electrical connections may also be needed for proper

attachment use.

Drive

Spline

Locking

Groove

Figure 41

The PTO shaft is inserted from the front of the MSV (Figure 42).

Line the universal joint up with the spline and push

together. Make sure the locking device or universal joint has compressed in groove of PTO shaft (Figure 43).

PTO Shaft

Figure 42

M-B Multi-Service Vehicle • 46 • Operation

Universal Joint

of PTO Shaft

PTO Spline

Figure 43

Replace the access panel before starting the engine.

Hydraulic Connections

At the front of the MSV there are three pair of

connections. Each pair has a line out and a line in. The

connections are matched for each pair. Attachments are connected and Plus+1® controls are set to control the

proper auxiliary ports. See Attachment Manual for proper

connections. Also refer to Plus+1® Controls section in this manual.

Rear Hydraulic Connections (Optional)

The rear of the MSV may have two pair of optional hydraulic connections (Figure 45). Each pair has a

line out and a line in. Attachments are connected and Plus+1® controls are set to control the proper auxiliary ports (See Plus+1®).

NOTE: Some attachments will require these

connections to make them operational.

Aux 5B

Aux 4A

Aux 4B

Aux 5A

Aux 1B

Quick Disconnect

Electrical Plug

Aux 2B

Quick Disconnect

Aux 1A

Aux 2A

Quick Disconnect

Figure 44

Aux 3A

Case Drain

Quick Disconnect

Figure 45

Aux 3B

M-B Multi-Service Vehicle • 47 • Operation

Maintenance

Preventative maintenance is a daily responsibility. The

following charts provide a checklist of areas that should be inspected on a regular schedule.

PREVENTATIVE MAINTENANCE

Frequency

Before Each Use

Inspect all hydraulic lines for

evidence of leaking, loose ttings,

and frayed or damaged hoses.

Check hydraulic cylinders for

broken or loose parts, especially

cotter pins on the hydraulic

cylinders.

Check the hydraulic oil level. The

Plus+1® will display an alarm if

the level becomes low. A sight

gauge is located on the side of the

reservoir for this purpose. Add uid

as necessary.

Visually inspect that all access

doors and panels are secured in

place.

Visually inspect for leaks under the

vehicle.

Check Plus+1® for any active

alarms before operating vehicle.

Service or repair as needed.

As Required

Daily

Frequency

Monthly

Annually

Engine

Clean cooler intake. X

Inspect fuel lters; replace as

necessary.

Drain moisture from fuel/water

separator.

Check engine oil. X

Inspect air lter X

Hydraulic System

Check hydraulic uid level; add

uid as required.

Ground Drive

Frequency

Before Each Use

As Required

Frequency

Before Each Use

As Required

Frequency

Before Each Use

As Required

Daily

Monthly

Annually

Before Each Use

As Required

Electrical

Check battery terminals for

corrosion.

Electrical guards in place. X

Inspect vehicle for loose or

damaged wires

Daily

Monthly

Annually

Check tire pressure. X

Check connections for uid leaks X

M-B Multi-Service Vehicle • 48 • Maintenance

Replacement Parts / Warranty

For a complete listing of replacement parts, refer to the Parts Manual 904-183260.

Manufacturer’s Limited Warranty

The M-B Companies, Inc. warrants all its M-B MSV products to be free from defects in materials and workmanship for

12 months, to begin with the delivery of said product to its original owner. This warranty is not transferable without the

written consent of M-B.

M-B will, at its own expense and without expense to the owner, replace all failed parts for and make all repairs that

may be required by reason of workmanship or material in any part of the assembly of the product and associated

components.

Upon notice in writing, M-B will promptly repair or replace all defective or damaged items delivered under the contract. The batteries, tires, rubber materials, brushes and material normally consumed in operation, and major components such as engines, air compressors, and hydraulic pumps and motors are excluded from this warranty but shall, in any event, be guaranteed by M-B to the extent of any warranty received from its supplier.

Any components replaced under warranty will be warrantied for the remainder of the original warranty. Replaced components do not restart the warranty period.

If requested by M-B, products or parts for which a warranty claim is made are to be returned, transportation prepaid, to M-B’s factory. Any improper use, operation beyond capacity, or substitution of parts not approved by M-B, or alteration or repair by others in such a manner as in M-B’s judgement materially and/or adversely affects the product shall void this warranty.

This warranty does not apply to defects caused by damage or unreasonable use while in the possession of the owner, including but not limited to: failure to provide reasonable and necessary maintenance, normal wear, routine tune-ups or adjustments, improper handling or accidents, operation at speed or load conditions contrary to published specications, improper or insufcient lubrication, or improper storage.

The M-B Companies, Inc. shall not be liable for consequential damages of any kind, including, but not limited to,

consequential labor costs or transportation charges in connection with the replacement or repair of defective parts, or

lost time or expense which may have accrued because of said defect.

THE M-B COMPANIES DO NOT MAKE ANY WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE. THE ONLY WARRANTY MADE BY M-B COMPANIES IS AS SET FORTH HEREIN. THIS WARRANTY CANNOT BE EXTENDED, BROADENED OR CHANGED EXCEPT IN WRITING BY AN AUTHORIZED OFFICER OF M-B COMPANIES, INC.

(M-B’s total liability hereunder in no event shall exceed the purchase price of the product.)

M-B Multi-Service Vehicle • 49 • Warranty

M-B MSV3 Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
