NEW CHEMICAL INJECTION SYSTEM

Designed to make chemical installation faster, simpler and more precise, the new Maytag Commercial Laundry Chemical Injection System features easy-access connections on the outside of the machine. This eliminates the need for having to open up the washer on routine visits. The new system also provides chemical supply companies and the machine’s users with clear visibility on how detergent, bleach, softener and other chemicals are being dispersed.

MAYTAG

COMMERCIAL

™

ENERGY ADVANTAGE SOFT-MOUNT, HIGH-SPEED EXTRACTOR

MFS50/80PNF

NEW

EXTERNAL

HOOKUPS

FOR CHEMICAL

INJECTION

MICROPROCESSOR CONTROLS

Maytag® microprocessor controls offer 15 preprogrammed cycles, plus the capability to create multiple unique cycles. Also, one-touch cycle selection and multilingual readouts make these controls easy for everyone to operate.

BIG-LOAD PERFORMANCE, FLEXIBLE INSTALLATION

Maytag® soft-mount, high-speed extractors feature a suspension system that allows for more flexibility and does not require special foundations for installations.

FOR YOUR OPERATION:

• Inverter Drive Technology For Longer Life

• Up to 365 G’s In Final Spin*, Reducing

Dry Time

• Easy-To-Operate Microprocessor

Controls

• Adjustable Water Temperatures

And Levels

• Manual 5-Bay Detergent And

Softener Dispenser

• Ability To Use Powdered Or Liquid

Chemical Supply

• 8 Chemical Supply Signals

• Two Extra-Large Drain Valves On MFS80 For Faster Draining

• Extra-Large Door And Handle

SPINS

BUILT-TO-LAST™ FEATURES:

• Heavy-Duty Latch And Door Handle

• Durable Sealed Bearings

• Rugged Frame And Cabinet

• Easy Service Access

* Model MFS80PNF only. Model MFS50PNF spins up to 310 G’s.

UP TO 350G’s

TO EXTRACT MORE WATER

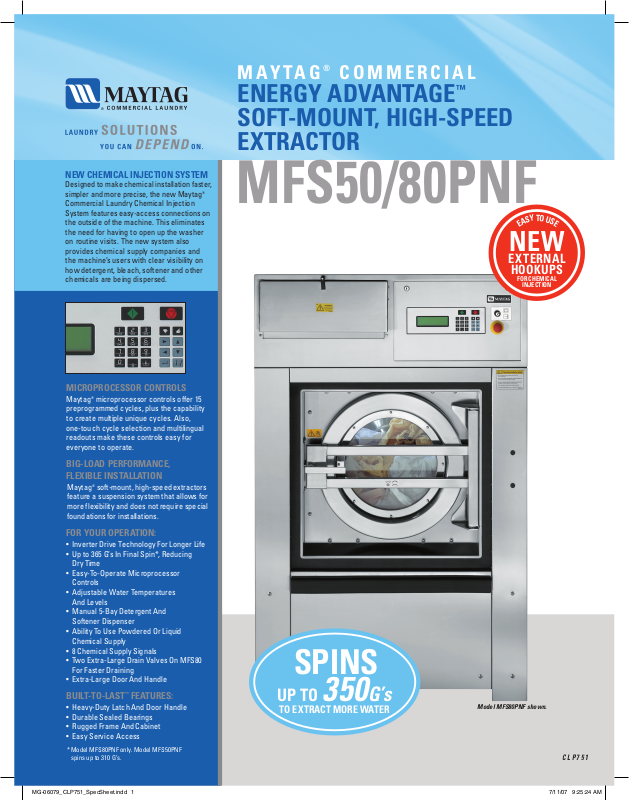

Model MFS80PNF shown.

CLP751

3)$%6)%7

&2/.46)%7

%,%#42)#!,

0/7%2

#/..%#4)/.

$2!).

/54,%43

"!#+6)%7

7!4%2

#/..%#4)/.3

#(%-)#!,

3500,9

3)'.!,3

#(%-)#!,

3500,9

(//+50

*Single Outlet: MFS50PNF

MAYTAG® LIMITED WARRANTY

Maytag® Energy Advantage™ Soft-Mount, High-Speed Extractor

MICROPROCESSOR CONTROL

Energy Advantage™

Soft-Mount, High-Speed Extractor

WASHER SPECIFICATIONS

MODEL

MOTOR

Inverter drive • • Variable speed • • HP (kw) 3 (2.2) 5.5 (4) Voltage 208 – 240 V

BREAKER SIZE — amps 15 30 SPEED

Wash speed — rpm 42 38 Ex tract speed — maximum rpm 860 830 Extract speed — maximum g-force 310 350

WATER INLET/HOSE

Water inlet — in. (mm) .75 (19) 1 (25.4) Operating pressure — psi (mpa ) 43 – 7 3 (0.3 – 0.5) 43 – 7 3 (0.3 – 0.5) Drain size — in. (mm) 3.0 (76 ) O.D. 2x 3.0 (76) O.D.

CAPACIT Y

Lbs. (kg) 50 (22 ) 80 ( 33) Cylinder volume — cu. ft . (liters) 7.8 (221) 11.8 (33 4) Cylinder diameter — in. (mm) 29.5 (750) 36 (914) Cylinder depth — in. (mm) 19.7 (49 8) 20 (510 )

CABINET

Stainless Steel • •

APPROXIMATE WEIGHT

Crated — lbs. ( kg) 1829 (83 0) 3020 (1370) Uncrated — lbs. (kg) 1631 (74 0) 2712 (123 0)

DIMENSIONS

A) Height — in. (mm) 64.57 (1640) 75 (19 05) B) Width — in. (mm) 38.7 8 (985) 47.04 (1195 ) C) Depth — in. (mm) 36.10 (917) 4 8.11 (122 2) D) Depth including door handle and air vent

on back — in. (mm) Door Opening — in. (mm) 16.1 (410) 21.3 ( 540 )

See sp ecific i nstruc tions fo r proper i nstall ation. B ecause of c ontinu ous produc t improv ement,

Maytag reser ves the right to change specifications withou t notice.

MFS50PNF MFS80PNF

208 – 240 V

Three-Phase

45.66 (1160) 52. 4 (13 30)

7/07

2 YEARS

— ALL PARTS

5 YEARS — SHELL,

WELDED FRAME ASSEMBLY,

BASKET, SHAFT ASSEMBLY,

BEARINGS AND SEALS

For a period from the date of original purchase

through the times listed above, the designated

parts that fail in normal commercial use will be

repaired or replaced free of charge for the part

itself, with the owner paying all other costs,

including labor, transportation and customs duty.

Chemical damage is excluded from all warranty

coverage. See complete warranty for details.
