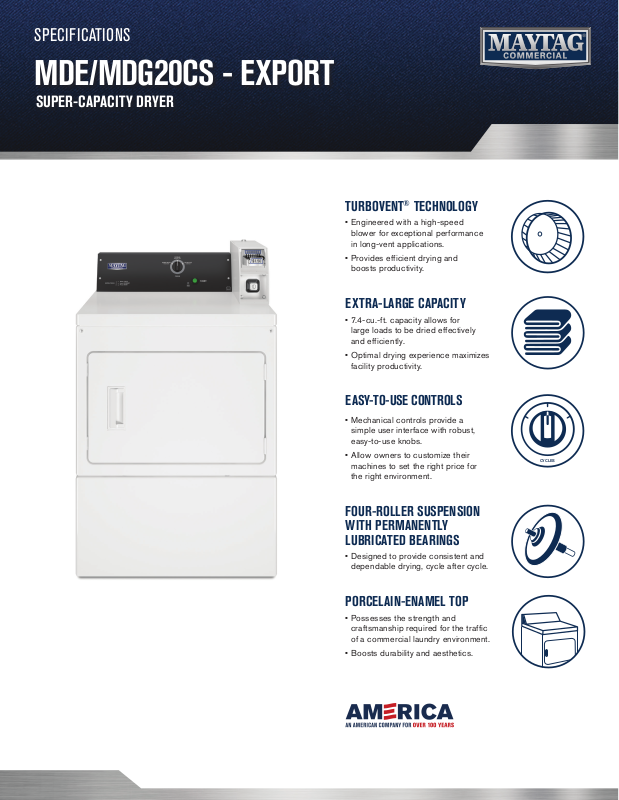

Maytag MDE20CSBGW, MDG20CSBGW, MDE20CSAGW, MDG20CSAGW Specification Sheet
SPECIFICATIONS
MDE/MDG20CS - EXPORT
SUPER-CAPACITY DRYER
TURBOVENT® TECHNOLOGY
• Engineered with a high-speed
blower for exceptional performance
in long-vent applications.
• Provides efficient drying and
boosts productivity.
EXTRA-LARGE CAPACITY
• 7.4-cu.-ft. capacity allows for
large loads to be dried effectively
and efficiently.
• Optimal drying experience maximizes
facility productivity.
EASY-TO-USE CONTROLS
• Mechanical controls provide a
simple user interface with robust,
easy-to-use knobs.
• Allow owners to customize their
machines to set the right price for
the right environment.
FOUR-ROLLER SUSPENSION
WITH PERMANENTLY
LUBRICATED BEARINGS
• Designed to provide consistent and
dependable drying, cycle after cycle.
PORCELAIN-ENAMEL TOP
• Possesses the strength and
craftsmanship required for the traffic
of a commercial laundry environment.
• Boosts durability and aesthetics.
CYCLES
SPECIFICATIONS
MDE/MDG20CS - EXPORT
SUPER-CAPACITY DRYER
MAYTAG® COMMERCIAL
SUPER-CAPACITY DRYER
MECHANICAL CONTROLS, COIN SLIDE-READY
DRYER SPECIFICATIONS
MODEL MDE/MDG20CSBGW
MOTOR SIZE—HP (K W) 1/3 (.25)
AIRFLOW—CFM MDE/MDG MODEL 215/230
ELECTRIC HEATING ELEMENT (WATTS) EXPORT 4,600
GAS RATING—BTU/HR . (KCAL/HR.) 20,000 (5,040)
GAS INLET SIZE 3/ 8 N . P.T.
CAPACITY
Cylinder volume—cu. ft. (liters) 7.4 (210)
Cylinder diameter—in. (mm) 26.26 (667)
Cylinder depth—in. (mm) 23.2 (590)
DIMENSIONS
Width—in. (mm) 27 (686)
Depth—in. (mm) 29.25 (743)
Height—in. (mm) 43 (1,092)
Door opening—in. (mm) 20.25 (514)
Exhaust duct diameter—in. (mm) 4 (101.6)
CRATED DIMENSIONS
Width—in. (mm) 28 .8 (731)
Depth—in. (mm) 30.8 (782)
Height—in. (mm) 44 .65 (1,13 4)
APPROXIMATE WEIGHT
Uncrated—lbs. (kg) MDE/MDG model 125 (56.7)/142 (64.4)
Crated—lbs. (kg) MDE/MDG model 135 (61.2)/152 (68.9)
ELECTRICAL REQUIREMENTS
Electrical rating—voltage/HZ 220–240V/50Hz
Breaker/Fuse—amps MDE/MDG model 25/10
WARRANTY 5-Yea r Lim i ted
Dimensions are for planning purposes only. See specific instructions for proper installation.
Because of continuous product improvement, Maytag reserves the right to change specifications
without notice.
43"
(1092mm)
with
coin box
*
*Visit maytagcommerciallaundry.com
for complete warranty details.
®
/™ ©2019 Maytag. All rights reserved. Printed in the U.S.A.
MAXIMUM EXHAUST DUC T LENGTH
PER NUMBER OF TURNS
Number Of
90° Turns
Box Hood and Angled Hood
Louvered Style Style
0 135 ft. (41.2 m) 129 ft. (39.3 m)
1 125 ft. (38.1 m) 119 ft. (36.3 m)
2 115 ft. (35.1 m) 109 ft. (33.2 m)
3 106 ft. (32.3 m) 100 ft. (30.5 m)
4 98 ft. (29.9 m) 92 ft. (28.0 m)
Rigid Metal Vent
