GRAVITY PRO 2.0
Inversion Table
Gravity Trainer
ENG
INSTALLATION & OPERATING MANUAL
Index
Index 2
Safety Instructions 3
Overall View of the Device 4
Assembly Material and Tools 5
Assembly 6-10
Folding Mechanism 11
Location & Storage 11
Care, Cleaning & Maintenance 11
Adjustment 12-13
Training Advice 14

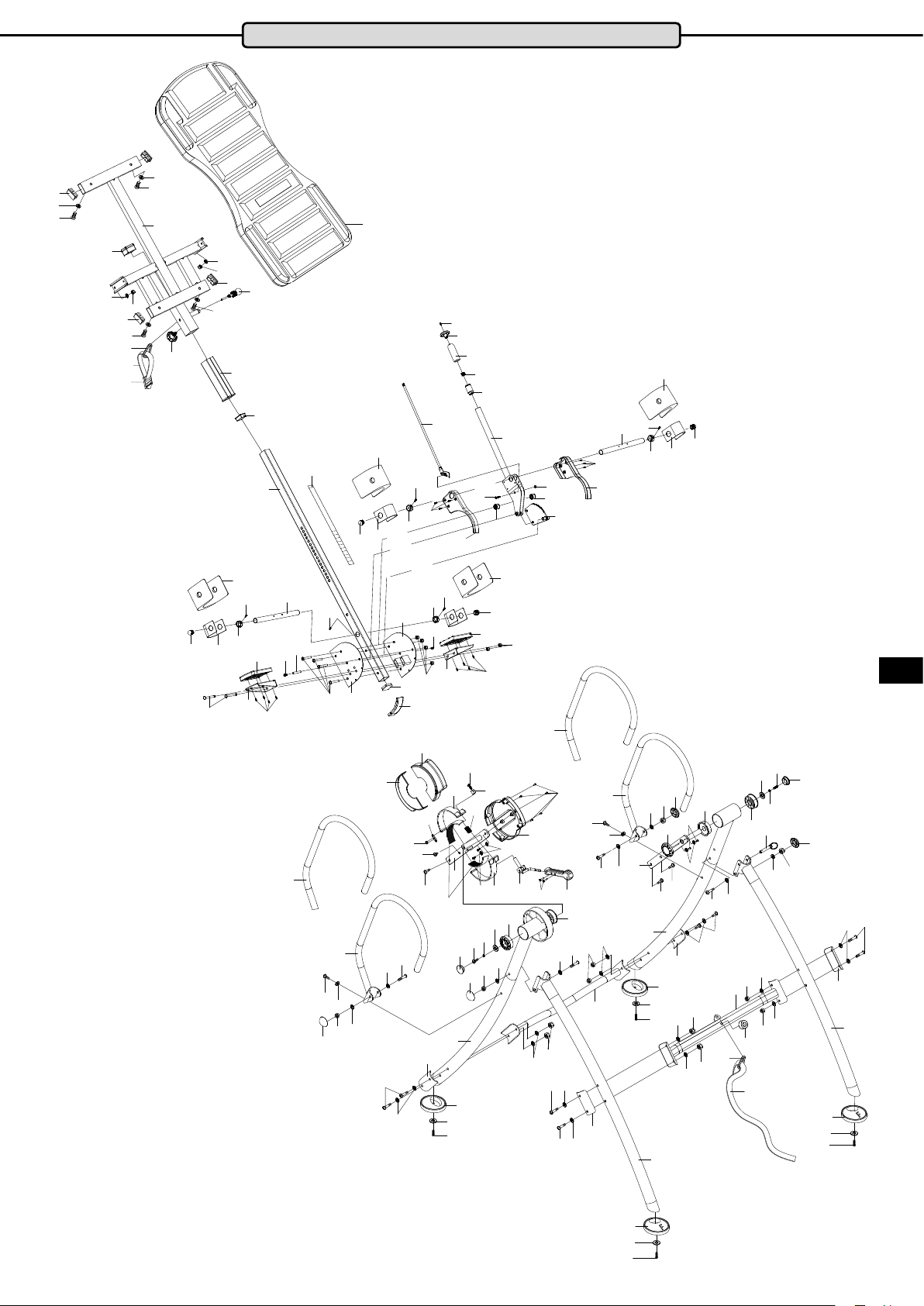

Exploded Drawing 15
Parts List 16-17
Recommended Accessories 18
Disposal 18
Notes 19
Warranty 20
Repairs Contract / Notication of Damage Claim 21
© 2017 by MAXXUS Group GmbH & Co. KG
All rights reserved
This publication may not be reproduced, stored in retrieval system, or transmitted on whole or in part, in any form or by any means, electronic,
mechanical, photocopying, recording, or otherwise, without the prior written permission of Maxxus Group GmbH & Co. KG.
Errors, colour and technical modication subject to change, reproduction as well as electronic duplication only with written permission of MAXX-
US Group GmbH & Co. KG.
2
Safety Instructions
Please read and observe all sections of this Operating Manual. Thorough attention should be paid to the safety, service and maintenance instructions and to the training information at all times. Please ensure that anyone using the
training device is equally familiar with these instructions and that they follow them. Keep this manual in a safe place
for further reference on information, maintenance and cleaning and for details on ordering of spare parts.
It is very important strictly to follow the service and maintenance and safety instructions contained in this Manual.
This training device is only to be used for its intended purpose. This means it is to be used for body workouts by adults only.
If this equipment is used for any other purposes than intended, there is a possible risk of accident, damage to health or damage
to the training device. The Distributor cannot be held responsible for damages caused by improper use.
Training Environment
− Select a suitable space for your training device to provide an optimum amount of free space and highest level of safety.
− Ensure that the load capacity of the oor or ground of the chosen area is sucient for the load.
− Make sure that the area is well ventilated and that an optimum amount of oxygen is available during training. Avoid
draughts.
− It is not permitted to locate your training device in busy areas or areas near to main walkways (emergency exits, doors or
passageways)
− Your training device is not suitable for outside use and so storage and training can only take place in a temperate, dry
clean room.
− Operation and storage of your training device in wet areas such as in swimming pools, saunas etc. is not possible.
− Make sure that your training device is kept on at, hard and clean ground both in operation and at standstill. Any uneven
surfaces must be removed or made good.
− It is recommended that a oor covering (carpet, mat, etc.) should be placed under the device to protect damageable oors
such as wood, laminates, oor tiles etc. We recommend placing MAXXUS® oor protection mats permanently under the
device. Please ensure that these mats cannot slip or slide.
− Do not put this training device on pale or white coloured carpets or rugs as the feet of the device may leave marks.
− Make sure that your training device is kept out of contact with hot items and is kept at a safe distance from any sources of
heat e.g. central heating, hot stoves, furnaces, ovens or open res.
Personal Safety Instructions for Training
− You should go to the doctor and have a health check before you start working out.
− Stop training immediately if you feel physically unwell or are experiencing any breathing diculties.
− Always start your training session at a low workload increasing it slowly but steadily throughout. Reduce the workload
again towards the end of your training session.
− Suitable sports shoes and clothes should always be worn during training sessions. Make sure that loose clothes do not
get caught up in any moving parts of the device.
− Your training device is only to be used by one person at a time.
− Check each time before a training session to see if your device is in perfect condition. Never use your training device if it is
faulty or defective.
− You are only permitted to carry out repairs to the device yourself after having contacted our Service Department and on
receipt of explicit permission to do so. Only original spare parts may be used at any time.
− Improper repairs or structural modications (attachment of non-permissible parts, removal of original parts etc) are not
permitted. This can impair the technical safety of the device and cause risk for the user.
− Your training device must be cleaned after each use. Remove all dirt including body sweat or any other liquids.
− Your training device is not suitable for use by children.
− Third parties, especially children and animals, must be kept at an appropriate safety distance during training.
− Check before each training session if there are any items underneath the training device and remove them without fail.
Never use the training device when items are underneath it.
− Do not allow children to use your training device as a toy or climbing frame at any time.
− Ensure that no body parts of your own or of third parties ever come into contact with any of the moving mechanisms.
− Warn anyone present at your training sessions, especially children, of the possible risk. This applies to the areas where
weight plates, weight stacks or barbells.
− Check all parts at regular intervals (at least once a month) and make sure that all screws and nuts are tightened properly.
The construction of this training device is based on state of the art technology and highest modern technical safety standards.
This training device is to be used by adults only!
Extreme misuse and/or unplanned training can cause damage to your health!
Any manipulation of or interference with the device can cause damage to the device and be a danger to people.
If you have any questions or queries contact your specialist dealer or the MAXXUS Service Team and they will be pleased to
help you further.
ENG
3
Overview of the Device
Backrest
Handle
Incremental adjustment Handle
Locking handle
Fastening lever Height adjustment
Leg holder
Tread
Stand
4
Assembly Material and Tools
Part No. Description Qty
10 Bolt M8x20 4
13 Washer Ø8.5xØ20xt1.5 6
14 Curve Washer Ø8.5xØ16xt2.0 2
15 Lock Nut M8 4
27 Washer Ø12xØ6.5x1.0 4
38 Allen Bolt M8x60 2
43 Bolt M8x12 2
51 Raised Head Bolt M6x15 4
63 Spring Washer
Ø8.1xØ12.3x2.1mm
76 Locking Pin 1
81 Flat Head Bolt M4x20 1
82 Cap 4
2
ENG
Allen Key
5 mm
Tools may be supplemented or replaced with your own. Ensure that they are an accurate t.
Allen Key
6 mm
5
Spanners /
Phillips screwdriver
Assembly
Carefully unpack all parts of the delivery. Be sure enlist the help of a second person because some parts of
your exercise machine are bulky and heavy. Check the completeness of the fastening material (screws, nuts,
etc.) and the components before the individual assembly steps. Carefully carry out the installation, as damage
or defects that have arisen due to assembly errors are not covered by the warranty or guarantee under any
circumstances. Read the instructions carefully before assembly, follow the sequence of steps exactly and follow
the instructions for the individual assembly steps. The installation of the training device must be carried out by
responsible adults. Carry out the installation of your exercise equipment in a location that is level, clean and free
of obstructions during assembly. Carry out the assembly with two persons. Only start using your training device
after assembly has been fully completed.
Stept 1:
Gently lay the base frame on its side and attach the front feet (53 - marked “F”) with a M6x25 raised head bolt
(51) and a washer (27) to the bottom of the front two legs (1L / 1R). Then secure the rear feet (49 - marked “R”)
with a M6x25 bolt (51) and a washer (27) to the bottom of the rear two feet (2L / 2R).
Now place the two round cover caps (82) on the heads of the lock nuts (15).
51
51
27
27
53
49
2R
82
Raised head bolt (51)
M6x15
4 pieces
15
1R
51
27
51 53
27
49
2L
1L
82
Step 2:
Stand the base frame upright. Be sure to check the correct position of the feet installed in step 1. Insert the
locking pin (76) into the base frame as shown.
76
Washer (27)
Ø12xØ6,5x1,0
4 pieces
Cover (82)
2 pieces
Locking pin (76)
1 piece
6
Assembly
Step 3:
Insert the side brackets of the back frame (4) in the connection bars (5L / 5R) on the base frame. To do this,
slide the brackets from below onto the connection bars (5L / 5R).
Attach the side brackets of the back frame (4) to the respective connection bar (5L / 5R) in the top hole with an
Allen bolt M8x12 (43) and in the bottom hole with an Allen bolt M8x20 (10), a washer (13) and a lock nut M8
(15).
Then insert the knob (30), as shown in the circle cut-out, from the back of the lower end of the back frame.
Allen bolt (10)
M8x20
2 pieces
4
Washer (13)
Ø8,5xØ20x1,5
2 pieces
Lock nut (15)
M8
2 pieces
Allen bolt (43)
M8x12
2 pieces
ENG
30
43
10
13
30
5R
15
5L
43
10
13
15
7
Assembly

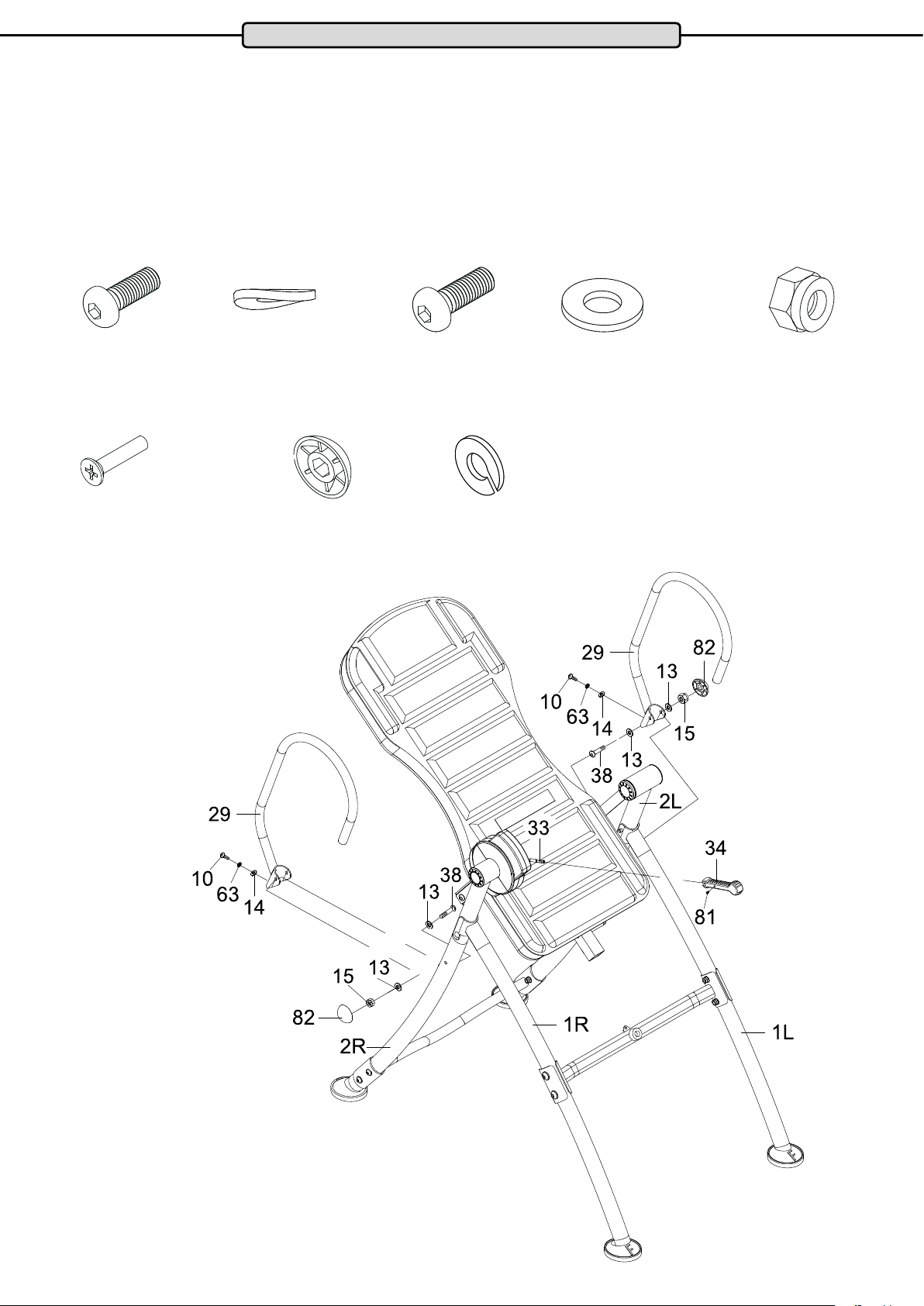

Step 4:
Attach the two handles (29) to the base frame. To do this, use an Allen bolt M8x60 (38), two washers (13) and
one M8 lock nut (15) on each side. Then place a round cap (82) on the lock nut (15). Attach the handles from
the back with an Allen bolt M8x20 (10), a spring washer (63) and a curved washer (14).
Then attach the locking handle (34) to the lock mechanism (33) with two M4x20 at head bolts (81).
Allen bolt (10)
M8x20
2 pieces
Flat head bolt (81)
M4x20
2 pieces
Curved washer (10)
Ø8,5xØ16x2,0
2 pieces
Cap (82)
2 pieces
Allen bolt (38)
M8x6
2 pieces
Spring washer (63)
Ø8,1xØ12,3x2,1
2 pieces
Washer (13)
Ø8,5xØ20x1,5
4 pieces
Lock nut (15)
M8
2 pieces
8
Assembly

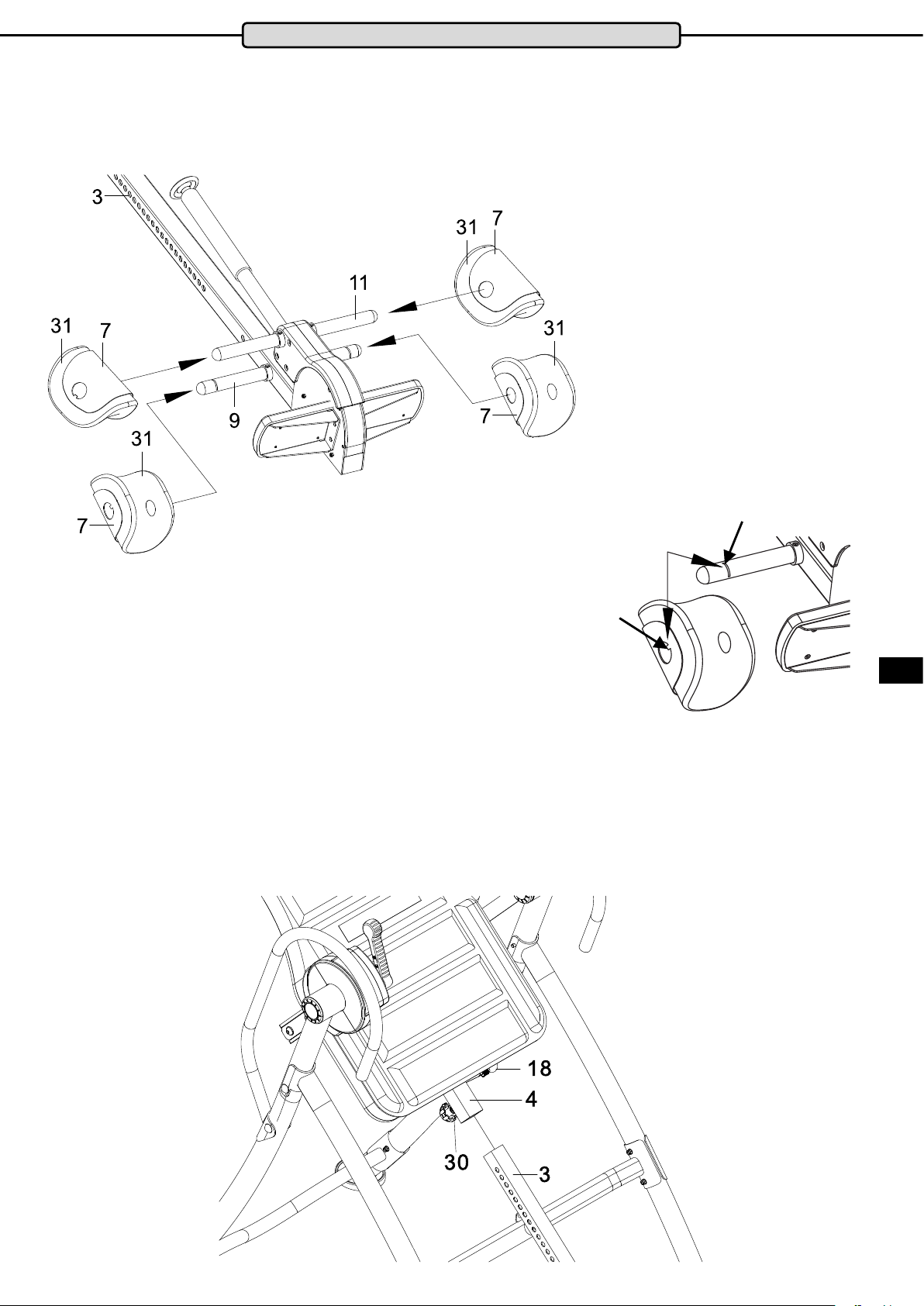

Step 5:
Slide the ankle holders (31) onto the front and rear rods of the leg holder (11 - top & 9 - bottom) as shown in
the illustration. Make sure that the opening with the locking tooth on the ankle holder (31) points outwards and
snaps into the locking hole on the rods (9 & 11).
Locking hole
Locking tooth
Step 6:
Loosen the knob (30) and pull the safety pin (18) out. Insert the guide tube of the leg frame (3) into the back
frame (4). Snap the safety pin into one of the adjustment holes. Make sure that the safety pin (18) is securely
engaged and tighten the knob (30) rmly.
ENG
9
Assembly

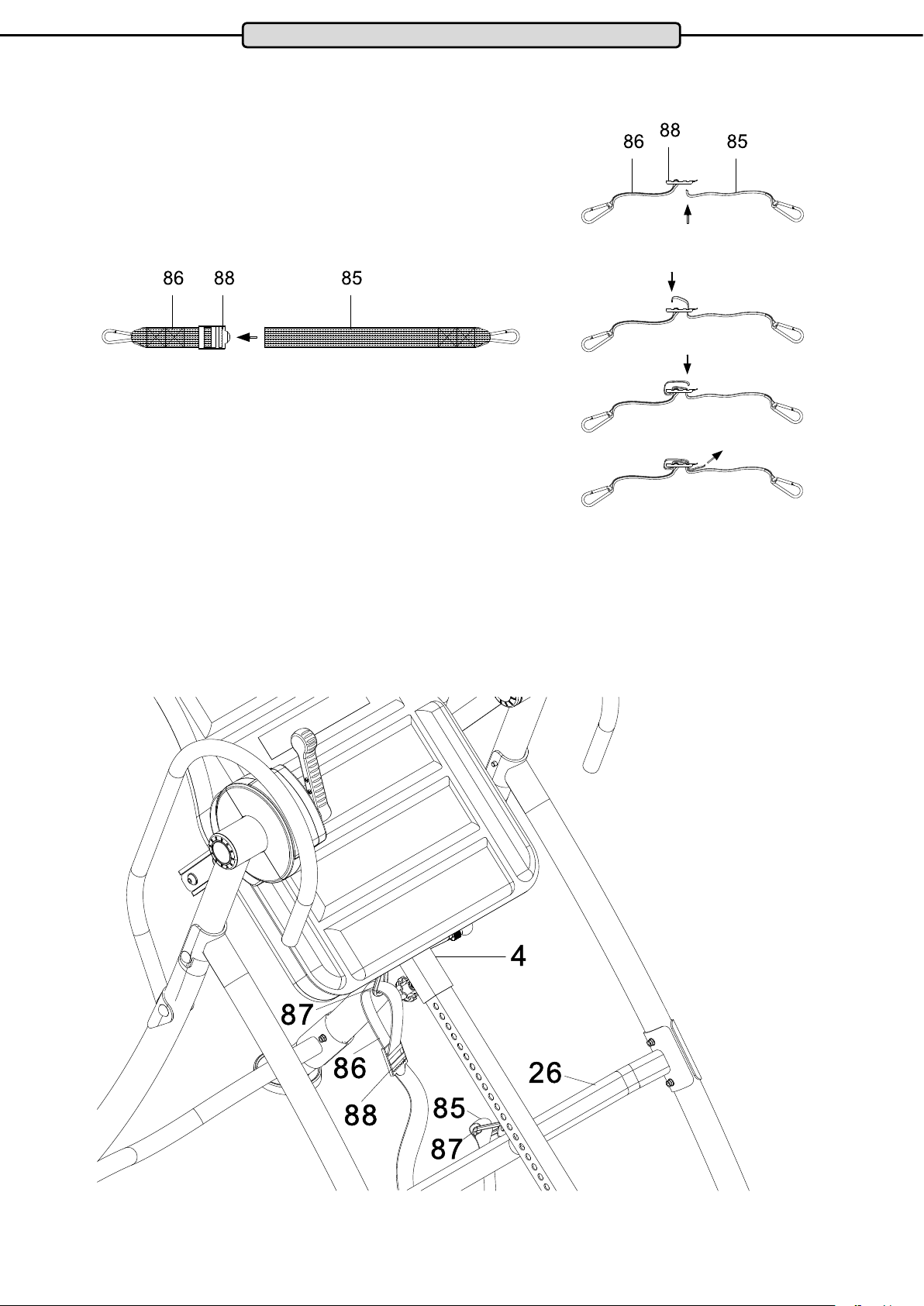

Step 7:
Connect the long strap (85) to the buckle (88) of the short strap (86) as shown in the side illustrations.
Step 8:
Attach the short strap (86) with the snap hook (87) to the eyelet of the backrest (4) and the long strap (85) with
the snap hook (87) to the eyelet of the cross bar (26).
10

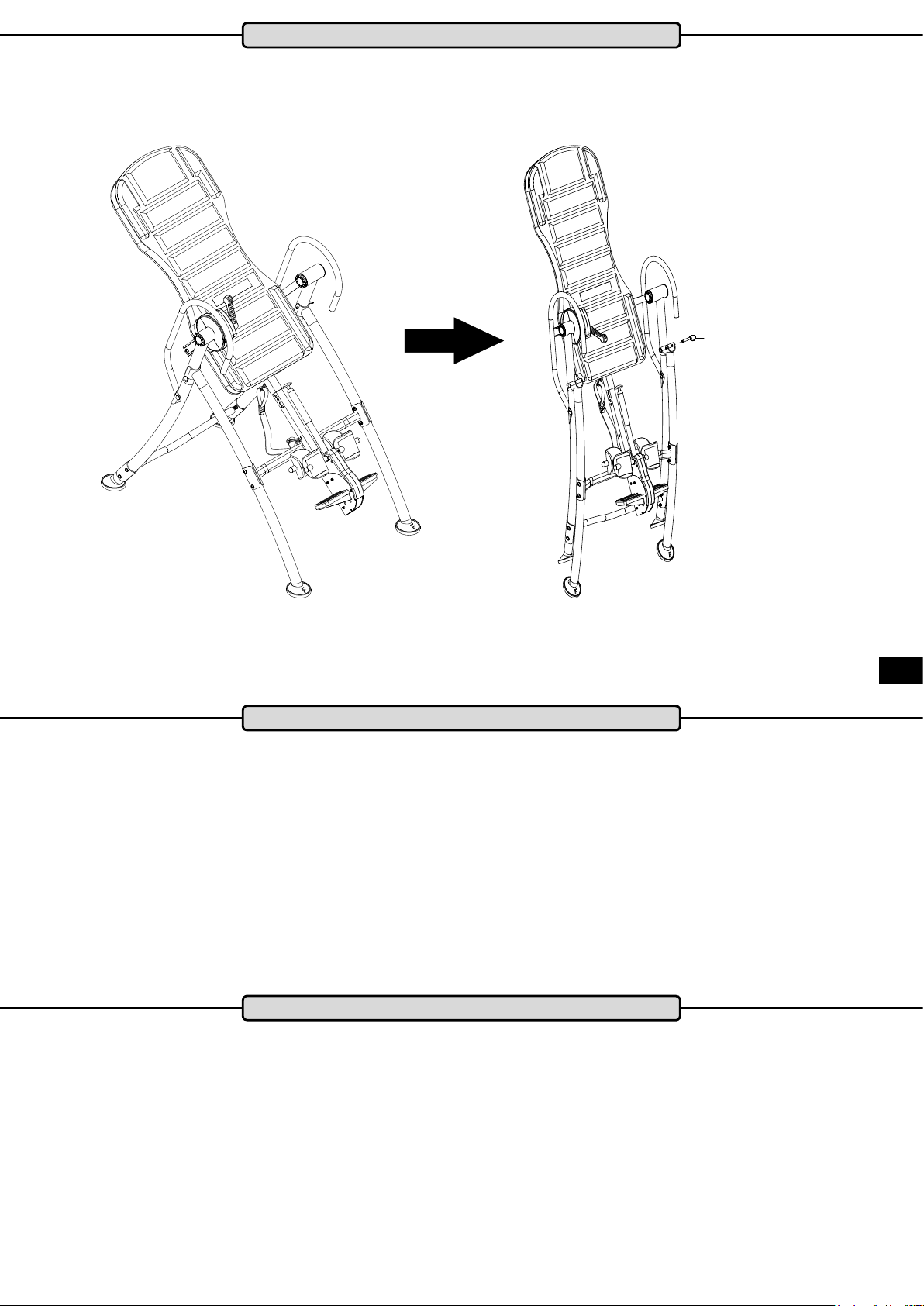

Folding Mechanism
When not in use, you can fold up your training device to save space. To do this, pull out the locking pin (76) and
fold the legs of the base frame together and reinstall the locking pin (76). Before each workout, check that the
legs and locking pin are correctly and safely replaced.
Locking pin (76)
Location & Storage
This training device was designed solely for use in dry, well-ventilated indoor areas. Use or storage in damp
or wet areas, such as sauna, swimming pool, etc. and in outdoor areas, such as balconies, terraces, gardens,
garages, etc. is excluded. These locations may result in electronics, corrosion and rust defects due to high
humidity and low temperatures prevailing there. Warranty claims for damages of this kind will not be accepted.
Please choose a dry, level and well-ventilated training or storage area for your training equipment. For your own
sense, also make sure that the training site is suciently ventilated during exercise to allow optimal oxygenation. Before you put your training device back into operation after a long period of non-use, rst make sure that
all fastening parts are secure.
Care, Cleaning & Maintenance
Before rst use or after a long break from training
Check if the exerciser is safe. There must be no objects on or under the device.
Maintenance & Cleaning intervals:
After each workout, clean the exerciser with a damp cloth to remove any perspiration and / or uid residue.
Under no circumstances use solvents for this purpose. Dry the cleaned areas well.
ENG
Checking the mounting material: once a month
Check all bolts and nuts at least once a month. Tighten it, if necessary.
11

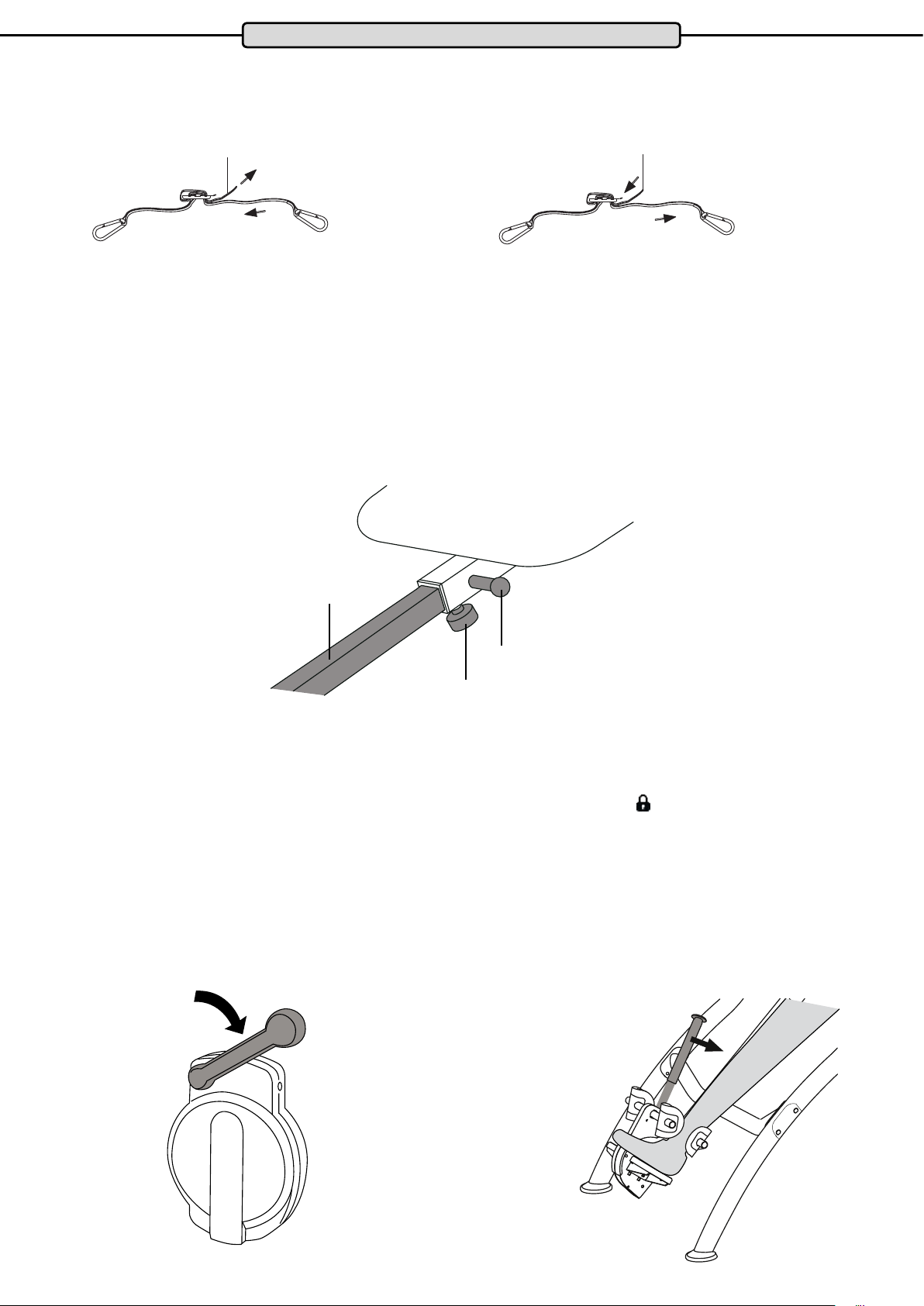

Adjustment
Additional safety is provided by the belt (85). The inclination angle can be limited by setting the desired length.
Shortening the belt: Extending the belt:
85
Length adjustment
To adjust the length to the user’s height, release the knob (30) and pull the safety pin (18) out. Slide the tube (3)
into the desired position. Settings of 145 to 200 cm height are possible.
To make the process easier, a size scale is placed on the tube (3). Please note that people with a height of 199
or 200cm should choose the setting 198cm.
When you have the tube (3) in the correct position, snap the safety pin back into place and tighten the knob
(30).
WARNING:
Before each workout, make sure that the safety pin (18) is correctly engaged and that the knob (30) has been
tightened.
85
3
18
Correct Entry into the Gravity Trainer
Step 1:
Make sure that the locking system is secured. The locking hand lever must be in the
Step 2:
To secure your legs, stand with both feet on the foot plate with your calves pressing against the two rear elements of the ankle holders. Now pull the fastening lever in the direction of your legs until the two front holding
elements are rmly against your shins.
WARNING:
Before each workout, make sure that the leg rest is secure.
position.
12
Adjustment

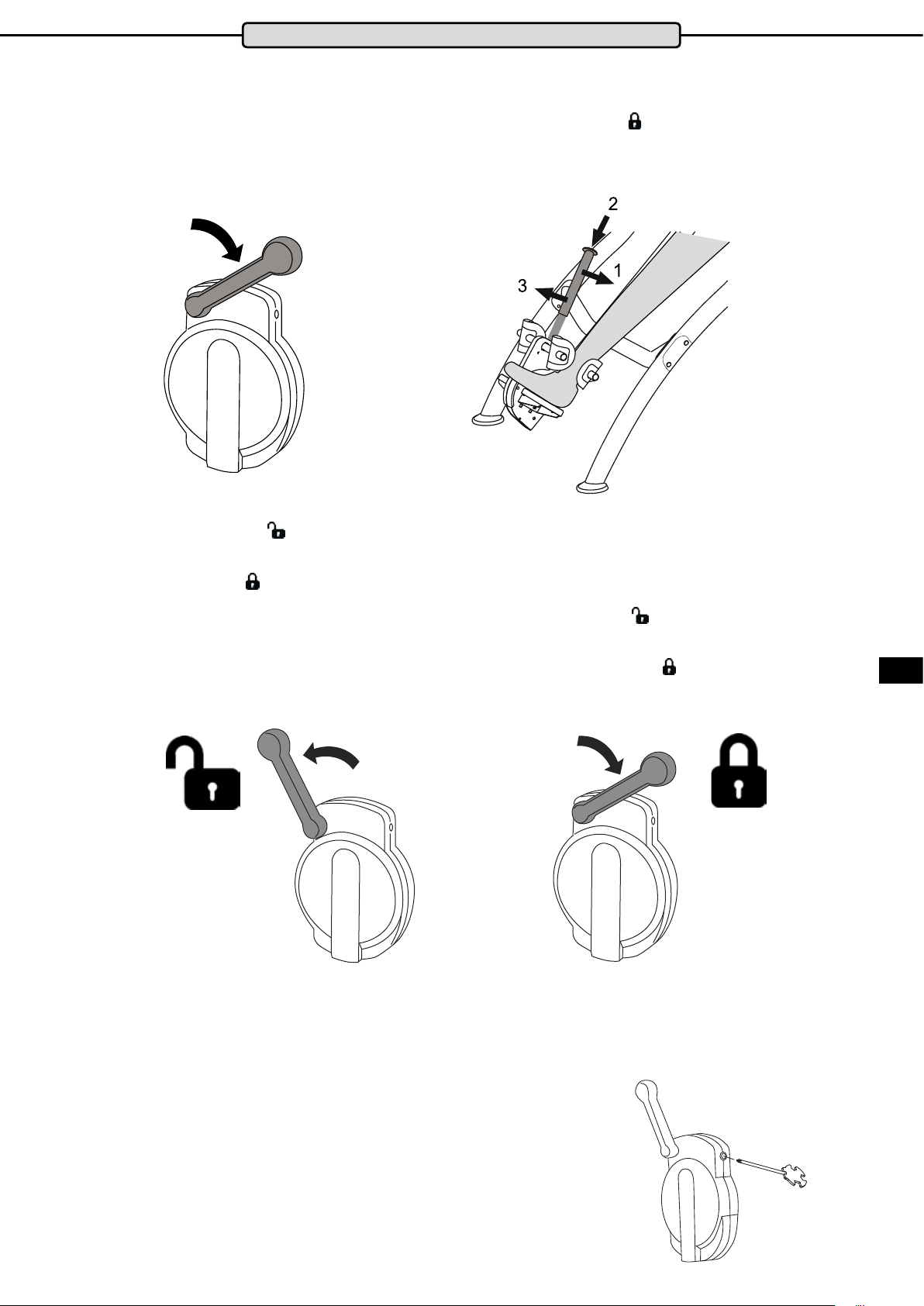

Correct Exit from the Gravity Trainer
Step 1:
Make sure that the locking system is secured. The brake hand lever must be in the
Schritt 2:
Pull the fastening lever slightly towards you (1) and push the lock button down (2). The lever is released and can
be pushed forward (3). Carefully exit the device.
position.
Tilting the Gravity Trainer
Once you have safely got into the exerciser and your legs are secure ly xed, release the brake system by placing the hand lever in the
As soon as you have reached the desired tilt position and you want to hold it, lock the brake system by moving
the hand lever to the
To return to the starting position, release the hand lever by setting the hand lever to
upright.
Before leaving the unit, secure the locking system again by moving the hand lever to the
position.
position.
and bring the backrest
position.
ENG
Brake system unlocked Brake system locked
Calibrating the brake system
There is a possibility that the brake system will loosen over time.
If this is the case, then recalibrate it by using a Phillips screwdriver, as shown
in the picture, to tighten the xing screw 1/4 turn clockwise. Now check the
tightness of the brake system again and repeat the process until it locks
properly.
13
Training Advice
WARNING:
Before you start exercising, it is advisable to discuss whether training with a gravity trainer is suitable for you,
with your doctor. Should any of the following factors aect you, you should certainly consult your doctor:
− Pregnancy
− Diseases of the eyes, such as B. Green Star, conjunctivitis etc.
− Cardiovascular problems
− Respiratory illness
− Otitis
− Balance problems
− Spinal injuries
− Osteoporosis
− Hypertension
− Thrombosis
− Circulatory disorders
Determining the Centre of Gravity:
Hold on to the handles and swing your upper body backwards. If you’re having trouble, the centre of gravity is
too low, in which case try a dierent height setting.
Optimal rotation speed:
From the starting position, carefully tip over backwards. Ideally you should practice a smooth lowering movement which allows you to tilt easily back and forth. You should not tip backwards too fast into the hanging position, especially to start with!
Do not use your exerciser immediately after taking a meal. Wait at least 1 hour before starting your workout.
Beginners should train for the rst few weeks with a 20 ° incline. This gives your body the opportunity to slowly
get used to the strain.
Use the gravity trainer for a maximum of one to two minutes a day at the beginning.
Stop exercising immediately if you feel uncomfortable being upside-down.
Advanced users should slowly increase the angle of inclination to 60 °.
Training time should be slowly increased to 10 minutes. Ideally workout every two days.
14
Exploded Drawing
13
73
13
46
84
13
46
4
13
15
73
18
15
73
46
87
30
86
88
46
83
41
44
3
35
12
59
60
58
57
42
31
62
62
17
7
25
40R
56
62
65
66
16
66
40L
6
31
62
11
25
7
17
31
9
62
25
61
7
24
23
64
67
68
69
70
22R
71
22L
62
61
70
23
19
41
39
31
25
24
19
67
ENG
36
48
52
32
36
29
10
14
15
13
82
38
13
38
75
37
28
43
80
77
5R
33
21
10
62
79
55
45
63
10
72
13
15
82
62
29
47
10
14
38
13
34
81
54
14
15
38
13
8
2R
78
15
14
38
14
82
15
13
5L
54
62
74
77
43
10
2L
13
38
38
14
78
49
27
15
51
14
87
15
14
49
50
14
27
51
78
38
14
10
45
72
63
55
76
82
15
13
38
14
14
15
26
14
15
20
78
1L
85
53
27
51
1R
15
53
27
51
Parts List
Nr. Description Qty
001L Front Left Frame 1
001R Front Right Frame 1
002L Rear Left Frame 1
002R Rear Right Frame 1
003 Leg Frame 1
004 Back Frame 1
005L Left Pivot Arm 1
005R Right Pivot Arm 1
006 Gear Plate 1
007 Heel Holder Bracket 4
008 Inversion Bar 1
009 Rear Rod 1
010 Allen Bolt M8x20 6
011 Front Rod 1
012 Bolt M4x16 1
013 Washer Ø8.5xØ20xt1.5 14
Nr. Description Qty
028 Fixed Plate 1
029 Handle 2
030 Knob 1
031 Rubber Ankle Holder 4
032 Cross Recessed Pan Head Bolt M6x30 1
033 Lock Mechanism 1
034 Locking Handle 1
035 Foam Bed 1
036 Handlebar Foam Grip 2
037 Metal Sleeve 1
038 Allen Bolt M8x60 12
039 Front Plastic Cover 1
040L Left Plastic Cover 1
040R Right Plastic Cover 1
041 Square End Cap 2
042 Lock Pin 1
014 Curved Washer Ø8.5xØ16xt2.0 18
015 Lock Nut M8 14
016 Lock Nut M6 1
017 Blocking Bush Ø28.5xØ23x14 2
018 Safety Pin 1
019 Lock Nut M8 6
020 Rubber Pad 1
021 Right Brake Pad Plate 1
022L Left Adjustable Boom Plate 1
022R Right Adjustable Boom Plate 1
023 In-Step Frame 2
024 In-Step Foot Pad 2
025 Round End Cap 4
026 Cross Bar 1
027 Washer Ø12xØ6.5x1.0 4
043 Allen Bolt M8x12 2
044 Height Scale 1
045 Washer Ø8.5xØ24x2mm 2
046 Bolt M8x40 4
047 Brake Bracket 1
048 Upper Plastic Cover 1
049 Rear Foot Cap 2
050 Bolt M6x25 1
051 Raised Head Bolt M6x15 4
052 Lower Plastic Cover 1
053 Front Foot Cap 2
054 Pivot Arm Rotation Cap I Ø60x-
Ø19.5x18
055 Pivot Arm Rotation Cap II Ø60x-
Ø19.5x21
2
2
16
Parts List
Nr. Description Qty
056 Adjustable Handle 1
057 Handle Cap 1
058 Handle Spring 1
059 Button 1
060 Handle Tip 1
061 Blocking Bush Ø28.5xØ22.5x10 2
062 Screw ST3.5x10 19
063 Spring Washer Ø8.1xØ12.3x2.1mm 2
064 Carriage Bolt M8x60 2
065 Bolt M6x30 1
066 Spacer Ø22xØ8.4x16.6 2
067 Screw ST4.2x12 8
068 Screw ST6x20 1
069 Shaft Nut Ø8 1
070 Bolt M5x10 2
071 Bolt M8x50 4
Nr. Description Qty
073 Rectangle End Cap ¡ ¼50x25 4
074 Rotor Cover Ø60xØ19.5x13.5 1
075 Left Brake Pad Plate 1
076 Locking Pin 1
077 Washer Ø4.3xØ9xt0.3 4
078 Curve Plate 4
079 Brake Pad 2
080 Spring 1
081 Flat Head Bolt M4x20 2
082 Cap 4
083 Lower Bed Frame Bushing 2
084 Upper Bed Frame End Cap 1
085 Long strap 1
086 Short Strap 1
087 Safety Hook 2
088 Strap Lock 1
072 Pivot Arm Ring 2
ENG
17
Recommended Accessories
These accessories are the perfect supplement for your training device.
All products are available in our online shop at www.maxxus.de or directly
in our showroom in Groß-Gerau.
MAXXUS® Floor Protection Mat
Extremely high density 0.5 cm thick oor protection mat. Optimally protects
the oor or the oor covering against damage, scratches and contamination
due to body sweat. Running and movement noises are greatly reduced.
Available in the following sizes:
− 160 x 90 cm
− 210 x 100 cm
MAXXUS®Antistatic Spray
CFC-free special spray against static charges on the frame, trim parts and
training computer. Devices that stand on carpets or plastic substrates buikd
up static charge. MAXXUS® antistatic spray prevents this. Treated plastic
surfaces do not attract the dust so quickly and stay clean longer.
MAXXUS® Foam Cleaner
CFC-free special spray with citrus fragrance for regular cleaning of your
tness equipment. Plastic covers and metal frames can be maintained
perfectly with the MAXXUS® foam cleaner. Chest belts and other exercise
equipment are clean and fragrant again.
Technical Details
Dimensions - training conguration: approx. 1.420x745x1.435mm
Dimensions - folded: about 2.040x735x575mm
Weight: about 35.5kg
Maximum user weight: 160kg
Maximum user height: 200cm
Application: Home use
Disposal
European Disposal Directive 2002/96 / EC
Never dispose of your exercise equipment in the normal household waste. Dispose of the device only via a municipal or authorized disposal company. Please observe the currently applicable regulations. If in doubt, enquire
at your city or local government oces about proper and environmentally sound disposal options.
18
Notes
ENG
19
Warranty*
For MAXXUS® Support Team to help you as quickly as possible with service, we will require certain information about your tness
device and about you. To nd the exact spare parts required, we will need the product name, date of purchase and serial number.
If necessary, please ll out completely the Repairs Contract/Damage Report form attached to this User Manual and send it to us by
post or by fax.
Areas of Application & Warranty Periods
Depending on the model, tness devices from MAXXUS® are suitable for use in dierent areas. Find the appropriate area of use for
your tness device from the “Technical Data” in this User Manual.
Home Use:
Exclusively for private use
Warranty Period: 2 Years
Semi-Professional Use:
Use under instruction in hotels, physiotherapy practices, etc.
Use in a tness studio or similar establishment is hereby excluded!
Warranty Period: 1 Year
Professional Use:
Use in a tness studio or similar establishment under supervision by trained personnel.
Warranty Period: 1 Year
Use of your training device in an area which is not suitable for your device will cause immediate expiry of its guarantee and cancel your
right to claim warranty!
Sole private use and warranty period of 2 years assumes that the purchase invoice is made out to the end user.
Proof of Purchase and Serial Number
To claim your right to service works within the warranty period we will in each case require proof of purchase. Keep your proof or purchase or purchase invoice in a safe place and in warranty cases send us a copy together with your Repairs Contract/Damage Notication. This will ensure that we can process the service work as quickly as possible. So that we can identify which model version requires
to be serviced correctly, we will require; Product Name, Serial Number and Date of Purchase.
Terms and Conditions of Warranty:
The warranty period for your training device starts on the date of purchase and applies solely to products which were purchased
directly from the MAXXUS Group GmbH & Co. KG, or one of the MAXXUS Group GmbH & Co. KG direct and authorised distribution
partners.
The warranty covers defects caused by production or material faults and only applies to devices purchased in Germany. The warranty
does not apply to damages or defects caused by culpable improper use, negligent or purposeful destruction, lack or failure to carry out
maintenance and/or cleaning measures, force majeure, operational causes and to normal wear and tear, damages caused by penetra-
tion of liquids, damage caused by repairs or modications made with spare parts from a dierent supplier. The warranty also does not
apply for damages due to faulty assembly or damages which occur because of faulty assembly. Certain component parts will wear out
during use or from normal wear and tear. This includes for example:
▪ Ball Bearings ▪ Bushings ▪ Bearings ▪ Drive Belts
▪ Switches and buttons ▪ Running belts (treadmills) ▪ Running plates (treadmills) ▪ Track rollers
Signs of wear and tear on wearing parts are not items covered under the warranty.
If your training device requires to be collected from your address, you will be required to dismantle and make available the device and
receive and re-assemble the device yourself. These works are not in any way covered by the warranty. Prior to sending any component
parts to our service address, please contact the service department and ensure the parts are well packed.
Service Outside the Warranty and Ordering Spare Parts
The MAXXUS® Service Team is happy to be of assistance to help solve any problems with faults which may arise following expiry of
the warranty period, or in cases of defects arising which are not covered by the warranty.
In this case please contact us by email direct to: service@maxxus.de
Orders for Spare Parts or Worn Parts should be sent along with information on the Product Name, spare part description and number
and the quantity required to: spareparts@maxxus.de
Please be informed that additional xing materials such as screws, bolts, washers etc are not included in the scope of delivery for component spare parts. These should be ordered separately.
*Version: Juni/2016
20
Repairs Contract / Notication of a Damage Claim
Repair order / damage report
Device Details
Product Name: GRAVITY PRO 2.0
Serial Number: _______________________________________
Date of Purchase: _____________________________________
Accessories: _________________________________________
Type of Use:
Private Use
Personal Details
Company: ___________________________________________
First Name: __________________________________________
Street: ______________________________________________
Post Code / Town/City: _________________________________
E-Mail: _____________________________________________
Fax. No.*: ___________________________________________
* The elds marked with an asterisk are optional. The remaining elds are mandatory elds that must be completed.
Fault Description
Please enter a short description of the error as precisely as possible below:
(For example, when, where and how does the error occur? Frequency, after which period, at what Use, etc ....)
Product Group: Gravity Trainer
Invoice Number: ______________________________________
Where Purchased: ____________________________________
________________________________________________
Commercial Use
Contact Person: _______________________________________
Second Name: ________________________________________
House Number: _______________________________________
Country: _____________________________________________
Tel.No.: _____________________________________________
Mobile No.*: __________________________________________
A copy of the proof of purchase / invoice / receipt is attached.
I accept the General Terms and Conditions of MAXXUS® Group GmbH & Co. KG.
I hereby instruct the company MAXXUS® Group GmbH & Co. KG to repair the above defects. In Warranty cases I will not be charged
for the cost. The costs for repairs which are excluded from liability for defects in quality will be charged to me and must be settled
immediately. In cases of repairs carried out on site, our sta are entitled to collect payment. This agreement is conrmed with here with
my signature.
Date Location Signature
Please be aware that contracts can only be processed if this form has been completed in full. Be sure to attach a copy of your purchase
invoice. Send the fully completed Repairs Contract / Notication of Damage Claim to:
ENG
Post*: Maxxus Group GmbH & Co KG, Service Department, Zeppelinstr. 2, 64331 Weiterstadt
Fax: +49 (0) 6151 39735 400
E-Mail**: customerservice@maxxus.de
* Please stamp with sucient postage – letters which are not sent postage paid will unfortunately not be accepted.
** Submission by E-Mail is only possible as a scanned document with original signature.
21
Maxxus Group GmbH & Co. KG
Zeppelinstr. 2
D-64331 Weiterstadt
Germany
E-Mail: info@maxxus.de
www.maxxus.de
Loading...
