JamLab

User Guide

English

JamLab Manual

Congratulations on your purchase of JamLab. This document explains the JamLab’s control panel as well as the basics of GT Player Express. It

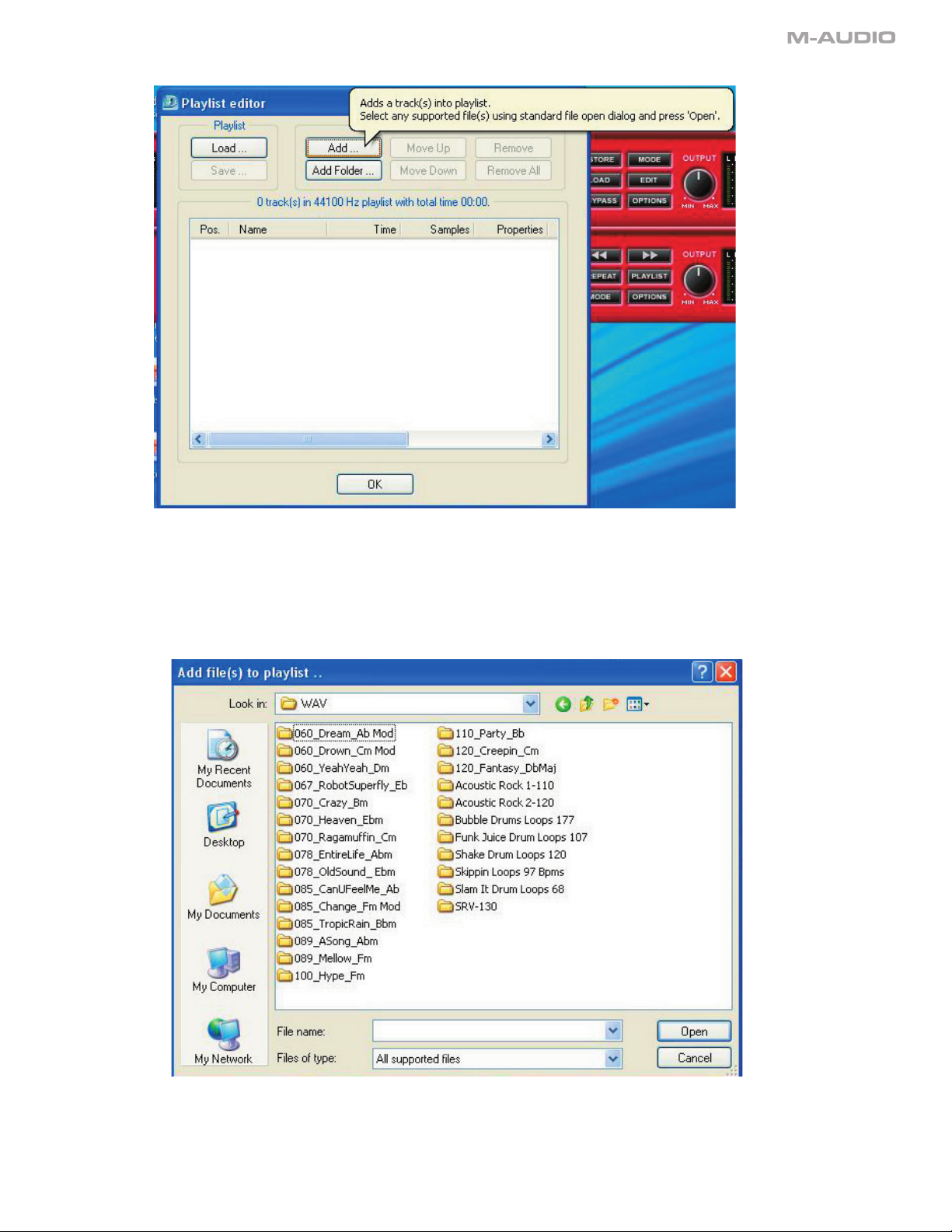

also explains how to use the M-Audio ProSessions drum loops and MP3 songs with GT Player Express.

A GT Player Express guide document is also included on the JamLab CD. For more detailed information on GT Player Express, please read this
document.

Control Panel

In Mac OS X, go to your System Preferences and double-click on the JamLab icon.

English

1

In Windows XP, go to your Control Panels and double-click on the JamLab icon.

This will bring up the JamLab Control Panel.

The Input Gain tab allows you to boost the input signal from your guitar to the computer. If you’re using a guitar with single coil pickups, you’ll
want this setting to be close to 10. If you’re using a guitar with humbucking pickups or active pickups, you’ll want this setting to be closer to 0.
Setting the level all the way to 0 will mute the guitar input.

2

JamLab Manual

The Output Levels tab allows you to control the overall output level of the JamLab. If you’re hooking the JamLab up to headphones or powered

speakers WITHOUT a volume knob, you’ll want this setting to be closer to 0. Start low, and then turn up the output volume until you find the right
level for your headphones or speakers. The Link button allows you to control the output level of the left and right signals at the same time. If you
click on the Link button, the check mark will go away and you can control the left and right volume separately. Clicking on the Link button again
will re-link the left and right volume faders. Clicking the Mute button basically turns the output of the JamLab off.

English

The Performance tab allows you to set the bit-depth of JamLab. The default setting is 24-bit, however 16-bit is available should you need to use
JamLab with an application that does not support 24-bit operation.

3

The About tab contains useful information about your JamLab. Should you ever need to call M-Audio tech support for help with your JamLab,
the information on this screen will be asked for. This tab also has a “Check for driver updates” link. If your computer is connected to the Internet,
clicking this link will search the M-Audio website for an updated JamLab driver.

Playing with the effects

Launch the GT Player Express application.

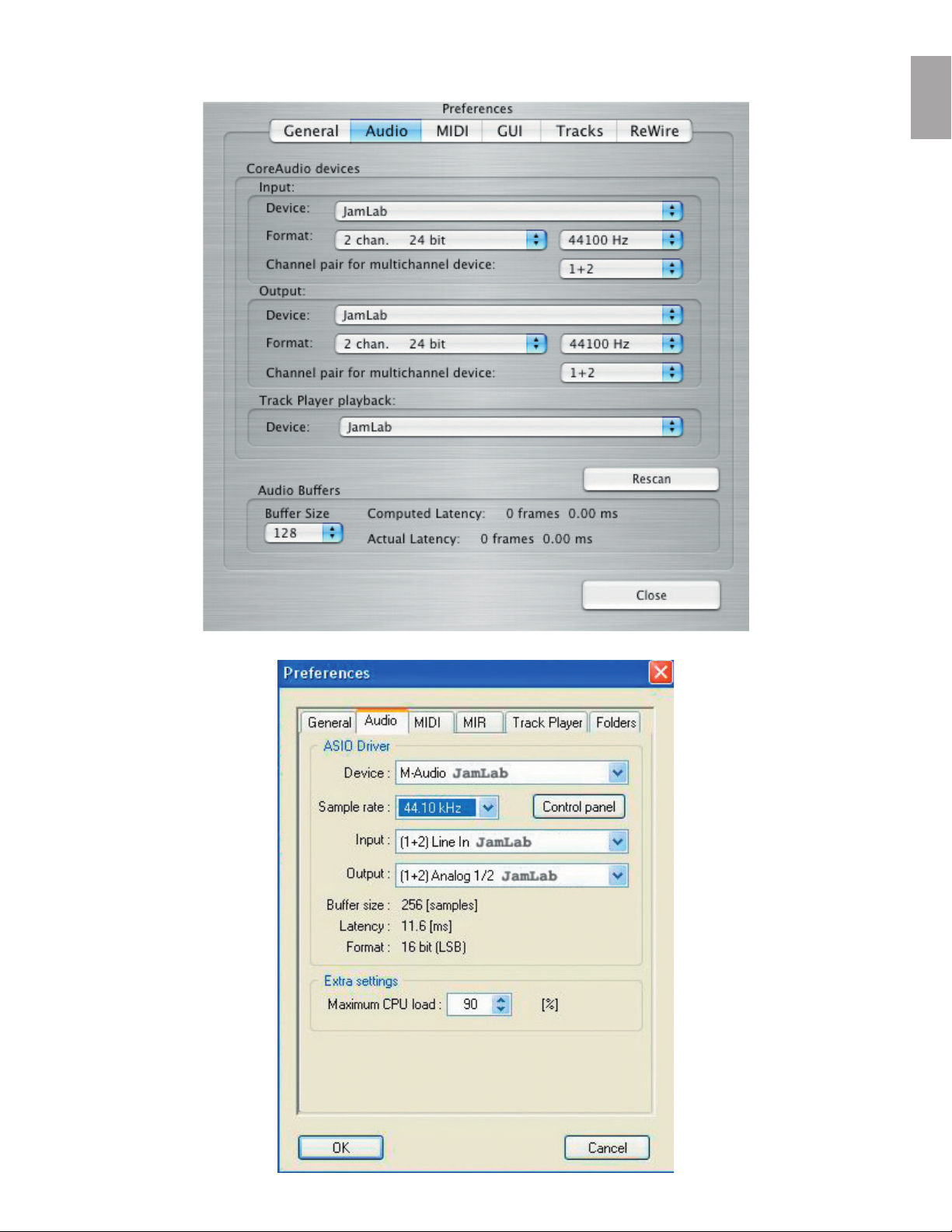

First, click on the Options key (4) located on the right side of the effect rack. A drop-down list will appear. Click on Preferences.
