Masterbuilt 20150813 Owner's Manual
Masterbuilt Manufacturing, Inc.
1 Masterbuilt Ct.
Columbus, GA 31907
Servicio de atención al cliente: 1-800-489-1581
www.masterbuilt.com
ASSEMBLY, CARE & USE MANUAL
WARNING & SAFETY INFORMATION
THIS PRODUCT IS FOR OUTDOOR USE ONLY
Manual Code: 9815150001 061515-GH
ELECTRIC PATIO GRILL
MODEL
20150813
Approximate assembly time : 40 minutes
Tool needed for assembly (not included): Phillips Head Screwdriver
GENERAL WARNINGS AND SAFETY INFORMATION
READ ALL INSTRUCTIONS
• Unit is for OUTDOOR USE ONL Y.
• Never use inside enclosed areas such as patios, garages, buildings or tents.
• Never use inside recreational vehicles or on boats.
• Never operate unit under overhead construction such as roof coverings, carports, awnings,
or overhangs.
• Never use unit as a heater.
• Minimum distance from side and back of appliance to walls or railing is 24 inches (0.61m).
• Keep a minimum 10ft (3m) clearance of all combustible materials such as wood, dry plants, grass, brush,
paper, vinyl, wood siding, or canvas.
• Keep appliance clear and free from combustible materials such as gasoline and other fl ammable vapors
and liquids.
• Use unit on a level, non-combustible, stable surface such as dirt, concrete, brick or rock.
• Unit MUST be on the ground. Do not place unit on tables or counters. Do NOT move unit across
uneven surfaces.
• Do not use unit on wooden or fl ammable surfaces.
• Do not leave unit unattended.
• Store appliance indoors when not in use, out of reach of children.
• Never use unit for anything other than its intended use. This unit is NOT for commercial use.
• Keep a fi re extinguisher accessible at all times while operating unit.
• Before each use check all nuts, screws and bolts to make sure they are tight and secure.
• Use of alcohol, prescription or non-prescription drugs may impair user’s ability to properly assemble or
safely operate unit.
• Keep children and pets away from unit at all times. Do NOT allow children to use unit. Close supervision
is necessary should children or pets be in area where unit is being used.
• Do NOT allow anyone to conduct activities around unit during or following its use until it has cooled.
• Avoid bumping or impacting unit.
• Never move unit when in use. Allow unit to cool completely (below 1 15°F (45°C)) before moving
or storing.
• The unit is HOT while in use and will remain HOT for a period of time afterwards and during cooling
process. Use CAUTION. Wear protective gloves/mitts.
• Do not touch HOT surfaces.
• Keep hands, hair and face away from the element. Be careful of loose hair and clothing during operation
as they could catch fire.
• Be sure grease cup is clean before each use.
• Never burn charcoal or wood in this unit.
• Never use glass, plastic or ceramic cookware in unit. Never place empty cookware in unit while in use.
• Accessory attachments not supplied by Masterbuilt Manufacturing, Inc. are NOT recommended
and may cause injury.
• Be careful when removing food from unit. All surfaces are HOT and may cause burns. Use protective
gloves or long, sturdy cooking tools.
• Always use unit in accordance with all applicable local, state and federal fi re codes.
• Fatty foods (hamburgers,etc.) can have excess grease and cause flare ups. When cooking fatty foods,
use a low setting with lid open.
• Clean internal base pan and grease cup before each use. This will cut down on build-up and flare ups.
WARNINGS & IMPORTANT SAFEGUARDS
CONTINUED ON PAGE 2
GARANTÍA LIMITADA
Masterbuilt garantiza que, por un plazo de 90 días contados desde la fecha de la compra original en el
establecimiento minorista, sus productos no tendrán defectos de materiales ni de fabricación, siempre que se
ensamblen, se usen y se cuiden correctamente y como se indica.
La garantía de Masterbuilt no ampara la pintura de acabado, pues ésta se puede deteriorar por el calor con el
uso normal.
La garantía de Masterbuilt no ampara la oxidación de la unidad.
Para hacer reclamos en virtud de la garantía, Masterbuilt exige que se presente una prueba razonable de la
compra, de modo que le sugerimos que conserve el comprobante. Toda obligación en virtud de la garantía
termina en la fecha de vencimiento de la misma.
Durante el período de vigencia de la garantía, Masterbuilt, a su criterio, reparará o cambiará los componentes
defectuosos, sin costo alguno, y el pago del envío correrá a cargo del propietario del producto. Si Masterbuilt
exige la devolución de los componentes en cuestión para inspeccionarlos, Masterbuilt pagará los gastos de
envío por la devolución de los artículos solicitados.
Esta garantía no incluye los daños a la propiedad causados por el uso indebido, el maltrato y los accidentes, los
daños sufridos durante el transporte, o los daños causados por el uso con fi nes comerciales de este producto.
Esta garantía expresa es la única garantía que ofrece Masterbuilt y reemplaza toda otra garantía, expresa o
implícita, incluyendo las garantías implícitas sobre su idoneidad para su comercialización o para algún otro fi n
en particular.
Ni Masterbuilt ni los establecimientos que venden este producto están autorizados a ofrecer garantías o a
prometer recursos adicionales o incongruentes con los antes especifi cados.
La responsabilidad máxima de Masterbuilt no excederá, en ningún caso, el precio que pagó el consumidor/
comprador original por la compra del producto. En algunos estados no se permite la exclusión ni la limitación
de los daños accesorios o indirectos. En tal caso, es posible que las limitaciones y exclusiones anteriores no
correspondan a su caso.
Sólo para los residentes de California: No obstante esta limitación de la garantía, se aplicará la siguiente
restricción específi ca: en el caso en que no sea comercialmente viable dar mantenimiento, reparar o cambiar
el producto, el minorista que vende este producto o Masterbuilt le reembolsarán el precio de compra pagado
por el mismo, menos la cantidad directamente atribuible al uso dado por el comprador original, antes de haber
descubierto la falla. El propietario debe llevar el producto al establecimiento que lo vende, para recibir los
servicios en virtud de la garantía. Esta garantía expresa le otorga derechos específi cos; es posible que usted
tenga además otros derechos que pueden variar de un estado a otro.
Visite www.masterbuilt.com
o llénela y devuélvala a
la atención de: Warranty Registration
Masterbuilt Mfg., Inc.
1 Masterbuilt Court - Columbus, GA31907
Nombre: _________________________________Dirección:_________________________Ciudad:________________
Estado/provincia: ________ Código postal: ________________Número de teléfono: (_____) - ____________
Dirección de correo electrónico:_________________________________
*Número de modelo: ____________________ *Número de serie: ____________________
Fecha de compra: ____- _____- _______ Lugar de compra: _________________
*El número de modelo y el número de serie fi guran en la etiqueta plateada ubicada en la parte trasera de la unidad.
1
ARMADO
GENERAL WARNINGS AND SAFETY INFORMATION

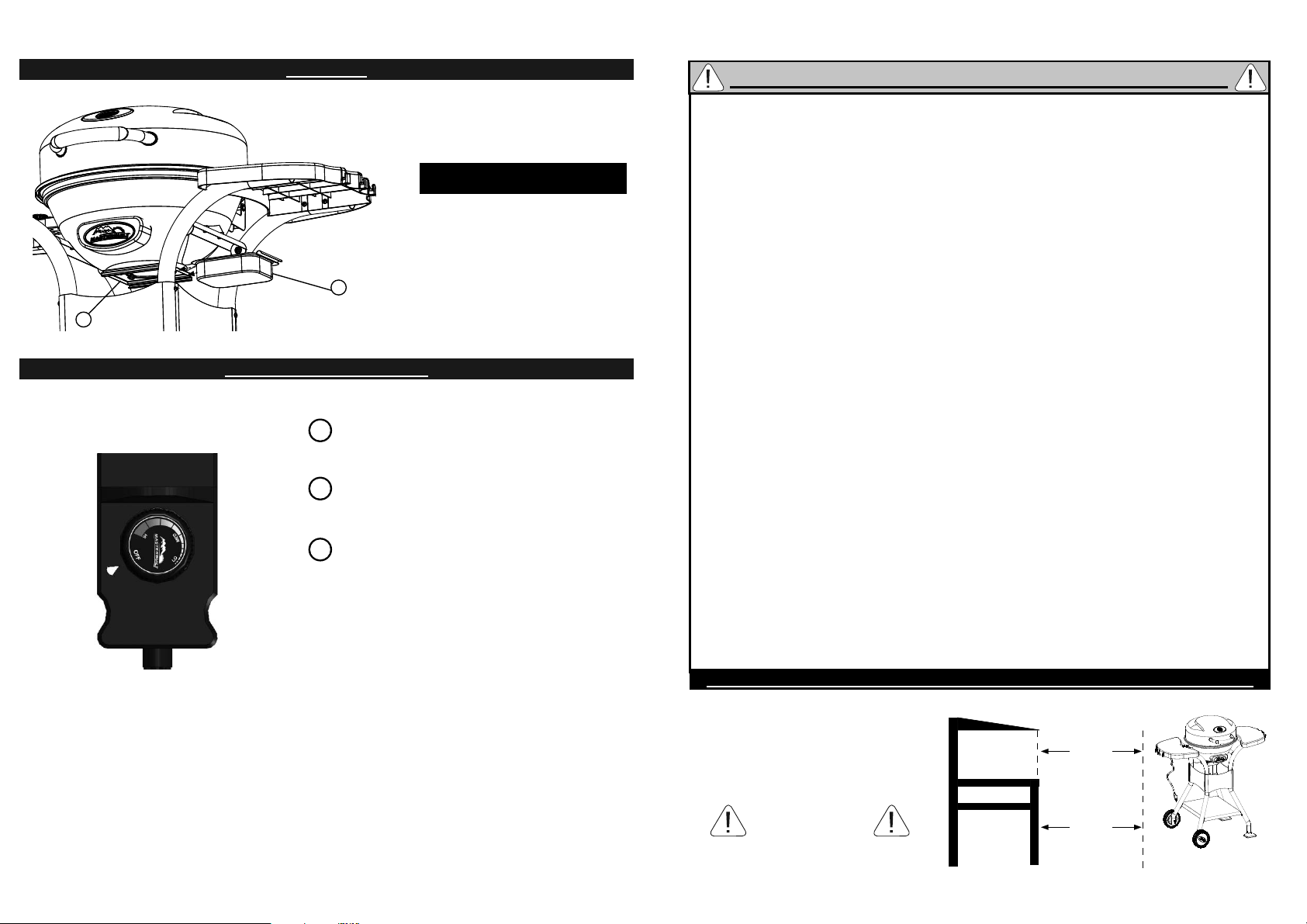

PASO 22
Deslice el recipiente para la grasa
(7) en su soporte (8).
7
8
YA HA TERMINADO EL
ARMADO
INSTRUCCIONES DE FUNCIONAMIENTO
Conecte el controlador a la parrilla.
1
Enchufe el cordón a un tomacorriente (consulte
en el manual, la sección “Advertencias y medidas
2
de protección importantes”).
Gire la perilla de control a la graduación que
3
desee. La luz indicadora se apagará una vez que
se haya alcanzado la temperatura deseada.
WARNINGS & IMPORTANT SAFEGUARDS
CONTINUED FROM PAGE 1
When using electrical appliances, basic safety precautions should always be followed including
the following:
• Do not plug in electric grill until fully assembled and ready for use.
• Be sure that handles are assembled and fastened properly.
• Be sure that legs are assembled and fastened properly.
• Use only approved grounded GFI electrical outlet.
• Do not use during an electrical storm.
• Do not expose electric grill to rain or water at anytime.
• Cannot be operated for more than 3 hours.
• To protect against electrical shock do not immerse cord, plug or control panel in water or other liquid.
• Use GFI protected electrical outlet to reduce the risk of electrical shock.
• Do not operate any appliance with a damaged cord or plug, or after appliance malfunctions or has
been damaged in any manner. Contact Masterbuilt Customer Service for assistance at
1-800-489-1581.
• Use only electric controller and element supplied with unit. These parts must be replaced by the
manufacturer of unit.
• Longer detachable power-supply cords or extension cords are available and may be used if care is
exercised in their use.
• If a longer detachable power-supply cord or extension cord is used: 1. The marked electrical rating of
the cord set or extension cord should be at least as great as the electrical rating of the appliance; and
2. The cord should be arranged so that it will not drape over the counter top or tabletop where it can
be pulled by children or tripped over unintentionally.
• The extension cord must be a grounding -type 3-wire cord.
• Outdoor extension cords must be used with outdoor use products and are marked with suffi x
“W” and with the statement “Suitable for Use with Outdoor Appliances.”
• Preheating grill is not necessary. If preheating is desired, open lid with caution.
• CAUTION - To reduce the risk of electric shock, keep extension cord connection dry and off the ground.
• Do not let cord hang or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Fuel, such as charcoal briquettes or heat pellets, are not to be used in electric grill.
• To disconnect, turn control panel “OFF” then remove plug from outlet.
• Unplug from outlet when not in use and before cleaning and servicing. Allow unit to cool completely
(below 115°F (45°C)) before putting on or taking off parts.
• Do not clean this product with a water sprayer or the like.
17
Nota: Indicador de temperatura refleja en la
creación controlador y la temperatura se muestra
en el interior de la unidad.
SAVE THESE INSTRUCTIONS
STRUCTURAL PROXIMITY AND SAFETY USAGE RECOMMENDATIONS
REMINDER:
NEVER OPERATE THIS GRILL UNDER
ANY OVERHEAD CONSTRUCTION.
MAINTAIN A MINIMUM DISTANCE OF 10
FEET FROM OVERHEAD CONSTRUCTION,
WALLS OR RAILS.
WARNING:
ELECTRIC POWER CORD IS
A TRIP HAZARD
Overhead Construction
10 Feet
Rails
10 Feet
Walls
2
WARNING
This manual contains important information necessary for the proper assembly and
Read and follow all warnings and instructions before assembling and using the appliance.
Follow all warnings and instructions when using the appliance.
safe use of the appliance.
Keep this manual for future reference.

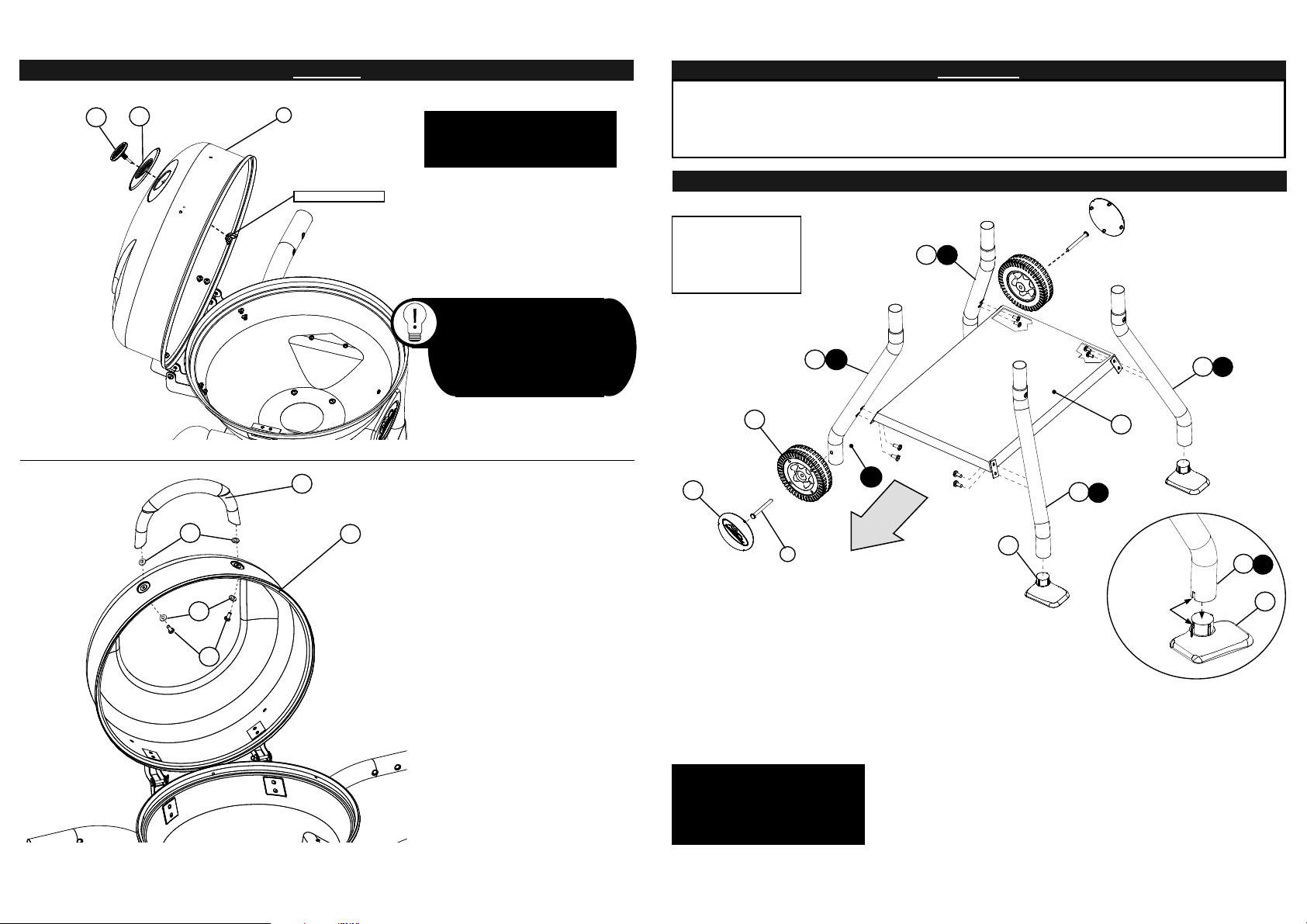

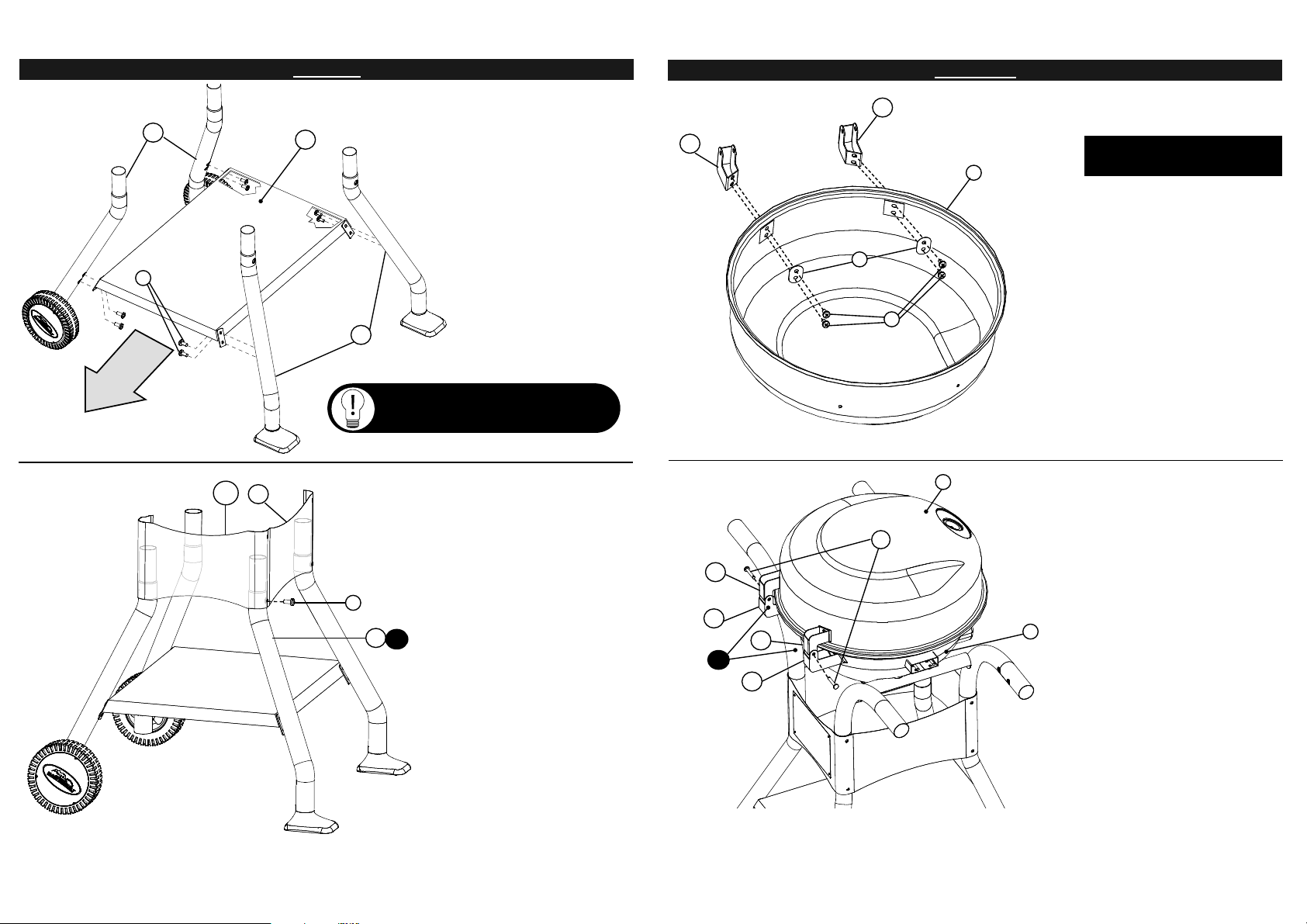

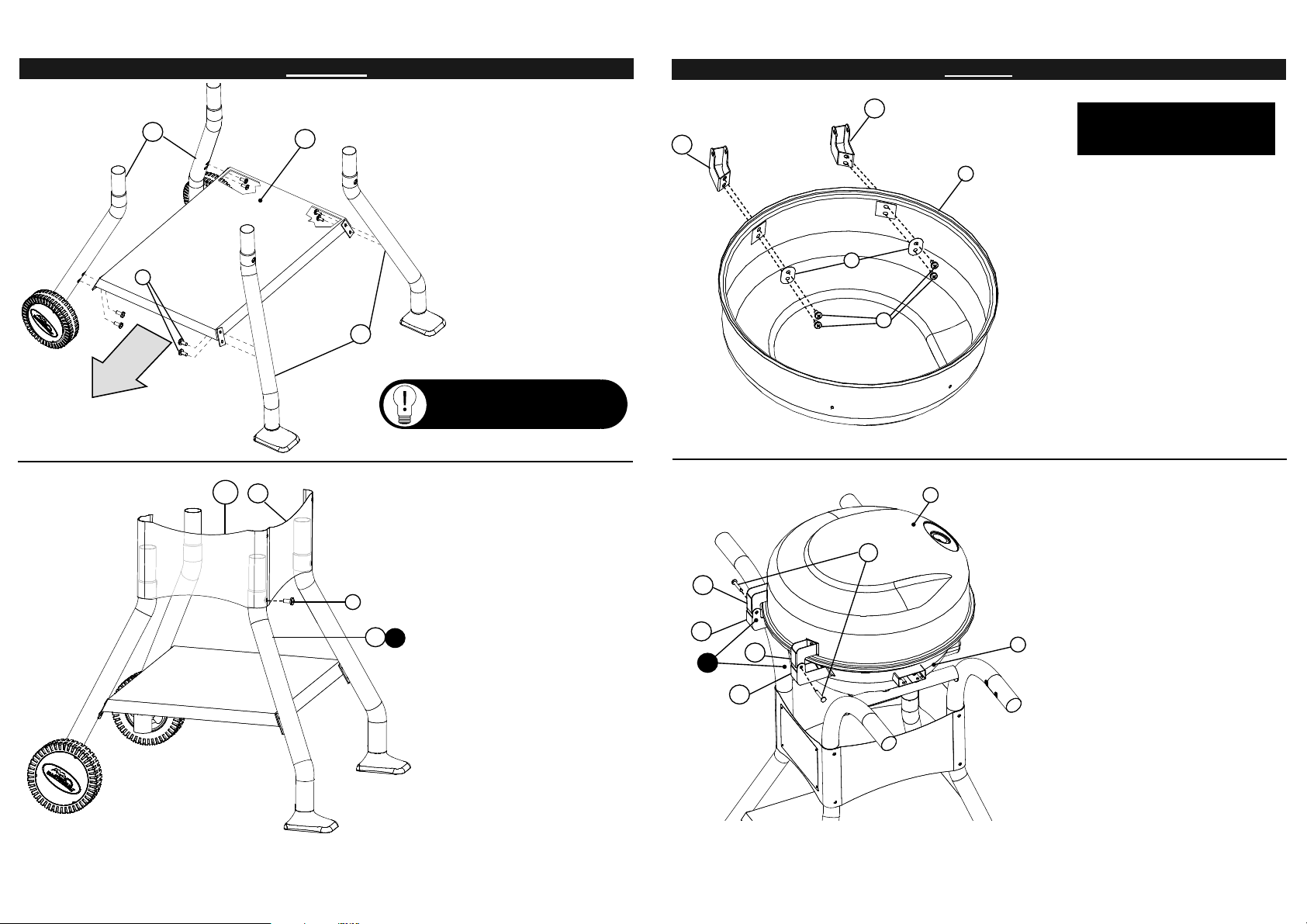

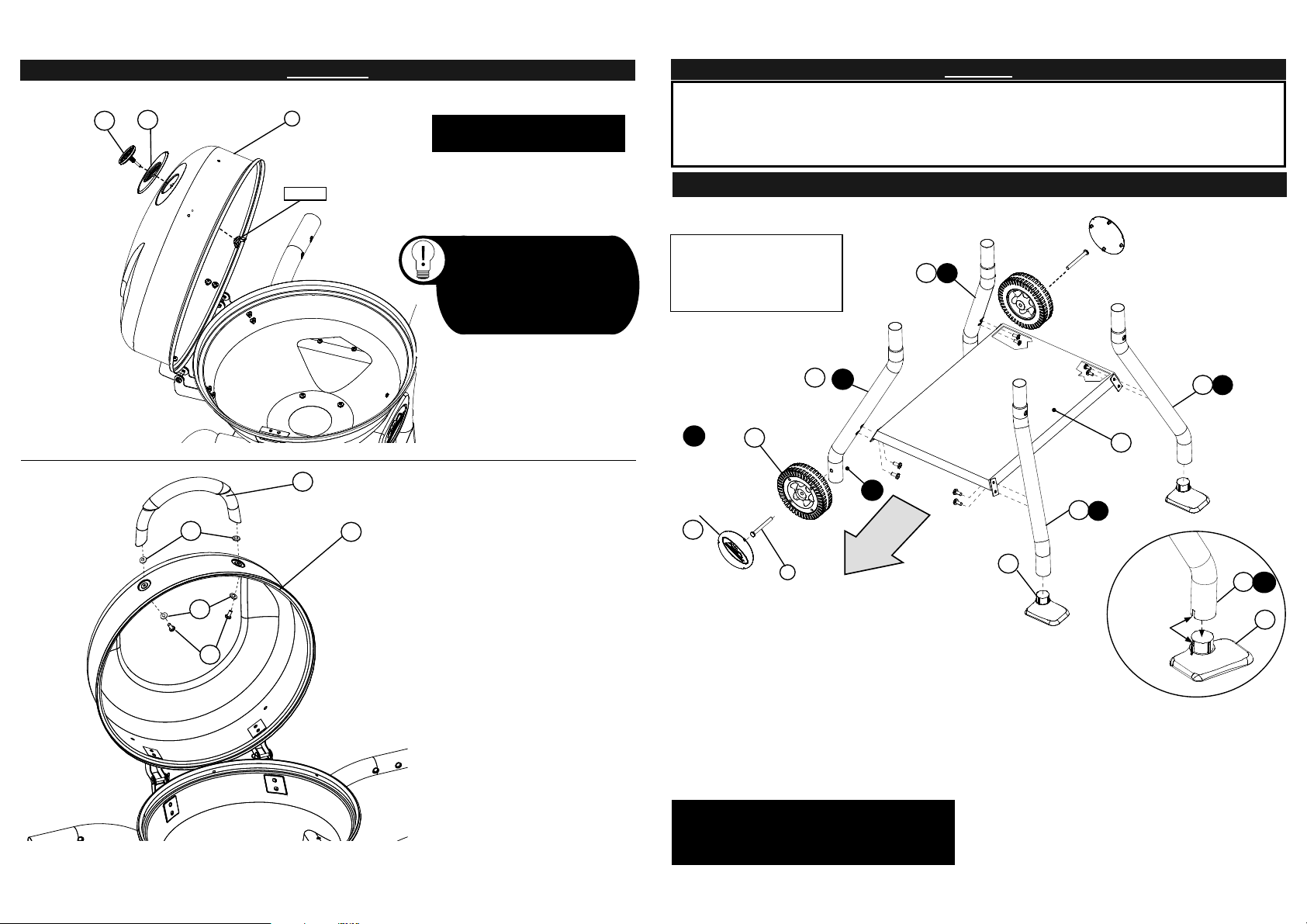

ARMADO
21

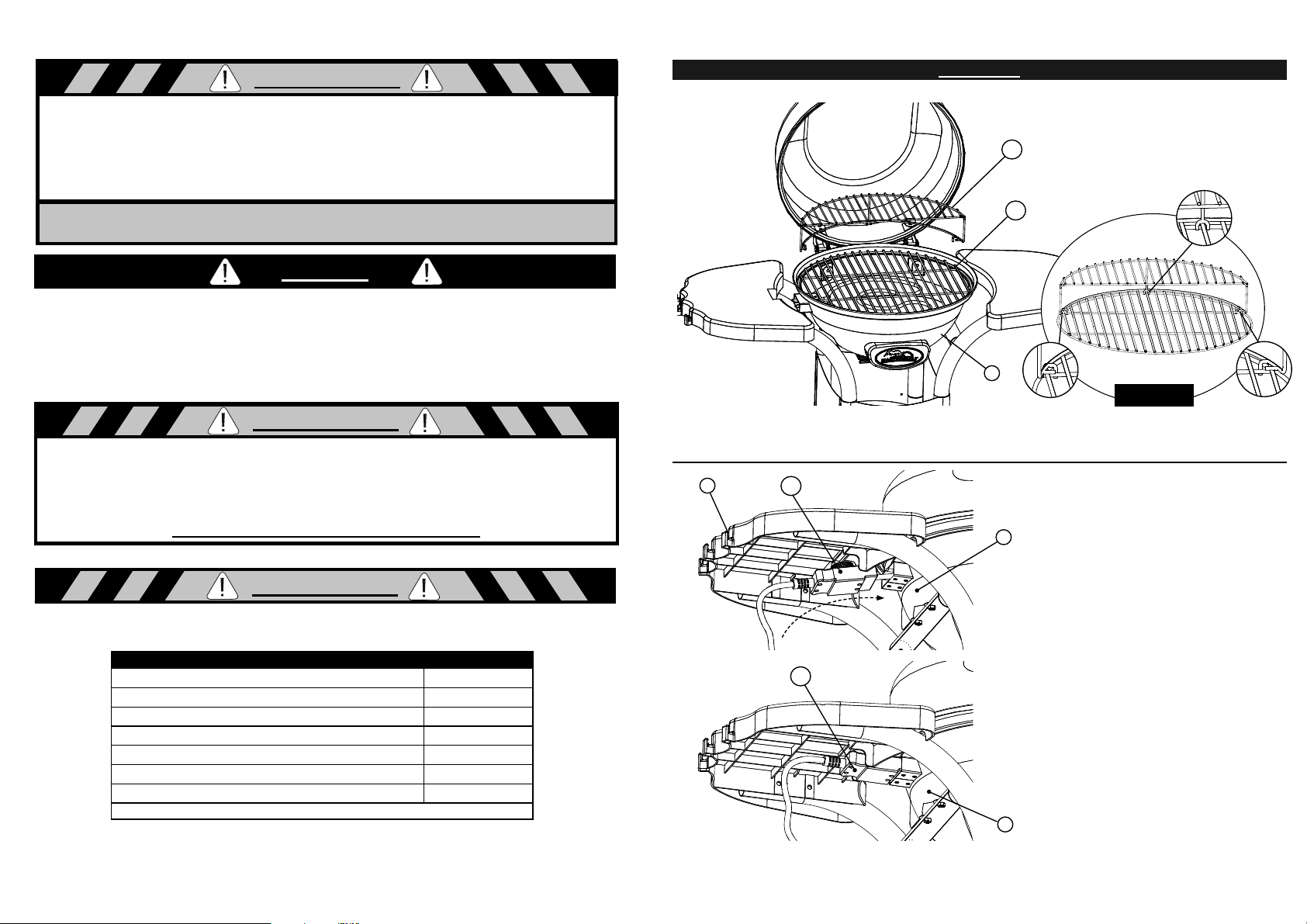

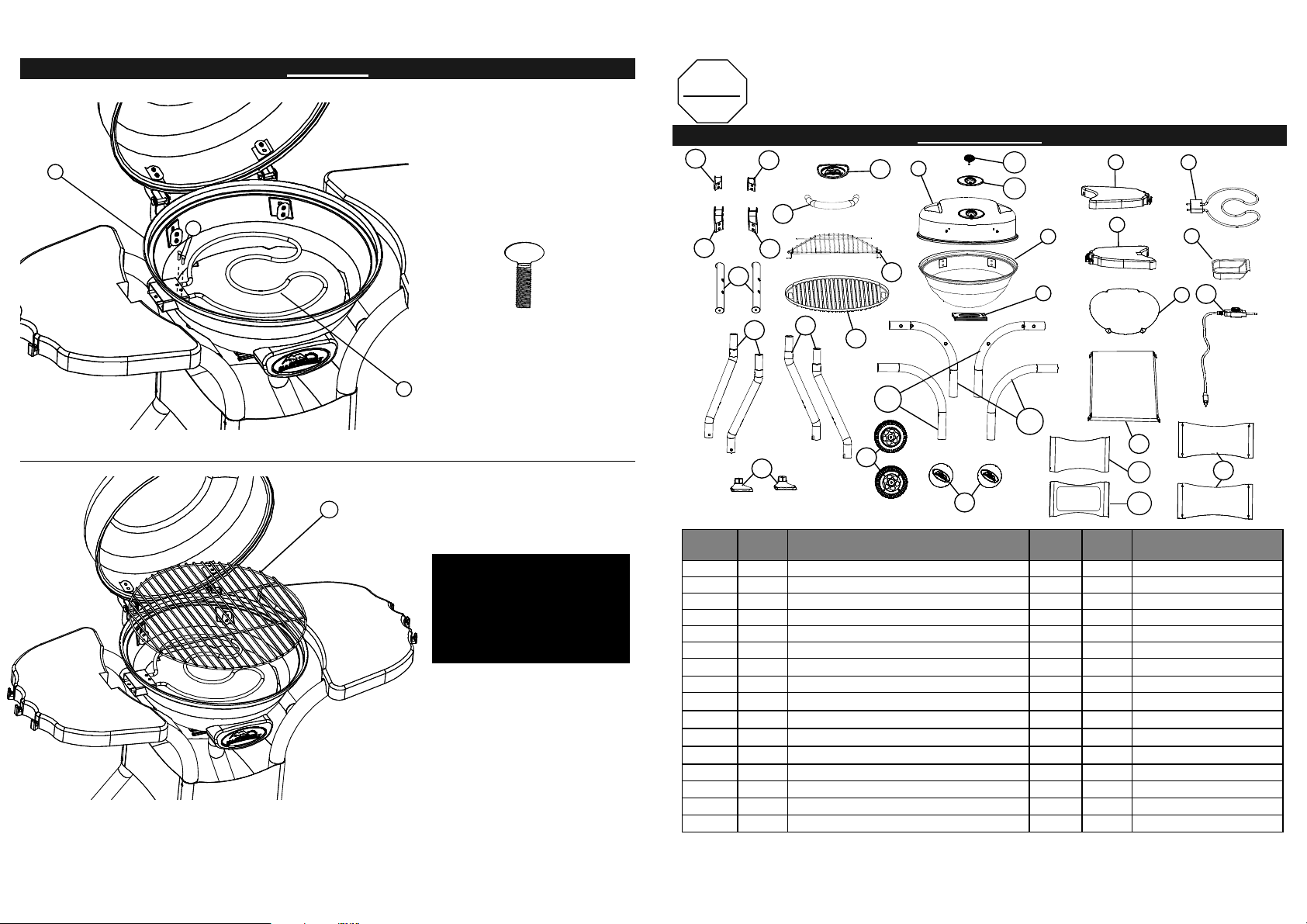

PASO 20
Inserte la rejilla para
(21) en la rejilla de cocción (20),
con horquillas de rejilla para
calentar sentada en rejilla como
se muestra en FIGURA 3.
calentamiento
Failure to follow these warnings and instructions properly could result in fi re or explosion,
which could cause property damage, personal injury, or death.
DANGER
• Do not expose electric grill to rain. Do not use around water or operate on wet surfaces.
This could cause an electric shock leading to injury or death.
THIS PRODUCT IS INTENDED FOR OUTDOOR
HOUSEHOLD USE ONLY.
WARNING
CALIFORNIA PROPOSITION 65
1. Combustion by-products produced when using this product contain chemicals known to
the State of California to cause cancer, birth defects, and other reproductive harm.
2. This product contains chemicals, including lead and lead compounds, known to the State
of California to cause cancer, birth defects or other reproductive harm.
Wash your hands after handling this product.
WARNING
To ensure that it is safe to eat, food must be cooked to the minimum internal
temperatures listed in the table below.
USDA* Safe Minimum Internal Temperatures
Fish 145° F (63° C)
Pork 145° F (63° C)
Egg Dishes 160° F (71° C)
Steaks and Roasts of Beef, Veal or Lamb 145° F (63° C)
Ground Beef, Veal or Lamb 160° F (71° C)
Whole Poultry (Turkey, Chicken, Duck, etc.) 165° F (74° C)
Ground or Pieces Poultry (Chicken Breast, etc.) 165° F (74° C)
* United States Department of Agriculture
20
5
FIGURA 3
6
10
10
PASO 21
Enchufe el controlador (10) en el
5
lado de la base de la parrilla (5)
desde abajo del estante lateral
(6), llegando a un pequeño ángulo, introduciendo cuidadosamente
el enchufe mientras se levanta de
manera que la parte superior del
controlador se desliza en la muesca del estante (6).
5
3
16
ARMADO
PASO 18
Fije el elemento calentador (4)
a la base de la parrilla (5) con
5
tornillos (E) como se muestra.
25
STOP!
26
DO NOT RETURN TO RETAILER For Assembly Assistance, Missing or Damaged Parts
Call: MASTERBUILT Customer Service at 1-800-489-1581.
Please have Model Number and Serial Number available when calling.
These numbers are located on silver label on back of unit.

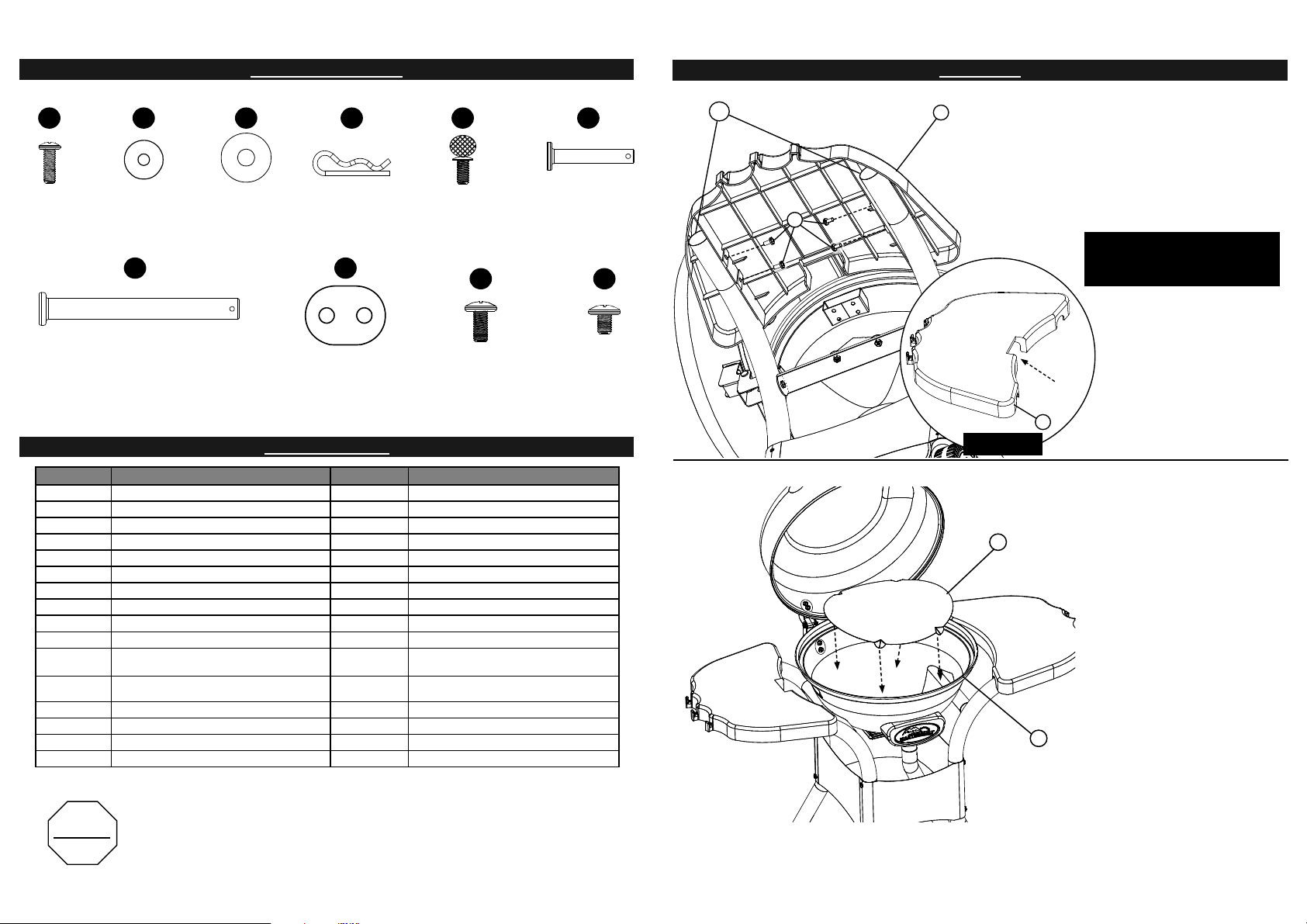

PARTS LIST
28
1
2g
2b
3
4
15
22
19
17
23
27
18
20
16
11
21
b
15
11
5
8
a
6
12
14f
14b
7
10
9
13
E
24
(E)
Tornillo de aletas
M5
4
PASO 19
20
Coloque la rejilla de cocción (20)
sobre la base de la parrilla (5)
PART NO QTY DESCRIPTION PART NO QTY DESCRIPTION
Notar: Las 2 barras de soporte en la parrilla de cocción (20) debe abarcar izquierda a derecha, con las
rejillas pasando de adelante
hacia atrás. Esta alineación
es esencial para el siguiente
paso.
1 1 Grill Lid 14b 1 Back Panel
2g 1 Temperature Gauge 15 2 Hub Cap
2b 1 Temperature Gauge Bezel 16 2 Wheel
3 1 Right Side Shelf 17 2 Foot
4 1 Heating Element 18* 2 Leg
5 1 Grill Base 19* 2 Wheel Leg
6 1 Left Side Shelf 20 1 Cooking Grate
7 1 Drip Tray 21 1 Warming Rack
8 1 Drip Tray Bracket 22 2 Cross Brace
91Refl ector Plate 23 1 Right Bottom Hinge
10 1 Controller 24 1 Left Bottom Hinge
11a 2 Front right/Back left Support 25 1 Left Lid Hinge
11b 2 Front left/Back right Support 26 1 Right Lid Hinge
12 1 Bottom Shelf 27 1 Handle
13 2 Side Panel 28 1 Logo Base
14f 1 Front Panel
*Legs are marked with stickers (A-Front Right, B-Front Left, C-Back Right, D-Back Left) to correspond easily with parts 11a and 11b
during assembly Steps 3-5.
4
HARDWARE LIST
ARMADO
A B C D E F
M4X12 Screw
Qty. 3
M4X12
Fiberglass Washer
Qty. 3
G H
Axle Pin 8.9X85
Qty. 2
M6 Maria
Glass Washer
Qty. 12
Cotter Clip
Qty. 4
34X25
Fiberglass Washer
Qty. 4
M5
Thumb Screw
Qty. 2
I J
M6X13 Screw
Qty. 42
PARTS LIST
PART NO REPLACEMENT PART PART NO REPLACEMENT PART
9915120004 Lid Kit - Red 9915110018 Front Panel Kit
9915120005 Base Kit - Red 9915110019 Back Panel Kit
9915120006 Lid Handle Kit 9915110020 Side Panel Kit
9915110005 Hinge Kit 9915110021 Bottom Shelf Kit
9915110006 Right Side Shelf Kit 9915120010 Wheel Kit
9915110007 Left Side Shelf Kit 9015110006 Hub Cap
9915110008 Logo Plate Kit 9915120003 Element Kit
9915130002 Temperature Gauge Kit 9015120047 Foot
9915120007 Drip Tray Kit 9015120053 Warming Rack
9915110011 Grill Cross Brace Kit 9015120048 Cooking Grate
9915110012 Front Left/Back Right Support Kit 9015110005 Refl ector Plate
9915110013 Front Right/Back Left Support Kit 9015120013 Temperature Gauge Bezel
9915110014 Front Left Leg Kit 9007090063 Analog Control w/ Power Cord
9915120008 Front Right Leg Kit 9915150001 Hardware Kit
9915110016 Rear Left Leg Kit 9815150001 Instruction Manual
9915120009 Rear Right Leg Kit
Clevis Pin
Qty. 2
M6X8 Screw
Qty. 4
611

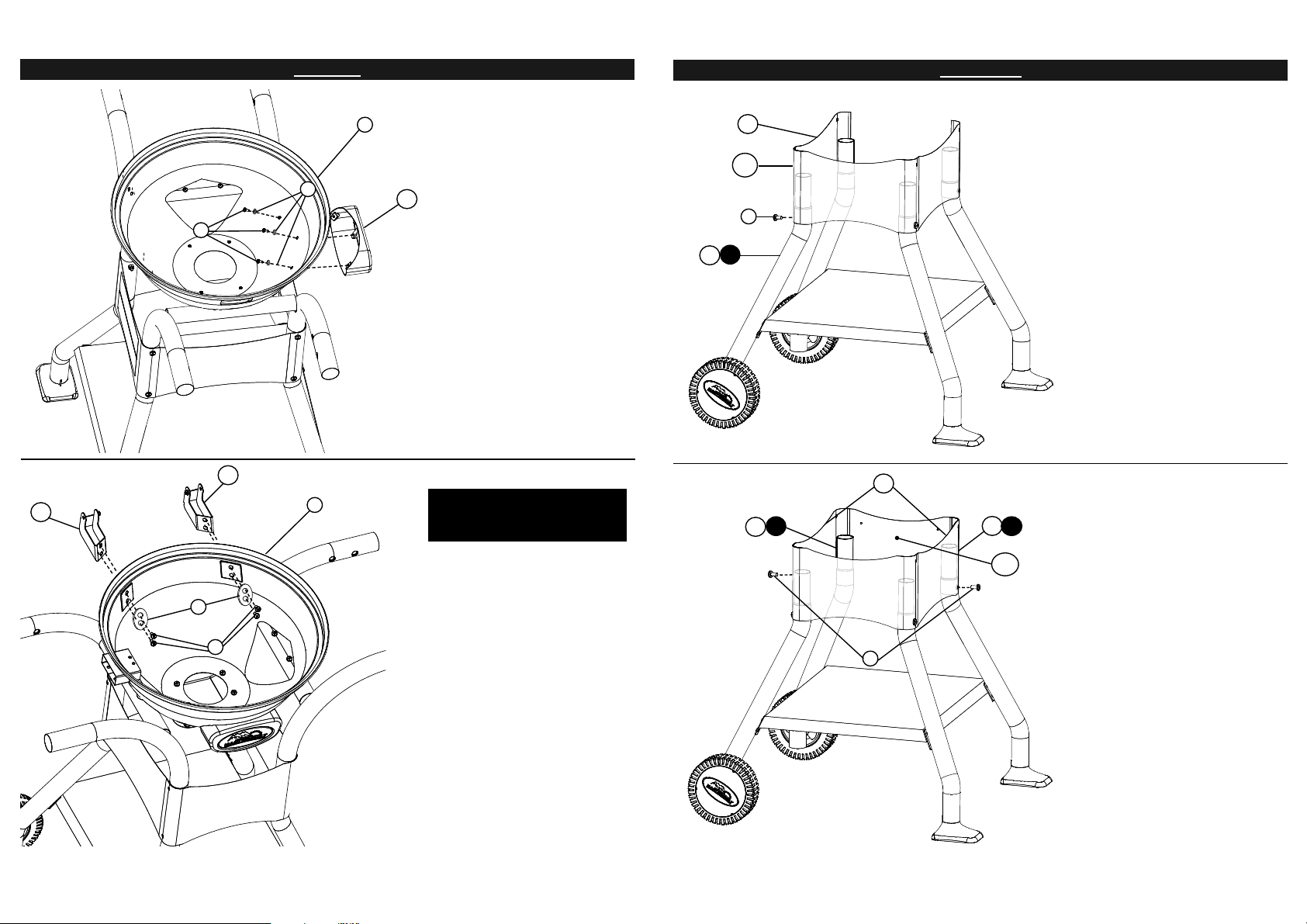

PASO 16
Coloque la repisa lateral izquierdo
(6) a los dos soportes (11) con los
tornillos (I).
Repita el paso en el lado opuesto
con la repisa lateral derecho (3).
I
VUELVA Y APRIETE TODOS
LOS TORNILLOS EN ESTE
MOMENTO.
Notar: La repisa lateral izquierda es la repisa con la
muesca cuadrada como se
muestra en la FIGURA 2.
MUESCA
6
FIGURA 2

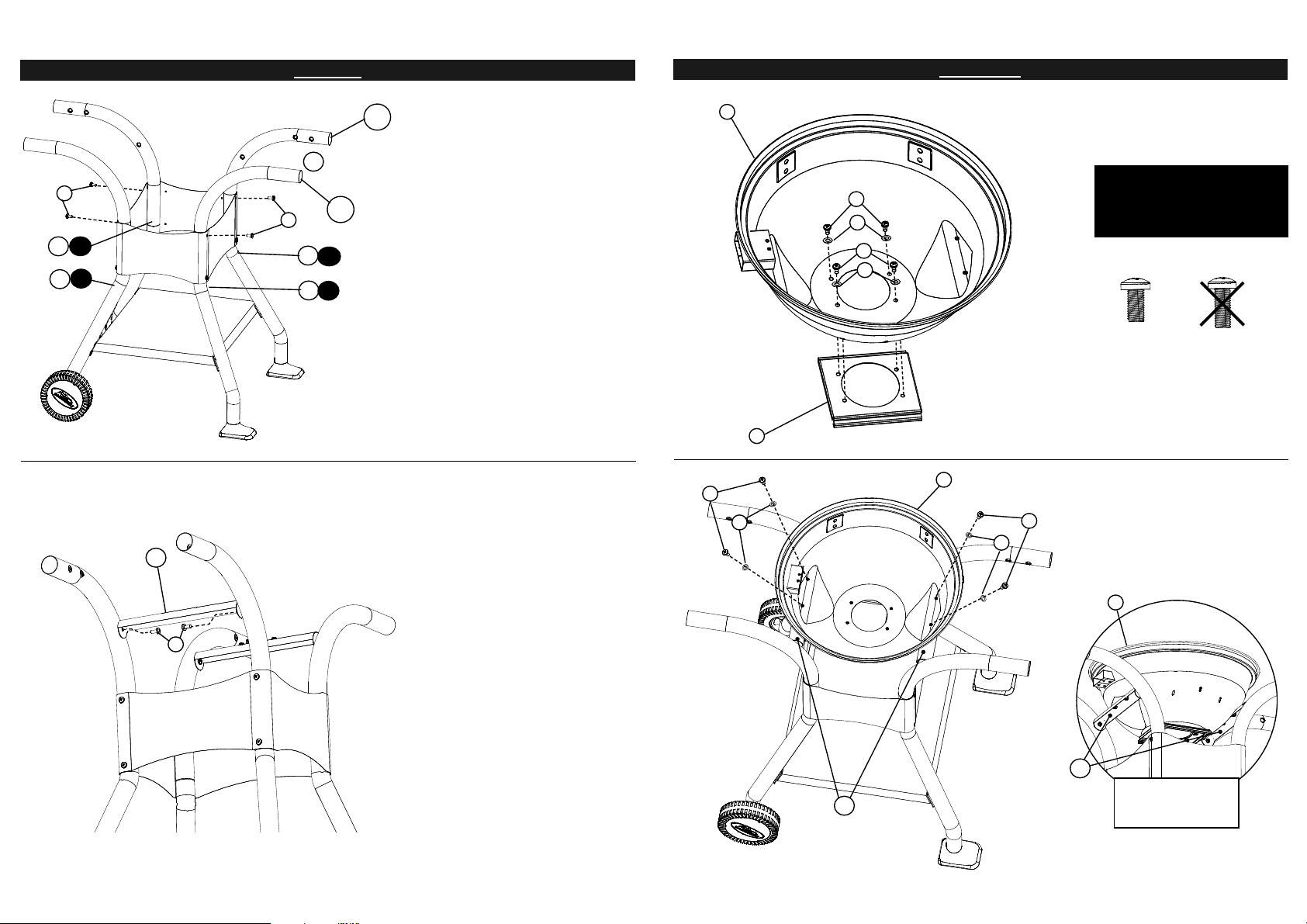

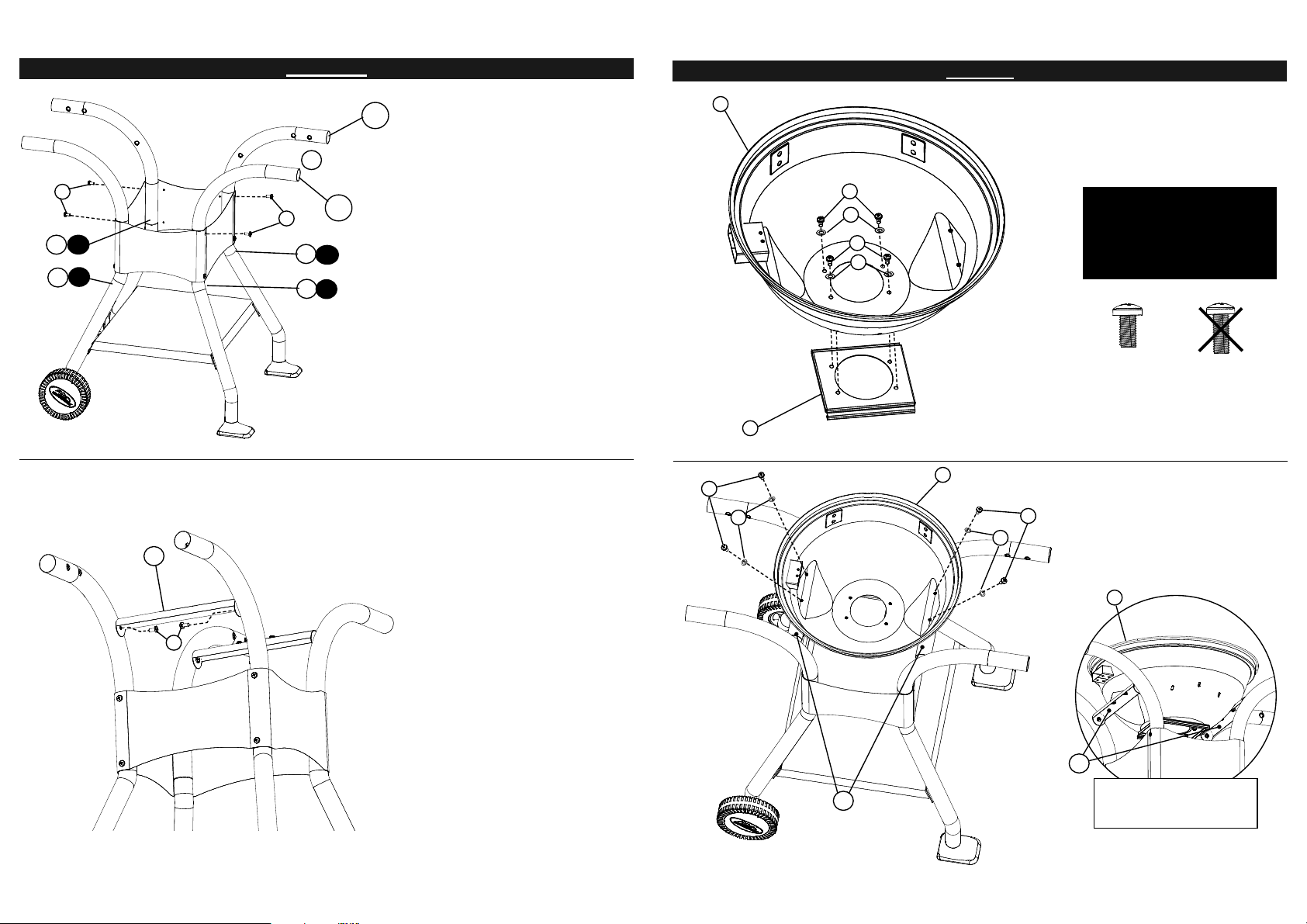

PASO 17
Coloque la placa refl ectora (9) en
el fondo de la base de la parilla
(5).
9
5
DO NOT RETURN TO RETAILER For Assembly Assistance, Missing or Damaged Parts
STOP!
5
Call: MASTERBUILT Customer Service at 1-800-489-1581.
Please have Model Number and Serial Number available when calling.
These numbers are located on silver label on back of unit.
14
Loading...
