vba400
schematic
4 pgs
284.56 Kb
0
Table of contents
Loading...

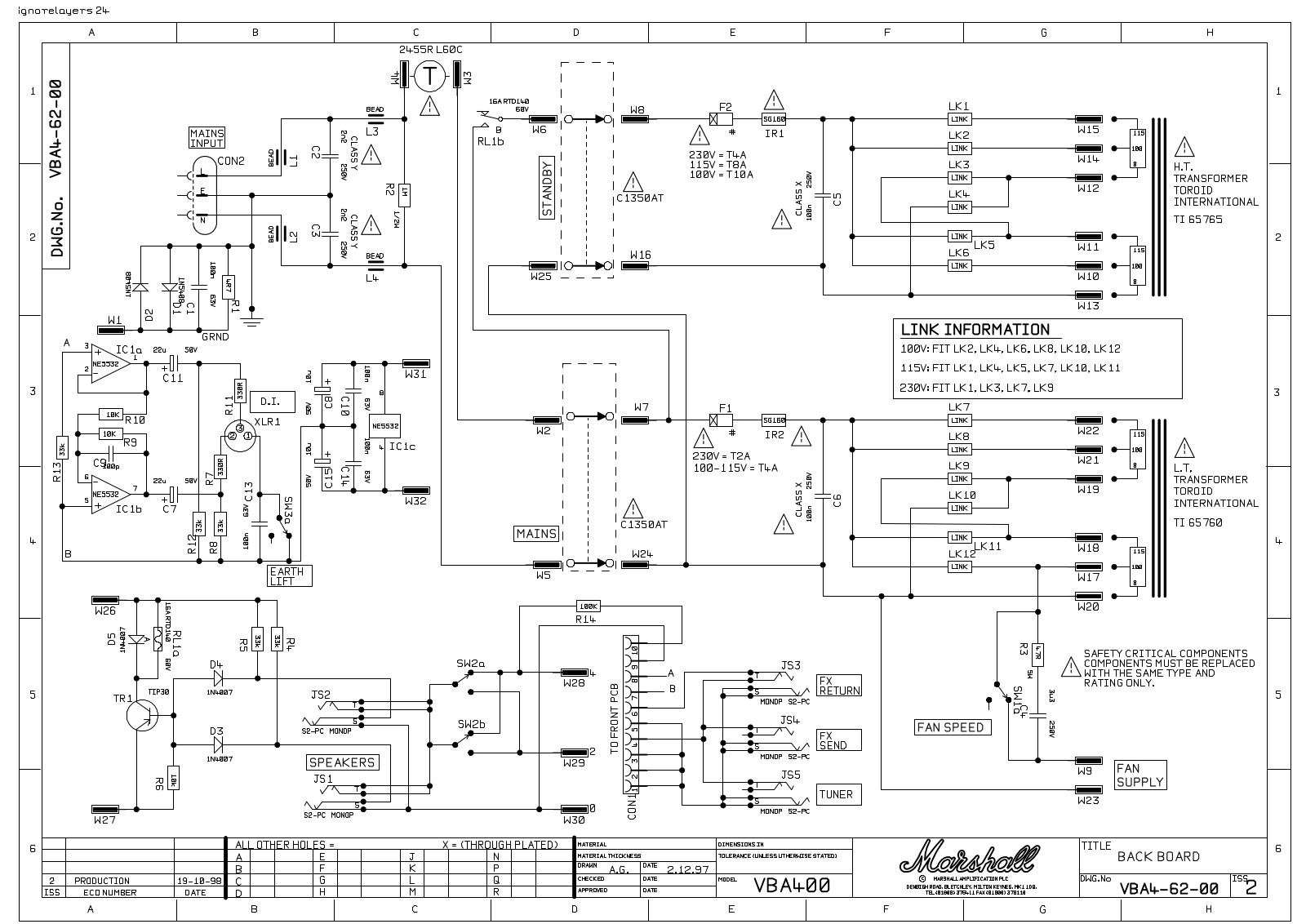

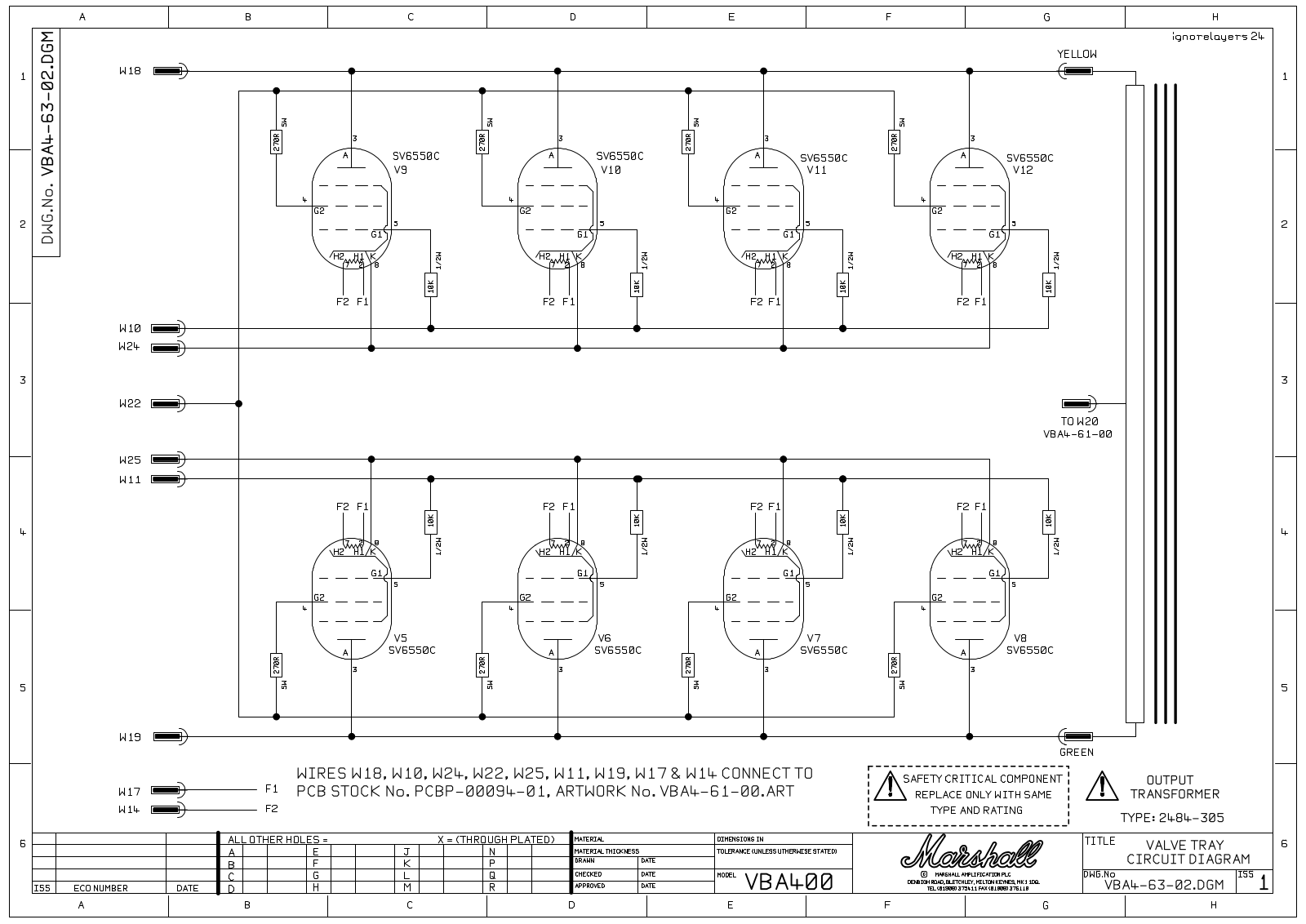

Marshall vba400 schematic
...
Marshall schematic
Download
4
(
1
)
Loading...
+
2
hidden pages
Unhide
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
Buy points
Upload your manuals
