Model RX8001 User Guide

Wireless Extender

ENGLISH

FRANÇAIS

ESPAÑOL

EN

FR

ES

WARNINGS

Do not expose the equipment to rain or moisture.

Do not remove the cover from the equipment.

No naked flame sources, such as lighted candles, should be placed on the equipment.

No objects filled with liquids, such as vases, shall be placed on the equipment.

AVERTISSEMENTS

Ne pas exposer l’appareil à la pluie ni à l’humidité.

Ne pas essayer de retirer le boîtier de l’appareil.

Ne placer aucune source de flamme nue, comme une bougie allumée, sur l'appareil.

Aucun objet rempli de liquide, un vase par exemple, ne doit être placé sur l'appareil.

ADVERTENCIAS

No exponga el equipo a la lluvia ni a la humedad.

No extraiga la tapa del equipo.

No deben colocarse sobre el equipo elementos con fuego, por ejemplo velas encendidas.

No se deben colocar sobre el aparato recipientes que contengan líquidos, como por ejemplo jarrones.

Concept and realisation of the Guide:

Concept et réalisation du guide :

Concepto y realización de la Guía:

Human Interface Group, De Regenboog 11, 2800 Mechelen (Belgium) www.higroup.com

3104 205 3442.1

RX8001 UserRX8001 UserGuideGuide

FRANÇAIS ENGLISH

ESPAÑOL

RX8001X8001 User GuideUser Guide

Contents

Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Unpacking the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Configuring the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Stand-alone Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Network Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installing the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Connecting the Extender to A/V equipment . . . . . . . 6

Stand-alone Mode

Network Mode

1

Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Firmware Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

IFU Approbation / Safety Content RX8001 . . . . . . . . . . . . i

FCC Compliancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

Regulations According to R&TTE. . . . . . . . . . . . . . . . . . . . . ii

RX8001 User Guide

Before You Start

The Wireless Extender is an important element of the

RC9001 and makes it possible to

control A/V equipment via RF in the entire house.





In order to use the Extender in a wireless

Network:



Configure the Extender: connect it to the PC and use the Configuration Tool.

Install the Extender: connect it to external A/V equipment, like a TV or receiver.

The Extender can be used in two ways:

Stand-alone Mode

This is the so-called ‘Ad-Hoc Mode’: a router is not required.

Stand-alone Advantages:

The Extender is easily configured and installed.

It operates independently from other networks and network settings.

Refer to the chapter ‘Stand-alone Connection’ on page 4 to configure the Extender in Stand-alone Mode.

Note If you want to use a Multimedia server, like the Escient Fireball, in combination with one or more Extenders, the Extenders have to be configured in Network Mode.

Network Mode

This is the so-called ‘Infrastructure Mode’: the Extender is used in a network with a router.

Network Advantages:

A network allows the use of repeaters, which enlarges the range of the RC9001 System.

When using a dedicated Network, the Extender can operate independently from settings in other networks.

The Extender in Network Mode can be given a fixed IP address, which increases reliability.

The network connection can be encrypted.

Refer to the chapter ‘Network Connection’ on page 4 to configure the Extender in Network Mode.

Note

An Extender that has been configured in Stand-alone Mode can always be reconfigured for use



in Network Mode and vice versa.





You can use up to 16 different Extenders in the same

Network.







ENGLISH

2

RX8001 User Guide

Unpacking the Extender

Wireless Extender

Front Panel

Power LED

WiFi LED

Ethernet LED

Busy LED

Back Panel



Power input

4 dipswitches for



the IR outputs

Antenna

Stand-alone/

Network switch

Configuration switch

• In Stand-alone Mode: changes the RF channel.

• In Network Mode: indicates the connection type.

4 IR outputs

Ethernet input

Extender ID switch

IP address



(RJ45)





Power Adapter

Configuration Cable

2 Dual IR Emitters

2 Mini-jack IR Cables

Crossed Ethernet cable

3

RX8001 User Guide

Configuring the Extender

Note Before you start configuring the Extender, check for firmware updates in the Downloads section on http://www.marantz.com in the Home Entertainment section of your region.

Refer to the chapter ‘Firmware Update’ on page 9 for further details.

Stand-alone Connection

To configure the Stand-alone Extender:

1Plug in the Extender’s power adapter.

The Extender will start up. When start-up has finished, the Power and WiFi LEDs are green.

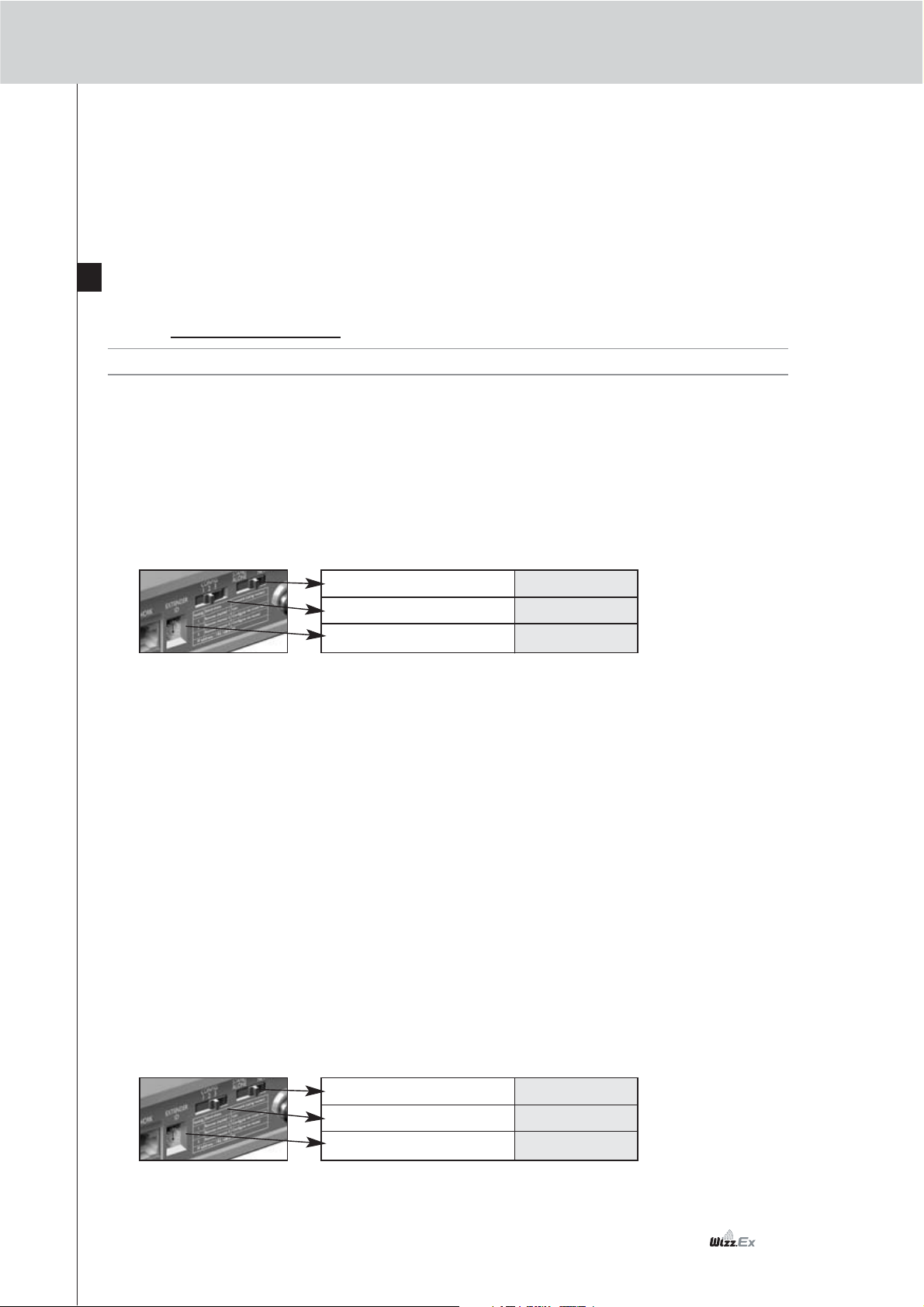

2 Use the default switch settings of the Extender:





Stand-alone/Network

Stand-alone







Configuration switch

1







Extender ID

0























Note • If there is already an Extender with ID 0, set the Extender ID switch to an ID that is not used yet.

If there is any interference with other products in or around the house, the Configuration switch can be set to a different RF channel.

Make sure the same Extender ID and RF channel are used on the Extender and the Control Panel.

3Configure the Control Panel’s configuration file so that the Control Panel can work with the Extender. For more details, refer to the Wizz.it Ex Online Help.

Network Connection

In the case of a network connection, the Extender is made part of the



.

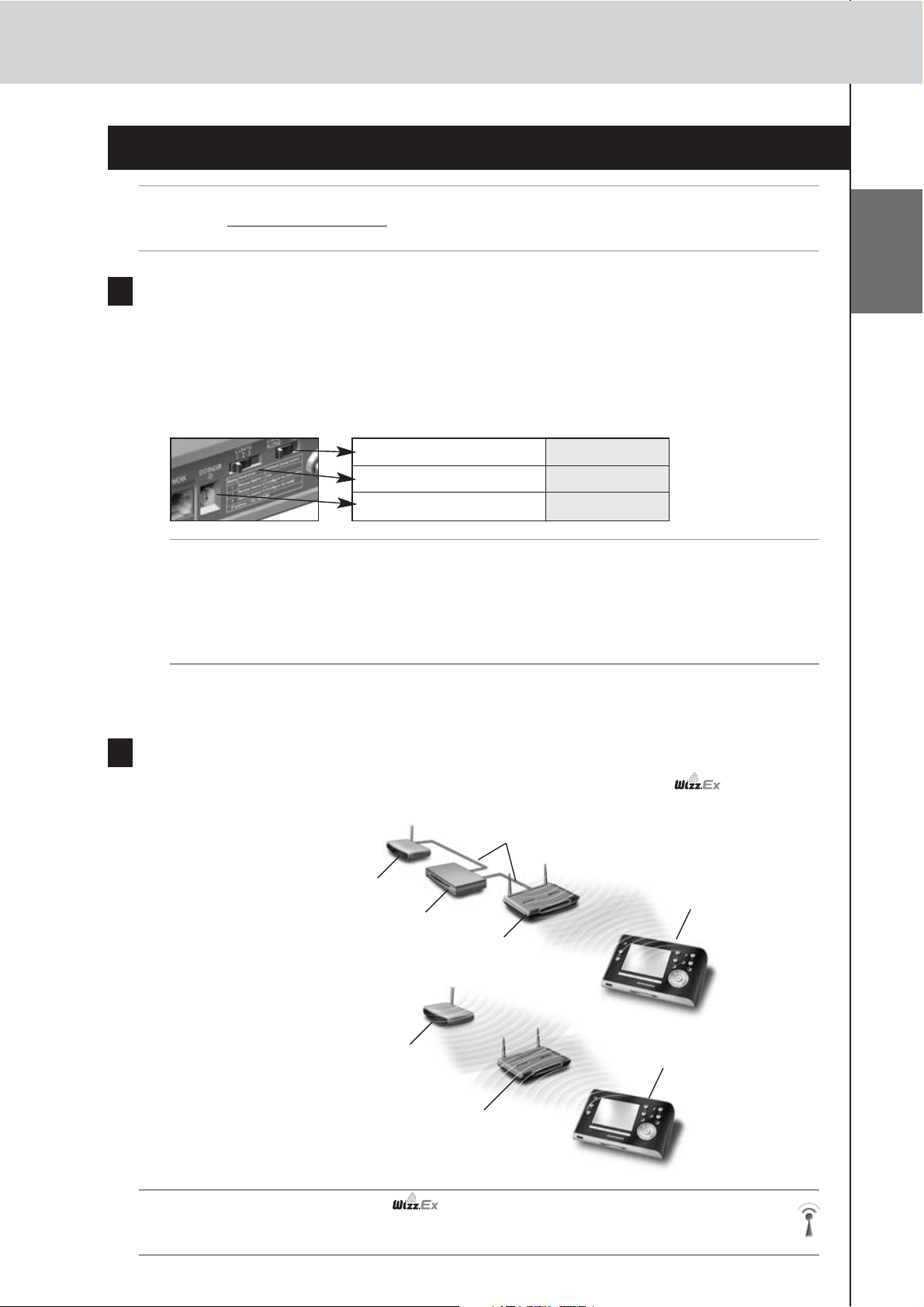

There are two ways to use the Extender in a network:





Wired connection

Straight Ethernet Cable





Extender









Control Panel





Router







Wireless







Access Point





Wireless connection









Extender

Control Panel











Wireless







Access Point





Note When you set up a Wireless Network connection, make sure the Control Panel always shows minimal one bar of WiFi connectivity. If this is not the case, you may need additional Wireless Access points in your network.

ENGLISH

4

RX8001 User Guide

To configure the Network Extender:

Extender

Configuration

cable

1Connect the Extender to the PC with the configuration cable (this is the crossed Ethernet cable enclosed).

2 Set the switches correctly:





Stand-alone/Network

Network







Configuration switch

2







Extender ID

0























Note • If there is already an Extender with ID 0, set the Extender ID switch to an ID that is not used yet.

• Make sure the same Extender ID is used on the Extender and the Control Panel.

3Plug in the Extender’s power adapter.

The Extender will start up. After startup, the Power and Ethernet LEDs are green and the Busy LED is red/green blinking.

4 Open the browser.

5Type the IP address of the Extender 192.168.8.80 (printed on the back of the Extender) in the address bar of the browser.

The Configuration Tool opens in the browser.

6Follow the onscreen instructions and make sure you have the following information at hand:

If the Extender will be connected wirelessly to the Network: the SSID and encryption settings (WPA encryption is currently not supported.)

If the Extender will be operating with a fixed IP address: the IP address, netmask and default gateway.

Tip

To ensure optimal performance, use a dedicated network for all

communication.



This makes the

Network independent from other network traffic and changes in



network settings.













7 Disconnect the Extender from the PC.

8Connect the Extender to the Network:

For a wired connection, connect the Extender to the router by means of a straight Ethernet cable.

For a wireless connection, you do not need to connect any more cables.

9 Set the switches correctly:

Stand-alone/Network

Network

Configuration switch

1

Extender ID

0





The Extender will restart. After startup,

In a wired network connection, the Power and Ethernet LEDs are green and the Busy LED blinks green when it’s processing a code or a macro from the Control Panel.

In a wireless network connection, the Power and WiFi LEDs are green and the Busy LED blinks green when it’s processing a code or a macro from the Control Panel.

5

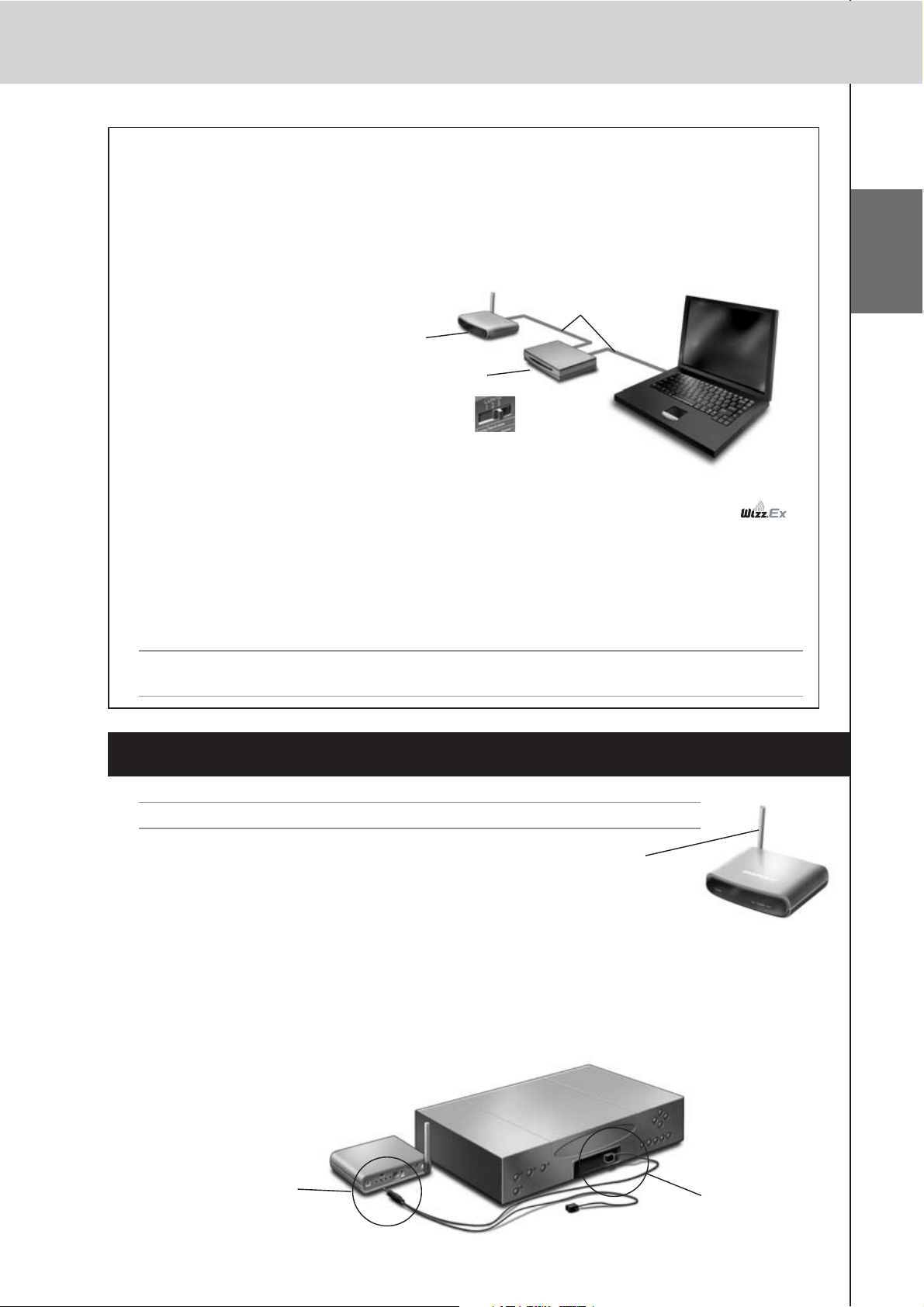

RX8001 User Guide

Configuring the Extender through a Router

When the Extender is already installed and connected to external A/V equipment, it is possible to configure it through a router via a straight Ethernet cable. It is not possible to configure the Extender wireless via the router.

1 Connect the Extender to the router, and the router to the PC, as indicated below.

Straight

Ethernet cable

Extender

Router

2 Set the Extender’s Configuration switch to 3.

3 Open the Wizz.it Ex on the PC.

4In the Tools menu, select Extender Discovery.

The Extender Discovery tool appears, with a list of all the detected Extenders in the Network.

5Select the Extender that you want to configure and click on the Configure button.

The Configuration Tool opens in the browser.

6 Finalize the configuration, as described in the instructions on page 5.

Tip When the Extender is not recognized by the Extender Discovery tool, configure the Extender directly with the configuration cable, as described on page 5.

Installing the Extender

Warning Keep the Extender away from heat sources such as amplifiers.

Before connecting the Extender to external A/V equipment,

Place the

make sure that the antenna is placed correctly.

antenna in an

upright position.



Connecting the Extender to A/V equipment

For the Extender to transmit an IR signal, you need to connect it to the A/V component via the

IR Output on the back of the Extender. In contrast to previous Marantz Extenders, the RX8001 has no IR blaster.

To connect the Extender to A/V equipment, use one of the following cables enclosed with the Extender:

• a Dual IR emitter;

Insert the mini-jack connector of the

Attach the

Dual IR emitter in

emitter to the

the IR output of

infrared receiver

the Extender.

of the A/V component.

ENGLISH

6

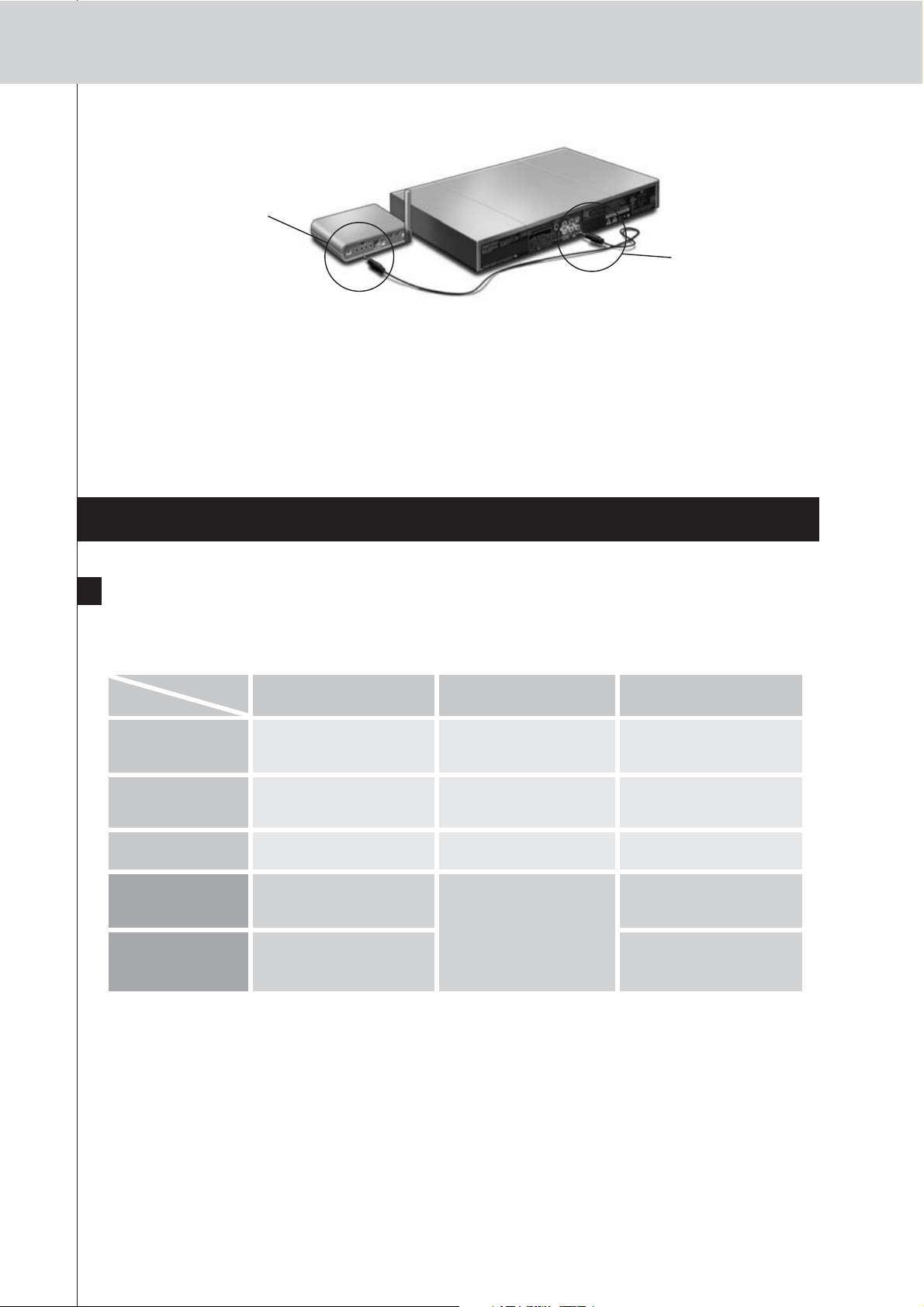

RX8001 User Guide

-or-

• a mini-jack IR cable.

Insert one mini-jack

Insert the other

connector of the

mini-jack

mini-jack cable in

connector in the

the IR output of the

A/V component.

Extender.



Adjusting the Power Level of the IR Outputs

At the back of the Extender, there are 4 dipswitches, one for each IR output. Use these dipswitches to configure the power level of the Dual IR emitters and the mini-jack cables.

For example, flip the dipswitch down to lower the power level when the Extender is connected to an external IR bus system.

Support

Troubleshooting

What Do the LEDs Indicate?

LEDs

Ethernet LED

WiFi LED

Busy LED

Colors







Green blinking







The Extender’s IP address is

The Extender’s IP address is

The Extender is busy processing



being determined.

being determined.

a short code or macro from the







Control Panel.

Green

The Extender is functioning

The Extender is functioning

The Extender is busy processing



normally.

normally.

a long macro from the Control







Panel.

Red/green blinking

The Extender is being







configured.









Red

Refer to the topic ‘There is an

Refer to the topic

Refer to the topic ‘There are



IP conflict’ on page 7.

The Extender cannot

duplicate Extender IDs’





communicate with the

on page 8.

Red blinking

Refer to the topic ‘The IP address

wireless network’ on page 8.

The Extender is starting up.



cannot be determined’ on



Wait until startup has finished.



page 7.













There is an IP conflict

There is another A/V component in the network that is using the same fixed IP address as the Extender. Change the IP address of the Extender in the Configuration Tool.

If the problem persists, check the router settings.

The IP address cannot be determined

When using the Extender: make sure that the Extender is connected to the router with a straight Ethernet cable.

When configuring the Extender: make sure the PC is not using a fixed IP address but is using DHCP instead.

7

RX8001 User Guide

Make sure the router is switched on. If the router is using DHCP, the Extender’s IP address cannot be determined. Make sure to use the correct network settings on the router.

The Extender cannot communicate with the wireless network

The WiFi LED is red

Make sure that the Extender is in range of the Wireless Access Point.

Make sure that you filled in the correct secret in the Configuration Tool.

Add the Extender’s MAC address to the router’s list of accepted MAC addresses.

The WiFi LED is red blinking

Check the router’s network settings and make sure that it can operate with the Extender.

If the LED doesn’t stop blinking, unplug the power adapter, wait a few seconds, and plug it in again.

Finding the Exact Location of an A/V component’s IR Receiver

1 Remove the protective tape of the Dual IR emitters.

2Set the Dual IR emitters to the minimal power level, and hold the adhesive side of one of the emitters 0.4 - 0.8 inch / 1 - 2 cm in front of the A/V component.

3 Make sure the Control Panel is configured to operate with the A/V component.

4Move the emitter across the front panel of the A/V component, and at the same time, send commands with the Control Panel to the A/V component.

Take note of when the A/V component reacts to the IR signals of the emitter.

5 When the A/V component reacts, position the emitter in that place.

Operating A/V components with the Extender

The A/V components do not respond to commands from the Extender

Check if the Busy LED blinks green when you send a command with the Control Panel. If the Busy LED does not blink, the Extender is not receiving commands from the Control Panel;

Make sure that the Control Panel is configured correctly in Wizz.it Ex;

Make sure that the Extender is configured correctly in the Configuration Tool and connected properly to the A/V components;

Make sure that the switches on the Extender are set correctly.

Make sure that the Wireless Access Point is on and configured correctly.

Make sure that the Extender is in range of the Wireless Access Point. If the Wireless Access Point is placed higher or lower than the Extender, place the Extender’s antenna horizontally for optimum range.

Not all Wireless Access Points are working equally well in combination with the Control Panel. Make sure you use a quality access point.

There are duplicate Extender IDs

Using the Extender ID switch, assign a unique ID to each Extender in the same Network. Make sure the Control Panel is configured accordingly in Wizz.it Ex.

You can use up to 16 different Extenders in the same Network.

The Busy LED blinks green when the Control Panel is not in use

This does not mean that something is wrong with the Extender. It merely indicates that the Extender is being operated by a different Control Panel. When the Busy LED stops blinking, you can use the Extender again.

ENGLISH

8

RX8001 User Guide

Resetting the Extender

This is only necessary when the Extender displays unusual behavior.

To perform a reset, unplug the Extender from the electrical socket. Wait a few seconds, and plug it in again.

Firmware Update

When an update of the Extender firmware is available, this will be announced on the Marantz website: http://www.marantz.com.

Note You can always see the current version of the firmware in the Configuration Tool.

1 Download the new version of the firmware on the PC.

2 Unplug the Extender. The Extender can be updated in the following ways.

Updating the Extender with the configuration cable

1 Connect the Extender to the PC with the configuration cable.

2 Set the switches correctly.

Stand-alone/Network

Network

Configuration switch

2

Extender ID

0





3 Open the browser.

4Type the IP address of the Extender: 192.168.8.80 (printed on the back of the Extender) in the address bar of the browser.

The Configuration Tool opens in the browser.

5Select Firmware Update in the left navigation pane.

The Firmware Update page opens.

6Follow the onscreen instructions.

When you are asked to browse to the update file, you need to select the ZIP file you downloaded earlier from the website.

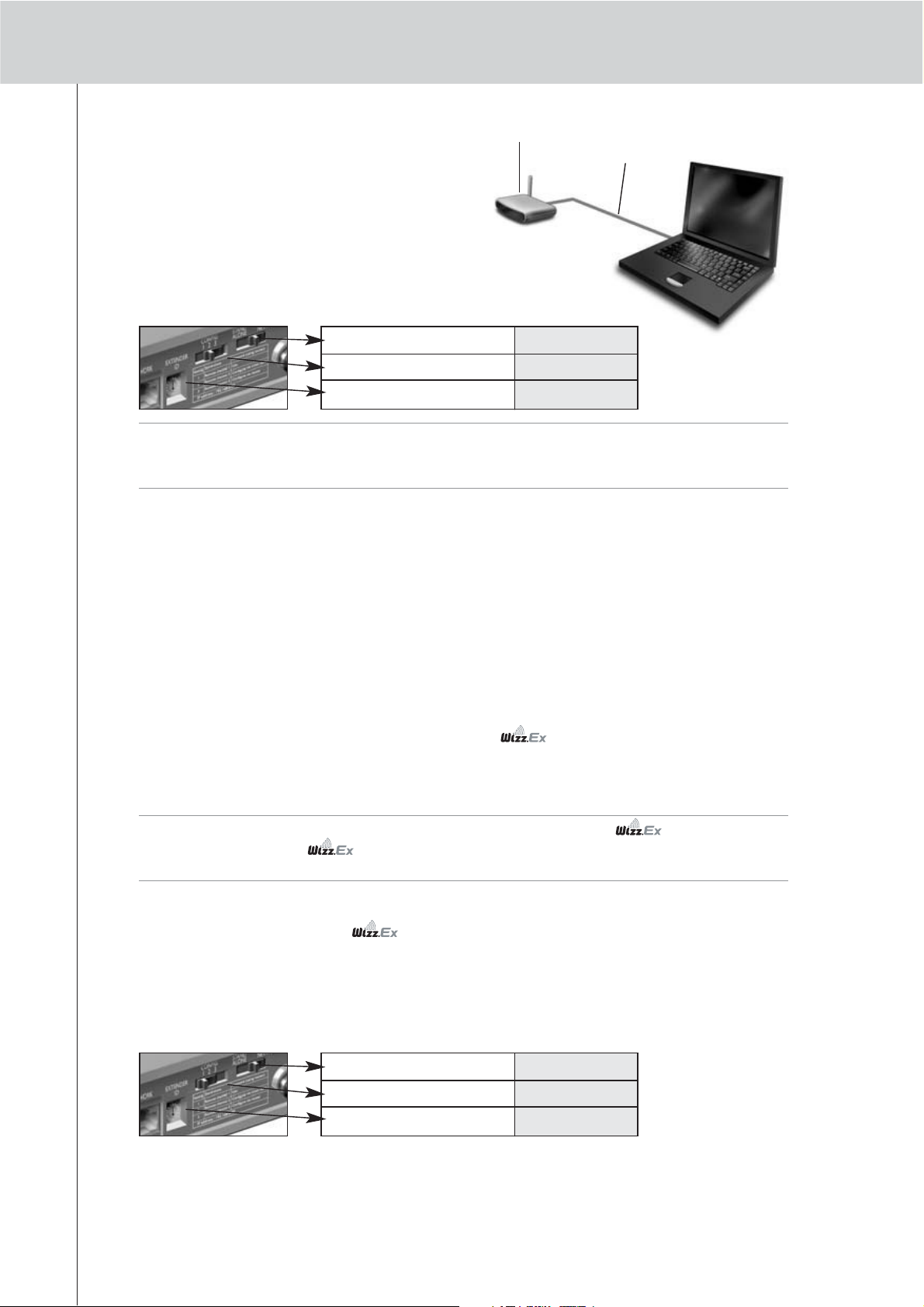

Updating the Extender through a router

If the Extender is already installed and connected to A/V equipment, it may be more convenient to update it through a router via a straight Ethernet cable. It is not possible to configure the Extender wireless via the router.

1 Connect the Extender to the router, and the router to the PC.

2 Set the switches correctly.







Stand-alone/Network

Network









Configuration switch

3









Extender ID

0















3

Open the Wizz.it Ex on the PC.





4

In the Tools menu, select Extender Discovery.







The Extender Discovery tool appears, with a list of all the detected Extenders in the

9

Network.





RX8001 User Guide

5Select the Extender that you want to configure and click on the Configure button.

The Configuration Tool opens in the browser.

6Select Firmware Update in the left navigation pane.

The Firmware Update page opens.

7Follow the onscreen instructions.

When you are asked to browse to the update file, you need to select the ZIP file you downloaded earlier from the website.

Tip When your Extender is not recognized by the Extender Discovery tool, update the Extender with the crossed Ethernet cable, as described on page 9.

Specifications

The specifications and design of this product are subject to change without notice.

General

Dark grey ABS housing with poly carbonate front plate



802.11 b/g compliant RF technology



4 LED indications for Power, WiFi, Network and Busy



Up to 16 extenders and 16 control panels in a system (for all modes)



4 addressable outputs for IR emitters



Ethernet RJ45 connection



Rotatable RF antenna



Positioning: freestanding or mounted in any position





Modes

Stand-alone (wireless): Similar to WiFi ad-hoc mode; no access point and



router required



Network (wireless): Similar to WiFi infrastructure mode; used in a system with



a router and access point



Network (wired via Ethernet): used in a system with a router and access point





Dimensions

3,98 x 6,18 x 1,3 inch (101,2 x 157 x 33,5 mm)





Operating temperature

32°F to 122°F (0°C to 50°C)





Infrared (IR)

IR frequency range: 25kHz-1MHz (including DC/flash codes)



IR power out: 2 levels





Radio Frequency (RF)

802.11g at 2.4 GHz with additional proprietary protocol





Dual IR emitters

Number of IR emitters: up to 4 (2x2), emitters wired in series



0.13 inch (3.5 mm) mono mini-jack



Cable length: 9 ft (2.7 meters)





Mono mini-jack cables

0.13 inch (3.5 mm) mono mini-jack



Cable length: 5 ft (1.5 meters)





Power adapter

100V-240 VAC / 50-60 Hz Power adapter (5 VDC/2A output, UL-CE approved)





Accessories

Warranty certificate (For USA/Canada only)





Wireless Extender User Guide

© Marantz Brand Company – A division of D&M Holdings Inc. D&M Building, 2 -1 Nisshin-CHO, Kawasaki-KU, KawasakiSHI, Kanagawa, 210-8569, Japan.

Remarks:

All rights are reserved. Reproduction in whole or in part is prohibited without prior consent of the copyright owner. Marantz Brand Company – A division of D&M Holdings Inc. is not liable for omissions or for technical or editorial errors in this manual or for damages directly or indirectly resulting from the use of the Wireless Extender.

The information in this User Guide may be subject to change without prior notice. All brand or product names are trademarks or registered trademarks of their respective companies or organizations.

ENGLISH

10

IFU Approbation / Safety Content

FCC Compliancy

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received, including interference that may cause undesired

operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rule.

These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a different circuit from the receiver.

Consult the dealer or an experienced radio/TV technician for help.

CAUTION The user changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Notice for Canada / Remark pour le Canada

This class B digital apparatus complies with Canadian ICES-003.

Cet appareil numerique de la Classe B est conforme a la norme NMB-003 du Canada

Regulations According to R&TTE

Declaration

Hereby, Marantz Europe, a division of D&M Europe B.V. declares that RX8001 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC:

Radio: EN 300 328

EMC: ETSI EN 301 489-1, ETSI EN 301 489-17

Safety: EN60950-1

Česky

My, Marantz Europe, a division of D&M Europe B.V., prohlašujeme že výrobek RX8001 splňuje základní



požadavky a ostatní příslušná ustanovení Směrnice 1999/5/EC.





Dansk

Marantz Europe, a division of D&M Europe B.V., erklærer herved, at følgende udstyr RX8001



overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.





Deutsch

Hiermit erklärt Marantz Europe, a division of D&M Europe B.V., dass sich dieses Gerät (RX8001) in



Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der



Richtlinie 1999/5/EG befindet". (BMWi).

Eesti keeles Käesolevaga kinnitab Marantz Europe, a division of D&M Europe B.V. et see RX8001 vastab Euroopa Nõukogu direktiivi 1999/5/EC põhinõuetele ja muudele olulistele tingimustele.

Ελληνικά ΜΕΤΗΝ ΠΑΡΟΥΣΑMarantz Europe, a division of D&M Europe B.V. ΔΗΛΩΝΕΙ ΟΤΙRX8001

ΣΥΜΜΟΡΦΩΝΕΤΑΙΠΡΟΣΤΙΣΟΥΣΙΩΔΕΙΣΑΠΑΙΤΗΣΕΙΣΚΑΙΤΙΣΛΟΙΠΕΣΣΧΕΤΙΚΕΣΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΛΙΑΣ1999/5/ΕΚ.

Español

Por medio de la presente Marantz Europe, a division of D&M Europe B.V. declara que RX8001 cumple

i

con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva

1999/5/CE.



















Français

Par la présente Marantz Europe, a division of D&M Europe B.V., déclare que les appareils du type





RX8001 sont conformes aux exigences essentielles et aux autres dispositions pertinentes de la directive





1999/5/CE.











Italiano

Con la presente Marantz Europe, a division of D&M Europe B.V., dichiara che questo RX8001 è





conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.











Magyar

A gyártó Marantz Europe, a division of D&M Europe B.V., kijelenti, hogy ez a RX8001 megfelel az





1999/5/EK irányelv alapkövetelményeinek és a kapcsolódó rendelkezéseknek.











Nederlands

Hierbij verklaart Marantz Europe, a division of D&M Europe B.V., dat deze RX8001 in





overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.











Polski

Niniejszym firma Marantz Europe, a division of D&M Europe B.V., oświadcza, że RX8001 spełnia





wszystkie istotne wymogi i klauzule zawarte w dokumencie „Directive 1999/5/EC”.











Português

Marantz Europe, a division of D&M Europe B.V., declara que este RX8001 está conforme com os





requisitos essenciais e outras disposições da Directiva 1999/5/CE.











Slovensky

Výrobca Marantz Europe, a division of D&M Europe B.V. týmto deklaruje, že táto RX8001 je v súlade so





základnými požiadavkami a ďalšími relevantnými predpismi smernice 1999/5/EC.











Slovensko

Marantz Europe, a division of D&M Europe B.V. s tem potrjuje, da je ta RX8001 skladen/a z osnovnimi





zahtevami in ustreznimi določili Direktive 1999/5/EC.











Suomi

Marantz Europe, a division of D&M Europe B.V., vakuuttaa täten että RX8001 tyyppinen laite on





direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.











Svenska

Härmed intygar, Marantz Europe, a division of D&M Europe B.V., att denna RX8001 står i





överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av





direktiv 1999/5/EG.









Declaration of Conformity(DoC)

The Declaration of Conformity of this product can be found at: http://www.marantz.com/download/RX8001.

Marking

In line with CE marking regulations: the CE mark and the class 2 identifier are added to the equipment:



This device can be used in the following countries:































AT

BE

CH

DE

DK

GR



ES

FI



























FR

IRE

IT

LU

NL

PT



SE

UK



























Czech

Likvidace starého výrobku

















Tento výrobek je navržen a vyroben z materiálů a komponentů nejvyšší kvality, které je možné recyklovat a





opětovně použít. Pokud je výrobek označen tímto symbolem přeškrtnutého kontejneru, znamená to, že





výrobek podléhá směrnici EU 2002/96/EC. Informujte se o místním systému sběru tříděného odpadu





elektrických a elektronických výrobků. Postupujte podle místních pravidel a neodkládejte takové staré





výrobky do běžného komunálního odpadu. Správná likvidace starého výrobku pomůže předcházet





případným nepříznivým účinkům na životní prostředí a lidské zdraví.























Danish

Bortskaffelse af dit gamle produkt















Dit produkt er konstrueret med og produceret af materialer og komponenter af høj kvalitet, som kan





genbruges. Når dette markerede affaldsbøttesymbol er placeret på et produkt betyder det, at produktet er





omfattet af det europæiske direktiv 2002/96/EC. Hold dig orienteret om systemet for særskilt indsamling af





elektriske og elektroniske produkter i dit lokalområde. Overhold gældende regler, og bortskaf ikke dine





gamle produkter sammen med dit almindelige husholdningsaffald. Korrekt bortskaffelse af dine gamle





produkter er med til at skåne miljøet og vores helbred.







ii

IFU Approbation / Safety Content

Dutch

Verwijdering van uw oude product



Uw product is vervaardigd van kwalitatief hoogwaardige materialen en onderdelen, welke gerecycled en



opnieuw gebruikt kunnen worden. Als u op uw product een doorstreepte afvalcontainer op wieltjes ziet,



betekent dit dat het product valt onder de EU-richtlijn 2002/96/EC. Win inlichtingen in over de manier



waarop elektrische en elektronische producten in uw regio gescheiden worden ingezameld. Neem bij de



verwijdering van oude producten de lokale wetgeving in acht en plaats deze producten niet bij het gewone



huishoudelijke afval. Als u oude producten correct verwijdert voorkomt u negatieve gevolgen voor het



milieu en de volksgezondheid.

Finnish

Vanhan tuotteen hävittäminen



Tuotteesi on suunniteltu ja valmistettu laadukkaista materiaaleista ja komponenteista, jotka voidaan



kierrättää ja käyttää uudelleen. Tuotteeseen kiinnitetty yliviivatun roskakorin kuva tarkoittaa, että tuote



kuuluu Euroopan parlamentin ja neuvoston direktiivin 2002/96/EC soveltamisalaan. Ota selvää



sähkölaitteille ja elektronisille laitteille tarkoitetusta kierrätysjärjestelmästä alueellasi. Noudata paikallisia



sääntöjä äläkä hävitä vanhoja tuotteita tavallisen talousjätteen mukana. Vanhojen tuotteiden hävittäminen



oikealla tavalla auttaa vähentämään ympäristölle ja ihmisille mahdollisesti koituvia haittavaikutuksia

French

Mise au rebut des produits en fin de vie



Ce produit a été conçu et fabriqué avec des matériaux et composants recyclables de haute qualité. Le



symbole d’une poubelle barrée apposé sur un produit signifie que ce dernier répond aux exigences de la



directive européenne 2002/96/EC. Informez-vous auprès des instances locales sur le système de collecte



des produits électriques et électroniques en fin de vie. Conformez-vous à la législation en vigueur et ne



jetez pas vos produits avec les déchets ménagers. Seule une mise au rebut adéquate des produits peut



empêcher la contamination de l’environnement et ses effets nocifs sur la santé.

German

Entsorgung Ihres alten Geräts



Ihr Gerät wurde unter Verwendung hochwertiger Materialien und Komponenten entwickelt und hergestellt,



die recycelt und wieder verwendet werden können. Befindet sich dieses Symbol (durchgestrichene



Abfalltonne auf Rädern) auf dem Gerät, bedeutet dies, dass für dieses Gerät die Europäischen Richtlinie



2002/96/EG gilt. Informieren Sie sich über die geltenden Bestimmungen zur getrennten Sammlung von



Elektround Elektronik-Altgeräten in Ihrem Land. Richten Sie sich bitte nach den geltenden Bestimmungen



in Ihrem Land, und entsorgen Sie Altgeräte nicht über Ihren Haushaltsabfall. Durch die korrekte Entsorgung



Ihrer Altgeräte werden Umwelt und Menschen vor möglichen negativen Folgen geschützt.





Greek

Α όρριψη αλιού ρο όντο



Το ρο όν αυτό έχει σχεδιαστεί και κατασκευαστεί ε υψηλή οιότητα υλικά και εξαρτή ατα



ου ορούν να ανακυκλωθούν και να ξαναχρησι ο οιηθούν. Όταν ένα ρο όν φέρει την



ένδειξη ενό διαγρα ένου κάδου ε ρόδε , τότε το ρο όν αυτό καλύ τεται α ό την Οδηγία



2002/96/ΕΚ. Παρακαλού ε να ενη ερωθείτε σχετικά ε το το ικό σύστη α ξεχωριστή



συλλογή ηλεκτρικών και ηλεκτρονικών ρο όντων. Παρακαλού ε να ακολουθείτε την το ική



νο οθεσία και να ην α ορρί τετε τα αλιά σα ρο όντα αζί ε τα οικιακά σα



α ορρί ατα. Η σωστή έθοδο α όρριψη των αλιών σα ρο όντων θα συ βάλει στην



α οφυγή αρνητικών ε ι τώσεων στο εριβάλλον και την ανθρώ ινη υγεία.

Hungarian

Az elhasznált termék hulladékkezelése



Ezt a terméket minőségi, újrafeldolgozható és újrahasznosítható anyagok és alkatrészek felhasználásával



tervezték és készítették. A termékhez kapcsolódó áthúzott kerekes kuka szimbólum azt jelenti, hogy a



termékre vonatkozik a 2002/96/EK. Európai irányelv. Kérjük, informálódjon az elektromos és elektronikus



hulladékok szelektív gyűjtésének helyi rendszeréről. Kérjük, a helyi szabályok figyelembe vételével járjon



el, és ne dobja az elhasznált terméket a háztartási hulladékgyűjtőbe. Az elhasznált termék megfelelő



hulladékkezelése segítséget nyújt a környezettel és az emberi egészséggel kapcsolatos esetleges negatív



következmények megelőzésében.

Italian

Smaltimento di vecchi prodotti



Il prodotto è stato progettato e assemblato con materiali e componenti di alta qualità che possono essere



riciclati e riutilizzati. Se su un prodotto si trova il simbolo di un bidone con ruote, ricoperto da una X, vuol



dire che il prodotto soddisfa i requisiti della Direttiva comunitaria 2002/96/CE. Informarsi sulle modalità di



raccolta, dei prodotti elettrici ed elettronici, in vigore nella zona in cui si desidera disfarsi del prodotto.



Attenersi alle normative locali per lo smaltimento dei rifiuti e non gettare i vecchi prodotti nei normali



rifiuti domestici. Uno smaltimento adeguato dei prodotti aiuta a prevenire l’inquinamento ambientale e



possibili danni alla salute.

iii

IFU Approbation / Safety Content

Norwegian

Avhending av gamle produkter



Produktet er utformet og produsert i materialer og komponenter av høy kvalitet, som kan resirkuleres og



brukes på nytt. Når denne søppelbøtten med kryss på følger med et produkt, betyr det at produktet dekkes



av det europeiske direktivet 2002/96/EU. Finn ut hvor du kan levere inn elektriske og elektroniske produkter



til gjenvinning i ditt lokalmiljø. Overhold lokale regler, og ikke kast gamle produkter sammen med



husholdningsavfallet. Riktig avhending av de gamle produktene dine vil hjelpe til med å forhindre



potensielle negative konsekvenser for miljøet og menneskers helse.





Polish

Usuwanie zużytych produktów



Niniejszy produkt został zaprojektowany i wykonany w oparciu o wysokiej jakości materiały i podzespoły,



które poddane recyklingowi mogą być ponownie użyte. Jeśli na produkcie znajduje się symbol



przekreślonego pojemnika na śmieci na kółkach, podlega on postanowieniom dyrektywy 2002/96/WE.



Należy zapoznać się lokalnymi zasadami zbiórki i segregacji sprzętu elektrycznego i elektronicznego.



Należy przestrzegać lokalnych przepisów i nie wyrzucać zużytych produktów elektronicznych wraz z



normalnymi odpadami gospodarstwa domowego. Prawidłowe składowanie zużytych produktów pomaga



ograniczyć ich szkodliwy wpływ na środowisko naturalne i zdrowie ludzi.

Portuguese

Eliminação do seu antigo produto



O seu produto foi desenhado e fabricado com matérias-primas e componentes de alta qualidade, que



podem ser reciclados e reutilizados. Quando este símbolo, com um latão traçado, está afixado a um



produto significa que o produto é abrangido pela Directiva Europeia 2002/96/EC. Informe-se acerca do



sistema de recolha selectiva local para produtos eléctricos e electrónicos. Aja de acordo com os



regulamentos locais e não descarte os seus antigos produtos com o lixo doméstico comum. A correcta



eliminação do seu antigo produto ajuda a evitar potenciais consequências negativas para o meio ambiente



e para a saúde pública.





Slovak

Likvidácia tohto produktu



Váš produkt bol navrhnutý a vyrobený pomocou vysokokvalitných materiálov a komponentov, ktoré sa



dajú recyklovať a znova využiť. Keď sa na produkte nachádza symbol prečiarknutého koša s kolieskami,



znamená to, že tento produkt pokrýva Európska smernica 2002/96/EC. Informujte sa o miestnom systéme



separovaného zberu elektrických a elektronických výrobkov. Postupujte podľa miestnych pravidiel a



nevyhadzujte tento produkt do bežného odpadu z domácnosti. Správnou likvidáciou starého produktu



pomôžete zabrániť možným negatívnym následkom na životné prostredie a ľudské zdravie.





Slovenian

Odlaganje starega izdelka



Izdelek je zasnovan in izdelan iz visokokakovostnih materialov in komponent, ki jih je mogoče reciklirati in



ponovno uporabiti. Če je izdelek označen s prečrtanim košem za smeti, to pomeni, da je v skladu z



Direktivo EU 2002/96/ES. Seznanite se z lokalnim sistemom za zbiranje odpadnih električnih in



elektronskih komponent. Upoštevajte lokalne predpise in izrabljenega izdelka ne odlagajte z običajnimi



gospodinjskimi odpadki. S pravilnim odlaganjem izrabljenih izdelkov pomagate preprečevati negativne



posledice na okolje in zdravje ljudi.

Spanish

Desecho del producto antiguo



El producto se ha diseñado y fabricado con materiales y componentes de alta calidad, que se pueden



reciclar y volver a utilizar. Cuando este símbolo de contenedor de ruedas tachado se muestra en un



producto indica que éste cumple la directiva europea 2002/96/EC. Obtenga información sobre la recogida



selectiva local de productos eléctricos y electrónicos. Cumpla con la normativa local y no deseche los



productos antiguos con los desechos domésticos. El desecho correcto del producto antiguo ayudará a



evitar consecuencias negativas para el medioambiente y la salud humana.

Swedish

Kassering av din gamla produkt





Produkten är utvecklad och tillverkad av högkvalitativa material och komponenter som kan både återvinnas





och återanvändas. När den här symbolen med en överkryssad papperskorg visas på produkten innebär det





att produkten omfattas av det europeiska direktivet 2002/96/EG. Ta reda på var du kan hitta närmaste





återvinningsstation för elektriska och elektroniska produkter. Följ de lokala reglerna och släng inte dina





gamla produkter i det vanliga hushållsavfallet. Genom att kassera dina gamla produkter på rätt sätt kan du





bidra till att minska eventuella negativa effekter på miljö och hälsa.









Turkish

Eski ürününüzün atılması





Ürününüz, geri dönü üme tabi tutulabilen ve yeniden kullanılabilen, yüksek kalitede malzeme ve





parçalardan tasarlanmı ve üretilmi tir. Bir ürüne, çarpı i aretli tekerlekli çöp arabası i aretli etiket





yapı tırılması, söz konusu ürünün 2002/96/EC sayılı Avrupa Yönergesi kapsamına alınması anlamına





gelir. Lütfen, elektrikli ve elektronik ürünlerin toplanması ile ilgili bulunduğunuz yerdeki sistem





hakkında bilgi edinin. Lütfen, yerel kurallara uygun hareket edin ve eskiyen ürünlerinizi, normal evsel





atıklarınızla birlikte atmayın. Eskiyen ürününüzün atık i lemlerinin doğru biçimde gerçekle tirilmesi,





çevre ve insan sağlığı üzerinde olumsuz etkilere yol açılmasını önlemeye yardımcı olacaktır.





MarantzAmerica, Inc. 100 Corporate Drive Mahwah, NJ07430

iv

RX8001 User Guide

RX8001 User Guide

www.marantz.com

You can find your nearest authorized distributor or dealer on our website.

is a registered trademark.

Printed in Belgium

05/2007 00M40CW851250 mzh-d
