Contents
1-1
English
Your remote control 1-2
Preparation 1-3
Installation 1-4
Store TV channels 1-4
Select the menu language and country 1-4
Automatic installation 1-5
Manual installation 1-5
Give name 1-6
Reshuffle the programme list 1-6
Select favourite TV channels 1-6
Define decoder/descrambler programme numbers 1-7
Install TV setup 1-8
EasyLink features are based on the “one touch operation”
approach. This means that a sequence of actions are executed
at the same time in both the television and the video cassette
recorder,
provided both are fitted with the EasyLink
function
and connected with the eurocable supplied with your
video recorder.
Installation
Operation
Use of the remote control 1-9 – 1-11
Use of the menus 1-12
Picture menu 1-12
Sound menu 1-12 – 1-13
Features menu 1-14
The keys on the front of the receiver box 1-15
Dual screen 1-16
Teletext 1-17 – 1-18

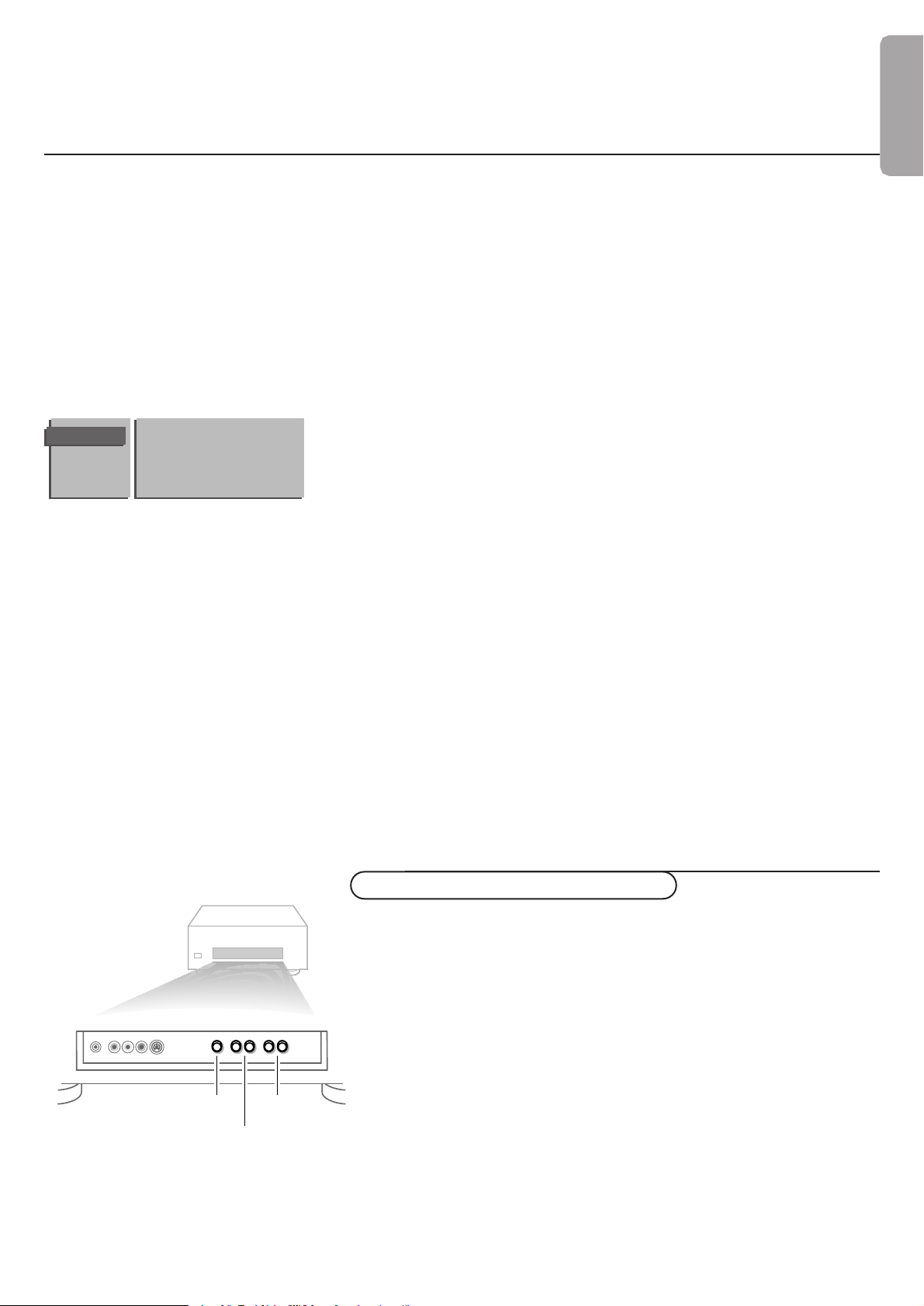

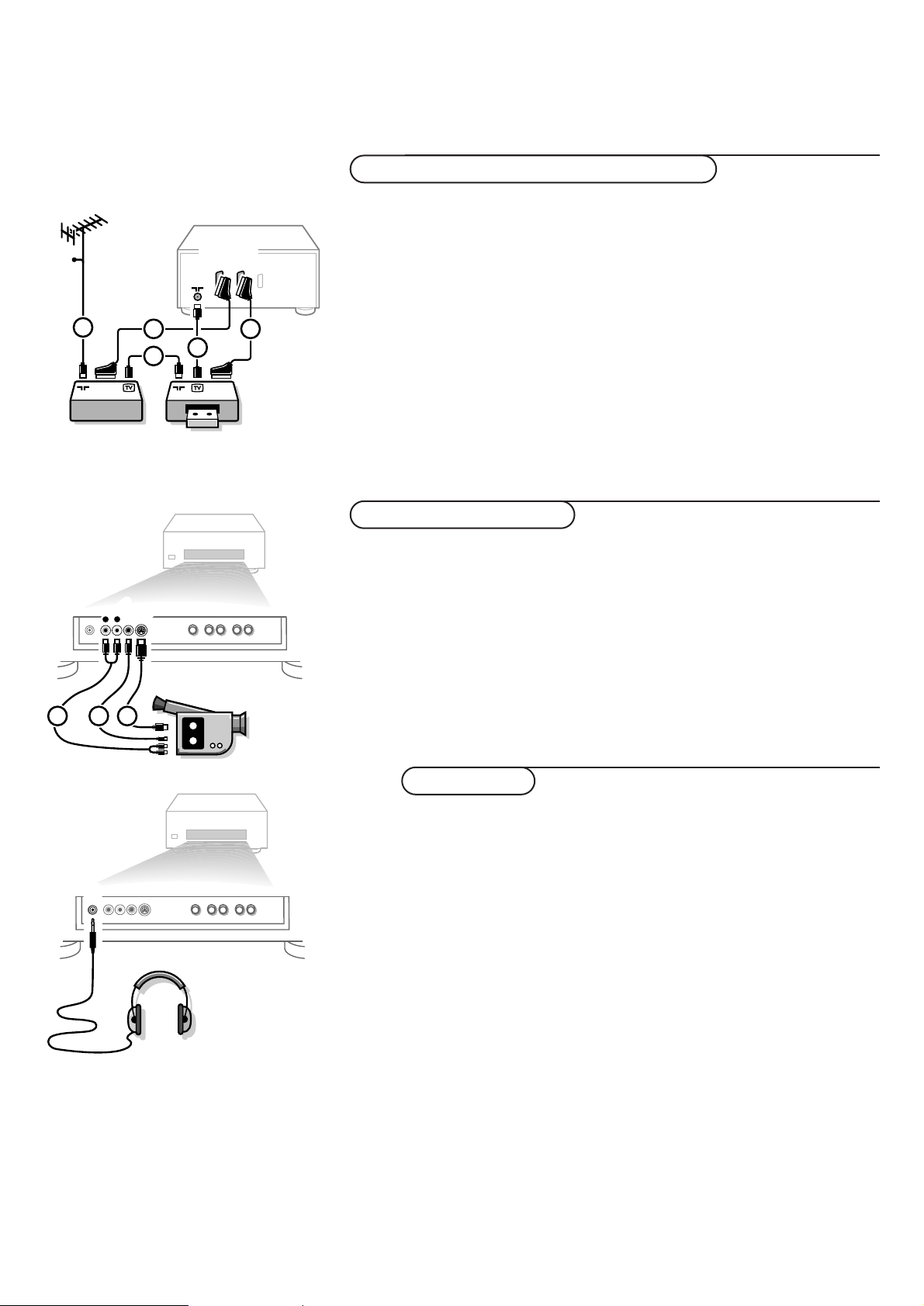

Connect peripheral equipment
Connecting and selecting equipment 1-19 – 1-23
Remote control functions for peripherals 1-23
Recording 1-24
Tips 1-25
Index 1-25
Glossary 1-26
MUTE
CHANNEL
VOLUME
TV
Keypad
1 2 3
4 5 6
7 8 9
i+
0
PP
Sub + Sub -
1-2 Preparation

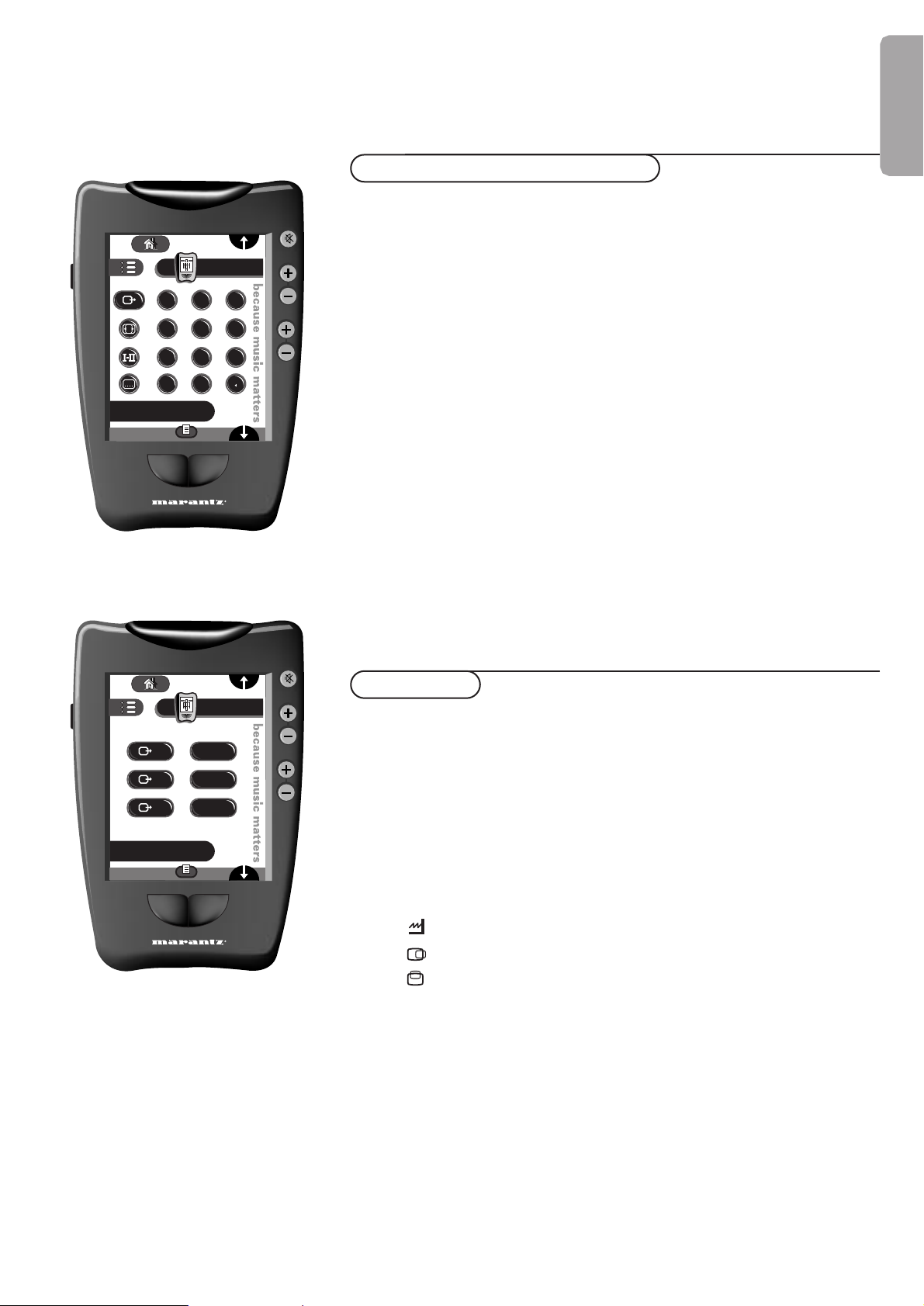

Your remote control
Remote control icon
Press and hold for 3
seconds to go to setup
Sending eye
(IR tranmitter)
Send commands
to devices
Home
Easy access to
all components

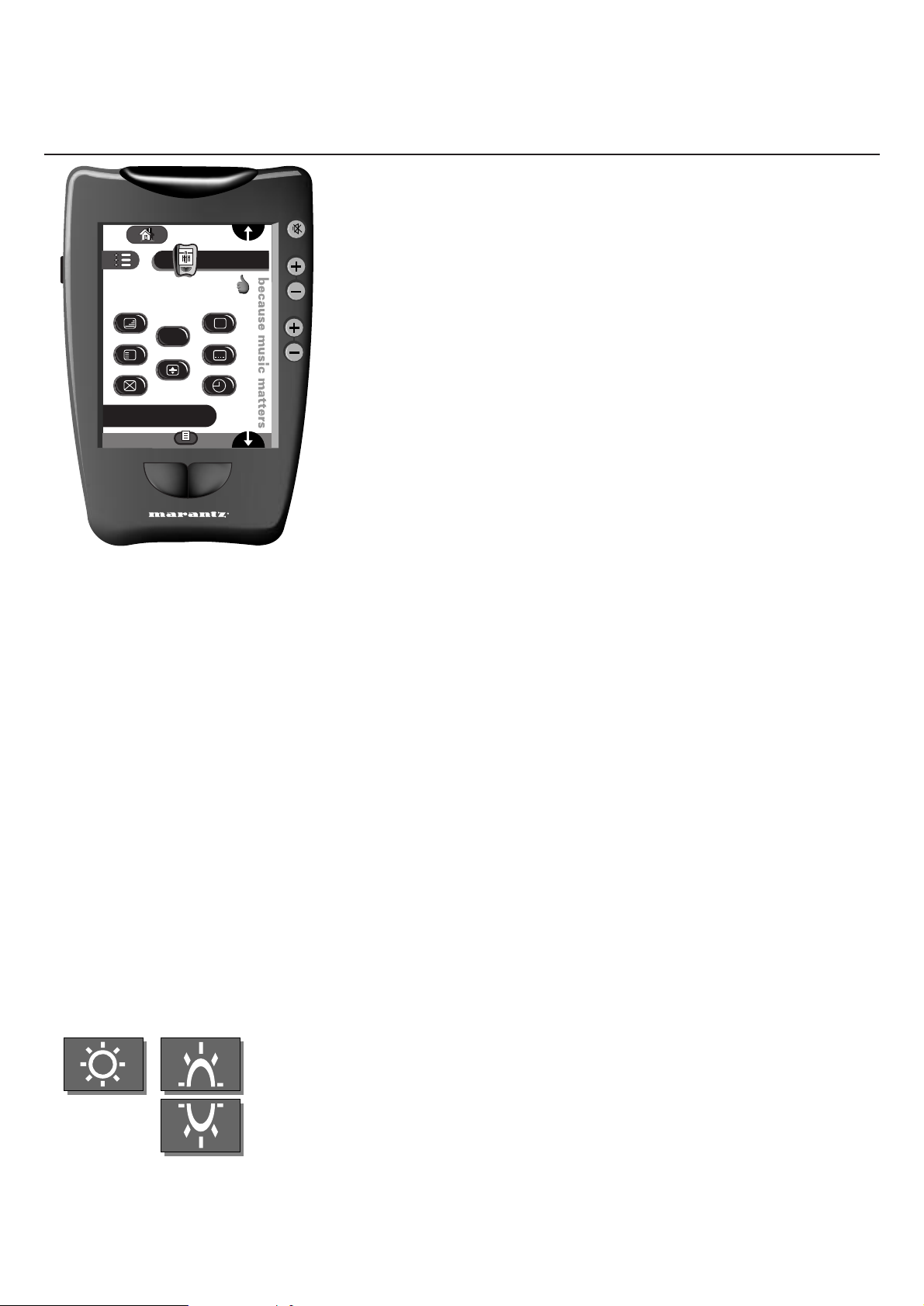

Contrast dial
Macro menu
Execute stored lists
of command
Blacklight button
press button to
activate blacklight
Control panel
Tab buttons to send
commands to
components
Control menu
Tab button to select
menu item
Device menu
Open a component’s
control panels
Direct access buttons
Sound mute
Channel up (+) / down (-)
Volume up (+) / down (-)
Scroll buttons
to display previous
and next control panel
Mode menu
Customize the remote
control
Left and right buttons
Activate the commands
shown immediately
above the buttons
Learning eye
for learning commands
from other remote
controls
Serial port
to link the remote
to a computer
Modes
Normal use controlling components
Learn commands from other remote controls. When a macro panel
is displayed, this button changes to “REC” for recording macros.
Assign letters ans symbols to buttons ans commands.
Add a new component or group macros.
Delete a button, component, or macro group.
Change the order of commands in a menu.
& Place the receiver box wherever you want, but leave at least 5 cm space
free all around the box for ventilation and do not cover the ventilation
openings, (e.g. on the ground, in a cupboard, behind a wall, in another
room....). To prevent any unsafe situations, do not place any objects on
top of the monitor or the receiver. No naked flame sources, such as
lighted candles, shoud be placed on or in the vicinity. Avoid heat,
direct sunlight and exposure to rain or water. The equipment shall
not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on it.

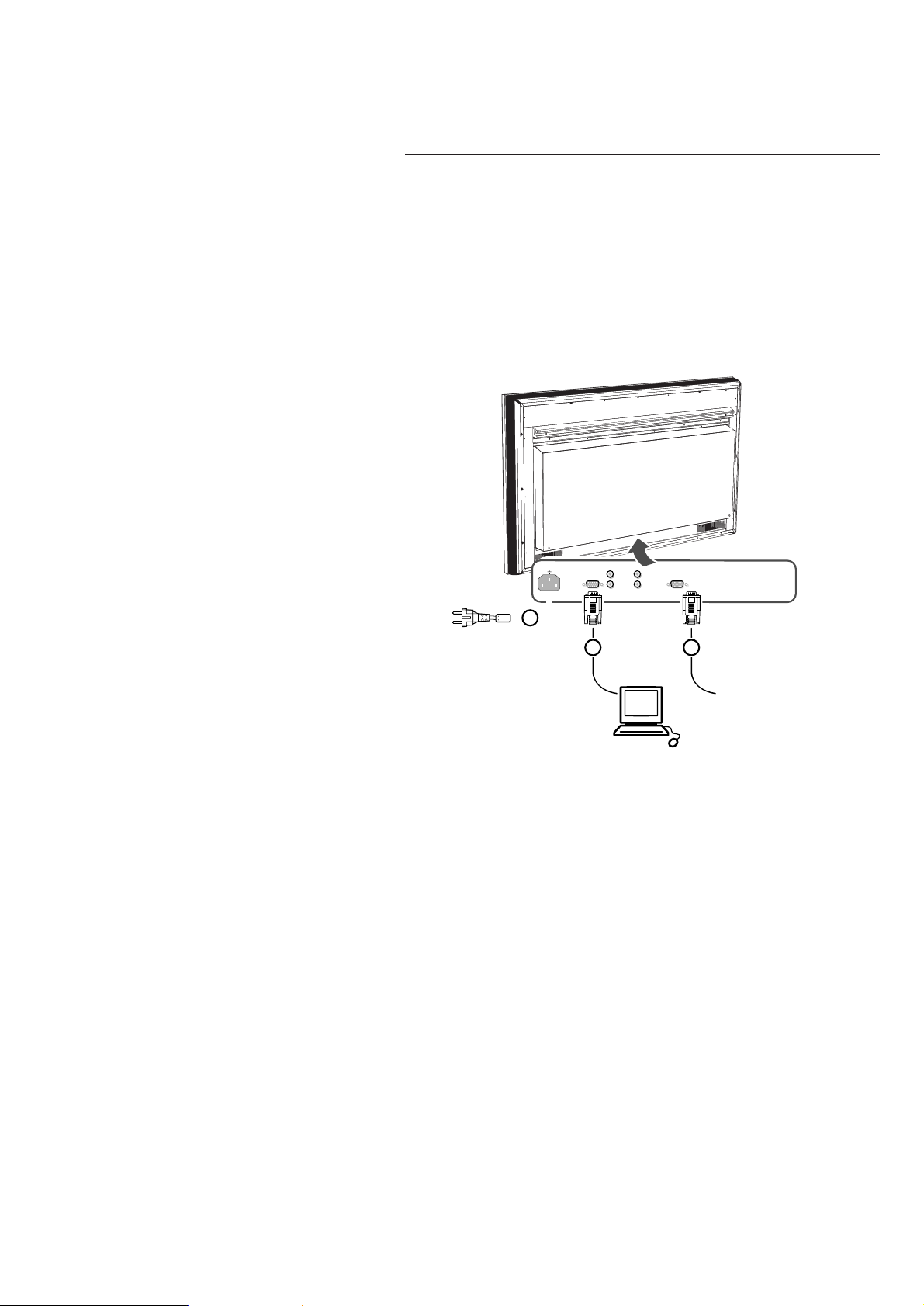

é Connect the supplied aerial cable 1 and the VGA cable 2 as shown
in the inside frontcover of this handbook. Make sure all screws of the
cable
2 are tightened well. Connect audio cinch connectors to the
“constant level out” on the receiver box
3 and to your audio amplifier
or receiver. See also page 20.

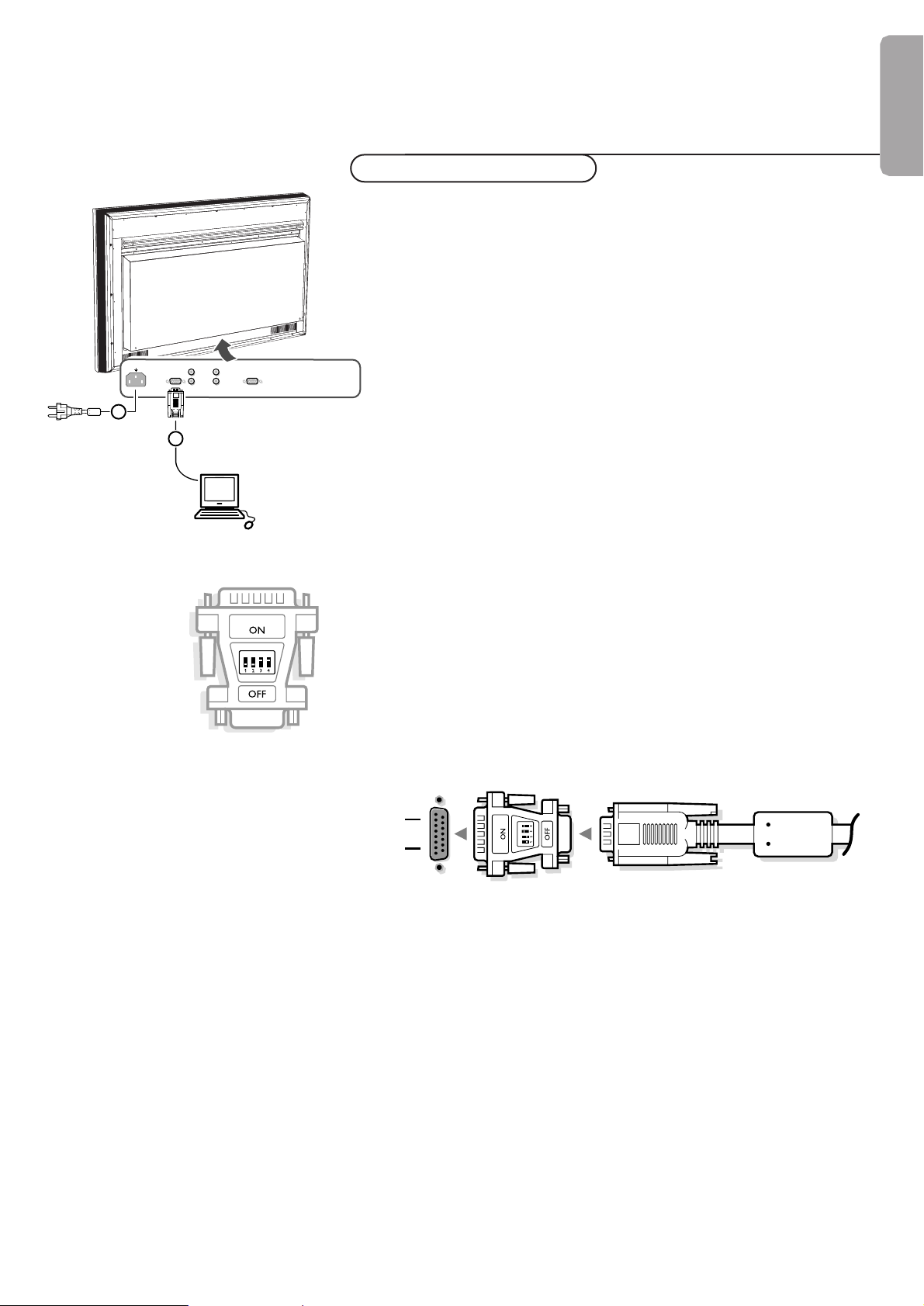

“ To connect your computer, see p. 22.
To connect other peripherals, see p. 20.
In order to obtain the best result, please use only the supplied antenna
cables between the receiver box and videorecorder, and between
videorecorder and antenna connector.
‘ Insert the mains cord supplied 4 (with filter) into the MAINS INLET at
the back of the monitor and the mains cord
5 at the back of the
receiver. Put both in the wall sockets.
Please, only use the mains cord 4 (with filter) supplied with the
monitor, for the monitor and the mains cord
5 supplied with the
receiver, only for the receiver.
( Remote control:
a Slide the battery door off the back of the Remote Control.
b Remove the plastic
AA battery tray from the battery compartment
c Insert the battery pack (included with the recharging dock)
as indicated on the side of the battery pack.
d Slide the battery door back on.
After a few seconds, the Remote Control starts up automatically and
beeps twice to indicate that it has finished starting up.
e Plug the power adapter into a wallet outlet and connect it to the
recharging dock.
f Place the Remote Control on the recharging dock.
Recharging starts automatically. The light on the front of the
recharging dock indicates charging takes place. When the battery
pack is fully charged, the light goes off.
§ Switch the TV on : Press the power button A at the front of the
monitor and the one on the front of the receiver box.
A green indicator lights up and the screen comes on.
If the indicator is red, press the
channel +/-
key on the remote
control.
The green indicator blinks every time you press a key on the r emote
control. When you switch on your set
for the first time, the menu
LANGUAGE automatically appears on the screen. The explanation
appears in different languages one at a time.
1-3Preparation
Preparation
English
A
1-4 Installation
Store TV channels
First, select your language and country.
& Select Menu Language in the INSTALLATION menu and press the OK key.
é Use the cursor left/right to select your language and press the OK key.
“ Select Country and press the OK key.
‘ Select the country where you are now located and press the OK key.
Select
Other when none of the countries applies.
Remark: If the language displayed on screen does not correspond with a
language you recognise or you want, act as follows:
& Press one of the colour menu keys (R,G,Y, or B) in the “cursor” control
panel, on the remote to switch menu off.
é Press the “installation” key in the “settings” control panel on the r emote.
Now the
INSTALLATION menu is displayed, but is still in the language you
do not recognise or you do not want.
“ Press the cursor right in the “cursor” control panel
‘ Now you can select your language with the cursor left/right.
You can now search for and store the TV channels in two different
ways: using
automatic installation or manual installation (tuning-in
channel by channel). Select your choice and press the
OK key.
Select the menu language and country
& Touch the control menu on the remote (TV mode).
é Select “settings” and press the “installation” key
Installation
Select the
INSTALLATION
menu
& Touch the control menu and select “cursor”
é Use the cursor in the up/down, left/right directions to select a menu
item.
“ Press the OK key to activate.
‘ Press one of the colour menu keys of the remote control to return or to
switch menu off.
To use the menus
MUTE
CHANNEL
VOLUME
TV
Settings
Sub + Sub -
Installation
Menu Language
Country
Automatic Installation
Manual Installation
Give Name
Reshuffle
Favourite Programmes
Decoder/Descrambler
Setup
INSTALLATION
Menu Language
Country
Automatic Installation
Manual Installation
Give Name
Reshuffle
Favourite Programmes
Decoder/Descrambler
Setup
INSTALLATION
Menu Language
Country
Automatic Installation
Manual Installation
INSTALLATION
MENU
LANGUAGE
English
... ...
••• ••• •••
••• ••• •••
COUNTRY
UK
•••
••• •••
•••
Other
MUTE
CHANNEL
VOLUME
TV
Cursor
G
Y
R
B
Sub + Sub -
OK
TV Text

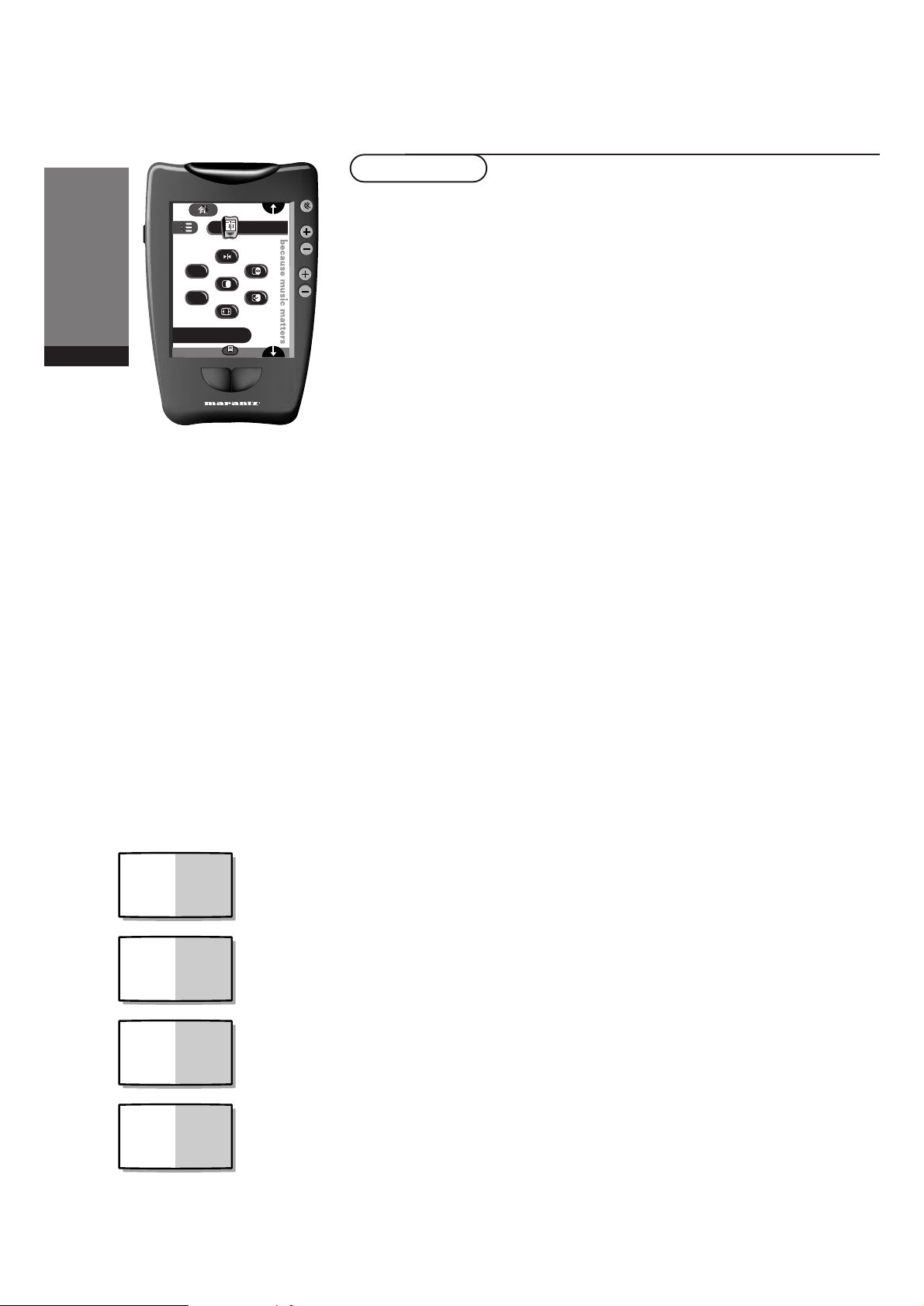

Dual screen
Cursor
Adjustments
Keypad
Power
Switch to...
Settings
TV Text
Dual screen
Cursor
Adjustments
Keypad
Power
Switch to...
Settings
G
Y
R
B
OK
Green; sound menu
Yellow; features menu
Red; picture menu
Blue; program list
Main menu
Select / Adjustments
Activate
7/9
6/9
1-5Installation
Searching for and storing TV channels is done channel by channel.
You must go through every step of the Manual Installation menu.
Selection Mode is only present and lights up if the country selected also
offers the channel option (C-channels for aerial channels, S-channels for
cable channels). You can choose either channel or frequency mode.
& Select the TV system
Select the country or part of the world from where you want to receive
the TV channel. If you are connected to a cable system, select your
country or part of the world where you are now located.
é Search for a TV channel
The frequency or the channel number increases until a TV channel is
found. In case of poor reception, you can improve the reception by
adjusting the frequency with the
channel +/- keys.
Direct selection of a TV channel
If you know the frequency, the C- or S-channel number, enter the 3
digits of the frequency directly with the digit keys 0 to 9 (e.g. 048).
“ Enter the programme number.
‘ To store your TV channel, select Store and press the OK key.
Repeat steps
& to ‘ to store another TV channel.
( To exit from the menu press one of the colour menu keys (R,G,Y, or B)
on the remote control.
& In the Automatic installation menu select On with the cursor left/right
and press the
OK key to activate the searching. All TV channels are
searched for and stored automatically.
Wait until the message
Ready is displayed at the bottom of the screen.
If a cable system or a TV channel which broadcasts ACI (Automatic
Channel Installation) or a TV channel transmitting a teletext page with
the frequencies and programme names of all the TV channels which
can be received, is detected, the search is stopped and the programme
list appears. The programme list is automatically filled with all the
programme numbers and names of the TV channels transmitted.
It is possible that the cable company or the TV channel displays a
broadcast selection menu. Layout and items are defined by the cable
company or the TV channel. Make your choice with the cursor and press
the
OK key.
é Press one of the colour menu keys (R,G,Y or B)on the door of the
remote control to return to the
INSTALLATION menu.
Manual installation
Automatic installation
Automatic Installation
Searching O%.....................100%
AUTOMATIC
INSTALLATION
MANUAL
INSTALLATION
05 10
16 11
27 12
38 13
4 9 ...
(Selection Mode)
System
Search
Programme No
Store
AUTOMATIC
INSTALLATION
0 10 ...
1 BBC1 11 ...
2 BBC2 12 ...
3 ITV 13 ...
4 ... .. ...
. ... .. ...
. ... .. ...
. ... .. ...
Automatic Installation Off
After the new or extra TV channel has been stored, the TV automatically transfers the TV channel(s) to the video recor der
provided with the EasyLink function. The message:
EasyLink : Downloading Presets ... appears at the bottom of the
screen. The programme list of the video r ecor der is now equal to the one of the TV.
English
1-6 Installation
Give name
It is possible to change the name stored in the memory or to assign a
name to a TV channel for which a name has not yet been entered. A
name with up to 5 letters or numbers can be given to the programme
numbers 0 to 99. For example SUPER, BBC1,...
Between 99 and 0, in the column in the middle, you can also name any
peripherals that are connected to a euroconnector.
& Select Give Name in the INSTALLATION menu and press the OK key.
é Select the programme number.
“ Press the OK key.
‘ Select the character with the cursor up/down.
( Select the following position with the cursor right.
§ Select the following character.
è Press the OK key when finished.
!
Press one of the colour menu keys (R,G,Y, or B) to return to the
INSTALLA TION
menu.Spaces, numbers, language dependent characters and so on are
located between Z and A.
According to your preference you can change the order of the stored
TV channels.
& Select Reshuffle in the INSTALLATION menu and press the OK key.
é Select the programme number you want to change.
Use the cursor left/right to select another column of the programme list.
“ Press the OK key.
‘ Select the new number you want to exchange it with.
( Press the OK key.
Repeat the operation until all TV channels are allocated as you like.
§
Press one of the colour menu keys (R,G,Y , or B) to return to the
INSTALLA TION
menu.
Reshuffle the programme list
After leaving the installation you can browse through the TV channels
and externals by pressing the
channel +/- keys. Only those TV channels
and externals which are in the favourite list will be displayed. Non-favourite
TV channels and externals can still be selected with the digit keys.
You can also do this for a programme number reserved for the
programmes you receive from your decoder.
& Select Favourite Programmes in the INSTALLATION menu and press
the
OK key.
é Select your programme number.
“ Select Favourite with the cursor up/down.
‘ Select Yes or No with the cursor left/right.
( Repeat é to ‘ for every TV channel or extenral you want to make
a favourite or a non-favourite TV channel or external.
§
Press one of the colour menu keys (R,G,Y , or B) to return to the
INSTALLA TION
menu.
Select Favourite TV channels
RESHUFFLE
90
0 10 ...
91 1 BBC1 11 ...
92 2 BBC2 12 ...
93 3 .... 13 ...
94 4 .... 14 ...
95 5 .... 15 ...
96 ...... ......
97
98
99
FAVOURITE
PROGRAMMES
EXT1 0 ... 10 ...
EXT2 1 ... 11 ...
EXT3 2 ... 12 ...
FRONT 3 ... 13 ...
4 ... 14 ...
5 ... 15 ...
..... ......
Programme Number
Favourite
GIVE NAME
90
EXT1 0
91 EXT2 1 BBC1
92 EXT3 2 BBC2
93 FRONT 3 ....
94 4 ....
95 5 ....
96 .......
97
98
99
Menu Language
Country
Automatic Installation
Manual Installation
Give Name
Reshuffle
Favourite Programmes
Decoder/Descrambler
Setup
INSTALLATION
1-7Installation
Define Decoder/Descrambler programme numbers
If a decoder or a descrambler is connected, see p. 20, you can define
one or more programme numbers as decoder programme numbers.
& Select Decoder/Descrambler in the INSTALLATION menu and press the
OK key.
é Select the programme number with the cursor up/down. Select the
programme number under which you have stored the programme
coming from your decoder with the digit keys
“ Select Decoder Status with the cursor up/down.
• Press the cursor left/right to select the input used to connect your
decoder:
TV, EXT1 or EXT2.
• Select
TV if you do not want the selected programme number being
activated as a decoder programme number.
‘ Use the menu key R (red) to return or switch menu off.
If the TV is connected to a video recorder with the EasyLink function, the
message
EasyLink: Downloading Presets.... appears at the bottom of
the screen. The programme list of the video r ecor der is equal again to the
one of the TV.
DECODER/
DESCRAMBLER
Programme
Decoder Status
English
1-8 Installation
The Setup menu allows you to adjust initial settings, i.e. those which are
not related to the installation of the TV channels.
The Setup menu contains items that control the settings of the TV’s
functions, features, services and peripherals you may have connected.
& Select Setup in the INSTALLATION menu and press the OK key.
é Use the menu key R (red) to return or switch menu off.
Ext2 Output
See Record with your video recorder, p. 24.
Information Line
Press the cursor left/right to select On.
After the selection of a TV programme or after pressing the
i key in
the “keypad” control panel on the remote control, a TV channel which
broadcasts teletext may transmit the name of the TV channel or the
programme name or another message which appears briefly in the
information line at the bottom of the screen.
When selected
Off, the information line will only appear after pressing
the
i key, and not after the selection of a TV channel.
Picture Mute
Press the cursor left/right to select a Blue or Black screen when there is
no picture or information. In VGA mode always black mute is used.
Auto Format
When Yes is selected with the cursor left/right, Auto format is part of the
picture formats that are selectable with the
q key in the “keypad” control
panel. With the picture format
Auto format, the picture will fill the screen
as much as possible. See p. 9.
Install TV Setup
Menu Language
Country
Automatic Installation
Manual Installation
Give Name
Reshuffle
Favourite Programmes
Decoder/Descrambler
Setup
INSTALLATION
Ext2 Output
Information Line
Picture Mute
Auto Format
SETUP
1-9Use of the remote control
Operation
MUTE
CHANNEL
VOLUME
TV
Keypad
1 2 3
4 5 6
7 8 9
i+
0
PP
Sub + Sub -
Picture format
Press this key repeatedly to
select
an other picture format:
4:3, Movie Expand 14:9, Movie
Expand 16:9, with or without
subtitles, SuperWide,
WideScreen or AutoFormat.
(When AutoFormat is set to Yes
in the Setup menu) AutoFormat
makes to picture fill the screen as
much as possible. Super Wide
removes the black bars on the side
of 4:3 program without causing
apparent distortion.
When in Movie Expand 14:9 or
16:9 picture format, you can make
subtitles visible with the cursor
up/down in the “Cursor”
control panel on the remote control.
Sometimes also video recorders
programs carry special signals
which automatically switch the TV
into the correct format.
Note: in VGA mode press this key
to switch between a 4:3, a 16:9 or
Wide VGA picture format. In
Dualscreen mode press this
key to switch between a full or a
squeezed picture format.
Bilingual choice and sound
mode selection
• press this key to switch from
Stereo to Mono sound, in case of
stereo transmission or from
Digital Sound to Digital Sound
Available
in case of digital
transmission.
• To choose between language I
(Dual I) or language II (Dual II), in
case of bilingual transmission.
The setting is separately stored for
each TV channel.
Permanent program number
screen information
Press for 3 seconds to activate/de-
activate the continuos display of the
program number. Press briefly to
display the information about the
selected channel or external, it’s
name, the sound mode, picture
format setting, the selected DNR
setting and remaining time set with
the sleeptimer.
MUTE
CHANNEL
VOLUME
TV
Go back
Sub + Sub -
1
2
3
VGA
Front
Scan
MUTE
CHANNEL
VOLUME
TV
Power
Sub + Sub -
Power on
Power off
TV Text
Dual screen
Cursor
Adjustments
Settings
Power
Switch to...
Keypad
8/9
1/9
9/9
Select your computer or other
peripherals
Press this key opens a special control
panel to select
EXT1, EXT2, EXT3,
VGA or TV Channels
according to
where you connected your pripherals
(see p. 25)
Remark: in
VGA mode only some
keys are valid (see
VGA menu p.25)
0/9 digit keys
To select a TV channel
For a two digit program number,
enter the second digit within 2
seconds.
Previous program
The previously selected TV
channel is displayed.
Control menu
When this button in touched
the control menu appears.
The menu options shown can be
selected and will open the
specific commands related to the
mentioned funtionality.
When selecting the “Power” a
special control panel appears.
When selecting the “power off”
option the option the set is
switched off and the red indicater
lights up in front of the receiver
and the screen.
To switch the TV on agian press
either the “Power on” key, the
Channel up (+) / down (-) or the
digit keys in the “Keypad” control
panel.
Use of the remote control
English
Operation
1-10
Use of the remote control
MUTE
CHANNEL
VOLUME
TV
Adjustments
Sub + Sub -
OK
DNR
PP
MUTE
CHANNEL
VOLUME
TV
Settings
Sub + Sub -
Installation
5/9
7/9
DNR Digital Noise Reduction
To reduce the image noise and
improve the picture quality when
receiving weak signals.
Press this key to select DNR min,
DNR med, (optimal picture
quality for normal strength
signal), DNR max (for poor
picture quality) or DNR off.
Freeze
When pressed, the displayed
picture is frozen. Press again to
de-activate the frozen picture.
In dual Screen both pictures are
frozen.
Smart Keys
To select predefined picture and
sound settings.
Each time is pressed, a different
picture setting is selected,
corresponding with a specific
predefined setting of Colour,
Brightness, Contrast, Sharpness,
Tint, DNR, Colour Temperature
and Dynamic Contrast.
The smart picture setting is set to
Personal when one of the picture
settings is changed.
Remark:The moment you are in
predefined picture setting and
you modify a setting in the picture
menu, all values of the menu will
overwrite the previously made
personal setting.
Multi screen
A menu line Mosaic appears.
Select the desired function with
the cursor left or right keys and
press the OK key.
Scan: The TV channel played in
the favourite list appear
subsequently. Press the channel
up (+) key to select a next series
of 12 channels. After the
selection is finished, press the
key to make the main picture
in the centre of the screen equal
to the active small picture.
The active TV channels or
external, indicated by a red
border, can be selected
immediately with the OK key.
Multiscreen is left then.
Photo finish: The main picture is
displayed in successive frozen
pictures. Press the OK key again
to have a new sequence of frozen
pictures.
Strobe: The picture is
reproduced picture by picture.
Press the OK key again to have a
faster speed. Press the OK key again
to return to a normal picture
reproduction. Press the Multiscreen
button to switch of the mosaic
screen.
Personal Preferences
Restore settings, stored with
Headphone PP store in the
Features menu (see P. 15).
Installation
See P.5
1-11Use of the remote control
MUTE
CHANNEL
VOLUME
TV
TV T ext
1 2 3
4 5 6
7 8 9
0
PP
Sub + Sub -
R
G
Y
B
MUTE
CHANNEL
VOLUME
TV
TV T ext
Sub + Sub -
i
i+
?
2/9
3/9
TV Text Color keys
The specific function of these color
buttons is shown on screen in the
TV Text mode
R=Red
G=Green
Y=Yellow
B=Blue
TV Text on/off
See P. 18
TV Text on/off
For the buttons not explained on
this page see P.19
Time display
The time, downloaded from the TV
channel (with TV Text) stored on
program number 1 or the lowest
favourite program number greater
than 1, is displayed in the upper left
corner of the screen.
This function is not available when
Continuous Subtitles is switched on.
Sub pages scrolling
When a selected TV Text page
consists of different subpages, select
with the left or right button the next
(Sub +) of previous (Sub -) subpage.
0/9 digit keys
To select a TV Text page
number.
Previous page
Select the previously selected txt
page.
Panel Down
To go to the second TV Text
control panel.
Panel up
To go the first TV Text control
panel.
Continuous subtitles
TV channels with TV text often
transmit certain programs with
subtitling. Switch on TV Text and
select the proper subtitle page from
the index.
Press this button to store the
subtitle page. Switch off TV Text.
Everytime a program of the
selected TV channel is subtitled,
the subtitling will be available for
that channel.
Press this button to switch subtitles
on or off. When switched on and the
symbolof TV Text on/off button
appears, there are no subtitles
available for that program.
English
1-12 Use of the menus
& Select “cursor” in the control menu on the remote control (TV mode)
é Press the red, green or yellow colour key to display/cancel the PICTURE,
SOUND or FEATURES menu.
“ Use the cursor in the up/down directions to select a menu item.
‘ Use the OK key to activate.
( Press the same menu key again to return or to switch the menu off.
Picture menu
Contrast
This control allows you to adjust the contrast levels of the picture.
Brightness
This control allows you to adjust the brightness levels of the picture.
Colour
This control allows you to adjust the colour saturation of the picture.
Sharpness
This control allows you to adjust the edge definiton of a picture.
Tint (only with NTSC signals)
This control allows you to adjust the colour mix (hue) of a picture.
Colour Temperature
This control allows you to select the colour temperature of the picture.
Select
Normal, Cool or Warm with the cursor left/right.
Dynamic Contrast
To make the contrast in the darker and the brighter picture areas more
noticeable, it is preferred to select
Med or Max.
In certain circumstances it may be preferred to select
Min or Off.
Natural Motion
Natural Motion On reproduces smooth movement which makes it more
natural.
After selecting a new TV channel or external, Natural Motion will
automatically be set to
On.
Sound menu
Store the modified adjustments for the headphone Volume and Balance
for all TV channels with
headphone PP store in the FEATURES menu.
Sound mode
Your TV will choose between stereo or digital sound depending on the
sound the TV channel transmits, unless you make a sound choice.
In case of weak stereo or digital sound signals, due to the transmission,
select analogue or mono.
Use of the menus
Contrast
Brightness
Colour
Sharpness
(Tint)
Colour Temperature
Normal/Cool/Warm
Dynamic Contrast
Natural Motion
Sleeptimer
Child Lock
Headphone PP store
Message
Timers
FEATURES
Sound Mode
Headphone
SOUND
MUTE
CHANNEL
VOLUME
TV
Cursor
G
Y
R
B
Sub + Sub -
OK
TV Text
Dual screen
Cursor
Adjustments
Settings
Power
Switch to...
Keypad
G
Y
R
B
OK
Green; sound menu
Yellow; features menu
Red; picture menu
Blue; program list
Main menu
Select / Adjustments
Activate
6/9
1-13Use of the menus
Headphone
See Connect peripheral equipment, p. 21, for the connection of the
headphone.
• Select the source you want to listen to with your headphone:
Automatic, TV, EXT1, EXT2 or EXT3 (or the names entered in the Give
Name menu). Select
Automatic if you want to listen to the sound of
the picture you are watching on the screen.
Note: in the Dual Screen picture, you will hear the sound of the left
picture through your headphone, except if a pictur e fr om a connected
peripheral has been selected in the right picture. Then you will hear the
sound from the right picture.
• Select TV when you want to listen to the sound of a TV channel.
• In all other cases select the source where you connected your
equipment. The equipment should be switched on, but you don’t need
to watch it.
HEADPHONE
Volume
Balance
Source
English
1-14 Use of the menus
Features menu
& Select “cursor” in the control panel menu on the remote control (TV
mode)
é Press the yellow key to display/cancel the FEATURES menu.
“ Press the cursor up/down to select a menu item.
‘ Press the OK key to activate.
Sleeptimer
With the sleeptimer you can set a time period after which the TV should
switch itself to standby.
The counter runs from
Off up to 180 min.
One minute before the TV is set to go to standby, the remaining
seconds and the message
Good Night appear on screen. You can always
switch off your set earlier or change the set time.
Note: when a VGA source is selected, the TV will not go to standby when
the sleeptimer expires.
Child lock
If the child lock is on, the TV can only be switched on with the remote
control. The
PROGRAM - and + keys and VOLUME - or + keys behind the
front door of the receiver cannot be used. In this way you can prevent
unauthorised use of your TV. Also no automatic switching to connected
equipment will occur.
If the message
Child lock On appears, the child lock must be switched
off before you can use the
PROGRAM - and + keys and the VOLUME - or
+ keys on the receiver.
Headphone PP store
The Volume and Balance in the headphone menu can be stored in
memory for all TV channels.
Message
With this function you can enter a personal message on 2 lines which
will be displayed automatically when the set is switched on.
For example: I’ll be late this evening. Don’t wait for dinner.
Change
Press the
OK key to start entering the message.
Select with the cursor up/down the letter or number you want to enter.
Select with the cursor right the next position.
Press the
OK key when you have entered the complete message.
Clear
Press the
OK key to remove a previous message.
Type
Press the cursor left/right to select the way the message will be
displayed:
Wipe, Slide, Fall or Fade.
The Fade display is a randomly selection of the three other display
types.
Run
Press the cursor left/right to select the display frequency:
Continuous,
Once or No.
Sleeptimer
Child Lock
Headphone PP store
Message
Timers
FEATURES
Message
...........................
...........................
MESSAGE
Change
Clear
Type
Run
MUTE
CHANNEL
VOLUME
TV
Cursor
G
Y
R
B
Sub + Sub -
OK
TV Text
Dual screen
Cursor
Adjustments
Settings
Power
Switch to...
Keypad
OK
Select / Adjustments
Activate
1-15Use of the menus
Display message
Switch the TV to standby.
The message appears on the screen when the TV is switched on again.
If you selected
Once, the message will disappear from the screen after
about 45 seconds.
If you selected
Continuous, the message will appear on the screen
until the
Run menu item in the Message menu is switched to No or
until the receiver is powered off.
The message does NOT appear when Continuous subtitles have been
switched On. See p. 11.
Timers
With the Timers menu you can make your TV automatically switch to a
specific programme number from standby or switch over to a different
programme number at a specific time.
Actual time
If you have installed a TV channel which also broadcasts teletext on
programme number 1 or under the lowest favourite programme number
greater than 1, the time is downloaded from that TV channel. If this is
not the case you have to set the time manually with the digit keys. The
time, (entered manually) is updated every minute and remains until the TV
is switched off with the power off key in the “Power” control panel on the
remote control.
Note: If you entered an incorrect digit, complete the actual time with
arbitrary numbers, then start again. Use 24 hour, or military time.
Programme
Enter with the digit keys the programme number of the TV channel you
want your TV to switch over to. Use 24 hour, or military time.
Start time
Enter with the digit keys the start time of the selected TV programme
number you want your TV to switch over to.
Cancel timer
Select
Cancel Timer and press OK to reset the Start time to --:--
TIMERS
Actual Time
Programme
Start Time
Cancel Timer
Should your remote be lost or broken you can still browse through the
TV channels and externals or change some of the basic picture and
sound settings with the keys in front of the receiver box.
The
PROGRAM - and + keys enable you to select the TV channels or
externals.
Note: If the message Child Lock ON appears, the child lock must be
switched off (with a remote contr ol) befor e you can use the
PROGRAM -
and + or the
VOLUME - or + keys on the receiver. See p. 15.
Press the LOCAL MENU key behind the door at the front of the receiver
repeatedly to select
Brightness, Colour or Contrast .
Press the VOLUME - or + key to adjust the chosen selection.
The selected adjustment automatically switches off when after 10 sec. no
action has been executed.
Important: although “volume” is stated on the front panel it has no
influence on the sound level
Keys in front of the receiver box
LOCAL
MENU
VOLUME
PROGRAM
English
1-16 Dual screen
& Press the b key to switch on Dual Screen.
The TV screen will be divided in 2 different pictures.
The picture on the left side is the selected TV channel or external.
The picture on the right side is the picture from the TV channel in the
favourite programme list following or preceding the selected TV
channel.
If the
b key was selected before, the last selected right picture is
displayed again.
é Press the q key to select a vertical squeezed or a non vertical
squeezed picture size.
Select left and right pictures
& Press channel +/- to run through the favourite TV channels and
externals in the left picture.
é Press the dual screen P - or P + keys to select the favourite TV channels
or an external in the right picture.
Pressing the dual screen
P - or P + keys for 3 seconds, starts auto scan
down or up of the TV channels and externals in the right picture.
Press again to stop the auto scan.
Remarks
•Programmes via a decoder/descrambler can only be displayed in the
left picture.
•Programmes in the subpicture via a peripheral (e.g. videorecor der)
can be heard via the headphone.
•VGA can not be displayed in Dual screen mode.
•On screen sound information of the left main picture appears in the
right upper corner.
Switch screens
Press the c key to swap the right and left picture. The sound is
swapped as well.
Select still picture
Press the S key to freeze the programmes on the left and the right
picture.
Press the
S key again to de-activate the still pictures. The screen
remains in dual screen mode.
Press the
d key to freeze only the programme in the right picture.
If the screen was not in Dual Screen mode, the Dual Screen mode is
entered, and the displayed picture on the left is re-displayed on the right
side in a frozen way.
Press the
d key again to de-activate the still picture. The screen
remains in dual screen mode.
Possible Dual Screen combinations
- TV channel/TV channel
See Select left and right pictures.
- TV channel/Peripheral
See Select left and right pictures.
- Peripheral/TV channel
See Select left and right pictures.
- Peripheral/Peripheral
See Select left and right pictures.
Dual screen
BBC1 BBC2
BBC1 EXT2
EXT2 BBC1
EXT2 EXT1
MUTE
CHANNEL
VOLUME
TV
Dual screen
Sub + Sub -
P+
P-
1 2
TV Text
Dual screen
Keypad
Adjustments
Settings
Power
Switch to...
Cursor
1-17Teletext
Most TV channels broadcast information via teletext.
Each channel which broadcasts teletext transmits a page with
information on how to use its teletext system. Look for the teletext page
with the main index (usually p. 100).
Depending on the TV channel, teletext is transmitted in different
systems: WST, FLOF or TOP.
The colours used in the options lines at the bottom right of the screen
correspond with the colour keys of your remote control.
About Easy Text
Easy Text considerably reduces the waiting time (on condition that the
teletext broadcast of the particular TV channel is received for at least
half a minute) by :
• a direct selection of previous and following pages which are in
transmission and of the pages referred to in the options lines
• a habit watcher list: frequently used pages are put automatically in a
list of preferred pages, so that they are immediately available
• the precapturing of the page numbers referred to in the displayed
page
• the precapturing of all the subpages.
Switch Teletext on and off
Press b to switch the teletext on or off.
The main index page appears on the screen.
Note: Dual Screen is disabled in Teletext mode.
Select a Teletext page
With the digit keys
Enter the desired page number with the digit keys.
The page counter seeks the page or the page appears immediately when
the page number has been stored in the memory.
A message appears when you have entered a non existent or incorrect
page number. Page numbers beginning with 0 or 9 do not exist. Choose
another number.
With the option lines
Select with the colour keys, corresponding to the coloured options at
the bottom right of the screen, the desired subject.
Quickly run through the teletext pages
Press the cursor left/right or the channel +/- key to run through the
previous or the following pages.
Select the previously selected txt page
Press the 0 key.
Teletext
News
Sports
Weather
TV-Guide
txt
p π
o
œ
01
02
03
100
MUTE
CHANNEL
VOLUME
TV
TV Text
1 2 3
4 5 6
7 8 9
0
PP
Sub + Sub -
R
G
Y
B
TV Text
Keypad
Cursor
Adjustments
Settings
Power
Switch to...
Dual screen
2/9
English
1-18 Teletext
Select the index teletext page
Press the k key to display the main index (usually p.100).
Only for T.O.P teletext broadcasts :
T.O.P orders the pages in categories and adds other possibilities of
enhancing ease of use.
Press
i. A T.O.P. overview of the teletext subjects available is
displayed. Not all TV channels broadcast T.O.P. teletext. When the
teletext system is not T.O.P. teletext, a message appears at the top right
of the screen. In the “cursor” control panel select with the cursor
up/down, left/right the desired subject and press the
OK key.
Select subpages
When a selected teletext page consists of different subpages, one of the
subpages appears on the screen.
The coloured number in the vertical bar at the right of the screen refers
to the displayed subpage.
The other subpages can be selected in 3 ways :
With the cursor up/down
The other subpage numbers appear in white as soon as the transmission
has found them. They are stored in the memory so that they are
available while the teletext page is on screen. Select with the cursor
up/down the previous or the following subpage.
With the left and the right buttons
Select with the left button on the remote control for the following page
and press the right button for the previous page.
By adding a subcode
Press U. Enter the desired subpage with the digit keys : e.g. 3 for the
third page of seven subpages.
The TV searches for the selected subpage.
Automatically rotating subpages:
Press
U again to cancel the subcode.
Now the subpages rotate automatically.
Press
U again. A vertical bar with the available subpages reappears
again. Select the subpages with the cursor up/down.
Special teletext functions
Interrupt
Press e and the TV programme appears.
The display
b indicates that you are still in the teletext mode.
You can select a page number.
Press
e again to display the teletext page.
Mix
Press c to overlay the teletext page on the TV programme.
Press
c again to display only the teletext page.
Enlarge
Press h repeatedly to display the upper part, the lower part and then
to return to the normal page size.
Reveal
Press f to reveal/conceal the hidden information, such as solutions to
riddles and puzzles.
MUTE
CHANNEL
VOLUME
TV
TV Te xt
Sub + Sub -
i
i+
?
3/9
1-19Connect Peripheral equipment
Connect Peripheral Equipment
There is a wide range of audio and video equipment that can be
connected to your receiver. The following connection diagrams show
you how to connect them to the back or the front side of the receiver.
Note: in case of the monitor in a stand alone situation without the
receiver box connected, see the instructions with the monitor.
Note: Do not place your video recorder too close to the scr een as some
video recorders may be susceptible for signals out of the display. Keep a
minimum distance of 0.5 m to the screen.
Connect the supplied aerial cables 1, 2 and, to obtain a better
picture quality, a eurocable
3 as shown opposite.
If your video recorder is pr ovided with the EasyLink function, the
eurocable supplied with it, should be connected to
EXTERNAL 2 to benefit
of the EasyLink function.
Only if you do not connect the eurocable 3, you have to do the
following :
Search for and store the test signal of the video recorder
& Unplug the aerial cable 1 from the aerial socket x of your video
recorder.
é Switch on your TV and put the video recorder on the test signal.
(See the handbook for your video recorder.)
“ Search for the test signal of your video recorder in the same way as you
searched for and stored the TV signals. See Installation, Searching for
and storing TV channels, Manual Installation, p. 6.
‘ Store the test signal under programme number 0 or between 90 and 99.
( Replace the aerial cable in the aerial socket x of your video recorder
after you have stored the test signal.
Decoder and video recorder
Connect a eurocable 4 to your decoder and to the special
euroconnector of your video recorder. See also the video recorder
handbook. See Define Decoder/Descrambler prog. numbers, p. 8.
You can also connect your decoder directly to
EXTERNAL 1 or 2 with a
eurocable.
Video recorder
VCR 1 DECODER
CABLE
1
EXTERNAL
4
2
3
2
Connect the audio cable to the amplifier or receiver and to
CONSTANT LEVEL OUT L and R at the back of your receiver box 1.
If you want to connect more equipment to your receiver, consult your
dealer.
Amplifier / receiver
LR
CONSTANT LEVEL OUT
1
English
1-20 Connect Peripheral equipment
& Connect your camera or camcorder at the front side of your receiver.
é Connect the equipment to VIDEO 2 and AUDIO L 1 for mono
equipment.
“ For stereo equipment also connect AUDIO R 1.
S-VHS quality with an S-VHS camcorder is obtained by connecting the
S-VHS cables with the S-VHS input 3 and AUDIO inputs 1.
Camera & camcorder
Insert the plug into the headphone socket L at the front side of the
receiver.
The headphone impedance must be between 8 and 2000 Ohm.
The headphone socket has a 3.5 mm jack.
In the SOUND menu select Headphone to adjust the headphone volume
and balance and to select the audio source for your headphone sound.
See p. 14.
Headphone
S•VHS
VIDEO
AUDIO
L
R
1 2
3
n
Video recorder and other peripherals
EXTERNAL
21
VCR 1
CABLE
1
5
2
4
3
& Connect the aerial cables 1, 2 and 3 as shown opposite. Better
picture quality can be obtained if you also connect eurocable
5 to
EXTERNAL 2 and a eurocable 4 to EXTERNAL 1 or 3.
é Look for the test signal of your peripheral in the same way as you do for
a video recorder.
When a video recorder is connected to EXTERNAL 1 you can only record a
programme from your TV.
Only when a video recorder is connected to
EXTERNAL 2 it is possible to
record a pr ogramme fr om your TV as well as fr om other connected
equipment. See Record with your video recorder, p. 26.
Note:
EXTERNAL 1 can handle CVBS and RGB, EXTERNAL 2 CVBS, Y/C and
RGB,
EXTERNAL 3 only CVBS.
1-21Connect your computer
& Connect one end of a VGA cable supplied to the video card of the
computer and the other end to the
VGA MONITOR IN connector at the
rear side of the receiver box or at the
VGA IN connector 1 at the back
of the monitor in case you have no receiver box connected to the
monitor.
See the instructions with the monitor.
é Fix the connectors firmly with the screws on the plug.
Connect your Apple Macintosh* computer
Attention: Macintosh computers with separate H and V synchronisation
signals can be used together with a switchable adaptor. Macintosh
computers with Composite Sync and Sync on Green signals may need
another special adaptor or cable. Contact your dealer.
& Connect a switchable adaptor for Apple video connectors to one end of
a VGA cable.
é Put the DIP switches on the adaptor in the following positions :
1234
off off on on
“ Connect the end of the VGA cable with the adaptor to the video card of
the computer and the other end to the
VGA MONITOR IN connector on
the back of the receiver box or at the
VGA IN connector on the back of
the monitor in case you have no receiver box connected.
‘ Screw the connectors down firmly.
To reproduce computer screen information and/or programmes,
see p. 25.
Note:The adaptor shown is not supplied with this set. Please contact your
dealer for more infor mation.
* Apple Macintosh is a registered trademark of Apple Computer, Inc.
Connect your computer
15-pin D sub
(2-row)
15-pin mini D sub
(3-row)
a
MAINS INLET
VGA IN
AUDIO IN
L
R
VGA OUT
2
1 2
AUDIO OUT
English
1-22 Connect your computer
Daisy chaining
The Active Loop Through facility makes it possible to make a daisy
chain. Connect the monitors (max. 2)
before inserting the mains plug
in the wall socket
.
Connect another VGA cable to the
VGA OUT connector 1 at the back of
the monitor and to the
VGA IN connector of a second VGA monitor.
Computer Display modes
VGA 640x480 31.468 kHz 60 Hz
VGA 640x400 31.468 kHz 70 Hz
VGA 640x350 31.468 kHz 70 Hz
VGA 856x480 31.468 kHz 60 Hz
VGA 800x450 31.490 kHz 65 Hz
MAC II 640x480 35.000 kHz 67 Hz
SVGA 800x600 35.156 kHz 56 Hz
SVGA 800x600 37.880 kHz 60 Hz
XGA 1024x768 45.000 kHz 56 Hz
XGA 1024x768 48.360 kHz 60 Hz
When a VGA computer is connected, the selection is made
automatically.
A message is displayed when the monitor does not support one of the
above mentioned VGA modes.
Switch your computer to a correct display mode.
MAINS INLET
VGA IN
AUDIO IN
L
R
VGA OUT
3
1 2
AUDIO OUT
1-23Connect peripheral equipment
If the monitor is connected to a video recorder with the EasyLink
function, in some cases the monitor will be switched on, even when it
was in standby. (E.g. playback tape,...)
This is not possible when Child lock On is selected.
Equipment connected with an aerial cable only :
Select the programme number under which you have stored the test
signal with the digit keys.
Equipment connected to a euroconnector, to the VGA MONITOR IN
connector or to the front side of the receiver box
Press the w key to select EXT1, EXT2, EXT3, FRONT or VGA, according
to where you connected your equipment at the back or the front side
of your receiver.
Remark : Most equipment (decoder, video recorder) carries out the
switching itself.
If you want to change to TV channels?
Enter the programme number of the TV channel which you want to
watch with the digit keys.
To select connected equipment
& Press the w key in the “keypad” control panel and select VGA.
é Select in the control menu “cursor”
“ Press the red (picture menu), green (sound menu) or yellow (features
menu) key on the door of the remote control to switch on the
VGA
menu
(or press the
MENU key on the simplified remote control).
‘ Select one of the PC symbols with the cursor up/down:
H for contrast,
G for brightness,
for colour temperature,
for horizontal picture position,
for vertical picture position,
( Press the cursor left/right to alter the selected adjustment.
§ Press one of the coloured keys again (or the MENU key on the simplified
remote control) to switch off the
VGA menu.
VGA menu
MUTE
CHANNEL
VOLUME
TV
Keypad
1 2 3
4 5 6
7 8 9
i+
0
PP
Sub + Sub -
MUTE
CHANNEL
VOLUME
TV
Go back
Sub + Sub -
1
2
3
VGA
Front
Scan
1/9
8/9
English
1-24 Recording
Ext2 Output
To record S-VHS quality, connect an S-VHS peripheral directly to the
video recorder.
In this case go on as follows:
& Select Setup in the INSTALLATION menu and press the OK key
(“settings” control panel on the remote control).
é Select Ext 2 Output with the cursor up/down (“cursor” control panel on
the remote control).
“ Select S-VHS Quality with the cursor left/right.
In all other cases, whether you record with a VHS or a S-VHS video
recorder, select
VHS Quality.
‘ Press one of the colour menu keys in the “cursor” controle panel on the
remote control repeatedly to switch the menu off.
Record a TV programme
& Select the programme number on your video recorder.
é Set your video recorder to record.
See the handbook for your video recorder.
Switching programme numbers on your TV does not disturb recor ding !
Record a programme on your video recorder connected to
EXTERNAL 2 from Audio/Video equipment connected to
EXTERNAL 1, EXTERNAL 3 or to sockets on the front side of the
receiver
& Switch on the equipment.
é Select the correct external on your video recorder.
“ Set your video recorder to record.
You record what you are watching on the screen.
Do not switch programme numbers or do not switch off your TV when
you are recor ding !
Record with your video recorder
1-25
Tips & Index
Poor Picture
• Have you selected the correct TV system?
• Is your monitor or house aerial located
too close to loudspeakers, non-earthed
audio equipment or neon lights, etc. ?
• Mountains or high buildings can cause
double pictures or ghost images.
Sometimes you can improve the picture
quality by changing the direction of the
outside aerial.
• Check if you have entered the correct
frequency. See Installation, p. 6.
• Are brightness and contrast out of
adjustment ? Adjust the picture settings,
see p. 13.
• Sometimes poor picture quality is
possible when having activated a S-VHS
camera or camcorder connected to the
front side of your receiver and another
peripheral is connected to
EXT1 or
EXT2 at the same time. In this case
switch off one of the other peripherals.
No picture
• Are the supplied cables connected
properly? (The aerial cable to the
monitor, the other aerial to your VCR,
the VGA cables to the display, the
power cables.)
• Has the child lock (p. 15) been
switched off ?
• Is your PC switched on?
• Do you see a black screen and the
indicator in front of the monitor lights
up green, this means that the display
mode is not supported. Switch your
VGA-source to a correct mode.
• In case of weak or bad signal, consult
your dealer.
Control of peripheral equipment
The infrared signals of the screen may
influence the reception sensibility of other
peripherals. Solution: replace the batteries
of the remote control or change position of
other equipment. E.g. keep away a wireless
headphone from within a radius of 1.5 m.
Remote control
• If your monitor no longer responds to
the remote control, the batteries may be
exhausted.
• You can still use the keys at the front
of your receiver.
Menu
Have you selected the wrong menu ?
Press the same key again to exit from the
menu.
No stable or not synchronised VGA
Check if you have selected the correct
VGA mode in your PC (640x480, 640x400,
640x350, 856x480, 800x450, MAC II,
SVGA, XGA).
If your problem is not solved:
Switch both your monitor and your
receiver off and then on again.
Never attempt to repair a defective
monitor or receiver yourself.
Check with your dealer or call a TV
technician.
End of life directives
We are paying a lot of attention to using
environmentally-friendly production
methods. Your new flat colour television
contains materials which can be recycled
and reused. At the end of life specialised
companies can dismantle the discarded
flat colour television to concentrate the
reusable materials and to minimise the
amount of materials to be disposed of.
Please ensure you dispose of your old
flat colour television according to local
regulations.
Miscellaneous
. Ambient temperature: + 5~ + 45°C
. Maximum operating altitude: 2000 m
. Mains: AC 100-240V
. Power consumption: around 350W
. Standby consumption: 2 W
. Weight (excl. packaging)
Display: 47.5 kg
Receiver: 6.4 kg
. Dimensions (wxhxd):
Display: 107 x 67 x 14.6 cm
Receiver: 43.5 x 16.7 x 33.8 cm
. Wall mounting bracket included
. Flour stand optional
a auto format, 8
automatic installation, 5
ACI, 5
audio 19
b bilingual broadcast, 9
c camcorder, 20
child lock, 14
clock, 11
colour temperature, 12
computer, 21
country, 4
d daisy chaining, 22
decoder/descrambler, 7
digital, 9
DNR, 10
dual screen, 16
dynamic contrast, 12
e easy text, 17
eurocable, 19
f favourite programmes, 6
freeze, 10
frequency, 5
g give name, 6
h headphone, 20
headphone PP store 12
i info on screen, 10
information line, 8
l language, 4
m manual installation, 5
menu language, 4
message, 14
p peripheral equipment, 19
permanent programme number, 9
picture adjustments, 12
picture format, 10
picture mute, 8
programme list, 10
r recording, 24
reshuffle, 6
s search for TV channels, 5
select your computer, 24
setup, 8
sleeptimer, 14
smart controls, 10
sound mode, 12
store TV channels, 5
subpages teletext, 18
subtitles, 11
S-VHS, 24
switch TV on, 3
t teletext, 17
timers, 15
tint, 12
v VGA, 23
video recorder, 19
Tips
Index
English
1-26 Glossary
100 Hz
100 Hertz provides a superior solution
to the problem of picture flicker which
is particularly noticeable with larger
screen sizes.
In a conventional TV, the picture area
is scanned 50 times a second (50 Hertz)
– a frequency which is still detectable
by the human eye in the form of a
flickering picture. In 100 Hertz sets, the
picture area is scanned at a rate of 100
times per second (100 Hertz). At this
frequency, the eye cannot detect flicker,
resulting in a clearer picture which is
more relaxing to the eye.
Automatic Channel Installation (ACI)
Automatically installs all TV channels in
the same order as offered by your
cable company, provided of course that
the data is transmitted. It also
automatically includes programme
number and programme name.
With ACI, channel installation is fully
automatic, simple and fast.
Child Lock
Feature to prevent unauthorised use of
your TV. The TV can only be switched
on and operated with the remote
control.
Colour temperature
TV-function to modify the general
colour balance between cool and warm
and to adjust it according to your
personal preference.
Digital Video
Description applied to any equipment
that uses digital techniques to
reproduce pictures.
DNR
Dynamic Noise Reduction.
By encoding signals digitally in 100 Hz
sets with Digital Scan it is possible to
clean up picture noise. This is
especially beneficial in poor signal
areas and when viewing poor quality
video tapes.
Easy Link
Digital ‘intelligent’ ESI bus-system
between audio components in HiFi
systems and between TV and VCR.
(Scart connection required). Turns
source selection and control into a
one-button operation.
Easy Text
Teletext memory that automatically
memorises Teletext pages and gives
you instant access to them.
Euroconnector
A 21-pins connector system enabling
you to simply connect various types of
audio/video and computer equipment.
Menu
On-screen display of functions and
facilities in a well-organised survey,
which you can select using your
remote control.
NTSC
The broadcasting system used in the
USA, Japan and parts of South America
and Southeast-Asia.
Picture Freeze
TV mode which allows you to “freeze”
a certain image in order to study a
specific detail at ease, e.g. to make
notes of certain programme information
like phone numbers.
Sleeptimer
Function with which you can set a time
period after which the TV should
switch itself to standby.
Teletext
See also Easy Text
WST: World Standard Teletext.
FLOF: Full Level one Features. System
applied by the BBC, RVE.... that
provides a fast access to the teletext
pages.
TOP: Table of (Teletext) Pages. German
system for an easy access to the teletext
pages.
Glossary
English
Loading...
