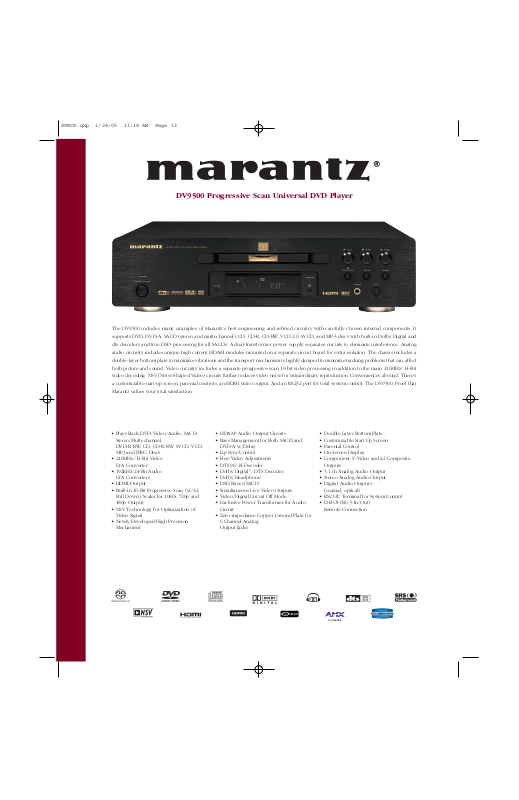

DV9500 Progressive Scan Universal DVD Player

The DV9500 includes many examples of Marantz’s best engineering and refined circuitry with carefully chosen internal components. It

supports DVD, DVD-A, SACD (stereo and multi-channel), CD, CD-R, CD-RW, VCD 2.0, SVCD, and MP-3 discs with built-in Dolby Digital and

dts decoders and true DSD processing for all SACDs. A dual-transformer power supply separates circuits to eliminate interference. Analog

audio circuitry includes unique high current HDAM modules mounted on a separate circuit board for extra isolation. The chassis includes a

double-layer bottom plate to minimize vibrations and the transport mechanism is highly damped to minimize tracking problems that can affect

both picture and sound. Video circuitry includes a separate progressive-scan 10-bit video processing in addition to the main 216MHz/14-Bit

video decoding. NSV (Noise Shaped Video) circuits further reduces video noise for extraordinary reproduction. Conveniences abound. There’s

a customizable start-up screen, parental controls, an HDMI video output. And an RS232 port for total system control. The DV9500. Proof that

Marantz values your total satisfaction.

• Plays Back DVD-Video/Audio, SACDStereo/Multi-channel, DVD-R/RW, CD, CD-R/RW, SVCD, VCD, MP3 and JPEG Discs

• 216MHz/14-Bit Video D/A Converter

• 192kHz/24-Bit Audio D/A Converters

• HDMI Output

• Built-in 10-Bit Progressive Scan (w/3:2 Pull Down)/Scaler for 1080i, 720p and 480p Output

• NSV Technology for Optimization of Video Signal

• Newly Developed High Precision Mechanism

• HDAM

Audio Output Circuits

• Bass Management for Both SACD and DVD-A w/Delay

• Lip Sync Control

• Fine Video Adjustments

• DTS 96/24 Decoder

• Dolby Digital

/ DTS Decoder

• Dolby Headphone

• DSD Based SACD

• Simultaneous Live Video Outputs

• Video/Digital Circuit Off Mode

• Exclusive Power Transformer for Audio Circuit

• Zero-impedance Copper Ground Plate for 6 Channel Analog Output Jacks

• Double Layer Bottom Plate

• Customizable Start Up Screen

• Parental Control

• On Screen Display

• Component, S-Video and x2 Composite Outputs

• 5.1 ch Analog Audio Output

• Stereo Analog Audio Output

• Digital Audio Outputs (coaxial, optical)

• RS232C Terminal for System Control

• D-BUS (RC-5 In/Out) Remote Connection

Compatible

DV9500

FEATURES

DTS Decoder Dolby Digital Decoder Disc Capacity Progressive Scan 3:2 Pulldown Playback Formats

Video DAC Audio DAC HDAM Video Circuit Off Display On/Off Power Transformer Gold Plated Terminals Chassis Zero-Impedance Plate Double Layered Bottom Plates Front Panel Cursor Keys Video Scaler Bass Management Lip Sync. (Digital audio delay) Separate Power Supply for Audio

INPUTS/OUTPUTS

VIDEO

HDMI Out Component Out S-Video Out Composite Out

AUDIO

Analog Out (RCA)

5.1ch Analog Out Optical Digital Out Coaxial Digital Out

OTHERS

External Control (RS232C) D-Bus Remote (RC-5) In/Out

SPECIFICATIONS

Freq. Response (Digital Audio)

S/N Ratio Dynamic Range THD (1kHz)

(96/24)

•

(+ Dolby Headphone)

•

DVD-V, DVD-A, SACD-Multi,

•

SACD-Stereo, DVD-R/RW, SVCD, VCD, CD, CD-R/RW, MP3, JPEG

216MHz/14-Bit

192kHz/24-Bit

•

Metal

•

1 1 1 2

1 1 1 1

•

1 / 1

4Hz - 88kHz

(DVD-Audio, fs: 192kHz)

130 dB 110 dB

0.0008%

GENERAL

Color Front Panel Remote Control Power Requirements Power Consumption Dimensions W x H x D (Inches) Weight (lbs.)

Black

Aluminum

RC8500DV

AC120V 60Hz

29W

/16" x 41/2" x 151/8"

18.7

*All specifications, dimensions and weights are subject to change without notice. D&M Holdings, Marantz, Marantz America, Inc. or any of its subsidiaries will not assume any liability for errors within this document.
