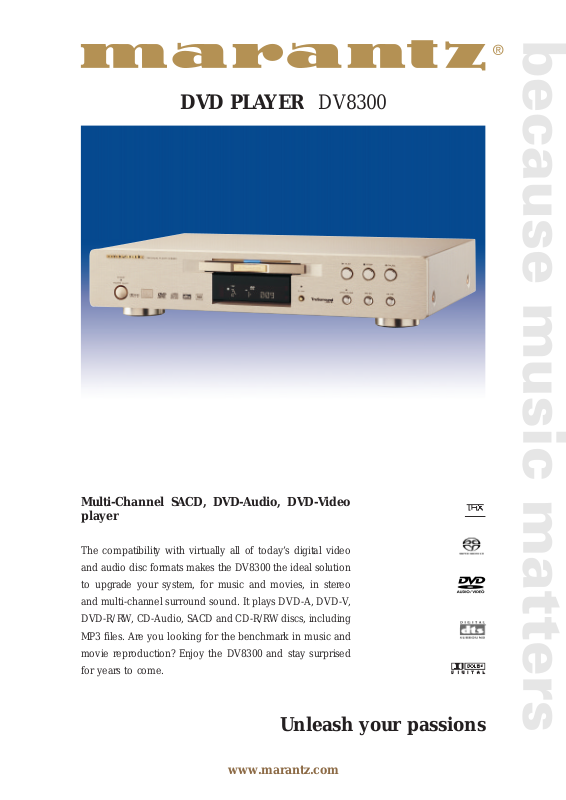

Multi-Channel SACD, DVD-Audio, DVD-Video
player
The compatibility with virtually all of today’s digital video
and audio disc formats makes the DV8300 the ideal solution
to upgrade your system, for music and movies, in stereo
and multi-channel surround sound. It plays DVD-A, DVD-V ,
DVD-R/RW, CD-Audio, SACD and CD-R/RW discs, including
MP3 files. Are you looking for the benchmark in music and
movie reproduction? Enjoy the DV8300 and stay surprised
for years to come.
DVD PLAYER DV8300
Unleash your passions
Marantz Europe B.V., P.O. Box 8744, 5605 LS Eindhoven, Holland www.marantz.com
All specifications, dimensions and weights are subject to change without notice. ©2002 Marantz Europe B.V. 06/02
DV8300 DVD Player
The dream of perfection in sound and vision
In the constant pursuit for perfection in sound and vision
reproduction, the DV8300 bears the THX select certification and is equipped with the latest 108 MHz / 12 bit video
DAC which can be fed in the highest quality RGB signal
via a Scart connector. It also offers progressive scan for
NTSC playback via and component out. Progressive scan
creates a picture signal with double the scan lines of a
conventional interlaced picture. A progressive image offers
a higher picture resolution and eliminates virtually all
motion artifacts. Even on large screens, you can enjoy
extended viewing without eye fatigue. The progressive
conversion of the DV8300 is optimized for the high
resolution and low noise of the DVD-format. This enables
the unit to preserve DVD-video picture quality for display
on all screen sizes, from direct view CRT to projectors.
In line with the Marantz heritage, ultimate audio performance is guaranteed. The DV8300 incorporates a 192/24
audio DAC for the front two audio channels and the
unique Marantz HDAM and a separate power supply for
the audio section.
Today’s state of the art music and movie software releases
will really come to live as intended.
High Definition Amplifier Modules
Uniquely developed by Marantz, the DV8300 utilizes dual
copper HDAMs for all channels. The HDAM comprises of
3 copper-shielded, fully discrete output stages with low
noise – surface mounted - independent components and
short signal paths. This results in an extremely fast slew rate
to achieve a much more dynamic, accurate and detailed
sound. The DV8300 features extensive use of unique handselected components, like premium capacitors and a
shielded dedicated main power transformer.
Uncompromising
construction and
design
The DV8300 is built on a
fully copper and highly
rigid chassis for minimal
disturbance from electromagnetic radiation. The
DV8300 design incorpo-
rates a precision disc
mechanism which provides a stable, glitch free playback
along with fast disc access.
Ultimate versatility
The DV8300 is capable of playing SACD, DVD Audio and
DVD Video discs with Dolby Digital and DTS surround
sound in either 2 channel or multi channel format. It also
plays DVD-R/RW, CD-R/RW, CD-audio discs and is
compatible with MP3 formats.
The DV8300 comes with a full-function remote control,
capable of controlling the convenience features such as
OSD and NTSC playback on a P AL TV, allowing full multi
regional compatibility. This is the player that realizes the
real meaning of ‘multi media’Home Entertainment.
Features
Multichannel/Surround
• THX Ultra / Select -/•
• Decoders built in: DD / DTS / MPEG •/•/•
• Digital out (DD/DTS/MPEG) •
• Virtual Surround •
Audio/Video enhancements
• Pal 60 Conversion •
• Progressive Scan (NTSC) •
• CD Compatibility: CD / CD-R / CD-RW / HDCD / SACD •/•/•/-/•
• VCD Compatibility: VCD 2.0 / SVCD •/-
• DVD Compatibility: DVD / DVD-R / DVD-RW (Video) /
DVD-RW (VR) / DVD Audio •/•/•/•/•
• MP3 Playback •
• Audio DAC Type for SACD: DSD / Multi-Bit •/-
• HDAM: metal / copper / gold -/•/-
• Video On/Off •
• Display On/Off •
• Dedicated High Grade Audio Power Supply •
• Audio Transformer: EI / Toroidal / Super Ring •/-/-
• High grade audio components •
• Customized Components •
• Chassis: Metal / Copper -/•
• Rear Panel: metal / copper -/•
• System Blocks Shielding: Metal / Copper •/-
Other
• Selectable Filters (SACD) •
• Display Dimmer •
• Auto Aspect Ratio
• Still Picture •
• Multi Language OSD •
• Multi Channel Down Mix: MPEG2 / DD / DTS / DVD-Audio •/•/•/•
• Video Signal Control •
In/Outputs
Video Audio
Composite Out 2 Scart 2
S-Video Out 1 Analog Out (Cinch) 1
Component Out 1 5.1 Channel Out •
Scart (RGB) 2 Digital Coaxial Out 1
D-Bus In & Out • Digital Optical Out 1
OSD selection switch Gold Plated cinch •
(Auto / PAL / NTSC) •
Gold Plated cinch •
Specifications
Video DAC 108mHz /12-bit
Audio DAC 192kHz/24-bit,
front; 96kHz/24-bit centre + rear channels
Dig. Audio Freq. Response 2Hz-100kHz (SACD)
S/N Ratio 118 dB
Dynamic Range 108 dB
Total Harmonic Distortion 0.0013%
General
Color: Black / Gold •/•
Metal Front Panel •
Remote control RC8300DV
Power Consumption 18W
Detachable Power Cable •
Maximum dimensions (W x H x D) 440 x 89 x 307 mm
Weight 6.2 Kg
