Service
SUPER AUDIO
CD
AUDIO
EX.
DV6400 /N1B/N1S
Manual
DV6400
DV4400
SECTION....................................................................................................................................PAGE
TECHNICAL SPECIFICATIONS .................................................................................................. 1-1-1
SERVICE HINTS AND TOOLS .................................................................................................... 1-2-1
WARNING AND LASER SAFETY INSTRUCTIONS ................................................................... 1-2-2
LASER BEAM SAFETY PRECAUTIONS....................................................................................1-2-3
IMPORTANT SAFETY PRECAUTIONS ......................................................................................1-3-1
STANDARD NOTES FOR SERVICING .......................................................................................1-4-1
CABINET DISASSEMBLY INSTRUCTIONS................................................................................1-5-1
TROUBLESHOOTING................................................................................................................. 1-6-1
BLOCK DIAGRAMS.....................................................................................................................1-7-1

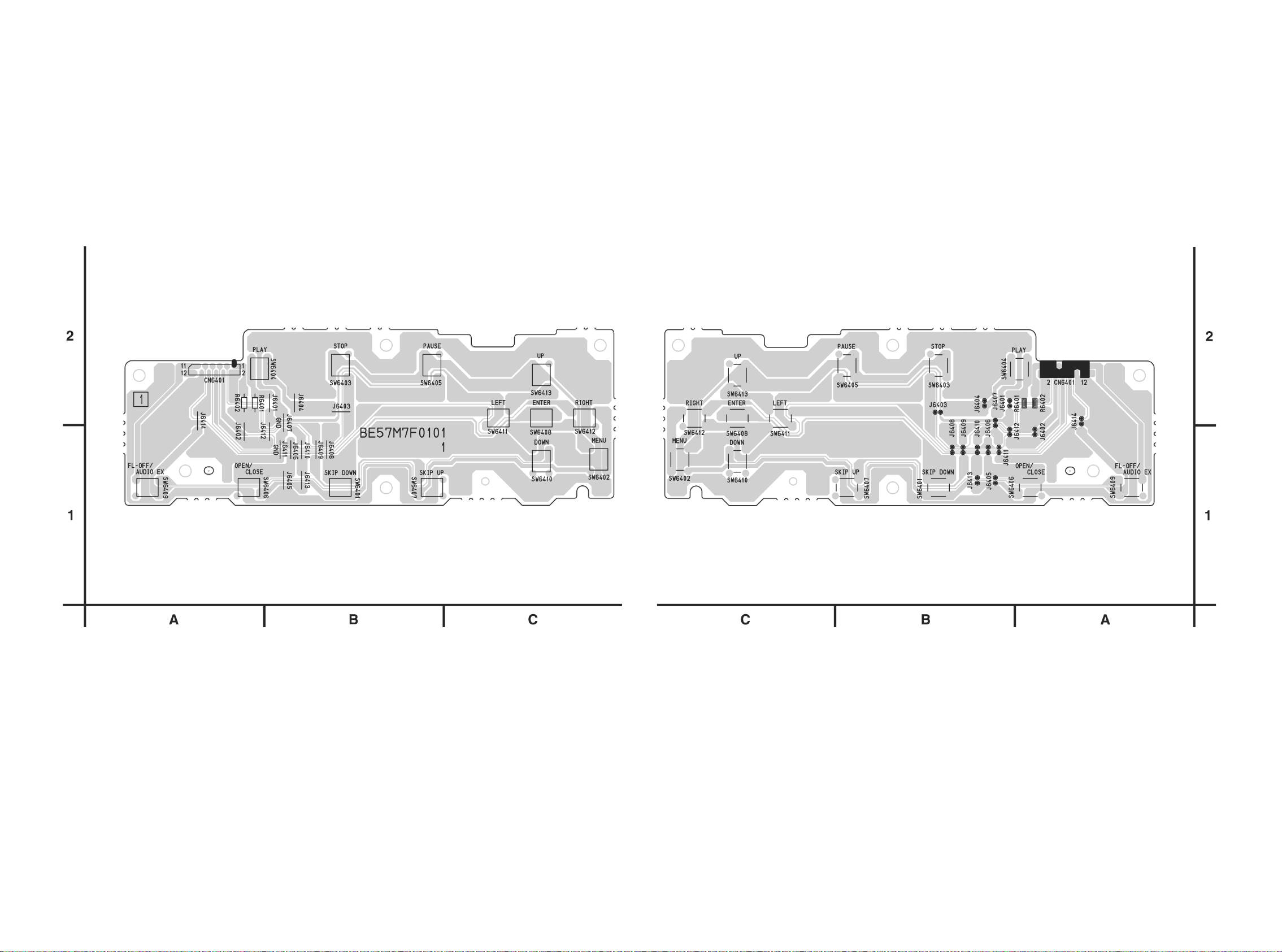

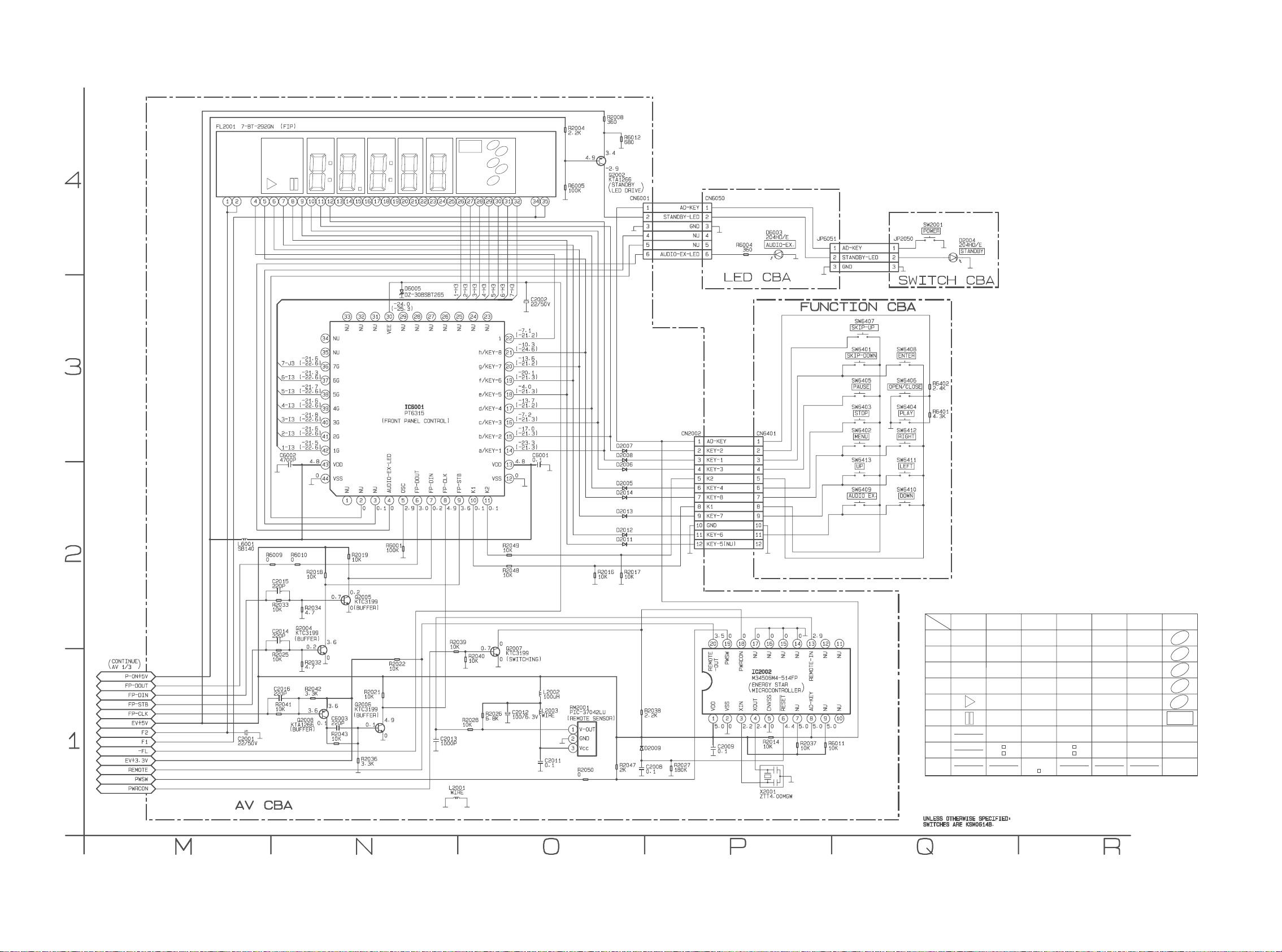

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS..............................................................1-8-1
WAVEFORMS..............................................................................................................................1-9-1
WIRING DIAGRAMS .................................................................................................................1-10-1
FIRMWARE RENEWAL MODE .................................................................................................1-11-1
LEAD IDENTIFICATIONS .......................................................................................................... 1-12-1
EXPLODED VIEWS...................................................................................................................1-13-1
PARTS LIST [DV4400] ...............................................................................................................1-14-1
PARTS LIST [DV6400] ...............................................................................................................1-15-1
SUPER AUDIO CD / DVD PLAYER DV6400
SUPER AUDIO
CD
DVD PLAYER DV4400
Super Audio CD / DVD Player
DV4400 /N1B/N1S
DVD Player
AUDIO
EX.
TABLE OF CONTENTS
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
DV4400 / DV6400
DV4400 / DV6400
Part no. 44AW855010
First Issue 2003.10
ecm
MARANTZ DESIGN AND SERVICE
Using superior design and selected high grade components,
Only original
MARANTZ
parts can insure that your
MARANTZ
MARANTZ
product will continue to perform to the specifi cations for which
company has created the ultimate in stereo sound.
it is famous.
Parts for your
MARANTZ
ORDERING PARTS :
equipment are generally available to our National Marantz Subsidiary or Agent.
Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specifi ed.
The following information must be supplied to eliminate delays in processing your order :
1. Complete address
2. Complete part numbers and quantities required
3. Description of parts
4. Model number for which part is required
5. Way of shipment
6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void.
USA
MARANTZ AMERICA, INC
1100 MAPLEWOOD DRIVE
ITASCA, IL. 60143
USA
PHONE : 630 - 741 - 0300
FAX : 630 - 741 - 0301
AMERICAS
SUPERSCOPE TECHNOLOGIES, INC.
MARANTZ PROFESSIONAL PRODUCTS
2640 WHITE OAK CIRCLE, SUITE A
AURORA, ILLINOIS 60504 USA
PHONE : 630 - 820 - 4800
FAX : 630 - 820 - 8103
EUROPE / TRADING
MARANTZ EUROPE B.V.
P. O. BOX 8744, BUILDING SILVERPOINT
BEEMDSTRAAT 11, 5653 MA EINDHOVEN
THE NETHERLANDS
PHONE : +31 - 40 - 2507844
FAX : +31 - 40 - 2507860
AUSTRALIA
TECHNICAL AUDIO GROUP PTY, LTD
43-53 Bridge Rd.,
STANMORE NSW 2048
AUSTRALIA
PHONE : +61 - (0)2 - 9519 - 0900
FAX : +61 - (0)2 - 9519 - 0600
CANADA
LENBROOK INDUSTRIES LIMITED
633 GRANITE COURT,
PICKERING, ONTARIO L1W 3K1
CANADA
PHONE : 905 - 831 - 6333
FAX : 905 - 831 - 6936
HONG KONG
Jolly ProAudio Broadcast Engineering Ltd.
UNIT 2, 10F, WAH HUNG CENTRE,
41 HUNG TO ROAD, KWUN TONG, KLN.,
HONG KONG
PHONE : 852 - 21913660
FAX : 852 - 21913990
AUSTRALIA
QualiFi Pty Ltd,
24 LIONEL ROAD,
MT. WAVERLEY VIC 3149
AUSTRALIA
PHONE : +61 - (0)3 - 9543 - 1522
FAX : +61 - (0)3 - 9543 - 3677
NEW ZEALAND
WILDASH AUDIO SYSTEMS NZ
14 MALVERN ROAD MT ALBERT
AUCKLAND NEW ZEALAND
PHONE : +64 - 9 - 8451958
FAX : +64 - 9 - 8463554
JAPAN
MARANTZ JAPAN, INC.
35- 1, 7- CHOME, SAGAMIONO
SAGAMIHARA - SHI, KANAGAWA
JAPAN 228-8505
PHONE : +81 42 748 1013
FAX : +81 42 741 9190
Technical
THAILAND
MRZ STANDARD CO., LTD
746 - 754 MAHACHAI ROAD.,
WANGBURAPAPIROM, PHRANAKORN,
BANGKOK, 10200 THAILAND
PHONE : +66 - 2 - 222 9181
FAX : +66 - 2 - 224 6795
TAIWAN
PAI- YUING CO., LTD.
6 TH FL NO, 148 SUNG KIANG ROAD,
TAIPEI, 10429, TAIWAN R.O.C.
PHONE : +886 - 2 - 25221304
FAX : +886 - 2 - 25630415
SHOCK, FIRE HAZARD SERVICE TEST :
SINGAPORE
WO KEE HONG DISTRIBUTION PTE LTD
130 JOO SENG ROAD
#03-02 OLIVINE BUILDING
SINGAPORE 368357
PHONE : +65 6858 5535 / +65 6381 8621
FAX : +65 6858 6078
MALAYSIA
WO KEE HONG ELECTRONICS SDN. BHD.
2ND FLOOR BANGUNAN INFINITE CENTRE
LOT 1, JALAN 13/6, 46200 PETALING JAYA
SELANGOR DARUL EHSAN, MALAYSIA
PHONE : +60 - 3 - 7954 8088
FAX : +60 - 3 - 7954 7088
KOREA
MK ENTERPRISES LTD.
ROOM 604/605, ELECTRO-OFFICETEL, 16-58,
3GA, HANGANG-RO, YONGSAN-KU, SEOUL
KOREA
PHONE : +822 - 3232 - 155
FAX : +822 - 3232 - 154
CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC
cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and
controls and chassis bottom.
Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and
verifi ed before it is return to the user/customer.
Ref. UL Standard No. 1492.
In case of diffi culties, do not hesitate to contact the Technical
Department at above mentioned address.
030307MIT
TECHNICAL SPECIFICATIONS
SIGNAL SYSTEM
PAL color
APPLICABLE DISCS
(1) DVD-Video Discs
1-layer 12cm single-sided discs, 2-layer 12cm single-sided
discs, 2-layer 12cm double-sided discs (1 layer per side)
1-layer 8cm single-sided discs, 2-layer 8cm single-sided
discs, 2-layer 8cm double-sided discs (1 layer per side)
(2) DVD-R/DVD-RW
(3) Compact discs (CD-DA)
12cm discs, 8cm discs
(4) CD-R/CD-RW
S-VIDEO OUTPUT
Y output level: 1Vp-p (751/ohms)
C output level: 0.30Vp-p
Output connectors: S connectors, 1 set
VIDEO OUTPUT
Output level: 1Vp-p (751/ohms)
Output connector: Pin jacks, 1 set
COMPONENT OUTPUT
Y output level: 1Vp-p (751/ohms)
C
B output level: 0.7Vp-p (751/ohms)
C
R output level: 0.7Vp-p (751/ohms)
Output connector: Pin jacks, 1 set
AUDIO/VIDEO
21-pin scart jack
AUDIO OUTPUT
Output level: 2Vrms
2 channel (L, R) output connector: Pin jack, 1 set
AUDIO OUTPUT PROPERTIES
(1) Frequency response
1 DVDs (linear PCM) : 4Hz to 22kHz (48 kHz sampling)
: 4Hz to 44kHz (96 kHz sampling)
2 CDs : 4Hz to 20kHz
(2) S/N ratio : 115dB
(3)
Total harmonic distortion
: 1kHz CD: 0.003%
(4) Dynamic range : DVD: 100dB
CD: 98dB
DIGITAL AUDIO OUTPUT
Optical digital output: Optical connector, 1 set
Coaxial digital output: Pin jack, 1 set
POWER SUPPLY
AC 230V, 50Hz
POWER CONSUMPTION
15W (Standby: 1.0W)
MAXIMUM EXTERNAL DIMENSIONS
440 (width) x 75 (height) x 211 (depth) mm
MASS
2.1Kg (4.6 lbs)
REMOTE CONTROL UNIT
RC6400DV
Infrared pulse type
Supply: DC 3V, 2 R6P/AA batteries
Contacts, signal levels and impedances
Contact 1
Audio Output (Right): 2.0Vrms/01k1
Contact 3
Audio Output (Left): 2.0Vrms/01k1
Contact 4
Audio, Ground
Contact 5
RGB, Ground (Blue)
Contact 7
RGB Output (Blue): 0.7Vp-p/751
Contact 8
Function Select Switching Control
L : 0.0~2.0V DC
Power Off
M: 4.5~7.0V DC
Wide-Screen Mode
(16:9)
H: 9.5~12.0V DC
Normal Mode (4:3)
Contact 9
RGB, Ground (Green)
Contact 11
RGB Output (Green): 0.7Vp-p/751
Contact 13
RGB, Ground (Red)
Contact 14
RGB Switching Control, Ground
Contact 15
RGB Output (Red): 0.7Vp-p/751
Contact 16
RGB Switching Control
H: 3.3V DC RGB Mode
Contact 17
Video Output Signal, Ground
Contact 18
Video Input Signal, Ground
Contact 19
Video Output (CVBS): 1.0Vp-p/751
Contact 21
Common Ground (shielding)
135
7
9
2
46
8
10
1214
16
1820
11
13
15
1719
21
[ DV4400 ]
1-1-1
[ DV4400 ]
Disc TypesPlayable Discs
The following discs can be played back on this
DVD player.
CAUTION:
¡
Use caution not to pinch your finger in the disc slot.
¡Be sure to remove a disc and unplug the AC power cord
from the outlet before carrying the DVD player.
This player conforms to the PAL colour system. Also
you can play discs recorded with the NTSC system via
a PAL system TV set.
¡Some discs include region codes as shown below.
¡The number inside the symbol refers to a region of
the world, and a disc encoded in a specific region format can only be played back on DVD players with the
same region code.
The following discs cannot be played back on this
DVD player.
¡DVD with region codes other than 2 or ALL.
¡DVD-ROM
¡DVD-RAM (Never play back, otherwise malfunc-
tion may result.)
¡CD-ROM
¡VSD
¡CDV (Only plays back the audio part.)
¡CD-G (Only plays back the sound.)
¡CD-R/CD-RW (Only plays back the discs which
audio CD/MP3/JPEG/WMA is recorded.)
¡CD-I (Never play back,otherwise malfunction may
result.)
¡Photo CD (Never play back, otherwise malfunc-
tion may result.)
¡SUPER AUDIO CD
¡DVD-Audio
Any other discs without compatibility indications.
[
DVD-Video
]
Data on a DVD is divided into sections called "titles," and
then into subsections called "chapters," each of which is
given a title or chapter number. Playback conditions are
preset on some DVD-Video discs, and these playback
conditions take priority over user operations on this player.
If a function you selected does not run as desired, refer to
the manual accompanying the disc
.
[
AUDIO CD, Video CD
]
Data on an AUDIO CD, or a Video CD is divided into sections
called “tracks,” each of which is given a track number.
[
MP3, JPEG, WMA
]
Data on a MP3 is divided into sections called "groups," and
then into subsections called "tracks," each of which is given an
album or track number.
Example
Title 1 Title 2
Chapter 1 Chapter 2 Chapter 1 Chapter 2Chapter 3 Chapter 4
Example
Track 1 Track 2 Track 3 Track 4 Track 5 Track 6
Example
Group 1 Group 2
Track 1 Track 2 Track 1 Track 2Track 3 Track 4
DVD-Video
(NOTE 1)
DVD-R
DVD-RW
(NOTE 2)
CD
CD-R
CD-RW
(NOTE 3)
Picture CD
Digital video
(MPEG2)
Digital audio
MP3
WMA
(NOTE 4)
Digital picture
(JPEG)
JPEG
Mark (logo)
Usable
discs
Recorded
signals
Disc Size
12 cm
12 cm
12 cm
8 cm
8 cm
NOTE 1: Some DVD-Video discs do not operate as described in this
manual due to the intentions of the discs’ producers.
NOTE 2: Playing DVD-R and DVD-RW discs
DVD-R and DVD-RW discs on a DVD recorder can be played.
Discs that have not be finalized cannot be played.
Depending on the disc’s recording status, the disc may not be
accepted or may not be played normally (the picture or sound
may be not be smooth, etc.).
NOTE 3: Some of CD-R/CD-RW discs may be incompartible because
of “scratch and stain of disc”, “Recording condition”, and
“Characteristic of Recorder”.
NOTE 4: Windows Media and the Windows logo are
trademarks or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
Sound
and
Pictures
12 cm
8 cm
(Singles)
Video
CD
DIGITAL VIDEO
ABOUT THE PBC FUNCTION OF VIDEO CD
This unit conforms to ver.1.1 and ver.2.0 of Video CD standard, with PBC function.
Ver.1.1 (without PBC function): You can enjoy playback picture
as well as music CD.
Ver.2.0 (with PBC function): While using a Video CD with PBC
function, “PBC” appears on the screen and the display.
NOTE:
When playing Video CDs with PBC function, some operations
(e.g., select and repeat tracks) cannot be performed unless the
function is cancelled temporarily (refer to page 15).
What is PBC? “PBC” stands for the Playback Control. You
can play interactive software using menu screens. Refer to
instructions in the Video CD.
1-1-2
TECHNICAL SPECIFICATIONS
SIGNAL SYSTEM
PAL color
APPLICABLE DISCS
(1) DVD-Audio/DVD-Video Discs
1-layer 12cm single-sided discs, 2-layer 12cm single-sided
discs, 2-layer 12cm double-sided discs (1 layer per side)
1-layer 8cm single-sided discs, 2-layer 8cm single-sided
discs, 2-layer 8cm double-sided discs (1 layer per side)
(2) Super Audio CD
(3) DVD-R/DVD-RW
(4) Compact discs (CD-DA)
12cm discs, 8cm discs
(5) CD-R/CD-RW
S-VIDEO OUTPUT
Y output level: 1Vp-p (751/ohms)
C output level: 0.30Vp-p
Output connectors: S connectors, 1 set
VIDEO OUTPUT
Output level: 1Vp-p (751/ohms)
Output connector: Pin jacks, 1 set
COMPONENT OUTPUT
Y output level: 1Vp-p (751/ohms)
C
B output level: 0.7Vp-p (751/ohms)
C
R output level: 0.7Vp-p (751/ohms)
Output connector: Pin jacks, 1 set
AUDIO/VIDEO
21-pin scart jack
AUDIO OUTPUT
Output level: 2Vrms
2 channel (L, R) output connector: Pin jack, 1 set
Multi channel (FL, FR, C, SW, SL, SR) output connector: Pinjack, 1 set
AUDIO OUTPUT PROPERTIES
(1) Frequency response
1 DVDs (linear PCM) : 4Hz to 22kHz (48 kHz sampling)
: 4Hz to 44kHz (96 kHz sampling)
: 4Hz to 88kHz (192 kHz sampling)
2 CDs : 4Hz to 20kHz
3 Super Audio CD : 4Hz to 100kHz
(2) S/N ratio : 115dB
(3)
Total harmonic distortion
: 1kHz CD: 0.003%
(4) Dynamic range : DVD: 100dB
CD: 98dB
DIGITAL AUDIO OUTPUT
Optical digital output: Optical connector, 1 set
Coaxial digital output: Pin jack, 1 set
POWER SUPPLY
AC 230V, 50Hz
POWER CONSUMPTION
16W (Standby: 1.2W)
MAXIMUM EXTERNAL DIMENSIONS
440 (width) x 75 (height) x 211 (depth) mm
MASS
2.2Kg (4.9lbs)
REMOTE CONTROL UNIT
RC6400DV
Infrared pulse type
Supply: DC 3V, 2 R6P/AA batteries
Contacts, signal levels and impedances
Contact 1
Audio Output (Right): 2.0Vrms/01k1
Contact 3
Audio Output (Left): 2.0Vrms/01k1
Contact 4
Audio, Ground
Contact 5
RGB, Ground (Blue)
Contact 7
RGB Output (Blue): 0.7Vp-p/751
Contact 8
Function Select Switching Control
L : 0.0~2.0V DC
Power Off
M: 4.5~7.0V DC
Wide-Screen Mode
(16:9)
H: 9.5~12.0V DC
Normal Mode (4:3)
Contact 9
RGB, Ground (Green)
Contact 11
RGB Output (Green): 0.7Vp-p/751
Contact 13
RGB, Ground (Red)
Contact 14
RGB Switching Control, Ground
Contact 15
RGB Output (Red): 0.7Vp-p/751
Contact 16
RGB Switching Control
H: 3.3V DC RGB Mode
Contact 17
Video Output Signal, Ground
Contact 18
Video Input Signal, Ground
Contact 19
Video Output (CVBS): 1.0Vp-p/751
Contact 21
Common Ground (shielding)
135
7
9
2
46
8
10
1214
16
1820
11
13
15
1719
21
[ DV6400 ]
1-1-3
Disc TypesPlayable Discs
The following discs can be played back on this
DVD player.
CAUTION:
¡
Use caution not to pinch your finger in the disc slot.
¡Be sure to remove a disc and unplug the AC power cord
from the outlet before carrying the DVD player.
This player conforms to the PAL colour system. Also
you can play discs recorded with the NTSC system via
a PAL system TV set.
¡Some discs include region codes as shown below.
¡The number inside the symbol refers to a region of
the world, and a disc encoded in a specific region format can only be played back on DVD players with the
same region code.
The following discs cannot be played back on this
DVD player.
¡DVD with region codes other than 2 or ALL.
¡DVD-ROM
¡DVD-RAM (Never play back, otherwise malfunc-
tion may result.)
¡CD-ROM
¡VSD
¡CDV (Only plays back the audio part.)
¡CD-G (Only plays back the sound.)
¡CD-R/CD-RW (Only plays back the discs which
audio CD/MP3/JPEG/WMA is recorded.)
¡CD-I (Never play back,otherwise malfunction may
result.)
¡Photo CD (Never play back, otherwise malfunc-
tion may result.)
Any other discs without compatibility indications.
[
DVD-Video
]
Data on a DVD is divided into sections called "titles," and
then into subsections called "chapters," each of which is
given a title or chapter number. Playback conditions are
preset on some DVD-Video discs, and these playback
conditions take priority over user operations on this player.
If a function you selected does not run as desired, refer to
the manual accompanying the disc
.
[
AUDIO CD, Video CD, SUPER AUDIO CD
]
Data on an AUDIO CD, a SUPER AUDIO CD, or a Video CD
is divided into sections called “tracks,” each of which is given
a track number.
[
MP3, JPEG, WMA
]
Data on a MP3 is divided into sections called "groups," and
then into subsections called "tracks," each of which is given an
album or track number.
Example
Title 1 Title 2
Chapter 1 Chapter 2 Chapter 1 Chapter 2Chapter 3 Chapter 4
Example
Track 1 Track 2 Track 3 Track 4 Track 5 Track 6
Example
Group 1 Group 2
Track 1 Track 2 Track 1 Track 2Track 3 Track 4
DVD-Video
(NOTE 1)
DVD-Audio
DVD-R
DVD-RW
(NOTE 2)
CD
CD-R
CD-RW
(NOTE 3)
Picture CD
Digital video
(MPEG2)
Digital audio
Digital audio
MP3
WMA (NOTE 4)
Digital picture
(JPEG)
JPEG
Mark (logo)
Usable
discs
Recorded
signals
Disc Size
12 cm
12 cm
12 cm
12 cm
8 cm
8 cm
NOTE 1: Some DVD-Video discs do not operate as described in this
manual due to the intentions of the discs’ producers.
NOTE 2: Playing DVD-R and DVD-RW discs
DVD-R and DVD-RW discs on a DVD recorder can be played.
Discs that have not be finalized cannot be played.
Depending on the disc’s recording status, the disc may not be
accepted or may not be played normally (the picture or sound
may be not be smooth, etc.).
NOTE 3: Some of CD-R/CD-RW discs may be incompartible because
of “scratch and stain of disc”, “Recording condition”, and
“Characteristic of Recorder”.
NOTE 4: Windows Media and the Windows logo are
trademarks or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
Sound
and
Pictures
12 cm
8 cm
(Singles)
Video
CD
Super Audio
CD
DIGITAL VIDEO
[
DVD-Audio
]
DVD-Audios are divided into several large sections called
“groups” and smaller sections called “tracks.” Numbers are
alloted to these sections. These numbers are called “group
numbers” and “track numbers.”
Example
Group 1 Group 2
Track 1 Track 2 Track 1 Track 2Track 3 Track 4
ABOUT THE PBC FUNCTION OF VIDEO CD
This unit conforms to ver.1.1 and ver.2.0 of Video CD standard, with PBC function.
Ver.1.1 (without PBC function): You can enjoy playback picture
as well as music CD.
Ver.2.0 (with PBC function): While using a Video CD with PBC
function, “PBC” appears on the screen and the display.
NOTE:
When playing Video CDs with PBC function, some operations
(e.g., select and repeat tracks) cannot be performed unless the
function is cancelled temporarily (refer to page 16).
What is PBC? “PBC” stands for the Playback Control. You
can play interactive software using menu screens. Refer to
instructions in the Video CD.
[ DV6400 ]
1-1-4
SERVICE HINTS
SERVICE HINTS AND TOOLS
SERVICE TOOLS
Audio signals disc 4822 397 30184
Disc without errors (SBC444)+
Disc with DO errors, black spots and fingerprints (SBC444A) 4822 397 30245
Disc (65 min 1kHz) without no pause 4822 397 30155
Max. diameter disc (58.0 mm) 4822 397 60141
Torx screwdrivers
Set (straight) 4822 395 50145
Set (square) 4822 395 50132
13th order filter 4822 395 30204
DVD test disc (PAL) 4822 397 10131
DVD test disc (NTSC) ALMEDIO TDV-540
1-2-1
WARNING AND LASER SAFETY INSTRUCTIONS
GB
WARNING
All ICs and many other semi-conductors are
susceptible to electrostatic discharges (ESD).
Careless handling during repair can reduce
life drastically.
When repairing, make sure that you are
connected with the same potential as the
mass of the set via a wrist wrap with
resistance.
Keep components and tools also at this
potential.
F
ATTENTION
D
WARNUNG
I
WAARSCHUWING
AVVERTIMENTO
NL
Alle IC’s en vele andere halfgeleiders zijn
gevoelig voor elektrostatische ontladingen
(ESD).
Onzorgvuldig behandelen tijdens reparatie
kan de levensduur drastisch doen
verminderen.
Zorg ervoor dat u tijdens reparatie via een
polsband met weerstand verbonden bent met
hetzelfde potentiaal als de massa van het
apparaat.
Houd componenten en hulpmiddelen ook op
ditzelfde potentiaal.
Tous les IC et beaucoup d’autres semiconducteurs sont sensibles aux décharges
statiques (ESD).
Leur longévité pourrait être considérablement
écourtée par le fait qu’aucune précaution
n’est prise a leur manipulation.
Lors de réparations, s’assurer de bien être
relié au même potentiel que la masse de
l’appareil et enfiler le bracelet serti d’une
résistance de sécurité.
Veiller a ce que les composants ainsi que les
outils que l’on utilise soient également a ce
potentiel.
GB
Safety regulations require that the set be restored to its original condition
and that parts which are identical with those specified be used.
NL
Veiligheidsbepalingen vereisen, dat het apparaat in zijn oorspronkelijke
toestand wordt terug gebracht en dat onderdelen, identiek aan de
gespecifieerde worden toegepast.
Alle IC und viele andere Halbleiter sind
empfindlich gegen elektrostatische
Entladungen (ESD).
Unsorgfältige Behandlung bei der Reparatur
kann die Lebensdauer drastisch vermindern.
Sorgen sie dafür, das Sie im Reparaturfall
über ein Pulsarmband mit Widerstand mit
dem Massepotential des Gerätes verbunden
sind.
Halten Sie Bauteile und Hilfsmittel ebenfalls
auf diesem Potential.
D
Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu beachten.
Der Originalzustand des Gerats darf nicht verandert werden.
Fur Reparaturen sind Original-Ersatzteile zu verwenden.
I
Le norme di sicurezza esigono che l’apparecchio venga rimesso nelle
condizioni originali e che siano utilizzati pezzi di ricambiago idetici a quelli
specificati.
Tutti IC e parecchi semi-conduttori sono
sensibili alle scariche statiche (ESD).
La loro longevita potrebbe essere fortemente
ridatta in caso di non osservazione della piu
grande cauzione alla loro manipolazione.
Durante le riparazioni occorre quindi essere
collegato allo stesso potenziale che quello
della massa dell’apparecchio tramite un
braccialetto a resistenza.
Assicurarsi che i componenti e anche gli
utensili con quali si lavora siano anche a
questo potenziale.
F
“Pour votre sécurité, ces documents
doivent être utilisés par des
spécialistes agrées, seuls habilités à
réparer votre appareil en panne.”
Les normes de sécurité exigent que l’appareil soit remis a l’état d’origine et
que soient utilisées les pièces de rechange identiques à celles spécifiées.
LASER SAFETY
This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this
device, due to possible eye injury.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURE OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
AVOID DIRECT EXPOSURE TO BEAM
WARNING
The use of optical instruments with this product will increase eye hazard.
Repair handling should take place as much as possible with a disc loaded inside the player
WARNING LOCATION: INSIDE ON LASER COVERSHIELD
CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO BEAM
ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDS
ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL Å PNES UNNGÅ EKSPONERING FOR STRÅLEN
VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN
VARO! AVATT AESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN
VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETSEN
DANGER VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM
ATTENTION RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D'OUVERTURE EXPOSITION DANGEREUSE AU FAISCEAU
Æ
TTELSE FOR STRÅLING
1-2-2
030804ecm
LASER BEAM SAFETY PRECAUTIONS
This DVD player uses a pickup that emits a laser beam.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against
your skin.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.
Caution: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
Drive Mecha Assembly
Laser Beam Radiation
Laser Pickup
Turntable
1-2-3 E57E2LBS
IMPORTANT SAFETY PRECAUTIONS
Product Safety Notice
Some electrical and mechanical parts have special
safety-related characteristics which are often not evident from visual inspection, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a ! on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product’s Safety is under review continuously and new instructions are issued whenever
appropriate. Prior to shipment from the factory, our
products are carefully inspected to confirm with the
recognized product safety and electrical codes of the
countries in which they are to be sold. However, in
order to maintain such compliance, it is equally important to implement the following precautions when a set
is being serviced.
Precautions during Servicing
A. Parts identified by the ! symbol are critical for
safety. Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1)Wires covered with PVC tubing
2)Double insulated wires
3)High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1)Insulation tape
2)PVC tubing
3)Spacers
4)Insulators for transistors
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before soldering.
F. Observe that the wires do not contact heat produc-
ing parts (heatsinks, oxide metal film resistors, fusible resistors, etc.).
G. Check that replaced wires do not contact sharp
edges or pointed parts.
H. When a power cord has been replaced, check that
5 - 6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Be careful that foreign objects (screws, solder
droplets, etc.) do not remain inside the set.
K. Crimp type wire connector
The power transformer uses crimp type connectors
which connect the power cord and the primary side
of the transformer. When replacing the transformer,
follow these steps carefully and precisely to prevent shock hazards.
Replacement procedure
1)Remove the old connector by cutting the wires at a
point close to the connector.
Important: Do not re-use a connector. (Discard it.)
2)Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.
3)Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
4)Use a crimping tool to crimp the metal sleeve at its
center. Be sure to crimp fully to the complete closure of the tool.
L. When connecting or disconnecting the internal con-
nectors, first, disconnect the AC plug from the AC
outlet.
1-3-1 DVD_SFNP
Safety Check after Servicing
Examine the area surrounding the repaired location for
damage or deterioration. Observe that screws, parts,
and wires have been returned to their original positions. Afterwards, do the following tests and confirm
the specified values to verify compliance with safety
standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)
Table 1 : Ratings for selected area
AC Line Voltage Clearance Distance (d) (d’)
Chassis or Secondary Conductor
Primary Circuit Terminals
dd'
230 V
Note: This table is unofficial and for reference only.
Be sure to confirm the precise values.
≥ 3 mm(d)
≥ 6 mm(d’)
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs)
and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and
output terminals, microphone jacks, earphone jacks,
etc.) is lower than or equal to the specified value in the
table below.
Measuring Method (Power ON) :
Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across the terminals of load
Z. See Fig. 2 and the following table.
Table 2: Leakage current ratings for selected areas
AC Line Voltage Load Z Leakage Current (i)
2kΩ RES.
Connected in
parallel
230 V
50kΩ RES.
Connected in
parallel
i≤0.7mA AC Peak
i≤2mA DC
i≤0.7mA AC Peak
i≤2mA DC
Exposed Accessible Part
Z
One side of
B
Power Cord Plug Prongs
One side of power cord plug
prongs (B) to:
Antenna terminals
A/V Input, Output
AC Voltmeter
(High Impedance)
RF or
Fig. 1
Fig. 2
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
1-3-2 DVD_SFNP
STANDARD NOTES FOR SERVICING
Circuit Board Indications
1. The output pin of the 3 pin Regulator ICs is indicated as shown.
Top View
Input
Out
2. For other ICs, pin 1 and every fifth pin are indicated
as shown.
In
Pin 1
3. The 1st pin of every male connector is indicated as
shown.
Pin 1
Bottom View
5
10
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:.
(1) Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
Fig. S-1-1
(2) Remove the flat pack-IC with tweezers while apply-
ing the hot air.
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an angle.
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
Caution:
1. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage to
the chip parts may occur. Put masking tape around
the flat pack-IC to protect other parts from damage.
(Fig. S-1-2)
2. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when removing
it.
Hot-air
Flat Pack-IC
Desoldering
CBA
Masking
Tape
Tweezers
Machine
Flat Pack-IC
Fig. S-1-2
1-4-1 DVD_NOTE
With Soldering Iron:
or
(1) Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)
Flat Pack-IC
Desoldering Braid
(4) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(5) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Note:
When using a soldering iron, care must be taken
to ensure that the flat pack-IC is not being held by
glue. When the flat pack-IC is removed from the
CBA, handle it gently because it may be damaged
if force is applied.
Soldering Iron
Fig. S-1-3
(2) Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
Sharp
Pin
Fine Tip
Soldering Iron
Fig. S-1-4
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
With Iron Wire:
(1) Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)
(2) Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
(3) While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA contact
pads as shown in Fig. S-1-5
To Solid
Mounting Point
CBA
Tweezers
Hot Air Blower
Iron Wire
Soldering Iron
Fig. S-1-5
Fine Tip
Soldering Iron
Flat Pack-IC
Fig. S-1-6
1-4-2 DVD_NOTE
2. Installation
(1) Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
(2) The “I” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
(3) Solder all pins of the flat pack-IC. Be sure that none
of the pins have solder bridges.
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark.
Fig. S-1-7
Instructions for Handling
Semi-conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1MΩ) that is properly grounded to remove any static electricity that may
be charged on the body.
2. Ground for Workbench
(1) Be sure to place a conductive sheet or copper plate
with proper grounding (1MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.
< Incorrect >
CBA
Presolder
Flat Pack-IC
Fig. S-1-8
CBA
< Correct >
Grounding Band
1MΩ
CBA
1MΩ
Conductive Sheet or
Copper Plate
1-4-3 DVD_NOTE
CABINET DISASSEMBLY INSTRUCTIONS
[ DV4400/N1B, DV4400/N1S ]
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
[1] Top Cover
[3] Function
CBA
[7] DVD Main CBA Unit
[8] DVD Main CBA Holder
2. Disassembly Method
[2] Front Unit
[4] Front Assembly
[6] DVD Mecha[5] Rear Panel
[9] AV CBA
[10] Switch CBA
[11] LED CBA
[12] LED CBA Holder
ID/
LOC.
No.
[10] Switch CBA D7
[11] LED CBA D7 (S-10), 3(L-5) -
[12]
↓
(1)
(1): Identification (location) No. of parts in the figures
(2): Name of the part
(3): Figure Number for reference
(4): Identification of parts to be removed, unhooked,
(5): Refer to “Reference Notes.”
PART
LED CBA
Holder
↓
(2)
unlocked, released, unplugged, unclamped, or
desoldered.
P=Spring, L=Locking Tab, S=Screw,
CN=Connector
*=Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
Fig.
No.
D7 ---------- -
↓
(3)
REMOVAL
REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER
(S-9), *2(L-4),
Desolder
↓
(4)
Note
-
↓
(5)
ID/
LOC.
No.
[1] Top Cover D1 5(S-1) -
[2] Front Unit D2
[3]
[4]
[5] Rear Panel D4 7(S-3), 3(S-4) -
[6] DVD Mecha
[7]
[8]
[9] AV CBA D7 4(S-8), *CN6001 -
PART
Function
CBA
Front
Assembly
DVD Main
CBA Unit
DVD Main
CBA Holder
Fig.
No.
D3
D3 ---------- -
D5,
D6
D5
D5 (S-7) -
REMOVAL
REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER
*2(L-1), Tray Panel,
*2(L-2), *5(L-3),
*CN2002
6(S-2),
Insulation Sheet
3(S-5),
*CN201, *CN301
2(S-6), *CN1001,
*CN1601
Note
1-1
1-2
1-3
1-4
1-5
1-6
1-7
-
2
2-1
2-2
3
-
Reference Notes
CAUTION 1: Locking Tabs (L-1), (L-2) and (L-3) are
fragile. Be careful not to break them.
1-1. Connect the wall plug to an AC outlet and press
the OPEN/CLOSE button to open the Tray.
1-2. Remove the Tray Panel by releasing two Locking
Tabs (L-1).
1-3. Press the OPEN/CLOSE button again to close
the Tray.
1-4. Press the POWER button to turn the power off.
1-5. Unplug an AC cord.
1-6. Disconnect connector CN2002.
1-7. Release two Locking Tabs (L-2). Then, release
five Locking Tabs (L-3) (to do this, first release
two Locking Tabs (A) at the side, and then three
Locking Tabs (B) at the bottom.)
CAUTION 2: Electrostatic breakdown of the laser
diode in the optical system block may occur as a
potential difference caused by electrostatic charge
accumulated on cloth, human body etc., during
unpacking or repair work.
To avoid damage of pickup follow these procedures.
2-1. Disconnect connector (CN301). Remove three
screws (S-5) and lift the DVD Mecha. (Fig. D5)
1-5-1 E57M2_M4DC
2-2. Short the three short lands of FPC cable with sol-
der before removing the FFC cable (CN201) from
it. If you disconnect the FFC cable (CN201), the
laser diode of pickup will be destroyed. (Fig. D6)
CAUTION 3: When reassembling, confirm the FFC
cable (CN201) is connected completely. Then remove
the solder from the three short lands of FPC cable.
(Fig. D6)
(S-1)
[1] Top Cover
(S-1)
[4] Front Assembly
(S-2)
Insulation Sheet
(S-2)
[3] Function
CBA
Fig. D3
(L-1)
(A)
(B)
Tray Panel
(L-1)
(L-3)
(L-2)
[2] Front Unit
(A)
Fig. D1
CN2002
(S-1)
[5] Rear Panel
(S-4)
(S-4)
(S-3)
(S-4)
Fig. D4
Fig. D2
1-5-2 E57M2_M4DC
(S-6)
(S-5)
[6] DVD
Mecha
(S-7)
[8] DVD Main
CBA Holder
CN201
CN301
[7] DVD Main
CBA Unit
CN1001
CN1601
Fig. D5
A
Short the three short lands by soldering
Connector
View for A
OR
Slide
C
Short the three short
lands by soldering
DVD Mecha
FPC Cable
Pickup Unit
View for B
View for C
Fig. D6
1-5-3 E57M2_M4DC
[10] Switch CBA
(S-9)
(S-10)
[11] LED CBA
[9] AV CBA
(S-8)
(S-8)
(S-8)
Desolder
(L-4)
(L-5)
CN6001
(L-5)
[12] LED CBA
Holder
Fig. D7
HOW TO MANUAL EJECT
1. Remove the Top Case.
2. Rotate the roulette in the direction of the arrow as
shown below.
View for A
Rotate this roulette in
the direction of the arrow
A
1-5-4 E57M2_M4DC
[ DV6400/N1B, DV6400/N1S ]
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
[1] Top Cover
[3] Function
CBA
[7] Shield Plate
[8] SACD CBA
[9] DVD Main CBA Unit
[10] DVD Main CBA Holder
2. Disassembly Method
ID/
LOC.
No.
[1] Top Cover D8 5(S-11) -
[2] Front Unit D9
[3]
[4]
[5] Rear Panel D11 9(S-13), 3(S-14) -
[6] DVD Mecha
[7] Shield Plate D12 (S-16), 2(S-17) -
[8] SACD CBA D12
[9]
PART
Function
CBA
Front
Assembly
DVD Main
CBA Unit
[2] Front Unit
[4] Front Assembly
[6] DVD Mecha[5] Rear Panel
[11] AV CBA
[12] Switch CBA
[13] LED CBA
[14] LED CBA Holder
REMOVAL
REMOVE/*UNHOOK/
Fig.
UNLOCK/RELEASE/
No.
UNPLUG/DESOLDER
*2(L-6), Tray Panel,
*2(L-7), *5(L-8),
*CN2002
6(S-12),
D10
Insulation Sheet
D10 ---------- -
D12,
3(S-15),
*CN201, *CN301
D13
*5(L-9), *CN7101,
*CN7102, *CN7151
2(S-18), *CN1001,
D12
*CN1601
Note
1-1
1-2
1-3
1-4
1-5
1-6
1-7
2-1
2-2
-
2
3
-
-
ID/
LOC.
No.
[10]
[11] AV CBA D14 4(S-20), *CN6001 -
[12] Switch CBA D14
[13] LED CBA D14 (S-22), 3(L-11) -
[14]
↓
(1)
(1): Identification (location) No. of parts in the figures
(2): Name of the part
(3): Figure Number for reference
(4): Identification of parts to be removed, unhooked,
(5): Refer to “Reference Notes.”
PART
DVD Main
CBA Holder
LED CBA
Holder
↓
(2)
unlocked, released, unplugged, unclamped, or
desoldered.
P=Spring, L=Locking Tab, S=Screw,
CN=Connector
*=Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
Fig.
No.
D12 (S-19) -
D14 ---------- -
↓
(3)
REMOVAL
REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER
(S-21), *2(L-10),
Desolder
↓
(4)
Note
-
↓
(5)
Reference Notes
CAUTION 1: Locking Tabs (L-6), (L-7) and (L-8) are
fragile. Be careful not to break them.
1-1. Connect the wall plug to an AC outlet and press
the OPEN/CLOSE button to open the Tray.
1-2. Remove the Tray Panel by releasing two Locking
Tabs (L-6).
1-3. Press the OPEN/CLOSE button again to close
the Tray.
1-4. Press the POWER button to turn the power off.
1-5. Unplug an AC cord.
1-6. Disconnect connector CN2002.
1-7. Release two Locking Tabs (L-7). Then, release
five Locking Tabs (L-8) (to do this, first release
two Locking Tabs (A) at the side, and then three
Locking Tabs (B) at the bottom.)
CAUTION 2: Electrostatic breakdown of the laser
diode in the optical system block may occur as a
potential difference caused by electrostatic charge
accumulated on cloth, human body etc., during
unpacking or repair work.
1-5-5 E57M7_M9DC
To avoid damage of pickup follow these procedures.
2-1. Disconnect connector (CN301). Remove three
screws (S-15) and lift the DVD Mecha. (Fig. D12)
2-2. Short the three short lands of FPC cable with sol-
der before removing the FFC cable (CN201) from
it. If you disconnect the FFC cable (CN201), the
laser diode of pickup will be destroyed. (Fig. D13)
CAUTION 3: When reassembling, confirm the FFC
cable (CN201) is connected completely. Then remove
the solder from the three short lands of FPC cable.
(Fig. D13)
(S-11)
[1] Top Cover
(S-11)
[4] Front Assembly
(S-12)
Insulation Sheet
(S-12)
[3] Function
CBA
Fig. D10
(L-6)
(A)
Tray Panel
(L-6)
(L-7)
Fig. D8
CN2002
(S-11)
[5] Rear Panel
(S-14)
(S-13)
(S-14)
(S-13)
(S-14)
Fig. D11
(B)
(L-8)
[2] Front Unit
(A)
Fig. D9
1-5-6 E57M7_M9DC
[7] Shield Plate
CN7102
(S-17)
(S-16)
CN7151
(S-18)
(L-9)
(L-9)
[10] DVD Main
CBA Holder
CN7101
CN301
[9] DVD Main
CBA Unit
(S-19)
(L-9)
CN1001
CN201
CN1601
[8] SACD CBA
(S-15)
Fig. D12
[6] DVD
Mecha
A
Short the three short lands by soldering
Connector
View for A
OR
Slide
C
Pickup Unit
Short the three short
lands by soldering
DVD Mecha
FPC Cable
View for B
View for C
Fig. D13
1-5-7 E57M7_M9DC
[12] Switch CBA
(S-21)
(L-10)
(S-22)
Desolder
[13] LED CBA
[11] AV CBA
(S-20)
(L-11)
CN6001
(L-11)
[14] LED CBA
Holder
(S-20)
(S-20)
Fig. D14
HOW TO MANUAL EJECT
1. Remove the Top Case.
2. Rotate the roulette in the direction of the arrow as
shown below.
A
View for A
Rotate this roulette in
the direction of the arrow
1-5-8 E57M7_M9DC
FLOW CHART NO.1
The power cannot be turned on.
TROUBLESHOOTING
Is the fuse normal?
Ye s
Is normal state restored when once unplugged
power cord is plugged again after several seconds?
Ye s
Is the EV +9V line voltage normal?
Ye s
Is each voltage of the secondary side normal?
Ye s
When pressing POWER button (SW2001), is the
voltage of 0V supplied to pin(8) of IC2002?
Ye s
Is the voltage of 5V supplied to pin(1) of IC2002?
Ye s
Is the voltage of 3.3V outputted to pin(19) of CN1001?
Ye s
Is the voltage of 0V supplied to pin(18) of IC2002?
Ye s
Replace IC2002.
FLOW CHART NO.2
The fuse blows out.
No
No
No
No
No
No
No
No
See FLOW CHART No.2 <The fuse blows out.>
Check if there is any leak or shor-circuiting on the
primary circuit component, and service it if defective.
(Q1001, Q1003, T1001, D1001, D1002, D1004,
D1005, D1011, C1003, C1005)
Check each rectifying circuit of the secondary circuit
and service it if defective.
Check POWER button (SW2001) and their
periphery, and service it if defective.
Check EV+5V line
Replace DVD Main CBA unit.
Check Q2007 and their periphery, and service it if
defective.
and service it if defective.
Check the presence that the primary component
is leaking or shorted and service it if defective.
After servicing, replace the fuse.
FLOW CHART NO.3
When the output voltage fluctuates.
Does the photo coupler circuit on the secondary
side operate normally?
Ye s
Check IC1001, D1012, D1024 and their periphery,
and service it if defective.
FLOW CHART NO.4
When buzz sound can be heard in the vicinity of power circuit.
Check if there is any short-circuit on the rectifying diode and the circuit in each rectifying circuit of the secondary side
and service it if defective.
FLOW CHART NO.5
-FL is not outputted.
(D1003, D1006, D1008, D1016, D1030, IC1002, Q1002, Q1004, Q1010, Q1011, Q1014)
No
Check the presence that the rectifying diode or
circuit is shorted in each rectifying circuit of
secondary side, and service it if defective.
Check IC1001, IC1006, D1015, D1048 and their
periphery, and service it if defective.
,
Is -24V voltage supplied to the anode of D1003?
Ye s
Check if there is any leak or short-circuit
on the loaded circuit, and service it if defective.
No
Check D1003 and periphery circuit, and service it
if defective.
1-6-1 E57M2TR
FLOW CHART NO.6
P-ON+12V is not outputted.
Is 14V voltage supplied to the emitter of Q1002?
Ye s
Is the voltage of base on Q1002 lower than the
voltage of emitter on Q1002 when turning the power on?
Ye s
Replace Q1002.
FLOW CHART NO.7
P-ON+5V is not outputted. (EV+9V is outputted normally.)
Is the "H" pulse inputted into the base of Q1004?
Ye s
Replace Q1004.
FLOW CHART NO.8
P-ON+3.3V is not outputted. (P-ON+12V is outputted normally.)
Is 3.3V voltage supplied to the collector of Q1011?
Ye s
Replace Q1011 and R1067.
No
No
No
No
Check D1030, D1048, D1053, C1035, C1048, L1009
and the periphery circuit, and service it if defective.
Check Q1016 and PWRCON line and service it if
defective.
Check R1068 and D1046, and service it if defective.
Check D1008, D1015, C1007, C1038, L1007 and
the periphery circuit, and service it if defective.
FLOW CHART NO.9
EV+5V is not outputted. (EV+9V is outputted normally.)
Is the "H" pulse inputted into the base of Q1014?
Ye s
Replace Q1014.
FLOW CHART NO.10
EV+1.5V is not outputted.
Is 2.5V voltage supplied to Pin(1) of IC1002?
Ye s
Is 1.25V voltage supplied to Pin(4) of IC1002?
Ye s
Replace IC1002.
FLOW CHART NO.11
EV+3.3V is not outputted.
Is 3.3V voltage supplied to emitter of Q1010?
Ye s
Is the "L" pulse inputted to base of Q1012?
Ye s
Check Q1010, Q1012, R1087 and R1088, and
service it if defective.
No
No
No
No
No
Check Q1014, D1047 and the periphery circuit,
and service it if defective.
Check D1006, C1014, C1050, L1008 and the
periphery circuit, and service it if defective.
Is the "L" pulse outputted into Pin(19) of IC2002?
Ye s No
Check the circuit between Pin(19)
of IC2002 and Pin(4) of IC1002
and service it if defective.
Check D1008, D1015, C1007, C1038, L1007 and
the periphery circuit, and service it if defective.
Is the "L" pulse outputted into Pin(19) of IC2002?
Ye s No
Check the circuit between Pin(19)
of IC2002 and base of Q1012
and service it if defective.
Replace IC2002.
,
Replace IC2002.
,
1-6-2 E57M2TR
FLOW CHART NO.12
The fluorescent display tube does not light up.
Is 5V voltage supplied to Pin(13) and
Pin(43) of IC6001?
Ye s
Is the voltage of approximately -24V to -28V
supplied to Pin(30) of IC6001?
Ye s
Is there 500kHz oscillation at Pin(5) of IC6001?
Ye s
Are the filament voltage supplied between
Pins(1, 2) and Pins(34, 35) of the fluorescent
display tube? And the negative voltage applied
between these pins and GND?
Ye s
Replace the fluorescent display tube.
FLOW CHART NO.13
The key operation is not functioning.
No
No
No
No
Check the P-ON+5V line and service it if detective.
Check the -FL (-28V) line and service it if detective.
Check R6001, IC6001 and their periphery, and
service it if detective.
Check D1016, D1017, T1001, and their periphery,
and service it if detective.
No
Is -17V voltage supplied to collector of Q1005?
Ye s
Is the "H" signal inputted
to base of Q1016?
Ye s
Check Q1005, Q1015, Q1016, D1055, and
their periphery, and service it if detective.
Check PWRCON
line, and service
No
it if detective.
Are the contact point and the installation state of the
key switches (SW2001, 6401-6413) normal?
Ye s
When pressing each switches (SW6401-6403,
6405, 6407-6413), do the voltage of each pin
of IC6001 (shown below) switch to 75mV from
6mV?
SW6401-6403, 6405, 6407, 6409, 6413: IC6001 10PIN
SW6408, 6410-6412: IC6001 11PIN
When pressing each switches (SW2001, 6404,
6406), is the normal control voltage inputted to
Pin(8) of IC2002?
SW2001: 0 - 0.49V
SW6406: 0.49 - 1.49V
SW6404: 1.49 - 2.42V
Ye s
Replace IC2001.
No
No
Re-install the switches (
correctly or replace the poor switch.
Check the switches (
and their periphery, and service it if detective.
SW2001, 6401-6413
SW2001, 6401-6413
)
)
1-6-3 E57M2TR
FLOW CHART NO.14
No operation is possible from the remote control unit.
Operation is possible from the DVD, but no
operation is possible from the remote control unit.
Ye s
Is 5V voltage supplied to the Pin(3) terminal of
the infrared remote control receiver (RM2001)?
Ye s
Is the "L" pulse sent out Pin(1) terminal of receiver
(RM2001) when the infrared remote control is activated?
Ye s
Is the "L" pulse outputted to the Pin(20) of IC2002
when the infrared remote control is activated?
Ye s
Is the "L" pulse supplied to the Pin(22) of CN1001?
Ye s
Replace DVD Main CBA.
FLOW CHART NO.15
The disc tray cannot be opened and closed. (It can be done using the remote control unit.)
No
No
No
No
Check EV+5V line and service it if detective.
Replace the infrared remote control receiver (RM2001).
Or replace the remote control unit.
Replace IC2002.
Check the line between Pin(20) of IC2002 and
Pin(22) of CN1001, and service it if detective.
Is the normal control voltage inputted to Pin(8) of
IC2002?
Ye s
Refer to "FLOW CHART NO.16" <The disc tray
cannot be opened and closed.>
FLOW CHART NO.16
The disc tray cannot be opened and closed.
Replace the DVD Main CBA.
No improvement can be found.
Ye s
Replace the DVD Mecha.
FLOW CHART NO.17
[No Disc] indicated. (When the focus error occurs.)
Replace the DVD Main CBA.
No improvement can be found.
Ye s
Replace the DVD Mecha.
No
No
No
Replace the "OPEN/CLOSE" button (SW6406).
Original DVD Main CBA is poor.
Original DVD Main CBA is poor.
1-6-4 E57M2TR
FLOW CHART NO.18
[No Disc] indicated. (When the focus servo is not functioning.)
Replace the DVD Main CBA.
No improvement can be found.
Ye s
Replace the DVD Mecha.
FLOW CHART NO.19
[No Disc] indicated. (When the laser beam does not light up.)
Replace the DVD Main CBA.
No improvement can be found.
Ye s
Replace the DVD Mecha.
FLOW CHART NO.20
Both functions of picture and sound do not operate normally.
Replace the DVD Main CBA.
No improvement can be found.
Ye s
No
No
No
Original DVD Main CBA is poor.
Original DVD Main CBA is poor.
Original DVD Main CBA is poor.
Replace the DVD Mecha.
1-6-5 E57M2TR
FLOW CHART NO.21
Picture does not appear normally.
Set the disc on the disc tray, and playback.
Are the video signals outputted to each pin of
CN1601 on the AV CBA?
CN1601 1PIN S-Y
CN1601 9PIN S-C
CN1601 7PIN G
CN1601 5PIN B/Cb
CN1601 3PIN R/Cr
Ye s
Are the video signals shown above inputted into
each pin of IC6101?
IC6101 6PIN S-Y
IC6101 2PIN S-C
IC6101 16PIN G
IC6101 12PIN B/Cb
IC6101 14PIN R/Cr
Ye s
Are the video signals outputted to each pin
of IC6101?
IC6101 31PIN CVBS
IC6101 28PIN S-Y
IC6101 33PIN S-C
IC6101 19PIN G
IC6101 25PIN B/Cb
IC6101 22PIN R/Cr
Ye s
Are the video signals outputted to the specific
output terminal?
Are the luminance signals outputted to the
S-OUT terminal (JK1401)?
Are the chroma signals outputted to the
S-OUT terminal (JK1401)?
Are the component video signals(RGB) outputted
to the VIDEO OUT terminal (JK6101)?
Are the component video signals(Y/Cb/Cr)
outputted to the VIDEO OUT terminal (JK6102)?
Are the composite video signals outputted to
the VIDEO OUT terminal (JK6101, JK6103)?
No
No
No
No
No
No
No
No
Replace the DVD Main CBA or DVD Mecha.
Check the line between each pin of CN1601 and
each pin of IC6101 on the AV CBA, and service it
if defective.
CN1601 1PIN → IC6101 6PIN S-Y
CN1601 9PIN → IC6101 2PIN S-C
CN1601 7PIN → IC6101 16PIN G
CN1601 5PIN → IC6101 12PIN B/Cb
CN1601 3PIN → IC6101 14PIN R/Cr
Is 5V voltage applied to the pin(1, 34) of
IC6101?
Ye s N o
Replace IC6101. Check P-ON+5V line and
service it if defective.
Check the periphery of JK1401 from
Pin (28) of IC6101 and service it if defective.
Check the periphery of JK1401 from
Pin (33) of IC6101 and service it if defective.
Check the periphery of JK6101 from Pins (19, 22,
25) of IC6101 and service it if defective.
Check
the periphery of JK6102
of IC6101
Check
Pin(31) of IC6101
and service it if defective.
the periphery of JK6101 and JK6103
and service it if defective.
from Pin (22, 25, 28)
from
1-6-6 E57M2TR
FLOW CHART NO.22
Audio is not outputted to JK6103 normally.
Set the disc on the disc tray, and playback.
Are the analog audio signals outputted to each pin
of CN1601 on AV CBA?
CN1601 13PIN AUDIO-L
CN1601 15PIN AUDIO-R
Ye s
Are the analog audio signals inputted to each pin
of IC1201.
IC1201 6PIN AUDIO-L
IC1201 2PIN AUDIO-R
Ye s
Is the "H" level mute signal outputted to CN1601
on AV CBA ?
CN1601 12PIN A-MUTE
CN1601 16PIN A-R-MUTE
CN1601 14PIN A-L-MUTE
Ye s
Are the analog audio signals inputted to each pin
of IC1201?
IC1201 7PIN AUDIO-L
IC1201 1PIN AUDIO-R
Ye s
Are the audio signals outputted to the specific
output terminal?
Are the audio signals outputted to the audio
terminal (JK6103)?
No
No
No
No
No
Replace the DVD Main CBA or DVD Mecha.
Check each line between each pin of CN1601
and each pin of IC1201 on AV CBA, and service it
if detective.
CN1601 13PIN → IC1201 6PIN AUDIO-L
CN1601 15PIN → IC1201 2PIN AUDIO-R
Replace the DVD Main CBA or DVD Mecha.
Replace IC1201.
Check the periphery between Pins(1,7) of IC1201
and JK6103, and service it if detective.
1-6-7 E57M2TR
FLOW CHART NO.23 (FOR DV6400/N1B, DV6400/N1S)
Audio is not outputted to JK7101 normally. (1)
Set the disc (with 5.1ch Audio) on the disc tray, and playback.
Are the PCM data signals outputted to each pin
of CN7102 on SACD CBA?
CN7102 7PIN PCM-DATA0
CN7102 5PIN PCM-DATA1
CN7102 3PIN PCM-DATA2
Ye s
Are the PCM data signals inputted to each pin
of IC7201, IC7202 and IC7203?
IC7201 4PIN PCM-DATA0
IC7202 4PIN PCM-DATA1
IC7203 4PIN PCM-DATA2
Ye s
Are the analog audio signals outputted to each pin
of IC7201, IC7202 and IC7203?
IC7201 9,10PIN FRONT(L/R)
IC7202 9,10PIN SORROUND(L/R)
IC7203 9,10PIN CENTER/SUBWOOFER
Ye s
Are the analog audio signals inputted to each pin
of IC7301, IC7401 and IC7501?
IC7301 2, 6PIN FRONT(L/R)
IC7401 2, 6PIN SORROUND(L/R)
IC7501 2, 6PIN CENTER/SUBWOOFER
Ye s
Are the analog audio signals outputted to each pin
of IC7301, IC7401 and IC7501?
IC7301 1,7PIN FRONT(L/R)
IC7401 1,7PIN SORROUND(L/R)
IC7501 1,7PIN CENTER/SUBWOOFER
Ye s
Do the mute signals of each line (as shown below)
become to "H" level?
FRONT(L) → CN7102 18PIN, IC7201 14PIN
FRONT(R) → CN7102 18PIN, IC7201 13PIN
SORROUND(L) → CN7102 19PIN, IC7202 14PIN
SORROUND(R) → CN7102 19PIN, IC7202 13PIN
CENTER → CN7102 19PIN, IC7203 14PIN
SUBWOOFER → CN7102 19PIN, IC7203 13PIN
Ye s
Is the analog audio signal of each line outputted to
each terminal of JK7101 (as shown below) ?
IC7301 1PIN → JK7101 FRONT(L)
IC7301 7PIN → JK7101 FRONT(R)
IC7401 1PIN → JK7101 SORROUND(L)
IC7401 7PIN → JK7101 SORROUND(R)
IC7501 1PIN → JK7101 CENTER
IC7501 7PIN → JK7101 SUBWOOFER
No
No
No
No
No
No
No
No
No
Replace the DVD Main CBA Unit or DVD Mecha.
Check each line between each pin of CN7102 and
each pin of IC7201, IC7202, IC7203 and service it
if defective.
CN7102 7PIN → IC7201 4PIN PCM-DATA0
CN7102 5PIN → IC7202 4PIN PCM-DATA1
CN7102 3PIN → IC7203 4PIN PCM-DATA2
Is +5V voltage applied to the pin(8) of IC7201,
IC7202 and IC7203? And is +3.3V voltage applied
to the pin(7) of IC7201, IC7202 and IC7203?
Ye s
Replace ICs (IC7201,
IC7202 or IC7203).
Check each line between each pin of IC7201,
IC7202, IC7203 and each pin of IC7301, IC7401
and IC7501, and service it if defective.
IC7201 9,10PIN → IC7301 2,6PIN FRONT(L/R)
IC7202 9,10PIN → IC7401 2,6PIN SORROUND(L/R)
IC7203 9,10PIN → IC7501 2,6PIN
Replace ICs (IC7301, IC7401 or IC7501).
Replace the DVD Main CBA Unit or IC7201.
Replace the DVD Main CBA Unit or IC7202.
Replace the DVD Main CBA Unit or IC7203.
Check each line between each pins of ICs and
JK7101, and service it if defective.
Check P-ON+3.3V or P-ON+5V
line and service it if defective.
No
CENTER/SUBWOOFER
1-6-8 E57M2TR
FLOW CHART NO.24 (FOR DV6400/N1B, DV6400/N1S)
Audio is not outputted to JK7101 normally. (2)
Set the disc (with Super Audio) on the disc tray, and playback.
Are the PCM data signals inputted to each pin
of CN7102 on SACD CBA?
CN7102 7PIN PCM-DATA0
CN7102 5PIN PCM-DATA1
CN7102 3PIN PCM-DATA2
CN7102 1PIN PCM-DATA3
Ye s
Are the PCM data signals inputted to each pin
of IC7251?
IC7251 170PIN PCM-DATA0
IC7251 171PIN PCM-DATA1
IC7251 172PIN PCM-DATA2
IC7251 173PIN PCM-DATA3
Ye s
Are the DSD data signals outputted to each pin
of IC7251?
IC7251 64PIN DSD-L
IC7251 66PIN DSD-R
IC7251 74PIN DSD-LS
IC7251 76PIN DSD-RS
IC7251 69PIN DSD-C
IC7251 71PIN DSD-SW
Ye s
Are the DSD data signals inputted to each pin
of IC7201, IC7202 and IC7203?
IC7201 1PIN DSD-L
IC7201 2PIN DSD-R
IC7202 1PIN DSD-LS
IC7202 2PIN DSD-RS
IC7203 1PIN DSD-C
IC7203 2PIN DSD-SW
Ye s
Are the analog audio signals outputted to each pin
of IC7201, IC7202 and IC7203?
IC7201 9,10PIN FRONT(L/R)
IC7202 9,10PIN SORROUND(L/R)
IC7203 9,10PIN CENTER/SUBWOOFER
Ye s
Are the analog audio signals inputted to each pin
of IC7301, IC7401 and IC7501?
IC7301 2, 6PIN FRONT(L/R)
IC7401 2, 6PIN SORROUND(L/R)
IC7501 2, 6PIN CENTER/SUBWOOFER
No
No
No
No
No
No
Replace the DVD Main CBA Unit or DVD Mecha.
Check each line between each pin of CN7102 on
SACD CBA and each pin of IC7251, and service
it if defective.
CN7102 7PIN → IC7251 170PIN PCM-DATA0
CN7102 5PIN → IC7251 171PIN PCM-DATA1
CN7102 3PIN → IC7251 172PIN PCM-DATA2
CN7102 1PIN → IC7251 173PIN PCM-DATA2
Is the power supply voltage applied to each pin of
IC7251?
IC7251 5,35,54,83,99,121,124,125,153PIN: P-ON+2.5V
IC7251 17,45,90,110,135,146,163PIN: P-ON+3.3V
Ye s
Replace IC7251.
Check each line between each pin of IC7251 and
each pin of IC7201, IC7202, IC7203, and service
it if defective.
IC7251 64PIN → IC7201 1PIN DSD-L
IC7251 66PIN → IC7201 2PIN DSD-R
IC7251 74PIN → IC7202 1PIN DSD-LS
IC7251 76PIN → IC7202 2PIN DSD-RS
IC7251 69PIN → IC7203 1PIN DSD-C
IC7251 71PIN → IC7203 2PIN DSD-SW
Is +5V voltage applied to the pin(8) of IC7201,
IC7202 and IC7203? And is +3.3V voltage applied
to the pin(7) of IC7201, IC7202 and IC7203?
Ye s
Replace ICs (IC7201,
IC7202 or IC7203).
Check each line between each pin of IC7201,
IC7202, IC7203 and each pin of IC7301, IC7401
and IC7501, and service it if defective.
IC7201 9,10PIN → IC7301 2,6PIN FRONT(L/R)
IC7202 9,10PIN → IC7401 2,6PIN SORROUND(L/R)
IC7203 9,10PIN → IC7501 2,6PIN
Check P-ON+2.5V or P-ON+3.3V
line, and service it if defective.
Check P-ON+3.3V or P-ON+5V
line and service it if defective.
No
No
CENTER/SUBWOOFER
(continued to "A" on next page)
1-6-9 E57M2TR
A
Yes
Are the analog audio signals outputted to each pin
of IC7301, IC7401 and IC7501?
IC7301 1,7PIN FRONT(L/R)
IC7401 1,7PIN SORROUND(L/R)
IC7501 1,7PIN CENTER/SUBWOOFER
Ye s
Do the mute signals of each line (as shown below)
become to "H" level?
FRONT(L) → CN7102 18PIN, IC7201 14PIN
FRONT(R) → CN7102 18PIN, IC7201 13PIN
SORROUND(L) → CN7102 19PIN, IC7202 14PIN
SORROUND(R) → CN7102 19PIN, IC7202 13PIN
CENTER → CN7102 19PIN, IC7203 14PIN
SUBWOOFER → CN7102 19PIN, IC7203 13PIN
Ye s
Is the analog audio signal of each line outputted to
each terminal of JK7101 (as shown below) ?
IC7301 1PIN → JK7101 FRONT(L)
IC7301 7PIN → JK7101 FRONT(R)
IC7401 1PIN → JK7101 SORROUND(L)
IC7401 7PIN → JK7101 SORROUND(R)
IC7501 1PIN → JK7101 CENTER
IC7501 7PIN → JK7101 SUBWOOFER
No
No
No
No
No
Replace ICs (IC7301, IC7401 or IC7501).
Replace the DVD Main CBA Unit or IC7201.
Replace the DVD Main CBA Unit or IC7202.
Replace the DVD Main CBA Unit or IC7203.
Check each line between each pins of ICs and
JK7101, and service it if defective.
1-6-10 E57M2TR
BLOCK DIAGRAMS
System Control/Servo Block Diagram ( DV4400/N1B, DV4400/N1S )
SLED SERVO SIGNAL SPINDLE SERVO SIGNAL
X451
X'TAL
OSC
7
8
14
36.864MHz
OSC
TO
VIDEO/ AUDIO
BLOCK DIAGRAM
FOCUS SERVO SIGNAL TRACKING SERVO SIGNAL
IC451
(CLOCK GENERATOR)
3
15
10
PCM-SCLK
A-MUTE
ADAC-MD
ADAC-MC
ADAC-ML
ASPECT
MULTI
1/4
PLL
1/4 PLL2
IC301
(SERVO DRIVE)
IC101
(MICRO CONTROLLER)
EXT CLOCK
172
CLK33M
BE CLOCK
170
REMOTE
PWRCON
FP-STB
FP-DIN
FP-DOUT
FP-CLK
1792FSEL
95
A-MUTE
ADAC-MD
51
50 ADAC-MC
96 ADAC-ML
64 ASPECT
CN401 CN1001
61
63
59
54
55
53
22 REMOTE 22
19 PWRCON 19
16 FP-STB 16
18 FP-DIN 18
20 FP-DOUT 20
21 FP-CLK 21
IC6001
(FRONT PANEL CONTROL)
FP-CLK
FP-DOUT
FP-DIN
FP-STB
AUDIO-EX-LED
TO
POWER
SUPPLY
BLOCK
DIAGRAM
Q2004
BUFFER
BUFFER
Q2006,Q2008
8
6
7
9
4
PWRCON
BUFFER
Q2005
PWSW
Q2007
RM2001
REMOTE
SENSOR
CN6001 CN6050
AUDIO-EX-LED
AD-KEY 11
STANDBY-LED
IC2002
ENERGY STAR
MICROCONTROLLER
PWSW
19
18
PWRCON
13
REMOTE-IN
AD-KEY
8
20
REMOTE-OUT
D6003
AUDIO-EX.
66
22
SPINDLE
MOTOR
M
SLED
MOTOR
M
FG CBA
FG
SENSOR
TRAY-OUT
TRAY-IN
TO DIGITAL SIGNAL
PROCESS BLOCK
DIAGRAM
DRIVE CBA
FS(+)
FS(-)
TS(+)
TS(-)
CN301
3SP(+)
4SP(-)
5TRAY-OUT
6TRAY-IN
7GND
8SL(-)
9SL(+)
1FG-IN
FOCUS
15
ACTUATOR
DRIVE
16
TRACKING
14
ACTUATOR
DRIVE
13
SPINDLE
12
MOTOR
DRIVE
11
SLED
17
MOTOR
DRIVE
18
IC202
(OP AMP)
12 14
27
+
-+
-
+
-
+
-
+
-
+3.3V
26
25
24
+
-
1
2
3
4
+
-
5
6
23
IC461
5 4
DVD MAIN CBA
FOCUS
152
DRIVE
TRACKING
150
DRIVE
71
SPDL
SLD
70
RESET68RESET
TRAY-OUT
97
TRAY-IN
60
FG-IN
66
1G
7G
K1
K2 11
a/KEY-1
b/KEY-2
c/KEY-3
d/KEY-4
e/KEY-5
f/KEY-6
g/KEY-7
h/KEY-8
42
~
36
10
14
15
16
17
18
19
20
21
i
22
P-ON+5V
EV+5V
~
GRID
Q2002
FL2001
FIP
SEGMENT
AV CBA
JP6051
CN2002
AD-KEY 11
STANDBY-LED
1 AD-KEY 1
8K1 8
5K2 5
3 KEY-1 3
2 KEY-2 2
4 KEY-3 4
6 KEY-4 6
11 KEY-6 11
9 KEY-7 9
7 KEY-8 7
LED CBA
SW2001
JP2050
22
POWER
D2004
STANDBY
SWITCH CBA
CN6401
KEY
MATRIX
FUNCTION
CBA
1-7-1 1-7-2 E57M2BLS
Digital Signal Process Block Diagram ( DV4400/N1B, DV4400/N1S )
DATA(VIDEO/AUDIO) SIGNAL VIDEO SIGNAL
DATA(AUDIO) SIGNAL
FOCUS SERVO SIGNAL TRACKING SERVO SIGNAL
IC102 (SDRAM)
DETECTOR
SDRAM
GND(DVD-PD)
GND(CD-PD)
24
27
60
66
2
13
31
56
74
85
C6
D7
A8
B5
F10
E2
CD/DVD 9
CD-LD 12
DVD-LD 14
PD-MONI 13
15
16
GND(LD)
11
~~
SDRAM ADDRESS(0-10)
~~~
SDRAM DATA(0-31)
CN201
CN201
Q253,Q254
AMP
Q251,Q252
1 3
CD DVD
AMP
6
IC101 (MICRO CONTROLLER)
210
~
SDRAM ADDRESS(0-10)
235
2
~~~
13
184
SDRAM DATA(0-31)
205
247
256
124
125
122
123
128
129
126
127
131
130
135
133
132
134
78
RF
SIGNAL
PROCESS
CIRCUIT
INTERRUPT
CONTROLLER
CD/DVD
DVD/CD
FORMATTER
INST.
ROM
DATA
ROM
EXTERNAL
MEMORY
I/F
TIMER
32BIT
CPU
WATCH DOG
TIMER
ECC
DECODER
I/F
DMA
BCU
CPU
I/F
STREAM
I/F
UMAC
READ
MEMORY
CPU
I/F
DSP
DECODER
PIXEL
OPERATION
I/O
PROCESSOR
BCU
SERIAL
GENERAL
I/O
INTERRUPT
CONTROLLER
TIMER
WATCH DOG
TIMER
32BIT CPU
DATA
ROM
INST.
ROM
DATA
ROM
INST.
ROM
DATA
ROM
INST.
ROM
AUDIO
I/F
VIDEO
I/F
NTSC/PAL
ENCODER
D/A
D/A
D/A
D/A
D/A
R/Cr
B/Cb
G
C
Y
181
175
PCM-DATA0
176
PCM-LRCLK
174
158
164
161
VIDEO-B/Cb
160
163
SPDIF
PCM-BCK
VIDEO-G
VIDEO-C
VIDEO-R/Cr
VIDEO-Y
TO VIDEO
/AUDIO
BLOCK
DIAGRAM
TO VIDEO
/AUDIO
BLOCK
DIAGRAM
TS
FS
PICK-UP
UNIT
FS(+) 18
FS(-) 19
TS(+) 20
TS(-) 17
CN201
4
IC201
(SW)
FS(+)
FS(-)
TS(+)
TS(-)
FROM SYSTEM
CONTROL/SERVO
BLOCK DIAGRAM
DVD MAIN CBA UNIT
DEBUG
EXADT (0-15), EXADR (16-19)
EXADT (0-15), EXADR (16-19)
EXADT (0-7)
EXADT (8-15)
INST
CACHE
IC105 (LATCH)
2
~
9
IC104 (LATCH)
2
~
9
D TYPE
LATCH
D TYPE
LATCH
DATA
CACHE
12
~
EXADR (0-7)
19
12
~
EXADR (8-15)
19
1-7-4
EXADT (0-15)
EXADR (16-19)
EXADR (0-15)
IC103 (FLASH ROM)
29
~
36
38
~
45
FLASH
ROM
1
~
9
16
~
25
48
E57M2BLD1-7-3
Video / Audio Block Diagram ( DV4400/N1B, DV4400/N1S )
VIDEO SIGNAL
AUDIO SIGNALDATA(AUDIO) SIGNAL
FROM DIGITAL
SIGNAL PROCESS
BLOCK DIAGRAM
FROM SYSTEM
CONTROL/SERVO
BLOCK DIAGRAM
VIDEO-Y
VIDEO-C
VIDEO-R/Cr
VIDEO-G
VIDEO-B/Cb
ASPECT
CN601
11VIDEO-Y
99VIDEO-C
33VIDEO-R/Cr
77VIDEO-G
55VIDEO-B/Cb
CN601 CN1601
22ASPECT
CN1601
WF1 WF2
IC6101 (VIDEO DRIVER)
6
2
14
16
12
4dB
AMP
4dB
AMP
4dB
AMP
4dB
AMP
4dB
AMP
LPF DRIVER
LPF DRIVER
LPF DRIVER
LPF DRIVER
LPF
2dB
AMP
2dB
AMP
2dB
AMP
2dB
AMP
2dB
AMP
2dB
AMP
DRIVER
DRIVER
28
31
33
22
19
25
WF3
Q1601
Q1602
+12V
JK6103
COMPOSITE
VIDEO OUT
YC
3 4
21
JK6101
15
11
7
19
8 ASPECT
JK6102
JK1401
S-VIDEO
OUT
VIDEO-R
OUT
VIDEO-G
OUT
VIDEO-B
OUT
VIDEOCVBS OUT
VIDEO-Y
OUT
FROM
DIGITAL
SIGNAL
PROCESS
BLOCK
DIAGRAM
FROM
SYSTEM
CONTROL
/SERVO
BLOCK
DIAGRAM
SPDIF
PCM-BCK
PCM-DATA0
PCM-LRCLK
ADAC-MD
ADAC-MC
ADAC-ML
PCM-SCLK
A-MUTE
IC601 (AUDIO DAC)
1
2
3
13
14
15
SERIAL
PORT
SERIAL
CONTROL
4X/8X
OVERSAMPLING
DIGITAL FILTER
/FUNCTION
CONTROLLER
ENHANCED
MULTI-LEVEL
DELTA-SIGMA
MODULATOR
ZERO DETECT
SYSTEM CLOCK
16
DAC
DAC
LPF+AMP
LPF+AMP
L-CH
R-CH
12
11
VIDEO-Cb
OUT
VIDEO-Cr
OUT
IC1204
FIBER OPTIC
TRANS MODULE
7
WF6
8
CN601 CN1601
1818SPDIF
13 13AUDIO-L
15 15AUDIO-R
14 14A-L-MUTE
16 16A-R-MUTE
12 12A-MUTE
Q1351
AMP
WF4
WF5
+5V
Q1204
+3.3V
IC1201
5
6
2
3
(AMP)
7
1
Q1202
Q1201
Q1203
JK1202
JK6103
JK6101
1
3
DIGITAL
AUDIO OUT
AUDIO-L
OUT
AUDIO-R
OUT
AUDIO-R
OUT
AUDIO-L
OUT
AV CBADVD MAIN CBA UNIT
+3.3V
E57M2BLV1-7-5 1-7-6
Power Supply Block Diagram ( DV4400/N1B, DV4400/N1S )
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
HOT CIRCUIT. BE CAREFUL.
CAUTION
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
NOTE :
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
AC1001
AC CORD
F1001
T1.6A L 250V
L1001
LINE
FILTER
D1001, D1002
D1004, D1005
BRIDGE
RECTIFIER
Q1003 Q1001
SWITCHING
CONTROL
SWITCHING
2
4
7
T1001
11
12
13
14
15
16
17
D1003
RECTIFIER
D1006
SCHOTTKY
BARRIER
D1008
SCHOTTKY
BARRIER
D1030
RECTIFIER
D1016
RECTIFIER
Q1005
Q1015
Q1010
Q1011
IC1002
+1.5V
REG.
Q1012
Q1002
Q1014
Q1004
-FL
F1
F2
EV+3.3V
P-ON+12V
EV+5V
P-ON+5V
P-ON+3.3V
CN1001
1,2,3 EV+1.5V
4,5 EV+3.3V
14,15 EV+9V
13 P-ON+5V
17 P-ON+3.3V
FROM/TO
CN401
Q1008
LATCH
HOT
AV CBA
6
IC1001
ERROR
VOLTAGE DET
4
3
18
1
2
(SHUNT REGULATOR)
IC1006
REG
Q1016
1-7-8
PWSW
PWRCON
FROM SYSTEM
CONTROL/SERVO
BLOCK DIAGRAM
E57M2BLP1-7-7
BLOCK DIAGRAMS
System Control/Servo Block Diagram ( DV6400/N1B, DV6400/N1S )
DATA(AUDIO) SIGNAL
FOCUS SERVO SIGNAL TRACKING SERVO SIGNAL
SLED SERVO SIGNAL SPINDLE SERVO SIGNAL
2ch-L/6ch-H 2
ADAC-ML1 14
A-MUTE2 18
M-MUTE 19
ADAC-ML2 20
TO SACD
BLOCK
DIAGRAM
CN7102
TO
VIDEO/ AUDIO
BLOCK DIAGRAM
TO DIGITAL
SIGNAL PROCESS
BLOCK DIAGRAM
ADAC-MC 11
ADAC-MD 12
ADAC-ML0 13
PCM-SCLK 16
PCM-DATA3 1
PCM-DATA2 3
PCM-DATA1 5
PCM-DATA0 7
PCM-BCK 9
PCM-LRCLK 10
SPINDLE
MOTOR
M
SLED
MOTOR
M
FG
SENSOR
PCM-SCLK
A-MUTE
ADAC-MD
ADAC-MC
ADAC-ML0
PCM-LRCLK
PCM-BCK
PCM-DATA0
PCM-DATA1
PCM-DATA2
PCM-DATA3
SDCK
FS(+)
FS(-)
TS(+)
TS(-)
TRAY-OUT
TRAY-IN
CN901
DVD
CN301
3SP(+)
4SP(-)
5TRAY-OUT
6TRAY-IN
7GND
8SL(-)
9SL(+)
1FG-IN
4
1 3
IC903 (SW)
SACD
IC451 (CLOCK GENERATOR)
3
15
10
6
IC301
(SERVO DRIVE)
FOCUS
15
ACTUATOR
16
DRIVE
TRACKING
14
ACTUATOR
13
DRIVE
SPINDLE
12
MOTOR
DRIVE
11
SLED
17
MOTOR
DRIVE
18
IC202
(OP AMP)
12 14
MULTI
1/4
PLL
1/4 PLL2
TO
VIDEO/ AUDIO
BLOCK DIAGRAM
IC101
(MICRO CONTROLLER)
2ch-L/6ch-H
-
+
-
+
-
+
-
+3.3V
X'TAL
OSC
+
-+
+
-
+
-
5 4
7
8
14
DVD/SACD
ASPECT
27
26
25
24
1
2
3
4
5
6
23
IC461
X451
36.864MHz
OSC
84
ADAC-ML1
89
95 A-MUTE2
M-MUTE
88
100
ADAC-ML2
EXT CLOCK
172
CLK33M
92
BE CLOCK
170
REMOTE
PWRCON
FP-STB
FP-DIN
FP-DOUT
FP-CLK
FSEL
17
ADAC-ML0
96
A-MUTE
86
ADAC-MD
51
ADAC-MC
50
ADAC-ML0
87
94
DVD/SACD
ASPECT
64
FOCUS
152
DRIVE
TRACKING
150
DRIVE
71
SPDL
SLD
70
RESET68RESET
TRAY-OUT
97
TRAY-IN
60
FG-IN
66
CN401 CN1001
61
63
59
54
55
53
22 REMOTE 22
19 PWRCON 19
16 FP-STB 16
18 FP-DIN 18
20 FP-DOUT 20
21 FP-CLK 21
IC6001
(FRONT PANEL CONTROL)
FP-CLK
FP-DOUT
FP-DIN
FP-STB
SACD-LED
AUDIO-EX-LED
a/KEY-1
b/KEY-2
c/KEY-3
d/KEY-4
f/KEY-6
g/KEY-7
h/KEY-8
1G
~
7G
K1
K2 11
e
i
8
6
7
9
2
4
42
36
10
14
15
16
17
18
19
20
21
22
TO
POWER
SUPPLY
BLOCK
DIAGRAM
Q2004
BUFFER
BUFFER
Q2006,Q2008
P-ON+5V
EV+5V
~
GRID
PWRCON
BUFFER
Q2005
Q2002
PWSW
FL2001
FIP
SEGMENT
AV CBA
Q2007
RM2001
REMOTE
SENSOR
CN6001 CN6050
SACD-LED 55
AUDIO-EX-LED
AD-KEY 11
STANDBY-LED
JP6051
CN2002
DVD MAIN CBA UNITDRIVE CBAFG CBA
IC2002
ENERGY STAR
MICROCONTROLLER
PWSW
19
18
PWRCON
13
REMOTE-IN
AD-KEY
8
20
REMOTE-OUT
66
22
AD-KEY 11
STANDBY-LED
1 AD-KEY 1
8K1 8
5K2 5
3 KEY-1 3
2 KEY-2 2
4 KEY-3 4
6 KEY-4 6
11 KEY-6 11
9 KEY-7 9
7 KEY-8 7
D6002
SACD
D6003
AUDIO-EX.
LED CBA
SW2001
JP2050
22
POWER
D2004
STANDBY
SWITCH CBA
CN6401
KEY
SWITCH
FUNCTION
CBA
1-7-9
1-7-10
E57M7BLS
Digital Signal Process Block Diagram ( DV6400/N1B, DV6400/N1S )
DATA(VIDEO/AUDIO) SIGNAL VIDEO SIGNAL
DATA(AUDIO) SIGNALDATA(VIDEO) SIGNAL
FOCUS SERVO SIGNAL TRACKING SERVO SIGNAL
IC102 (SDRAM)
DETECTOR
SDRAM
GND(DVD-PD)
GND(CD-PD)
21
24
27
60
66
2
13
31
56
74
85
C6
D7
A8
B5
F10
E2
CD/DVD 9
CD-LD 12
DVD-LD 14
PD-MONI 13
15
16
GND(LD)
11
~~
SDRAM ADDRESS(0-10)
~~~
SDRAM DATA(0-31)
CN201
AMP
Q253,Q254
AMP
Q251,Q252
CN201
IC101 (MICRO CONTROLLER)
210
~
SDRAM ADDRESS(0-10)
235
2
~~~
13
184
SDRAM DATA(0-31)
205
247
256
124
125
122
123
128
129
126
127
131
130
135
133
132
134
RF
SIGNAL
PROCESS
CIRCUIT
INTERRUPT
CONTROLLER
DVD/CD
FORMATTER
INST.
ROM
DATA
ROM
EXTERNAL
MEMORY
I/F
TIMER
32BIT
CPU
WATCH DOG
TIMER
ECC
DECODER
I/F
DMA
BCU
CPU
I/F
STREAM
I/F
UMAC
READ
MEMORY
CPU
I/F
DSP
DECODER
PIXEL
OPERATION
I/O
PROCESSOR
SERIAL
GENERAL
I/O
INTERRUPT
CONTROLLER
TIMER
WATCH DOG
TIMER
DATA
ROM
INST.
ROM
DATA
ROM
INST.
ROM
DATA
ROM
INST.
ROM
V-REF(B)
ANALOG MONITOR
SAREADY
RESET(L)
AUDIO
I/F
WCK
SALAT
SADI
XSRQ
XSHD
XSAK
SDEF
109
109
113
90
48
49
52
47
103
65
102
173
62
181
175
176
174
178
179
180
D/A
+3.3V
G
IC901 (OP AMP)
3
4
CN902
2WCK
5RF
7 SALAT
8 SAREADY
9 SADI
10 XSRQ
11 XSHD
12 SDCK
13 XSAK
14 SDEF
15 IECOUT
16 PHCOPMO
17 RESET(L)
PCM-BCK
PCM-DATA3
PCM-LRCLK
PCM-DATA2
PCM-DATA1
PCM-DATA0
PCM-LRCLK
PCM-DATA3
PCM-BCK
158
1
SPDIF
SDCK
VIDEO-G
TO SACD
BLOCK
DIAGRAM
CN7151
TO VIDEO
/AUDIO
BLOCK
DIAGRAM
TO
SYSTEM
CONTROL
/SERVO
BLOCK
DIAGRAM
FS
TS
PICK-UP
UNIT
FS(+) 18
FS(-) 19
TS(+) 20
TS(-) 17
CN201
1 3
CD DVD
4
IC201
(SW)
FS(+)
FS(-)
TS(+)
TS(-)
6
TO SYSTEM
CONTROL/SERVO
BLOCK DIAGRAM
CD/DVD
78
DVD MAIN CBA UNIT
BCU
DEBUG
EXADT (0-15), EXADR (16-19)
EXADT (0-15), EXADR (16-19)
EXADT (0-7)
EXADT (8-15)
INST
CACHE
IC105 (LATCH)
2
~
9
IC104 (LATCH)
2
~
9
32BIT CPU
DATA
CACHE
D TYPE
LATCH
D TYPE
LATCH
VIDEO
I/F
12
~
EXADR (0-7)
19
12
~
EXADR (8-15)
19
1-7-12
NTSC/PAL
ENCODER
C
D/A
R/Cr
D/A
B/Cb
D/A
Y
D/A
EXADT (0-15)
EXADR (16-19)
EXADR (0-15)
164
161
160
163
VIDEO-C
VIDEO-R/Cr
VIDEO-B/Cb
VIDEO-Y
IC103 (FLASH ROM)
29
~
36
38
~
45
FLASH
ROM
1
~
9
16
~
25
48
E57M7BLD1-7-11
TO VIDEO
/AUDIO
BLOCK
DIAGRAM
Video / Audio Block Diagram ( DV6400/N1B, DV6400/N1S )
WF1 WF2
4X/8X
ENHANCED
MULTI-LEVEL
DELTA-SIGMA
MODULATOR
ZERO DETECT
SYSTEM CLOCK
16
TO
DIGITAL
SIGNAL
PROCESS
BLOCK
DIAGRAM
TO
SYSTEM
CONTROL
/SERVO
BLOCK
DIAGRAM
TO
DIGITAL
SIGNAL
PROCESS
BLOCK
DIAGRAM
SPDIF
PCM-BCK
PCM-DATA3
PCM-LRCLK
DVD/SACD
ADAC-MD
ADAC-MC
ADAC-ML0
PCM-SCLK
A-MUTE
ASPECT
VIDEO-Y
VIDEO-C
VIDEO-R/Cr
VIDEO-G
VIDEO-B/Cb
CN601
11VIDEO-Y
99VIDEO-C
33VIDEO-R/Cr
77VIDEO-G
55VIDEO-B/Cb
IC601 (AUDIO DAC)
1
2
3
13
14
15
SERIAL
PORT
SERIAL
CONTROL
CN1601
OVERSAMPLING
DIGITAL FILTER
/FUNCTION
CONTROLLER
IC6101 (VIDEO DRIVER)
6 28
2
4dB
AMP
4dB
AMP
14
16
12
4dB
AMP
4dB
AMP
4dB
AMP
IC902
(AND GATE)
1
2
DAC
DAC
LPF
LPF DRIVER
LPF DRIVER
LPF DRIVER
LPF DRIVER
LPF+AMP
LPF+AMP
4
L-CH
R-CH
2dB
AMP
2dB
AMP
2dB
AMP
2dB
AMP
2dB
AMP
2dB
AMP
7
8
12
11
DRIVER
DRIVER
CN601 CN1601
WF3
31
33
22
19
25
22ASPECT
1818SPDIF
13 13AUDIO-L
1515AUDIO-R
14 14A-L-MUTE
16 16A-R-MUTE
12 12A-MUTE
WF6
VIDEO SIGNAL
JK1401
S-VIDEO OUT
YC
3 4
1
2
IC1204
FIBER OPTIC
TRANS MODULE
+9V
AMP
Q1601,Q1602
Q1351
AMP
IC1201
WF4
5
6
Q1204
+3.3V
2
3
Q1203
WF5
+5V
(AMP)
7
1
Q1202
Q1201
AUDIO SIGNALDATA(AUDIO) SIGNAL
JK6103
JK6102
JK6101
JK1202
JK6103
JK6101
COMPOSITE
VIDEO OUT
VIDEO-Y
OUT
VIDEO-Cb
OUT
VIDEO-Cr
OUT
VIDEO-R
15
OUT
VIDEO-G
11
OUT
VIDEO-B
7
OUT
VIDEO-
19
CVBS OUT
8
ASPECT
DIGITAL
AUDIO OUT
AUDIO-L
OUT
AUDIO-R
OUT
AUDIO-R
1
OUT
AUDIO-L
3
OUT
DVD MAIN CBA UNIT
+3.3V
AV CBA
E57M7BLV1-7-13 1-7-14
SACD Block Diagram ( DV6400/N1B, DV6400/N1S )
IC7111
TO
DIGITAL
SIGNAL
PROCESS
BLOCK
DIAGRAM
CN902
TO
SYSTEM
CONTROL
/SERVO
BLOCK
DIAGRAM
CN901
(AND GATE)
CN7151
11 XSHD
10 XSRQ
12 SDCK
13 XSAK
14 SDEF
17 RESET(L)
5RF
2 WCK
8 SAREADY
9 SADI
7 SALAT 2
15 IECOUT
16 PHCOPMO
CN7102
1 PCM-DATA3
3 PCM-DATA2
5 PCM-DATA1
7 PCM-DATA0
9 PCM-BCK
10 PCM-LRCLK
13 ADAC-ML0
16 PCM-SCLK
2 2ch-L/6ch-H
14 ADAC ML1
1
2
4
IC7251 (SACD MULTI CHANNEL SIGNAL PROCESS)
XSHD
165
164
XSRQ
166
SDCK
167
XSAK
168
SDEF
31
TEST RESET(L)
9
RESET(L)
126
RF
123
WCK
7
SACD READY
6
SACD DATA
SACD LATCH
4
ADAC-MD
3
ADAC-MC
(AND GATE)
4
4
6
DSD
SIGNAL
PROCESS
169
176
STREAM
MANAGER
DSD
FAD E
DST
DECODER
IC7105
1
2
IC7101 (SW)
1
3
PCM-SCLK
11
L-MUTE
R-MUTE
C-MUTE
SW-MUTE
LS-MUTE
RS-MUTE
DSD
OUTPUT
I/F
148,149,151,152,
154-157,159-162
131-134,
136-139
63
65
68
70
73
75
60
64
66
74
76
69
71
ADDRESS BUS
DATA B U S
IC7252 (SD-RAM)
19-24,
ADDRESS (0-11)
27-32
2,3,5,6,
DATA (0-7)
8,9,11,12
IC7201 (AUDIO D/A CONVERTER)
20
DSD
I/F
PCM
I/F
MODE
CONTROL
DSD
I/F
PCM
I/F
MODE
CONTROL
DSD
FILTER
MUX DAC
PCM
FILTER
DSD
FILTER
MUX DAC
PCM
FILTER
1
2
3
4
5
15
16
17
PCM SYSTEM CLOCK
18
IC7202 (AUDIO D/A CONVERTER)
20
1
2
3
4
5
15
16
17
18
PCM SYSTEM CLOCK
MULTI-LEVEL
DELTA-SIGMA
MODULATOR
MULTI-LEVEL
DELTA-SIGMA
MODULATOR
L-CH
LPF
R-CH
LPF
A-L-MUTE
A-R-MUTE
L-CH
LPF
R-CH
LPF
SURROUND-L-MUTE
SURROUND-R-MUTE
AUDIO SIGNALDATA(AUDIO) SIGNAL
SACD CBA
IC7301
(AMP)
9
6
10
2
14
13
IC7401
(AMP)
9
6
10
2
14
13
7
Q7301
MUTE-ON
1
Q7302
MUTE-ON
Q7351
MUTE-ON
Q7352
MUTE-ON
7
Q7401
MUTE-ON
1
Q7402
MUTE-ON
Q7451
MUTE-ON
Q7452
MUTE-ON
Q7307
Q7308
Q7403
Q7404
JK7101
FRONT
(L) OUT
FRONT
(R) OUT
SURROUND
(L) OUT
SURROUND
(R) OUT
12 ADAC MD
11 ADAC MC
20 ADAC ML2
18 A-MUTE2
19 M-MUTE
IC7203 (AUDIO D/A CONVERTER)
20
DSD
I/F
PCM
I/F
MODE
CONTROL
DSD
FILTER
MUX DAC
PCM
FILTER
1
2
3
4
5
15
16
17
PCM SYSTEM CLOCK
18
MULTI-LEVEL
DELTA-SIGMA
MODULATOR
L-CH
LPF
R-CH
LPF
CENTER-MUTE
SUB WOOFER-MUTE
IC7501
(AMP)
9
6
10
2
14
13
7
Q7501
1
Q7502
Q7551
MUTE-ON
Q7552
MUTE-ON
Q7503
MUTE-ON
Q7504
MUTE-ON
CENTER
OUT
SUB
WOOFER
OUT
E57M7BLSA1-7-15 1-7-16
Power Supply Block Diagram ( DV6400/N1B, DV6400/N1S )
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
CAUTION
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
NOTE :
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
AC1001
AC CORD
HOT CIRCUIT. BE CAREFUL.
D1001, D1002
F1001
T1.6A L 250V
Q1008
LATCH
L1001
LINE
FILTER
D1004, D1005
BRIDGE
RECTIFIER
Q1003
SWITCHING
CONTROL
Q1001
SWITCHING
T1001
2
4
7
6
IC1001
ERROR
VOLTAGE DET
11
12
13
14
15
16
17
18
D1003
RECTIFIER
D1006
SCHOTTKY
BARRIER
D1008
SCHOTTKY
BARRIER
D1030
RECTIFIER
D1016
RECTIFIER
Q1015
Q1002
Q1005
Q1016
Q1011
Q1012
Q1014
Q1010
Q1004
IC1002
+1.5V
REG.
CN1001
CN1603
EV+3.3V
F1
F2
-FL
EV+5V
P-ON+3.3V
P-ON+5V
P-ON+9V
TO DVD MAIN
CBA UNIT
CN401
1 EV+1.5V
2 EV+1.5V
3 EV+1.5V
4 EV+3.3V
5 EV+3.3V
13 P-ON+5V
14 EV+9V
15 EV+9V
17 P-ON+3.3V
TO
SACD CBA
CN7101
1 P-ON+5V
3 P-ON+9V
6 P-ON+3.3V
7 P-ON+3.3V
HOT
AV CBA
4
3
1
2
IC1006
(SHUNT REGULATOR)
REG
1-7-18
PWRCON
PWSW
TO
SYSTEM
CONTROL
/SERVO
BLOCK
DIAGRAM
E57M7BLP1-7-17
SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS
Standard Notes
WARNING
Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage,
etc. Replacement parts that have these special safety
characteristics are identified in this manual and its
supplements; electrical components having such features are identified by the mark " ! " in the schematic
diagram and the parts list. Before replacing any of
these components, read the parts list in this manual
carefully. The use of substitute replacement parts that
do not have the same safety characteristics as specified in the parts list may create shock, fire, or other
hazards.
Notes:
1. Do not use the part number shown on these drawings for ordering. The correct part number is shown
in the parts list, and may be slightly different or
amended since these drawings were prepared.
2. All resistance values are indicated in ohms
3
(K=10
3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.
4. All capacitance values are indicated in µF
(P=10
5. All voltages are DC voltages unless otherwise
specified.
6. Electrical parts such as capacitors, connectors,
diodes, IC’s, transistors, resistors, switches, and
fuses are identified by four digits. The first two digits are not shown for each component. In each
block of the diagram, there is a note such as shown
below to indicate these abbreviated two digits.
, M=106).
-6
µF).
1-8-1 E57E2SC
LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING
PAGE S:
1. CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE.
2. CAUTION:
Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the
power supply circuit to fail.
3. Note:
(1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts
list, and may be slightly different or amended since the drawings were prepared.
(2) To maintain original function and reliability of repaired units, use only original replacement parts which are listed
with their part numbers in the parts list section of the service manual.
4. Wire Connectors
(1) Prefix symbol "CN" means "connector" (can disconnect and reconnect).
(2) Prefix symbol "CL" means "wire-solder holes of the PCB" (wire is soldered directly).
5. Voltage indications for PLAY modes on the schematics are as shown below:
2
1
(Unit: Volt)
The same voltage for
both PLAY & STOP modes
5.0
3
5.0
(2.5)
Indicates that the voltage
is not consistent here.
PLAY mode
STOP mode
6. How to read converged lines
1-D3
Distinction Area
Line Number
(1 to 3 digits)
Examples:
1. "1-D3" means that line number "1" goes to area "D3".
2. "1-B1" means that line number "1" goes to area "B1".
7. Test Point Information
: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.
: Used to indicate a test point with a test pin.
3
AREA D3
2
1
AREA B1
1-D3
ABCD
1-B1
1-8-2 E57E2SC
DVD Main 1/3 Schematic Diagram ( DV4400/N1B, DV4400/N1S )
1-8-3 1-8-4
E57M2SCD1
DVD Main 2/3 Schematic Diagram ( DV4400/N1B, DV4400/N1S )
1-8-5
1-8-6
E57M2SCD2
IC101 VOLTAGE CHART ( DV4400/N1B, DV4400/N1S )
PIN.NO PLAY STOP PI N. NO PLAY STOP PIN.NO PLAY STOP PI N. NO PLAY STOP
1 3.33.3332.22.9650.10.1973.43.4
2 ~ ~ 34 ~ ~ 661.22.5981.61.6
3 ~ ~35~ ~671.61.6990 0
4 0 0 36 ~ ~ 68 3.4 3.4 100 ----- -----
5 ~ ~ 37 ~ ~ 69 0 0 101 ----- -----
6 ~ ~ 38 0.3 0.5 70 1.7 1.7 102 ----- -----
7 3.3 3.3 39 0.1 0. 1 71 2.4 1.7 103 ----- -----
8 ~ ~ 40 ~ ~ 72 ----- ----- 104 3.3 3.3
9 ~ ~ 41 ~ ~ 73 ----- ----- 105 0.9 0.9
10 ~ ~ 42 3.3 3.3 74 ----- ----- 106 0 0
11 0 0 43 0 0 75 3.4 3.4 107 0.8 0.8
12 ~ ~ 44 ~ ~ 76 ----- ----- 108 1.6 1.6
13 ~ ~ 45 ~ ~ 77 ----- ----- 109 2.1 2.1
14 3.3 3.3 46 2.0 2.6 78 0.1 0.1 110 2.6 2.6
15 1.5 1.5 47 ----- ----- 79 3.3 3.3 111 2.0 2.0
16 0 0 48 ----- ----- 80 0 0 112 0.7 0.9
17 3.4 3.4 49 ----- ----- 81 3.3 3.3 113 2.0 2.0
18 3.4 3.4 50 3.4 3.4 82 3.3 3.3 114 1.8 1.8
19 ~ ~ 51 3.4 3.4 83 3.4 3.4 115 1.4 1.4
20 ~ ~ 52 ----- ----- 84 ----- ----- 116 0.3 0.3
21 ~ ~ 53 3.4 3.4 85 ----- ----- 117 1.6 1.6
22 ~ ~ 54 3.4 3.4 86 ----- ----- 118 3.3 3.3
23 3.3 3.3 55 3.3 3. 3 87 ----- ----- 119 0 0
24 0 0 56 3.3 3.3 88 ----- ----- 120 1.9 1.9
25 0.4 0.4 57 0 0 89 ----- ----- 121 1.9 1.9
26 0.9 0.6 58 0 0 90 ----- ----- 122 2.4 2.4
27 ~ ~ 59 3.3 3.3 91 3.3 3.3 123 2.4 2.4
28 ~ ~ 60 3.4 3.4 92 1.7 1.5 124 2.4 2.4
29 3.3 3.3 61 3.1 3.1 93 0 0 125 2.4 2.4
30 0 0 62 ----- ----- 94 ----- ----- 126 2. 0 2.0
31 ~ ~ 63 3.4 3.4 95 3.4 0.1 127 2.0 2.0
32 ~ ~ 64 0.8 0.8 96 3.4 3.4 128 2.0 2.0
PIN.NO PLAY STOP PI N. NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP
129 2.0 2.0 161 0.5 0.5 193 ~ ~ 225 1.9 1.9
130 2.2 2.2 162 1.4 1.4 194 0 0 226 3.3 3.3
131 2.3 2.3 163 1.4 1.4 195 3.3 3.3 227 ~ ~
132 0.4 0.1 164 0.9 0.9 196 ~ ~ 228 ~ ~
133 1.2 0.4 165 3.3 3.3 197 ~ ~ 229 ~ ~
134 0.4 0.1 166 1.5 1.5 198 0 0 230 0 0
135 0.2 0.2 167 0 0 199 ~ ~ 231 ~ ~
136 2.3 2.3 168 2.1 2.1 200 ~ ~ 232 3.3 3.3
137 1.7 1.7 169 0 0 201 ~ ~ 233 3.3 3.3
138 0 0 170 0.8 0.8 202 3.3 3.3 234 1.6 1.6
139 1.7 1.7 171 3.3 3.3 203 ~ ~ 235 ~ ~
140 1.7 1.7 172 1.6 1.6 204 ~ ~ 236 0 0
141 1.7 1.7 173 0.2 0.2 205 ~ ~ 237 1.7 1.7
142 1.7 1.7 174 1.8 1.8 206 0 0 238 3.0 3.0
143 0.5 0.5 175 1.7 1.7 207 2.4 3.5 239 3.3 3.3
144 1.6 1.6 176 1.4 0.1 208 2.4 2.1 240 3.3 3.3
145 3.3 3.3 177 0 0 209 3.3 3.3 241 0 0
146 0 0 178 0.9 0.1 210 ~ ~ 242 3.2 3.2
147 ----- ----- 179 1.4 0.1 211 0 0 243 2.4 2.1
148 ----- ----- 180 1.4 0.1 212 ~ ~ 244 1.5 1. 5
149 3.3 3.3 181 1.7 1.7 213 1.5 1.5 245 0 0
150 1.7 1.7 182 3.3 3.3 214 ~ ~ 246 2.4 2.1
151 0 0 183 0 0 215 0 0 247 ~ ~
152 1.7 1.7 184 ~ ~ 216 ~ ~ 248 0 0
153 3.3 3.3 185 ~ ~ 217 ~ ~ 249 ~ ~
154 1.4 1.4 186 1.5 1.5 218 3.3 3.3 250 3.3 3.3
155 0 0 187 ~ ~ 219 ~ ~ 251 ~ ~
156 2.2 2.2 188 ~ ~ 220 ~ ~ 252 ~ ~
157 3.3 3.3 189 3.3 3.3 221 0 0 253 ~ ~
158 0.7 0.7 190 ~ ~ 222 1.5 1.5 254 0 0
159 0 0 191 ~ ~ 223 1.9 1.9 255 ~ ~
160 0.5 0.5 192 ~ ~ 224 0 0 256 ~ ~
1-8-7 1-8-8
DVD Main 3/3 Schematic Diagram ( DV4400/N1B, DV4400/N1S )
1-8-9
1-8-10
E57M2SCD3
AV 1/3 Schematic Diagram ( DV4400/N1B, DV4400/N1S )
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
CAUTION
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
NOTE :
THE VOLTAGE FOR PARTS IN HOT CIRCUIT IS MEASURED USING
HOT GND AS A COMMON TERMINAL.
1-8-11 1-8-12
E57M2SCAV1
AV 2/3 Schematic Diagram ( DV4400/N1B, DV4400/N1S )
1-8-13
1-8-14
E57M2SCAV2
STANDBY
TITLE CHP. TRK. CD
V
PBC
DVD
REPEAT
A
-B
1
3
2
4
5
1
3
2
4
5
DVD
VCD
PBC
STANDBY
A-B
REPEAT
TRK.CHP.TITLE
AV 3/3,Function, Switch & LED Schematic Diagram ( DV4400/N1B, DV4400/N1S )
7G 5G 3G 1G4G6G 2G
a
cb
d
ef
g
FL2001 MATRIX CHART
7G 6G 5G 4G 3G 2G 1G
a
b
c
d
e
f
g
h
i
1-8-15 1-8-16
a
b
c
d
e
f
g
a
b
c
d
e
f
g
a
b
c
d
e
f
g
a
b
c
d
e
f
g
a
b
c
d
e
f
g
E57M2SCAV3
DVD Main 1/3 Schematic Diagram ( DV6400/N1B, DV6400/N1S )
1-8-17
1-8-18
E57M7SCD1
DVD Main 2/3 Schematic Diagram ( DV6400/N1B, DV6400/N1S )
1-8-19 1-8-20
E57M7SCD2
IC101 VOLTAGE CHART ( DV6400/N1B, DV6400/N1S )
PIN.NO PLAY STOP PI N.NO PLAY STOP PIN.NO PLAY STOP PI N. NO PLAY ST OP
1 3.33.3332.22.9650.10.1973.43.4
2 ~ ~ 34 ~ ~ 661.22.5981.61.6
3 ~ ~ 35 ~ ~ 671.61.699 0 0
4 0 0 36 ~ ~ 68 3.4 3.4 100 3.4 3.4
5 ~ ~ 37 ~ ~ 69 0 0 101 0.2 0
6 ~ ~ 38 0.3 0.5 70 1.7 1.7 102 0.2 0
7 3.3 3.3 39 0.1 0.1 71 2.4 1.7 103 0.2 0
8 ~ ~ 40 ~ ~ 72 ----- ----- 104 3. 3 3.3
9 ~ ~ 41 ~ ~ 73 ----- ----- 105 0. 9 0.9
10 ~ ~ 42 3.3 3.3 74 ----- ----- 106 0 0
11 0 0 43 0 0 75 3.4 3.4 107 0.8 0.8
12 ~ ~ 44 ~ ~ 76 ----- ----- 108 1.6 1.6
13 ~ ~ 45 ~ ~ 77 ----- ----- 109 2.1 2.1
14 3.3 3.3 46 2.0 2.6 78 0.1 0.1 110 2.6 2.6
15 1.5 1.5 47 3.0 3.0 79 3.3 3.3 111 2.0 2.0
16 0 0 48 3.6 3.6 80 0 0 112 0.7 0.9
17 3.4 3.4 49 3.4 3.4 81 3.3 3.3 113 2.0 2.0
18 3.4 3.4 50 3.4 3.4 82 ----- ----- 114 1.8 1.8
19 ~ ~ 51 3.4 3.4 83 3.4 3.4 115 1.4 1.4
20 ~ ~ 52 3.4 3.4 84 2.4 2.4 116 0.3 0.3
21 ~ ~ 53 3.4 3.4 85 ----- ----- 117 1.6 1.6
22 ~ ~ 54 3.4 3.4 86 3.4 0.1 118 3.3 3.3
23 3.3 3.3 55 3.3 3.3 87 3.4 3.4 119 0 0
24 0 0 56 3.3 3.3 88 0.1 0.1 120 1.9 1.9
25 0.4 0.4 57 0 0 89 3.4 3.4 121 1.9 1.9
26 0.9 0.6 58 0 0 90 3.6 3.6 122 2.4 2.4
27 ~ ~ 59 3.3 3.3 91 3.3 3.3 123 2.4 2.4
28 ~ ~ 60 3.4 3.4 92 1.7 1.5 124 2.4 2.4
29 3.3 3.3 61 3.1 3.1 93 0 0 125 2.4 2.4
30 0 0 62 3.3 3.3 94 3.6 3.6 126 2.0 2.0
31 ~ ~ 63 3.4 3.4 95 3.4 0.1 127 2.0 2.0
32 ~ ~ 64 0.8 0.8 96 3.4 3.4 128 2.0 2.0
PIN.NO PLAY STOP PI N. NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP
129 2.0 2.0 161 0.5 0.5 193 ~ ~ 225 1.9 1.9
130 2.2 2.2 162 1.4 1.4 194 0 0 226 3.3 3.3
131 2.3 2.3 163 1.4 1.4 195 3.3 3.3 227 ~ ~
132 0.4 0.1 164 0.9 0.9 196 ~ ~ 228 ~ ~
133 1.2 0.4 165 3.3 3.3 197 ~ ~ 229 ~ ~
134 0.4 0.1 166 1.5 1.5 198 0 0 230 0 0
135 0.2 0.2 167 0 0 199 ~ ~ 231 ~ ~
136 2.3 2.3 168 2.1 2.1 200 ~ ~ 232 3.3 3.3
137 1.7 1.7 169 0 0 201 ~ ~ 233 3.3 3.3
138 0 0 170 0.8 0.8 202 3.3 3.3 234 1.6 1.6
139 1.7 1.7 171 3.3 3.3 203 ~ ~ 235 ~ ~
140 1.7 1.7 172 1.6 1.6 204 ~ ~ 236 0 0
141 1.7 1.7 173 0.2 0.2 205 ~ ~ 237 1.7 1.7
142 1.7 1.7 174 1.8 1.8 206 0 0 238 3.0 3.0
143 0.5 0.5 175 1.7 1.7 207 2.4 3.5 239 3.3 3.3
144 1.6 1.6 176 1.4 0.1 208 2.4 2.1 240 3.3 3.3
145 3.3 3.3 177 0 0 209 3.3 3.3 241 0 0
146 0 0 178 0.9 0.1 210 ~ ~ 242 3.2 3.2
147 ----- ----- 179 1.4 0.1 211 0 0 243 2.4 2.1
148 ----- ----- 180 1.4 0.1 212 ~ ~ 244 1.5 1. 5
149 3.3 3.3 181 1.7 1.7 213 1.5 1.5 245 0 0
150 1.7 1.7 182 3.3 3.3 214 ~ ~ 246 2.4 2.1
151 0 0 183 0 0 215 0 0 247 ~ ~
152 1.7 1.7 184 ~ ~ 216 ~ ~ 248 0 0
153 3.3 3.3 185 ~ ~ 217 ~ ~ 249 ~ ~
154 1.4 1.4 186 1.5 1.5 218 3.3 3.3 250 3.3 3.3
155 0 0 187 ~ ~ 219 ~ ~ 251 ~ ~
156 2.2 2.2 188 ~ ~ 220 ~ ~ 252 ~ ~
157 3.3 3.3 189 3.3 3.3 221 0 0 253 ~ ~
158 0.7 0.7 190 ~ ~ 222 1.5 1.5 254 0 0
159 0 0 191 ~ ~ 223 1.9 1.9 255 ~ ~
160 0.5 0.5 192 ~ ~ 224 0 0 256 ~ ~
1-8-21
1-8-22
DVD Main 3/3 Schematic Diagram ( DV6400/N1B, DV6400/N1S )
1-8-23 1-8-24
E57M7SCD3
AV 1/3 Schematic Diagram ( DV6400/N1B, DV6400/N1S )
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
CAUTION
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
NOTE :
THE VOLTAGE FOR PARTS IN HOT CIRCUIT IS MEASURED USING
HOT GND AS A COMMON TERMINAL.
1-8-25
1-8-26
E57M7SCAV1
AV 2/3 Schematic Diagram ( DV6400/N1B, DV6400/N1S )
1-8-27 1-8-28
E57M7SCAV2
AV 3/3,Function, Switch & LED Schematic Diagram ( DV6400/N1B, DV6400/N1S )
STANDBY
TITLE CHP. TRK. CD
V
PBC
DVD
REPEAT
A
-B
1
3
2
4
5
1
3
2
4
5
DVD
VCD
PBC
STANDBY
A-B
REPEAT
TRK.CHP.TITLE
7G 5G 3G 1G4G6G 2G
a
cb
d
ef
g
1-8-29
FL2001 MATRIX CHART
7G 6G 5G 4G 3G 2G 1G
a
b
c
d
e
f
g
h
i
a
b
c
d
e
f
g
a
b
c
d
e
f
g
1-8-30
a
b
c
d
e
f
g
a
b
c
d
e
f
g
a
b
c
d
e
f
g
E57M7SCAV3
SACD 1/2 Schematic Diagram ( DV6400/N1B, DV6400/N1S )
1-8-31 1-8-32
E57M7SCSA1
SACD 2/2 Schematic Diagram ( DV6400/N1B, DV6400/N1S )
1-8-33 1-8-34
E57M7SCSA2
AV CBA Top View ( DV4400/N1B, DV4400/N1S, DV6400/N1B, DV6400/N1S )
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
CAUTION
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.
1-8-35
1-8-36
BE57E2F01016-A
AV CBA Bottom View ( DV4400/N1B, DV4400/N1S, DV6400/N1B, DV6400/N1S )
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
CAUTION
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.
WF1
PIN 1 OF
CN1601
WF2
PIN 9 OF
CN1601
WF4
PIN 13 OF
CN1601
WF3
PIN 31 OF
IC6101
WF5
PIN 15 OF
CN1601
WF6
PIN 18 OF
CN1601
1-8-37
1-8-38
BE57E2F01016-A
LED CBA Top View
LED CBA Bottom View
( DV4400/N1B, DV4400/N1S, DV6400/N1B, DV6400/N1S )
( DV4400/N1B, DV4400/N1S, DV6400/N1B, DV6400/N1S )
Switch CBA Top/Bottom View ( DV4400/N1B, DV4400/N1S, DV6400/N1B, DV6400/N1S )
Switch CBA Top View
Switch CBA Bottom View
BE57E2F01016-C
1-8-39
BE57E2F01016-B
1-8-40
Function CBA Top View
Function CBA Bottom View
( DV4400/N1B, DV4400/N1S, DV6400/N1B, DV6400/N1S )
( DV4400/N1B, DV4400/N1S, DV6400/N1B, DV6400/N1S )
1-8-41
1-8-42
BE57M7F01011
SACD CBA Top View ( DV6400/N1B, DV6400/N1S )
1-8-43
1-8-44
BE57D1F02011
SACD CBA Bottom View ( DV6400/N1B, DV6400/N1S )
1-8-45
1-8-46
BE57D1F02011
WAVEFORMS
WF1 Pin 1 of CN1601
VIDEO-Y 0.2V 20µsec
WF2 Pin 9 of CN1601
WF5
Pin 15 of CN1601
AUDIO-R
WF6
Pin 18 of CN1601
1V 0.5msec
NOTE:
Input
CD: 1kHz PLAY
(WF4~WF6)
DVD: POWER ON (STOP) MODE
(WF1~WF3)
VIDEO-C 0.2V 20
WF3 Pin 31 of IC6101
VIDEO-CVBS 0.5V 20
WF4
Pin 13 of CN1601
µ
sec
µ
sec
SPDIF
1V 0.1µsec
AUDIO-L
1V 0.5msec
1-9-1
1-9-2
E57M2WF
WIRING DIAGRAM ( DV4400/N1B, DV4400/N1S )
VIDEO
OUT
W1001
AUDIO-L
OUT
123456789101112131415161718192021
EV+1.5V 11
EV+1.5V 22
EV+1.5V 33
SCART JACK
EV+3.3V 44
EV+3.3V 55
GND 66
AUDIO-R
OUT
GND 77
GND 88
DIGITAL
AUDIO OUT
CN1001
GND 99
GND 1010
GND 1111
GND 1212
CN401
P-ON+5V 1313
S-VIDEO
OUT
EV+9V 1414
EV+9V 1515
FP-STB 1616
P-ON+3.3V 1717
FP-DIN 1818
VIDEO-Y
OUT
PWRCON 1919
FP-DOUT 2020
FP-CLK 2121
VIDEO-Cb
OUT
AV CBA
(BE57E2F01016-A)
2222
REMOTE
VIDEO-Cr
OUT
W1601
VIDEO-Y 11
AC CORD
CN2002 W2002 CN6401
AD-KEY 1
1
KEY-2 2
2
KEY-1 3
3
KEY-3 4
4
K2 5
5
KEY-4 6
6
KEY-8 7
7
K1 8
8
KEY-7 9
9
GND 10
10
KEY-6 11
11
KEY-5(NU) 12
12
CN1601
AUDIO-L 1313
A-L-MUTE 1414
VIDEO-B/Cb 55
VIDEO-G 77
VIDEO-R/Cr 33
GND 44
ASPECT 22
GND 88
GND 66
CN601
GND 1111
GND 1010
A-MUTE 1212
VIDEO-C 99
AUDIO-R 1515
A-R-MUTE 1616
AUDIO+5V 1717
SPDIF 1818
FUNCTION CBA
(BE57M7F01011)
FG
SENSOR
FG CBA
FG-IN
P-ON+3.3V(D)
123
TRAY-OUT
CN301
SP(-)
SP(+)
4
TRAY-OUT
TRAY-IN
5
6
GND
7
8 SL(-)
9 SL(+)
DVD MAIN CBA UNIT
T-RESET2S DATA3EV+3.3V
1
(NO CONNECTION)
SLED
MOTOR
M
SPINDLE
MOTOR
M
EXTRG05GND6SCLOCK
4
VREF
P-ON+5V
E
GND
2345678
1
11 2 3 5 6 4 7
DETECTOR
CBD
CN201CN702
F
A
CD/DVD
9
101112131415161718
PD-MONI
GND(LD)
CD-LD
DVD-LD
GND(DVD-PD)
TS(-)
GND(CD-PD)
FS(+)
FS
TS
FS(-)
19
TS(+)
20
CN6001 CN6050
W6001
AD-KEY 1
1
STANDBY-LED 2
2
GND 3
3
NU 4
4
NU
5
AUDIO-EX-LED
6
(BE57E2F01016-C)
5
6
SWITCH CBA
(BE57E2F01016-B)
LED CBA
JP6051
AD-KEY 11STANDBY-LED 22GND 3
3
JP2050
TRAY-IN
1-10-1
DRIVE CBA
DVD MECHA
PICK UP UNIT
1-10-2
E57M2WI
WIRING DIAGRAM ( DV6400/N1B, DV6400/N1S )
CN7101 CN1603
CN7151 CN902W7151
SACD CBA
(BE57D1F02011)
CN7102 CN901
W1603
P-ON+5V 1
1
GND
2
P-ON+9V
3
GND
4
GND
5
P-ON+3.3V
6
P-ON+3.3V 7
7
GND
WCK
GND
GND
RF
GND
SALAT
SAREADY
SADI
XSRQ
XSHD
SDCK
XSAK
SDEF
IECOUT
PHCOPMO
RESET(L)
W7102
PCM-DATA3 11
2ch-L/6ch-H 22
PCM-DATA2 33
GND 44
PCM-DATA1 55
GND 66
PCM-DATA0 77
GND 88
PCM-BCK 99
PCM-LRCLK 1010
ADAC-MC 1111
ADAC-MD 1212
ADAC-ML0 1313
ADAC-ML1 1414
GND 1515
PCM-SCLK 1616
GND 1717
A-MUTE2 1818
M-MUTE 1919
ADAC-ML2 2020
EV+1.5V 22
EV+1.5V 33
VIDEO-Cb
OUT
SCART JACK
EV+3.3V 44
EV+3.3V 55
S-VIDEO
OUT
2
3
4
5
6
11
22
33
44
55
66
77
88
99
1010
1111
1212
1313
1414
1515
1616
1717
VIDEO-Y
OUT
123456789101112131415161718192021
W1001
EV+1.5V 11
FG
SENSOR
GND 66
VIDEO-Cr
OUT
GND 77
GND 88
CN1001
GND 99
GND 1010
GND 1111
CN401
SP(+)
FG-IN
P-ON+3.3V(D)
123
DRIVE CBAFG CBA
VIDEO
OUT
GND 1212
P-ON+5V 1313
SP(-)
TRAY-OUT
4
5
EV+9V 1414
TRAY-IN
6
AUDIO-L
OUT
EV+9V 1515
GND
7
FP-STB 1616
P-ON+3.3V 1717
FP-DIN 1818
8 SL(-)
9 SL(+)
TRAY-OUT
TRAY-IN
AUDIO-R
OUT
DIGITAL
AUDIO OUT
AV CBA
(BE57E2F01016-A)
FP-DOUT 2020
FP-CLK 2121
REMOTE 2222
PWRCON 1919
DVD MAIN CBA UNIT
CN701
4NU
3 EV+3.3V
2 S DATA
1 T-RESET
(NO CONNECTION)
SLED
MOTOR
M
SPINDLE
MOTOR
M
6 SCLOCK
5 GND
OPTICAL
AUDIO OUT
W1601
VIDEO-B/Cb 55
VIDEO-R/Cr 33
GND 44
ASPECT 22
VIDEO-Y 11
GND
123456789
VREF
P-ON+5V
E
CBD
11 2 3 5 6 4 7
DETECTOR
PICK UP UNIT
AC CORD
CN1601
VIDEO-G 77
GND 88
GND 66
CN201CN301
F
A
CD/DVD
101112131415161718
GND 1111
VIDEO-C 99
GND 1010
CN601
GND(LD)
CD-LD
A-MUTE 1212
PD-MONI
AUDIO-L 1313
DVD-LD
GND(DVD-PD)
A-L-MUTE 1414
AUDIO-R 1515
A-R-MUTE 1616
AUDIO+5V 1717
FS(-)
FS(+)
TS(-)
GND(CD-PD)
19
FS
TS
SPDIF 1818
TS(+)
20
CN2002 CN6401
CN6001 CN6050
W2002
AD-KEY 1
1
KEY-2 2
2
KEY-1 3
3
KEY-3 4
4
K2 5
5
KEY-4 6
6
KEY-8 7
7
K1 8
8
KEY-7 9
9
GND 10
10
KEY-6 11
11
KEY-5(NU) 12
12
W6001
AD-KEY 1
1
STANDBY-LED 2
2
GND 3
3
NU 4
4
SACD-LED 5
5
AUDIO-EX-LED
6
FUNCTION CBA
(BE57M7F01011)
LED CBA
(BE57E2F01016-C)
6
SWITCH CBA
(BE57E2F01016-B)
JP6051
AD-KEY 11STANDBY-LED 22GND 3
3
JP2050
DVD MECHA
1-10-3
1-10-4
E57M7WI
FIRMWARE RENEWAL MODE
F
e)
1. Turn the power on and remove the disc on the tray.
2. To put the DVD player into version up mode, press
[9], [8], [7], [6], and [SEARCH MODE] buttons on
the remote control unit in that order. The tray will
open automatically.
Fig. a appears on the screen and Fig. b appears on
the VFD.
F/W Version Up Mode
Please insert a DISC
for F/W Version Up.
EXIT: POWER
Fig. a Version Up Mode Screen
Fig. b VFD in Version Up Mode
The DVD player can also enter the version up
mode with the tray open. In this case, Fig. a will be
shown on the screen while the tray is open.
3. Load the disc for version up.
4. The DVD player enters the F/W version up mode
automatically. Fig. c appears on the screen and
Fig. d appears on the VFD.
F/W Version Up Mode
VERSION : ********
Reading...(*2)
5. After programming is finished, the tray opens automatically. Fig. e appears on the screen and the
checksum in (*3) of Fig. e appears on the VFD.
(Fig. f)
F/W Version Up Mode
VERSION : ********
Completed
SUM : 7abc (*3)
Fig. e Completed Program Mode Screen
ig. f VFD upon Finishing the Programming Mode (Exampl
At this time, no buttons are available.
6. Unplug the AC cord from the AC outlet. Then plug it
again.
7. Turn the power on by pressing the power button
and the tray will close.
8. Press [1], [2], [3], [4], and [DISPLAY] buttons on the
remote control unit in that order.
Fig. g appears on the screen.
model: ****** Ver: **** Region: **
1: VFD TEST
2: TT REPEAT PLAY
3: EEPROM CLEAR
4: MEASUREMENT SERVO
5: DISC READ CHECK
6: MECHA CHECK
7: DISC INFO
8: ERROR RATE
EXIT: POWERRETURN: -----
EXIT: POWER
Fig. c Programming Mode Screen
Fig. d VFD in Programming Mode (Example)
The appearance shown in (*2) of Fig. c is
described as follows:
AppearanceNo. State
Reading... Sending files into the memory
1
Erasing... Erasing previous version data
2
Programming...
3 Writing new version data
Fig. g
9. Press [3] button on the remote control unit.
Fig. h appears on the screen.
model: ****** Ver: **** Region: **
TEST 3: EEPROM CLEAR
EEPROM CLEAR: OK
EXIT: POWERRETURN: -----
Fig. h
10.To exit this mode, press [POWER] button.
1-11-1 E5700TEST
LEAD IDENTIFICATIONS
E C B
NJM4558D
KIA4558P
NJM4580MTE1
CXD2753R
132
2SA1015-Y (TPE2)
KTA1266 (Y)
KTC3198 (Y)
2SC2120-Y(TPE2)
KTC3205 (Y)
2SC2236-Y-TPE6,C
2SA966(Y)
8 5
1 4
89
MM1567AJ
34
1
E C B
18
17
2SC2785 (H)
KTC3199 (GR)
KRA110M
KTA1267 (Y)
BN1L3Z (P)
NC7SZ08P5X
5 4
1 3
2SK3566
G D S
2SC2412K T146S
KRA105S-RTK
KTC3875GR-RTK
C
BE
KIA431-AT
133
176
34
44
1
PT6315
33
1
NC7SB3157P6X
6 4
1 3
23
11
44
88
45
22
12
MIM1562FFBE
7 5
1 4
PQ070XF01SZ
1234
1: Vin
2: Vo
3: GND
4: Vc
K4S161622D-TC80
50
1
LTV-817(B,C)-F
A
K
M34506M4-506FP
DSD1702E/2K
20
1
26
25
11
10
K A R
GP1FA513TZ
123
C
E
Note:
A: Anode
K: Cathode
E: Emitter
C: Collector
B: Base
R: Reference
G: Gate
D: Drain
S: Source
1-12-1 E57M2LE
EXPLODED VIEWS
Cabinet
[ DV4400/N1B, DV4400/N1S ]
See Electrical Parts List
for parts with this mark.
Some Ref. Numbers are
not in sequence.
2L105
2L101
2L051
DVD Main
CBA Unit
A15
2L051
A2
2L011
W1001
2L021
W6001
LED CBA
A17
2L031
2B33
2L021
W1601
1B1
JK6101
2B36
2B19
2B20
JK1401
2L011
A16
2L011
2L031
2B23
2L031
JK6102
JK6103
JK1202
IC1204
2B3
A17
Switch CBA
A14
2L023
2B2
A1X
A13
2L023
2B32
A'
A17
A
W2002
2L071
A14
2L052
AV CBA
A17
2L071
A15
A13
2B10
F1001
2L031
AC1001
2L041
2L071
2L052
2L052
Function CBA
A18
1-13-1 E57M2EX
[ DV6400/N1B, DV6400/N1S ]
2L105
2L105
2B12
2B8
2L104
2L011
2L011
W7102
W7151
2B3
2B8
2L105
2L101
Switch CBA
SACD CBA
A19
DVD Main
CBA Unit
2L051
A17
B
A15
2L051
2B2
W1001
A2
W1601
W6001
LED CBA
A17
2B32
B'
2L021
2L031
A17
W1603
AV CBA
A17
A'
W2002
2L071
2B8
2L021
JK6101
2B36
2L041
1B1
2L071
2B19
2B20
JK1401
2L031
2L031
2L031
JK6102
JK6103
JK1202
IC1204
A16
2L011
2B23
F1001
AC1001
2L041
A14
2L023
A1X
A13
2L023
2L071
A15
A14
A
2L052
A13
2B10
2L052
2L052
Function CBA
A18
See Electrical Parts List
for parts with this mark.
Some Ref. Numbers are
not in sequence.
1-13-2 E57M2EX
Packing
X1
X13
S2
X10
X5
X2
X4
S2
S4
Unit
A22
S1
1-13-3 E57M2EX
PARTS LIST [DV4400]
POS. NO
A1X /U1B nsp 44AW248020 FRONT PANEL(BLACK) FRONT ASSY E57M0UD 0VM204463
AC1001 /N/S *YC000820R *YC000820R MAINS CORD MAINS CORD PE8B2CG980A-057 WAE0172LW006
AC1001 /F nsp *YC000830R MAINS CORD MAINS CORD PP8B5PB110AA057 WAJ0172LW009
AC1001 /U nsp *YC000840R MAINS CORD MAINS CORD A0A0280-007 OR
W1001 *YU001380R *YU001380R FPC 22P FFC AV PCB TO MAIN WX1E5700-003
W1601 /F/N/U *YU001390R *YU001390R FPC 18P FFC DVD-A PCB TO MAIN WX1E5700-002
W1601 /S nsp *YU001450R FPC 16P FFC DVD-A PCB TO MAIN WX1E5700-005
W2002 *YU001400R *YU001400R FPC 12P FFC AV PCB TO FNT PCB WX1E5610-001
W6001 *YU001410R *YU001410R FPC 6P FFC OR AWG22#1007 AV PCB
C1001 /F/U nsp *DF100390R FILM CAP. 0.01µF/250V K OR 0.01µF/275V K
C1001 /N/S *DF100360R *DF100360R FILM CAP. 0.047µF/250V K OR M CT2E473DC011 OR
VERS.
COLOR
A1X /F1N/S1G nsp 44AW248140 FRONT PANEL (GOLD) FRONT ASSY E57M1JD 0VM204448
A1X /N1B 44AW248010 44AW248010 FRONT PANEL (BLACK) FRONT ASSY E57M2ED 0VM204412
A1X /N1S 44AW248210 44AW248210 FRONT PANEL(SILVER) FRONT ASSY E57M4ED 0VM204413
A2 GOLD nsp 44AW063140 ESCUTCHEON TRAY PANEL E57M1JD 0VM416074
A2 BLACK 44AW063010 44AW063010 ESCUTCHEON TRAY PANEL E57M0UD 0VM204372
A2 SILVER 44AW063210 44AW063210 ESCUTCHEON TRAY PANEL E57M4ED 0VM416014
A13 44AW057020 44AW057020 LEG FOOT(REAR) E5710UD 0VM415007
A14 BLACK,
GOLD
A14 SILVER 44AW057210 44AW057210 LEG LEG ASSY E57M4ED 0VM416056
1B1 44AW304010 44AW304010 MACHA LOADER /
A15 /N *ZZ002230R *ZZ002230R PCB ASSY DVD MAIN CBA UNIT N79B0GEP
A15 /F nsp *ZZ002350R PCB ASSY DVD MAIN CBA UNIT N79B6GJP
A15 /S nsp *ZZ002420R PCB ASSY DVD MAIN CBA UNIT N79B2GPP
A15 /U nsp *ZZ002360R PCB ASSY DVD MAIN CBA UNIT N79B4GUP
A17 /N *ZZ002240R *ZZ002240R PCB ASSY AV CBA ASSY / LED CBS ASSY /
A17 /F nsp *ZZ002330R PCB ASSY AV CBA ASSY / LED CBS ASSY /
A17 /S nsp *ZZ002430R PCB ASSY AV CBA ASSY / LED CBS ASSY /
A17 /U nsp *ZZ002340R PCB ASSY AV CBA ASSY / LED CBS ASSY /
A18 *ZZ002250R *ZZ002250R PCB ASSY FUNCTION CBA ASSY 0VSA14617
X1 ZK44AW0010 ZK44AW0010 UNIT KIT REMOTE CONTROLLER RC6400DVNA638UD
X10 /F nsp 44AW851110 USER GUIDE USER GUIDE E57M1JD 0VMN03857
X10 /N 44AW851310 44AW851310 USER GUIDE USER GUIDE E57M2ED 0VMN03871
X10 /S nsp 44AW851350 USER GUIDE USER GUIDE E57M3PD 0VMN03872
X10 /U nsp 44AW851250 USER GUIDE USER GUIDE E57M0UD 0VMN03859
A16 GOLD nsp 44AW257110 LID TOP COVER GOLD E57E2ED 0VM306454
A16 BLACK nsp 44AW257010 LID TOP COVER BLACK E5600UD 0VM101038
A16 SILVER nsp 44AW257210 LID TOP COVER SILVER E56A0UD 0VM305312C
S1 /S nsp 44AW801020 CARTON BOX GIFT BOX CARTON E57M3PD 0VM306701
S1 /F/N/U nsp 44AW801010 CARTON BOX GIFT BOX CARTON E57M2ED 0VM306634
S2 nsp 44AW809010 CUSHION CUSHION E57M0UD 0VM101316
PART NO.
(FOR EUR)
44AW057010 44AW057010 LEG LEG ASSY E57M0UD 0VM415913
PART NO.
(MJI)
EXPLODED VIEW PARTS
MECHA TRAVERSE
PACKING
NOT STANDARD SPARE PARTS
ELECTRICAL PARTS LIST
AV CBA
DVD MECHA 0838 VCDVM040 N79F0GVM
Switch CBA ASSY
Switch CBA ASSY
Switch CBA ASSY
Switch CBA ASSY
PB8K9F9110A-057
TO LED PCB
OR 0.01µF/250V M
DESCRIPTION
0VSA14603
0VSA14685
0VSA14776
0VSA14682
WAC0172LTE04 OR
WAC0172LW008
WX1E57D1-003 OR
WX3001A24405
CT2E103DC011 OR
CT2E103HJE05 OR
CT2E103MS037
CT2E473MS037
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
1-14-1
2
PARTS LIST [DV4400]
POS. NO
C1006 /F/U nsp *DK100860R CERAMIC CAP. 2200pF/250V OR 2200pF/125V CCD2EMA0E222 OR
C1006 /N *DK100850R *DK100850R CERAMIC CAP. SAFETY CAP. 2200pF/250V CCN2EMA0E222 OR
F1001 /F/U nsp *FS001140R FUSE FUSE 1A/250V PAGA20CW3102 OR
F1001 /N/S *FS001120R *FS001120R FUSE FUSE T1.6AL/250V PAGC20BW3162 OR
IC1204 *YJ002710R *YJ002710R OPT. CONNECTOR OPTIC TRANS.MODULE
JK1202 *YT003370R *YT003370R TERMINAL CINCH JACK(BLACK)
JK1401 *YT003380R *YT003380R TERMINAL S TYPE JACK MDC-050V-2.4 JXEL040LY001
JK1405 /F nsp *YT003560R TERMINAL D TERMINAL 14P DT-0102*001 JBDTJ14JD002
JK6101 /N *YT003390R *YT003390R TERMINAL SCART CONNECTOR 21P RGB
JK6102 /N/S/U *YT003400R *YT003400R TERMINAL CINCH JACK 3PIN MSD-243V-18 NI JXRL030LY073
JK6103 *YT003410R *YT003410R TERMINAL CINCH JACK 3PIN MSD-243V-15 NI JXRL030LY079
L1001 /F/U nsp *FN000200R FILTER LINE FILTER 20MH SA-00911 LLBG00ZSA003
L1001 /N/S *FN000190R *FN000190R FILTER 50mH
SA1001 *HV000050R *HV000050R VARISTOR PVR-10D471KB/CNR-10D471K NVQZ10D471KB OR
T1001 /F/U nsp *TP000070R TRANSF. PULSE TRANS CSA-SW0215B LTT00CPSA132
T1001 /N *TS002050R *TS002050R TRANSF. MAINS TRANSFORMER
T1001 /S nsp *TS002070R TRANSF. MAINS TRANSFORMER
VERS.
COLOR
PART NO.
(FOR EUR)
PART NO.
(MJI)
DESCRIPTION
GP1FA513TZ
MSP-251V-01 NI
AJ-2050*040
LF-4Z-E503/LF-4D-E503/
TLF14CB5630R2
CSA-SW0215C
CSA-SW0308A
CCG2EMA0F222 OR
CCG2BMA0E222
CA2E222MR049
PAGG20CAG102
1790994
JWHHA00SH005
JXRL010LY070
JXGL210JD002
LLBG00ZKQ008 OR
LLBG00ZKQ009 OR
LLBG00ZTU022
NVQZR10D471K
LTT00EPSA141
LTT00ZPSA144
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
1-14-2
3
PARTS LIST [DV6400]
POS. NO
A1X /U1B nsp 45AW248020 FRONT PANEL(BLACK) FRONT ASSY E57M5UD 0VM204465
AC1001 /N/S *YC000820R *YC000820R MAINS CORD MAINS CORD PE8B2CG980A-057 WAE0172LW006
AC1001 /F nsp *YC000830R MAINS CORD MAINS CORD PP8B5PB110AA057 WAJ0172LW009
AC1001 /U nsp *YC000840R MAINS CORD MAINS CORD A0A0280-007 OR
W7102 *YU001360R *YU001360R FPC 20P FFC DVD-A PCB TO MAIN WX1E5732-004
W7151 *YU001370R *YU001370R FPC 17P FFC SACD PCB TO MAIN WX1E57D1-001
W1001 *YU001380R *YU001380R FPC 22P FFC AV PCB TO MAIN WX1E5700-003
W1601 /F/N/U *YU001390R *YU001390R FPC 18P FFC DVD-A PCB TO MAIN WX1E5700-002
W1601 /S nsp *YU001450R FPC 16P FFC DVD-A PCB TO MAIN WX1E5700-005
W2002 *YU001400R *YU001400R FPC 12P FFC AV PCB TO FNT PCB WX1E5610-001
W6001 *YU001410R *YU001410R FPC 6P FFC OR AWG22#1007 AV PCB
W1603 *YU001420R *YU001420R FPC 7P FFC AV PCB TO SACD PCB WX1E57D1-002
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
VERS.
COLOR
A1X /F1N/S1G nsp 45AW248140 FRONT PANEL (GOLD) FRONT ASSY E57M6JD 0VM204450
A1X /N1B 45AW248010 45AW248010 FRONT PANEL (BLACK) FRONT ASSY E57M7ED 0VM204417
A1X /N1S 45AW248210 45AW248210 FRONT PANEL(SILVER) FRONT ASSY E57M9ED 0VM204418
A2 GOLD nsp 45AW063140 ESCUTCHEON TRAY PANEL E57M6JD 0VM416078
A2 BLACK 45AW063010 45AW063010 ESCUTCHEON TRAY PANEL E57M7ED 0VM416021
A2 SILVER 45AW063210 45AW063210 ESCUTCHEON TRAY PANEL E57M9ED 0VM416025
A13 44AW057020 44AW057020 LEG FOOT(REAR) E5710UD 0VM415007
A14 BLACK,
GOLD
A14 SILVER 44AW057210 44AW057210 LEG LEG ASSY E57M4ED 0VM416056
1B1 44AW304010 44AW304010 MACHA LOADER /
A15 /F nsp *ZZ002390R PCB ASSY DVD MAIN CBA UNIT N79B7GJP
A15 /N *ZZ002260R *ZZ002260R PCB ASSY DVD MAIN CBA UNIT N79B1GEP
A15 /S nsp *ZZ002440R PCB ASSY DVD MAIN CBA UNIT N79B3GPP
A15 /U nsp *ZZ002400R PCB ASSY DVD MAIN CBA UNIT N79B5GUP
A17 /F nsp *ZZ002370R PCB ASSY AV CBA ASSY / LED CBS ASSY /
A17 /N *ZZ002270R *ZZ002270R PCB ASSY AV CBA ASSY / LED CBS ASSY /
A17 /S nsp *ZZ002450R PCB ASSY AV CBA ASSY / LED CBS ASSY /
A17 /U nsp *ZZ002380R PCB ASSY AV CBA ASSY / LED CBS ASSY /
A18 *ZZ002250R *ZZ002250R PCB ASSY FUNCTION CBA ASSY 0VSA14617
A19 /N/S *ZZ002280R *ZZ002280R PCB ASSY SACD CBA ASSY 0VSA14446
A19 /F/U nsp *ZZ002410R PCB ASSY SACD CBA ASSY 0VSA14758
X1 ZK44AW0010 ZK44AW0010 UNIT KIT REMOTE CONTROLLER
X10 /F nsp 45AW851110 USER GUIDE USER GUIDE E57M6JD 0VMN03858
X10 /N 45AW851310 45AW851310 USER GUIDE USER GUIDE E57M7ED 0VMN03869
X10 /S nsp 45AW851350 USER GUIDE USER GUIDE E57M8PD 0VMN03873
X10 /U nsp 45AW851250 USER GUIDE USER GUIDE E57M5UD 0VMN03870
A16 GOLD nsp 44AW257110 LID TOP COVER GOLD E57E2ED 0VM306454
A16 BLACK nsp 44AW257010 LID TOP COVER BLACK E5600UD 0VM101038
A16 SILVER nsp 44AW257210 LID TOP COVER SILVER E56A0UD 0VM305312C
S1 /F/N/U nsp 45AW801010 CARTON BOX GIFT BOX CARTON E57M7ED 0VM306632
S1 /S nsp 45AW801020 CARTON BOX GIFT BOX CARTON E57M8PD 0VM306702
S2 nsp 45AW809010 CUSHION CUSHION (UK) E57M5UD 0VM101327
PART NO.
(FOR EUR)
44AW057010 44AW057010 LEG LEG ASSY E57M0UD 0VM415913
PART NO.
(MJI)
EXPLODED VIEW PARTS
MECHA TRAVERSE
PACKING
NOT STANDARD SPARE PARTS
DVD MECHA 0838 VCDVM040 N79F0GVM
Switch CBA ASSY
Switch CBA ASSY
Switch CBA ASSY
Switch CBA ASSY
PB8K9F9110A-057
TO LED PCB
RC6400DV
DESCRIPTION
0VSA14688
0VSA14676
0VSA14647
0VSA14619
WAC0172LTE04 OR
WAC0172LW008
WX1E57D1-003 OR
WX3001A24405
NA638UD
1-15-1
4
PARTS LIST [DV6400]
POS. NO
C1001 /F/U nsp *DF100390R FILM CAP. 0.01µF/250V K OR 0.01µF/275V K
C1001 /N/S *DF100360R *DF100360R FILM CAP. 0.047µF/250V K OR M CT2E473DC011 OR
C1006 /F/U nsp *DK100860R CERAMIC CAP. 2200pF/250V OR 2200pF/125V CCD2EMA0E222 OR
C1006 /N/S *DK100860R *DK100850R CERAMIC CAP. SAFETY CAP. 2200pF/250V CCN2EMA0E222 OR
F1001 /F/U nsp *FS001140R FUSE FUSE 1A/250V PAGA20CW3102 OR
F1001 /N/S *FS001120R *FS001120R FUSE FUSE T1.6AL/250V PAGC20BW3162 OR
IC1204 *YJ002710R *YJ002710R OPT. CONNECTOR OPTIC TRANS.MODULE
JK1202 *YT003420R *YT003420R TERMINAL CINCH JACK(BLACK)
JK1401 *YT003380R *YT003380R TERMINAL S TYPE JACK MDC-050V-2.4 JXEL040LY001
JK1405 /F nsp *YT003560R TERMINAL D TERMINAL 14P DT-0102*001 JBDTJ14JD002
JK6101 /N *YT003390R *YT003390R TERMINAL CINCH JACK 21P RGB
JK6102 /N/S/U *YT003430R *YT003430R TERMINAL CINCH JACK 3PIN MSD-243V-19
JK6103 *YT003440R *YT003440R TERMINAL CINCH JACK 3PIN MSD-243V-31
L1001 /F/U nsp *FN000200R FILTER LINE FILTER 20MH SA-00911 LLBG00ZSA003
L1001 /N/S *FN000190R *FN000190R FILTER 50MH
SA1001 *HV000050R *HV000050R VARISTOR PVR-10D471KB/CNR-10D471K NVQZ10D471KB OR
T1001 /F/U nsp *TP000070R TRANSF. PULSE TRANS CSA-SW0215B LTT00CPSA132
T1001 /N *TS002050R *TS002050R TRANSF. MAINS TRANSFORMER
T1001 /S nsp *TS002070R TRANSF. MAINS TRANSFORMER
JK7101 *YT003450R *YT003450R TERMINAL CINCH JACK 6PIN MSD-246V-38
VERS.
COLOR
PART NO.
(FOR EUR)
PART NO.
(MJI)
ELECTRICAL PARTS LIST
AV CBA
SACD CBA
DESCRIPTION
OR 0.01µF/250V M
GP1FA513TZ
MSP-251V-10 GILT
AJ-2050*040
GILT
GILT
LF-4Z-E503/LF-4D-E503/
TLF14CB5630R2
CSA-SW0215C
CSA-SW0308A
GILT
CT2E103DC011 OR
CT2E103HJE05 OR
CT2E103MS037
CT2E473MS037
CCG2EMA0F222 OR
CCG2BMA0E222
CA2E222MR049
PAGG20CAG102
1790994
JWHHA00SH005
JXRL010LY090
JXGL210JD002
JXRL030LY092
JXRL030LY089
LLBG00ZKQ008 OR
LLBG00ZKQ009 OR
LLBG00ZTU022
NVQZR10D471K
LTT00EPSA141
LTT00ZPSA144
JXRL060LY091
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
1-15-2
5
Loading...
