STUDIO LINE 2000

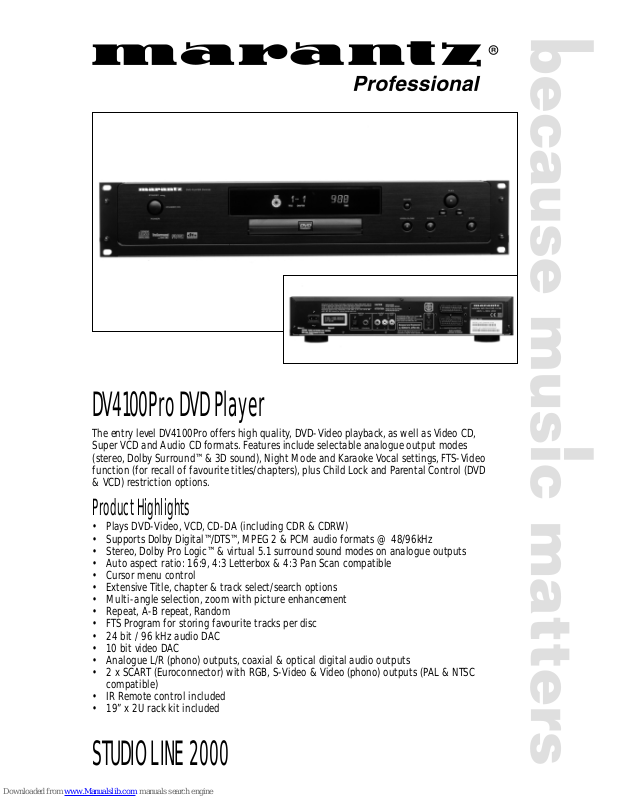

The entry level DV4100Pro offers high quality, DVD-Video playback, as well as Video CD,
Super VCD and Audio CD formats. Features include selectable analogue output modes
(stereo, Dolby Surround™ & 3D sound), Night Mode and Karaoke Vocal settings, FTS-Video
function (for recall of favourite titles/chapters), plus Child Lock and Parental Control (DVD
& VCD) restriction options.
DV4100Pro DVD Player
Product Highlights
• Plays DVD-Video, VCD, CD-DA (including CDR & CDRW)
• Supports Dolby Digital™/DTS™, MPEG 2 & PCM audio formats @ 48/96kHz
• Stereo, Dolby Pro Logic™ & virtual 5.1 surround sound modes on analogue outputs
• Auto aspect ratio: 16:9, 4:3 Letterbox & 4:3 Pan Scan compatible
• Cursor menu control
• Extensive Title, chapter & track select/search options
• Multi-angle selection, zoom with picture enhancement
• Repeat, A-B repeat, Random
• FTS Program for storing favourite tracks per disc
• 24 bit / 96 kHz audio DAC
• 10 bit video DAC
• Analogue L/R (phono) outputs, coaxial & optical digital audio outputs
• 2 x SCART (Euroconnector) with RGB, S-Video & Video (phono) outputs (PAL & NTSC
compatible)
• IR Remote control included
• 19” x 2U rack kit included
Page 2
Marantz Professional Kingsbridge House Padbury Oaks 575-583 Bath Road Longford Middlesex UB7 0EH United Kingdom
Telephone: +44 1753 686080 Fax: +44 1753 686020 Internet: www.marantz.com
Technical Specifications
System
Playback systems DVD-Video (1.0), Video CD (2.0), CD-DA (CD-R and CD-RW)
DVD disc format
Medium 120/80mm Optical Disc, dual laser
Playing time (average) 2h/layer, max 4 layers (120mm disc)
Video formats
Video output format PAL (50Hz) NTSC(60Hz)
Number of lines 625 525
Video encoding system MPEG2 for DVD, MPEG1 for VCD
DA Converter 10 bits, 27MHz
DVD PAL NTSC
Horizontal Resolution 720 pixels 720 pixels
Vertical Resolution 576 lines 480 lines
VCD
Horiz. Resolution 352 pixels 352 pixels
Vertical Resolution 288 lines 240 lines
Video performance
Video output 1 Vpp/75 Ω
S-Video output Y: 1 Vpp/75 Ω
C: 0.3 Vpp/75 Ω
RBG outputs 1 Vpp/75 Ω
Video Shift Left/Right
Audio formats
Digital MPEG, DTS, Dolby Digital, PCM
16, 20, 24 bits, fs = 44.1/48/96 kHz
Analogue Stereo, Dolby Pro Logic™ downmix,
3D Sound for virtual 5.1 channel sound on 2 speakers
Audio performance
DA Converter 24 bits
DVD fs 96 kHz 4 Hz - 44 kHz
fs 48 kHz 4 Hz - 22 kHz
Video CD fs 48 kHz 4 Hz - 22 kHz
CD fs 44.1 kHz 4 Hz - 20 kHz
Signal-Noise (1kHz) 103 dB
Dynamic Range (1kHz) 98 dB
Crosstalk (1kHz) 115 dB
Distortion and Noise (1kHz) 95 dB
Connections
SCART 2xEuroconnector incl RGB
S-Video Output Mini DIN, 4 pins
Video Output Cinch (yellow)
Audio L+R output Cinch (white/red) 2x
Digital Output 1 coaxial, 1 optical
IEC958 for CDDA / LPCM
IEC1937 for MPEG1/2, AC-3 and DTS
General
Power supply AC230V/50Hz/20W (10W STBY)
Dimensions (WxHxD):
Cabinet 440x92x305mm
Max (incl. 19” rack and knobs/connectors, feet removed) 483x89x305mm
Weight (kg) 3.8 (4.6 incl. 19” kit)
Shipping info 5kgs, 50x18x40cm
Shipping info 19” kit 1.0kgs, 51x6x21cm
Marantz Europe b.v. All rights reserved.
Marantz reserves the right to change the design and specification of goods without notice.
Availability of models may vary from country to country.
“Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.
“DTS” and “DTS Digital Surround” and trademarks of Digital Theatre Systems Inc, Copyright 1998, Digital Theatre Systems, Inc. All rights reserved.

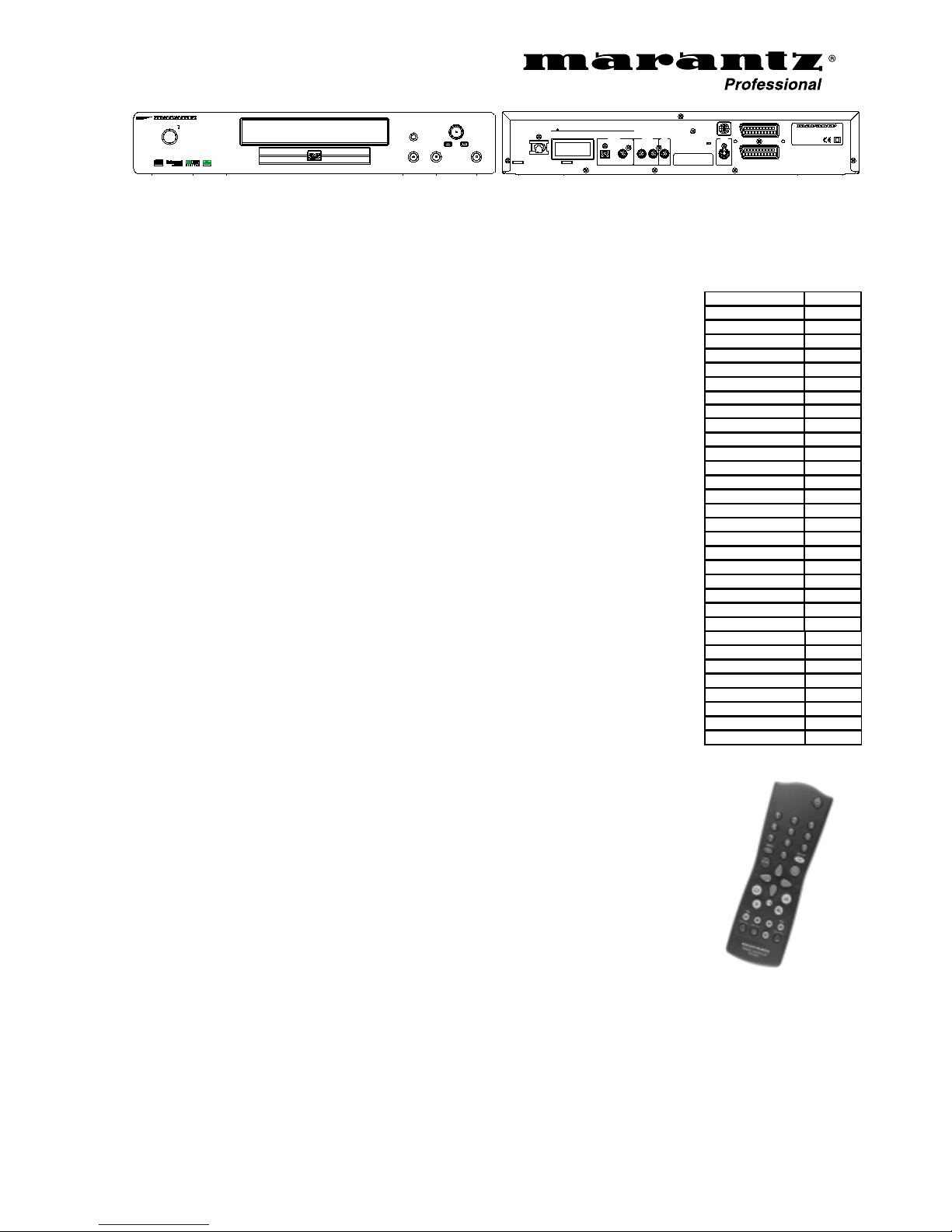

DIGITAL OUT
DIGITAL VIDEO
POWER
PLAY
PREV
STANDBY/ON
PAUSE
SURROUND
NEXT STOP
OPEN/CLOSE
DVD PLAYER DV4100
trademarks of Digital Theater Systems,Inc.
"DTS"and"DTS Digital Surround"are
are trademarks of SRS Labs,Inc.
TRUSURROUND,SRS,and the symbol
under license from SRS Labs,Inc.
TRUSURROUND technology is manufactured
by MARANTZ JAPAN INC.
Designed and Engineered
VIDEO
OUT
S1
TV
AUX
A/V EUROCONNECTOR
OUTOUT
AUDIO
VIDEO
DIGITAL
OPTICAL COAXIAL
RL
OUT
NE PAS ENLEVER LES VIS.
RISQUE DE CHOC ELECTRIQUE,
CAUTION:
ATTENTION:
DO NOT REMOVE SCREWS.
SHOCK HAZARD,
ЗуЗиЗнЗгЗмЕ@ЗЙЕ@ЗPЗXЗXЗQЕ|ЗPЗXЗXЗVЕ@ЗcЗиЗеЗЗЗфЕ@ЗеЗЕЗЗЗиЗнЗЕЗоЗиЗнЗвЗЦЗмЕCЗвЗйЗЙЕDЗ`ЗеЗеЕ@ЗнЗвЗбЗаЗоЗмЕ@ЗнЗЦЗмЗЦЗнЗсЗЦЗСЕD
ЗСЗиЗпЗЗЗеЗЦЕ|ЗcЕ@ЗмЗфЗзЗЗЗиЗеЕ@ЗЕЗнЗЦЕ@ЗоЗнЗЕЗСЗЦЗзЗЕЗнЗгЗЦЗмЕ@ЗиЗЬЕ@ЗcЗиЗеЗЗЗфЕ@ЗkЗЕЗЗЗиЗнЗЕЗоЗиЗнЗвЗЦЗмЕDЗbЗиЗйЗЬЗвЗСЗЦЗйЗоЗвЗЕЗеЕ@ЗпЗйЗкЗпЗЗЗеЗвЗмЗаЗЦЗС
ЗlЗЕЗйЗпЗЬЗЕЗЙЗоЗпЗнЗЦЗСЕ@ЗпЗйЗСЗЦЗнЕ@ЗеЗвЗЙЗЦЗйЗмЗЦЕ@ЗЬЗнЗиЗзЕ@ЗcЗиЗеЗЗЗфЕ@ЗkЗЕЗЗЗиЗнЗЕЗоЗиЗнЗвЗЦЗмЕDЕзЗcЗиЗеЗЗЗфЕзЕCЕзЗoЗqЗnЕ@ЗkЗnЗfЗhЗbЕзЗЕЗйЗСЕ@ЗоЗаЗЦ
ЗЬЗиЗнЕ@ЗеЗвЗзЗвЗоЗЦЗСЕ@ЗсЗвЗЦЗуЗвЗйЗбЕ@ЗпЗмЗЦЗмЕ@ЗиЗйЗеЗфЕD
З`ЗкЗкЗЕЗнЗЕЗоЗпЗмЕ@ЗbЗеЗЕЗвЗзЗмЕ@ЗиЗЬЕ@ЗtЕDЗrЕDЗoЗЕЗоЗЦЗйЗоЕ@ЗmЗиЗмЕDЗSЕCЗUЗRЗPЕCЗUЗOЗRЕDЕ@ЗSЕCЗTЗVЗVЕCЗQЗPЗUЕDЗSЕCЗWЗPЗXЕCЗOЗXЗWЕDЗЕЗйЗСЕ@ЗSЕCЗXЗOЗVЕCЗOЗXЗRЕ@ЗеЗвЗЙЗЦЗйЗмЗЦЗС
I.H.T. IEC 825
KLASSE 1 LASER PRODUKT
CLASS 1 LASER PRODUCT
R
MODEL NO.DV4100/N1B
230V Å` 50HZ 20W
MADE IN HUNGARY
SERIAL NO.
Å`
FABRIQUE EN HONGRIE
DV4100Pro DVD Player
STANDBY 004 012
NUMERIC ‘1’
004 001
NUMERIC ‘2’
004 002
NUMERIC ‘3’ 004 003
NUMERIC ‘4’ 004 004
NUMERIC ‘5’ 004 005
NUMERIC ‘6’ 004 006
NUMERIC ‘7’
004 007
NUMERIC ‘8’
004 008
NUMERIC ‘9’ 004 009
DVD MENU 004 209
NUMERIC ‘0’ 004 000
OSD MENU 004 015
RETURN
004 131
UP (CURSOR) 004 088
OK 004 092
LEFT (CURSOR) 004 090
RIGHT (CURSOR) 004 091
SUBTITLE 004 075
DOWN (CURSOR) 004 089
AUDIO 004 078
ANGLE 004 133
T-C 004 200
ZOOM
004 247
RC6 Command Set
SKIP (-) 004 033
STOP 004 049
PLAY 004 044
SKIP (+) 004 032
REPEAT 004 029
A-B 004 059
PAUSE/STEP
004 048
SHUFFLE 004 028
