Manitowoc Ice RNS20A PARTS LIST

For more Parts Information:

https://manitowocfsg.sysonline.com/Default.aspx

TABLE OF CONTENTS

Manitowoc Foodservice [Updated: Sep. 30, 2013]
Manitowoc - Ice & Related
Parts Catalog
Ice Machine
RNS Series
RNS Model - CounterTop
RNS12, RNS20
RNS012 RNS020 Control Box 1
RNS012 RNS020 Evaporator Assembly 3
RNS012 RNS020 Refrigeration Compartment - View 1 6
RNS012 RNS020 Refrigeration Compartment - View 2 9
RNS012 RNS020 - Air-cooled Compartment 12
RNS012 RNS020 Panels 14

i

RNS12, RNS20

RNS012 RNS020 CONTROL BOX

RNS012_RNS020_2.PDF

1

RNS12, RNS20

RNS012 RNS020 CONTROL BOX

# PART # DESCRIPTION QTY Note
1 000001238 Control Board

1a 4302253 Control Board Mounting Supports
2 2511493 10 Amp Fuse
3 2007939 Toggle Switch
3a 2009873 Toggle Switch Wiring Harness
4 Contactor
4a 2006589 Contactor - 115V/60 Hz/1 Ph
4b 2006599 Contactor - 230V/50-60 Hz/1 Ph
5 Gearmotor Run Capacitor
5a 000007825 Gearmotor Capacitor - 115V/60 Hz/1 Ph
5b 000007824 Gearmotor Capacitor - 230V/50 Hz/1 Ph
6 000010862 Boost Transformer
7 000008274 Wiring Harness - Power
8 2009523 Selector Switch [1]
8a 6067221 Bracket - Selector Switch [1]
8b 5012319 Screw - #12-16 x 0.75"
8c 5202069 Screw - #10-24 x 0.50" HEX
8d 2009723 Wiring Harness - Selector Switch [1]
9 000010710 Touch Pad Selector [2]
9a 000010742 Control Board - Touch Pad [2]
9b 000010745 Bracket - Touch Pad [2]
9c 5202069 Screw - #10-24 x 0.50" HEX
9d 000010750 Wiring Harness - Touch Pad [2]
10 000008461 Control Box
11 000000734 Control Box Cover
11a 5202069 Screw - #10-24 x 0.50" HEX
12 6024953 Capacitor Mounting Strap
13 5202109 Screw - #10-24 x 0.375"
14 2501409 Bushing - 0.875"
15 2500139 Bushing - 1.5"

PART NOTES:

[1] - Manufactured Before 01/2013
[2] - Manufactured After 01/2013

RNS012_RNS020_2.PDF

2

RNS12, RNS20

RNS012 RNS020 EVAPORATOR ASSEMBLY

RNS012_RNS020_3.PDF

3

RNS12, RNS20

RNS012 RNS020 EVAPORATOR ASSEMBLY

# PART # DESCRIPTION QTY Note
1 Evaporator Assembly

1a 000008357 Entire Evaporator Assembly
1b 000004018 Cutter Head/Upper Bearing Assembly
2 000008939 Ice Wiper Stud
3 000009158 Extruder with bushing
4 000009157 Auger
5 000008940 O-ring Gasket
6 000006426 Water Seal
7 000005583 O-ring Gasket
8 000005782 Water Seal Retainer
9 000008354 Seal Ring
10 000008355 Bearing
11 000008356 Foundation
12 000008358 Joint
13 Gear Box/Motor Assembly
13a 000011126 Gearmotor Assembly - 115V/60 Hz/1 Ph
13b 000011800 Gearmotor Assembly - 208-230V/50-60 Hz/1 Ph
13c 000008631 Wiring Harness - Gearmotor
14 Gearmotor Capacitors
14a 000007825 Gearmotor Capacitor - 115V/60 Hz/1 Ph
14b 000007824 Gearmotor Capacitor - 230V/50 Hz/1 Ph
15 000006516 Float Chamber Assembly [1]
15a 2008633 Float Switch Only
15b 000006515 Float Chamber Only
16 Water Dispense Valve
16a 2009093 Water Dispense Valve - 115V/60 Hz/1 Ph
16b 2009103 Water Dispense Valve - 230V/50 Hz/1 Ph
16c 5002943 Elbow 3/8 x 1/4
16d 000001180 Speed fit
16e 000000469 Fitting
17 000008205 Molded Vinyl Tube
18 Dispenser Motor
18a 000002191 Dispenser Motor - 115V/60 Hz/1 Ph
18b 000002192 Dispenser Motor - 230V/60 Hz/1 Ph
19 Dispenser Motor Mounting
19a 000007423 Dispenser Motor Mounting - Bracket
19b 5003383 Dispenser Motor Mounting - Screw
19c 5573209 Dispenser Motor Mounting - Star Washer
20 6066101 Float Valve Bracket
20a 5202069 Screw - #10-24 x 0.50" HEX
20b 5650729 Compression Nut
21 Gearmotor Mounting Base

RNS012_RNS020_3.PDF

4

RNS12, RNS20

RNS012 RNS020 EVAPORATOR ASSEMBLY

# PART # DESCRIPTION QTY Note
21a 000008007 RNS12 Gearmotor Mounting Base

21b 000008194 RNS20 Gearmotor Mounting Base
22 Evaporator Mounting to Bracket
22a 6069201 Mounting - Bracket
22b 5005423 Mounting - Bolt
22c 5573059 Mounting - Flatwasher
22d 5573139 Mounting - Lockwasher
23 2009483 Swivel Tee Male
24 Evaporator Mounting to Gear Motor
24a 5005653 Mounting - Bolt
24b 5005663 Mounting - Flatwasher
24c 5005673 Mounting - Lockwasher
25d 5202069 Mounting - Screw - #10-24 x 0.50" HEX
26 5650649 Hose Clamp - 0.759"/0.848" ID

PART NOTES:

[1] - includes float, switch, cover & housing

RNS012_RNS020_3.PDF

5

RNS12, RNS20

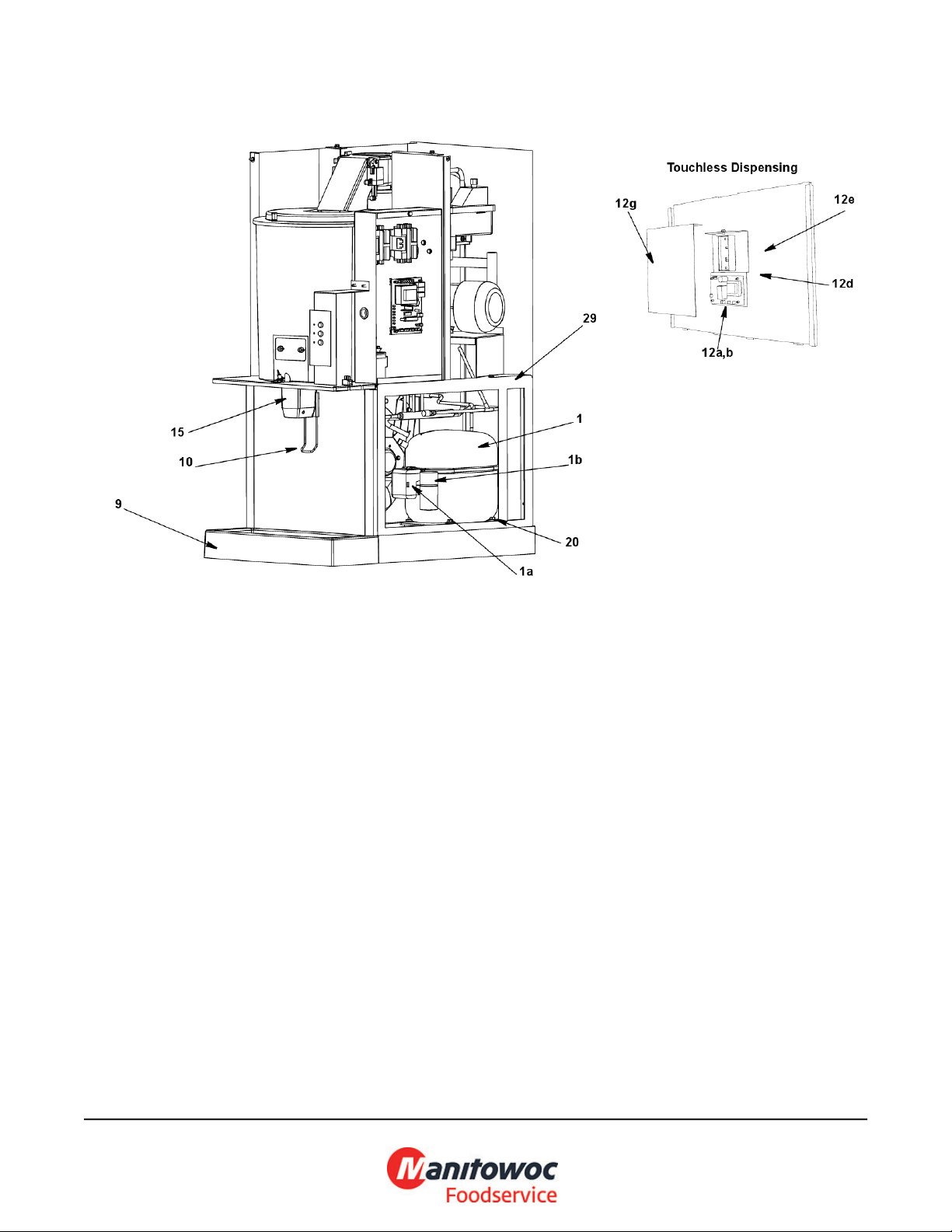

RNS012 RNS020 REFRIGERATION COMPARTMENT - VIEW 1

RNS012_RNS020_4.PDF

6

RNS12, RNS20

RNS012 RNS020 REFRIGERATION COMPARTMENT - VIEW 1

# PART # DESCRIPTION QTY Note
1 7601323 Compressor - Danfoss - 115V/60 Hz/1 Ph

1a 2002043 Current Relay with Overload - 115V/60 Hz/1 Ph
1b 2002033 Start Capacitor - 115V/60 Hz/1 Ph
1 7601333 Compressor - Danfoss - 230V/50 Hz/1 Ph
1a 2004873 Current Relay with Overload - 230V/50 Hz/1 Ph
1b 2004863 Start Capacitor - 230V/50 Hz/1 Ph
2 Water Dump Valve
2a 000007429 Water Dump Valve 115V
2b 000007428 Water Dump Valve 208-240V
3 000010515 Expansion Valve
4 000010676 Expansion Valve Body Insulation Boot
5 2001243 High Pressure Cut-out
6 000004012 Low Pressure Switch
7 8310233 Manifold Strainer
8 8930259 Drier
9 4013423 Drain Tray
9a 3006573 Grill/Wire Drain Tray Rack
10 4014783 Dispenser Arm
11 6068631 Lever Bracket
12 Touch Less Dispensing
12a 000000308 Control Board - 115V/60 Hz/1 Ph
12b 000000186 Control Board - 230V/50 Hz/1 Ph
12c 000000187 Control Board Support
12d 000008173 Sensor Block Assembly
12e 000000185 Bracket
12f 000000332 Screw
12g 000000580 Mylar Shield
13 000000310 Wiring Harness - Touchless Dispensing
14 2009463 Blue LED Light
15 000002247 Ice Dispense Chute
16 2009453 Momentary Switch
17 5000673 Coupling Male Reducing 3/8" x 1/4"
18 9000853 Water Dispense Tubing - 21.5"
19 8373253 Access Valve
20 Compressor Mounting
20a 5004203 Mounting - Grommet
20b 5000939 Mounting - Screw
20c 5004213 Mounting - Sleeve
20d 5000979 Mounting - Washer
20e 2512043 Strain Relief Bushing
21 8706093 Female Wing Adapter - 0.375"
21a 5202069 Screw - #10-24 x 0.50" HEX

RNS012_RNS020_4.PDF

7

RNS12, RNS20

RNS012 RNS020 REFRIGERATION COMPARTMENT - VIEW 1

# PART # DESCRIPTION QTY Note
22 2009483 Swivel Tee Male

23 4420291 Vinyl Tube - 0.25" OD
24 6039081 Water Inlet Tubing Insulation
25 2500139 Bushing - 1.5"
26 2512043 Strain Relief Bushing
26a 000000081 Power Cord
26b 000000082 Power Cord - 230V/50 Hz
27 6066241 Water Dump Valve Bracket
27a 5202329 Screw - #10-24 x 0.25" PH
28 Drain Tray
28a 4015853 Vinyl Tube
28b 5650663 Clamp - 1.218 x 1.405
29 Support Bracket
29a 000006716 Support Bracket - RNS12
29b 000008004 Support Bracket - RNS20
30 Suction Line
30a 000010517 Suction Line - RNS12
30b 000010518 Suction Line - RNS20
31 Liquid Line
31a 000008458 Liquid Line - RNS12
31b 000008196 Liquid Line - RNS20

RNS012_RNS020_4.PDF

8

RNS12, RNS20

RNS012 RNS020 REFRIGERATION COMPARTMENT - VIEW 2

RNS012_RNS020_6.PDF

9

RNS12, RNS20

RNS012 RNS020 REFRIGERATION COMPARTMENT - VIEW 2

# PART # DESCRIPTION QTY Note
1 Bin Liner

1a 4013313 Bin Liner RNS012
1b 4015023 Bin Liner RNS020
2 5005623 Bottom Adapter [1]
3 4014453 Cover
3a 5305123 Thumbscrew SS - #8-32 x 0.44"
4 3006573 Grill/Wire Drain Tray Rack
5 4015073 Four into One Drain
5a 5202069 Screw - #10-24 x 0.50" HEX
6 6072021 Interchangeable Drain Tube
7 000002201 Dispense Wheel
7a 000002245 Thumbscrew
8 000002203 Agitator Bar
8a 000000325 Washer
8b 000002243 O-ring
9 5005823 Drive Pin
10 000012605 Ice Deflector
11 6069031 Support Plate
11a 5005503 Wingnut
12 2009793 Hall Effect Switch with Wiring
13 2009803 Hall Effect Switch Housing
13a 5121629 Screw
14 5650853 Receptacle
14a 5000453 Wing-head Mounting Stud
15 4014443 Damper Door Nugget
16 4013363 Ice Chute
17 4014883 Strainer Ramp
18 4013463 Chute Cover - sits on receptacle
19 000002062 Ice Wiper - Nugget
20 5005523 Thumbscrew [2]
21 Dispenser Motor
21a 000002191 Dispenser Motor - 115V/60 Hz/1 Ph
21b 000002192 Dispenser Motor - 230V/60 Hz/1 Ph
21c 000002245 Thumbscrew
21d 000000325 Washer
22 Secure Ice Chute to Evaporator
22a 000000464 Clamp Assembly
22b 000005183 Clamp Seal
23 Secure Dispenser Motor to Bin
23a 5573209 Star Washer
23b 5202069 Screw - #10-24 x 0.50" HEX

RNS12 Tubing [3]

RNS012_RNS020_6.PDF

10

RNS12, RNS20

RNS012 RNS020 REFRIGERATION COMPARTMENT - VIEW 2

# PART # DESCRIPTION QTY Note
24 4420383 Clear Tubing - 0.625" ID

25 4420383 Clear Tubing - 0.625" ID
26 4015763 Float Overflow
27 4420383 Clear Tubing - 0.625" ID
28 5650609 Snap Clamp - 1.0" ID

RNS20 Tubing [3]
29 4420383 Clear Tubing - 0.625" ID
30 4420383 Clear Tubing - 0.625" ID
31 4015943 Float Overflow
32 4420383 Clear Tubing - 0.625" ID
33 5650609 Snap Clamp - 1.0" ID

RNS20 Model Only
34 5005503 Wingnut [4]
35 000012602 Ice Breaker Mounting Bracket [5]
36 000002197 Ice Breaker [4]
37 000002244 Mounting Bolts [4]
38 000002196 Upright Agitator Bar [4]
39 Upright Agitator Bar - Obsolete - Replaced by Kit
39a 000002776 Upright Agitator Bar 115V/60 Hz/1 Ph [4]
39b 000002777 Upright Agitator Bar 230V/60 Hz/1 Ph [4]

PART NOTES:

[1] - 1/2 N.P.T. x 1/2 Barbed
[2] - RNS12 Only
[3] - (four in one drain)
[4] - RNS20 Model Only
[5] - (1 piece)

RNS012_RNS020_6.PDF

11

RNS12, RNS20

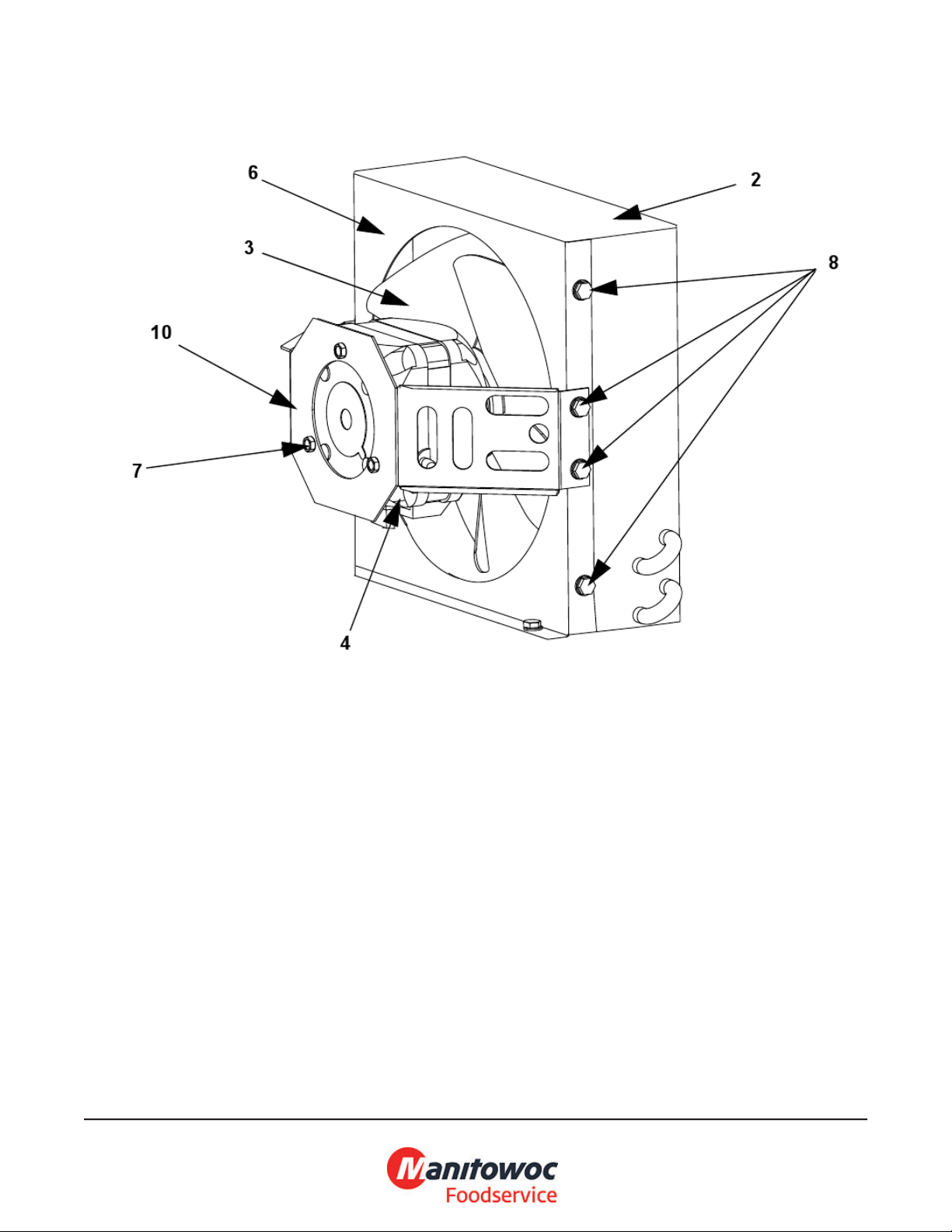

RNS012 RNS020 - AIR-COOLED COMPARTMENT

RNS012_RNS020_8.PDF

12

RNS12, RNS20

RNS012 RNS020 - AIR-COOLED COMPARTMENT

# PART # DESCRIPTION QTY Note
1 Compressor [1]

2 8252859 Air Condenser
3 2416223 Fan Blade
4 Fan Motor
4a 000006656 Fan Motor - 115V/60 Hz/1 Ph
4b 2412823 Fan Motor - 208-230V/50-60 Hz
5 2001263 Fan Cycling Control - 200-250 psig [2]
6 6065801 Fan Shroud
7 5005513 Screw 0.7 x 8 mm
8 5202069 Screw - #10-24 x 0.50" HEX
9 5475079 Speed Nut - 0.25" x 20
10 000000409 Fan Motor Bracket

PART NOTES:

[1] - Refer to COMMON PARTS PAGE
[2] - \pages from 200126_09.jpg" width=150 height=306>

RNS012_RNS020_8.PDF

13

RNS12, RNS20

RNS012 RNS020 PANELS

RNS012_RNS020_9.PDF

14

RNS12, RNS20

RNS012 RNS020 PANELS

# PART # DESCRIPTION QTY Note
1 Front Panel Assembly

1a 6068241 RNS12 Front Panel Assembly
1b 6070801 RNS20 Front Panel Assembly
2 6068481 Lever Activated - Lower Front Panel
2a Touchless - Lower Front Panel
2b 000000338 Touchless - Lower Front Panel Assembly 115V/60 Hz/1 Ph
2c 000000383 Touchless - Lower Front Panel Assembly 230V/60 Hz/1 Ph
2d 000000645 Front Panel Label
3 8251713 Air Filter
4 4014463 Top Cover
5 Back Panel
5a 6068151 RNS12 Back Panel
5b 6071361 RNS20 Back Panel
6 Right Side Panel - Non-Louvered
6a 000008006 RNS12 - Right Side Panel - Non-Louvered
6b 000008177 RNS20 - Right Side Panel - Non-Louvered
7 Left Side Panel - Louvered
7a 000008005 RNS12 - Left Side Panel - Louvered
7b 000008178 RNS20 - Left Side Panel - Louvered
8 5202069 Screw - #10-24 x 0.50" HEX [1]
9 000000458 Thumbscrew [2]
10 5005573 Side Panel Screws
11 000000741 Side Panel Nuts
12 5012349 Screws [3]
13 5202099 Screw - #10-24 x 0.50" PHIL
14 4014703 Front Panel Top End Cap
15 5012349 Screws
16 Cartoning
16a 000002781 Cartoning [4]
16b 000011198 Cartoning [5]

PART NOTES:

[1] - mounts back panel
[2] - Top Cover
[3] - inside
[4] - RNS12
[5] - RNS20

RNS012_RNS020_9.PDF

15
