Makita DFT085F, DFT127F User Manual

INSTRUCTION MANUAL MANUEL D'INSTRUCTION MANUAL DE INSTRUCCIONES

Cordless Screwdriver Visseuse sans Fil Atornillador Inalámbrico

DFT085F DFT127F

IMPORTANT: Read Before Using. IMPORTANT : Lire avant usage. IMPORTANTE: Lea antes de usar.

ENGLISH (Original instructions)

SPECIFICATIONS

Model: DFT085F DFT127F

Fastening torque Hard joint 3 - 8 N•m (27 - 71 in•lbs) 5 - 12 N•m (44 - 106 in•lbs)

Soft joint 3 - 8 N•m (27 - 71 in•lbs) 5 - 12 N•m (44 - 106 in•lbs)

No load speed (RPM) 150 - 900 /min 100 - 600 /min

Dimensions (L x W x H) with BL1415NA battery 190 mm (7-1/2″) x 72 mm (2-13/16″) x 237 mm (9-3/8″)

with BL1430 battery 190 mm (7-1/2″) x 72 mm (2-13/16″) x 254 mm (10″)

Rated voltage D.C. 14.4 V

Standard battery cartridge BL1415NA, BL1430, BL1430B, BL1460A

Charger DC18RC, DC18RD, DC18SD, DC18SE, DC18SF

Net weight 1.3 - 1.8 kg (2.8 - 3.9 lbs)

• Due to our continuing program of research and development, the specications herein are subject to change without notice.

• Specications and battery cartridge may differ from country to country.

• The weight may differ depending on the attachment(s), including the battery cartridge. The lightest and heaviest combination, according to EPTA-Procedure 01/2014, are shown in the table.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

2. Avoid body contact with earthed or grounded

SAFETY WARNINGS

General power tool safety warnings

WARNING:

instructions. Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

2. Do not operate power tools in explosive atmo-

spheres, such as in the presence of ammable

liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will

reduce risk of electric shock.

Read all safety warnings and all

2 ENGLISH

surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of elec-

tric shock if your body is earthed or grounded.

3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase

the risk of electric shock.

4. Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords

increase the risk of electric shock.

When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord

suitable for outdoor use reduces the risk of electric shock.

6. If operating a power tool in a damp location is

unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI

reduces the risk of electric shock.

Personal Safety

1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating

power tools may result in serious personal injury.

2. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

Prevent unintentional starting. Ensure the switch is in

the off-position before connecting to power source and/ or battery pack, picking up or carrying the tool. Carrying

power tools with your nger on the switch or energising power tools that have the switch on invites accidents.

Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a

rotating part of the power tool may result in personal injury.

5. Do not overreach. Keep proper footing and balance at all times. This enables better control

of the power tool in unexpected situations.

6. Dress properly. Do not wear loose clothing or

jewellery. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewel-

lery or long hair can be caught in moving parts.

7. If devices are provided for the connection of

dust extraction and collection facilities, ensure these are connected and properly used. Use of

dust collection can reduce dust-related hazards.

Power tool use and care

1. Do not force the power tool. Use the correct power tool for your application. The correct

power tool will do the job better and safer at the rate for which it was designed.

Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled

with the switch is dangerous and must be repaired.

Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce

the risk of starting the power tool accidentally.

Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power

tools are dangerous in the hands of untrained users.

5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents

are caused by poorly maintained power tools.

6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different

from those intended could result in a hazardous situation.

Battery tool use and care

1. Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

2. Use power tools only with specically desig- nated battery packs. Use of any other battery packs may create a risk of injury and re.

3. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery termi-

nals together may cause burns or a re.

Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact acci-

dentally occurs, ush with water. If liquid contacts

eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

Have your power tool serviced by a qualied repair

person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

2. Follow instruction for lubricating and chang-

ing accessories.

Keep handles dry, clean and free from oil and grease.

Cordless screwdriver safety warnings

1. Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring.

Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

2. Always be sure you have a rm footing.

Be sure no one is below when using the tool in high locations.

3. Hold the tool rmly.

4. Keep hands away from rotating parts.

5. Do not touch the bit or the workpiece immediately after operation; they may be extremely hot and could burn your skin.

6. Always secure workpiece in a vise or similar hold-down device.

SAVE THESE INSTRUCTIONS.

WARNING:

with product (gained from repeated use) replace strict adherence to safety rules for the subject product.

MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

Symbols

The followings show the symbols used for tool.

Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble battery cartridge.

3 ENGLISH

DO NOT let comfort or familiarity

volts

direct current

no load speed

revolutions or reciprocation per minute

3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge: (1) Do not touch the terminals with any con-

ductive material.

(2) Avoid storing battery cartridge in a con-

tainer with other metal objects such as nails, coins, etc.

(3) Do not expose battery cartridge to water

or rain.

A battery short can cause a large current

ow, overheating, possible burns and even a

breakdown.

6. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn

out. The battery cartridge can explode in a re.

8. Be careful not to drop or strike battery.

9. Do not use a damaged battery.

10.

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements.

For commercial transports e.g. by third parties, forwarding agents, special requirement on packaging and labeling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required. Please also observe possibly more detailed national regulations. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

11. Follow your local regulations relating to dis-

posal of battery.

SAVE THESE INSTRUCTIONS.

CAUTION: Only use genuine Makita batteries.

Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing res, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.

Charge the battery cartridge with room temperature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. Charge the battery cartridge if you do not use it for a long period (more than six months).

FUNCTIONAL DESCRIPTION

CAUTION: Always be sure that the tool is

switched off and the battery cartridge is removed before adjusting or checking function on the tool.

Installing or removing battery cartridge

CAUTION: Always switch off the tool before

installing or removing of the battery cartridge.

CAUTION: Hold the tool and the battery car-

tridge rmly when installing or removing battery

cartridge. Failure to hold the tool and the battery cartridge rmly may cause them to slip off your hands and result in damage to the tool and battery cartridge and a personal injury.

► 1. Red indicator 2. Button 3. Battery cartridge

To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge.

To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely.

CAUTION: Always install the battery cartridge

fully until the red indicator cannot be seen. If not,

it may accidentally fall out of the tool, causing injury to you or someone around you.

CAUTION: Do not install the battery cartridge

forcibly. If the cartridge does not slide in easily, it is

not being inserted correctly.

4 ENGLISH

Checking the remaining battery capacity (BL1460A)

70%-100%

50%-70%

35%-50%

Overheat protection

When the tool/battery is overheated, the tool stops automatically. In this situation, let the tool/battery cool before turning the tool on again.

Overdischarge protection

When the battery capacity is not enough, the tool stops automatically. In this case, remove the battery from the tool and charge the battery.

Switch action

► 1. Indicator lamps 2. Check button

NOTE: Depending on the conditions of use and the

ambient temperature, the indication may differ slightly from the actual capacity.

20%-35%

0%-20%

When charging

When the charging begins, the rst (far left) indicating lamp begins to icker. Then, as charging proceeds, the other lamps light, one after the other, to indicate the battery capacity.

NOTE: If the indicator lamp does not turn on or icker when charging, the battery may be faulty. In this case, ask your local service center.

When using

When the tool is switched on, the lamps will light to indicate the remaining battery capacity. When the tool is switched off, the light goes out after approx. 5 seconds. When pushing the check button with the tool switched off, the indicator lamps turn on for approx. 5 seconds to show battery capacity. If the orange lamp ickers, the tool stops because of little remaining battery capacity (Auto-stop mechanism). Charge the battery cartridge or use a charged battery cartridge at this time. When the tool is used with the battery that has not been used for a long time and is switched on, no lamps may light up. The tool stops because of little remaining battery capacity at this time. Charge the battery properly.

Tool / battery protection system

The tool is equipped with a tool/battery protection system. This system automatically cuts off power to the motor to extend tool and battery life. The tool will automatically stop during operation if the tool or battery is placed under one of the following conditions:

Overload protection

When the tool/battery is operated in a manner that causes it to draw an abnormally high current, the tool stops automatically. In this situation, turn the tool off and stop the application that caused the tool to become overloaded. Then turn the tool on to restart.

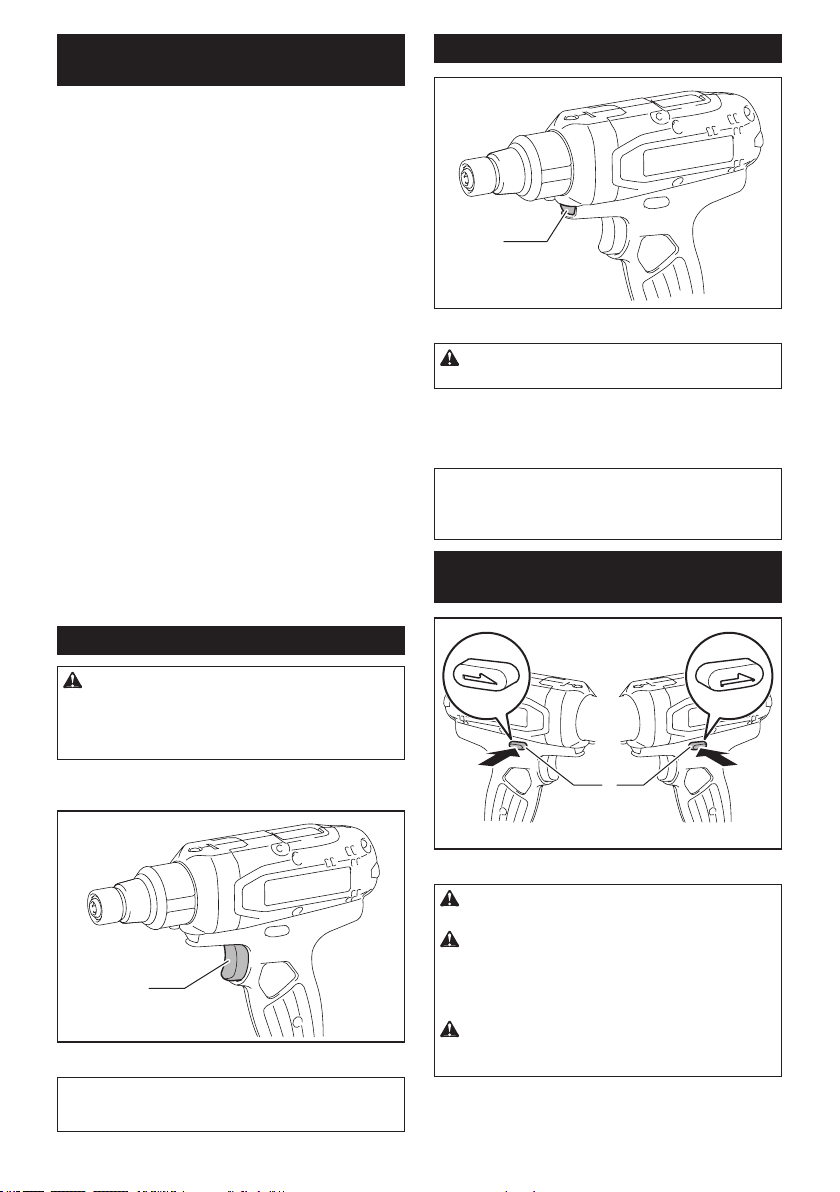

WARNING: Before installing the battery car-

tridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

To start the tool, simply pull the switch trigger. Release the switch trigger to stop.

► 1. Switch trigger

NOTE: For approximately one second after fastening,

the tool does not work even with the switch pulled.

Lighting up the front lamp

► 1. Lamp

CAUTION: Do not look in the light or see the

source of light directly.

Pull the switch trigger to light up the lamp. The lamp keeps on lighting while the switch trigger is being pulled. The lamp goes out approximately 10 seconds after releasing the switch trigger.

5 ENGLISH

NOTE: Use a dry cloth to wipe the dirt off the lens of

the lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination.

Reversing switch action

► 1. Reversing switch lever

CAUTION: Always check the direction of

rotation before operation.

CAUTION: Use the reversing switch only after

the tool comes to a complete stop. Changing the

direction of rotation before the tool stops may damage the tool.

CAUTION: When not operating the tool,

always set the reversing switch lever to the neutral position.

This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counterclockwise rotation. When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled.

LED indicator / Beeper

► 1. LED indicator

6 ENGLISH

LED indicator / Beeper on the tool shows the following functions.

Function Status of the tool Status of the LED indicator/beeper Action to be taken

LED indicator Beeper

Auto-stop with fastening completion

Alarm against insufcient fastening

Alarm for low battery capacity

Auto-stop with low remaining battery capacity

Check of the LED indicator, light and beeper operation

Anti-reset of controller The battery voltage

Overheat protection Tool's controller heated

Detection of switch trigger operation when installing battery

Motor failure detection Motor failure has been

Double-hitting detection When the operator

Maintenance alarm A maintenance time has

Alarm for unavailable data communication (with the tool in connection with PC)

Indication that data communication is available (with the tool in connection with PC)

The preset fastening torque has been achieved and the tool has stopped.

The preset fastening torque has not been achieved, because the switch trigger has released before complet-

ing the fastening.

The battery power became low and it is time to replace the battery cartridge.

The battery power is almost used up and the tool stopped.

When the battery cartridge is installed, the tool checks for its LED indicator, light and beeper.

dropped abnormally for some reason, and the tool stopped.

up abnormaly and the tool stopped.

When the battery cartridge is installed with the switch trigger pulled, the tool stops to avoid unintentional start.

detected. At this time, tool does not work.

starts to re-fasten an

already-fastened screw, the tool detect it and stops.

come according to your preset number of screws

driven.

Data cannot be exchanged between the tool and PC in spite of the connection.

The tool is connected to PC and data communication is available.

Lights up in green for approximately one second.

Lights up in red. A long beep Retighten the screw.

Flickers in red slowly. A series of long beeps Replace the battery with

Lights up in red. A long beep Replace the battery with

Lights up rst in green, next red. (And then the light comes on.)

Flickers in red and green alternatively.

Flickers in red quickly. A series of short beeps Remove the battery car-

Flickers in red and green alternatively.

Lights up in red. A long beep –

Flickers in yellow. – Reset the alarm with the

Flickers in yellow. – Restart the application

Flickers in green. – –

A series of very short beeps

A series of short beeps Replace the battery with

A series of short beeps Release the switch

A series of short beeps Ask your local Makita

– –

fully charged one.

tridge immediately and cool the tool down.

trigger.

Service Center for repair.

application software.

software and re-connect the USB cable.

–

7 ENGLISH

Adjusting the fastening torque

When you wish to drive machine screws, hex bolts, etc. with the predetermined torque, adjust the fastening torque as follows.

1. First remove the battery cartridge from the tool.

2. Loosen and remove the screw that secures ring.

3. Rotate the ring in the front of the tool by hand so

that a hole can be seen below the ring.

Install the battery cartridge in place. Pull the switch

trigger and release it so that the adjust ring rotates and the hole becomes visible. And then remove the battery cartridge.

Adjusting no-load speed and revolution angle etc.

You can adjust the no-load speed, number of turn, etc. of the tool with your computer. Install the application software in your computer and connect it to the tool with an USB cable.

► 1. Ring 2. Screw 3. Hole

5. Use an optional adjust grip to adjust the fastening

torque. Insert the pin of the adjust grip into the hole in the front of the tool. And then, turn the adjust grip clockwise to set a greater fastening torque, and counterclockwise to set a smaller fastening torque.

6. Align the yellow line with your desired number on

the fastening torque scale.

► 1. USB port 2. USB cover 3. USB cable

NOTICE: Make sure that the USB cover closed

when fastening.

NOTE: For the application software, please contact Makita sales representative.

ASSEMBLY

CAUTION: Always be sure that the tool is

switched off and the battery cartridge is removed before carrying out any work on the tool.

Installing or removing driver bit/ socket bit

Optional accessory

12 mm (15/32”)

9 mm (3/8”)

► 1. Adjust grip 2. Hole for adjust grip 3. Scale

4. Yellow line

7. Insert the battery cartridge and be sure that a

fastening torque has been set up by using a fastening

torque tester.

8. Rotate the ring in front of the tool and then tighten

the screw to secure the ring.

NOTE: Numbers on the fastening torque scale is a guideline to set up your desired fastening torque.

Use only the driver bit/socket bit shown in the gure. Do not use any other driver bit/socket bit.

8 ENGLISH

Place the point of the driver bit in the screw head and

apply pressure to the tool. Then switch the tool on. When the clutch cuts in, the motor will stop automatically. Then release the switch trigger.

► 1. Driver bit 2. Sleeve

To install the driver bit, pull the sleeve in the direction of the arrow and insert the driver bit into the sleeve as far as it will go. Then release the sleeve to secure the driver bit.

To remove the driver bit, pull the sleeve in the direction of the arrow and pull the driver bit out.

NOTE: If the driver bit is not inserted deep enough into the sleeve, the sleeve will not return to its original position and the driver bit will not be secured. In this case, try re-inserting the bit according to the instructions above.

NOTE: After inserting the driver bit, make sure that it is rmly secured. If it comes out, do not use it.

Installing hook

Optional accessory

The hook is useful to hang the tool. Install the hook to the holes on the tool body.

► 1. Hook 2. Hole

OPERATION

Screwdriving operation

CAUTION: Make sure that the bit is inserted

straight in the screw head, or the screw and/or bit may be damaged.

Limits of fastening capacity

Use the tool within the limits of fastening capacity. If you use the tool beyond the limits, the clutch does not work. And the tool cannot deliver enough fastening torque.

For model DFT085F

360°

300°

240°

180°

120°

60°

0°

1. Range of fastening capacity 2. Rotation angle

3. Torque

For model DFT127F

360°

300°

240°

180°

120°

60°

0°

1. Range of fastening capacity 2. Rotation angle

3. Torque

4 567

(27)

(35) (44) (53) (62) (71)

5867 9101112

(44) (53) (62) (71) (80) (89) (97) (106)

N•m

(ft•lbs)

N•m

(ft•lbs)

9 ENGLISH

NOTE: The rotation angle is the angle from the point that the bolt is tightened in 50% of desired torque to the point that the bolt is tightened in 100% torque.

NOTE: Use of a cold battery cartridge may give warning for battery capacity by LED indicator and beeper and stop the tool immediately, even if it is fully charged. In this case, the fastening capacity may be inferior to the specication on this manual.

MAINTENANCE

CAUTION: Always be sure that the tool is

switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.

NOTICE: Never use gasoline, benzine, thinner,

alcohol or the like. Discoloration, deformation or cracks may result.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

OPTIONAL ACCESSORIES

CAUTION: These accessories or attachments

are recommended for use with your Makita tool

specied in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service

Center.

• Adjust grip

• Protector (Yellow, Blue, Red, Clear)

• Hook

• Ring (Yellow, Blue, Red)

• Makita genuine battery and charger

NOTE: Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

MAKITA LIMITED ONE YEAR WARRANTY

Warranty Policy

Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during this one year period, return the COMPLETE tool, freight prepaid, to one of Makita’s Factory or Authorized Service Centers. If inspection shows the trouble is caused by defective workmanship or material, Makita will repair (or at our option, replace) without charge. This Warranty does not apply where:

• repairs have been made or attempted by others:

• repairs are required because of normal wear and tear:

• the tool has been abused, misused or improperly maintained:

• alterations have been made to the tool.

IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM THE SALE OR USE OF THE PRODUCT. THIS DISCLAIMER APPLIES BOTH DURING AND AFTER THE TERM OF THIS WARRANTY. MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED WARRANTIES OF "MERCHANTABILITY" AND "FITNESS FOR A SPECIFIC PURPOSE," AFTER THE ONE YEAR TERM OF THIS WARRANTY.

This Warranty gives you specic legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

10 ENGLISH

+ 22 hidden pages
