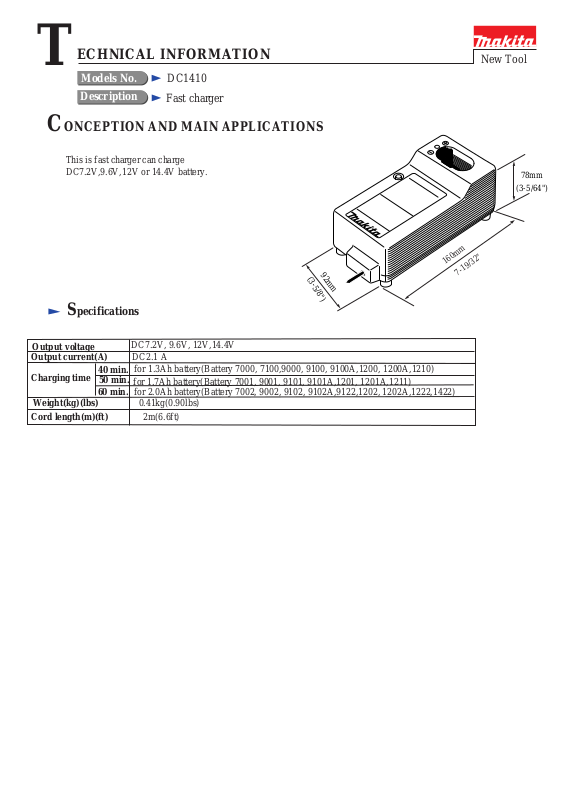

Page 1
T
ECHNICAL INFORMATION
New Tool
Models No.
Description
DC1410
Fast charger
CONCEPTION AND MAIN APPLICATIONS
This is fast charger can charge
DC7.2V,9.6V,12V or 14.4V battery.
Specifications
Output voltage
Output current(A)
Charging time
Weight(kg)(lbs)
Cord length(m)(ft)
40 min.
50 min.
60 min.
DC7.2V, 9.6V, 12V,14.4V
DC2.1 A
for 1.3Ah battery(Battery 7000, 7100,9000, 9100, 9100A,1200, 1200A,1210)
for 1.7Ah battery(Battery 7001, 9001, 9101, 9101A,1201, 1201A,1211)
for 2.0Ah battery(Battery 7002, 9002, 9102, 9102A,9122,1202, 1202A,1222,1422)
0.41kg(0.90lbs)
2m(6.6ft)
78mm
(3-5/64")
m
m
0
6
1
9
2
(
3
m
-
m
5
/
8
"
)
"
2
3
/
9
1
-
7
Page 2
Light weight
0.4Kg(0.90lbs)
Automatic charging of heated battery aftr use
You may leave heated battery,
after coolen-down,it automatically starts charging
High capacity battery can be charged.
1.3Ah battery(normal capacity)
Charging time :40min
1.7Ah battery(high capacity)
Charging time :50min
2.0Ah battery(high capacity)
Charging time :60min
Charging Condition is displayed by red or green lights
