Magellan RoadMate 5430T LM, RoadMate 5465T LMB Operating Guide

Magellan® RoadMate

5430T-LM, 5465T-LMB

User Manual

This page is not used.

www.magellangps.com RM 5430, 5465 User Manual

Safety Notice

IMPORTANT SAFETY WARNINGS

The Magellan RoadMate receiver is a vehicle-navigation aid designed to assist you in arriving at your selected destinations. When using the Magellan RoadMate receiver, these safety rules must be followed to prevent accidents that can result in injury or death to yourself or others:

Please check the applicable regulations in your state regarding windshield mounting. Certain states prohibit the mounting of any items on your windshield. Go to www.magellanGPS.com for alternative mounting solutions.

When driving, the need to view the display is minimal. Voice prompts will guide you to your destination. The driver should enter data or program the Magellan RoadMate receiver only when the vehicle is stationary. Only a vehicle passenger should enter data or program the Magellan RoadMate receiver while the vehicle is moving. Do not become distracted by the receiver while driving, and always be fully aware of all driving conditions.

It is your responsibility to comply with all traffic laws and to use the Magellan RoadMate and mounting options in such a manner that the user is in compliance with applicable laws.

Roads, points of interest (POIs), business and service locations may change over time. As a result the database may contain inaccuracy. Also, the database does not include, analyse, process, consider, or reflect any of the following: legal restrictions (such as vehicle type, weight, height, width, load and speed restrictions); road slope or gradient; bridge height, width, weight or other limits; population density; neighborhood quality or safety; availability or proximity of police, emergency rescue, medical or other assistance; construction work zones or hazards; road or lane closures; road, traffic or traffic facilities’ safety or condition; weather conditions; pavement characteristics or conditions; special events; traffic congestion. It is your responsibility to disregard any unsafe, hazardous or illegal route suggestions.

Keep the Magellan RoadMate receiver safe from extreme temperature conditions. For example, do not leave it exposed to direct sunlight for an extended period of time.

Take care when mounting the Magellan RoadMate receiver in your vehicle, whether using the windshield mount or other mounts, that it does not obstruct the driver’s view of the road, interfere with the operation of the vehicle’s safety devices such as air bags, or present a hazard to occupants of the vehicle should the receiver be dislodged while driving. It is your responsibility to assess the risks associated with damage to your vehicle or vehicle occupants as the result of your choices in mounting the Magellan RoadMate receiver.

Temperature

The maximum operating temperature is 140°F (60°C).

Battery

The battery in the Magellan RoadMate receiver is rechargeable and should not be removed. In the event that it should need to be replaced, please contact Magellan Technical Support.

Charging the Magellan RoadMate

An optional AC adapter is available as an accessory for your Magellan RoadMate. Use of another type of AC adapter can result in malfunction and/or possible fire hazard due to battery overheating.

RM 5430, 5465 User Manual www.magellangps.com

iii

Only use the car charger approved for/supplied with your Magellan RoadMate receiver. Use of another type of car charger may result in fire or electric shock.

For safety reasons, the battery in your Magellan RoadMate receiver will stop charging when the ambient temperature is less than 32°F (0°C) or more than 113°F (45°C).

It will take approximately 4 hours of charging the Magellan RoadMate receiver through the vehicle power adapter or optional AC adapter to obtain a full battery charge. It is recommended that you charge the battery initially for at least 2 hours.

Use only the charger approved for your Magellan RoadMate receiver.

Estimated usage of the Magellan RoadMate on battery power is approximately 30 minutes.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for class B digital devices, in accordance with part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment.

www.magellangps.com RM 5430, 5465 User Manual

The Magellan RoadMate receiver must be installed and operated at a distance no closer then 8 inches (20 cm) from the user.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

IC statement

Operation is subject to the following two conditions:

1. This device may not cause interference and

2. This device must accept any interference, including interference that may cause undesired operation of the device.

IMPORTANT NOTE:

IC Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits established for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Lifetime Traffic is for the lifetime of the GPS Device or until Magellan no longer receives relevant traffic data whichever is shorter. Lifetime Traffic may not be transferred to another Magellan device and may not be available in certain areas.

Lifetime Map Updates entitles you to receive up to four map updates per year for the lifetime of the GPS Device or until Magellan no longer received relevant map data whichever is shorter. Lifetime Map Update may not be transferred to another Magellan device. Internet connection required.

The information provided in this document is subject to change without notice. Improvements and enhancements to the product may occur without any formal notification. Check the Magellan website (www.magellanGPS.com/support) for product updates and additional information.

RM 5430, 5465 User Manual www.magellangps.com

© 2014 MiTAC International Corporation. The Magellan logo, Magellan, RoadMate and Quickspell are registered trademarks of MiTAC International Corporation. SmartDetour and OneTouch are trademarks of MiTAC International Corporation and are used under license by MiTAC International Corporation. All rights reserved.

All other products and brand names are trademarks of their respective holders.

No part of this user manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose other than the purchaser’s personal use, without the prior written permission of MiTAC International Corporation.

MiTAC International Corporation assumes no responsibility or liability for any errors or inaccuracies that may appear in the contents of this User Manual.

112-0071-001A

www.magellangps.com RM 5430, 5465 User Manual

Safety Notice

IMPORTANT SAFETY WARNINGS iii

Table of Contents

Fundamentals

Magellan RoadMate Receiver 1

Map Screen 2

Elements of the Map Screen 2

Map Screen Header Bar 2

Map Screen Map Area 3

Map Screen Footer Bar 5

Starting Up 5

Power On, Suspend, Power Off 5

Turning the Magellan RoadMate Receiver On 5

Turning the Magellan RoadMate Receiver Off (Suspend Mode) 5

Turning the Magellan RoadMate Receiver Off (Shutdown) 5

Adjustments 6

Adjusting the Volume 6

Muting the Volume 6

Changing the Data Field 6

Types of Data Available 6

Changing Zoom Levels 6

Changing the Map Style 7

Viewing Current Location Details 7

Saving Current Location 8

Keyboard

Keyboard Basics 9

Using the Keyboard to Enter an Address 9

RM 5430, 5465 User Manual www.magellangps.com

About street names: 10

About City Names: 10

Searching for POIs 10

Searching near a location 11

Content

Magellan RoadMate Content 13

Syncing Content 13

Adding Content 13

Adding Content at the Device 13

Adding Content Through SmartGPS Eco 14

PhantomALERTS 14

Customizing the Alerts 14

Points of Interest Visibility 14

Setting POI Visibility on Map 14

My Places

My Places 15

Address Book 15

Accessing the Address Book 16

Adding a Place to the Address Book 16

Editing a Place Name in the Address Book 16

Deleting a Place from the Address Book 17

Adding a Contact to the Address Book 17

Editing a Contact Name 17

Editing Contact information 18

Deleting a Contact in the Address Book 19

Adding a Trip to the Address Book 19

Editing the Trip’s Name in the Address Book 20

Deleting a Trip in the Address Book 20

Wish List 20

Accessing the Wish List 20

Deleting a Location from the Wish List 20

www.magellangps.com RM 5430, 5465 User Manual

Recent 21

Deleting Recent Destinations 21

OneTouch 21

Adding a OneTouch Button - Location 21

Deleting a OneTouch Button 21

Editing the Name of a OneTouch Button 21

Rearranging the OneTouch Buttons 22

Setting the Home Button 22

Routing

Map Screen While Routing 23

Maneuver Information 24

Maneuver Icons 24

Traffic Information 24

GO Screen 25

My Route 26

Creating and Revising Routes 27

Creating a Route from the Wish List 27

Creating a Route from Recent Places 27

Creating a Route from the OneTouch Menu 27

Creating a Route to a User-Entered Address 28

Creating a Route to a City Center 28

Creating a Route to an Intersection 28

Creating a Route to a POI (Point of Interest) 28

Creating a Multi Destination Route 29

Adding a Destination to a Route 29

Removing a Destination from a Multi Destination Route 29

Routing 30

Selecting the Data Field on the Map Screen 30

Cancelling a Route 30

Pause/Resume a Route 30

Detouring Around Traffic 30

RM 5430, 5465 User Manual www.magellangps.com

Detouring Around a Maneuver 30

Bluetooth (RM5465 only)

Using Bluetooth on the Magellan RoadMate 31

Pairing Your Phone 31

When Answering a Call 31

When Making a Call 31

Instructions 32

Answering a Call 32

Hanging Up 33

Creating a Call with the Dial Pad. 33

Redialing 33

Making an Emergency 911 Call 33

Making an Call using Speed Dial 33

Adding to the Speed Dial list 34

Deleting a Number from the Speed Dial list 34

Changing the Order of the Names in the Speed Dial list 34

Making an Call using the Phone Book 34

Managing the Contacts Phone Book 35

Setting Bluetooth to Auto-connect to Smartphone 35

Setting Audible Maneuver Warning 35

Settings

Settings Menu 37

General Settings 38

Software Update 38

Language 38

Units 38

Auto Power Off 38

Screen Brightness 38

Dim on Battery Power 38

Storage Information 39

Product Information 39

www.magellangps.com RM 5430, 5465 User Manual

End-User License Agreement 39

Acknowledgments 39

Navigation and Maps 39

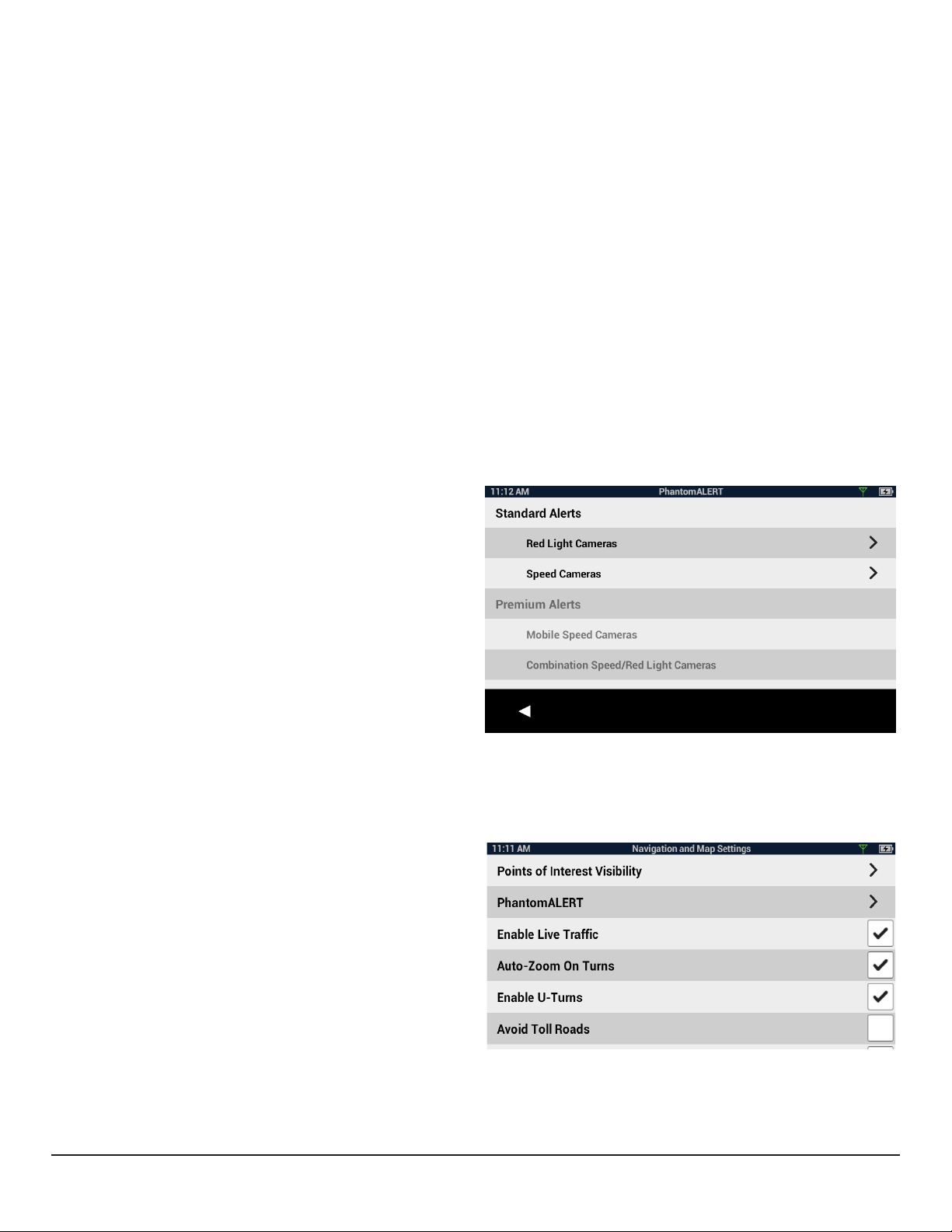

PhantomALERT 39

Points of Interest Visibility 39

Enable Live Traffic 39

Auto-Zoom on Turns 39

Enable U-Turns 40

Avoid Toll Roads 40

Avoid Unpaved Roads 40

Night Mode 40

Visible Speed Warning 40

Speed Limit Warning Threshold 40

Location 41

Region 41

Set GPS Position 41

Sounds 41

Volume 41

Smart Volume 41

Turn Warnings 41

Spoken Street Names 42

Audible Speed Warnings 42

Bluetooth (RM 5465 only) 42

Device Name 42

Auto-connect 42

Audible Maneuver Warning 42

Paired Phones 42

To Pair your Phone 42

RM 5430, 5465 User Manual www.magellangps.com

www.magellangps.com RM 5430, 5465 User Manual

Chapter

Fundamentals

Magellan RoadMate Receiver

C D

Home

Button Power

Button Reset Use to reset the device. Clears any active route..

microSD

Card Slot Headphone

Out USB

Connector

Press the Home button to return to the Map screen from any where in the Magellan RoadMate receiver.

Press and hold to turn the device on or to completely shutdown. Press momentarily to turn the device off (in suspend mode).

(optional) Additional maps may be made available that are stored on a microSD card.

Connect external headphones.

Connect to a power source or to a personal computer.

RM 5430, 5465 User Manual www.magellangps.com

Map Screen

The Map screen will be the screen most commonly used for driving and navigating to a destination. The following will familiarize you with the icons and details of this screen.

Elements of the Map Screen

Header

Bar

Map Area

Footer

Bar

Map Screen Header Bar

A B C D

Time of Day Time is transmitted from the GPS satellites using an atomic clock as

reference. The Magellan RoadMate factors in the time zone for your location as well as daylight savings time conditions to compute the local time displayed. There are no settings for the time displayed.

Bluetooth

Status (5465 only)

Traffic Signal

Status

Displays the current pairing status of the Bluetooth connection. When paired to a phone, the Magellan RoadMate receiver can be used as a remote interface for your phone.

To receive traffic signals you must be in an area where traffic signals are being transmitted and you must be using a Magellan-approved vehicle power adapter. When the Magellan RoadMate receiver is turned on, it may take a minute or more before any traffic information is displayed.

Bluetooth is paired to a phone.

Bluetooth is not paired to a phone.

www.magellangps.com RM 5430, 5465 User Manual

Traffic information is being received.

No traffic information is being received.

Battery

Status

Map Screen Map Area

The battery status icon indicates the current battery charging condition.

The internal battery is fully charged.

The battery is connected to an external power source and is charging.

Zoom Level Tap the “+” (zoom in) or “-” (zoom out) to change the map scale.

Alternately, you can use the two finger ‘pinch or spread’ technique commonly found in smartphones.

Volume Tap the Volume button to reveal a slider bar for volume control. Set

the slider all the way to the bottom to mute the sound.

Speaker On. Volume set by slider bar.

Speaker Muted.

RM 5430, 5465 User Manual www.magellangps.com

Current

Location Indicator

POI Icons The Magellan RoadMate receiver uses various POI icons to

Speed Limits While traveling on major roads the speed limit for the road you are

Displays the current location of the Magellan RoadMate receiver in relation to the displayed map. Tap on the Current Location Indicator to get information on your current location.

When the indicator is Blue, GPS signals are being received and the current location has been computed.

When the indicator is Red, GPS signals are not being received and the current location cannot be computed.

graphically display POIs for your surrounding area. Some of those are pointed out in the graphic. The POI graphic indicates the POI category. To select which POI Icons are displayed, go to ‘Settings > Navigation & Maps > Points of Interest Visibility’.

on is displayed. When you have exceeded the posted speed limit, the speed limit icon will have a red warning halo.

The Speed Limit Warning Threshold for highways and other roads can be set in ‘Settings > Navigation & Maps’.

Current posted speed limit.

Exceeding the posted speed limit by the threshold set in Settings > Navigation & Maps.

Data Field Contains information about your speed, elevation, or certain other

items. See “Types of Data Available” on page 6.

Alert Icons There are two standard alerts that can be displayed on the screen

when they are present in your area, Red Light Cameras and Fixed Speed Cameras. Premium Alerts can be purchased for the Magellan RoadMate receiver from the Magellan Store (www.magellangps.com/Shop).

Location of a red light camera.

Location of a fixed speed camera.

www.magellangps.com RM 5430, 5465 User Manual
