Magellan RoadMate 5320 LM User Manual

Magellan RoadMate

User Manual

IMPORTANT SAFETY WARNINGS

The Magellan RoadMate receiver is a vehiclenavigation aid designed to assist you in arriving at your selected destinations. When using the Magellan RoadMate receiver, these safety rules must be followed to prevent accidents that can result in injury or death to yourself or others:

Please check the applicable regulations in your state regarding windshield mounting. Certain states prohibit the mounting of any items on your windshield. Go to www.magellanGPS.com for alternative mounting solutions.

When driving, the need to view the display is minimal. Voice prompts will guide you to your destination. The driver should enter data or program the Magellan RoadMate receiver only when the vehicle is stationary. Only a vehicle passenger should enter data or program the Magellan RoadMate receiver while the vehicle is moving. Do not become distracted by the receiver while driving, and always be fully aware of all driving conditions.

Keep the Magellan RoadMate receiver safe from extreme temperature conditions. For example, do not leave it exposed to direct sunlight for an extended period of time.

Take care when mounting the Magellan RoadMate receiver in your vehicle, whether using the windshield mount or other mounts, that it does not obstruct the driver’s view of the road, interfere with the operation of the vehicle’s safety devices such as air bags, or present a hazard to occupants of the vehicle should the receiver be dislodged while driving. It is your responsibility to assess the risks associated with damage to your vehicle or vehicle occupants as the result of your choices in mounting the Magellan RoadMate receiver.

Temperature

The maximum operating temperature is 140°F (60°C).

Battery

It is your responsibility to comply with all trafﬁc laws and to use the Magellan RoadMate and mounting options in such a manner that the user is in compliance with applicable laws.

Roads, points of interest (POIs), business and service locations may change over time. As a result the database may contain inaccuracy. Also, the database does not include, analyse, process, consider, or reﬂect any of the following: legal restrictions (such as vehicle type, weight, height, width, load and speed restrictions); road slope or gradient; bridge height, width, weight or other limits; population density; neighborhood quality or safety; availability or proximity of police, emergency rescue, medical or other assistance; construction work zones or hazards; road or lane closures; road, trafﬁc or trafﬁc facilities’ safety or condition; weather conditions; pavement characteristics or conditions; special events; trafﬁc congestion. It is your responsibility to disregard any unsafe, hazardous or illegal route suggestions.

The battery in the Magellan RoadMate receiver is rechargeable and should not be removed. In the event that it should need to be replaced, please contact Magellan Technical Support.

Charging the Magellan RoadMate

An optional AC adapter is available as an accessory for your Magellan RoadMate. Use of another type of AC adapter can result in malfunction and/or possible ﬁre hazard due to battery overheating.

Only use the car charger approved for/supplied with your Magellan RoadMate receiver. Use of another type of car charger will result in ﬁre or electric shock.

For safety reasons, the battery in your Magellan RoadMate receiver will stop charging when the ambient temperature is less than 32°F (0°C) or more than 113°F (45°C).

It will take approximately 4 hours of charging the Magellan RoadMate receiver through the vehicle power adapter or optional AC adapter to obtain a full battery charge. It is

recommended that you charge the battery initially for at least 2 hours.

Use only the charger approved for your Magellan RoadMate receiver.

Estimated usage of the Magellan RoadMate on battery power is approximately 2 hours.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for class B digital devices, in accordance with part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the speciﬁc operating instructions for satisfying RF exposure compliance.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modiﬁcations made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment.

Reorient or relocate the receiving antenna. Increase the separation between the

equipment and receiver. Connect the equipment into an outlet on a

circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution:

expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

Any changes or modiﬁcations not

The Magellan RoadMate receiver must be installed and operated at a distance no closer then 8 inches (20 cm) from the user.

This Class B digital apparatus meets all requirements of the Canadian InterferenceCausing Equipment Regulations.

IC statement

Operation is subject to the following two conditions:

1. This device may not cause interference and

2. This device must accept any interference, including interference that may cause undesired operation of the device.

IMPORTANT NOTE:

IC Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits established for an uncontrolled environment. End users must follow the speciﬁc operating instructions for satisfying RF exposure compliance.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

One or more claims of the following patents may cover this product: U.S. patent No. 5,544,060, U.S. patent No. 5,654,892, U.S. patent No. 5,832,408 and U.S. patent No. 5,987,375

The information provided in this document is subject to change without notice. Improvements and enhancements to the product may occur without any formal notiﬁcation. Check the Magellan website (www.magellanGPS.com/support) for product updates and additional information.

© 2015 MiTAC International Corporation. The Magellan logo, Magellan, RoadMate and Quickspell are registered trademarks of MiTAC International Corporation. SmartDetour and OneTouch are trademarks of MiTAC International Corporation and are used under license by MiTAC International Corporation. All rights reserved.

All other products and brand names are trademarks of their respective holders. No part of this user manual may be reproduced or transmitted in any form or by any means,

electronic or mechanical, including photocopying and recording, for any purpose other than the purchaser’s personal use, without the prior written permission of MiTAC International Corporation.

The information provided in this document are correct at the time that it is created. MiTAC International Corporation assumes no responsibility or liability for any errors or inaccuracies that may appear in the contents of this User Manual.

112-0081-001 A

Table of Contents

Magellan RoadMate GPS Receiver ........................................................ 1

Fundamentals .......................................................................................3

Powering on the Magellan RoadMate receiver .............................................................. 3

Turning the Magellan RoadMate receiver On ..........................................................3

Turning the Magellan RoadMate receiver Off .........................................................3

Vehicle Proﬁle ................................................................................................................3

Bluetooth® ....................................................................................................................3

Pairing Bluetooth .................................................................................................... 3

Battery Levels ................................................................................................................ 3

Viewing the Battery Level Indicator ........................................................................4

Speaker Volume .............................................................................................................4

Changing the Volume from the Map Screen ............................................................4

Changing the Volume from Settings ....................................................................... 4

Setting Button Sounds On or Off .............................................................................4

Setting Smart Volume On or Off .............................................................................. 4

Brightness .....................................................................................................................4

Accessing the Brightness Control ...........................................................................4

Main Menu......................................................................................................................4

Accessing the Main Menu ....................................................................................... 5

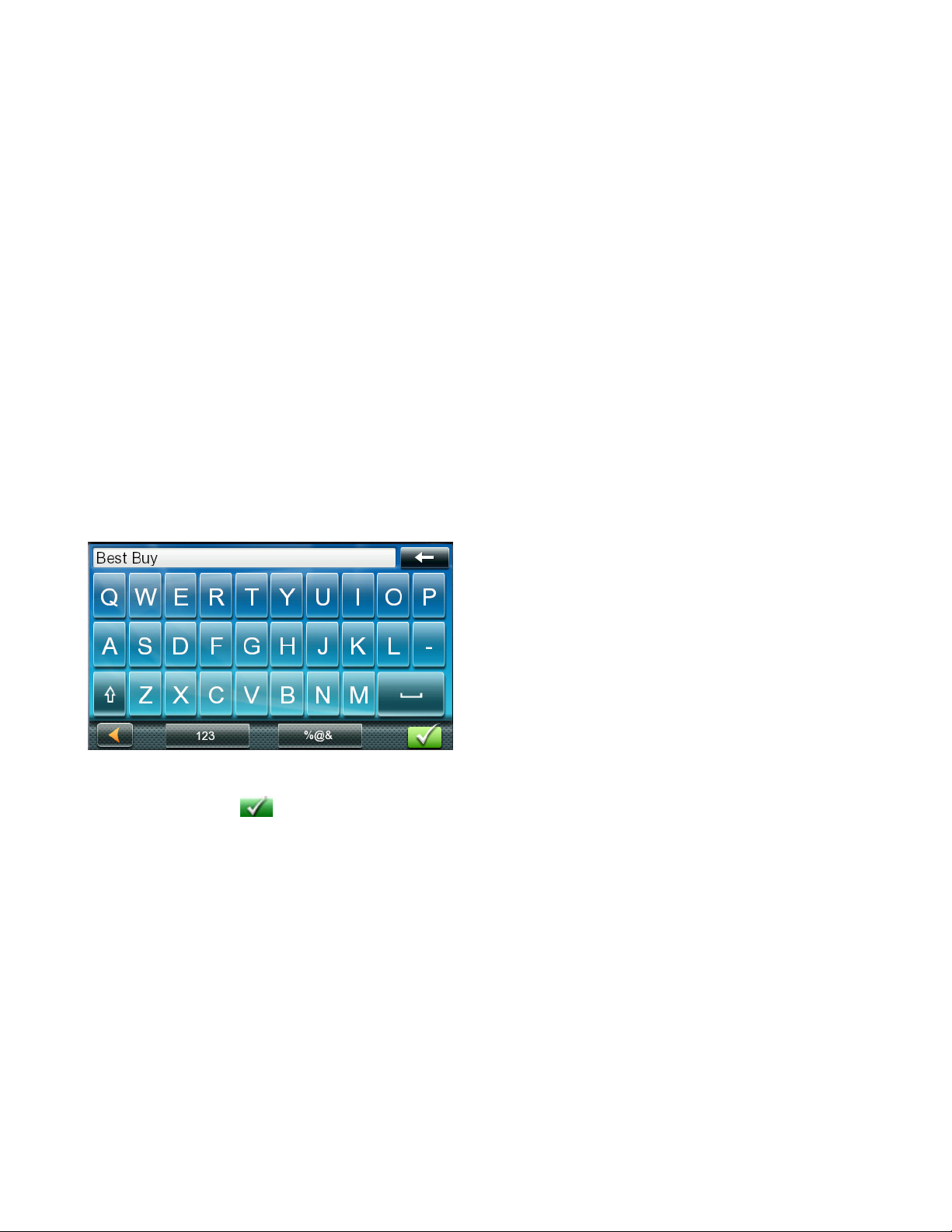

Keypad ...........................................................................................................................5

Selecting From List ................................................................................................. 6

Selecting QWERTY or ABC Keyboard ...................................................................... 6

Notes on Entering Data .................................................................................................. 6

QuickSpell ...................................................................................................................... 6

Smart City Search ..........................................................................................................6

Map Screen .......................................................................................... 8

Setting the Map Options .......................................................................................... 9

Setting the Map Modes (2D or 3D) ...........................................................................9

Setting Zoom Levels ................................................................................................9

Panning on the Map ................................................................................................9

Routing to a Panned Position .................................................................................. 9

Current Location Screen .............................................................................................. 10

Accessing the Current Location Screen ................................................................ 10

Saving Your Current Location to Your Address Book ............................................10

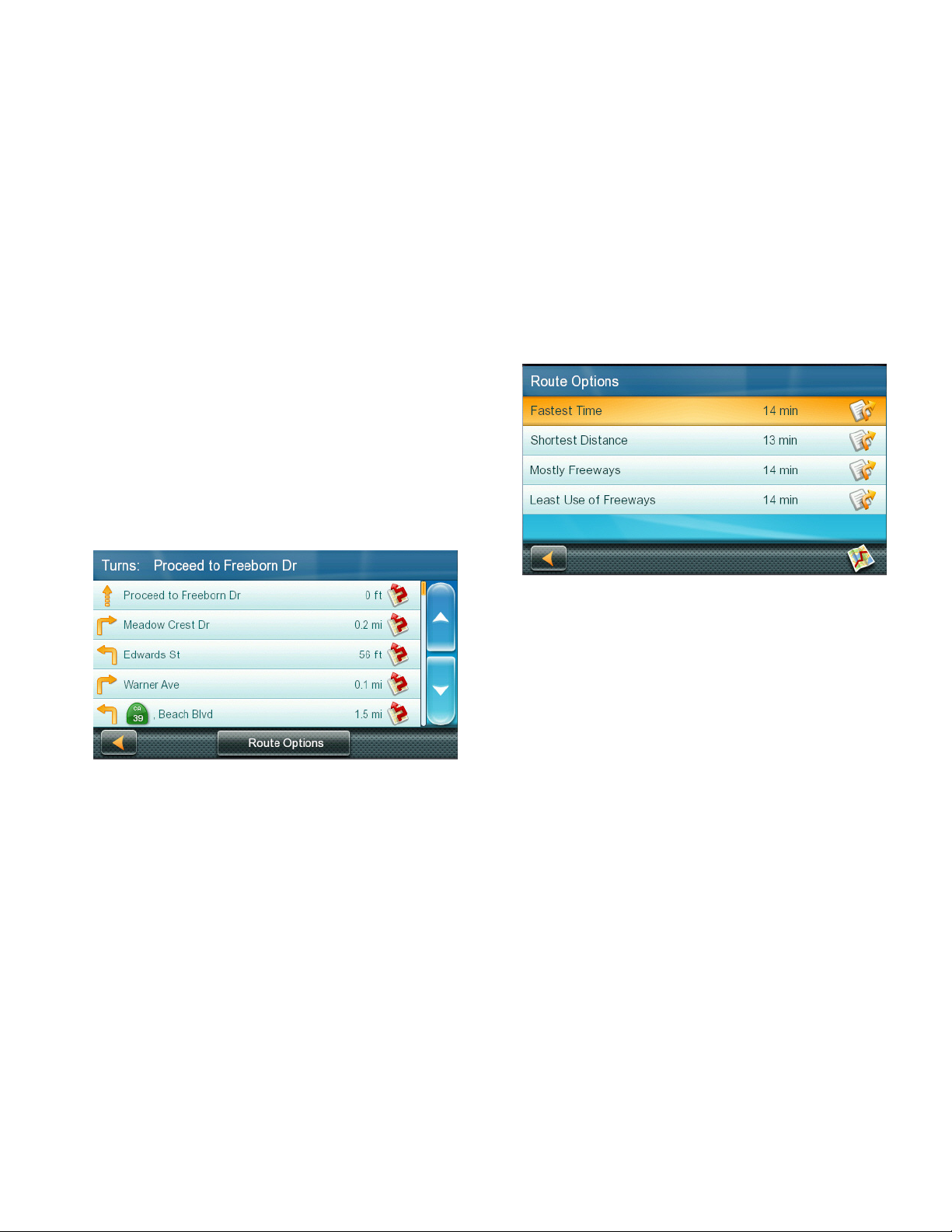

Maneuver List (Itinerary) .............................................................................................10

Accessing the Maneuver List ................................................................................ 10

Avoiding a Maneuver ............................................................................................. 10

Changing Route Options ........................................................................................11

Volume .........................................................................................................................11

Changing the Volume from the Map Screen ..........................................................11

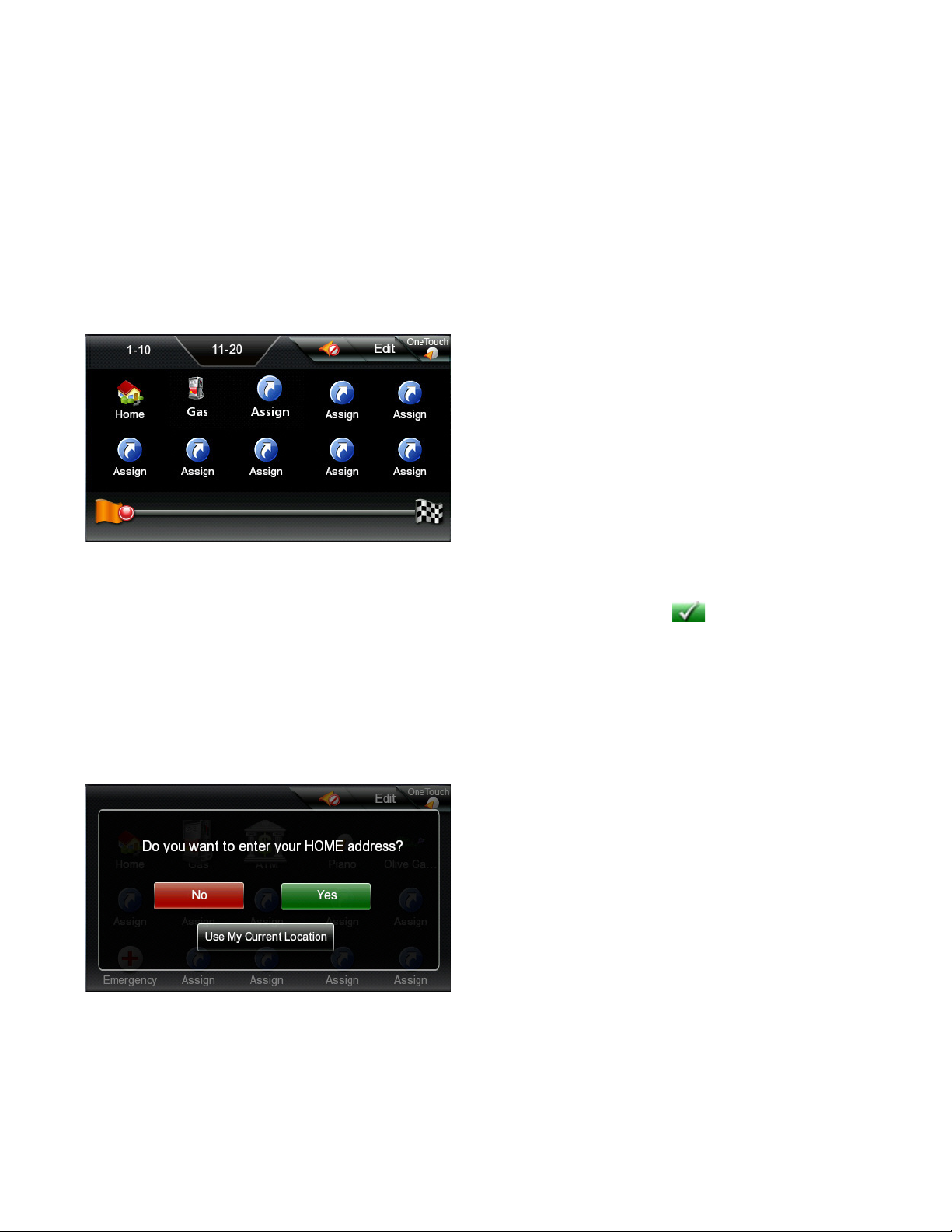

OneTouch Menu .................................................................................. 12

Accessing the OneTouch Menu ..............................................................................12

The Home Button ......................................................................................................... 12

Saving an Address to a OneTouch Icon ..................................................................12

Changing the Address or Search of a OneTouch Icon ...........................................12

Saving a POI Search Criteria to a OneTouch Icon .................................................. 13

Setting a Route to a OneTouch Icon ....................................................................... 13

Selecting a Destination ....................................................................... 14

Creating a Destination to an Address .................................................................... 14

Tips on Entering Addresses Quickly ............................................................................ 15

Intersections ................................................................................................................ 15

Creating a Destination to an Intersection ............................................................. 15

City Centers .................................................................................................................16

Creating a Destination to a City Center ................................................................. 16

Previous Destinations ..................................................................................................16

Routing to a Previous Destination ......................................................................... 16

Clearing the list of Previous Destinations ............................................................. 16

Address Book ............................................................................................................... 16

Saving a Destination to Your Address Book ..........................................................16

Accessing an Address in Your Address Book ........................................................17

Routing to an Address in Your Address Book ........................................................ 17

Points of Interest (POI) ....................................................................... 18

Creating a Route to a POI by Category ..................................................................18

Creating a Route to a POI by Name .......................................................................18

Creating a Route to a Highway Exit POI ................................................................19

Traveling on a Route ........................................................................... 20

Map Screen ..................................................................................................................20

Maneuver List ..............................................................................................................20

Accessing the Maneuver List ................................................................................ 20

Excluding a Maneuver ........................................................................................... 20

Types of Routes ............................................................................................................ 20

Changing the Routing Method ...............................................................................20

To Change the Default Routing Method ................................................................ 21

Special Routing Functions ...........................................................................................21

Cancelling a Route ................................................................................................ 21

Detouring off a Route ............................................................................................ 21

Trafﬁc ................................................................................................. 22

Glossary .......................................................................................................................22

Trafﬁc Incidents ....................................................................................................22

Avoiding a Trafﬁc Incidents ................................................................................... 22

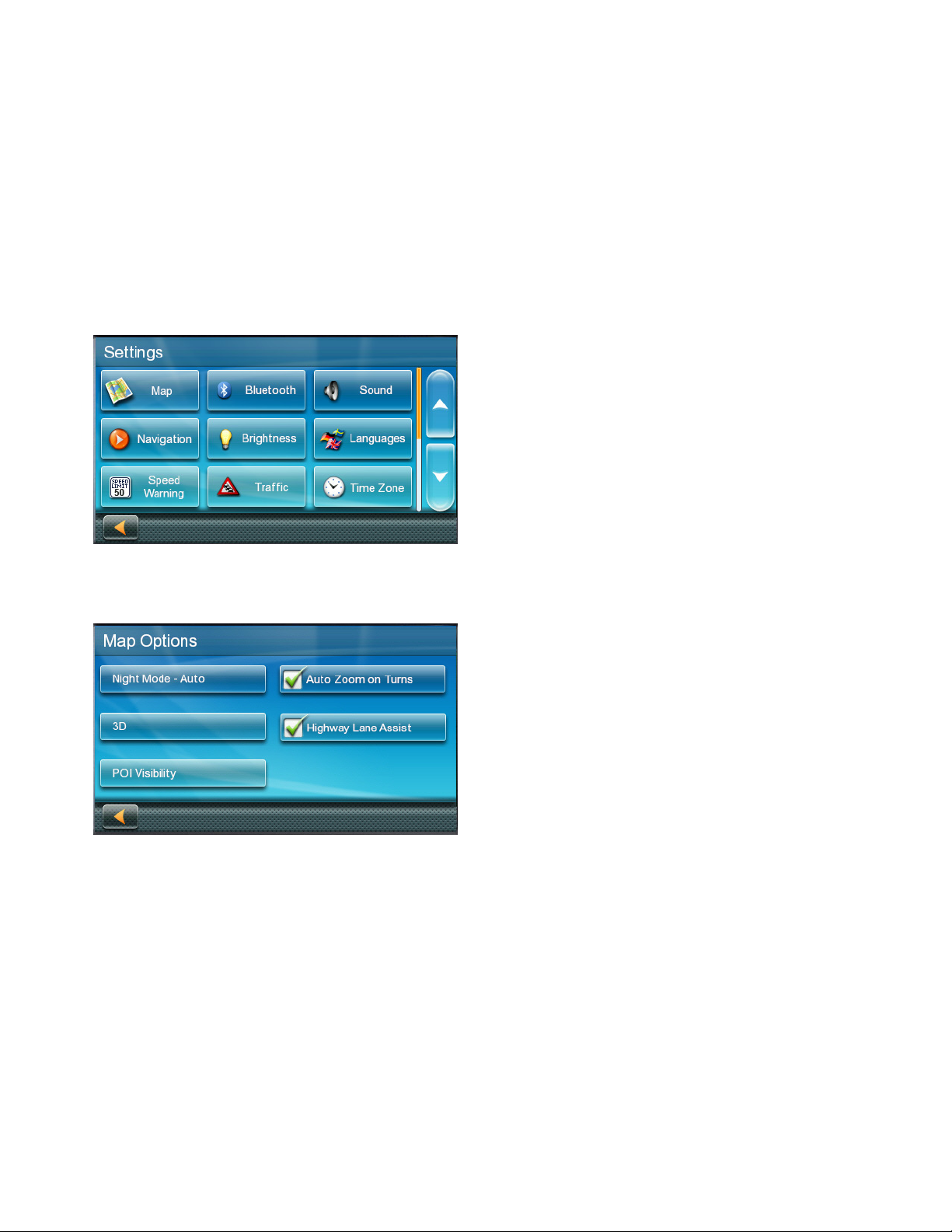

Settings .............................................................................................. 23

Accessing System Settings ................................................................................... 23

Map Options .................................................................................................................23

Setting Auto Night Map Display ............................................................................23

Setting Heading Up or North Up in 2D Mode .........................................................23

Assigning Visible POIs ...........................................................................................23

Setting Auto Zoom on Turns ..................................................................................23

Setting Highway Lane Assist ................................................................................. 23

Sound ........................................................................................................................... 24

Setting Volume from Settings ............................................................................... 24

Turning Button Sounds On/Off .............................................................................. 24

Turning Smart Volume On/Off ............................................................................... 24

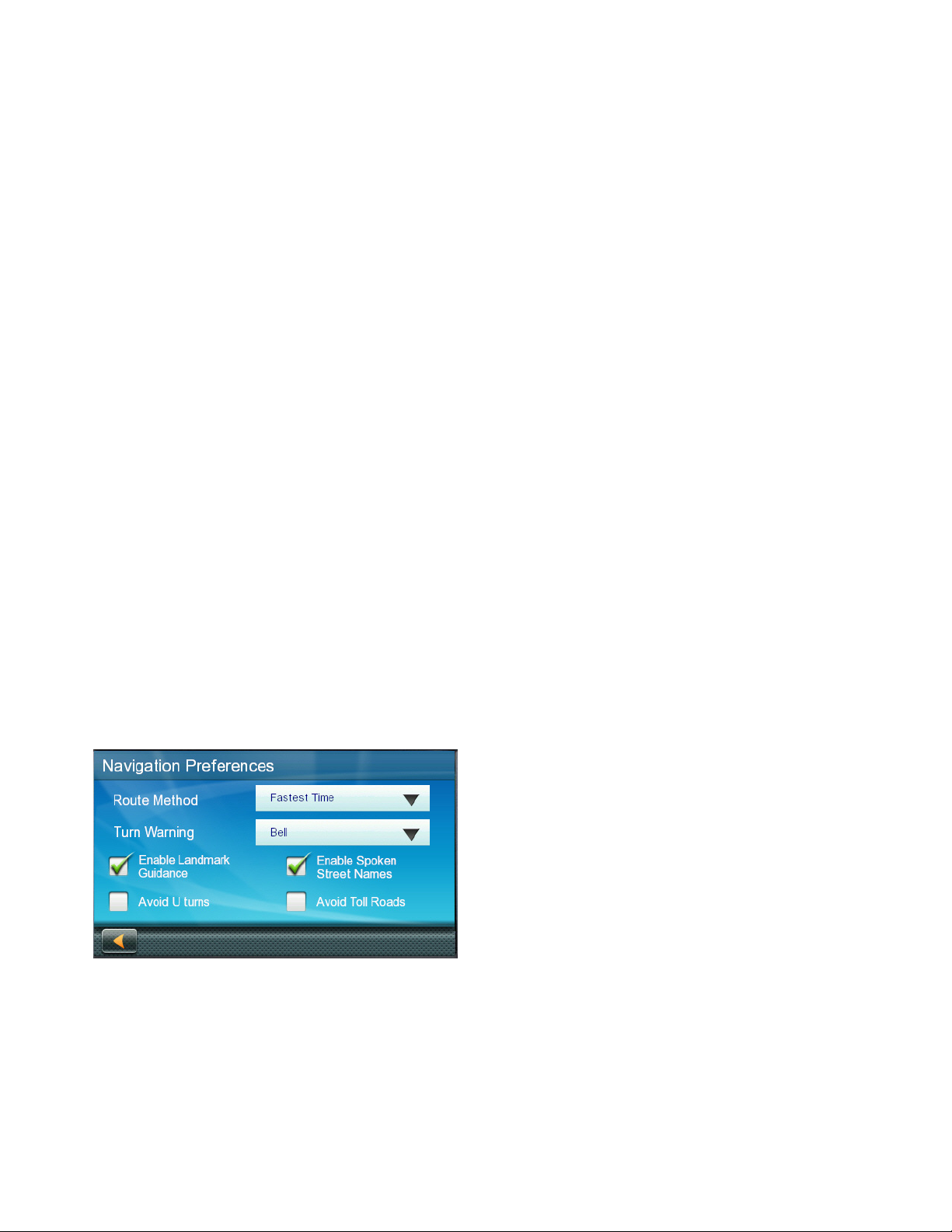

Navigation .................................................................................................................... 24

Setting The Default Route Method ........................................................................ 24

Setting The Turn Warning Alert Sounds ...............................................................24

Enabling Landmark Guidance ............................................................................... 24

Enabling Spoken Street Names ............................................................................24

Enabling U Turn Guidance ..................................................................................... 24

Avoiding Toll Roads ............................................................................................... 24

Brightness ...................................................................................................................25

Setting Brightness ................................................................................................25

Languages ...................................................................................................................25

Setting Languages ................................................................................................25

Speed Warnings ........................................................................................................... 25

Setting Speed Warning Options ............................................................................25

Trafﬁc ........................................................................................................................... 25

Enabling Trafﬁc ..................................................................................................... 25

Displaying Trafﬁc Popups ..................................................................................... 25

Setting Audible Trafﬁc Warnings ..........................................................................25

Time Zone ....................................................................................................................25

Selecting the Time Zone........................................................................................25

Time Format ................................................................................................................26

Setting the Time Format .......................................................................................26

Keyboard ...................................................................................................................... 26

Setting the Keyboard Layout. ................................................................................ 26

iii

Units of Measure .......................................................................................................... 26

Selecting Units of Measure ................................................................................... 26

Regions ........................................................................................................................ 26

GPS ..............................................................................................................................26

Setting the GPS Position .......................................................................................26

Viewing the GPS Status ......................................................................................... 26

Auto Power Off ............................................................................................................. 26

Setting Auto Power Off .......................................................................................... 26

Default System Settings ..............................................................................................26

Restoring All Default System Settings .................................................................. 26

Product Information ..................................................................................................... 26

Viewing Product Information ................................................................................ 26

Magellan RoadMate GPS Receiver

The Magellan® RoadMate® receiver is a vehicle navigation product that utilizes GPS signals from satellites to calculate your precise location and compute navigational information that can be used to guide you to your destination. Knowing its position and movement, it can then overlay this information on detailed maps to provide a visual representation of your location.

With the Magellan RoadMate receiver you can: Save searches and addresses under the

OneTouch™ menu for fast, convenient access to favorite destinations.

Store your home address and quickly get routing details to your home.

Enter and save addresses in your address book that can be accessed at any time and get routing information to that address.

Route to an address that you enter using the QuickSpell™ and Smart City search for easy, errorless address entry.

Route to any point of interest (POI) that has been preloaded into your Magellan RoadMate receiver.

Create a route with multiple destinations. Handy for business people who need routing information to many destinations.

View POIs that are near exits ahead of you on the highway. The Highway Exit POIs function provides you with a list of gas stations, restaurants, hotels and auto repair shops located nearby exits you are approaching while travelling on the interstate.

Customize your Magellan RoadMate receiver to meet your needs using the Settings menu.

Receive trafﬁc information so as to avoid delays in your travel.

The user interface for the Magellan RoadMate receiver is easy and simple to follow once you understand the basics. You may never need to refer to this manual, but if you do, we have tried to present it in a form that makes it easy for you to access the function you are trying to use and follow the steps provided.

The Magellan RoadMate receiver has a built-in battery so, in most cases, you will be able to follow these instructions while reading them on your computer screen without plugging the Magellan RoadMate receiver to the AC power using an optional AC power adapter. You should note that while indoors you may not get strong enough satellite signals to compute your location, so your location information may not be updated. However, the power of the GPS chipset installed in the Magellan RoadMate receiver will pick up satellite signals in some very demanding locations. You may ﬁnd that the Magellan RoadMate receiver is computing a position, even indoors. Even with the improved GPS chipset, the receiver may not be able to always compute a ﬁx indoors. This is especially important to note if you are in a garage or other overhanging structure. If you ﬁnd you are not getting strong enough satellite signals while in a garage or other structure, move to a location where there is a clear view of the sky and you should immediately see an improvement in signal strength.

The Magellan RoadMate receiver includes Voice Alerts (Text-to-Speech) for driving instructions.

Magellan RoadMate

(A) Power Switch (B) micro SD card slot. (not available on all receivers) The microSD card is available for

accessing optional map regions. Check the Magellan store at www.magellangps.com for additional map regions that may be available for your receiver.

Backup Camera

(D) USB Connection. Power input from vehicle power adapter cable or optional AC power

adapter. Also used for connecting your receiver to a personal computer for updating maps and software using the Magellan Content Manager application.

Reset

The reset button is located on the back of the receiver in the lower right corner. If you have problems with your receiver or in the unlikely event that it locks up, use a paperclip and gently insert it into the reset hole to press the reset button with the receiver turned on. The receiver should restart with the factory defaults loaded.

Reset

Fundamentals 2

Powering on the Magellan RoadMate receiver

The Power On/Off switch is located on the top of the Magellan RoadMate receiver.

Turning the Magellan RoadMate receiver On

1. Press the power switch.

2. After the initial splash screen the Warnings screen is displayed. Read and tap .

Turning the Magellan RoadMate receiver Off

1. Press the power switch. The receiver will automatically power off in 15 seconds.

[Cancel] cancels the power off sequence and returns to last viewed screen.

[Power Down Now] turns the receiver off immediately, bypassing the 15 second delay.

Note: Anytime the power cable is disconnected

from the receiver or if power is turned off at the 12v power receptacle, the receiver will begin the power off sequence.

Vehicle Proﬁle

The ﬁrst time you power on the device you will be given the opportunity to enter the Vehicle Proﬁle. Note that you can change this at any time by accessing the vehicle proﬁle icon from the Main Menu.

Bluetooth®

Pairing Bluetooth

The instructions shown here are for pairing a phone for normal use.

1. The ﬁrst time you use Bluetooth in your Magellan RoadMate receiver, the receiver will automatically ask you if you want to pair a phone.

2. After selecting Yes the receiver is in pairing mode. Follow the instructions in your phone manual to set it in pairing mode.

3. After the phone has searched for new devices, select “Magellan Roadmate” from the list.

4. Your phone will ask for a passcode.

5. Enter ‘1234’.Tap Yes on the Magellan RoadMate.

6. A screen will conﬁrm the successful pairing.

Battery Levels

The Magellan RoadMate receiver has an internal battery that is charging whenever the receiver is connected to external power.

The Vehicle Proﬁle Menu provides access to the six different vehicle details that are used by the Magellan RoadMate. If you are going to enter your vehicle information please note that you must enter the height, width and length as a minimum.

If you are not going to use the Vehicle Proﬁle, uncheck the Set Vehicle Proﬁle box to continue.

Note: The battery can only be serviced by

authorized Magellan repair facilities.

Viewing the Battery Level Indicator

1. While viewing the Map screen, tap on the Menu button in the right corner.

2. The battery level indicator is located in the upper right corner of the Main Menu, just below the satellite signal indicator. Green bars indicate battery level.

Speaker Volume

Changing the Volume from the Map Screen

speed changes, compensating for road noise.

1. Access the Main Menu.

2. Tap the Settings icon .

3. Tap Sound.

4. Tap the check box for Smart Volume. When checked, Smart Volume is on.

1. Tap the speaker icon . Additional controls appear.

2. Tap the speaker button to mute the volume, or tap the ‘+’ or ‘-’ buttons to raise or lower the volume.

3. Tap .

Changing the Volume from Settings

1. Access the Main Menu.

2. Tap the Settings icon .

3. Tap Sound.

4. Tap inside the Master volume adjust bar to change the volume level of the Magellan RoadMate receiver.

5. Tap to save and exit.

Setting Button Sounds On or Off

Brightness

Accessing the Brightness Control

1. Access the Main Menu.

2. Tap the Settings icon .

3. Tap System.

4. Tap Brightness.

5. Tap inside the brightness adjust bar to set the desired brightness.

Note: On the Brightness Setting screen there

is a “Dim on Battery Power” option. When checked, the Magellan RoadMate receiver will reduce the brightness when operating exclusively on battery power and you have not used the touch screen for a few seconds. This prolongs the battery life between charges.

1. Access the Main Menu.

2. Tap the Settings icon .

3. Tap Sound.

4. Tap the check box for Button Sounds. Check to have button sounds played, unchecked to turn them off.

Setting Smart Volume On or Off

Smart Volume is a feature of the receiver that changes the volume automatically as your

+ 25 hidden pages
