Magellan RoadMate 5190T Handbook
Magellan
RoadMate
®
Commercial 5190T
®
Designed exclusively for Commercial Vehicle Drivers
User Handbook
IMPORTANT SAFETY WARNINGS
The Magellan RoadMate receiver is a vehicle-navigation aid designed to assist you in arriving at your selected
destinations. When using the Magellan RoadMate receiver, these safety rules must be followed to prevent
accidents that can result in injury or death to yourself or others:
• Please check the applicable regulations in your state regarding windshield mounting. Certain states
prohibit the mounting of any items on your windshield. Go to www.magellanGPS.com for alternative
mounting solutions.
• When driving, the need to view the display is minimal. Voice prompts will guide you to your destination.
The driver should enter data or program the Magellan RoadMate receiver only when the vehicle is
stationary. Only a vehicle passenger should enter data or program the Magellan RoadMate receiver while
the vehicle is moving. Do not become distracted by the receiver while driving, and always be fully aware of
all driving conditions.
• It is your responsibility to comply with all traffic laws and to use the Magellan RoadMate and mounting
options in such a manner that the user is in compliance with applicable laws.
• Roads, points of interest (POIs), business and service locations may change over time. As a result the
database may contain inaccuracy. Also, the database does not include, analyse, process, consider, or
reflect any of the following: legal restrictions (such as vehicle type, weight, height, width, load and speed
restrictions); road slope or gradient; bridge height, width, weight or other limits; population density;
neighborhood quality or safety; availability or proximity of police, emergency rescue, medical or other
assistance; construction work zones or hazards; road or lane closures; road, traffic or traffic facilities'
safety or condition; weather conditions; pavement characteristics or conditions; special events; traffic
congestion. It is your responsibility to disregard any unsafe, hazardous or illegal route suggestions.
• Keep the Magellan RoadMate receiver safe from extreme temperature conditions. For example, do not
leave it exposed to direct sunlight for an extended period of time.
• Take care when mounting the Magellan RoadMate receiver in your vehicle, whether using the windshield
mount or other mounts, that it does not obstruct the driver's view of the road, interfere with the operation of
the vehicle's safety devices such as air bags, or present a hazard to occupants of the vehicle should the
receiver be dislodged while driving. It is your responsibility to assess the risks associated with damage to
your vehicle or vehicle occupants as the result of your choices in mounting the Magellan RoadMate
receiver.
Temperature
• The maximum operating temperature is 140°F (60°C).
Battery
• The battery in the Magellan RoadMate receiver is rechargeable and should not be removed. In the event
that it should need to be replaced, please contact Magellan Technical Support.
Charging the Magellan RoadMate
• An optional AC adapter is available as an accessory for your Magellan RoadMate. Use of another type of
AC adapter can result in malfunction and/or possible fire hazard due to battery overheating.
• Only use the car charger approved for/supplied with your Magellan RoadMate receiver. Use of another
type of car charger will result in fire or electric shock.
• For safety reasons, the battery in your Magellan RoadMate receiver will stop charging when the ambient
temperature is less than 32°F (0°C) or more than 113°F (45°C).
• It will take approximately 4 hours of charging the Magellan RoadMate receiver through the vehicle power
adapter or optional AC adapter to obtain a full battery charge. It is recommended that you charge the
battery initially for at least 2 hours.
• Use only the charger approved for your Magellan RoadMate receiver.
• Estimated usage of the Magellan RoadMate on battery power is approximately 30 minutes.
i
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for class B digital devices, in accordance
with part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users
must follow the specific operating instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment.
Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV
reception. The user is cautioned that changes and modifications made to the equipment without the approval of
manufacturer could void the user's authority to operate this equipment.
The Magellan RoadMate receiver must be installed and operated at a distance no closer then 8 inches (20 cm)
from the user.
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
IC statement
Operation is subject to the following two conditions:
1. This device may not cause interference and
ii
2. This device must accept any interference, including interference that may cause undesired operation of the
device.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits established for an uncontrolled environment. End
users must follow the specific operating instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
The information provided in this document is subject to change without notice. Improvements and enhancements
to the product may occur without any formal notification. Check the Magellan website (www.magellanGPS.com/
support) for product updates and additional information.
© 2012 MiTAC International Corporation. The Magellan logo, Magellan, RoadMate and Quickspell are registered
trademarks of MiTAC International Corporation. SmartDetour and OneTouch are trademarks of MiTAC
International Corporation and are used under license by MiTAC International Corporation. All rights reserved.
© 1984 - 2010 Tele Atlas. All right reserved. This material is proprietary and the subject of copyright protection
and other intellectual property rights owned or licensed to Tele Atlas. Tele Atlas is an authorized distributor of
selected Statistics Canada computer files under Agreement number 6776. The product includes information
copied with permission from Canadian authorities, including © Canada Post Corporation and Geobase®, all right
reserved. The data is sourced in part from Geography Division, Statistics Canada, 2006 Road Network File
(RNF), 92-500-XWE/XWF. The incorporation of data sources from Statistics Canada within this product shall not
be construed as constituting an endorsement by Statistics Canada of such product. The use of this material is
subject to the terms of a License Agreement. You will be held liable for any unauthorized copying or disclosure of
this material.
All other products and brand names are trademarks of their respective holders.
No part of this user manual may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, for any purpose other than the purchaser's personal use,
without the prior written permission of MiTAC International Corporation.
The information provided in this document are correct at the time that it is created. MiTAC International
Corporation assumes no responsibility or liability for any errors or inaccuracies that may appear in the contents
of this User Manual.
32-0
112-00
01 A
iii
Table of Contents
Magellan RoadMate Receiver ..............................................................1
Magellan RoadMate .................................................................................. 2
Map Micro SD ............................................................................................ 2
Installation Instructions .......................................................................3
Selecting the Location ............................................................................... 3
Securing the Car Cradle ............................................................................ 3
Attaching the Magellan RoadMate receiver to the Mount ......................... 3
Connecting Power ..................................................................................... 4
Checking Connection and Final Adjustments ............................................ 4
Security ..................................................................................................... 4
Fundamentals ........................................................................................5
Powering on the Magellan RoadMate Receiver ........................................ 5

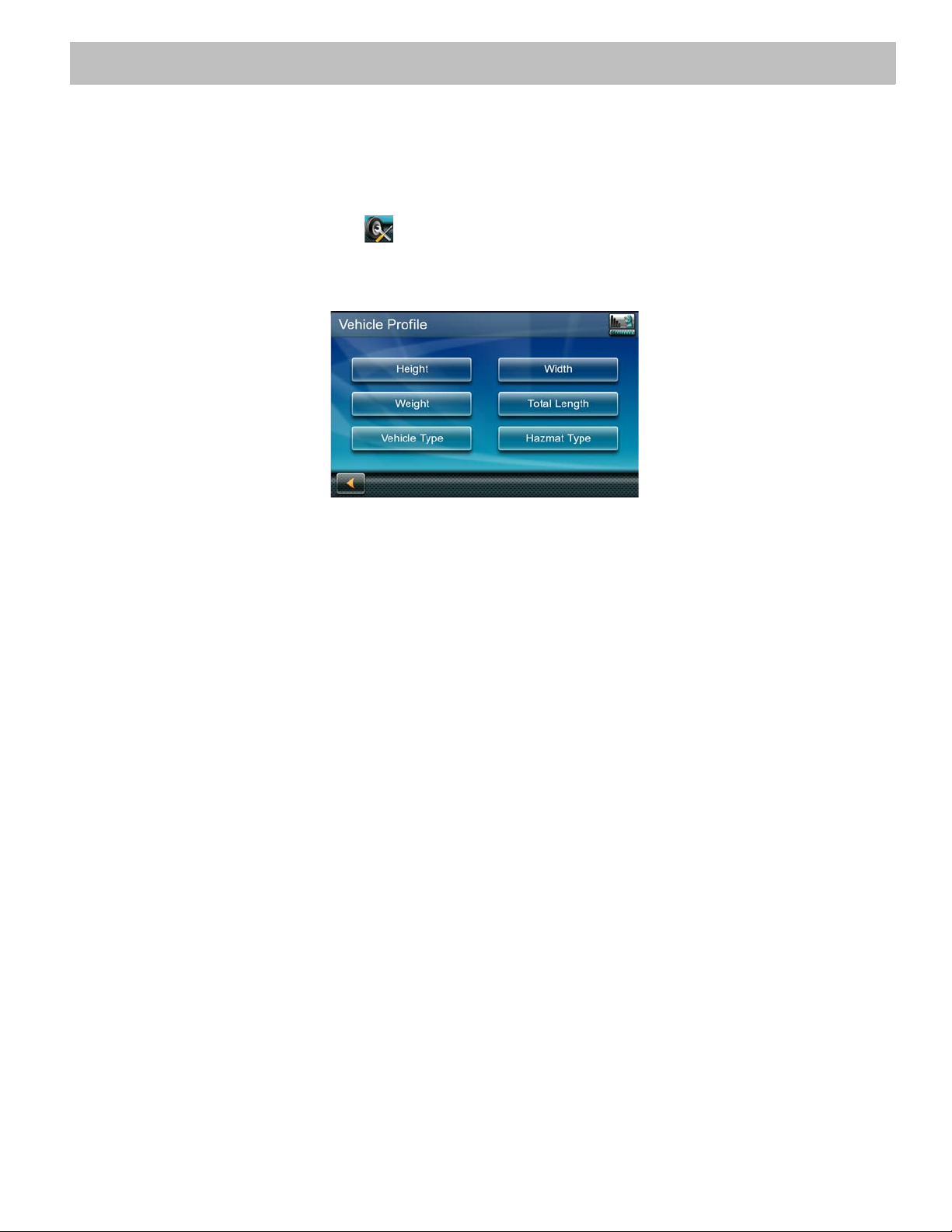

Vehicle Profile ........................................................................................... 5
Pairing Bluetooth® .................................................................................... 5
Checking Battery Level and GPS Status ................................................... 6
Viewing the Battery Level Indicator ........................................................... 6
Checking GPS Status ................................................................................ 6
Volume ...................................................................................................... 6
Brightness ................................................................................................. 6

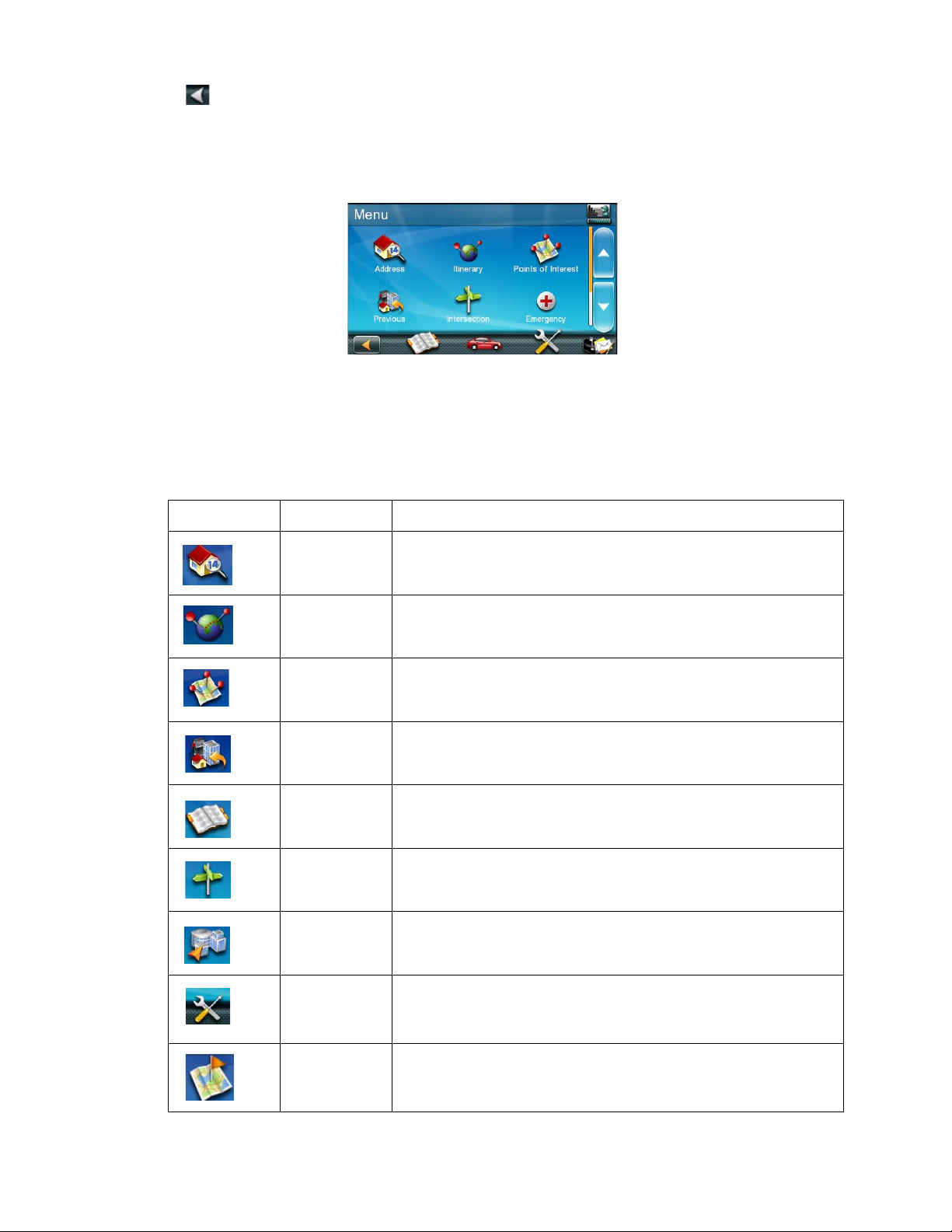

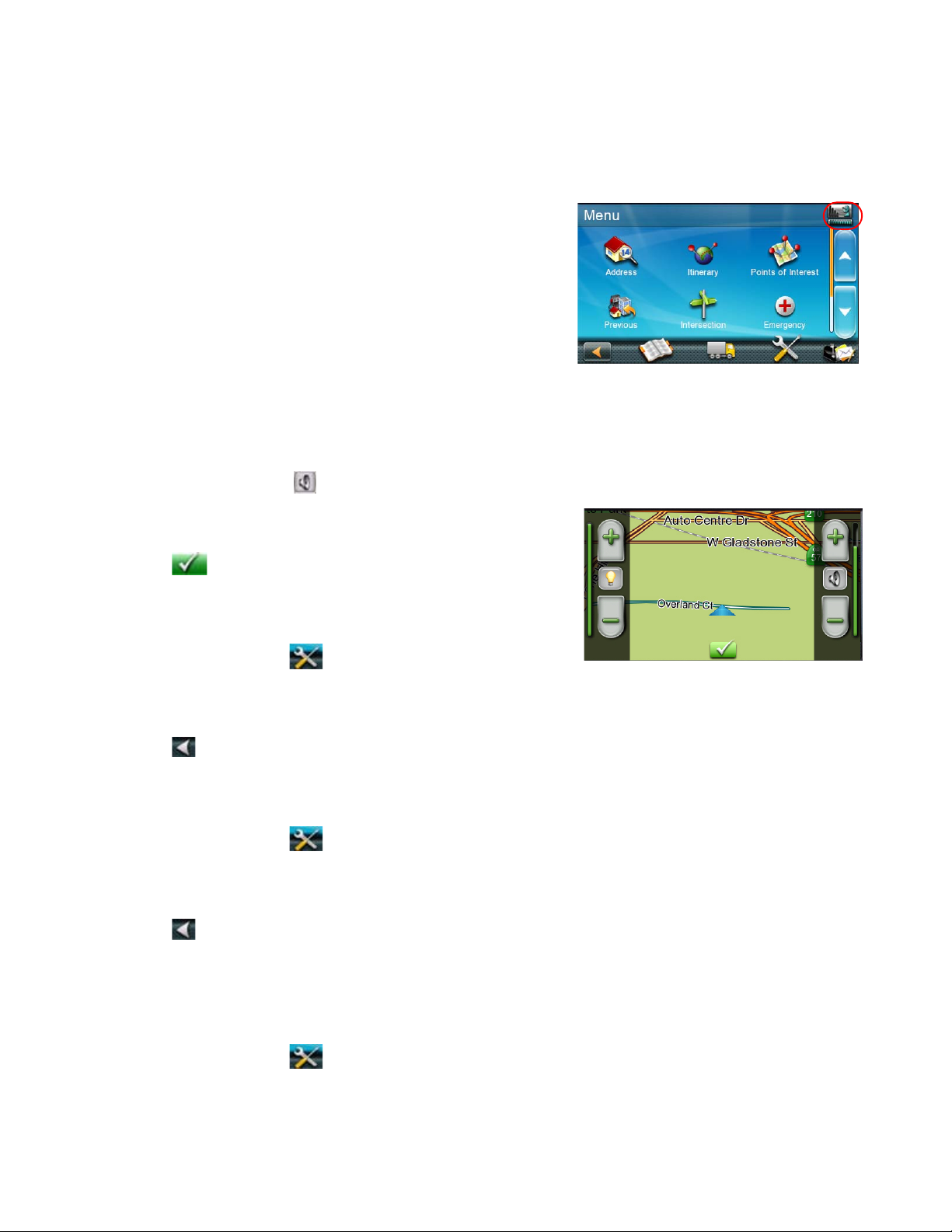

Main Menu ................................................................................................. 7

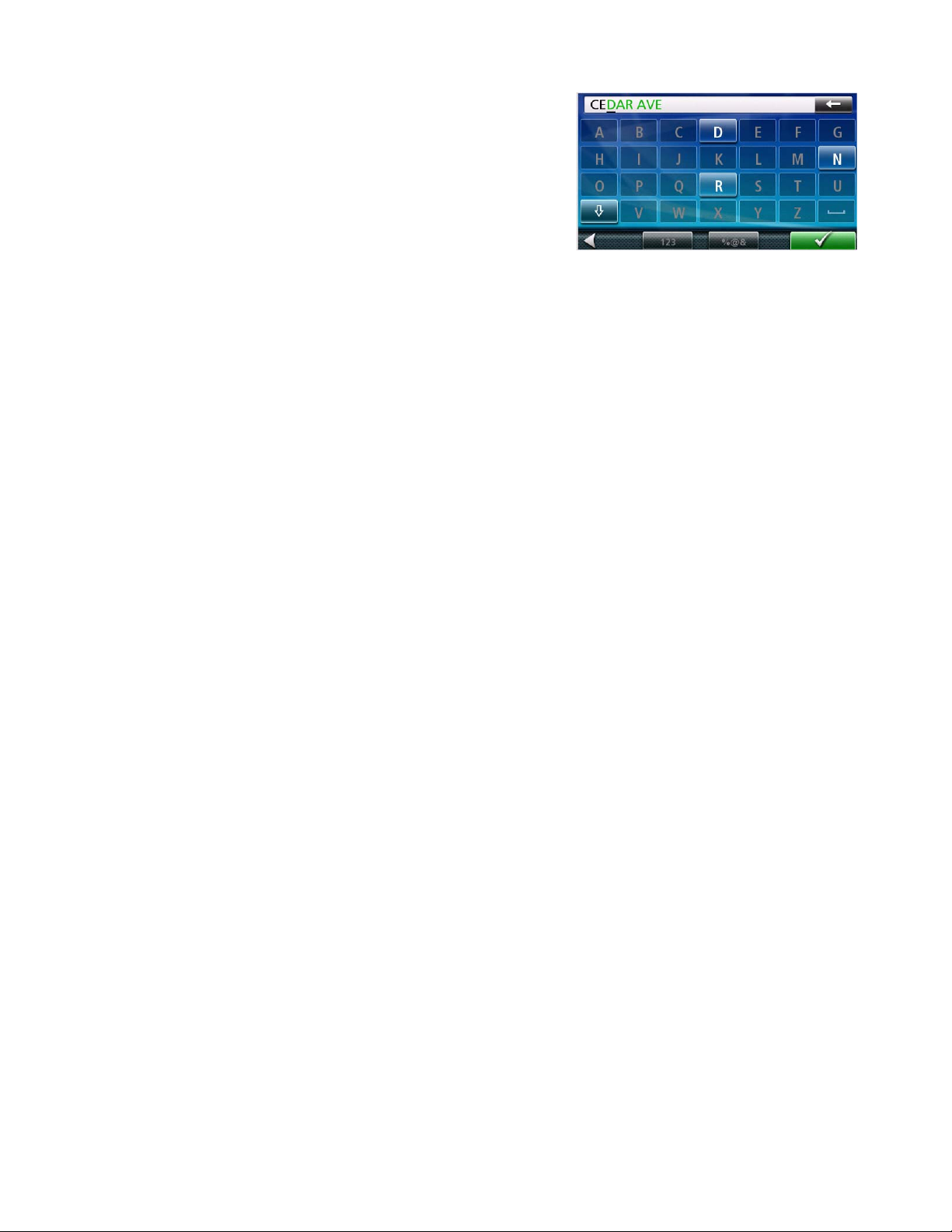

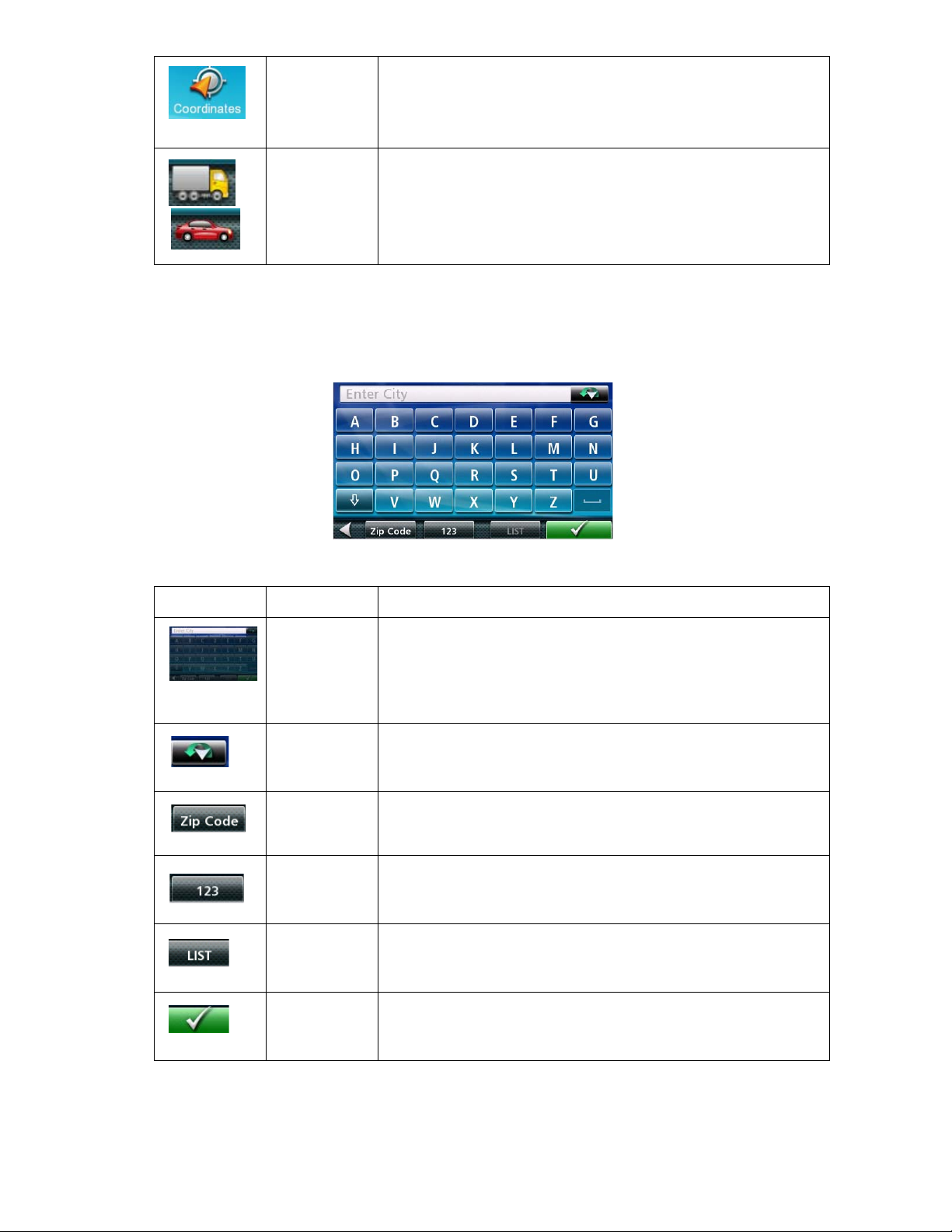

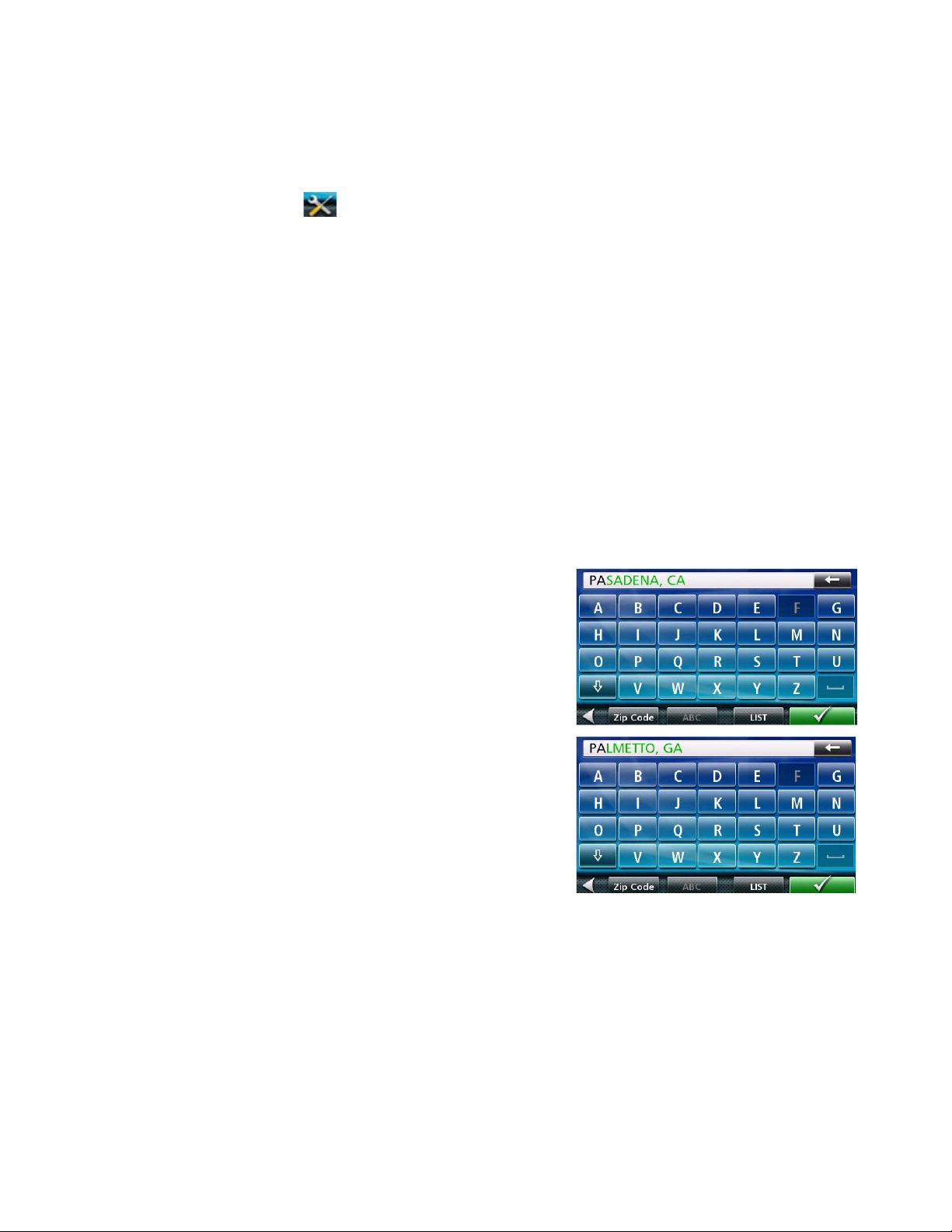

Keypad ...................................................................................................... 8
Selecting QWERTY or ABC Keyboard ...................................................... 9
Notes on Entering Data ............................................................................. 9
Smart City Search ..................................................................................... 9
QuickSpell ............................................................................................... 10
Pairing Bluetooth ..................................................................................... 10

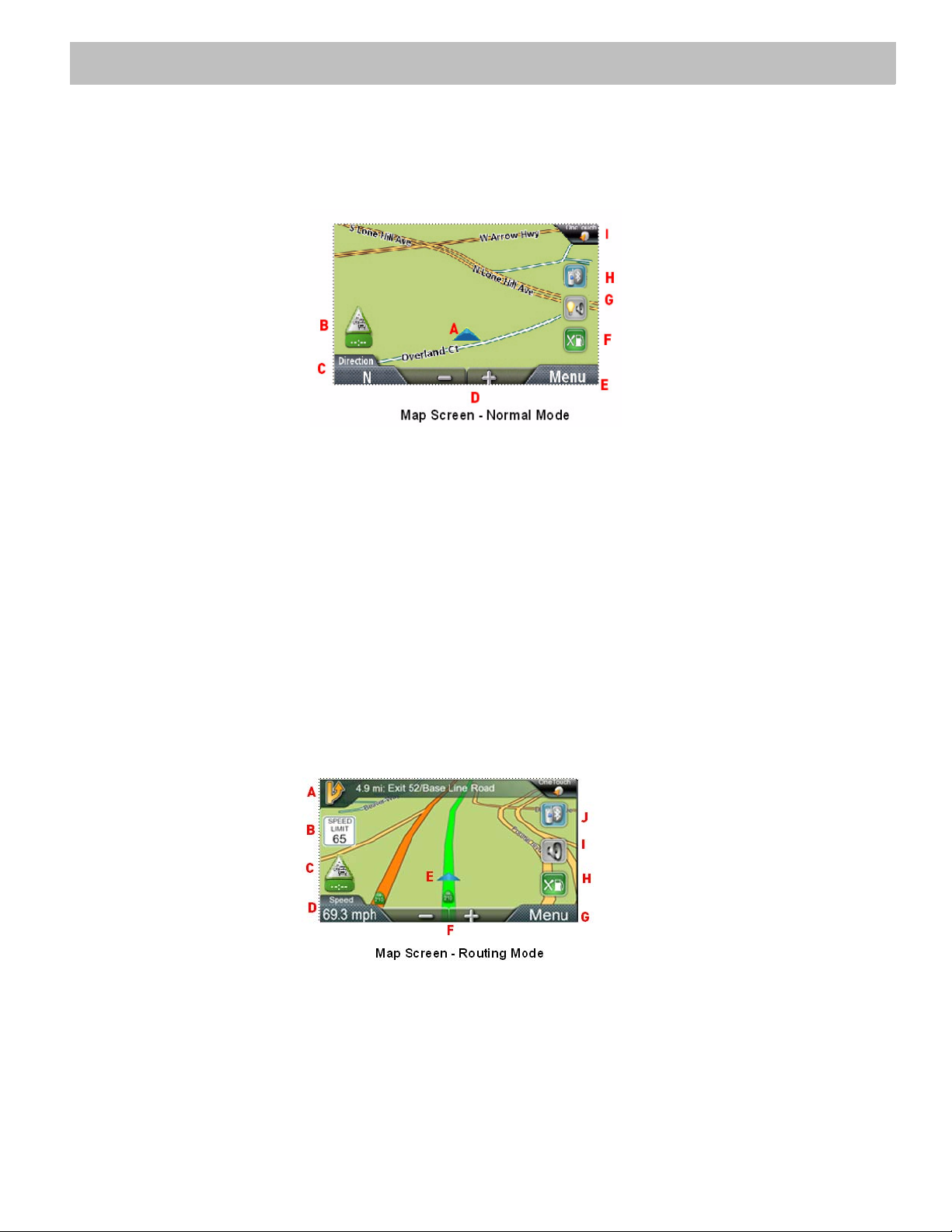

Map Screen ..........................................................................................11

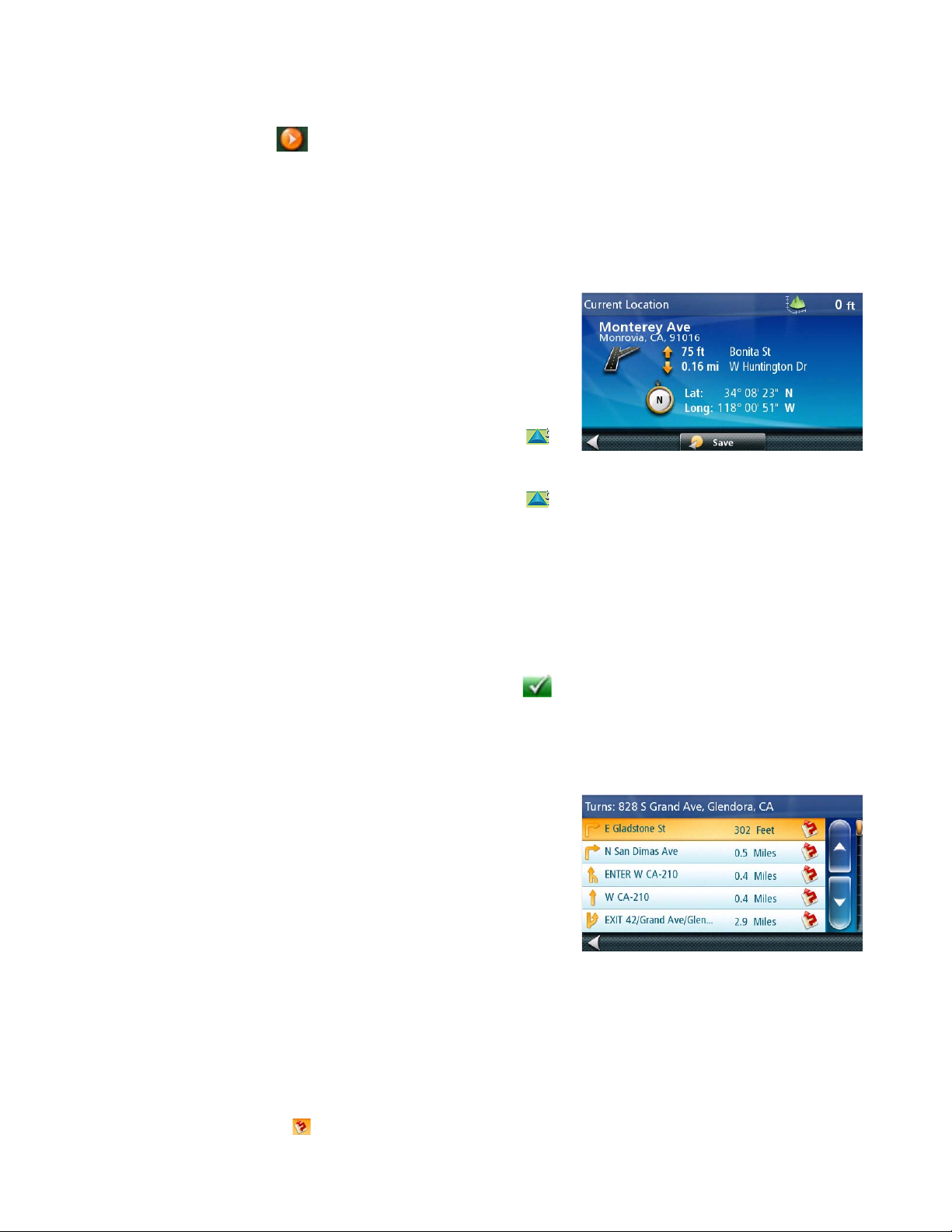

Current Location Screen ......................................................................... 13
Accessing the Current Location Screen .................................................. 13
Saving Your Current Location to Your Address Book ............................. 13
471 El Camino Real, Santa Clara, CA 95050

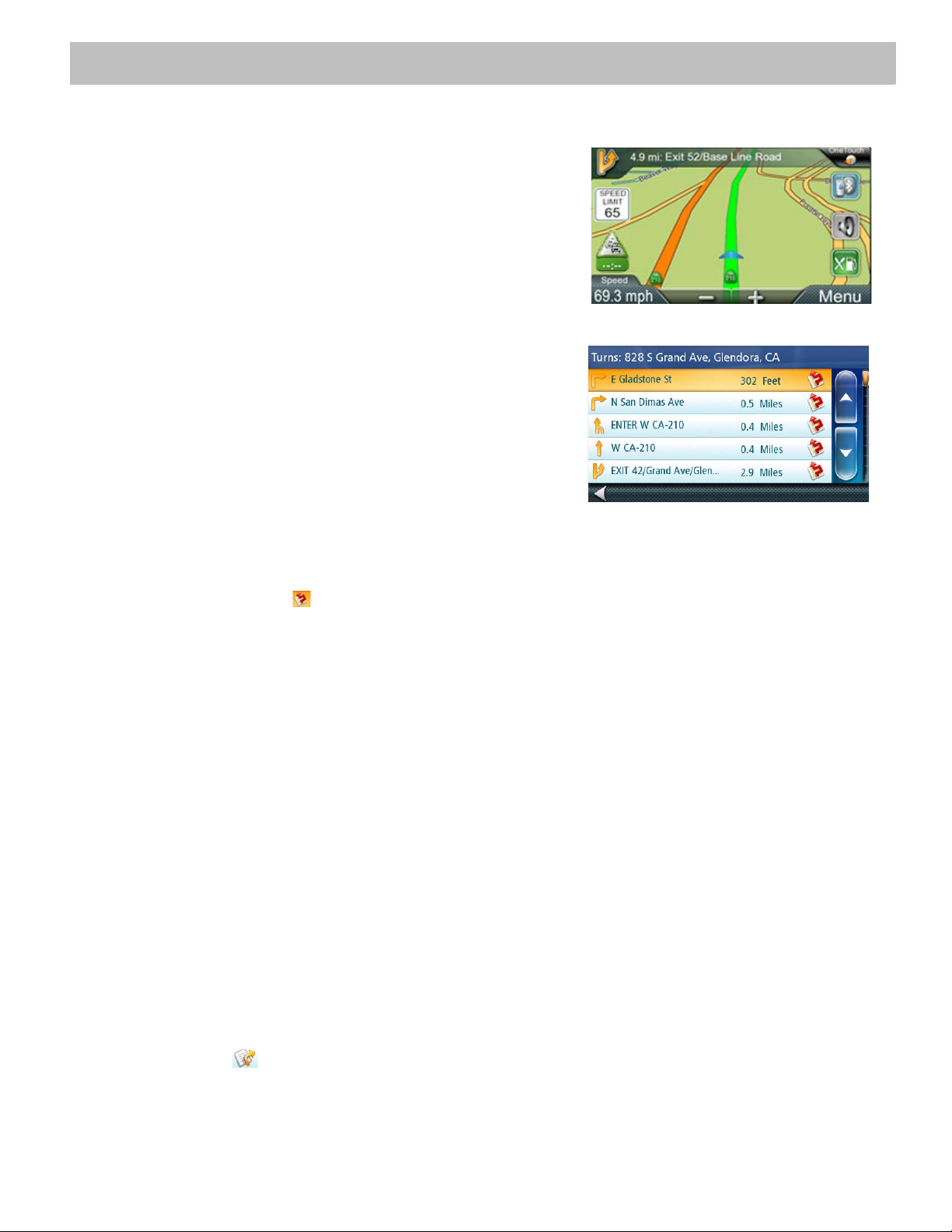

Maneuver List (Itinerary) ......................................................................... 13
Accessing the Maneuver List .................................................................. 13
Excluding a Maneuver ............................................................................. 13
Volume .................................................................................................... 14
Changing the Volume from the Map Screen ........................................... 14
OneTouch Menu ..................................................................................15
Saving an Address to a OneTouch Icon .................................................. 15
Changing the Address or Search of a OneTouch Icon ............................ 15
Saving a POI Search Criteria to a OneTouch Icon .................................. 15
Setting a Route to a OneTouch Icon ....................................................... 16
Creating a Destination ........................................................................17
Creating a Destination to an Address ...................................................... 17
Tips on Entering Addresses Quickly ....................................................... 17
Creating a Destination to an Intersection ................................................ 18
Creating a Destination to a City Center ................................................... 18
Previous Destinations .............................................................................. 19
Routing to a Previous Destination ........................................................... 19
Saving a Previous Destination to Your Address Book ............................ 19
Clearing the list of Previous Destinations ................................................ 19
Address Book ......................................................................................19
Accessing an Address in Your Address Book ......................................... 19
Routing to an Address in Your Address Book ......................................... 19
Creating a New Entry in Your Address Book by Entering an Address .... 20
Creating a New Entry in Your Address Book from a POI ........................ 20
Points of Interest (POI) .......................................................................21
Creating a Route to a POI by Category ................................................... 21
Creating a Route to a POI by Name ........................................................ 22

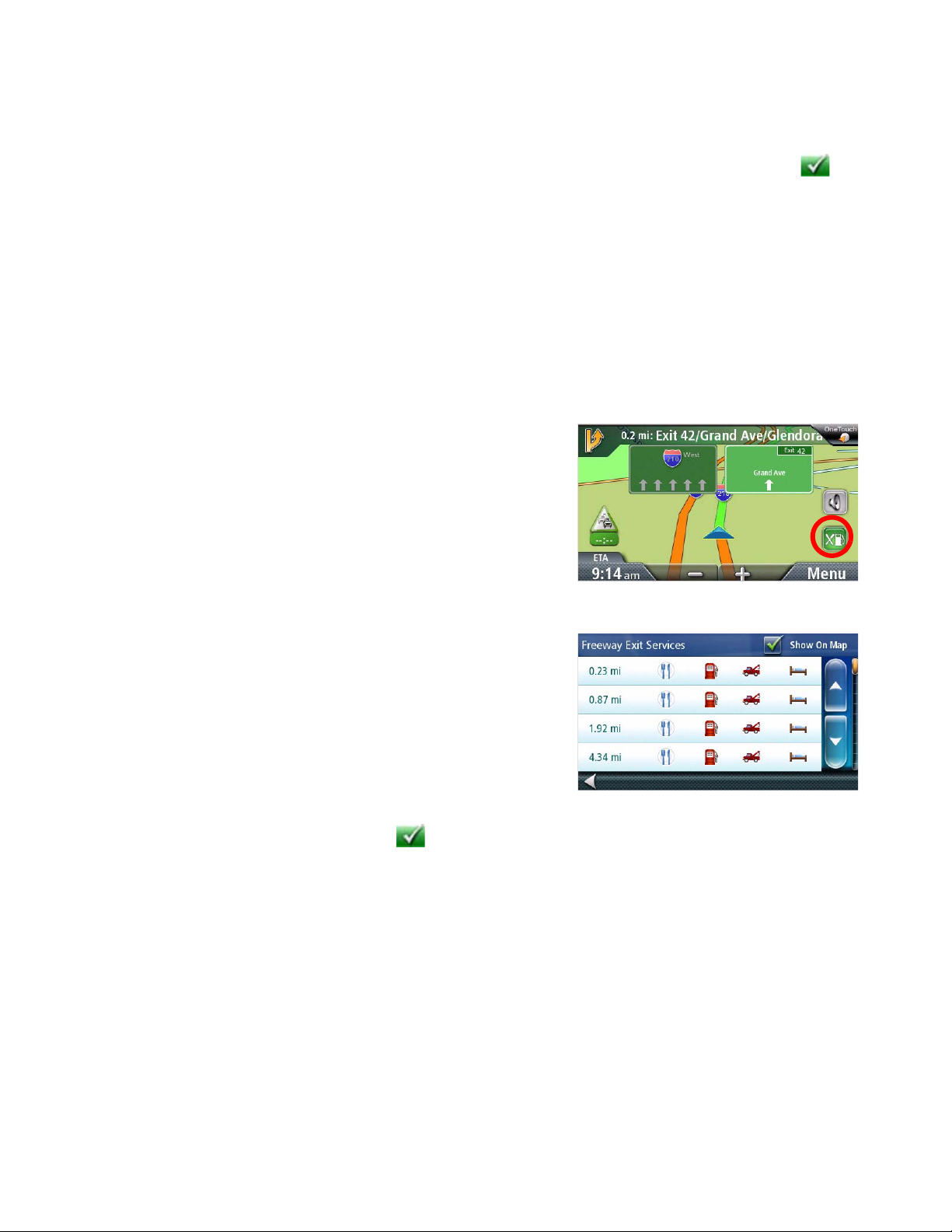

Creating a Route to a Highway Exit POI ................................................. 22

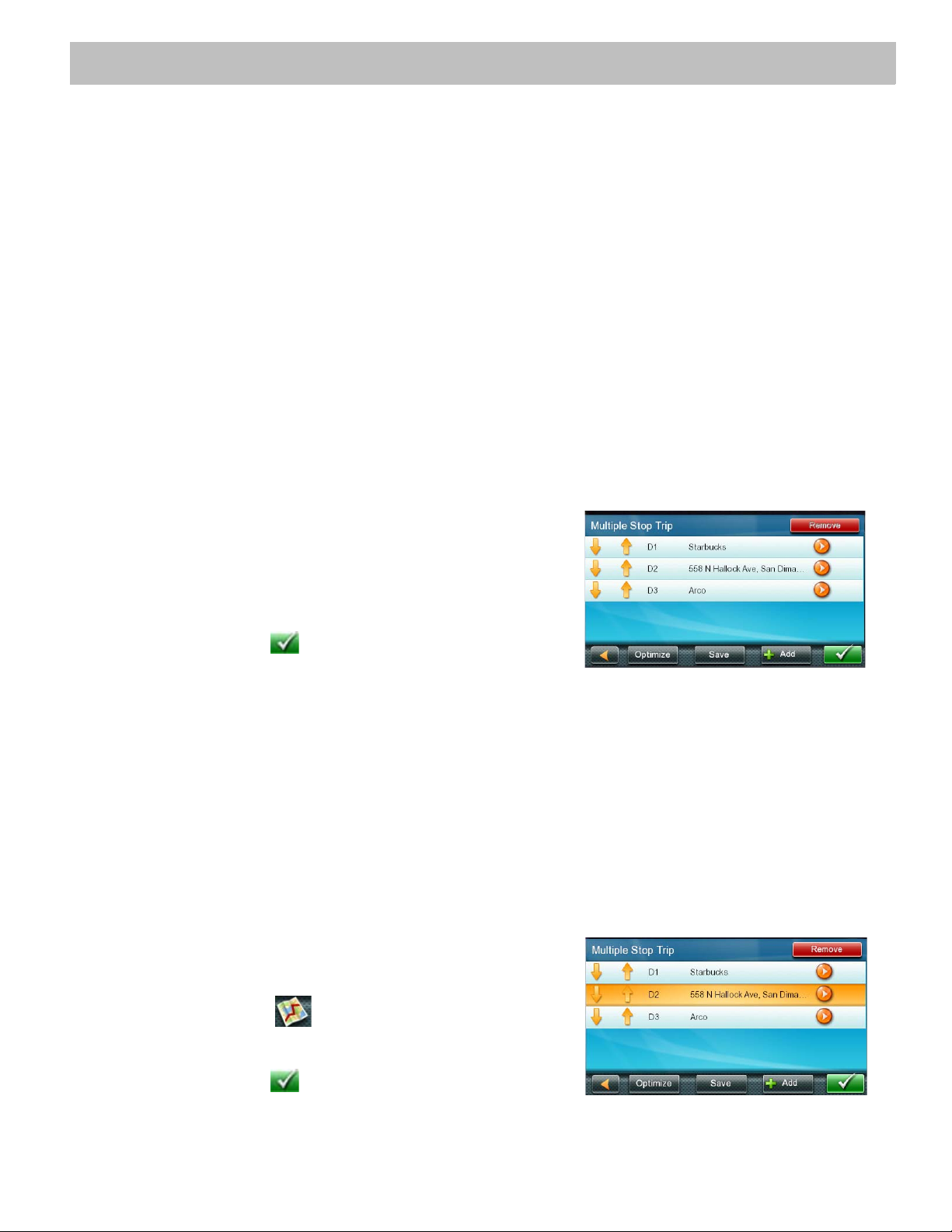

Multi Destination Routes ....................................................................23
Creating Additional Destinations with Go To ........................................... 23
Editing the Destination List ...................................................................... 23
471 El Camino Real, Santa Clara, CA 95050
Traveling on a Route ..........................................................................25
Map Screen ............................................................................................. 25
Maneuver List .......................................................................................... 25
Accessing the Maneuver List .................................................................. 25
Excluding a Maneuver ............................................................................. 25
Types of Routes ...................................................................................... 25
Routing Method ....................................................................................... 25
To permanently change the routing method ............................................ 26
Special Routing Functions ....................................................................... 26
Cancelling a Route .................................................................................. 26
Detouring off a Route .............................................................................. 26
SmartDetour™ on Freeways ................................................................... 26
Vehicle Profile .....................................................................................27
Accessing Vehicle Profile ........................................................................ 27
Set Vehicle Height ................................................................................... 27
Set Vehicle Width .................................................................................... 27
Set Vehicle Weight .................................................................................. 27
Set Vehicle Total Length ......................................................................... 27
Set Vehicle Type ..................................................................................... 27
Set Hazmat Type ..................................................................................... 28
Traffic ...................................................................................................29
Glossary .................................................................................................. 29
Traffic Incidents ....................................................................................... 29
Avoiding a Traffic Incidents ..................................................................... 29
Settings ................................................................................................30

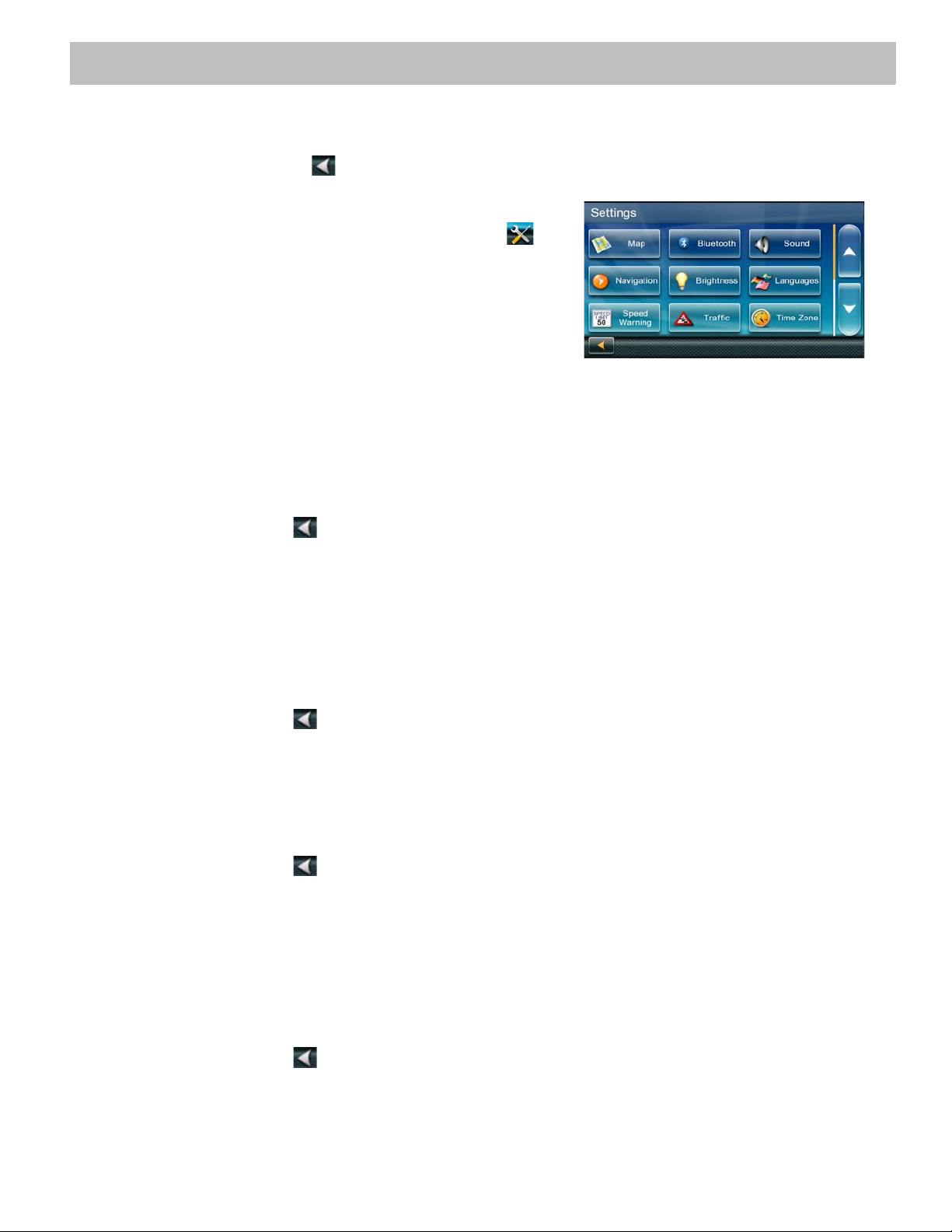

Accessing System Settings ..................................................................... 30
Setting Languages .................................................................................. 30
Setting Auto Power .................................................................................. 30
Setting Brightness ................................................................................... 30
Setting the Time Format .......................................................................... 30
Selecting the Time Zone ......................................................................... 31
Selecting Units of Measure ..................................................................... 31
471 El Camino Real, Santa Clara, CA 95050

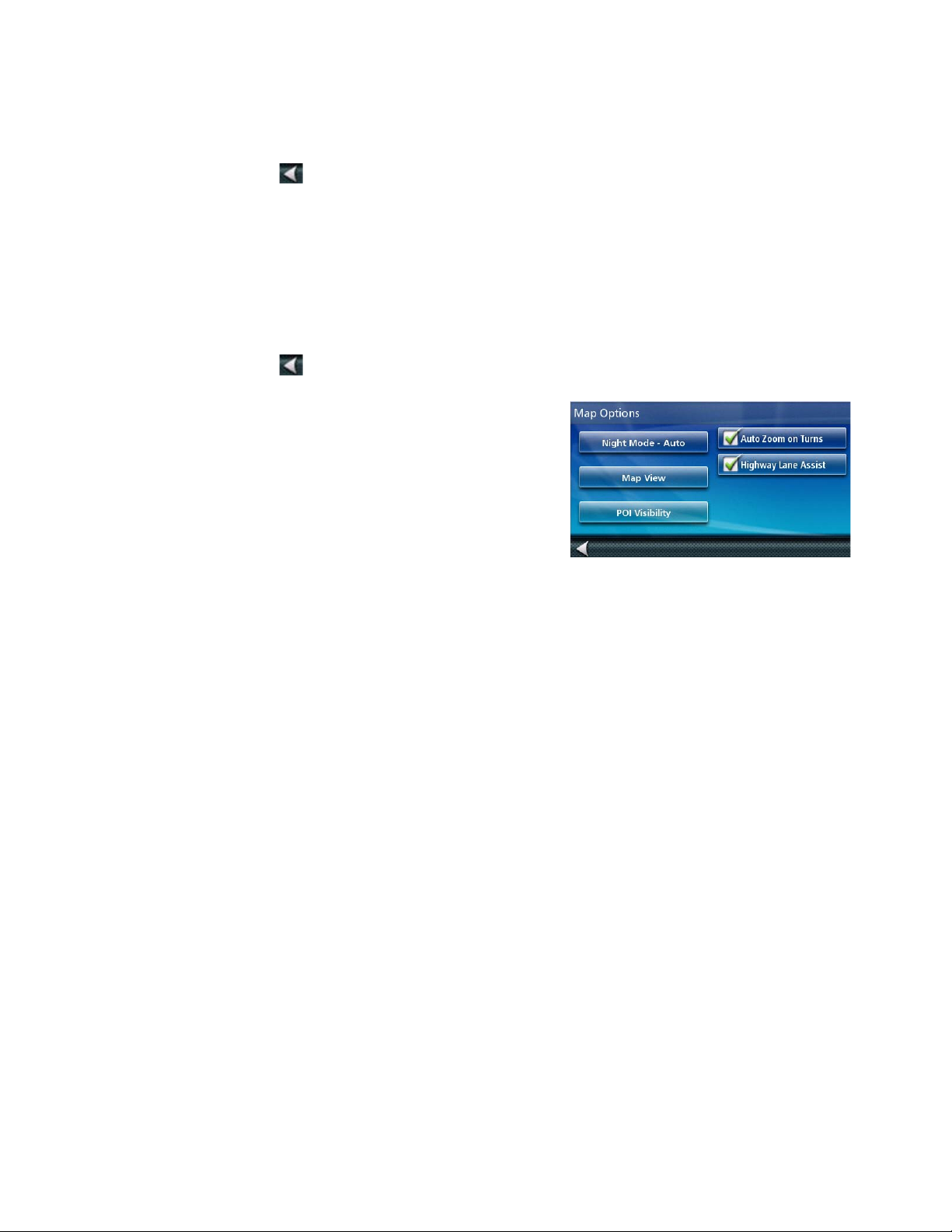

Map Options ............................................................................................ 31
Setting Auto Night Map Display ............................................................... 31
Setting Heading Up or North Up in 2D Mode .......................................... 31
Assigning Visible POIs ............................................................................ 31
Setting Auto Zoom on Turns ................................................................... 31
Setting Highway Lane Assist ................................................................... 32
Sound ...................................................................................................... 32
Setting Volume from Settings .................................................................. 32
Muting the Sound .................................................................................... 32
Turning off Button Sounds ....................................................................... 32

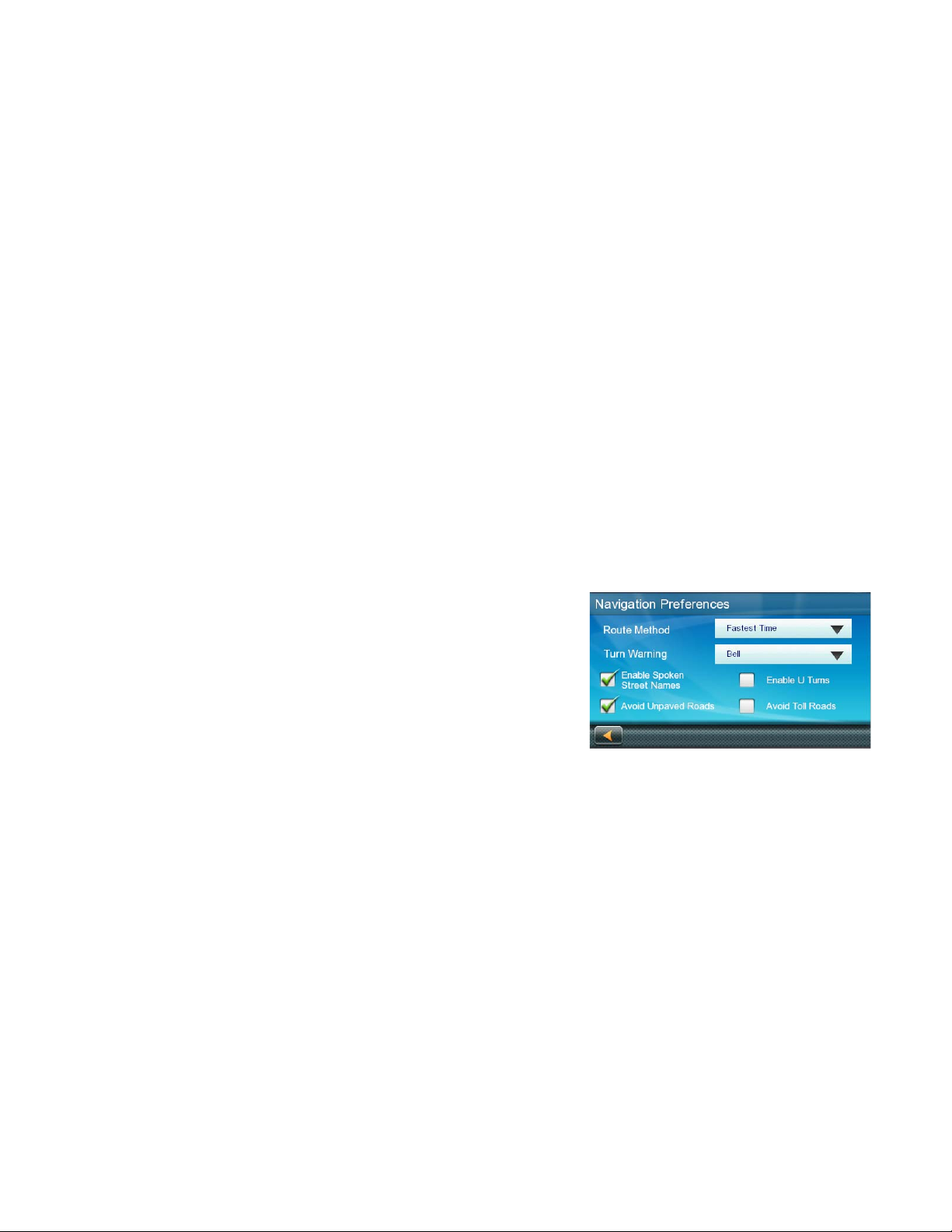

Navigation Preferences ........................................................................... 32
Setting The Default Route Method .......................................................... 32
Setting The Turn Warning Alert Sounds .................................................. 32
Enabling U Turn Guidance ...................................................................... 32
Avoiding Toll Roads ................................................................................ 32
Keyboard ................................................................................................. 33
Setting the Keyboard Layout. .................................................................. 33
Traffic ...................................................................................................... 33
Enabling Traffic ....................................................................................... 33
Displaying Traffic Popups ........................................................................ 33
Setting Audible Traffic Warnings ............................................................. 33
GPS Options ........................................................................................... 33
Setting the GPS Position ......................................................................... 33
Viewing the GPS Status .......................................................................... 33
Default System Settings .......................................................................... 34
Restoring All Default System Settings ..................................................... 34
Viewing Product Information ................................................................... 34
Speed Warnings ...................................................................................... 34
Regions ................................................................................................... 34
471 El Camino Real, Santa Clara, CA 95050
Magellan RoadMate Receiver
The Magellan® RoadMate® receiver is a vehicle navigation product that utilizes GPS signals from satellites to
calculate your precise location and compute navigational information that can be used to guide you to your
destination. Knowing its position and movement, it can then overlay this information on detailed maps to provide
a visual representation of your location.
With the Magellan RoadMate receiver you can:
™
• Save searches and addresses under the OneTouch
destinations.
• Store your home address and quickly get routing details to your home.
• Enter and save addresses in your address book that can be accessed at any time and get routing
information to that address.
• Route to an address that you enter using the QuickSpell
address entry.
• Route to any point of interest (POI) that has been preloaded into your Magellan RoadMate receiver.
• Create a route with multiple destinations. Handy for business people who need routing information to many
destinations.
• View POIs that are near exits ahead of you on the highway. The Highway Exit POIs function provides you
with a list of gas stations, restaurants, hotels and auto repair shops located nearby exits you are
approaching while travelling on the interstate.
• Customize your Magellan RoadMate receiver to meet your needs using the Settings menu.
menu for fast, convenient access to favorite
™
and Smart City search for easy, errorless
• Receive traffic information so as to avoid delays in your travel.
The user interface for the Magellan RoadMate receiver is easy and simple to follow once you understand the
basics. You may never need to refer to this manual, but if you do, we have tried to present it in a form that makes
it easy for you to access the function you are trying to use and follow the steps provided.
The Magellan RoadMate receiver has a built-in battery so, in most cases, you will be able to follow these
instructions while reading them on your computer screen without plugging the Magellan RoadMate receiver to
the AC power using an optional AC power adapter. You should note that while indoors you may not get strong
enough satellite signals to compute your location, so your location information may not be updated. However, the
power of the GPS chipset installed in the Magellan RoadMate receiver will pick up satellite signals in some very
demanding locations. You may find that the Magellan RoadMate receiver is computing a position, even indoors.
Even with the improved GPS chipset, the receiver may not be able to always compute a fix indoors. This is
especially important to note if you are in a garage or other overhanging structure. If you find you are not getting
strong enough satellite signals while in a garage or other structure, move to a location where there is a clear view
of the sky and you should immediately see an improvement in signal strength.
The Magellan RoadMate receiver includes Voice Alerts (Text-to-Speech) for driving instructions.
This document is set up to be printed on 8.5" x 11" paper should you desire a printed version for your reference.
1
Magellan RoadMate
A
B
C
A - Power Switch
B - Micro-SD slot (under protective cover)
C - Mini-USB for connecting power
Map Micro SD
Map updates and possible map expansion packs may be sold from the Magellan Store that will be available on
micro SD cards for use in the Magellan RoadMate. Instructions for using the micro SD card will be provided at
time of purchase.
2
Installation Instructions
Installation of the Magellan RoadMate receiver is simple and easy. The hardest part will be picking the best
location.
Selecting the Location
A few tips on selecting the proper location.
• Mount the Magellan RoadMate receiver in a place where it can be easily seen and will not interfere with
your view of the road.
• The Magellan RoadMate receiver should be mounted in such a way that the antenna, (located in the top of
the receiver), has an unobstructed view of the sky through the windshield.
• Make sure that the Magellan RoadMate receiver or any cabling will not be disturbed if the airbags are
activated.
• Be sure to check your local and regional laws before mounting to the windshield. Some states have laws
restricting the mounting of any device on the windshield.
Securing the Car Cradle
Clean the area on the windshield that has been selected for mounting the Magellan RoadMate receiver. Let the
area dry completely.
Skip this step if you want to be able to remove the receiver for security reasons. However if you plan on
permanently attaching the receiver in the mount, use the two small 5.5mm x 10mm screws to secure the cradle
to the receiver.
Use the four 7mm x 12mm screws to attach the pivot plate to the cradle.
(The DB-9 connector is not used unless you have an optional fleet management device.)
Attaching the Magellan RoadMate receiver to the Mount
The ball end of the mount snaps into the pivot plate that was just
attached. Use the tightening ring to secure the receiver assembly
to the mount but do not tighten firmly yet. After the entire
assembly is attached to the windshield you will want to adjust the
position of the receiver for optimum viewing.After the mount and
the receiver are assembled, place the suction cup of the mount
firmly against the area it is to be attached to and push the
mounting lever towards the base of the mount.When the
assembly is attached to the windshield, you can use the pivot
point on the arm of the mount or the pivot ring on the back of the
cradle to adjust the receiver for optimum viewing.
3
Connecting Power
Attach the USB end of the power adapter cable and the other end to a vehicle 12vdc receptacle.
Note: Some vehicles apply power to the vehicle power receptacle only when the ignition is on.
Checking Connection and Final Adjustments
If the power indicator light on the vehicle power adaptor is on, power is being supplied to the Magellan RoadMate
receiver. If it is not on, check the cable connection to the vehicle power receptacle. If the light is still not on, turn
the vehicle's ignition on.
Power Switch
Press and hold the power button 2 - 3 seconds to turn the receiver on or off. Press and hold the power button for
more then 5 seconds to reset the receiver should you have a problem with the receiver and are instructed to
reset the receiver.
Security
It is recommended that the Magellan RoadMate receiver is not left in plain view while unattended for reasons of
theft.
Please note that the Magellan RoadMate receiver is a receiver only and does not transmit GPS location signals.
Neither the receiver nor the vehicle can be tracked using the Magellan RoadMate receiver.
4
Fundamentals
Powering on the Magellan RoadMate Receiver
The Power On/Off switch is located on the top of the Magellan RoadMate receiver.
Turning the Magellan RoadMate receiver On
1. Press the Power button.
2. After the initial splash screen the Warnings screen is displayed. Read and tap .
Turning the Magellan RoadMate receiver Off
1. Press the Power button.
V ehicle Profile
The first time you power on the device you will be given the
opportunity to enter the Vehicle Profile. Note that you can change
this at any time by accessing the vehicle profile icon from the Main
Menu.
The Vehicle Profile Menu provides access to the six different
vehicle details that are used by the Magellan RoadMate. If you are
going to enter your vehicle information please note that you must
enter the height, width and length as a minimum.
If you are not going to use the Vehicle Profile, uncheck the Set
Vehicle Profile box to continue.
Pairing Bluetooth
The instructions shown here are for pairing a phone during normal use.
1. The first time you use Bluetooth in your Magellan RoadMate receiver, the receiver will automatically ask you if you want to pair a phone.
2. After selecting Yes the receiver is in pairing mode. Follow the instructions in your phone manual to set it in pairing mode.
3. After the phone has searched for new devices, select “Magellan Roadmate” from the list.
4. Your phone will ask for a passcode.
5. Enter ‘1234’.Tap Yes on the Magellan RoadMate.
6. A screen will confirm the successful pairing.
®
