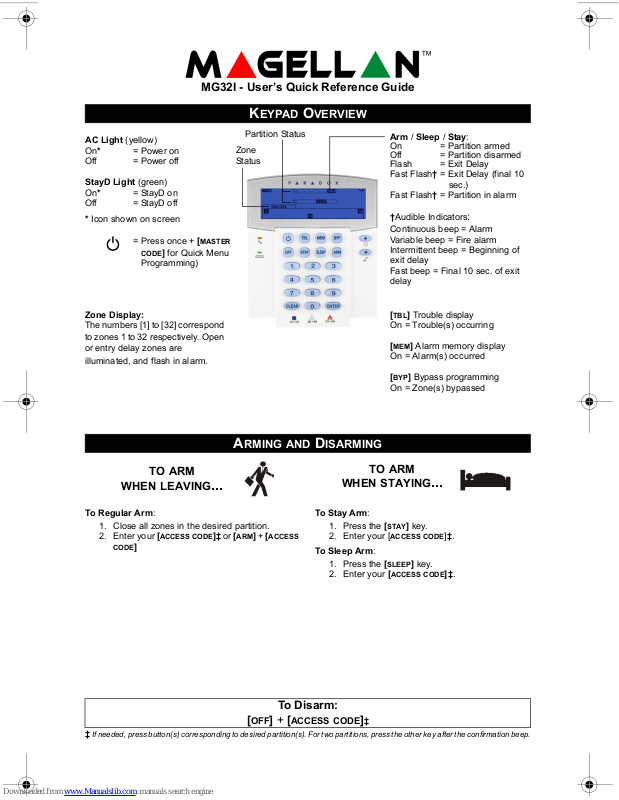

MG32I - User’s Quick Reference Guide
KEYPAD OVERVIEW
AC Light (yellow)
On* = Power on
Off = Power off
StayD Light (green)
On* = StayD on
Off = StayD off
* Icon shown on screen
= Press once + [
CODE] for Quick Menu
Programming)
Zone Display:
The numbers [1] to [32] correspond
to zones 1 to 32 respectively. Open
or entry delay zones are
illuminated, and flash in alarm.
MASTER
Partition Status
Zone
Status
Arm / Sleep / Stay:
On = Partition armed
Off = Partition disarmed
Flash = Exit Delay
Fast Flash† = Exit Delay (final 10
sec.)
Fast Flash† = Partition in alarm
†Audible Indicators
Continuous beep = Alarm
Variable beep = Fire alarm
Intermittent beep = Beginning of
exit delay
Fast beep = Final 10 sec. of exit
delay
[TBL] Trouble display
On = Trouble(s) occurring
MEM] Alarm memory display
[
On = Alarm(s) occurred
BYP] Bypass programming
[
On = Zone(s) bypassed
:
ARMING AND DISARMING
TO ARM
WHEN LEAVING...
To Regular Arm:
1. Close all zones in the desired partition.
2. Enter your [
CODE]
ACCESS CODE]‡ or [ARM] + [ACCESS
To Stay Arm:
1. Press the [
2. Enter your [
To Sleep Arm:
1. Press the [
2. Enter your [
To Disarm:
[
OFF] + [ACCESS CODE]‡
‡ If needed, press button(s) corresponding to desired partition(s). For two partitions, press the other key after the confirmation beep.
TO ARM
WHEN STAYING...
STAY] key.
ACCESS CODE]‡.
SLEEP] key.
ACCESS CODE]‡.
PANIC ALARMS
To send a silent or audible alarm to your
monitoring station, press and hold one of the
button combinations listed for 3 seconds.
Panic Alarm Type Button Combinations
Police
Medical
Fire
Press [1] & [3]
Press [4] & [6]
Press [7] & [9]
\
ALARM MEMORY DISPLAY
To view the alarms that occurred during the
last armed period:
1. Disarm the system.
2. Press the [MEM] key.
3. The corresponding zone numbers that
were in alarm the last time the system
was armed will appear on the screen.
4. Press the [
CLEAR] key to exit.
TROUBLE DISPLAY
1. Press the [
and the number(s) corresponding to the
trouble(s) will be displayed on the
screen.
2. Read the corresponding explanation of
the trouble from the trouble list in the
MG/SP User Guide. If no repair
instructions are given, call your security
company for repairs.
3. Press the [
TBL] key. The word ‘Trouble’
CLEAR] key to exit.
BYPASS PROGRAMMING
Bypassed zones remained unarmed when the
partition is armed.
1. Press the [BYP] key.
2. Enter your [
3. The corresponding zone number will be
displayed on the screen when open.
Select the zone(s) you want to bypass
by entering the two-digit zone number.
For example to enter zone 3 enter [0]
then [3]. The corresponding zone
indicator will flash.
4. Press the [
ACCESS CODE]‡.
ENTER] key to save and exit.
KEYPAD SETTINGS
To mute the keypad:
Press and hold the [
CLEAR] key for 6
seconds to enable or disable Keypad
Muting.
To modify the backlight:
1. Press and hold the [] key for 4 seconds.
2. Keys 1, 2, 3, 5 and 6 will flash.
3. Press [2], then use the [] and [] to
adjust.
4. Press [
CLEAR] or [ENTER] to exit.
CHIME PROGRAMMING
A Chime Enabled zone will advise you every
time it is opened by causing your keypad to
beep.
1. Press & hold the [
‘Chime’ will appear on the screen.
2. Select the zones you want to Chime by
entering the two-digit zone number. The
corresponding zone number will flash.
For example, to chime zone 2 enter [0]
then [2]. The keypad will automatically
save once the 2-digit zone number is
entered.
3. Press the [
ENTER] key to exit.
] key. The word
© Paradox Security Systems Ltd., 2005-2007. Magellan
is a trademark or registered trademark of Paradox
Security Systems Ltd. and its affiliates in Canada, the
United States and/or other countries. All rights reserved.
paradox.com
Printed in Canada 10/2007 MG32I-EQ00
