Welcome
Thank you for buying the Roof Mount LCD Monitor with DVD player. Please read this manual carefully before using the Roof Mount LCD Monitor with DVD player in order to get the most out of all the features and functions. Keep this manual in a safe place, as it can be a valuable tool in helping you to understand all the features and functions.
Contents
Safety information......................................................................... |
1 |
DVD player features ..................................................................... |
3 |
Setting up your DVD player .......................................................... |
9 |
Using your DVD player ................................................................. |
14 |
Basic Operation .......................................................................... |
16 |
System setup ................................................................................ |
23 |
Troubleshooting ............................................................................ |
27 |
Specifications................................................................................ |
28 |
Maintaining ................................................................................... |
29 |
Safety information
Do not operate the unit in any way other than described within this manual. Failure to follow the instructions within the manual will invalidate your warranty.
SAFETY FIRST! Do not install the display where it may (i) obstruct the driver’s vision, (ii) impair the performance of any of the vehicle’s operating systems or safety features, including airbags, or (iii) impair the driver’s ability to safely operate the vehicle.
When using the system, make sure you are firmly secured by your seat belt to ensure you do not accidentally hit your head on the screen during sudden braking or other incidents. If you are ever in an accident, injuries can be more severe if the seat belt is not properly buckled.
Do not attempt to install or service your display by yourself. Installation
1
or servicing of the display by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock or other hazards.
Be careful not to drain the car battery while using the unit with the car engine stopped. To avoid draining the battery, it is suggested that the vehicle engine always is running while using the unit.
Do not disassemble or alter the unit in any way. Failure to do so can cause damage to the unit and invalid the warranty.
Never clean the surface of the screen with chemical solvent or corrosive detergent, which may cause permanent damage to the TFT LCD screen.
Avoid installing the unit wherever is under direct sunlight or near hot air vent. Please note that the normal working temperature of the unit is between -5 to +50 . If the internal temperature of the vehicle is extremely high, a short cooling down period is necessary before operating the unit.
If the temperature inside the car is very low and the monitor is used soon after switching on the heater, moisture may form on the panel of the unit. Turn off the unit immediately! Failure to do so may cause the internal components to short. Allow the unit to rest for about one hour to allow the condensation to disappear before continue operation.
In extremely cold temperatures, the movement of the picture may be slow and the picture may be dark. It is not a malfunction. The unit will work normally once it reaches its operating temperature.
Do not drop or hit the LCD panel with a hard object, as it may cause permanent damage to the LCD panel. Should LCD panel break, avoid touching glass and fluid. If do, please clean it with plenty of water and ask for medical attention immediately.
Due to different car specifications, please kindly ensue that the display monitor is properly located and not obstructing the air-conditioning vent. Avoid inserting any foreign objects into the slot of the disc Player. Failure to observe this may cause malfunction due to the precise mechanism of this unit.

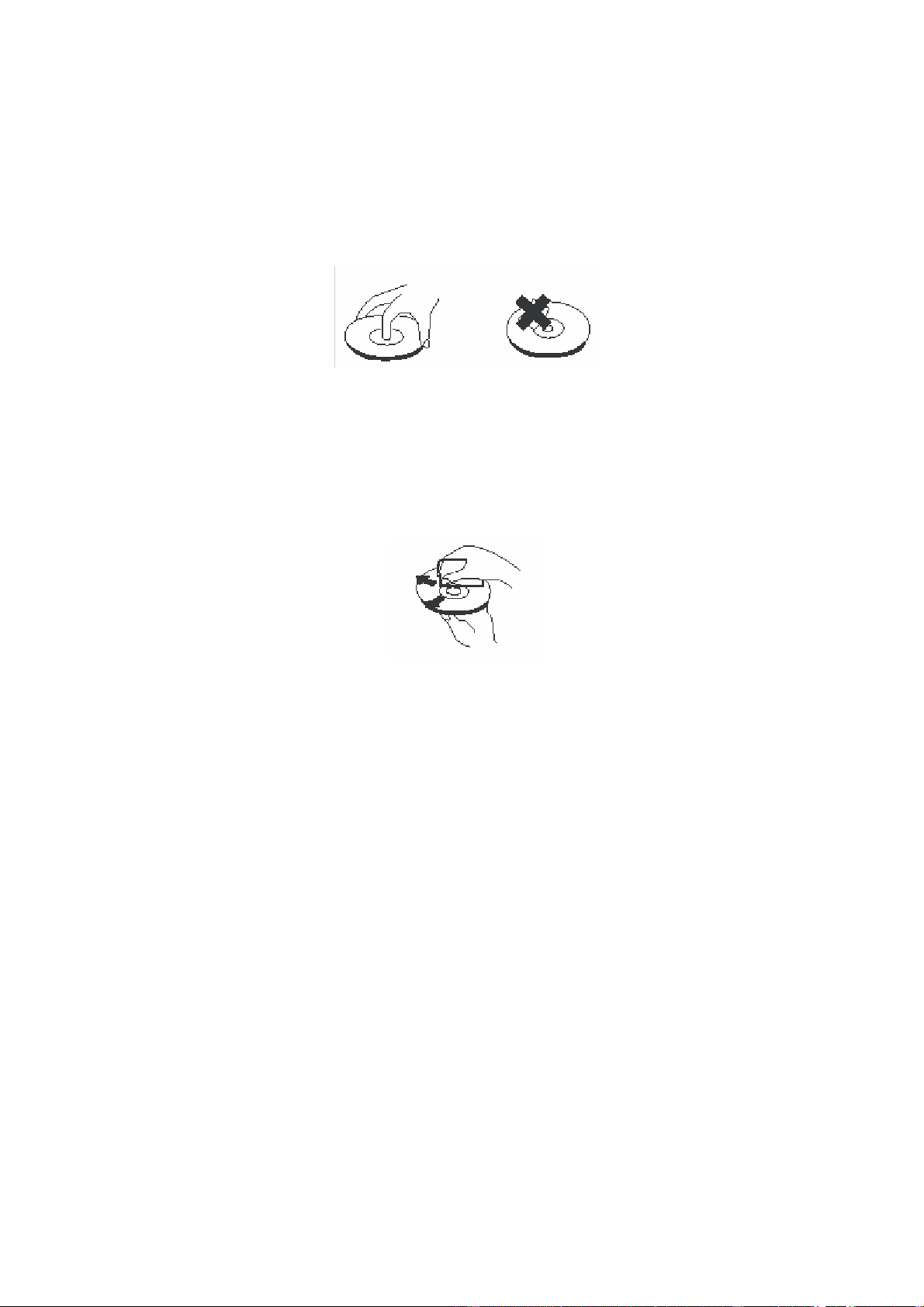

Protect your disc. When you leave the car, be sure to eject the disc from this unit and store it separately away from direct sun light.
Heat and humidity may damage the disc and you may not be able to play it again.

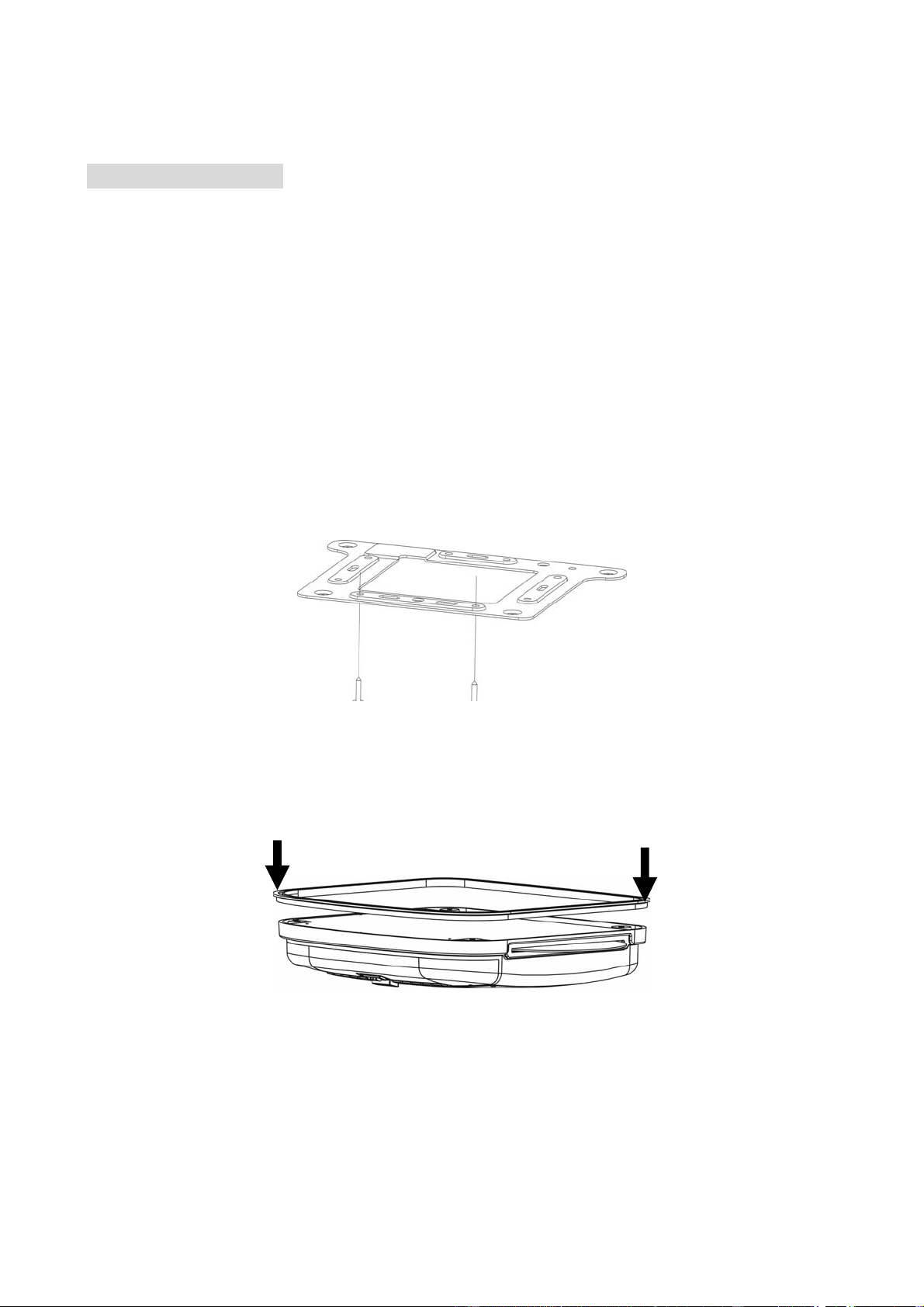

Use the supplied screws to fix the monitor Metal Mounting Plate.
2
DVD player features
This player is a Roof Mount 9.2" TFT-LCD Color Display with DVD player that can be used as a stand-alone display, or can be integrated into a mobile multimedia system. This player has the following features:
9.2" TFT-LCD color monitor (16:9) Roof Mounting Application Pixel(dots):800RGB(W)x480(H)
Wide Viewing angle(up/down/left/right):45/55/65/65 NTSC and PAL Compatible
Adjustable Color/Contrast/Brightness/Tint Manual Viewing Angle Adjustment Vertical Adjustable: up/down>1500
White LED Dome Light Automotive Startup Protection
Built-in IR Transmitter for IR Wireless Headphone IR Remote Control
On Screen Display 2xAV Input
1xAV Output
Slot-in DVD mechanism USB1.1 Host Mode
Memory card port for SD/ MMC/MS Capability to read: DVD Format
/DVD±R/DVD±RW/CD-DA/CD-RW/MP3/VCD/SVCD
Note: Multi-session CDs and 320kbps WMA files can not be played on this player.
FM Transmitter for listening the audio from your car audio system via FM radio receiver (setting frequency: 88.1, 88.3, 88.5, 88.7, 88.9, 89.1, 89.3, 89.5, 89.7 MHz and 89.9 MHz)
DVD VIDEO FEATURES
This unit provides the following functions in addition to high image quality and sound quality of DVD video:
Multi-sound Function
DVD audio can store up to 8 languages for one film. This allows for the selection of language of ones preference.
3
Multi-angle Function
A DVD video that is filmed from multiple angle which allows you choosing to view from different perspectives.
Subtitle Function
A DVD video can record subtitles for up to 32 languages to choose from.
DISC PLAYBACK
This DVD player can play the following formats.
About CD Extra discs
A CD Extra disc is a disc in which a total of two sessions have been recorded. The first session is Audio session and the second session is the Data session. Your personally-created CDs with more than 2 data sessions recorded cannot be played on this DVD Video Player.
MP3 Playback
This unit can play back CD-R/CD-RW discs on which MP3 music data have been recorded.
Region Numbers
The DVD Video System assigns a region number to DVD video player and DVD disk by Sales area. The DVD video region number is marked on the disk Jacket as shown below.
Ex.
4
DISPLAY
Item |
Name |
Function or Control |
1 |
Dome Light |
Provides an interior light for the vehicle. |
2 |
Reset button |
Press with a pencil or other narrow-tipped tool |
|
|
to rest the player. |
3 |
Power button |
Press to turn on or turn off the player |
4 |
Menu button |
Press to open the TFT menu. Press again to |
|
|
select a menu item. |
5 |
SRC input source |
Press to select the video input mode (DVD-IN |
|
button |
/USB/ SD/ MMC/ MS, AV IN1, AV IN2,). (When |
|
|
the units sets in DVD mode, press it can |
|
|
change USB/SD/MMC/MS mode.) |
6 |
▼(VOL-)button |
Press to reduce a value in the menu (such as |
|
|
decreasing the volume). |
7 |
▲(VOL+) button |
Press to increase a value in the menu (such |
|
|
as increasing the volume). |
8 |
Dome Light switch |
Move to the ON/OFF position, then press it to |
|
|
turn the dome light on or off. |
5
Item |
Name |
|
Function or Control |
9 |
Panel open button |
|
Press to open the LCD panel. |
10 |
(SKIP-) button |
|
Press to skip the previous chapter on DVD or |
|
|
|
track on CD; Press and hold it to fast reverse |
|
|
|
playback at 2x, 4x, 8x, 16x and 32x speeds. |
11 |
(SKIP+) button |
|
Press to skip the next chapter on DVD or track |
|
|
|
on CD; Press and hold it to fast forward |
|
|
|
playback at 2x, 4x, 8x, 16x and 32x speeds |
12 |
Stop button |
|
Press to stop playback, press [PLAY] or |
|
|
|
[ENTER] button to start playing at the last |
|
|
|
position; Press [STOP] button twice to fully |
|
|
|
stop playback, Press [PLAY] or [ENTER] |
|
|
|
button to start playing at the beginning of DVD. |
13 |
Play or Pause |
|
Press to play or pause a disc. |
14 |
Eject button |
|
Press to eject the disc. |
15 |
IR window |
|
Receives IR signals from the remote control |
|
|
|
and sends IR signals to IR wireless |
|
|
|
headphone. |
16 |
Fixing holes |
|
Connect the player to the mounting plate with |
|
|
|
screws inserted into these holes. |
17 |
LCD screen shut |
off |
Press to turn off the LCD screen |
|
switch |
|
|
18 |
Disc slot |
|
Insert the disc into this slot. |
This function can be operational only when the green wire of the dome light is connected to the door sensor.
The dome light will switch off after the car door is closed.
6
REMOTE CONTROL
Item |
Name |
Function or control |
1 |
Power |
Press to turn the player on or off. |
2 |
Setup |
Press to access the setup menu to modify the |
|
|
DVD player settings. |
3 |
Mute |
Press to turn the sound on or off. |
4 |
Eject |
Press to eject the disc. |
5 |
0-9 |
Press to enter numbers directly, such as for |
|
|
settings or track numbers. |
6 |
Previous |
Press to go to the previous chapter on DVD or |
|
|
track on CD. |
7 |
Play or Pause |
Press to play or pause the CD or DVD. |
8 |
Audio |
DVD: press to change the audio language during |
|
|
DVD playback. |
|
|
VCD/CD: press to change the audio channel |
|
|
(Left, Right and stereo) during VCD and CD |
|
|
playback. |
7
Item |
Name |
Function or control |
9 |
Arrow and ENTER |
Press to navigate in a menu and change setting |
|
buttons |
values. |
10 |
FR |
Press to fast reverse playback at 2x, 4x, 8x,16x |
|
|
and 32x speeds. |
11 |
Random |
Press to play chapters or tracks in random order. |
12 |
A-B |
Press to repeat playback from point A to point B. |
13 |
SRC |
Press to select the video input mode (DVD-IN |
|
|
/USB/ SD/ MMC/ MS, AV IN1, AV IN2,). (When |
|
|
the units sets in DVD mode, press it can change |
|
|
USB/SD/MMC/MS mode.) |
14 |
Return |
Press to return the main menu, press again to |
|
|
return the last position of playback. |
15 |
Angle |
Press to select a different filming angle. This |
|
|
feature only works if the DVD is recorded with |
|
|
multiple angles. |
16 |
Zoom |
Press to set the zoom for movie viewing. |
17 |
Repeat |
Press to repeats the track or the entire disc. |
18 |
Title |
Press to view the DVD disc’s title menu. |
19 |
(FF) |
Press to fast forward playback at 2x, 4x, 8x,16x |
|
and 32x speeds. |
|
|
|
|
20 |
Subtitle |
Press to select and turn on subtitles during |
|
|
playback. |
21 |
Menu |
Press to view the DVD disc’s main menu. |
22 |
VOL - / VOL+ |
Press to decrease / increase the volume. |
23 |
Next |
Press to go to the next chapter on DVD or track |
|
|
on CD. |
24 |
Stop |
Press to stop playback, press [PLAY] or |
|
|
[ENTER] button to start playing at the last |
|
|
position; Press [STOP] button twice to fully stop |
|
|
playback, Press [PLAY] or [ENTER] button to |
|
|
start playing at the beginning of DVD. |
25 |
Display |
Press to display the playback information (such |
|
|
as title, chapter, track and time). |
26 |
Goto |
Press to start playback at a selected chapter, |
|
|
track or time. |
8
