Appendix B: Technical Info
DS3232
WEIGHT
20.5 lbs
(9.3 kg)
19.0 in/48.3 cm
17.6 in/44.6 cm
9.0 in/23.0 cm
10.2 in/26.0 cm
(6 RU)
9.0 in/23.0 cm
RETURNS
9 10 11 12 13 14 15 161 2 3 4 5 6 7 8
25 26 27 28 29 30 31 3217 18 19 20 21 22 23 24
POWERU-NET COMM
DS3232
24-BIT / 96kHz DIGITAL SNAKE
INPUTS
9 10 11 12 13 14 15 161 2 3 4 5 6 7 8
25 26 27 28 29 30 31 3217 18 19 20 21 22 23 24
PUSH
PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH
PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH
Input Gain Control Range
DS3232 Specifications
Frequency Response
Mic Input to Digital Output (@ 96 kHz SR)
+0, –0.1 dB, 20 Hz to 24 kHz
Mic In (PAD out): +15 dB to +70 dB (in 1 dB increments)
Mic In (PAD in): –8 dB to + 47 dB (in 1 dB increments)
Phantom Power
+48 VDC
Owner’s Manual
Distortion (THD)
Mic Input to Digital Output (@ 96 kHz SR)
THD: < 0.003%, –10 dBu input,
mic pre gain at –3 dB FS output
Dynamic Range
105.0 dB A-weighted (ADC) typical
112.5 dB A-weighted (DAC) typical
Noise Floor
Equivalent Input Noise (E.I.N.), 20 Hz to 20 kHz Bandwidth,
150Ω source impedance
–128.5 dBu @ +45 dB mic pre gain
Residual Output Noise:
Digital Out: < –112.5 dB FS
Converters
24-bit @ 96 kHz
Round Trip Latency
Mic In to Return Out: < 5.0 ms @ 48 kHz SR
< 2.2 ms @ 96 kHz SR
Common Mode Rejection Ratio (CMRR)
Mic In: >75 dB @ 1 kHz, Gain @ maximum
Crosstalk
Adjacent Inputs: < –90 dB @ 1 kHz, +22 dBu on adjacent
input, 150
Ω source impedance
Maximum Input Levels
Mic Input (PAD out): +7 dBu, Gain @ 15 dB
Mic Input (PAD in): +30 dBu, Gain @ –8 dB
Input Impedance
Mic Input (PAD out): 1.5 kΩ, balanced
Mic Input (PAD in): 3.1 kΩ, balanced
Output Impedance
Returns Out: servo-balanced, 51 Ω per side, XLR outputs
AC Power Requirements
Power Consumption: 80 watts
Universal AC Power Supply:
100 VAC – 240 VAC, 50-60 Hz
Physical Dimensions and Weight
Height: 10.2 in/26.0 cm (6 RU)
Width: 19.0 in/48.3 cm
Depth: 9.0 in/23.0 cm
Weight: 20.5 lb/9.3 kg
LOUD Technologies Inc. is always striving to improve our products by incorporating new and improved materials, components,
and manufacturing methods. Therefore, we reserve the right to
change these specifications at any time without notice.
“Mackie.” and the “Running Man” are registered trademarks of
LOUD Technologies Inc. All other brand names mentioned are
trademarks or registered trademarks of their respective holders, and are hereby acknowledged.
©2007 LOUD Technologies Inc. All Rights Reserved.

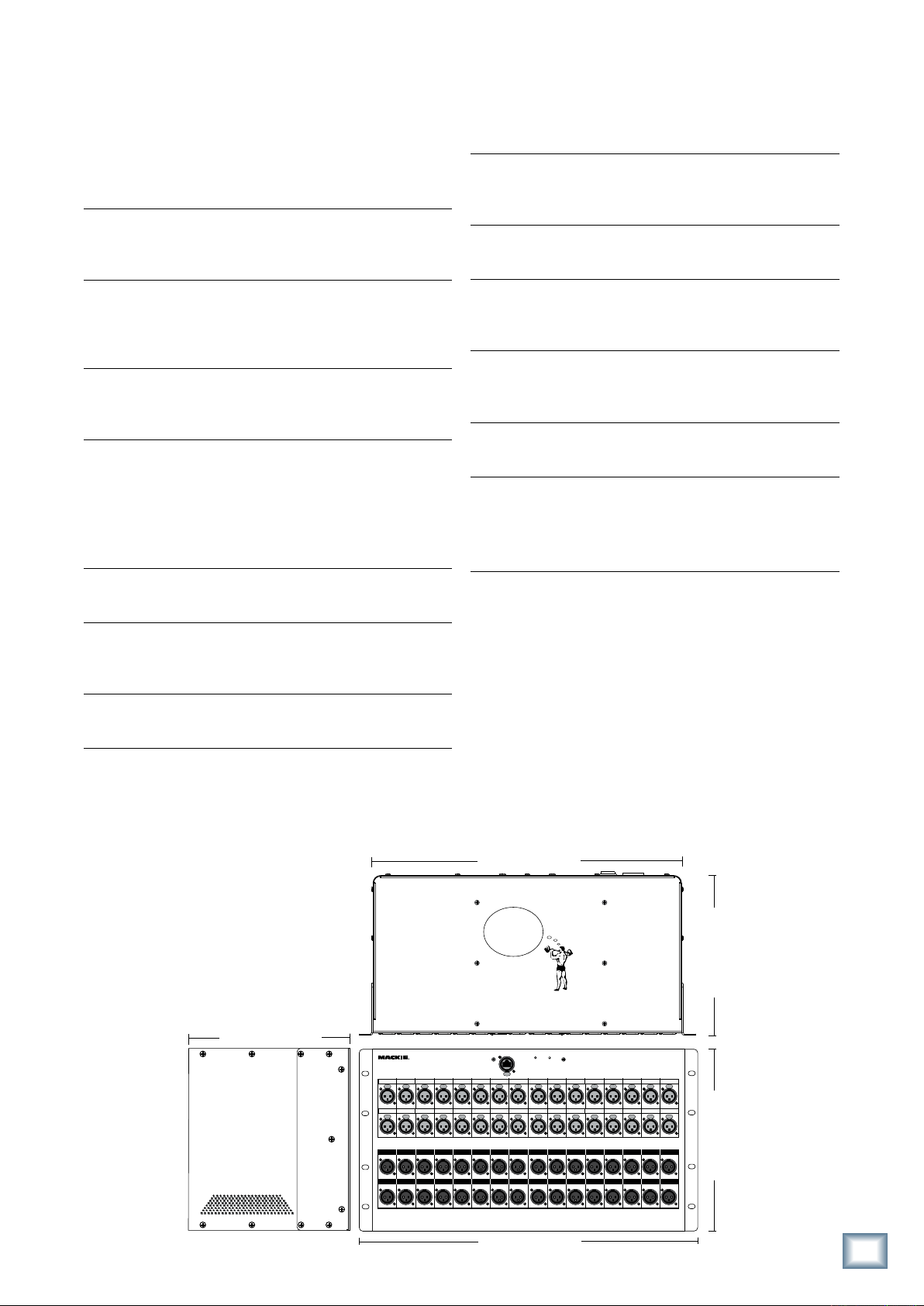

DS3232 Dimensions
Owner’s Manual
11
