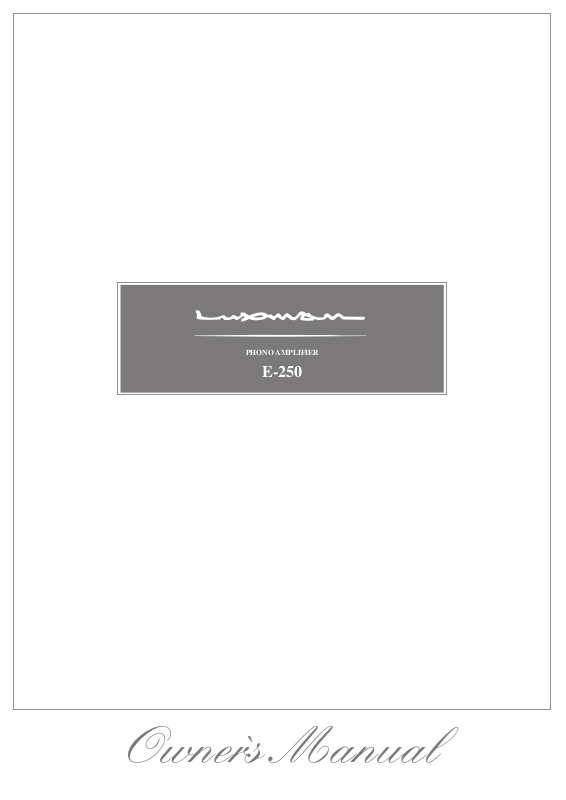

PHONO AMPLIFIER
E-250
Owner`s Manual
Contents
Precautions ············································································································· 1
Features of This Unit ································································································ 2
Names and Functions ······························································································ 4
Connections ············································································································ 8
Block Diagram ······································································································· 10
Specifications ········································································································ 11
Before Asking for Repair Services ·········································································· 12
PHONO AMPLIFIER E-250
Precautions
Installation place
Install this unit in a location where good ventilation and heat
radiation are assured.
Especially, the installation of this unit where the direct sunlight
is present, where the temperature rises excessively high such
as close to a heater, or where it is humid or dusty may cause
a malfunction even if heat is efficiently released. Therefore, do
not install this unit in such places.
Note:
For heat dispersal, do not install this equipment in a confined
space such as a book case or similar unit.
* Note
*
*
*
Wall
Cautions in connecting cartridges
Connect an analog player or a tone arm with the ground ter-
minal of this unit. If the grounding terminal is inadequately
connected, noises including hum may be generated, resulting
in an adverse effect on the S/N ratio.
The pin plugs to be inserted in the input terminals of this unit
shall be pushed in firmly. If the grounding of the terminal is
inadequately connected, noises including hum may be gener-
ated, resulting in an adverse effect on the S/N ratio.
The sound is not generated shortly after
the power supply is turned on.
This amplifier is equipped with a time muting circuit in order to
separate the output circuit. Therefore, no sound is generated
shortly after the power supply is turned on.
If the volume control is set to a high sound level before the
time muting circuit is canceled, a large sound will suddenly be
generated. Please be advised that the volume control shall be
set to a low level at first and adjusted after the sound comes
out of the speakers.
Repair and adjustment
When repairs and adjustments are needed, please consult
with the dealer you bought the unit from.
Cleaning
For cleaning, use a piece of soft cloth to wipe the unit such as
cleaning cloth. When the dirt is hard to remove, use a small
amount of neutral detergent to wipe, and then wipe the unit
with dry cloth. Do not use a solvent like benzine or thinner
because such substances can often damage the exterior.
Precautions in connecting with other
components
When connecting this unit to output device, be sure to turn
off the power switch of this unit and all other connected units.
Failure to observe this may generate a strong noise resulting
in speaker damage or cause a malfunction.
The pin-plugs to be inserted in the input and output terminals
of this unit shall be pushed in firmly. If the grounding termi-
nal is inadequately connected, noises including hum may be
generated, resulting in an adverse effect on the S/N ratio.
1
Features of This Unit
Outline
This unit is an NF type phono equalizer amplifier supporting
MM/MC cartridges.
Specially selected MC transformer
Two pieces of step-up transformers in which a super permal-
loy core is independently used are mounted. Independence
between left and right channels has achieved richly expres-
sive sound that can be produced only by boosting with a
transformer.
Setting of cartridge load impedance
The load resistance setting function with 4 positions supports
a wide variety of cartridges.
Setting of cartridge load capacity
The load capacity setting function with 4 positions supports
a wide variety of cartridges. Change in high-frequency char-
acteristics allows sound to be adjusted to your favorite tone
quality.
Improvement in S/N ratio
Noise reduction has been achieved by the 2-parallized first
stage of FET, and improvement in the S/N ratio has been
achieved by optimization of ground pattern and ground point.
Selector relays
The selector relays of the high sound quality which are
mounted in the important points of LUXMAN amplifiers also
are mounted.
High-inertia power supply
The high-inertia power supply circuit on which a large-capac-
ity capacitor blocks were combined.
Schottky barrier diode
Schottky barrier diodes that have less switching noises and
higher conversion efficiency to the DC voltage is applied for
the power supply rectifier circuit.
2
PHONO AMPLIFIER E-250
Articulation function
Magnetization of the cartridge or MC transformer that may
cause the deterioration of sound quality can be eliminated
with the use of reproduced sound signals. This function can
exploit the full potential of cartridges and achieve the sound
quality with a sense of openness.
Low cut switch
A low-cut filter is provided to restrain woofer fluctuation gen-
erated due to warped analog records.
Stereo/Monaural
The monaural switch which is useful for playing monaural re-
cords.
Input/output terminals
18 mm pitch RCA input/output terminals allow even high-per-
formance line cables with large plugs to be connected.
Compact chassis design
Compact body design (W 364 mm x D 274 mm)
LUXMAN’s original OFC wires
Original OFC wires are used in the internal shielded wires to
achieve smooth and natural signal transmissions thanks to
the spiral wrap shielding on each core and the non-plating
process on the core wire.
AC inlet
This inlet enables the connection with an external power ca-
ble.
3
Names and Functions
1 53 4 6 92 7 8
Front panel
1. Operation switch (OPERATION)
This switch turns on and off the power. When connecting
the input/output terminals, be sure to turn off this switch.
: OFF
: ON
2. Operation indicator (OPERATION)
Blinks during warm-up when the operation switch is turned
on and lights up when the operation state is activated af-
terward.
When the indicator is blinking, the output muting circuit is
activated to mute sound. Please be advised that the volume
control of the input device such as a control amplifier shall
be set to a low level at first and adjusted according to your
taste after sound comes out of the speakers.
4. Low cut switch (LOW CUT)
Toggles the low-frequency cutoff function on and off. The
speaker (woofer) fluctuation is restrained when a warped
record is played.
• OFF
Provides the normal state.
• ON
Cuts low frequencies of 30Hz or less. (–6 dB/oct)
5. Articulator switch (ARTICULATOR)
This function performs demagnetization by using sound sig-
nals.
When a record is played with the articulator switch set to
ON, the cartridge and step-up transformer are demagne-
tized, and thus the expression of fresh sound is brought
back.
3. Mode switch (MODE)
• STEREO
Is used for stereo playback. Select this position under
normal conditions.
• MONO
Is used for monaural playback.
When the articulator switch is set to ON, no sound is gen-
erated or the sound becomes remarkably small during
playback. This is the sign that the cartridge is being de-
magnetized. If the articulator is set to OFF at this point, the
sound suddenly becomes loud. Therefore, do not turn up
the sound volume of the control amplifier or the like. It is
recommended to activate the articulator for approximately
30 seconds before the end of a track of the record.
• OFF
Deactivates the articulator. Select this position under
normal conditions.
• ON
Activates the articulator.
4
PHONO AMPLIFIER E-250
6. Articulator indicator
Blinks when the articulator is activated.
7. Input selector (INPUT)
Selects an input terminal on the rear panel.
• 1: Input terminal 1 (INPUT-1) is selected.
• 2: Input terminal 2 (INPUT-2) is selected.
8. Cartridge selection switch (CARTRIDGE)
Selects between MM and MC according to your cartridge.
When MC is selected, the MC cartridge selector (9) can
switch between HIGH and LOW and the MC input imped-
ance.
9. MC cartridge selector
When the cartridge selector (8) is set to MC, the MC car-
tridge selector can select an input impedance.
This selector switches between HIGH and LOW according
to your MC cartridge. The input impedance at the MC HIGH
position is 40 Ω, and the input impedance at the MC LOW
position is 2.5 Ω.
5
1413121110
Names and Functions
Rear panel
10. Input impedance selector/
input capacitor selector
The input impedance and input capacitor can be selected
according to your cartridge. The switches in the upper row
are used for the L channel, and the switches in the lower
row are used for the R channel.
The switches 1 and 2 are used for the input impedance, and
the switches 3 and 4 are used for the input capacitor.
Combination of the switches shown in the figure allows the
setting at the L and R channels to be performed at the same
time according to your cartridge specifications or your fa-
vorite pattern.
For the input impedance, 34 kΩ, 47 kΩ, 56 kΩ and 100 kΩ
are selectable, and for the input capacitor, 0 pF, 100 pF,
220 pF, and 320 pF are selectable.
The input impedance is 47 kΩ and the input capacitor is
0pF as factory default settings.
ON
1 2 3 4
ON
1 2 3 4
* Switch positions are marked with ■ in the detailed drawing
above.
Before changing switch positions, set the sound volume of
connected devices to a low level.
6
PHONO AMPLIFIER E-250
11. Signal ground terminal (SIGNAL GROUND)
Is a ground terminal for devices to be connected to this unit.
These terminals are used to reduce noises when other de-
vices are connected, and are connected to an analog player
or a tone arm. This terminal is not designed for safety.
12. Input terminals (INPUTS)
Are input terminals to connect pin-plug cables from an ana-
log player or a tone arm. There are 2 lines of input terminals
to connecte 2 pieces of analog players or tone arms. The
input selector can select between 1 and 2.
13. Output terminals (OUTPUT)
Use pin-plug cables to connect the output terminals of this
product with the line input terminals of a control amplifier
and an integrated amplifier.
If this terminal is connected to the phono (PHONO) input
terminals of those amplifiers, they may be damaged. Be
sure to connect the terminal to the line input terminal.
14. AC inlet (AC IN)
Connects the accessory power cable.
The power shall be supplied from a household wall socket.
7
Connections
SPEAKER SYSTEM
ANALOG PLAYER ANALOG PLAYER
L R L R
L R
CONTROL AMP
POWER AMP
L R
8
PHONO AMPLIFIER E-250
Before Connecting
Before connecting other devices, connect the jack side of
the accessory power cable to the AC inlet of this unit.
Before connection, turn off the main power switch of this
unit and the power of all other connected devices to pre-
vent unexpected accidents that may be caused by noise.
How to connect power supply
Use the accessory power cable to insert the AC plug in an
outlet on the wall in the listening room.
How to connect analog player
1. Mount a cartridge on the tone arm in an appropriate way
by referring to the operating instructions of the analog
player and cartridge to be used.
2. Insert the pin-plugs of RCA pin-plug cables from the tone
arm with a cartridge mounted into the input terminals of
this unit. At this moment, be sure to make a connection
without a mistake between the R-channel and L-chan-
nel. If the grounding side of the pin-plug cables is inade-
quately connected, noises including hum may be gener-
ated, resulting in an adverse effect on the S/N ratio.
How to connect output devices
1. Surely connect the output terminals of this unit to the line
input terminals of a control amplifier or an integrated am-
plifier using RCA pin-plug cables between the L-chan-
nel and R-channel. If the grounding side of the pin-plug
cables is inadequately connected, noises including hum
may be generated, resulting in an adverse effect on the
S/N ratio. Therefore, insert the cables all the way.
2. Do not connect the output terminals of this unit to the
phono (PHONO) input terminal of a control amplifier or
integrated amplifier. Failure to observe this may not only
distort the phono amplifier signals of the integrated am-
plifier or a control amplifier but also damage the ampli-
fiers. Be sure to connect the terminal to the line input
terminal. Do not insert the supplied short pins into the
output terminals. If the pins are inserted into the output
terminal, no sound will be generated.
3. Sound volume adjustment shall be performed by the
connected control amplifier or integrated amplifier be-
cause this unit has no sound volume adjustment func-
tion. Sound volume shall be set to the minimum when
this unit is being connected. If sound volume is set to a
high level at power-on, sudden loud sound may be gen-
erated, which may cause hearing loss or damage to the
speakers.
Please be advised that the sound volume shall be set to
a low level at first and adjusted according to your taste
after the sound comes out of the speakers.
3. Grounding between analog players to be connected and
this unit is needed. Be sure to connect the ground wires
that come from tone arms in parallel with pin-plug cables
to the ground terminals of this unit.
If the ground wires are inadequately connected, noises
including hum may be generated, resulting in an adverse
effect on the S/N ratio.
Do not connect the output of an analog player with pho-
no equalizer embedded to this unit. Failure to observe
this may not only distort the amplifier signals but also
cause a malfunction.
Connect the output of an analog player with phono
equalizer embedded to the line input of an integrated
amplifier or a control amplifier.
9
Block Diagram
T
T
+B
PHONO 1
PHONO 2
PHONO 1
PHONO 2
OUTPU
MUTE
MONO/
STEREO
LOW CUT
LOW CUT
RIAA
PHONO EQUALIZER
AMPLIFIER
RIAA
OUTPU
MUTE
MONO/
STEREO
LOW CUT
LOW CUT
RIAA
RIAA
PHONO EQUALIZER
AMPLIFIER
High Inertia Regulator
For EQ AMP
For CONTROL CIRCUIT
-B
+B
Circuit
Discrete
Regulator
RELAY / INDICATOR
Regulator
RectifierRectifier
-B
+B
-B
Power
Transformer
MM/MC
ARTICULATOR
MC STEP-UP
MM/MC
TRANSFORMER
ARTICULATOR
MC STEP-UP
TRANSFORMER
FUSE
SW
OPERATION
AC IN
MC HIGH
MC LOW
INPUT LOAD
SELECTOR
INPUT
SELECTOR
CAPACITY
IMPEDANCE
MC HIGH
MC LOW
INPUT LOAD
SELECTOR
INPUT
SELECTOR
CAPACITY
CAPACITY
IMPEDANCE
10
INPUT
ch
INPUT
ch
PHONO AMPLIFIER E-250
Specifications
Input sensitivity MM : 3.2 mV/250 mV, 1 kHz, load 50 kΩ
MC-HIGH : 0.37 mV/250 mV, 1 kHz, load 50 kΩ
MC-LOW : 0.12 mV/250 mV, 1 kHz, load 50 kΩ
Input impedance MM : 34 kΩ/47 kΩ/56 kΩ/100 kΩ (switch selection)
MC-HIGH : 40 Ω
MC-LOW : 2.5 Ω
Gain MM : 38 dB
MC-HIGH : 57 dB
MC-LOW : 66 dB
RIAA deviation MM : 20 - 20 kHz±0.3 dB
MC-HIGH : 20 - 20 kHz±0.5 dB
MC-LOW : 20 - 20 kHz±0.5 dB
Maximum allowable input voltage MM : 120 mV
MC-HIGH : 15 mV
MC-LOW : 5 mV
Output impedance 300Ω
S/N ratio (at 250 mV output) MM : 90 dB (IHF-A)
MC-HIGH : 83 dB (IHF-A)
MC-LOW : 80 dB (IHF-A)
Total harmonic distortion (at MM 1 V output) 0.003%
Channel separation (10kHz) 91dB or more
Accessories • Power cable
• Owner's Manual (This document)
• Safety cautions
Circuiting system NF type equalizer amplifier equipped with MC step-up transformer
Power consumption 7 W
Power supply
Max. external dimensions 364 (W) x 81 (H) x 274 (D) mm
Weight 4.3 kg (main unit only)
230 V 〜 (50 Hz)
(front side knob of 6mm and rear side terminal of 11 mm included in
depth)
* Specifications and the appearance are subject to change without notice.
11
Before Asking for Repair Services
While the unit is used, an unusual phenomenon may be confused as a malfunction for a certain reason. Prior to asking our official sole
distributor of your country for repair services, please check the table below and read the operating instructions for the subsidiary devic-
es. If the cause of the malfunction cannot be identified, please contact your dealer. When we have once accepted your request for
repair services, inspection fees and traveling expenses may be claimed even though the unit is found to be normal.
Problem Cause Solution
No power is supplied even
though the operation switch is
pressed.
No sound is generated.
(small sound)
• The power plug is disconnected from the
wall outlet, or it is not completely inserted.
• The power plug is disconnected from the
AC inlet, or it is not inserted completely.
• Connection is not securely performed. • Make cable connections securely.
• The connected input terminal does not
match the setting of the input selector
switch.
• The selector of the input device such as a
control amplifier is not correctly set.
• The volume control of the input device such
as a control amplifier is not set to a lower
level.
• The used cartridge type does not match
the selected item of the MM/MC selector
switch.
• The articulator position is selected. • Turn down the sound volume and adjust
• Insert the power plug in the wall outlet completely.
• Securely insert the power plug in the AC inlet.
• Match the input terminal with the setting of
the input selector switch.
• Set the selector of the input device such as
a control amplifier correctly.
• Adjust the volume control of the input device such as a control amplifier.
• Select the correct item of the cartridge selector switch according to the cartridge to
be used.
the sound volume according to the appropriate input impedance after sound comes
out.
Humming sound (boon or zzz
noise) is generated.
Inappropriate localization of
sound
No bass is generated.
12
• The grounding side of the connection cable
has no contact with the terminal.
• The grounding of the shell or tone arm is
inadequately connected.
• Induction noise is picked up from a power
transformer of another device.
• The connecting cables are too close to the
power cable.
• The L channel and R channel are connected reversely.
• The setting of the input impedance control
does not match the cartridge in use.
• Make cable connections securely.
• Be sure to connect the ground wire of the
shell or tone arm to the ground terminal.
• Install it distant from other devices.
• Keep the connecting cables away from the
power cable.
• Connect the L channel and R channel appropriately.
• Adjust the input impedance according to
the cartridge in use.
LUXMAN CORPORATION, JAPAN
1-3-1 Shinyokohama, kouhoku-ku, Yokohama-shi, Kanagawa 222-0033, Japan
AG00987E51A
Printed in Japan
Loading...
