1 Welcome
Introducing ORiNOCO 1-1
■ About the WavePOINT-II AP 1-2
Finding Information 1-6
■ This Guide 1-6
■ The ORiNOCO Manager User’s Guide 1-8
■ The On-line Help Information 1-8
■ Conventions Used in This Document 1-10
Kit Contents 1-11
Optionally Available Products 1-13
2 Installing the WavePOINT-II AP
Introduction 2-1
■ WavePOINT-II AP Placement 2-1
■ Indoor Antenna Placement 2-2
■ Outdoor Antenna Placement 2-3
i
ORINOCO WavePOINT-II - Getting Started
i
Table of Contents
Hardware Installation 2-4
■ Verifying Kit Contents 2-4
■ Registering your ORiNOCO Products 2-4

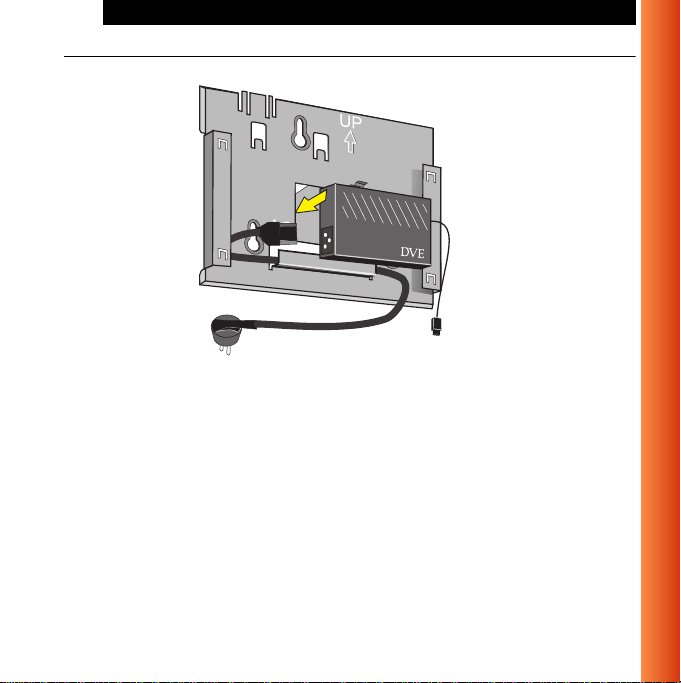

■ Placing Mounting Plate and Power Supply 2-6
■ Mounting the Processor Module 2-8
■ Connecting the Network Interfa ces 2-9

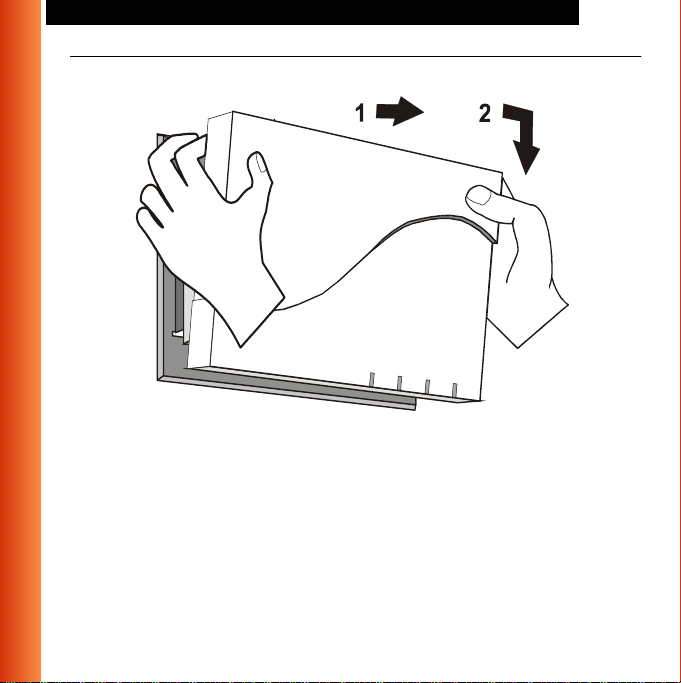

■ Mounting the Cover Plate 2-12
Powering-up 2-14
3 Beyond Quick-Start...
Introduction 3-1
■ Connect Stations to you r WavePOINT-II AP 3-2
■ Configure your WavePOINT-II AP 3-3
A WavePOINT-II AP Specifications
B WavePOINT-II AP Start-up Configuration
Identify the Start-up Settings B-1
C Additional Installation Instructions
Removing the Cover Plate C-1
Technical Support
ii
ORINOCO WavePOINT-II - Getting Started
W Warranty Repair Card
About Warranty and Repair W-1
Limited Warranty W-2
List of Figures
List of Tables
Index
Table of Contents
iii iii
ORINOCO WavePOINT-II - Getting Started
iii
Table of Contents
iv
ORINOCO WavePOINT-II - Getting Started
Welcome
1
Introducing ORiNOCO 1
Welcome to ORiNOCO, the easy way to wireless computing. Building your
own wireless network has never been easier.
This book introducesyou to the ORiNOCO WavePOINT-II Access Point (AP),
and will help you to get your network “on the air” within a snap. It describes
the most common configurations and a quick start set-up.
To install and manage ORiNOCO products, it is assumed that you have a
working knowledge of installation proced ures for network operating systems
under Microsoft Windows.
ORINOCO WavePOINT-II - Getting Started
1-1
Welcome - Introducing ORiNOCO
About the WavePOINT-II AP 1
The ORiNOCO WavePOINT-II AP bridgeis a modular unit withan integrated
ethernet interface and two PC Card slots, that enable you to use your access
point with ORiNOCO PC Cards.
The dual slot design allows you to configure the access point to operate with
almost any combination of the wired and wireless network interfaces listed
above. This way your access point provides easy migration paths between
various generations of ORiNOCO products.
The ORiNOCO WavePOINT-II AP is a transparent Media Access Co ntrol
(MAC) bridge that exists in two versions:
■ ORiNOCO WavePOINT-II AP.
■ ORiNOCO Outdoor Router.
ORiNOCO WavePOINT-II Access Point 1
The access point is a wired to wireless bridge that you can use to connect
wireless cells to one another or to a wired (ethernet) Local Area Network
(LAN). The access point can serve mobile wireless stations roaming
between various locations within a network premises.
1-2
ORINOCO WavePOINT-II - Getting Started
Welcome - Introducing ORiNOCO
Figure 1-1 ORiNOCO WavePOINT-II AP
ORINOCO WavePOINT-II - Getting Started
1-3
Welcome - Introducing ORiNOCO
ORiNOCO Outdoor Router 1
The ORiNOCO Outdoor Router bridge1has been designed to serve a
wireless backbone between wireless cells and/or wireless (outdoor) antenna
link.
The ORiNOCO Outdoor Router device is based on the same h ardware
design as the ORiNOCO WavePOINT-II AP. Besides its wireless point-topoint bridging functionality,the ORiNOCO Outdoor Router also supports the
access point features as described on the previous page.
Figure 1-2 ORiNOCO Outdoor Router
1 Previously known as WavePOINT-II PTP and WaveACCESS Office Router
1-4
ORINOCO WavePOINT-II - Getting Started
Welcome - Introducing ORiNOCO
WhenyouwishtousetheORiNOCOOutdoorRouterinanoutdoorantenna
installation, you are advised to consult the informationdescribedin the
“Outdoor Antenna Installation Guide", which can be downloaded from the
document Library on the ORiNOCO website at:
.
orinoco
http://www.lucent.com/
NOTE:
To install t he ORiNOCO WavePOINT-IIAP, you will need at least
one OR iNOCO PC Card. This card is not included with your
ORiNOCO WavePOINT-II kit, but must be ordered as an additional
item. For more information about the various card types available
please refer to the “ORiNOCO Manager User’s Guide”.
ORINOCO WavePOINT-II - Getting Started
1-5
Welcome - Finding Information
Finding Information 1
The ORiNOCO WavePOINT-II AP, together with ORiNOCO PC Cards,
enables you to build a variety of network configurations:
■ A wireless LAN environment for mobile computers.
■ A flexible network, that allows for adding and/or relocating workstations
quickly and easily.
■ A migration path between various generation ORiNOCO infrastructures.
■ An inexpensive alternativeto leased lines for building-to-building links
(an outdoor solution).
To design and inst all your wireless network, you can find the information you
need in the following information products:
■ This Guide
■ The "ORiNOCO Manager User’sGuide"
■ The on-line help information
This Guide 1
The "ORINOCO WavePOINT-II - Getting Star te d Guide" (this document)
describes:
■ The contents of your ORiNOCO WavePOINT-II AP kit (see page 1-12).
1-6
ORINOCO WavePOINT-II - Getting Started
Welcome - Finding Information
■ How to install the access point hardware (see Chapter 2 ”Installing the
WavePOINT-II AP”).
■ How to power up the device using the default factory-set settings (see
Chapter 3 ”Beyond Quick-Start...”).
■ The hardware specifications of your access point (see Appendix A).
ORINOCO WavePOINT-II - Getting Started
1-7
Welcome - Finding Information
The ORiNOCO Manager User’s Guide 1
The "ORiNOCO Manager User’sGuide" describes:
■ Examplesof various configuration scenarios.

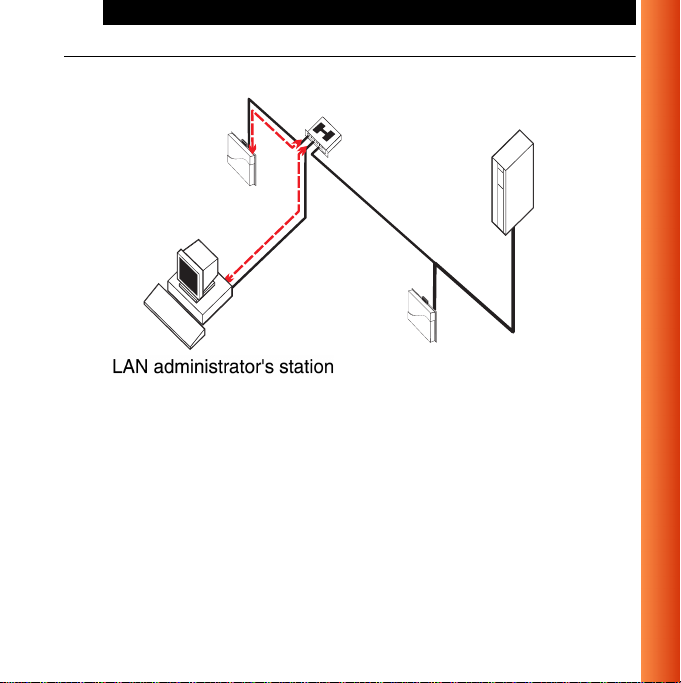

■ How to setup an LAN administrator’s station to configure your ORiNOC O
WavePOINT-II AP(s).
■ How to modify the access point start-up configuration.
■ How to monitor the performance of your wireless LAN.
■ How to optimize the performance of your wireless LAN, using the
advanced features of your access point bridge.
■ How to enhance network security, using the various security options
availableto the ORiNOCO WavePOINT-II AP.
■ Trouble shooting unexpected performance.
The On-line Help Information 1
You can configure your access point bridge, or monitor its performance using
the ORiNOCO AP Manager program, provided on the CD-ROM that came
with your access point.
When you install the ORiNOCO AP Manager program, you can display
context-sensitive help with each screen by:
■ Clicking the ‘ ’ or ‘?’ button on your screen, or
■ Pressing the function key on your keyboard.
F1
1-8
ORINOCO WavePOINT-II - Getting Started
Welcome - Finding Information
Alternatively,you can startthe ORiNOCO AP Manager Help directly from the
Programs Menu and click one of the tabs in t he menu bar of the help
window:
■ ‘Contents’ to display topics listed by subject.
■ ‘Index’ t o search for topics l isted in alphabetical order.
ORINOCO WavePOINT-II - Getting Started
1-9
Welcome - Finding Information
ConventionsUsedinThisDocument 1
Throughout this document we use the icons listed below to picture the
following network devices:
Icon Description Icon Description
Wireless (mobile) station
equipped with:
■ ORiNOCO PC Card
Wireless station equipped
with:
■ ORiNOCO ISA Adapter
ORiNOCO
WavePOINT-II AP equipped
with:
■ ORiNOCO PC Card
Server station.
1-10
ORINOCO WavePOINT-II - Getting Started
ORiNOCO Range Extender
Antenna. This antenna for
indoor use can be connected
to ORiNOCO PC Cards only.
Outdoor (directional) antenna.
Network hub.
Welcome - Kit Contents
Kit Contents 1
a. Mounting plate to mount the WavePOINT-II AP to a wall.
b. ORiNOCO WavePOINT-II AP processor module.
c. Power supply & AC power cord.
d. Slot protector card.
e. T-connector and terminator for ethernet 10Base2.
f. Access point cover plate.
g. ORiNOCO WavePOINT-II - Getting Started (this document).
h. ORiNOCO software CD-ROM containing:
■ AP Manager management and diagnostics software.
■ WavePOINT-II AP software (also referred to as firmware).
■ "ORiNOCO Manager User’s Guide" (a detailed reference guide for
designingand managing your wireless LAN system).
ORINOCO WavePOINT-II - Getting Started
1-11
Welcome - Kit Contents
Figure 1-3 WavePOINT-II AP Kit Contents
1-12
ORINOCO WavePOINT-II - Getting Started
Welcome - Optionally Available Products
Optionally Available Products 1
■ ORiNOCO Range Extender Antenna
An om ni-directional antenna for indoor use that enables you to extend
the wireless range of the access point when connected to an ORiNOCO
PC C ard (see Figure 2-5 on page 2-11).
■ ORiNOCO Ve hicle Mount Antenna
A more ruggedized omni-directional antenna for outdoor use that allows
for mounting an external ORiNOCO antenna in an industrial
environment.
■ ORiNOCO Outdoor Antenna kit
A complete outdoor antenna kit that includes an ORiNOCO Outdoor
Router, Lightning arrestor, Outdoor antenna cable and antenna.
ORINOCO WavePOINT-II - Getting Started
1-13
Installing the
WavePOINT-II AP
Introduction 2
This chapter describes how to:
■ Install the ORiNOCO WavePOINT-II AP hardware.
■ Install the ORiNOCO network interface(s).
■ Power up the device to start operation in Basic Access mode.
To install the ORiNOCO WavePOINT-IIAP you will need:
■ One ORiNOCO WavePOINT-II AP unit.
■ One o r more ORiNOCO PC Card(s).
■ (Optional) An Ethernet backbone
(either 10Base-T or 10Base2).
WavePO INT-II AP Placement 2
YoucanmounttheWavePOINT-IIAPonaverticalsurfacelikeawallor
place the unit on a flat surface such as a table or cabinet.
Prior to mounting it to a fixedlocation, you mayconsider performing a site
survey to determine optimal placement for your access point unit(s).
2
ORINOCO WavePOINT-II - Getting Started
2-1
Installing the WavePOINT-II AP - Introduction
Consult the “ORiNOCO Manager’s User’s Guide” for more information.
!
CAUTION:
Placement of the WavePOINT-II APs must satisfy the following
installation requirements:
a. Connect the unit t o a grounding type AC wall outlet (100-240
VAC) using the standard power cord as supplied with the unit.
b. Placement must al low for easily disconnecting the access point
unit from the AC wall-outlet.
c. Do not cover the unit , or block the air flow to the unit with any
other objects. Keep the unit away from excessive heat and
humidity and keep the unit free from vibration and dust.
d. Installation must at all times conform to local regulations.
e. When the WavePOINT-II AP unit will be connected to an
outdoor antenna system, consult the documentation that came
with the outdoor antenna k it for additional regulatory
information, safety instructions and installation requirements.
Indoor Antenna Place ment 2
The integrated antennas of your ORiNOCO PC Card perform best in an
open environment with as few obstructions as possible. In most situations
mounting the access point as pictured in Figure 2-4 on page 2-10, will
provide satisfactory performance results. To ensure the best performance:
2-2
ORINOCO WavePOINT-II - Getting Started
Installing the WavePOINT-II AP - Introduction
■ Place the WavePOINT-II AP as high and as centrally aspossible (relative
to the ORiNOCO stations in the vicinity).
■ Do not conceal the antenna.
■ (Optional) Use the PC Card in combination with an externalantenna.
NOTE:
If you plan to use your WavePOINT-II AP devicein combination with
two ORiNOCO PC Cards, you are advised to connect an external
antenna to at least one of the two PC Cards. This external antenna
should be mounted as far away as possible from the other PC Card
to allow maximum performance (see also “Optionally Available
Products” on page 1-13).
Outdoor Antenna Placement 2
The ORiNOCO WavePOINT-II AP device has been designed for indoor
placement. Optionally you can connect the device to an outdoo r antenna
installation using the Lucent Technologies Outdoor Antenna Kit solution,
according the instructions described in the “ORiNOCO Outdoor Antenna
Installation Guide”. You can download this document from the ORiNOCO
website at:
http://www.lucent.com/orinoco.
ORINOCO WavePOINT-II - Getting Started
2-3
Installing the WavePOINT-II AP - Hardware Installation
Hardware Installation 2
The hardware installation of the ORiNOCO WavePOINT-II AP is
summarized as follows:
1. Verifying Kit Contents.
2. Registering your OR iNOCO Products.
3. Placing Mounting P late and Power Supply.
4. Connecting the Network Interfaces.
5. Mounting t he Cover Plate.
Verifying Kit Contents 2
1. Unpack the ORiNOCO WavePOINT-II AP and verify that all items are
present as described in “WavePOINT-II AP Kit Contents” on page 1-12.
2. Unpackthe ORiNOCO PC Cards and verify that all items are present as
described in the User’s Guide that came with your ORiNOCO Kit(s).
Registering your ORiNOCO Products 2
Before you proceed, write down the following values of the following
components that you are about to install:
■ Serial Number and MAC address of the WavePOINT-II AP.
■ Serial Nu mber and MAC address of the ORiNOCO PC Cards.
2-4
ORINOCO WavePOINT-II - Getting Started
Installing the WavePOINT-II AP - Hardware Installation
You will need these numbers later to identify the unit when running the
AP Manager (Access Point Manager) program.
A form for recording this information is provided in Appendix B
”WavePOINT-II AP Start-up Configuration”.
The Serial Number and MAC Address of the WavePOINT-II AP are printed
onasmalllabelatthetoprightsideoftheprocessormoduleaspicturedin
Figure 2-1.
Figure 2-1 WavePOINT-II AP IdentificationL abel
For ORiNOCO PC Cards, this information is printed on a small label at the
back side of the PC Card.
The Ethernet MAC address is used to identify the WavePOINT-II AP device
on the network.
ORINOCO WavePOINT-II - Getting Started
2-5
Installing the WavePOINT-II AP - Hardware Installation
Placing Mounting Plate and Power Supply 2
1. Use the screws and plugs provided to fix the mounting plate of the
ORiNOCO WavePOINT-IIAP in the chosen position.
Note that the mountingplate is positionedcorrectly as pictured in Figure
2-2, (the marked arrow pointing upwards).
!
WARNING:
The Mounting Plate of the ORiNOCO WavePOINT-II AP has not
been designed for ceiling mounting. In environments where the unit
will be exposed to vibrations, ceiling mounting might cause the
processor module to slide off the mounting plate, causing severe
personal injury and/or damage to your ORiNOCO equipment.
2-6
ORINOCO WavePOINT-II - Getting Started
Installing the WavePOINT-II AP - Hardware Installation
Figure 2-2 Mounting the Power Supply
2. Connect the AC power cord to the power supply unit and mount the
power supply unit at the mid sec tion of the mounting plate as p ictured in
Figure 2-2.
Depending on the actual location of the AC wall outlet, you may choose
to route the power cord differently to suit your installation requirements.
3. Use the tie-wraps provided to secure the power cord to the small loops
onthemountingplateatthepositionwherethecordswillleavetheunit.
ORINOCO WavePOINT-II - Getting Started
2-7
Installing the WavePOINT-II AP - Hardware Installation
Mounting the Processor Module 2
1. Connect the DC power cable to the DC power inlet of the processor
module.
2. Bring the rear side of the processor module on to the mounting plate,
sliding the four recesses of the module over the corresponding tabs on
the mounting plate.
3. Press firmly to assure the unit is properly attached.
Figure2-3 Attaching the ProcessorModule
2-8
ORINOCO WavePOINT-II - Getting Started
Installing the WavePOINT-II AP - Hardware Installation
!
CAUTION:
Beforeyou proceed:
Verify that all four recesses are fitted correctly onto the
corresponding tabs of the mountingplate.If theprocessor module is
not properly seated, it may drop causing severe personal injury and/
or causing serious damage to the ORiNOCO WavePOINT-II AP
unit.
Connecting the Network Interfaces 2
One PC Card slot of the ORiNOCO WavePOINT-II AP is equipped with a
plastic Slot Protector Card. The purpose of this card is to protect the
WavePOINT-II AP unit from dust when the access point is used with a single
ORiNOCO network interface only.
When you intend to install two ORiNOCO network interfaces into your
access point, first take out the Slot Protector Card. You are advised to keep
the Slot Protector Card for situations when you would like to change the
WavePOINT-II AP hardware configuration in the future.
ORINOCO WavePOINT-II - Getting Started
2-9
Installing the WavePOINT-II AP - Hardware Installation
Figure2-4 Inserting the ORiNOCO PC Card
1. Insert your ORiNOCO PC Card(s) into the processor module.
2. (Optional) When you intend to use the WavePOINT-II AP with the
ORiNOCO Range Extender Antenna (not included):
a. Remove the protective cap from the external antenna connector on
your ORiNOCO PC Card.
b. Insert the cable connector into the external antenna connector on
your ORiNOCO PC Card.
c. Press gently until the connector ‘clicks’ into place.
2-10
ORINOCO WavePOINT-II - Getting Started
Installing the WavePOINT-II AP - Hardware Installation
If you do not feel or hear a click, carefully maneuver the connector
until it clicks into position.
d. Mount or place the Range Extender Antenna into a vertical position
to ensure optimal performance Figure 2-5 on page 2-11.
If you are installing the WavePOINT-II AP with two ORiNOCO PC Card,
mount the external antenna(s) away fro m one another as far as possible
to allow maximum performance.
Figure 2-5 Connecting the Range Extender Antenna
3. (Optional) Connect the Ethernet cable to the Ethernet interface:
■ 10Base-T (RJ 45 Connector) or
■ 10Base2 (BNC Connectors, T- Connector provided)
ORINOCO WavePOINT-II - Getting Started
2-11
Installing the WavePOINT-II AP - Hardware Installation
The ORiNOCO WavePOINT-II AP will automatically select the type of
the connected Ethernet interface,so you will not need to set any
switches.
NOTE:
You are advised to apply the 10Base2 Ethernet term inator (included
with your ORiNOCO WavePOINT-II AP Kit) to the Processor Module
in any of the following situations:
■ This is the last unit on a 10Base2 cable.
■ You intend to use the unit with two ORiNOCO network
interfaces only, not using the Ethernetinterface at all.
4. (Optional) Use the tie-wraps provided to secure the Ethernet cable to the
small loops on the mounting plate at the position where the cable will
leave the unit.
Mounting the Cover Plate 2
1. Mount the WavePOINT-II AP cover, (the LED windows at the lower righthand side).
Position the latches at the inside of the cover underneath the rim at the
bottomoftheprocessormodule(seearrow1inFigure2-6).
2-12
ORINOCO WavePOINT-II - Getting Started
Installing the WavePOINT-II AP - Hardware Installation
Figure 2-6 Mounting the WavePOINT-II AP Cover Plate
2. Gently press the top of the coverplate towards the unit until it clicks (see
arrow 2 in Figure 2-6).
3. Verify the unit is properly seated and power up the unit as described on
“Powering-up” on page 2-14.
ORINOCO WavePOINT-II - Getting Started
2-13
Installing the WavePOINT-II AP - Powering-up
Powering-up 2
The ORiNOCO WavePOINT-II AP power supply accepts any input AC
voltage in the range of 100-240 VAC.
!
WARNING:
For your own safety, use only the power cord supplied with the unit.
InsertitinagroundedACwalloutlet.
When using the unit in combination wit h outdoor antennas, the
grounding of the AC wall outlet must be connected to the safety
grounding system of the outdoor antenna system and the
ORiNOCO Lightning Protector.
When powered on, the WavePOINT-II AP unit will perform start-up
diagnostics characterized by a LED sequence. The LEDs will change color in
the range Amber, Red and Green. When finished (after about 15 seconds)
the WavePOINT-II AP will start bridging operation characterized by the LED
activityas listed in Table 2-1.
2-14
ORINOCO WavePOINT-II - Getting Started
Installing the WavePOINT-II AP - Powering-up
Table 2-1 LED Activity Table
LED Definition Activity
1
Description
Power Green Power enabled
Ethernet Flicker Green Ethernet LAN activity
A
Wireless
Flicker Green Wireless LAN activity on socket A
interface A
B
Wireless
Flicker Green Wireless LAN activity on socket B
interface B
1 LED activity will only occur when there is network activity on the corresponding
WavePOINT-II AP network interface.
If the WavePOINT-II AP does not switch to normal operation within two
minutes, please consult the troubleshooting section of the “ORiNOCO
Manager User’s Guide”.
ORINOCO WavePOINT-II - Getting Started
2-15
Beyond Q uick-Start...
3
Introduction 3
Once you have powered up your ORiNOCO WavePOINT-IIAP hardware,
you will have completed Chapter 2 ”Installing the WavePOINT-II AP”. This
chapter will ta ke you “Beyond Quick Start” and briefly explain how to:
■ Connect s tations to your ORiNOCO WavePOINT-II AP
■ Configure your ORiNOCO WavePOINT-II AP
1
For more details, consult the "ORiNOCO Manager User’s Guide"
line help system of the AP Manager program.
1 A special edition of this document for WaveLAN Legacy Products can be downloaded from
the ORiNOCO website.
or the on-
ORINOCO WavePOINT-II - Getting Started
3-1
Beyond Quick-Start... - Introduction
Connect Stations to your
WavePOINT-II AP 3
When powering up the ORiNOCO WavePOINT-IIAP for the first time, the
unit will start bridging operation in a ccess point mode, using the ORiNOCO
parameters as listedin Appendix B ”WavePOINT-II AP Start-up
Configuration”.
The access point mode enables you to connect wireless stations to the
WavePOINT-II AP, providedthatthesestations havebeenconfigured to use
ORiNOCO parameter values that match the configuration of your access
point.
ORiNOCO Systems 3
In ORiNOCO infrastructures, all ORiNOCO equipped devices and wireless
stations must use the same ORiNOCO network name
Alternatively you can (re-)configure the stations to use the value “ANY” (all
upper-case) to allow a station to connect to the first access point it can f ind.
Once the ORiNOCO stations hasthe correct ORiNOCO network name, it will
automatically select the correct radio channel and establish the connection
with the WavePOINT-II AP.
1
.
1 This parametercorresponds to the “ESSID” (Extended Service Set ID) as defined in the IEEE
802.11 Standard for Wireless LANs.
3-2
ORINOCO WavePOINT-II - Getting Started
Beyond Quick-Start... - Introduction
ConfigureyourWavePOINT-IIAP 3
To view or modify the Start-up Configuration of your WavePOINT-II AP, you
will need to install one of the management software tools that came with your
ORiNOCO WavePOINT-II AP unit.
■ ORiNOCO AP Manager: A dedicated application for MS-Windows
operating systems, that allows you to configure and/or monitor your
ORiNOCO WavePOINT-II AP.
■ ORiNOCO OR Manager: A d edicated application for MS-Windows
operating systems, that allows you to configure and/or monitor your
ORiNOCO Outdoor Router.
■ ORiNOCO P RO Manager: A plug-in for the “Network Node Manager” of
“HP OpenView” ne twork management systems.
The ORiNOCO PRO Manager allows you t o configure and/or monitor
multiple ORiNOCO WavePOINT-II AP simultaneously, but requires the
HP OpenView system
This document describes only theinstallation of the ORiNOCO A P Manager.
For installation and operating instructions about the other management
tools, please consult the corresponding ORiNOCO Manager’sUser’sGuide
provided on the CD-ROM.
1
.
1 HP Open View is a registered trademark of Hewlett Packard Company.
ORINOCO WavePOINT-II - Getting Started
3-3
Beyond Quick-Start... - Introduction
General Requ irements 3
The ORiNOCO management tools requires a TCP/IP networking protocol to
communicate with the WavePOINT-II AP devices.
To allow proper addressing via TCP/IP you must:
■ Assign a unique IP addresses to each WavePOINT-II AP in your
network.
■ Installthe TCP/IP protocol on each computerthatyou will use to run the
AP Manager program, and ensure that these computers have a unique
IP address as well.
Unique IP addresses can be assigned:
■ Automatically, if your network includes a BOOTP or DHCP server.
■ Manually by the LAN administrator.
LAN administrator’s station
Requirements 3
To installthe ORiNOCO AP Manager software, select a networked computer
that satisfies the following requirements:
■ A 80486 or later processor.
■ Free disk space of 4 Mb.
■ 8MbRAM(16Mbormorerecommended).
3-4
ORINOCO WavePOINT-II - Getting Started
Beyond Quick-Start... - Introduction
■ Microsoft Windows 95, Windows 98 or Windows NT (v.4.0) operating
system.
■ An ethernet or ORiNOCO PC Card.
■ A TCP/IP protocol installed.
The computer you select would typically be the computer used by the LAN
administrator. This computer can be any wired or wireless desktop and/or
laptop computer.
You may install the AP Manager software on multiple computer s, allowing
you to use a combination of both wired and wireless stations to administer
your ORiNOCO network.
The choice for a wireless or wired LAN administrator’sstation will depend on
your preferences and abilities to administer your ORiNOCO network, but for
“out-of-the-box” WavePOINT-II AP devices, your best be t is probably a wired
ethernet station.
Once the unit has been assigned a unique IP address, you can use any of
the wired and/or wireless configuration scenarios as described in the
“ORiNOCO Manager User’s Guide”.
ORINOCO WavePOINT-II - Getting Started
3-5
Beyond Quick-Start... - Introduction
Install the AP Manager Software 3
To install the ORiNOCO AP Manager software, proceed as follows:
1. Insert ORiNOCO WavePOINT-IIAP software CD-ROM in your
ORiNOCO management station.
If you downloaded the software from the web, please refer to the
installation instructions found on the web.
2. Use your Windows Explorer to open the folder "D:\software\bridge\ap
manager" and locate the file "setup.exe",where “D:\” represents the drive
letterofyourCD-ROM.
3. Run the “setup.exe” file to start the installation utility, and followthe
instructions as they appear on the screen.
The setup utility will create a special ORiNOCO group in the Windows
Programs menu, providing you with the key to configure your ORiNOCO
network to fit your requirements.
Previously installed versions of the ORiNOCO AP Manager program will
automatically be replaced, without affecting any other file that you might
have saved into the program’s directory. For example if you saved back-ups
of WavePOINT-II AP configuration files which you created with t he previous
version in the WavePOINT-II AP program folders, these files will not be
deleted or overwritten.
3-6
ORINOCO WavePOINT-II - Getting Started
Beyond Quick-Start... - Introduction
Access the WavePOINT-II AP Configuration3
The easiest way to access the start-up configuration of your
WavePOINT-II AP devices, is to configure the devices one-by-one at your
desk via one of the following wired connect ions:
■ Connect directly to the LAN administrator’s station.
■ Connect via a network hub.
Connect Directly to the LAN Administrator’s Station
To enable a d irect cable connection to your LAN administrator’s station, the
WavePOINT-II AP supports two types of ethernet cabling:
■ 10Base-T, also referred to as UTP (Unshielded Twi sted Pair).
■ 10Base2, also referred to as Thin-coax with BNC connectors.
If you are using 10Base-T cables, you can only establisha “direct
connection” if you use a dedicated“crossover” cable as picturedin Figure
3-1 (also referred to as “cross-wired” or “cross-connect”).
ORINOCO WavePOINT-II - Getting Started
3-7
Beyond Quick-Start... - Introduction
Figure3-1 Connect via a 10Base-T CrossoverCable
If you are using 10Base2 cables, you must connect the cables using
standard BNC T- connectors, and apply terminators at the open ends of the Tconnectors.
Connect via a Network Hub
An alternative way to connect the WavePOINT-II AP unit to your LAN
administrator’s station is via a network hub, or patch panel as picture d in
Figure 3-2.
3-8
ORINOCO WavePOINT-II - Getting Started
Beyond Quick-Start... - Introduction
Figure 3-2 Connect via a Hub
This method is similar to most standard Ethernet 10Base-T cabling systems.
For “out-of- the-box” installations, the easiest way to access the unit, is by
connecting your LAN administrator’s station and the WavePOINT-II AP
device to the same hub, to ensure that both devices are located on the same
subnet.
ORINOCO WavePOINT-II - Getting Started
3-9
Beyond Quick-Start... - Introduction
Start ORiNOCO AP Manager and Go....
Congratulations! Having completed the steps in this “Quick Installation
Guide” you are ready to power up your wireless installation.
Proceed with the in structions as described in the “ORiNOCO Manager
User’s Guide” to customize the configuration to meet your networking
requirements, monitor wireless performance and/or optimize bridge
performance.
3-10
ORINOCO WavePOINT-II - Getting Started
WavePOINT-II AP Specifications
Table A-1 Hardware
Physical specifications
Dimensions (HxWxL) 5x18.5x26 cm
Weight 1.75 kg
Power cord length 2.5 meter
Electrical specificati ons
Voltage 100-240V AC (50-60Hz)
Current 0.2 Amp
Power consumption 20 Watt
Environmental specifications
Temperature Humidity
Operating
Transit
Storage
Ethernet interface
Wireless interface
0° to 40° C
-40° to 60° C
-10° to 60° C
10Base2 BNC female connector socket
10Base-T RJ 45 female socket
PC Card Type II socket that can be used for an ORiNOCO PC Card
20 to 80% (relative humidity)
15 to 95% (no condensation allowed)
10 to 90% (no condensation allowed)
(Terminator and T-connector provided)
A
ORINOCO WavePOINT-II - Getting Started
A-1
WavePOINT-II AP Specifications
Table A-2 Software
ORiNOCO WavePOINT-II AP operating software
wpntxxx.bin Factory installed operating software for the ORiNOCO
WavePOINT-II AP. This software that is loaded into the FlashROM
of the access point controls its features and functions.
The ‘xxx’ in the file name refer to the version level of the software.
When new features and functionality become available for the
access point, you can upgrade the ORiNOCO WavePOINT-II AP by
uploading the latest software to your access points as described in
the "ORiNOCO Manager User’s Guide".
ORiNOCO AP Manager
wman_ap.exe Configuration and management software for ORiNOCO
WavePOINT-II APs. This software runs on Windows 95/98 and
WindowsNT (v4.0) platforms.
A-2
ORINOCO WavePOINT-II - Getting Started
WavePOINT-II AP Start-up
Configuration
Identify the Start-up Settings B
Your ORiNOCO WavePOINT-II AP comes with the access point operating
software factory installed. Together with this software, the access point has
also been loaded with a factory-set configuration, that allows for ‘out-of-the
box’ operation.
NOTE:
The factory-set configuration sho uld not be con fused with a ‘default’
configuration. For example when performing a ‘reboot’ or ‘ forced
reload’ (described in the "ORiNOCO Manager User’s Guide"
provided on the CD-ROM), the devicewill NOT return to the ‘factoryset’ configuration.
To connect to an access point, the ORiNOCO parameters of each wireless
stationshouldbe configured to match the valuesas identified for the
ORiNOCO WavePOINT-II AP.
■ When powering up the access point for the very first time, these values
should match the values listed in Table B-1.
B
ORINOCO WavePOINT-II - Getting Started
B-1
WavePOINT-II AP Start-up Configuration
■ For normal operation these values should match the ones you identified
when configuring the access point. You are advised to record this
information on the Access Point Configuration Record in this appe ndix.
■ When you set the ORiNOCO WavePOINT-IIAP to ‘forced reload mode’
these values should match the settings listed in the "ORiNOCO Manager
User’s Guide".
B-2
ORINOCO WavePOINT-II - Getting Started
WavePOINT-II AP Start-up Con figuration
T ableB-1 Factory-set Start-up Configuration
ORiNOCO WavePOINT-II AP identifiers
IP Address 153.69.254.254
1
Subnet Mask 255.255.0.0
Read Password ‘public’
Read/Write
‘public’
Password
Wireless Interface
RF-Channel 2.4 GHz 2.462 MHz
2.484 MHz
2.422 GHz
France
Japan
All other countries
Network Name WaveLAN network
RTS/CTS
Disabled
Medium
Reservation
Multicast Rate Auto select 1-2 Mbit/s
Encryption Disabled
1 When using IP networks, change this IP address to a unique address in the range assigned
to your organization.
ORINOCO WavePOINT-II - Getting Started
B-3
Additional Installation Instructions
Removing the Cover Plate C
Removing the cover plate of the ORiNOCO WavePOINT-II AP may be
requiredinoneofthefollowingsituations:
■ You would like to change or replace the network interface(s) of your
access point, or
■ You would like to access the ‘Reboot’ and/or ‘Forced R eload’ buttons on
the access point processor module.
To remove the ORiNOCO WavePOINT-II AP cover plate:
1. Place your hands on the cover as pictured Figure C-1.
2. Gently pull the top of the cover towards you to release the latches
(located inside the cover).
C
ORINOCO WavePOINT-II - Getting Started
C-1
Additional Installation Instructions
Figure C-1 Removing the WavePOINT-II AP Cover Plate
3. Lower the cover to remove it from the processor module.
C-2
ORINOCO WavePOINT-II - Getting Started
Technical Support
If you encounter problems when installing or using this product, please
consult the ORiNOCO website at:
■ the latest software, user documentation and product updates
■ the Frequently Asked Questions (FAQ)
Alternatively please contact your local authorized ORiNOCO reseller for
Technical Support.
Help us helping you by completing the OR iNOCO problem report form and
includeit with your e-mail or fax when contacting Technical Support.
You can find the problem report form (
■ the ORiNOCO CD-ROM, and
■ the support pages of the ORiNOCO website.
Addresses of authorized ORiNOCO resellers are listed in the “Contact &
Ordering” section of the ORiNOCO website.
http://www.lucent.com/orinoco for:
report.txt)on:
i
ORINOCO WavePOINT-II - Getting Started
i
Warranty Repair Card
W
About Warranty and Repair W
In case your ORiNOCO product is not working properly, you are advised to
contact ORiNOCO Technical as described on the last pages of this
document.
If it appears that your unit needs a rpair or replacement retrun to your
Dealer/Distributor in its original packaging
Warranty Repairs: W
When returning a defective product forWarranty, alwaysinclude the following
documents:
■ Problem Report Form (an electronic copy is available on the CD-ROM
(
report.txt).
■ The Warranty Repair card, and
■ A copy of the invoice/proof of purchase
ORINOCO WavePOINT-II - Getting Started
W-1
Warranty Repair Card
All other Repairs: W
When returning a defective product for Repair, always include the the
Warranty Repair card.
You are advised to read the Information about “Limited Warranty” as
described on the following page.
Limited Warranty W
Lucent Technologies extends a limited warranty from date of purchase of:
■ Thirty-six (36) months for ORiNOCO hardware products
■ Twelve (12) months for WavePOINT-II AP
■ Twelve (12) months for the media on which the software is furnished and
the reproduction of the software on the media.
W-2
ORINOCO WavePOINT-II - Getting Started
Warranty Repair Card
Upon proof-of-purchase Lucent Technologies shall at its option, repair or
replace the defective item at no cost to the buyer.
Defective items shall be returned to the dealer/distributor:
■ Freight prepaid.
■ Accompanied by a copy of proof-of-purchase.
■ Accompanied by a filled out Warranty/Repair card.
This warranty is contingent upon proper use in the application for which the
products are intended and does not cover products which have been
modified without the seller’s approval or which have been subjected to
unusual physical or electrical demands or damaged in any way.
This Warranty constitutes the sole and exclusive remedy of any buyer or
seller’s equipment and the sole and exclusive liability of
Lucent Technologies in connection with the products and is in lieu of all
other warranties, express, implied or s tatutory, including, but not limited to,
any implied warranty of merchantability of fitness for a particular use and
all other obligations or liabilities of Lucent Technologies.
In no event will Lucent Technologies Inc. or any other party or person be
liable to you or anyone else for any damages, including lost profits, lost
savings or other incidental or consequential damages, or inability to use
the software provided on the software media even if Lucent Technologies
or the other party person has been advised of the possibility of such
damages.
ORINOCO WavePOINT-II - Getting Started
W-3
Warranty Repair Card
To be filled out by the User:
Product Description:
COMCODE (Product ID):
Serial Number:
Invoice Date:
Name:
Title:
Company:
Address:
City/State/Zipcode:
Country:
Telephone:
Fax:
Email:
Reported Problem: Problem Description:
❑
Out-of-Box Failure
❑
Other
(dd/mm/yyyy)
To be filled out by the Dealer/Distributor:
Dealer Name:
Address:
City/State/Zipcode:
Country:
Telephone:
Fax:
Warranty Comment
Yes
❑
❑ No
Return Approval Reference
:
ORINOCO WavePOINT-II - Getting Started
-4
List of Figures
Figure 1-1 ORiNOCO WavePOINT-II AP 1-3
Figure 1-2 ORiNOCO Outdoor Router 1-4
Figure 1-3 WavePOINT-II AP Kit Contents 1-12
Figure 2-1 WavePOINT-II AP Identification Label 2-5
Figure 2-2 Mounting t he Power Supply 2-7
Figure 2-3 Attaching the Processor Module 2-8
Figure 2-4 Inserting the ORiNOCO PC Card 2-10
Figure 2-5 Connecting the Range Extender Antenna 2-11
Figure 2-6 Mounting the Wave POINT-II AP Cover Plate 2-13
Figure 3-1 Connect via a 10Base-T Crossover Cable 3-8
Figure 3-2 Connect via a Hub 3-9
Figure C-1 Removing the WavePOINT-II AP Cover Plate C-2
1
ORINOCO WavePOINT-II - Getting Started
LOF-1
List of Tables
Table 2-1 LED Activit y Table 2-15
Table A-1 Hardware A-1
Table A-2 Software A-2
Table B-1 Factory-set Start-up Configuration B-3
1
ORINOCO WavePOINT-II - Getting Started
LOT-1
Index
A
AC power cord 1-11
B
BNC
connector 2-11
terminator 2-12
C
Conventions
illustrations 1-10
naming 1-10
Cover Plate
installation 2-12
kit contents 1-11
removing C-1
D
Defaults
factory-set B-3
Documentation Updates i
1
E
ents 1-11
Ethernet
10Base2 2-11, 2-12
10Base-T 2-11
H
Humidity A-1
operating A-1
storage A-1
transit A-1
I
Identification
WavePOINT-II 2-5
Information
finding 1-6
Installation
cover plate 2-12
hardware 2-4
mounting plate 2-6
power supply 2-6
processor module 2-8
ORINOCO WavePOINT-II - Getting Started
IX-1
Index
IP Address
WavePOINT-II B-3
K
Kit
contents1-11
L
LED
activity 2-15
M
MAC Address
Ethernet 2-5
MANAGER Station
requirements 3-4
Medium Reservation B-3
Mounting Plate 1-11
N
Network Name B-3
O
ORINOCO Outdoor Router 1-4
P
Placement
indoor antenna 2-2
Power Cord
length A-1
Power Supply 1-11
R
Range Extender Antenna 1-13
Read Password B-3
Read/Write Password B-3
RJ 45 2-11
connector 2-11
S
Serial Number 2-4
Slot Protector C ard 1-11
Software Updates i
T
T-Connector 1-11, 2-11
Temperature A-1
operating A-1
storage A-1
transit A-1
Terminator
IX-2
ORINOCO WavePOINT-II - Getting Started
applying 2-12
BNC (10Base2) 1-11
Transmit Rate B-3
W
WavePOINT-II
dimensions A-1
electrical specifications A-1
environmental specifications A-1
kit contents 1-11
physical specifications A-1
powering-up 2-14
removingthe cover C-1
software A-2
weight A-1
wirelessinterface 1-2
Index
ORINOCO WavePOINT-II - Getting Started
IX-3
Loading...
