Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer.
This manual is applicable to following embedded network DVR series.
This manual may contain several technically incorrect places or printing errors, and the content is subject to change
without notice. The updates will be added into the new version of this manual. We will readily improve or update the
products or procedures described in the manual.
In order to simplify the description, we make the following conventions (unless otherwise stated):
We define DS-LTN7600-HT series as HDVR (Hybrid DVR) in this manual.
The figures shown in this manual are for reference only. The appearance and interface of the device are subject to the
actual model.
1
User Manual of Digital Video Recorder
Regulatory information
FCC information
FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
FCC conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the
applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC, the EMC Directive
2004/108/EC, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in
the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new
equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in
the European Union. See the product documentation for specific battery information. The battery is marked with this
symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return
the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.
2
User Manual of Digital Video Recorder
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
• Ensure unit is installed in a well-ventilated, dust-free environment.
• Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it
may cause damage to the sensitive electronics within the unit.
• Use the device in conjunction with an UPS if possible.
• Power down the unit before connecting and disconnecting accessories and peripherals.
• A factory recommended HDD should be used for this device.
• Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or
equivalent type only. Dispose of used batteries according to the instructions provided by the battery
manufacturer.
3
User Manual of Digital Video Recorder
Product Key Features
General
Connectable to the network cameras, network dome and encoders.
Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Brickcom, Bosch,
Canon, PANASONIC, Pelco, SAMSUNG and SANYO, SONY, Vivotek and ZAVIO.
Connectable to the third-party cameras that adopt ONVIF or PSIA protocol.
PAL/NTSC adaptive video inputs.
H.264 video compression with high reliability and superior definition.
Each channel supports dual-stream.
Up to 32 network cameras can be added.
Independent configuration for each channel, including resolution, frame rate, bitrate, image quality,
etc.
The quality of the input and output video is configurable.

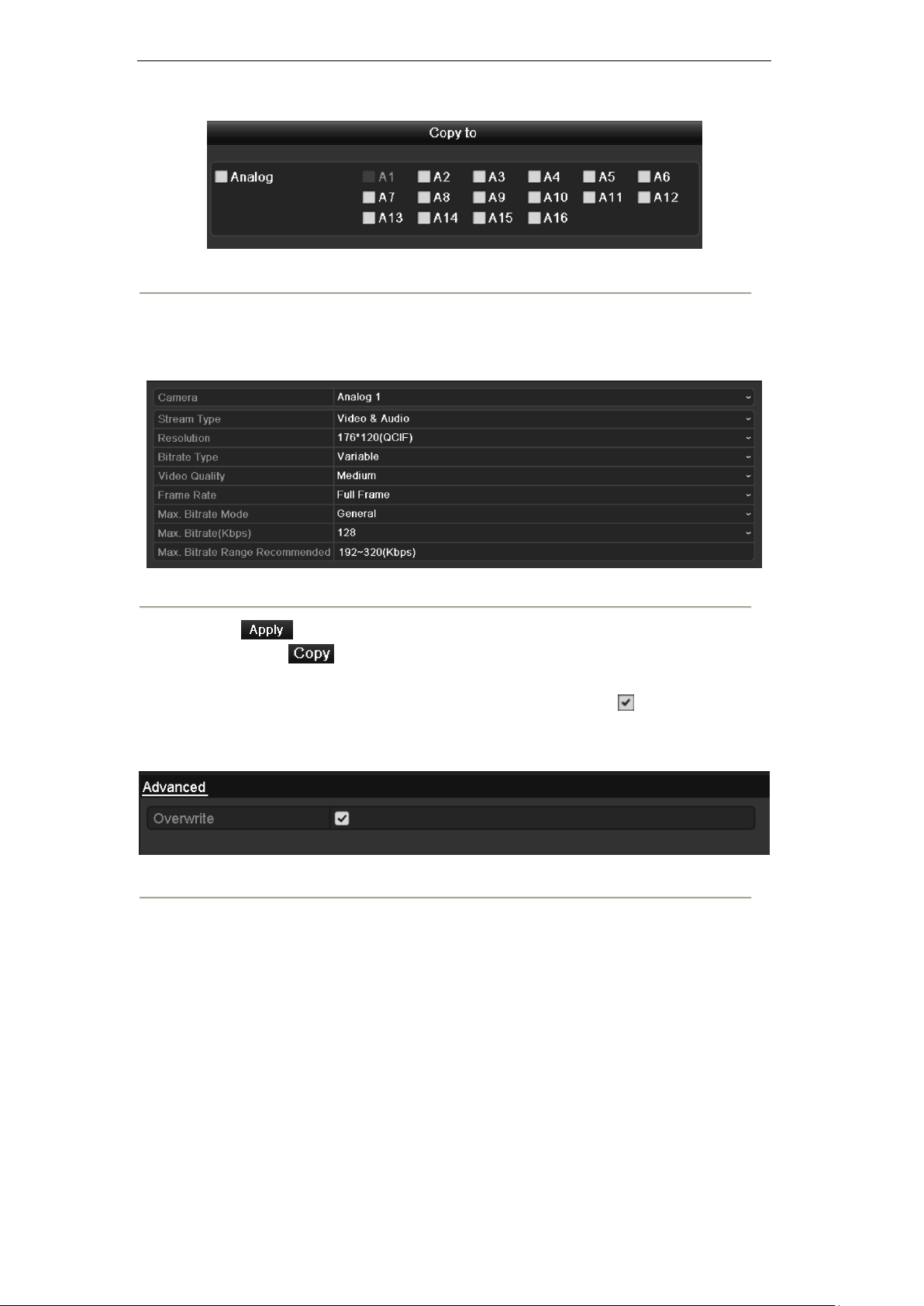

Each channel supports two kinds of compression parameters, the normal continuous and event.
Sub-stream can be configured locally.
Encoding for both audio/video composite stream and video stream; audio and video
synchronization during composite stream encoding.
Support CABAC (this feature is supported by analog cameras only).
Watermark technology.
Local Monitoring
Simultaneous HDMI, VGA and CVBS outputs.
HDMI output and VGA output at up to 1920×1080P resolution.

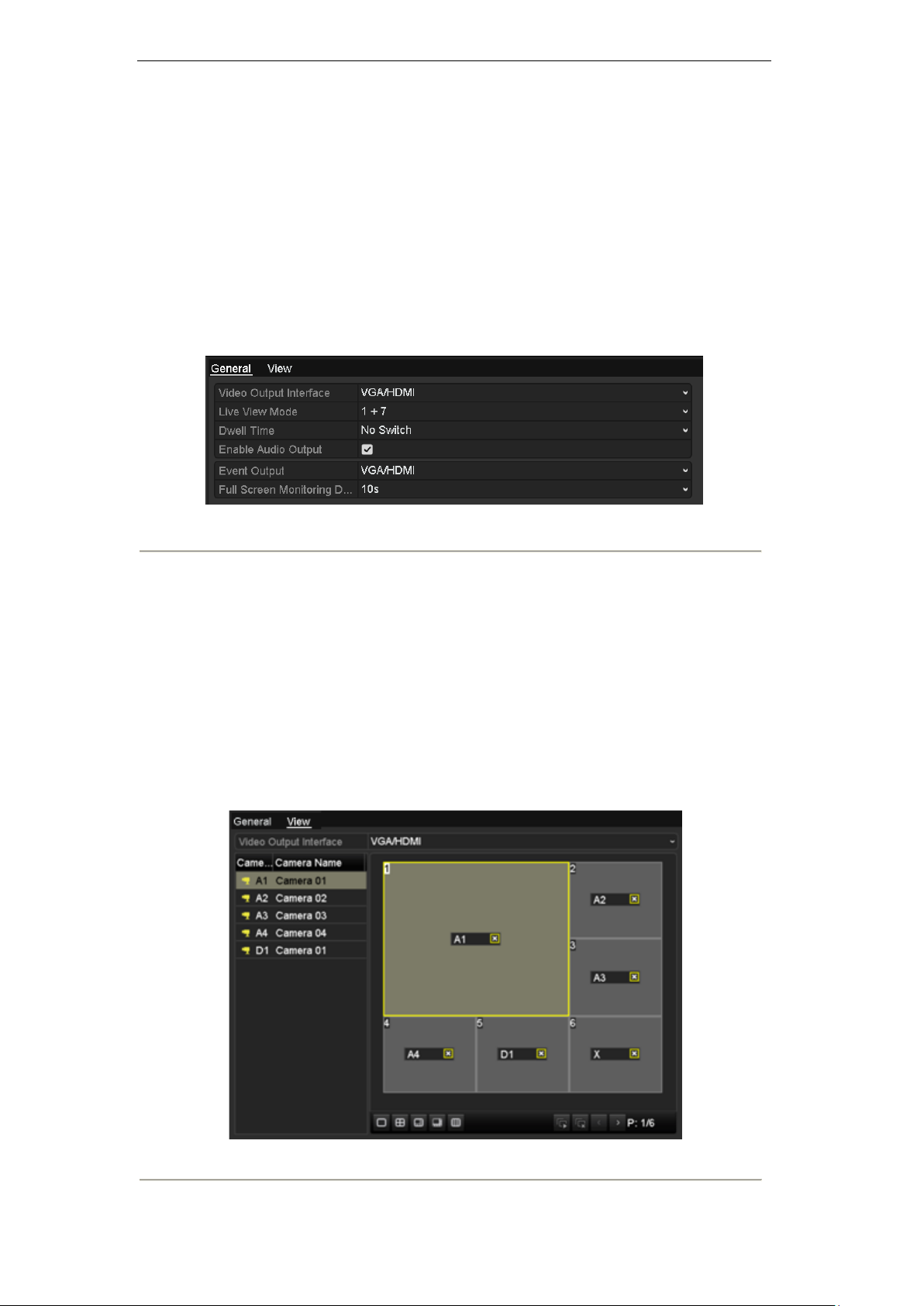

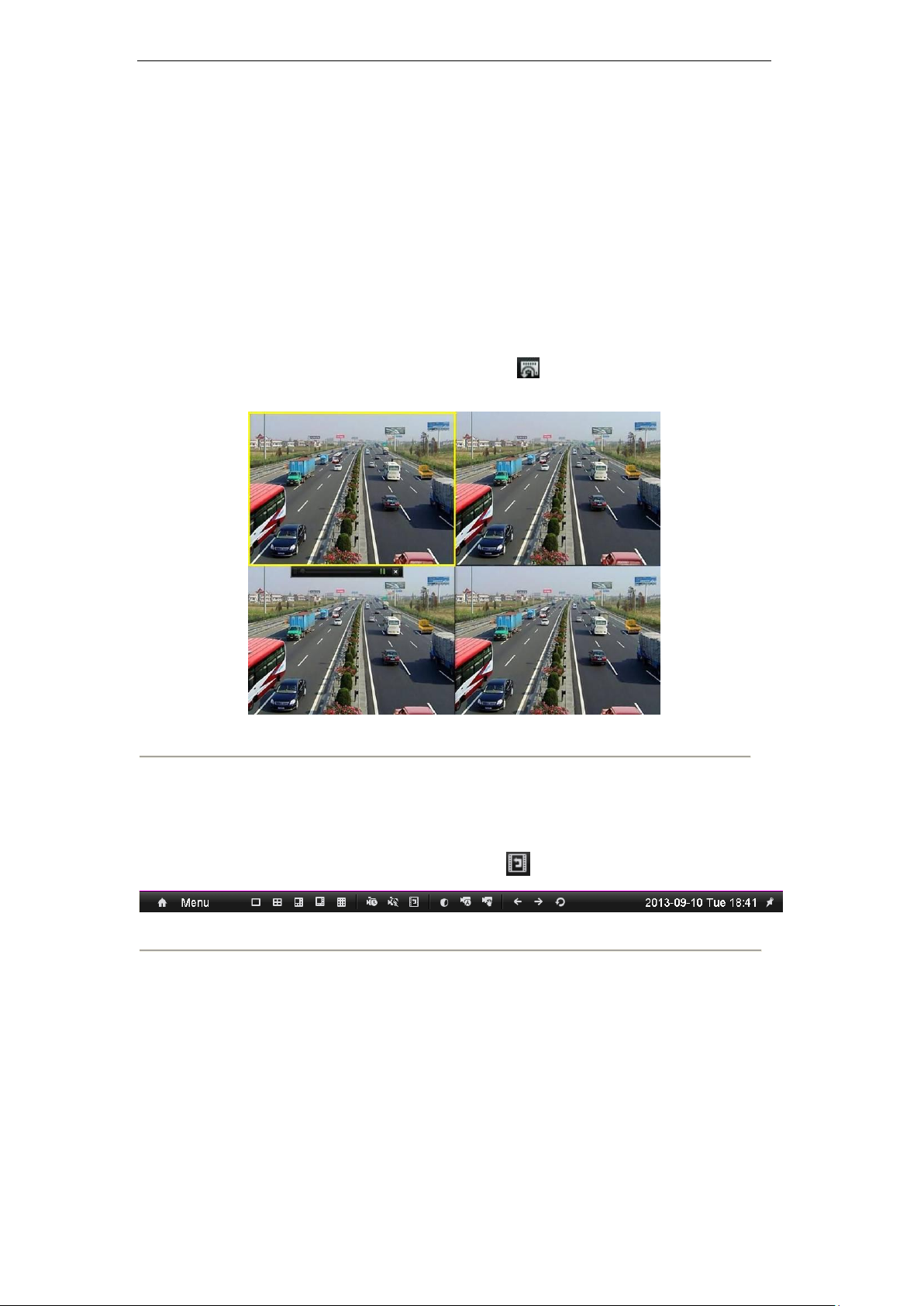

1/4/6/8/9/16-division live view is supported, and the display sequence of screens is adjustable.
Live view screen can be switched in group, and manual switch and auto-switch review is also
provided, the interval of auto-switch can be adjusted.
Quick setting menu is provided for live view.
The selected live view channel can be shielded.

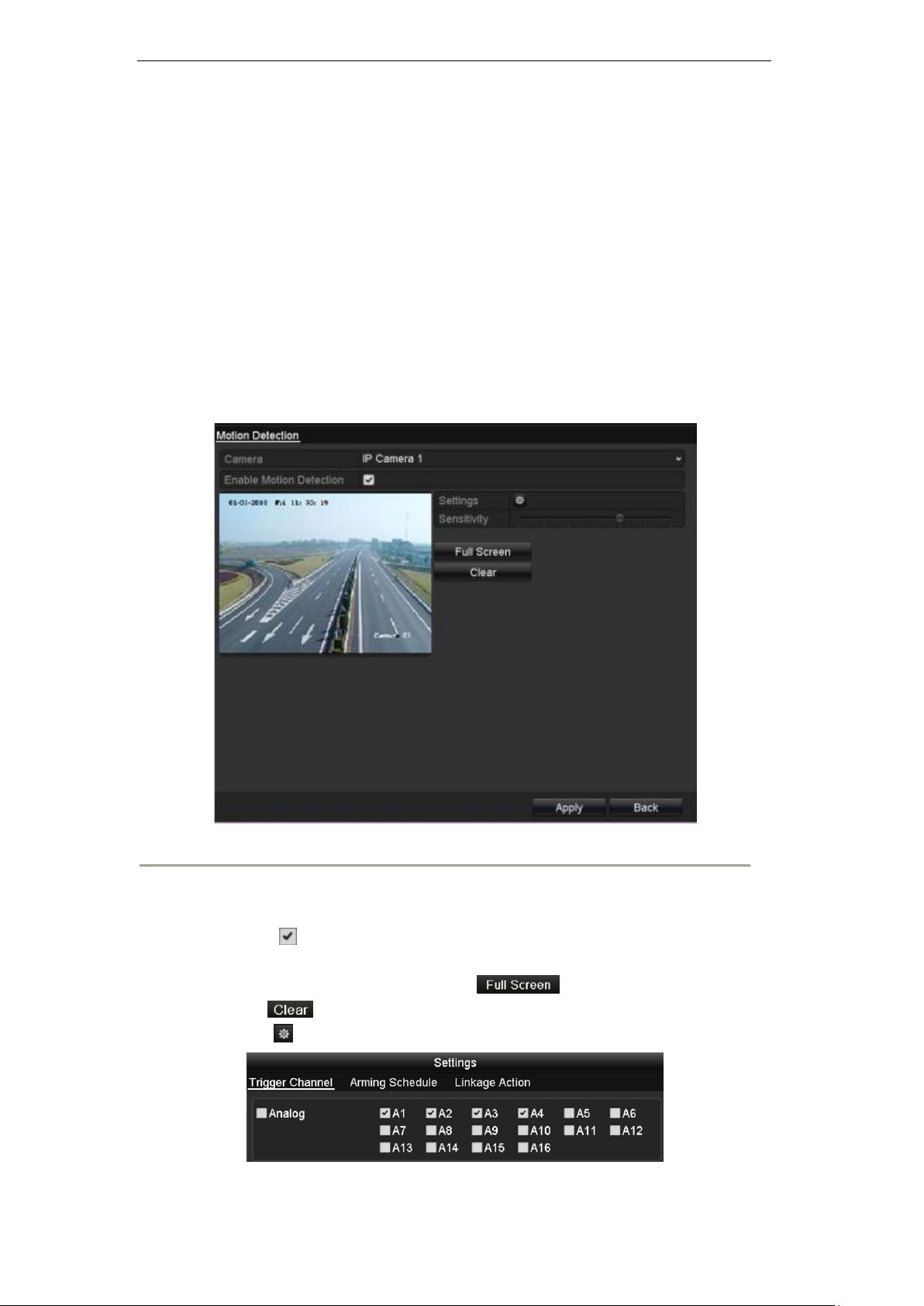

Motion detection, video tampering, video exception alarm and video loss alarm functions.
Privacy mask.

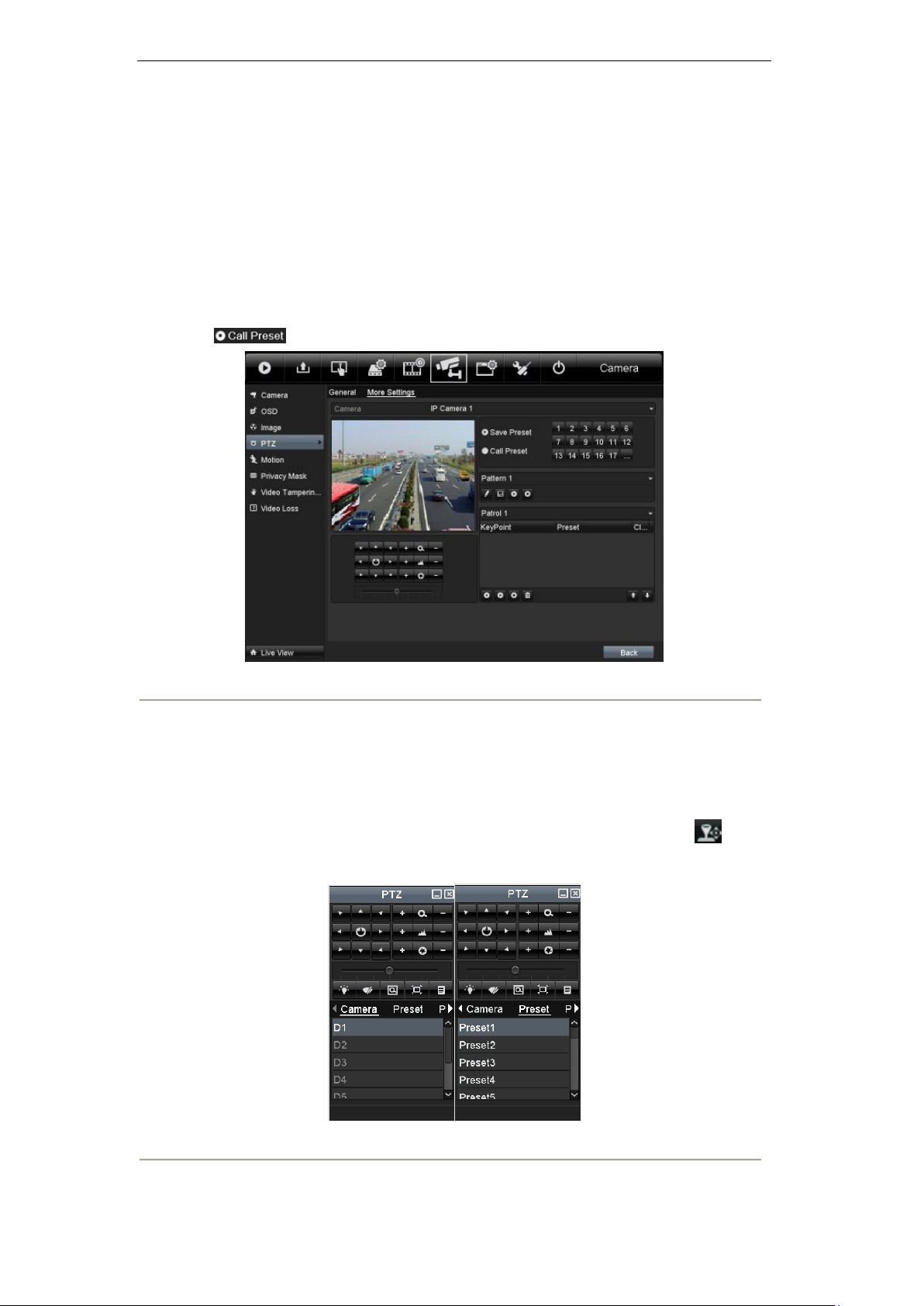

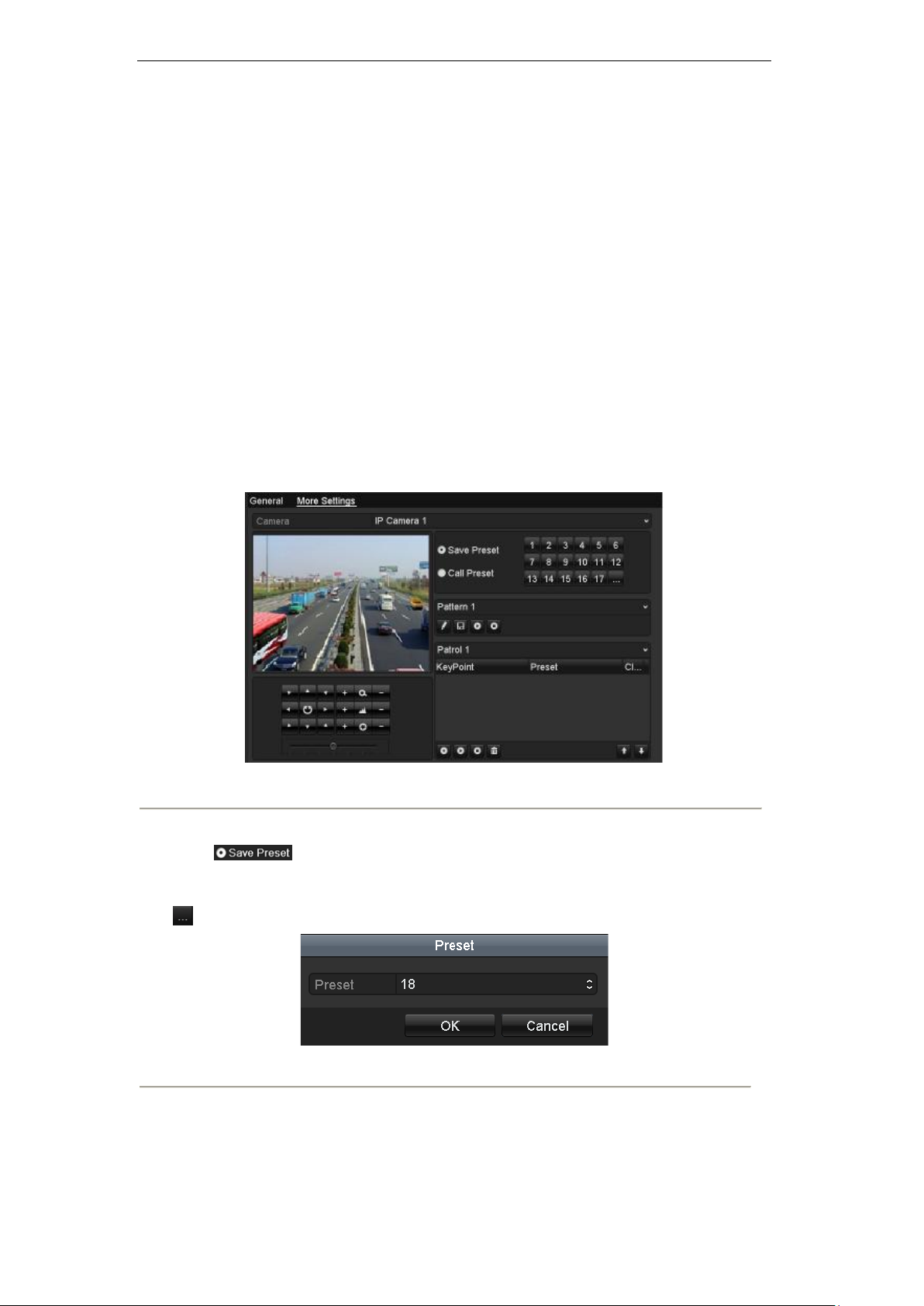

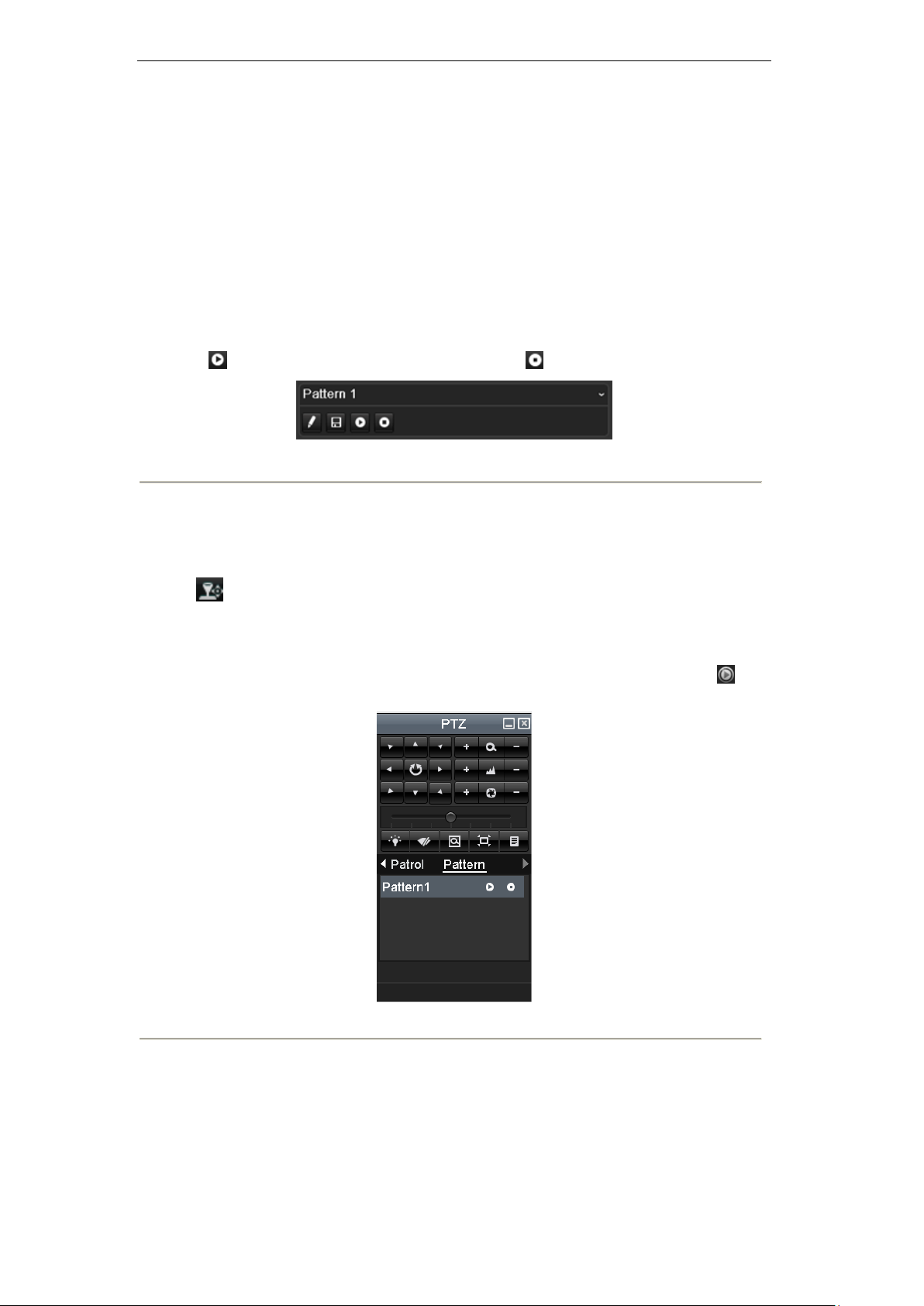

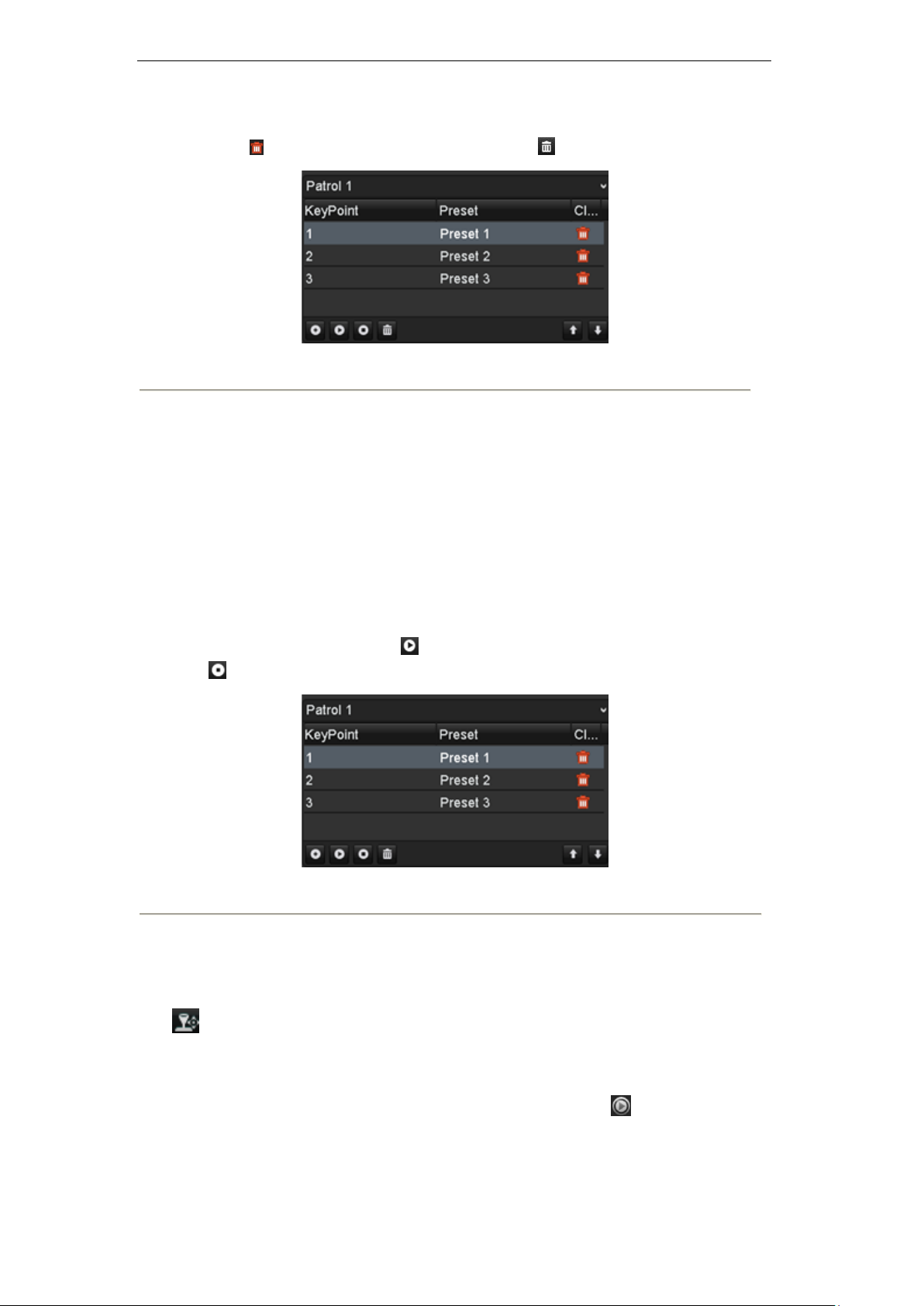

Several PTZ protocols supported; PTZ preset, patrol and pattern.
Zooming in by clicking the mouse and PTZ tracing by dragging mouse.
HDD Management
Up to 2 SATA hard disks can be connected, each disk with a maximum of 4TB storage capacity.
8 network disks (8 NAS disks, or 7 NAS disks+1 IP SANdisk) can be connected.

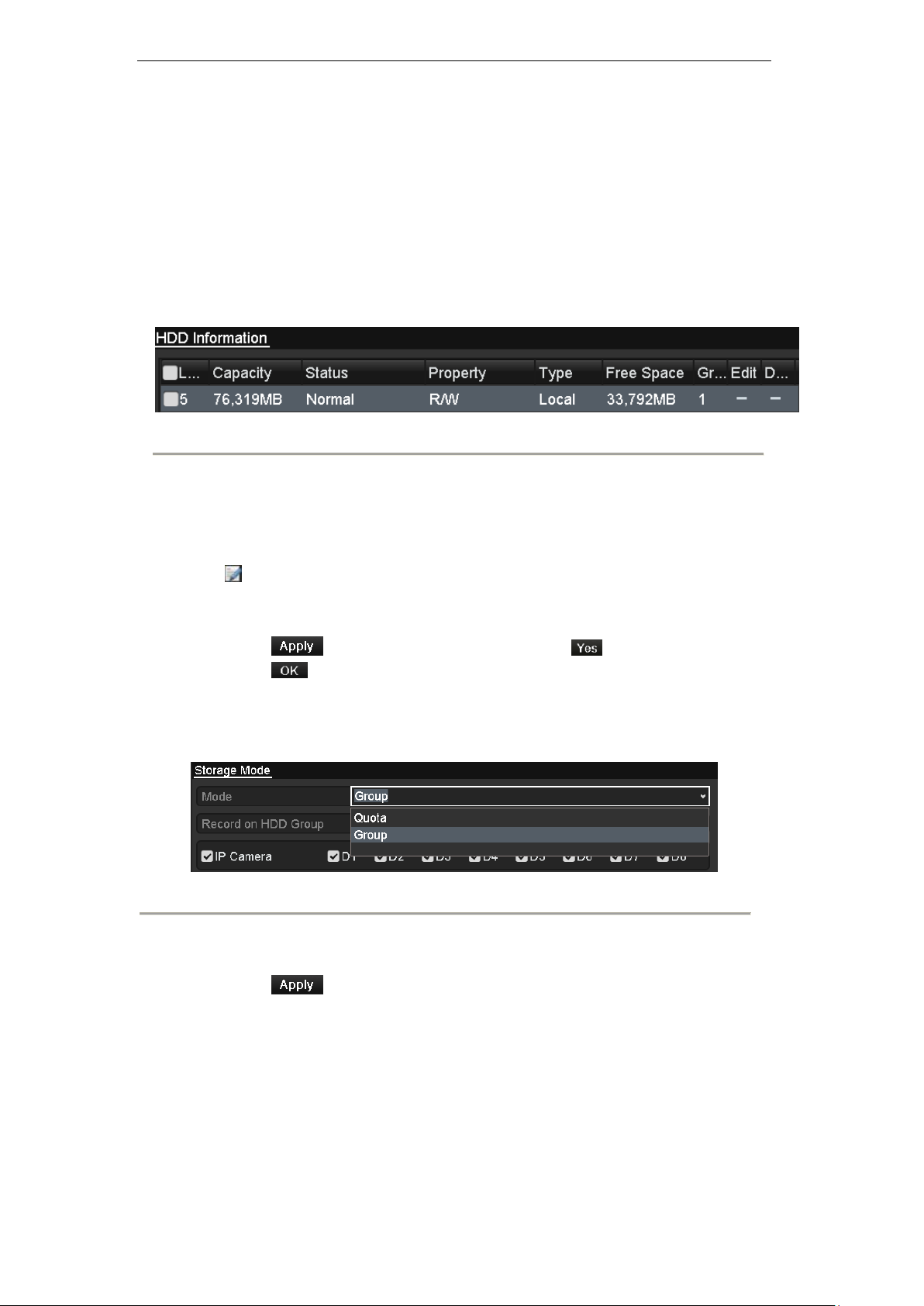

HDD group management.
HDD property: redundancy, read-only, read/write (R/W).
HDD quota management; different capacity can be assigned to different channel.
Support S.M.A.R.T. and bad sector detection.
Recording and Playback

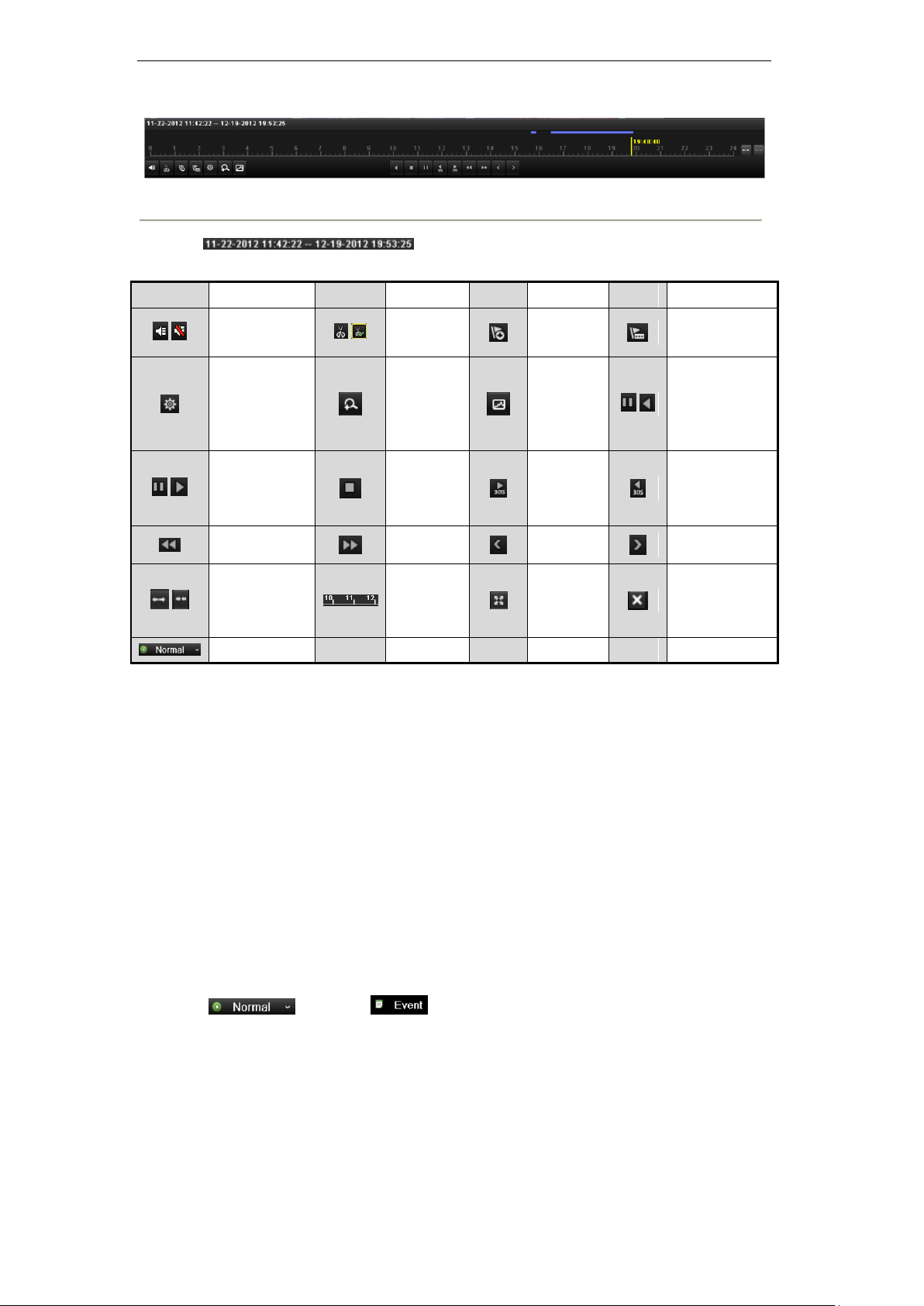

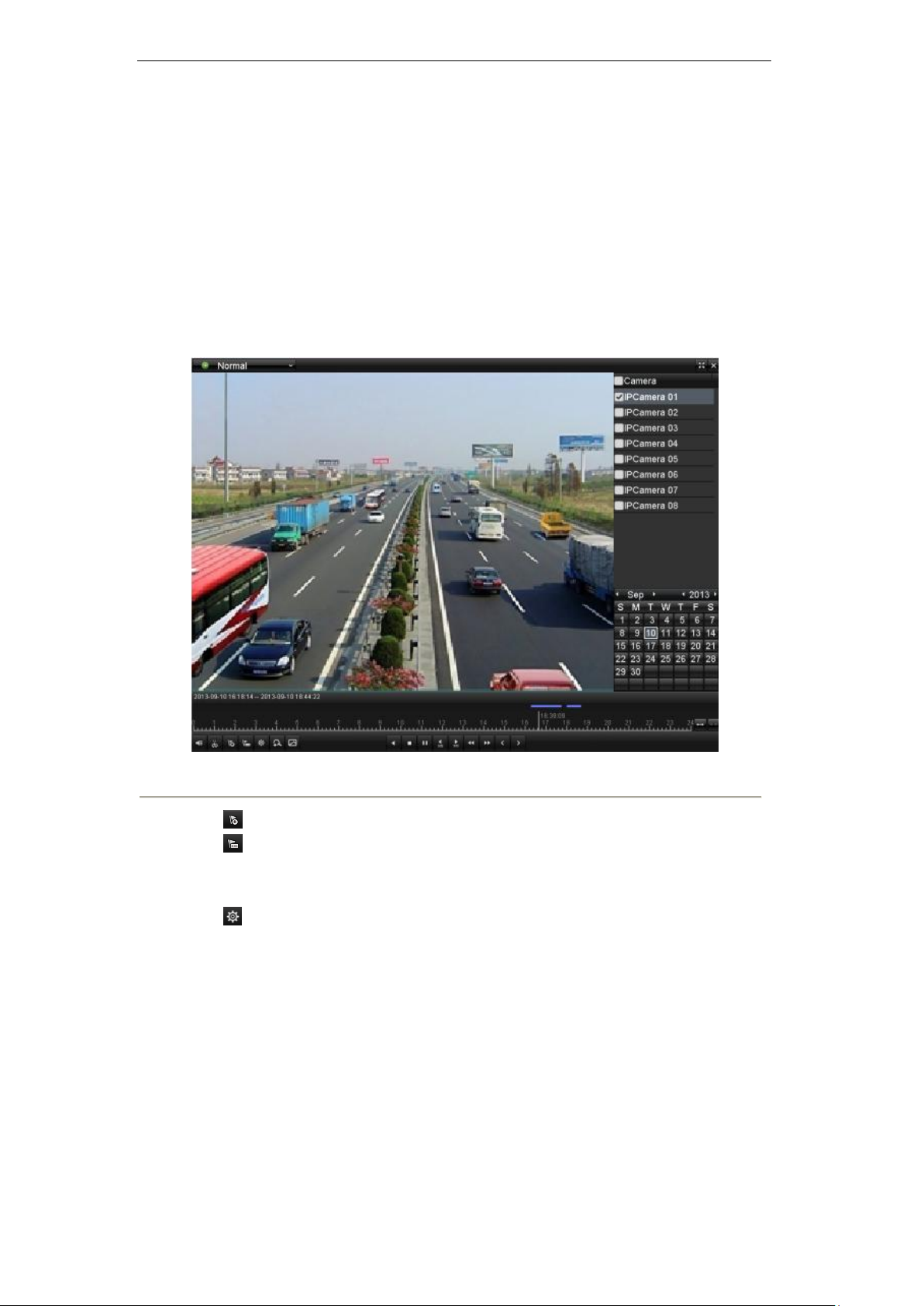

Provide new playback interface with easy and flexible operation.

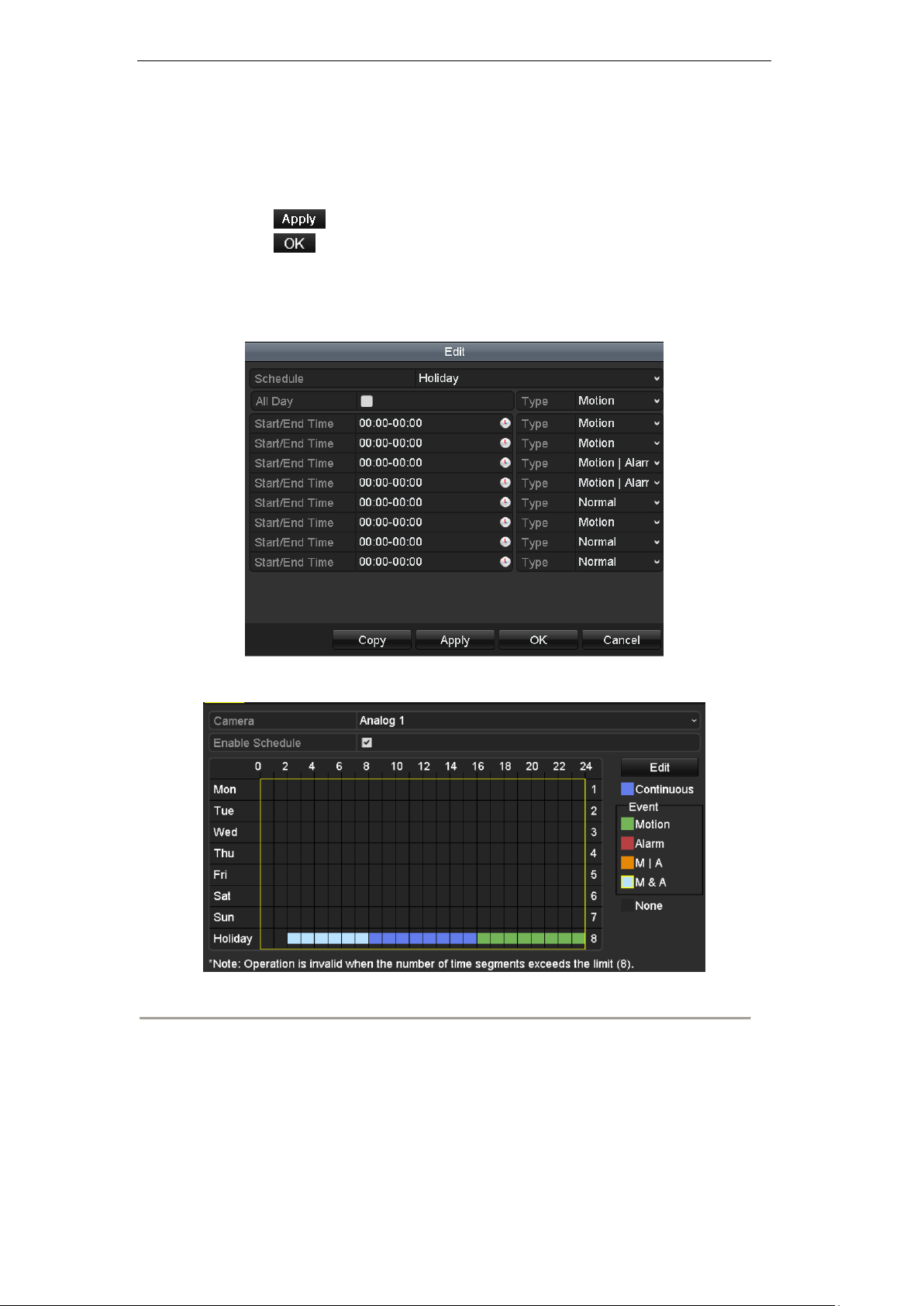

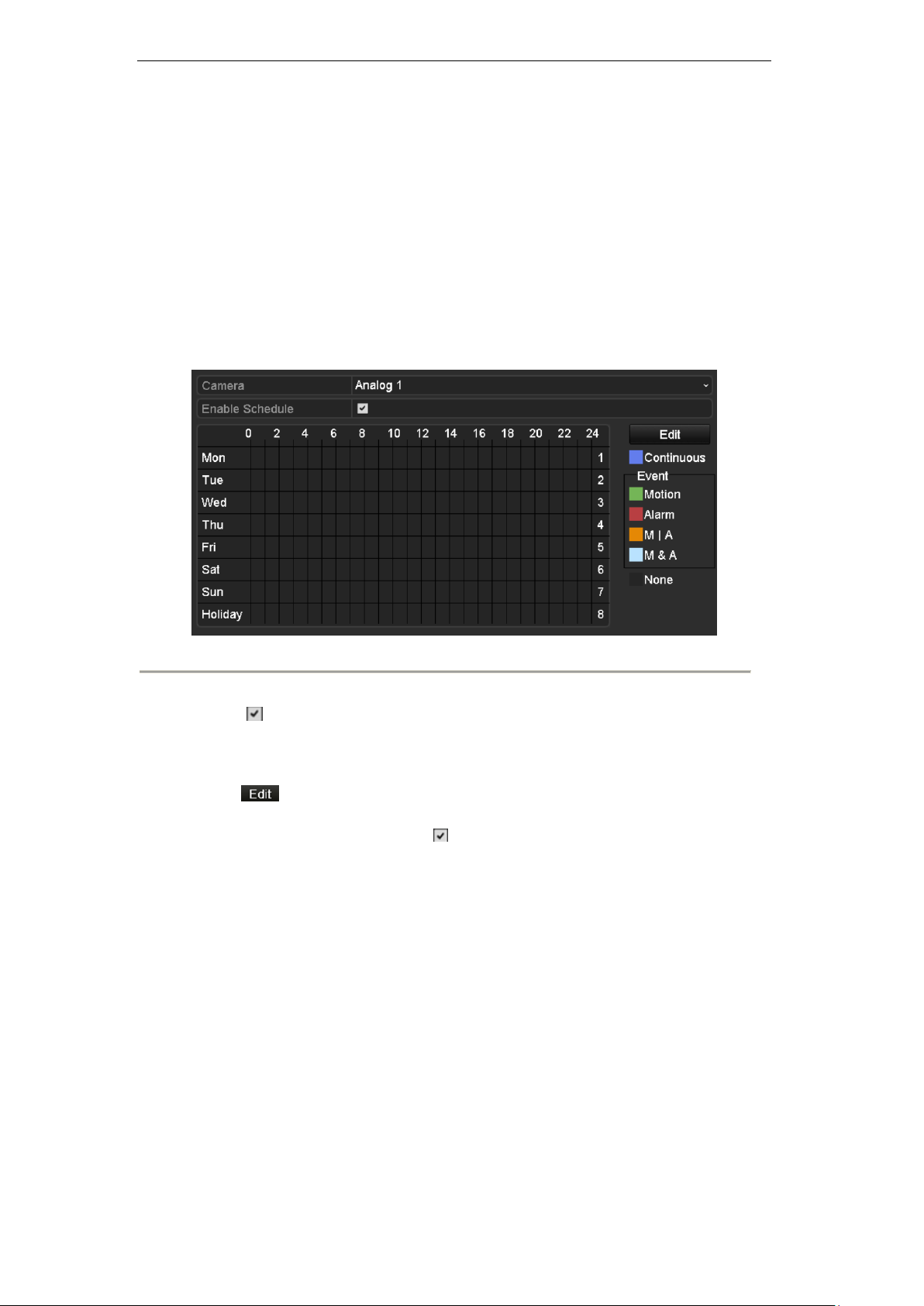

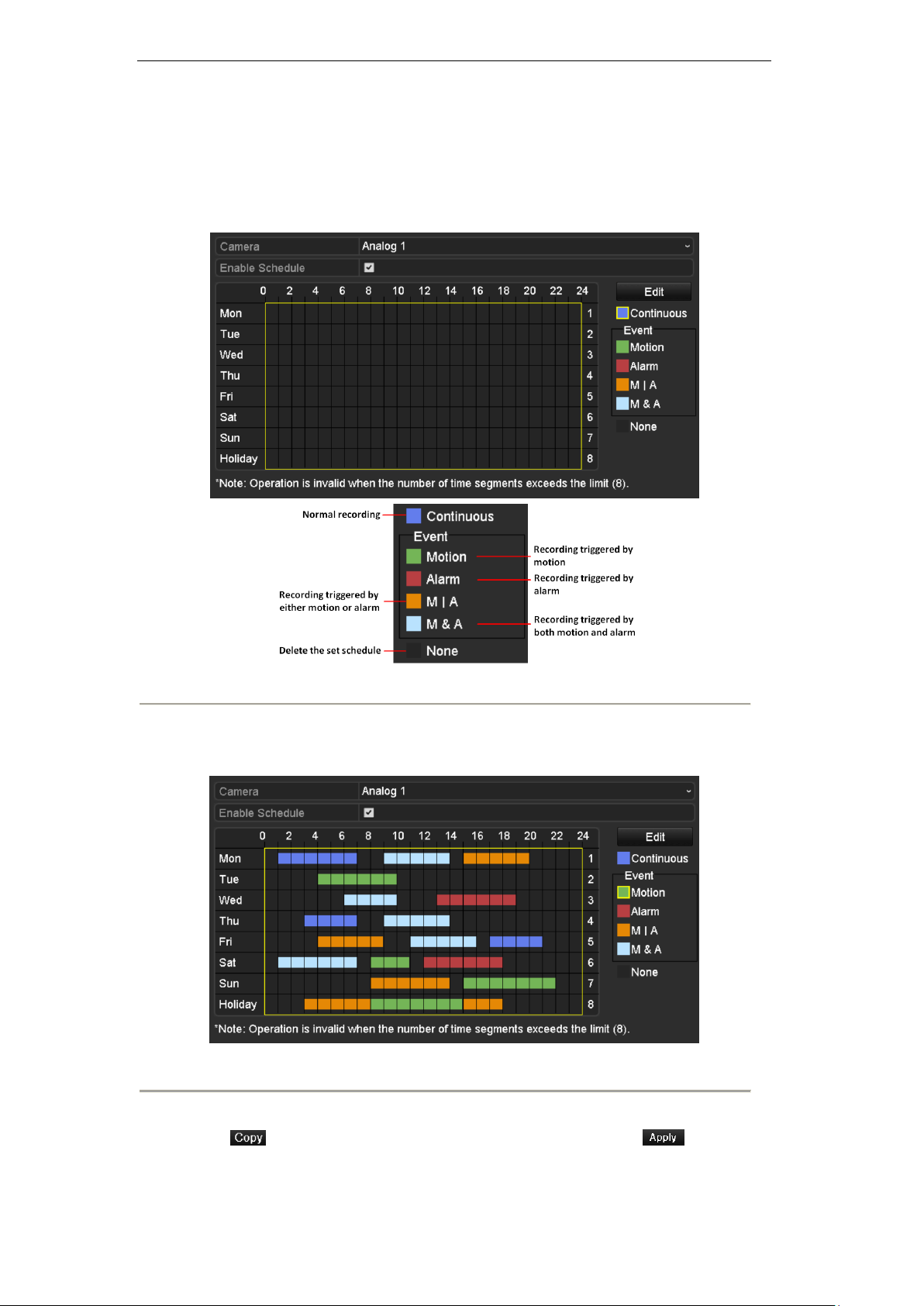

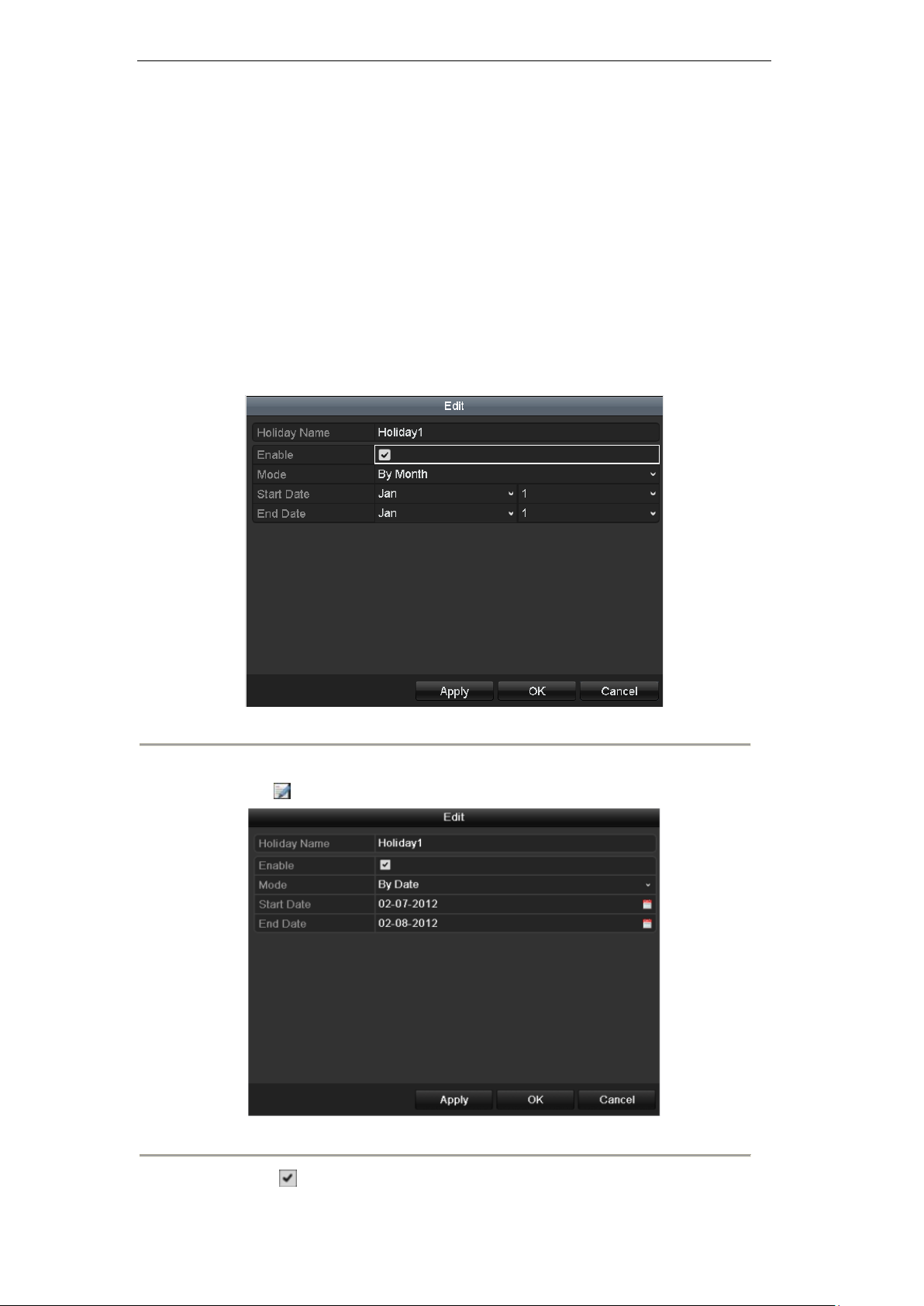

Holiday recording schedule configuration.
Normal and event video encoding parameters.

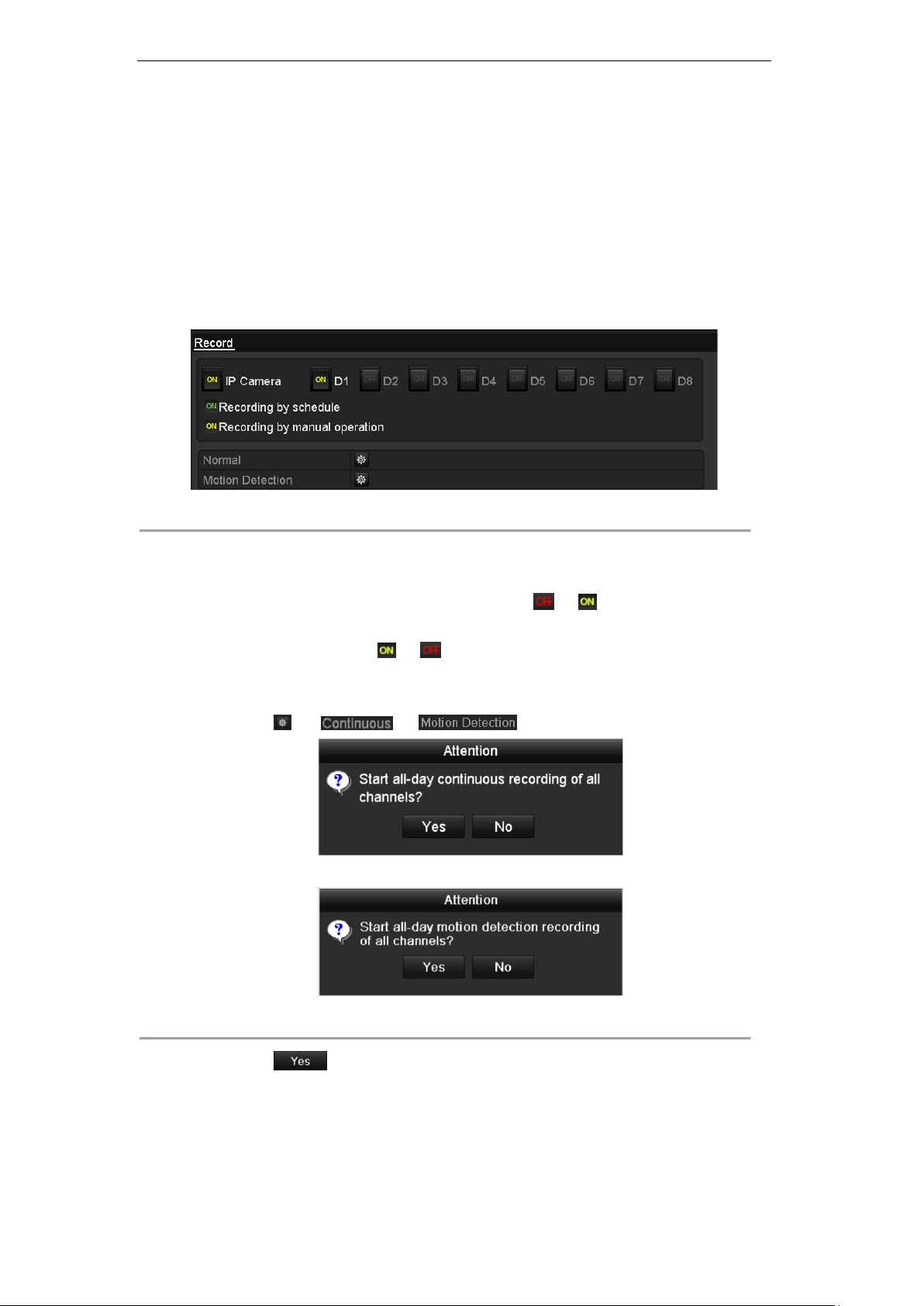

Multiple recording types: manual, normal, alarm, motion, motion | alarm, motion & alarm.
4
User Manual of Digital Video Recorder
8 recording time periods with separated recording types.

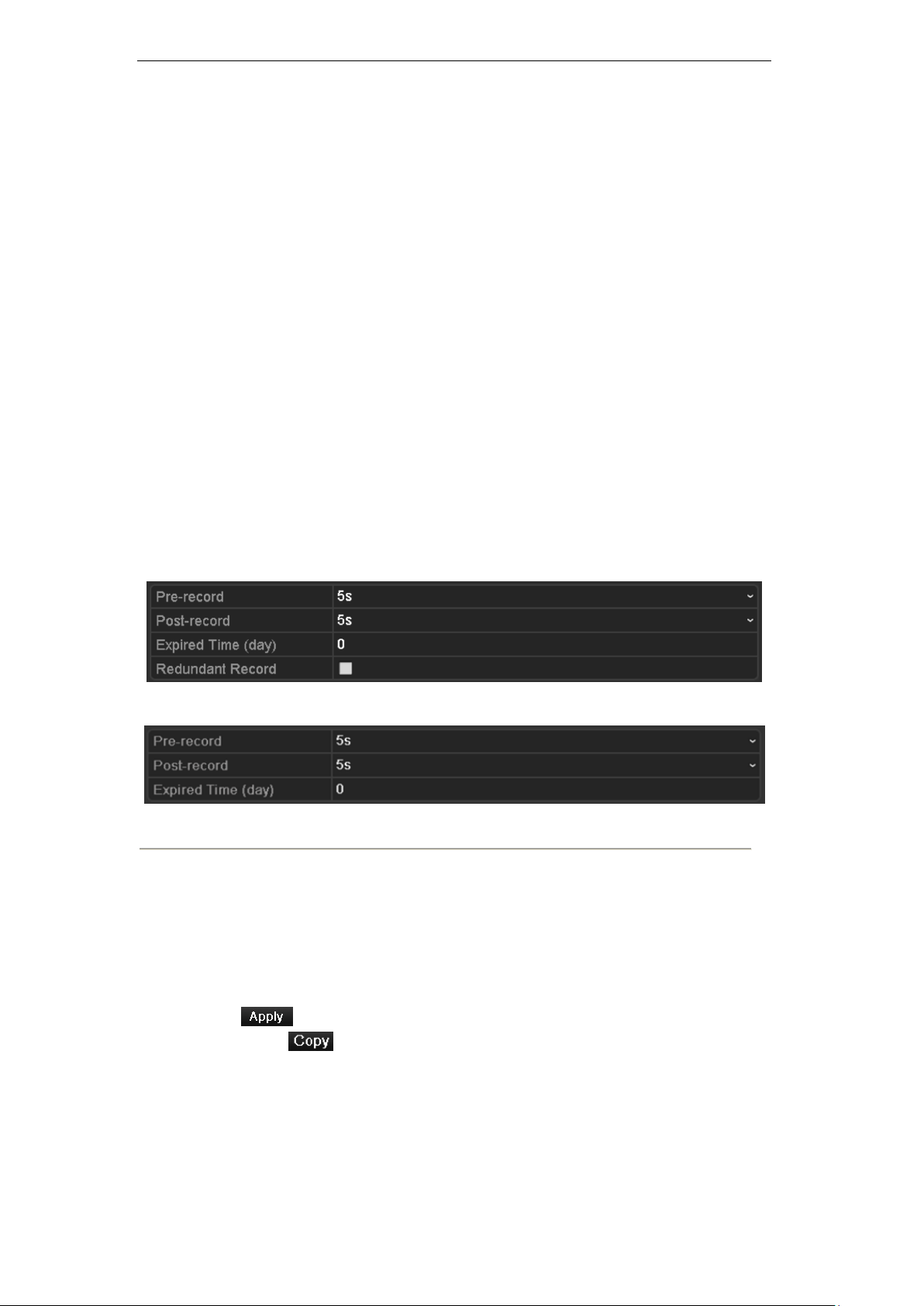

Pre-record and post-record for alarm, motion detection recording, and pre-record time for schedule
and manual recording.

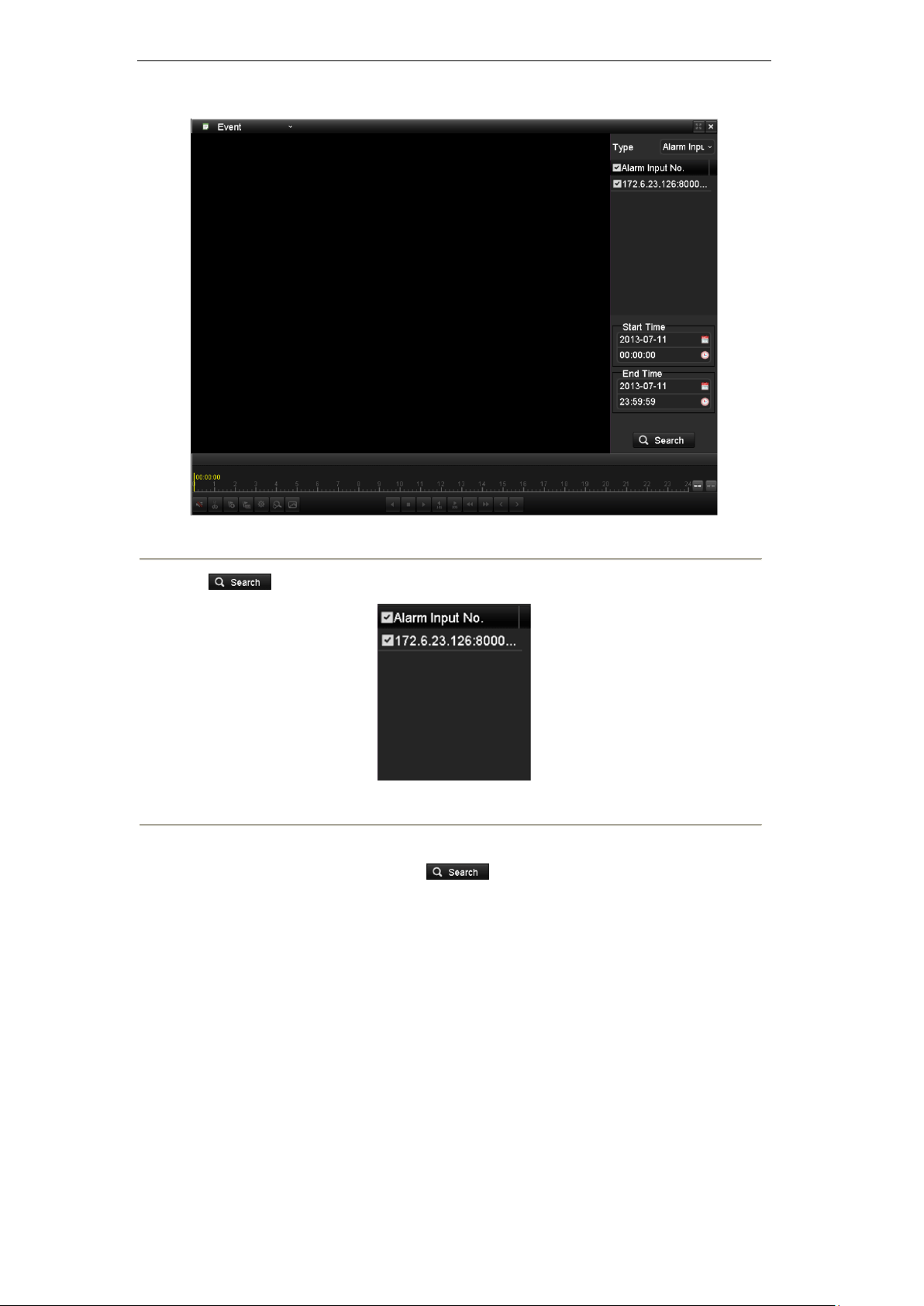

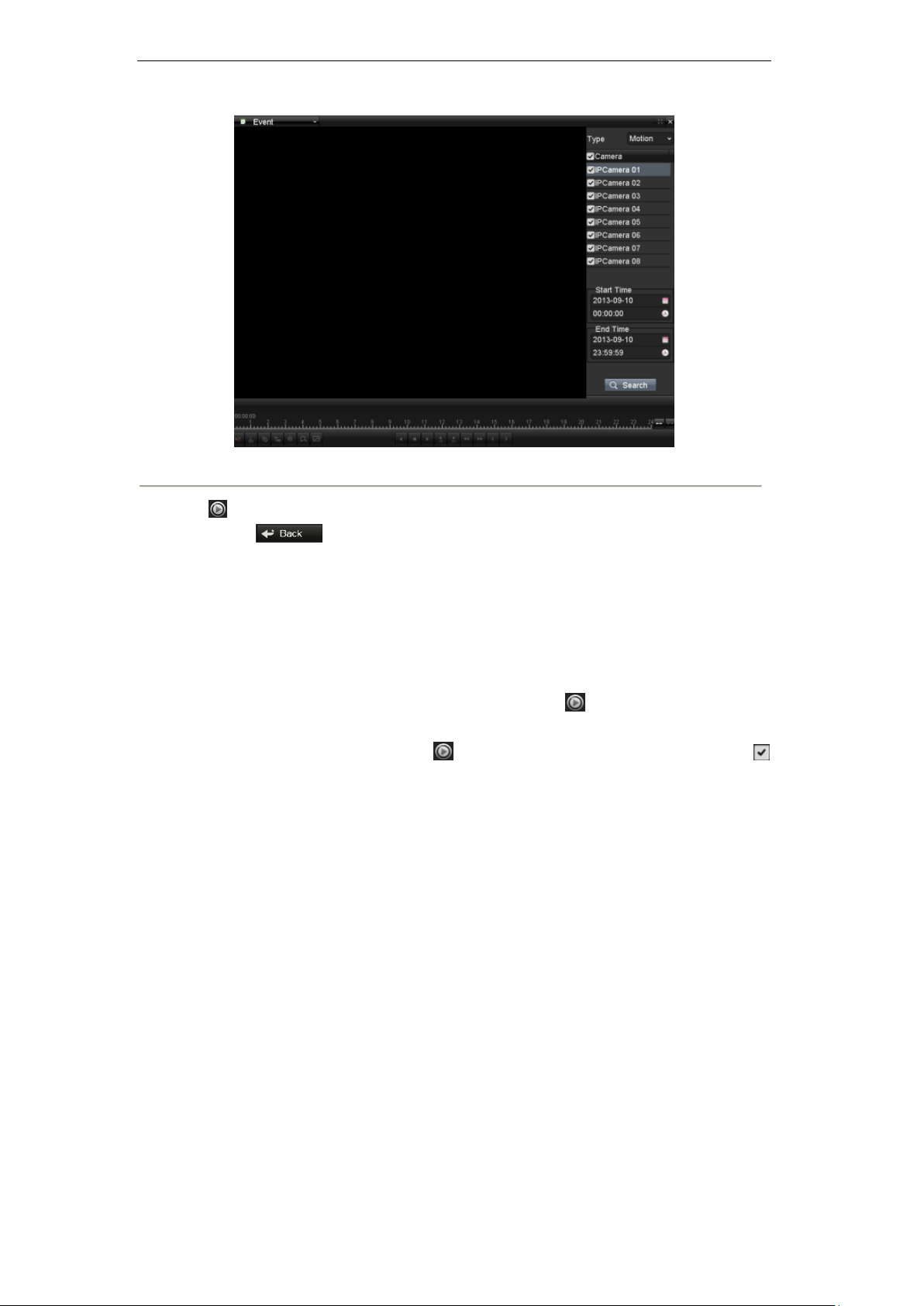

Searching record files by events (alarm input/motion detection).

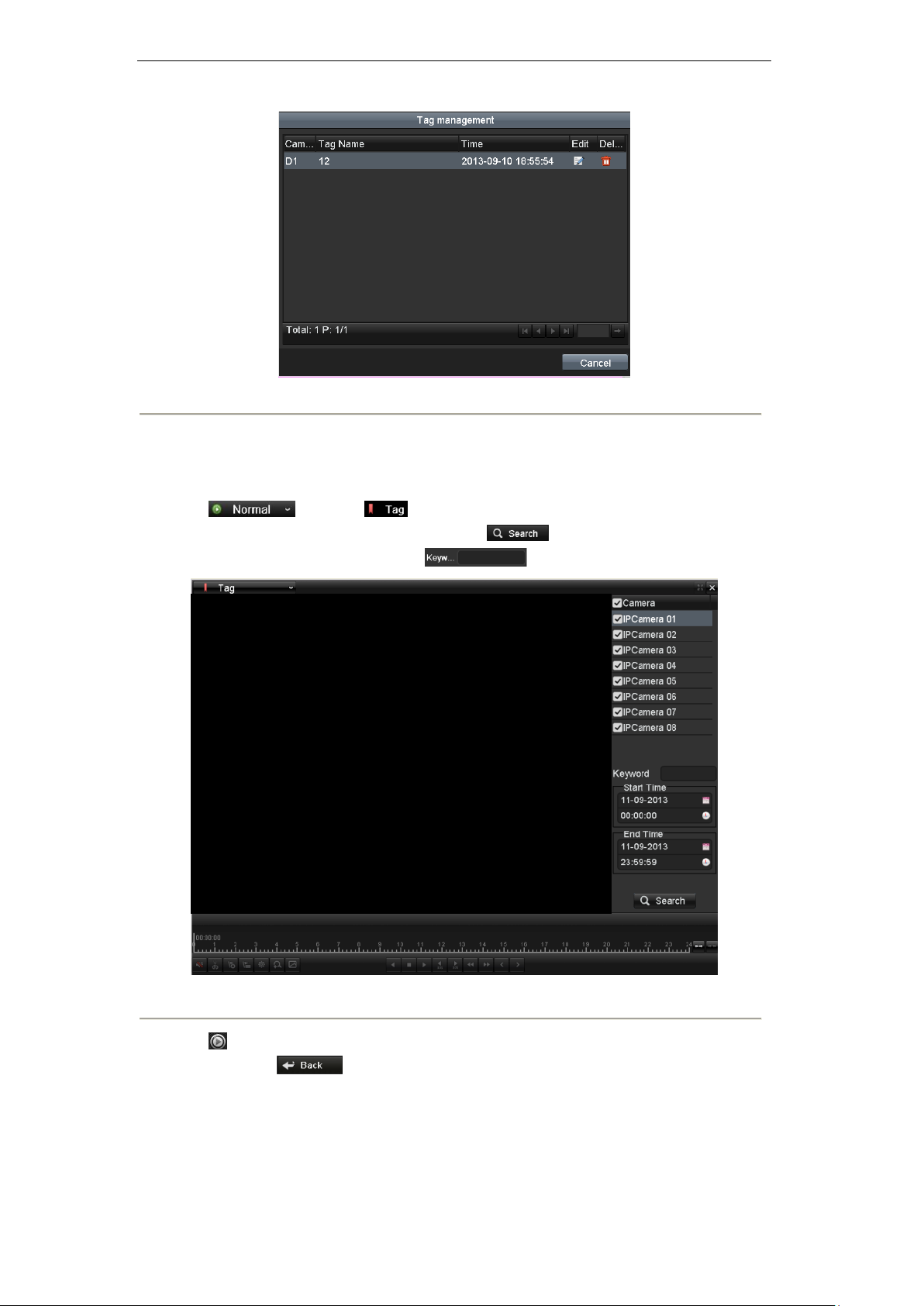

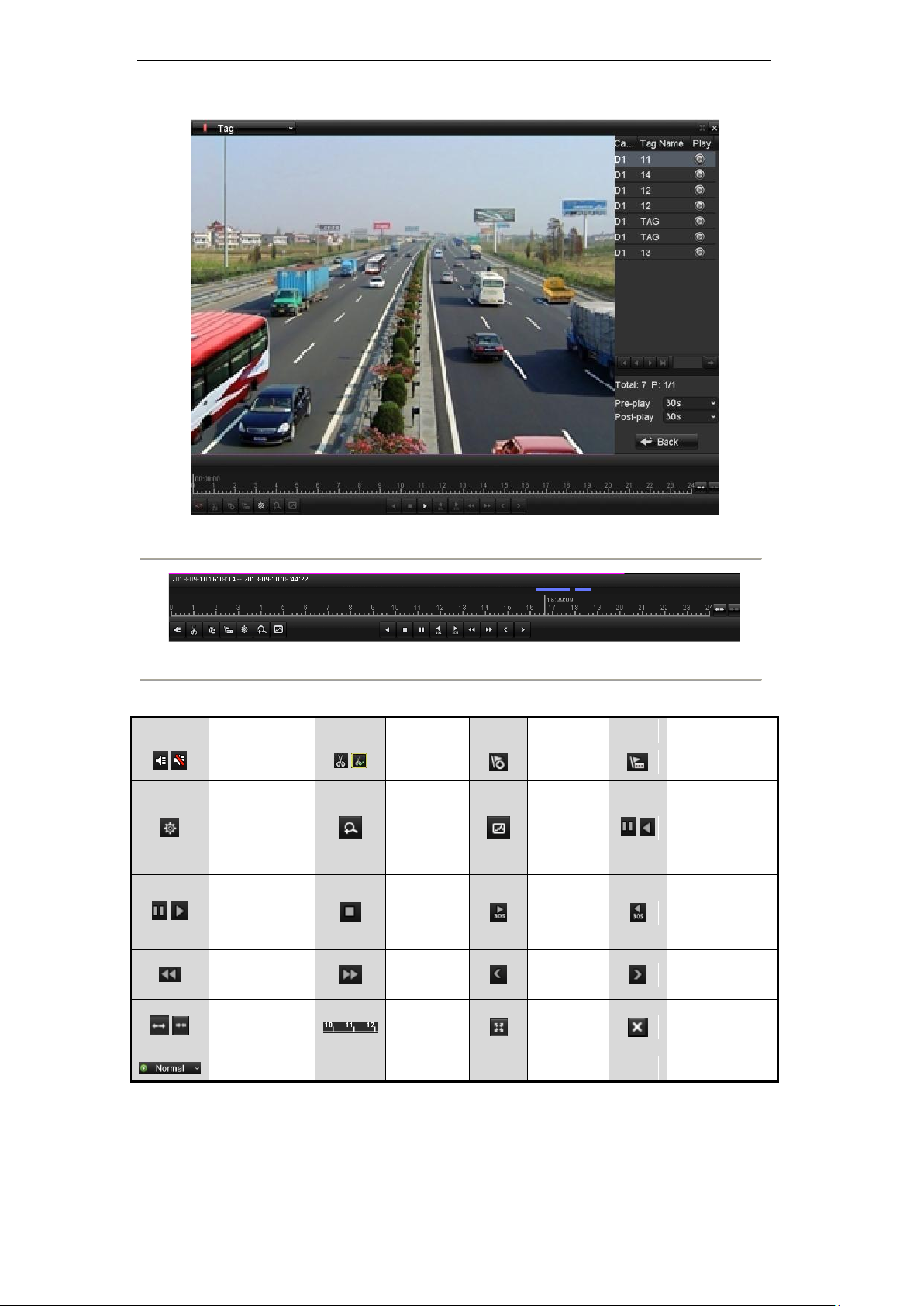

Customization of tags, searching and playing back by tags.
Locking and unlocking record files.
Local redundant recording.

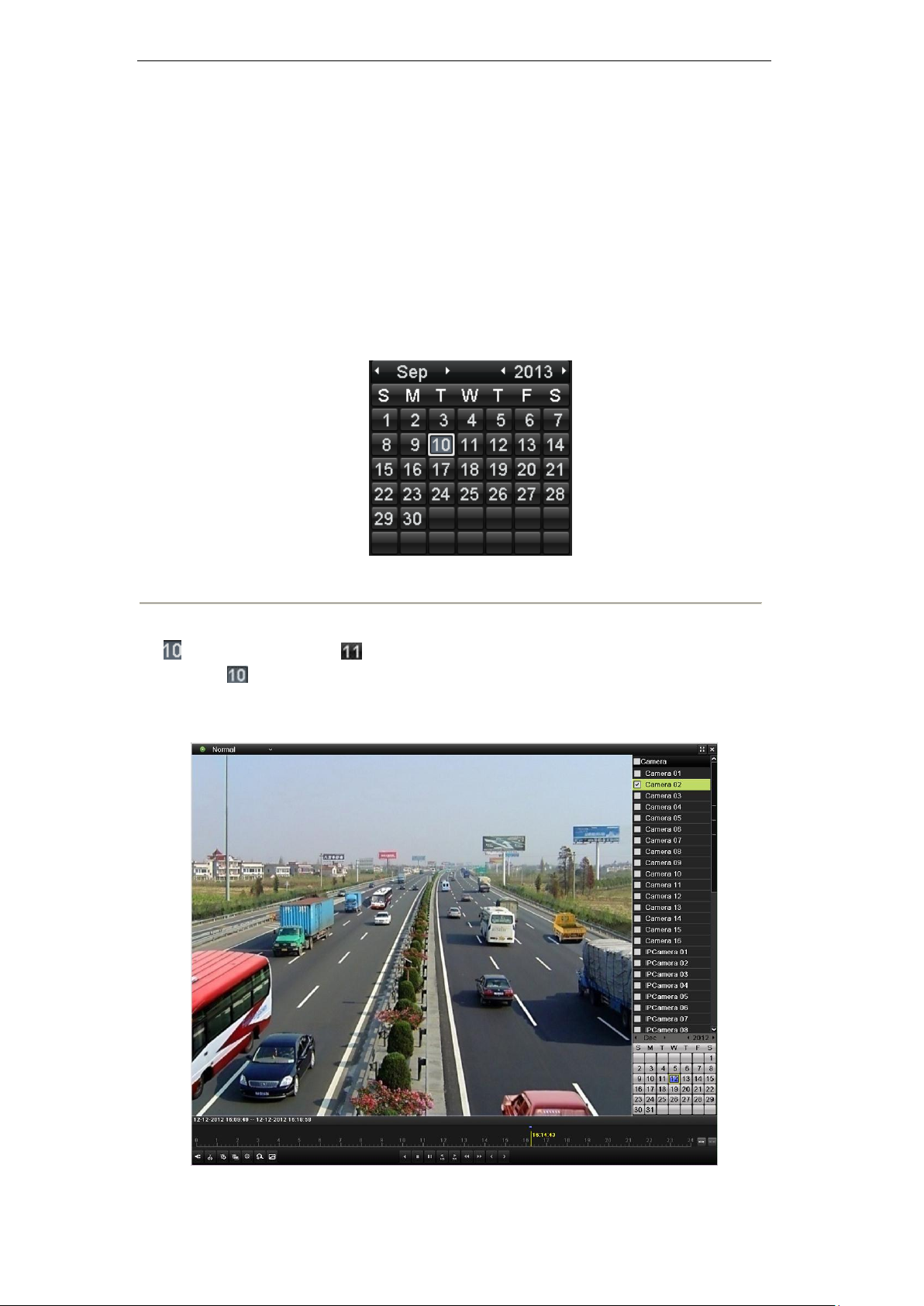

Searching and playing back record files by camera No., recording type, start time, end time, etc.
Smart search for the selected area in the video.

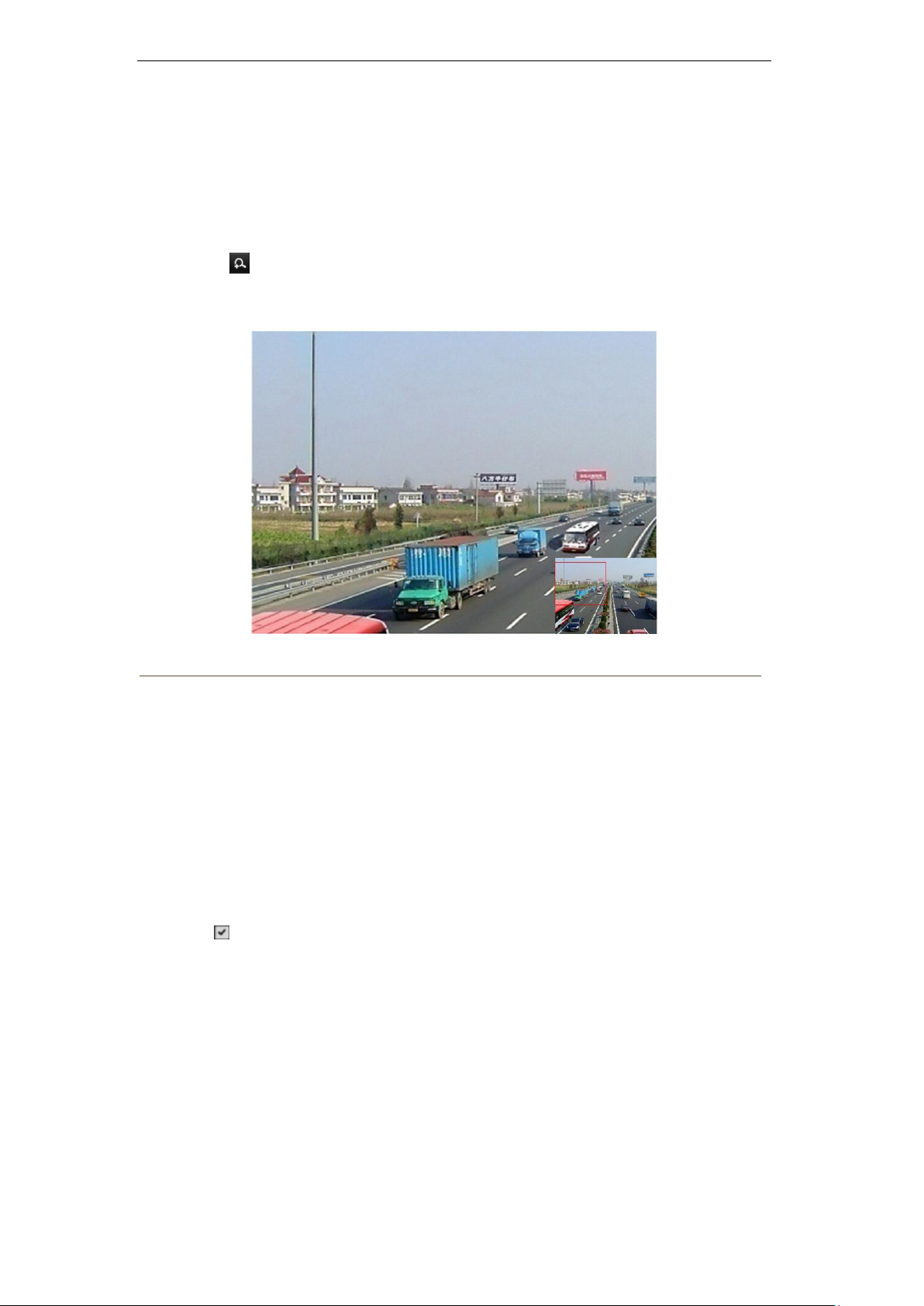

Zooming in when playback.
Reverse playback for multi-channel.
Supports pause, fast forward, slow forward, skip forward, and skip backward when playback,
locating by dragging the mouse.
Up to 16-ch synchronous playback at WD1 real time.
Backup

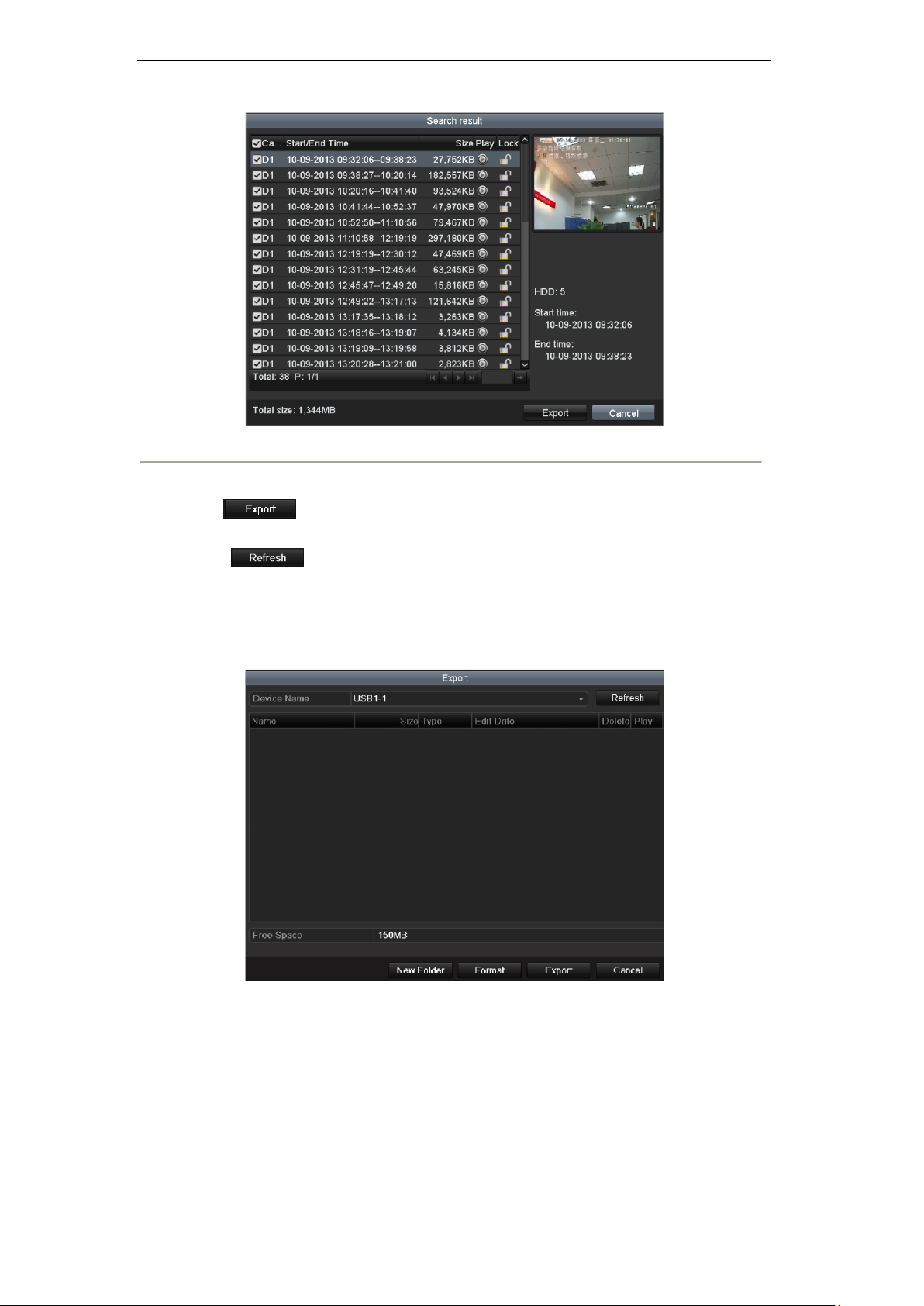

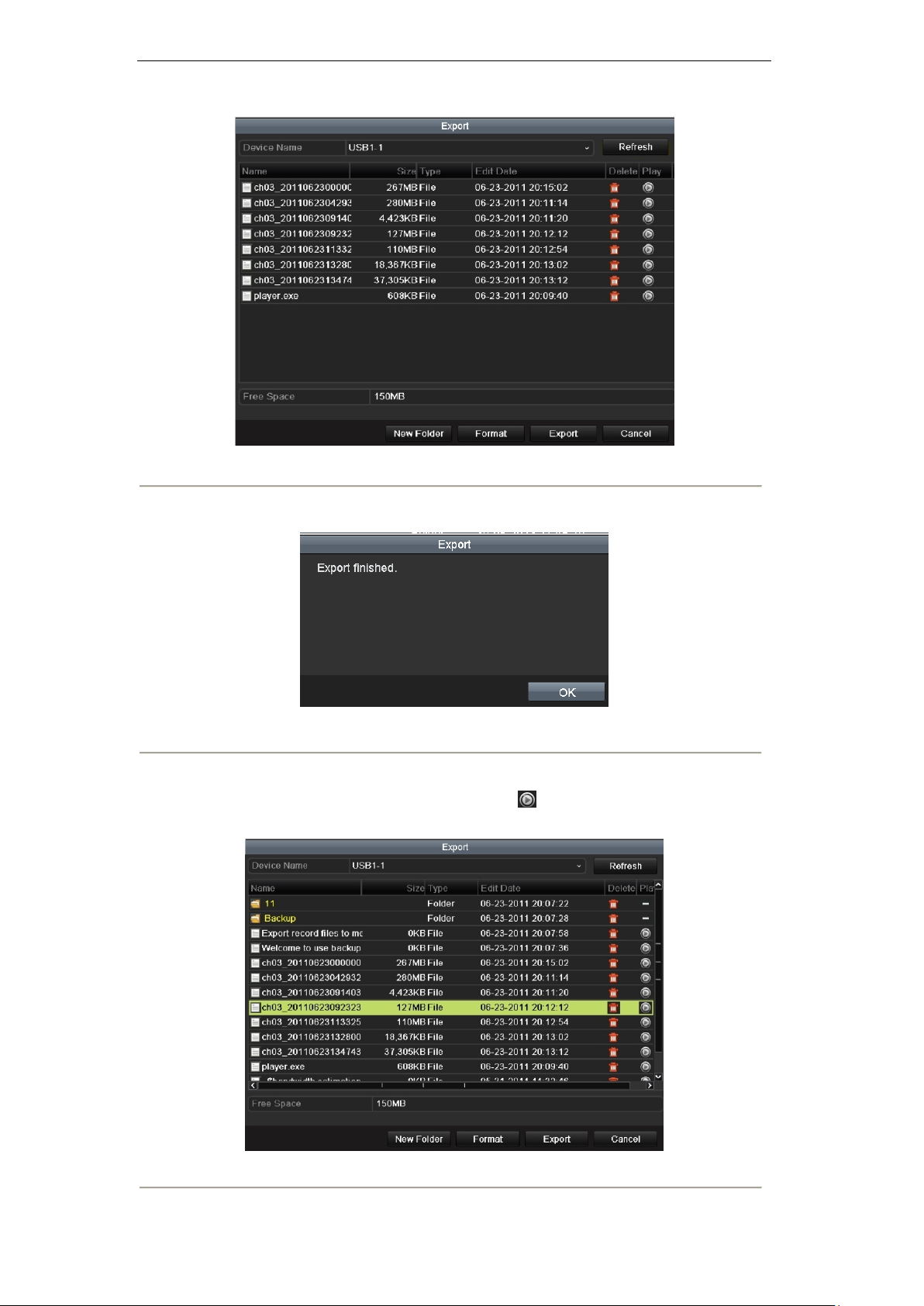

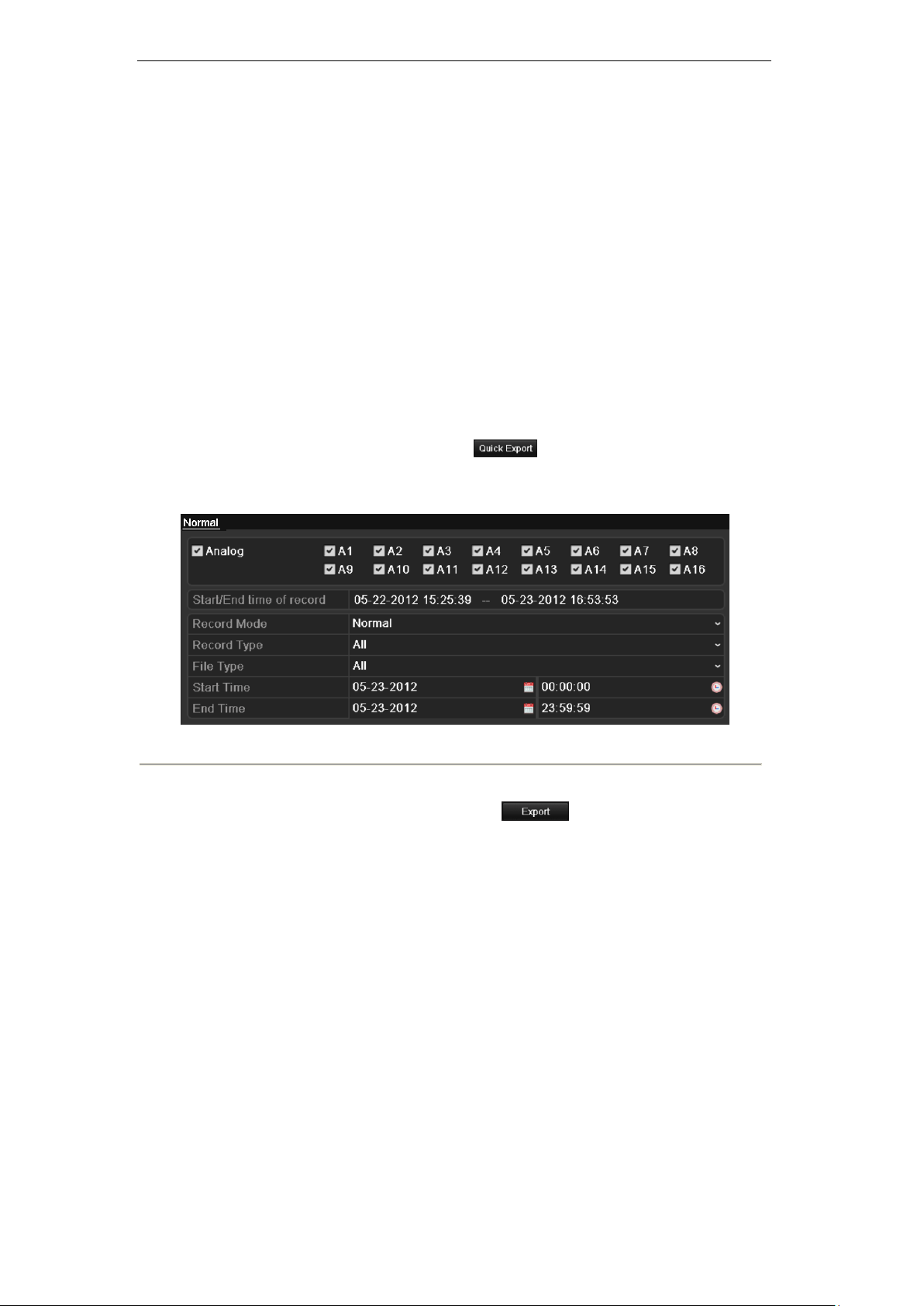

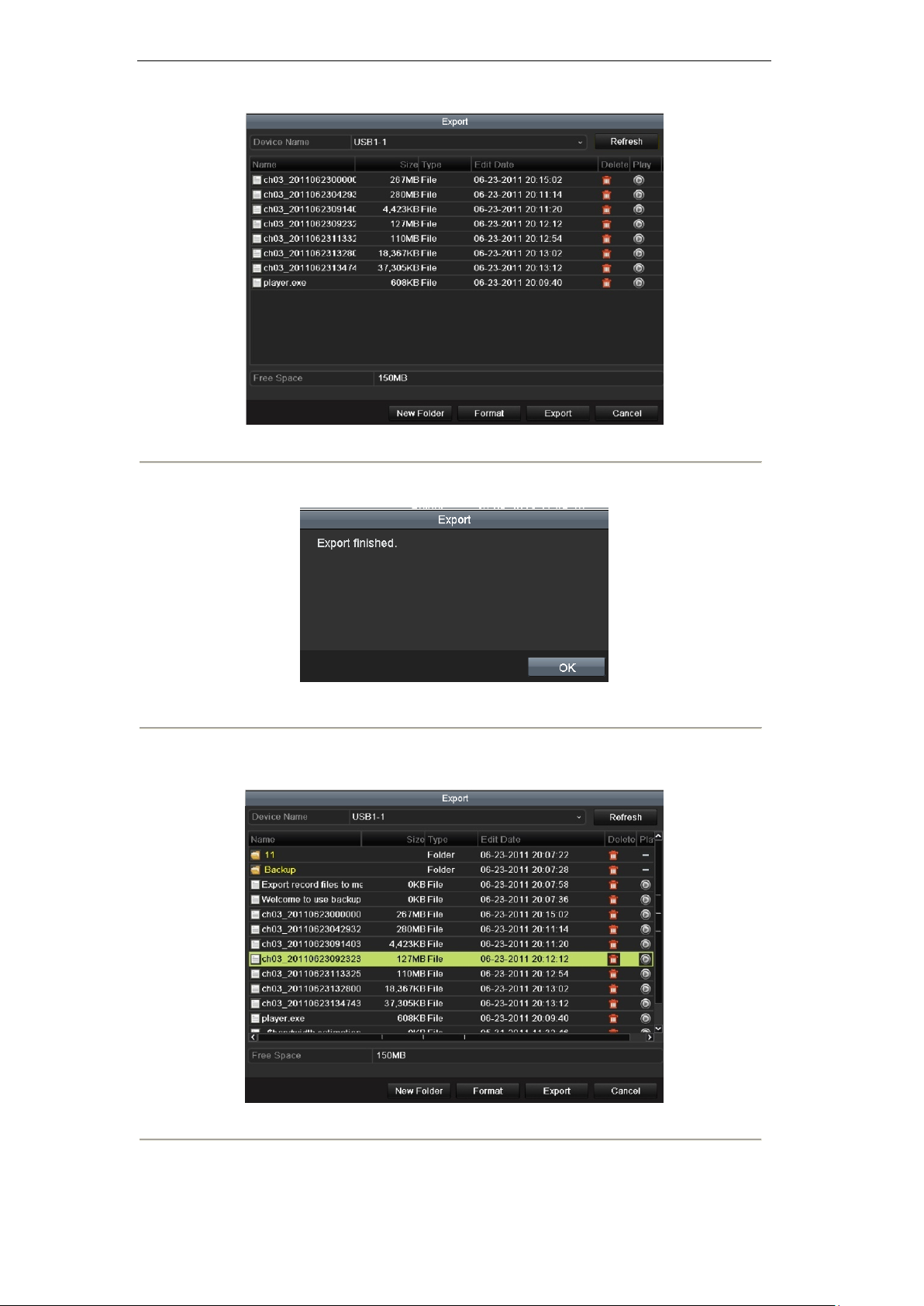

Export video data by USB, or SATA device.

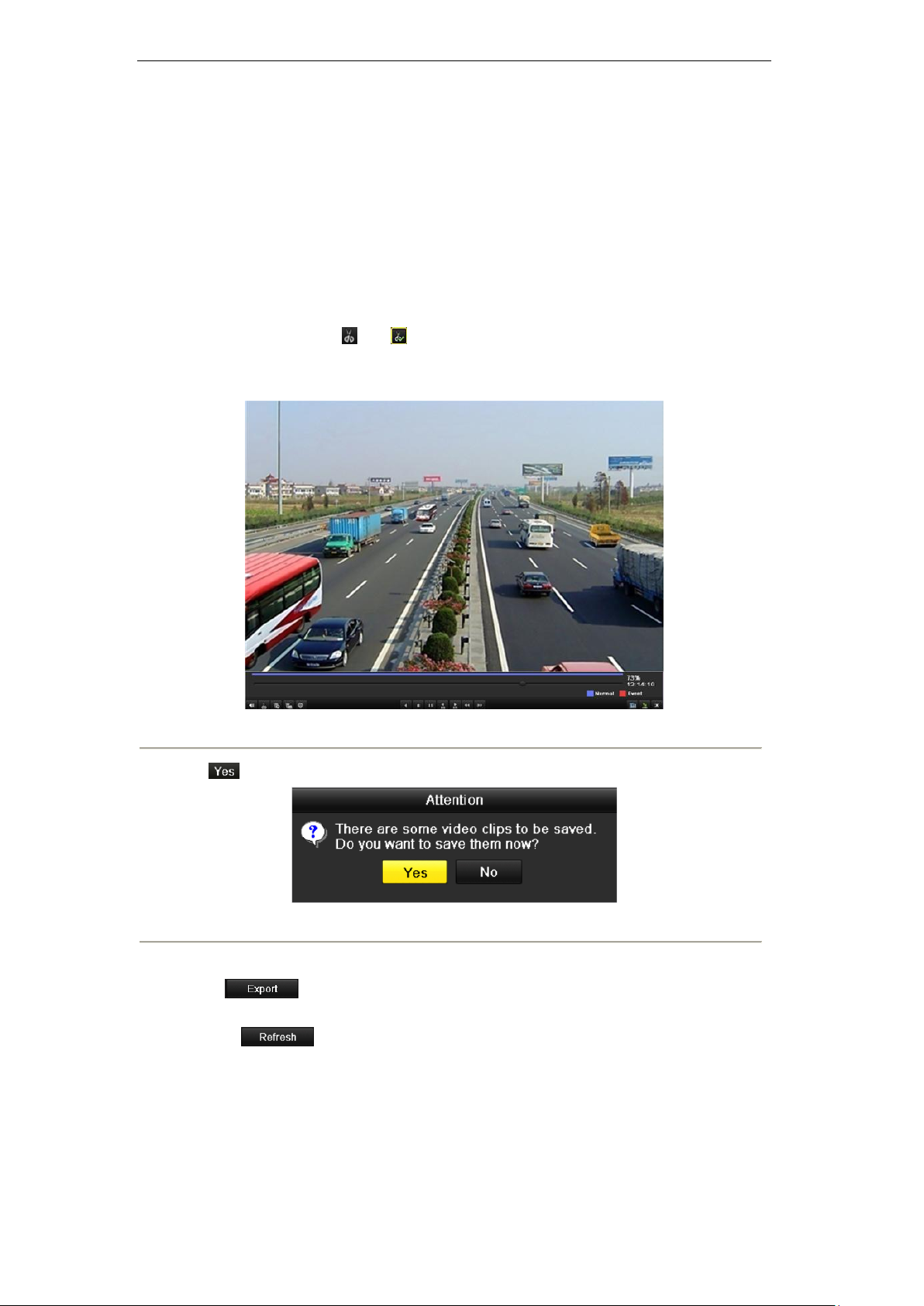

Export video clips when playback.
Management and maintenance of backup devices.
Support NTFS and FAT32 formatted backup devices.
Alarm and Exception

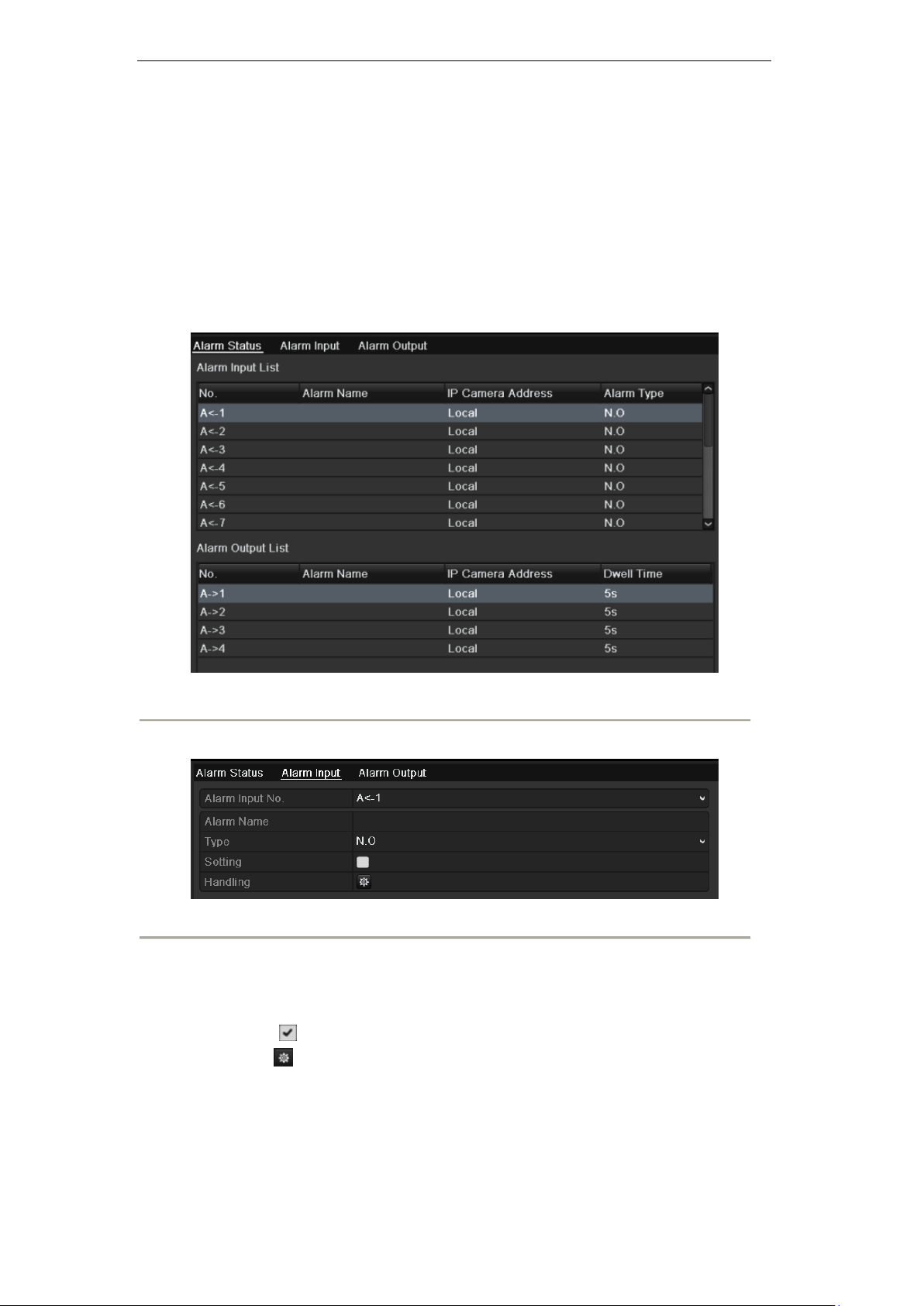

Configurable arming time of alarm input/output.
Alarm for video loss, motion detection, tampering, abnormal signal, video input/output standard
mismatch, illegal login, network disconnected, IP confliction, abnormal record, HDD error, and
HDD full, etc.
Alarm triggers full screen monitoring, audio alarm, notifying surveillance center, sending email
and alarm output.
Automatic restore when system is abnormal.
Other Local Functions
Users can operate by mouse and IR remote control.
Three-level user management; admin user is allowed to create many operating accounts and define
their operating permission, which includes the limit to access any camera.

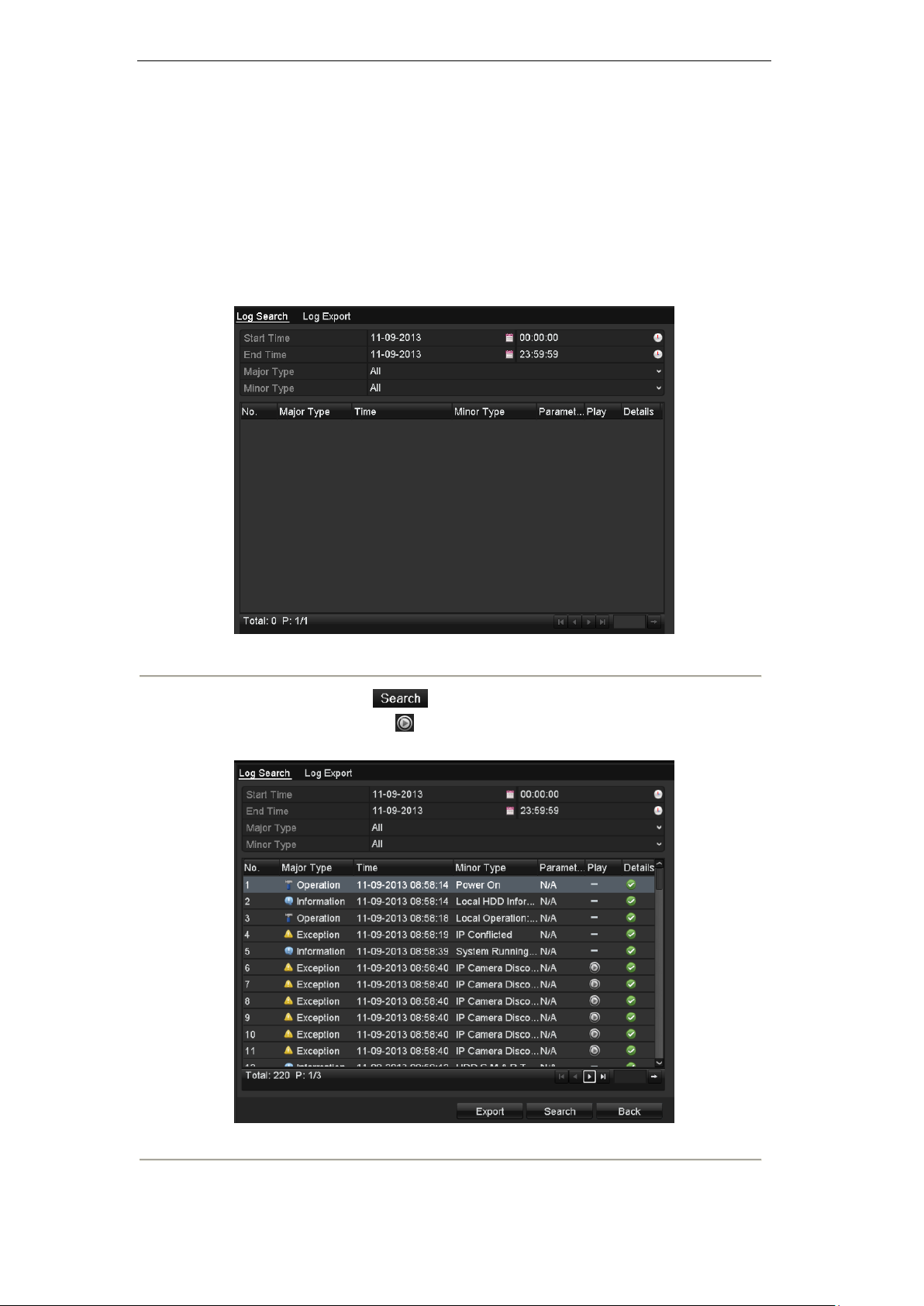

Operation, alarm, exceptions and log recording and searching.
Manually triggering and clearing alarms.
Importing and exporting of device configuration file.
Network Functions
1 self-adaptive 10M/100M/1000M (10M/100M for LTN7604-HT) network interface.
IPv6 is supported.
TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, and iSCSI are
supported.
TCP, UDP and RTP for unicast.
Auto/Manual port mapping and automatically discovered by UPnP™.
Remote web browser access by HTTPS ensures high security.
Remote reverse playback by RTSP.
Support accessing by the platform by ONVIF.
Remote search, playback, download, locking and unlocking the record files, and downloading files
5
User Manual of Digital Video Recorder
broken transfer resume.
Remote parameters setup; remote import/export of device parameters.
Remote viewing of the device status, system logs and alarm status.
Remote locking and unlocking of control panel and mouse.
Remote HDD formatting and program upgrading.
Remote system restart.

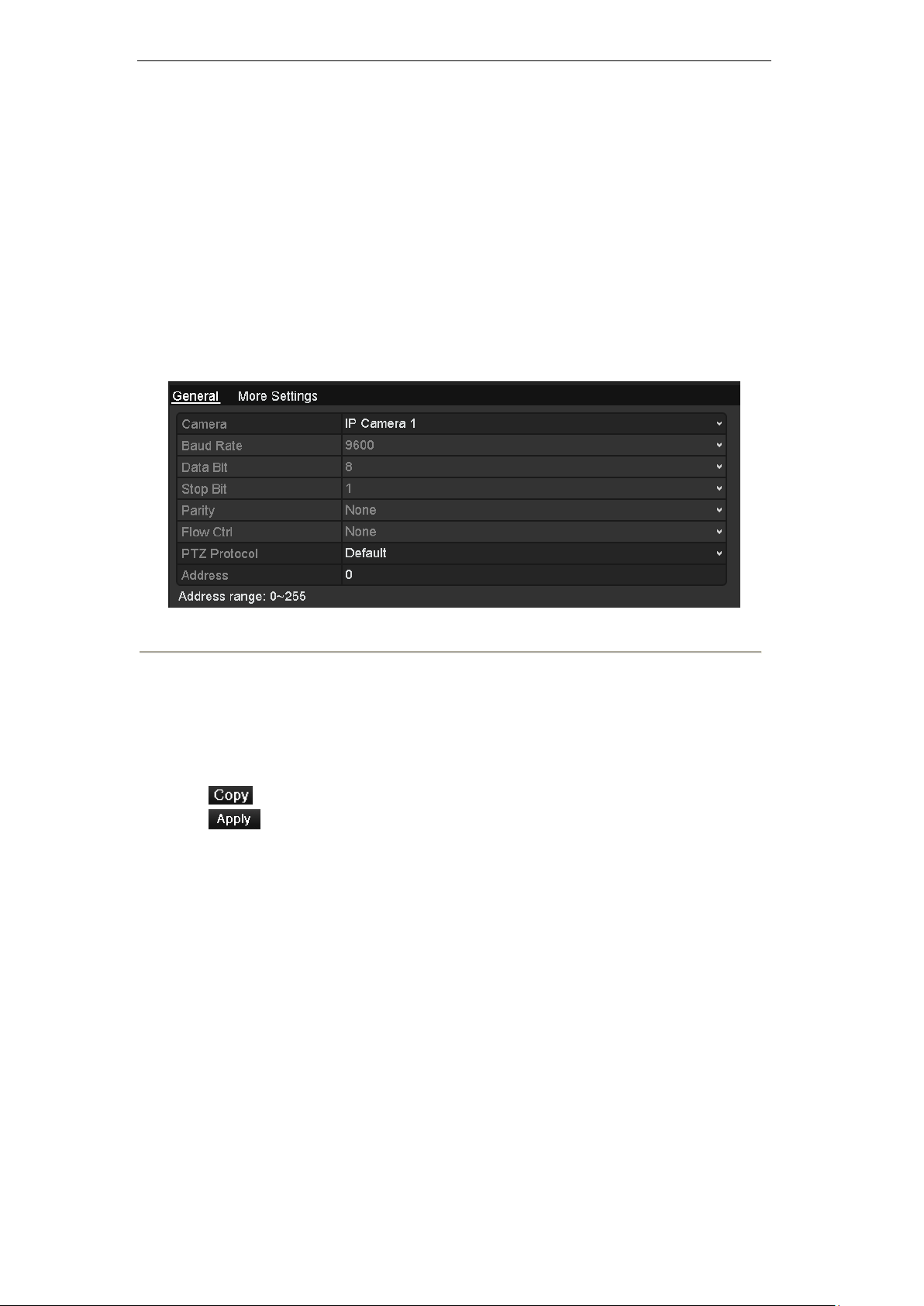

RS-485 transparent channel transmission.
Alarm and exception information can be sent to the remote host
Remotely start/stop recording.
Remotely start/stop alarm output.
Upgraded by remote FTP server is supported.
Remote PTZ control.
Remote JPEG capture.
Two-way voice talk and voice broadcasting.
Embedded WEB server.
Development Scalability:
SDK for Windows and Linux system.
Source code of application software for demo.
Development support and training for application system.
6
User Manual of Digital Video Recorder
TABLE OF CONTENTS
Product Key Features ......................................................................................................... 4
List of IP Cameras Compatible ...................................................................................... 187
10
User Manual of Digital Video Recorder
Chapter 1 Introduction
11
User Manual of Digital Video Recorder
No.
Name
Function Description
1
USB Interface
Connects USB mouse or USE flash memory devices.
2
Status Indicators
POWER: the POWER indicator turns green when
NVR is powered up.
READY: The indicator light is green when the
device is running normally.
STATUS: 1.The light is green when the IR remote
control is enabled; 2.The light is red when the
function of the composite keys (SHIFT) are used; 3.
The light is out when none of the above condition is
met/
ALARM: the light is red when there is an alarm
occurring.
HDD: the indicator flickers red when HDD is
reading/writing.
Tx/Rx: TX/RX indicator flickers green when
network connection is functioning normally.
3
SHIFT
Switch between the numeric or letter input and
functions of the composite keys. (Input letter or
numbers when the light is out; Realize functions
when the light is red.)
4
Composite
Keys
1/MENU:
Enter numeral “1”;
Access the main menu interface.
2/ABC/F1:
Enter numeral “2”;
Enter letters “ABC”;
The F1 button when used in a list field will select all
items in the list.
In PTZ Control mode, it will turn on/off PTZ light
and when the image is zoomed in, the key is used to
zoom out.
3/DEF/F2:
Enter numeral “3”;
Enter letters “DEF”;
The F2 button is used to change the tab pages.
In PTZ control mode, it zooms in the image.
4/GHI/ESC:
Enter numeral “4”;
1.1 Front Panel
The front panel of the device is shown in Figure 1.1.
Figure 1. 1 Front Panel
Table 1. 1 Description of Front Panel
12
User Manual of Digital Video Recorder
Enter letters “GHI”;
Exit and back to the previous menu.
5/JKL/EDIT:
Enter numeral “5”;
Enter letters “JKL”;
Delete characters before cursor;
Check the checkbox and select the ON/OFF switch;
Start/stop record clipping in playback.
6/MNO/PLAY:
Enter numeral “6”;
Enter letters “MNO”;
Playback, for direct access to playback interface.
7/PQRS/REC:
Enter numeral “7”;
Enter letters “PQRS”;
Open the manual record interface.
8/TUV/PTZ:
Enter numeral “8”;
Enter letters “TUV”;
Access PTZ control interface.
9/WXYZ/PREV:
Enter numeral “9”;
Enter letters “WXYZ”;
Multi-channel display in live view.
0/A:
Enter numeral “0”;
Shift the input methods in the editing text field.
(Upper and lowercase, alphabet, symbols or numeric
input).
Double press the button to switch the main and
auxiliary output.
5
Control Buttons
Directional buttons:
In menu mode, the direction buttons are used to
navigate between different fields and items and
select setting parameters.
In playback mode, the Up and Down buttons are
used to speed up and slow down record playing, and
the Left and Right buttons are used to move the
recording 30s forwards or backwards.
In the image setting interface, the up and down
button can adjust the level bar of the image
parameters.
In live view mode, these buttons can be used to
switch channels.
Enter:
The Enter button is used to confirm selection in
menu mode; or used to check checkbox fields and
ON/OFF switch.
In playback mode, it can be used to play or pause the
video.
In single-frame play mode, pressing the Enter button
will play the video by a single frame.
And in auto sequence view mode, the buttons can be
used to pause or resume auto sequence.
13
User Manual of Digital Video Recorder
No.
Name
Description 1 POWER
Power on/off the device.
2
DEV
Enables/Disables Remote Control.
3
Alphanumeric Buttons:
Switch to the corresponding channel in Live view or PTZ Control
mode.
Input numbers and characters in Edit mode.
Switch channels in Playback mode.
4
EDIT Button
Edit text fields. When editing text fields, it will also function as a
Backspace button to delete the character in front of the cursor.
On checkbox fields, pressing the button will tick the checkbox.
In PTZ Control mode, the button adjusts the iris of the camera.
1.2 IR Remote Control Operations
The device may also be controlled with the included IR remote control, shown in Figure 1.2.
Note: Batteries (2×AAA) must be installed before operation.
Figure 1. 2 Remote Control
The keys on the remote control closely resemble the ones on the front panel. See Table 1.2.
Table 1. 2 Description of the IR Remote Control Buttons
14
User Manual of Digital Video Recorder
In Playback mode, it can be used to generate video clips for backup.
Enter/exit the folder of USB device.
5
A Button
Adjust focus in the PTZ Control menu.
It is also used to switch input methods (upper and lowercase alphabet,
symbols and numeric input).
6
REC Button
Enter the Manual Record setting menu.
In PTZ control settings, press the button and then you can call a PTZ
preset by pressing Numeric button.
It is also used to turn audio on/off in the Playback mode.
7
PLAY Button
The button is used to enter the Playback mode.
It is also used toauto scan in the PTZ Control menu.
8
INFO Button
Reserved for future usage.
9
VOIP/MON Button
Switch main and spot output.
In PTZ Control mode, it can be used to zoom out the image.
10
MENU Button
Press the button will help you return to the Main menu (after successful
login).
Press and hold the button for 5 seconds will turn off audible key beep.
In PTZ Control mode, the MENU/WIPER button will start wiper (if
applicable).
In Playback mode, it is used to show/hide the control toolbar.
11
PREV Button
Switch single screen and multi-screen mode.
In PTZ Control mode, it is used to adjust the focus in conjunction with
the A/FOCUS+ button.
12
DIRECTION/ENTER
Buttons
The DIRECTION buttons are used to navigate between different fields
and items in menus.
In the Playback mode, the Up and Down button is used to speed up and
slow down recorded video. The Left and Right button will select the
next and previous record files.
In Live View mode, these buttons can be used to cycle through
channels.
In PTZ control mode, it can control the movement of the PTZ camera.
The ENTER button is used to confirm selection in any of the menu
modes.
It can also be used to tick checkbox fields.
In Playback mode, it can be used to play or pause the video.
In single-frame Playback mode, pressing the button will advance the
video by a single frame.
In Auto-switch mode, it can be used to stop /start auto switch.
13
PTZ Button
Enter the PTZ Control mode.
In the PTZ Control mode, it is used to adjust the iris of the PTZ camera.
14
ESC Button
Back to the previous menu.
Press for arming/disarming the device in Live View mode.
15
RESERVED
Reserved for future usage.
16
F1 Button
Select all items on the list when used in a list field.
In PTZ Control mode, it will turn on/off PTZ light(if applicable).
In Playback mode, it is used to switch play and reverse play.
17
PTZ Control Buttons
Buttons to adjust the iris, focus and zoom of a PTZ camera.
18
F2 Button
Cycle through tab pages.
In synchronous playback mode, it is used to switch channels.
15
User Manual of Digital Video Recorder
Troubleshooting Remote Control:
Note: Make sure you have installed batteries properly in the remote control. And you have to aim the remote
control at the IR receiver in the front panel.
If there is no response after you press any button on the remote, follow the procedure below to troubleshoot.
Steps:
1. Go to Menu > Settings > General > More Settings by operating the front control panel or the mouse.
2. Check and remember device ID#. The default ID# is 255. This ID# is valid for all the IR remote controls.
3. Press the DEV button on the remote control.
4. Enter the device ID# in step 2.
5. Press the ENTER button on the remote.
If the Status indicator on the front panel turns blue, the remote control is operating properly. If the Status
indicator does not turn blue and there is still no response from the remote, please check the following:
Note: When the device ID# is 255, the Status indicator is off when device is controlled by an IR remote control.
1. Batteries are installed correctly and the polarities of the batteries are not reversed.
2. Batteries are fresh and not out of charge.
3. IR receiver is not obstructed.
If the remote still can‟t function properly, please change a remote and try again, or contact the device provider.
16
User Manual of Digital Video Recorder
Name
Action
Description
Left-Click
Single-Click
Live view: Select channel and show the quick set menu.
Menu: Select and enter.
Double-Click
Live view: Switch single-screen and multi-screen.
Click and Drag
PTZ control: pan, tilt and zoom.
Tamper-proof, privacy mask and motion detection: Select target area.
Digital zoom-in: Drag and select target area.
Live view: Drag channel/time bar.
Right-Click
Single-Click
Live view: Show menu.
Menu: Exit current menu to upper level menu.
Scroll-Wheel
Scrolling up
Live view: Previous screen.
Right-click Menu: Previous item.
Scrolling down
Live view: Next screen.
Right-click Menu: Next item.
1.3 USB Mouse Operation
A regular 3-button (Left/Right/Scroll-wheel) USB mouse can also be used with this device. To use a USB
mouse:
1. Plug USB mouse into one of the USB interfaces on the front panel of the device.
2. The mouse should automatically be detected. If in a rare case that the mouse is not detected, the possible
reason may be that the two devices are not compatible, please refer to the recommended device list from
your provider.
The operation of the mouse:
Table 1. 3 Description of the Mouse Control
17
User Manual of Digital Video Recorder
Icons
Description
Icons
Description
English
Capital English
Numbers
Symbols
/
Lowercase/Uppercase
Backspace
Space
Enter Exit
1.4 Input Method Description
Figure 1. 3 Soft Keyboard
Description of the buttons on the soft keyboard:
Table 1. 4 Description of the Soft Keyboard Icons
18
User Manual of Digital Video Recorder
No.
Item
Description
1
VIDEO IN
BNC connector for analog video input.
2
VIDEO OUT
BNC connector for video output.
3
AUDIO IN
RCA connector for audio input.
4
USB Interface
Connects USB mouse or USB flash memory devices.
5
HDMI
HDMI video output.
6
VGA
DB15 connector for VGA output. Display local video output and menu.
7
AUDIO OUT
RCA connector for audio output.
8
LAN Interface
Network interface.
9
RS-485 Interface
Connector for RS-485 devices. Connect the D+ and D- terminals to R+
and R- of PTZ receiver respectively.
10
12V
12 VDC power supply.
11
POWER
Switch for turning on/off the device.
12
GND
Ground (needs to be connected when device starts up).
1.5 Rear Panel
Table 1. 5 Description of Rear Panel
Figure 1. 4 Rear Panel
19
User Manual of Digital Video Recorder
1.6 Starting Up and Shutting Down the Device
Purpose:
Proper startup and shutdown procedures are crucial to expanding the life of the device.
Before you start:
Check that the voltage of the extra power supply is the same with the device‟s requirement, and the ground
connection is working properly.
Starting up the device:
Steps:
1. Check the power supply is plugged into an electrical outlet. It is HIGHLY recommended that an
Uninterruptible Power Supply (UPS) be used in conjunction with the device.
2. Press the POWER button on the rear panel. The Power indicator LED should turn green indicating that the
device begins to start up.
Shutting down the device:
Steps:
1. Enter the Shutdown menu.
Menu > Shutdown

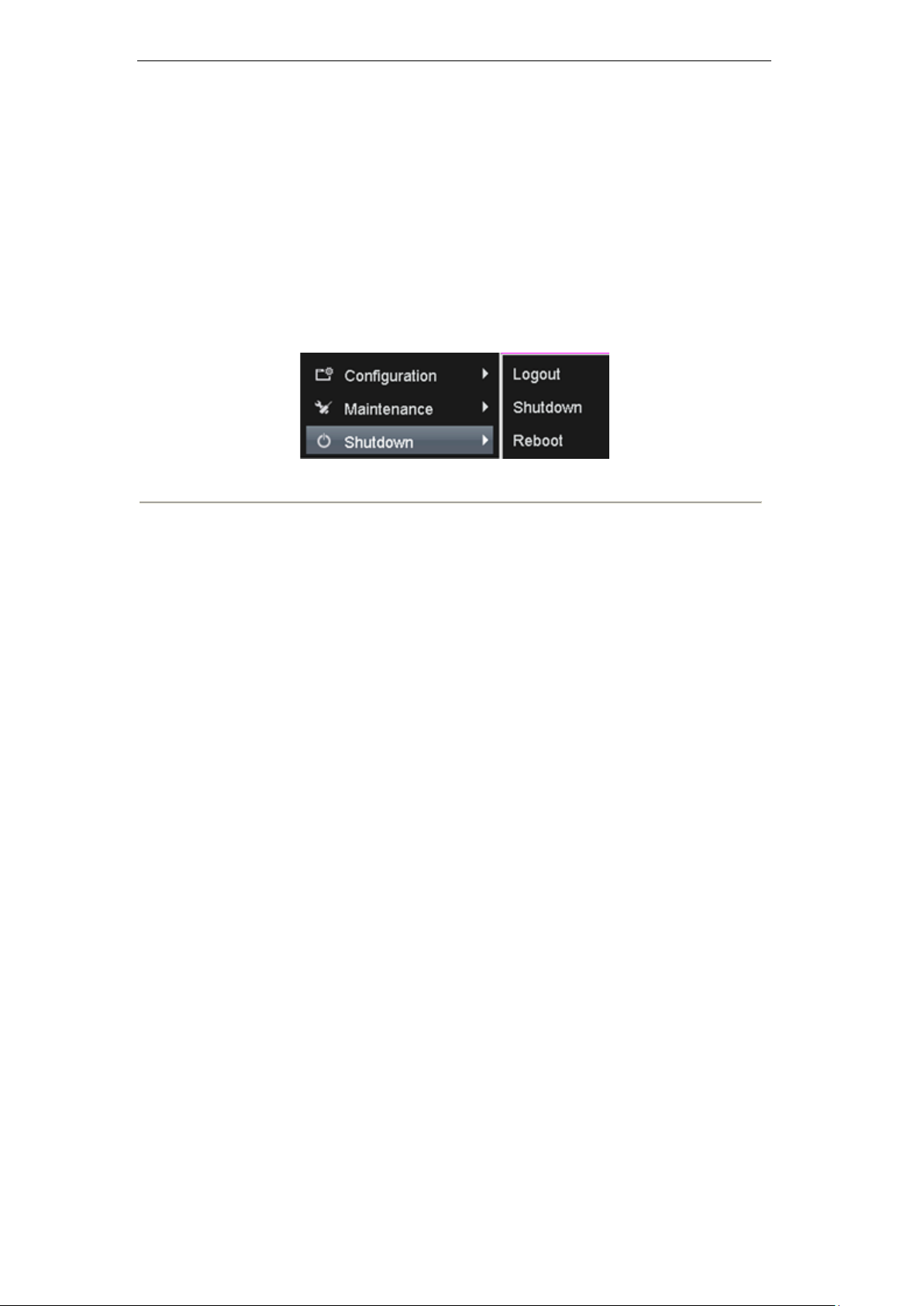

Figure 1. 5 Shutdown Menu
2. Click the Shutdown button.
3. Click the Yes button.
4. Press the POWER button on the rear panel when the hint “Please power off” pops up to shut down the
device properly.
Rebooting the device
In the Shutdown menu (Figure 1.5), you can also reboot the device.
Steps:
1. Enter the Shutdown menu by clicking Menu > Shutdown.
2. Click the Logout button to logout the device or the Reboot button to reboot the device.
20
User Manual of Digital Video Recorder
Chapter 2 Getting Started
21
User Manual of Digital Video Recorder
2.1 Using the Wizard for Basic Configuration
By default, the Setup Wizard starts once the device has loaded, as shown in Figure 2.1.
Figure 2. 1 Start Wizard Interface
Operating the Setup Wizard:
1. The Start Wizard can walk you through some important settings of the device. If you don‟t want to use the
Start Wizard at that moment, click . You can also choose to use the Start Wizard next time by
leaving the “Start wizard when device starts?” checkbox checked.
2. Click on the Wizard window to enter the Login window, as shown in Figure 2.2.
Figure 2. 2 Login Window
3. Enter the admin password. By default, the password is 12345.
4. To change the admin password, check the New Admin Password checkbox. Enter the new password and
confirm the password in the given fields.
5. Click to enter the date and time settings window, as shown in Figure 2.3.
22
User Manual of Digital Video Recorder
Figure 2. 3 Date and Time Settings
6. After the time settings, click which takes you to the Network Start Wizard window, as shown in
Figure 2.4.
Note: LTN7604-HT only supports 10M/100Mbps NIC type.
Figure 2. 4 Network Configuration
7. Click to enter the HDD Management window.

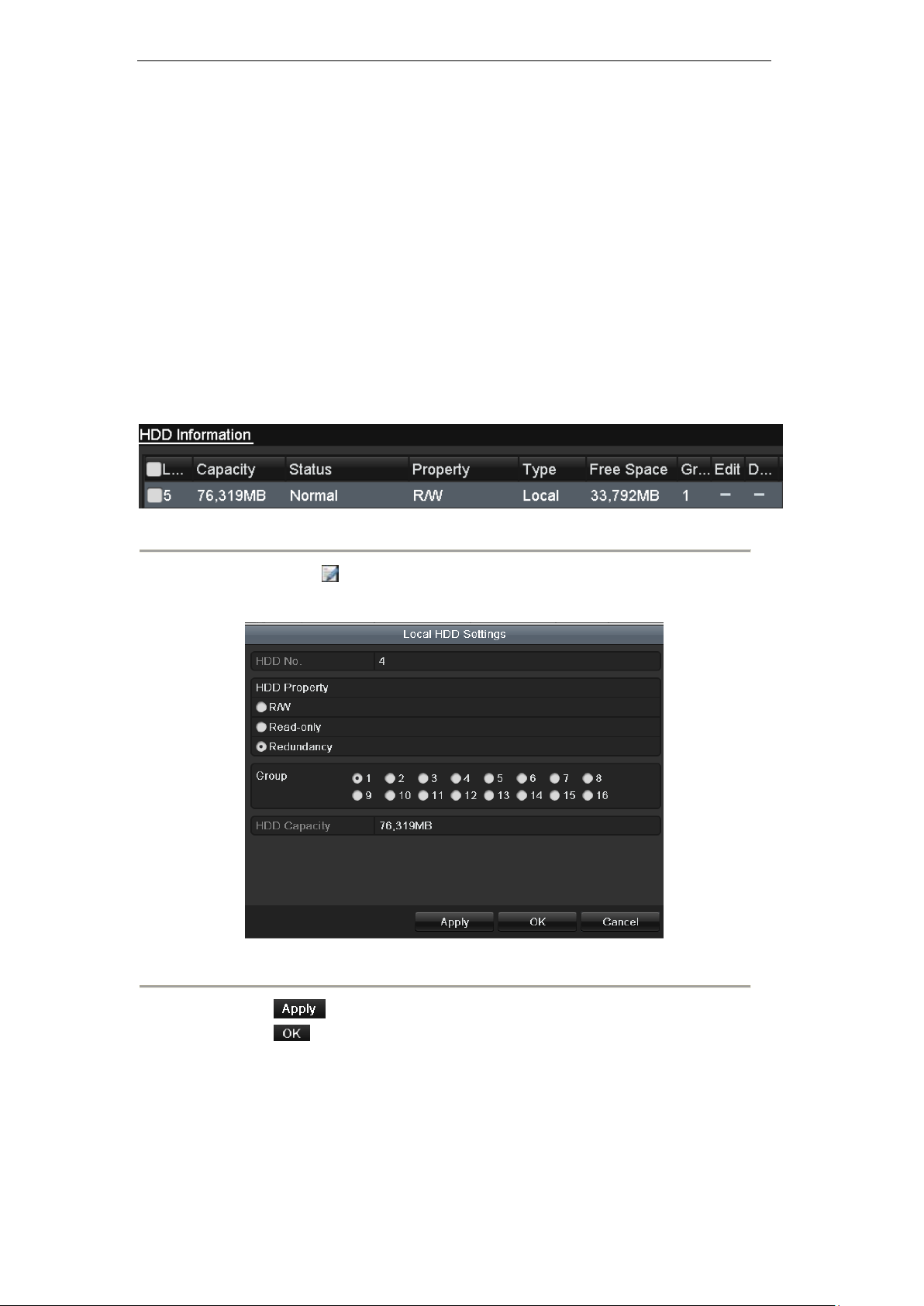

Figure 2. 5 HDD Management
23
User Manual of Digital Video Recorder
8. To initialize the HDD, select the HDD and click . Initialization removes all the data saved in the
HDD.
9. Click to enter the IP Camera Management window, as shown in Figure 2.6.
Figure 2. 6 IP Camera Management
10. Click to search IP Camera. Click to add IP Camera.
11. After finishing IP Camera settings, click to enter the Record Settings window.

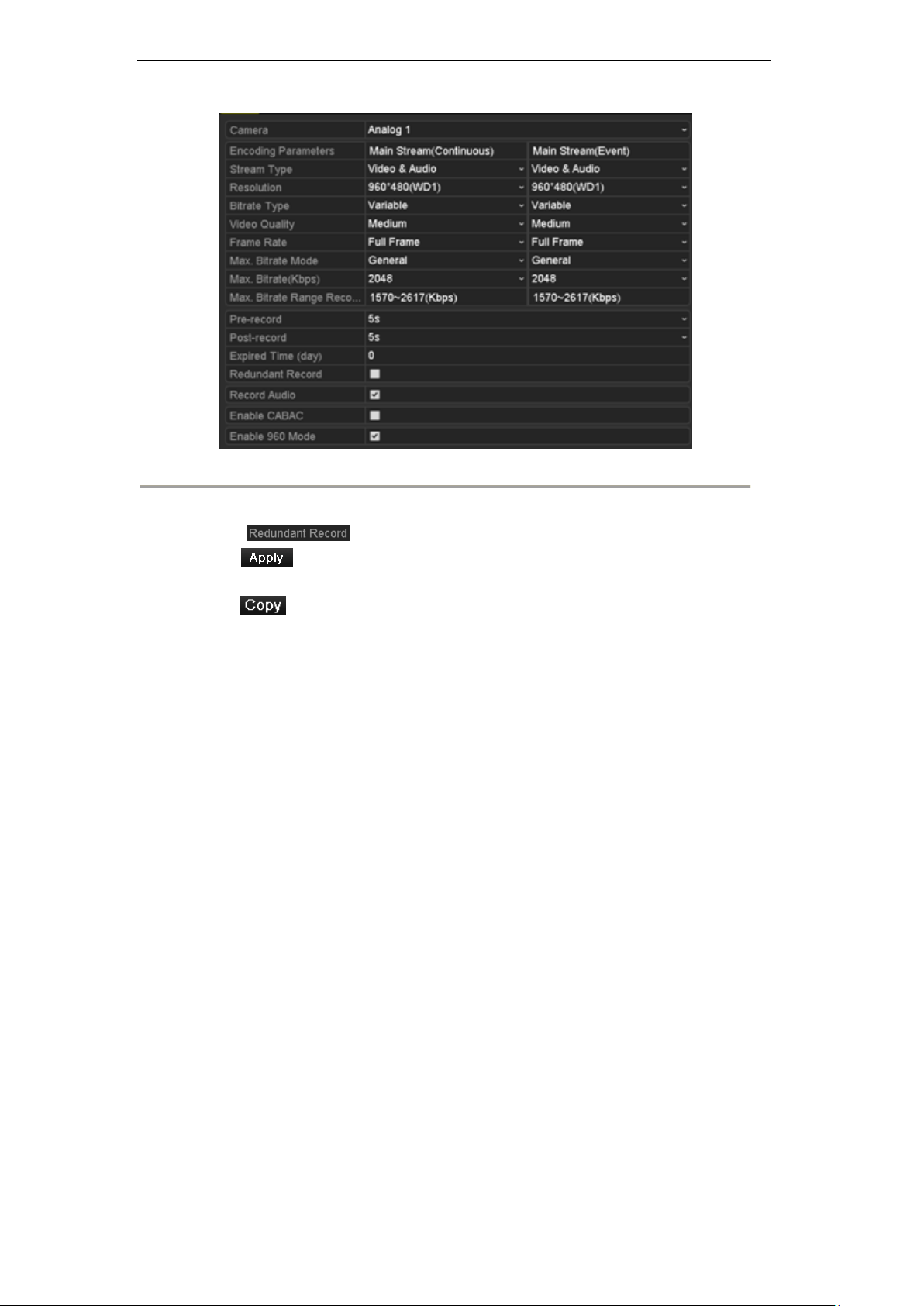

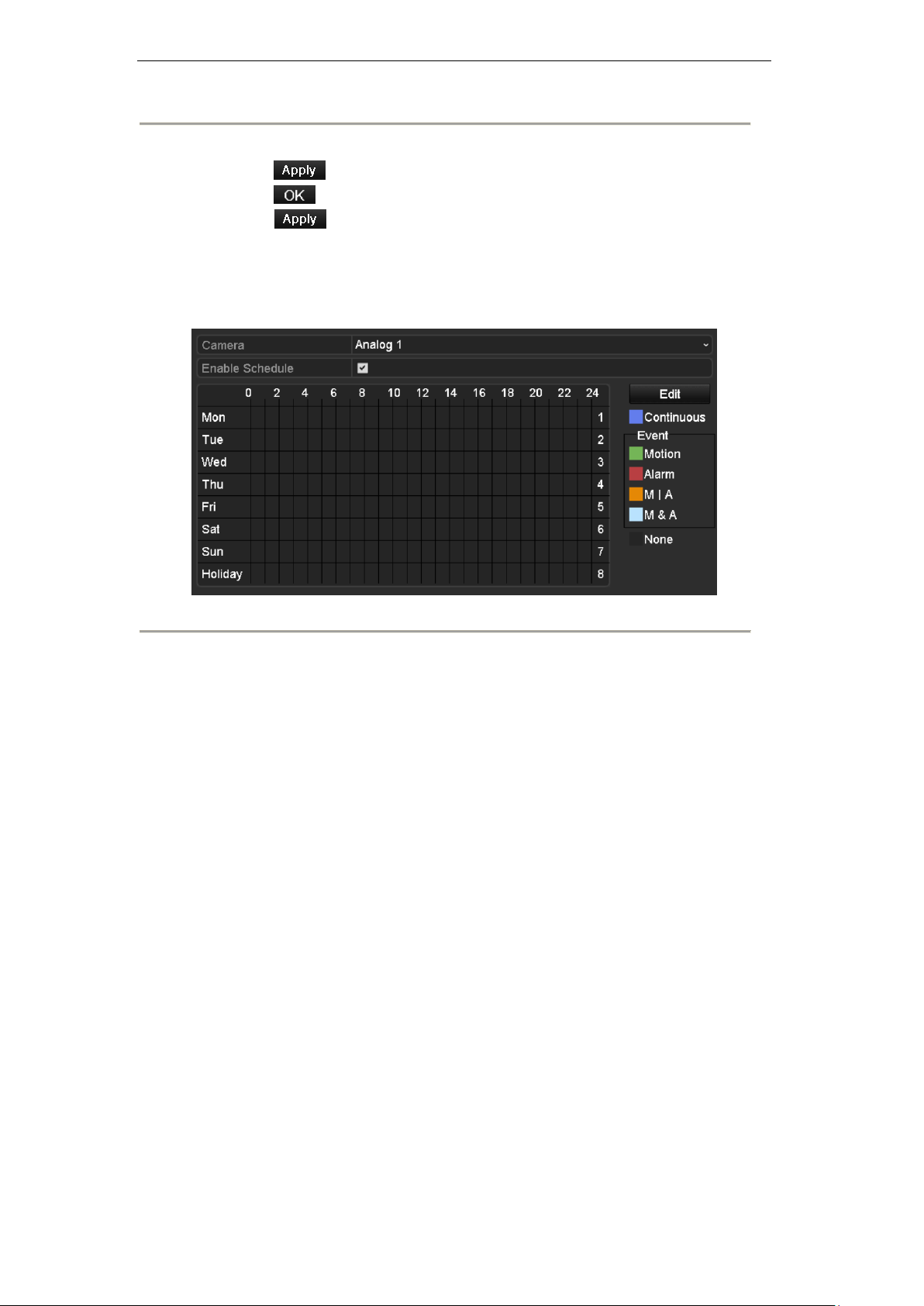

Figure 2. 7 Record Settings

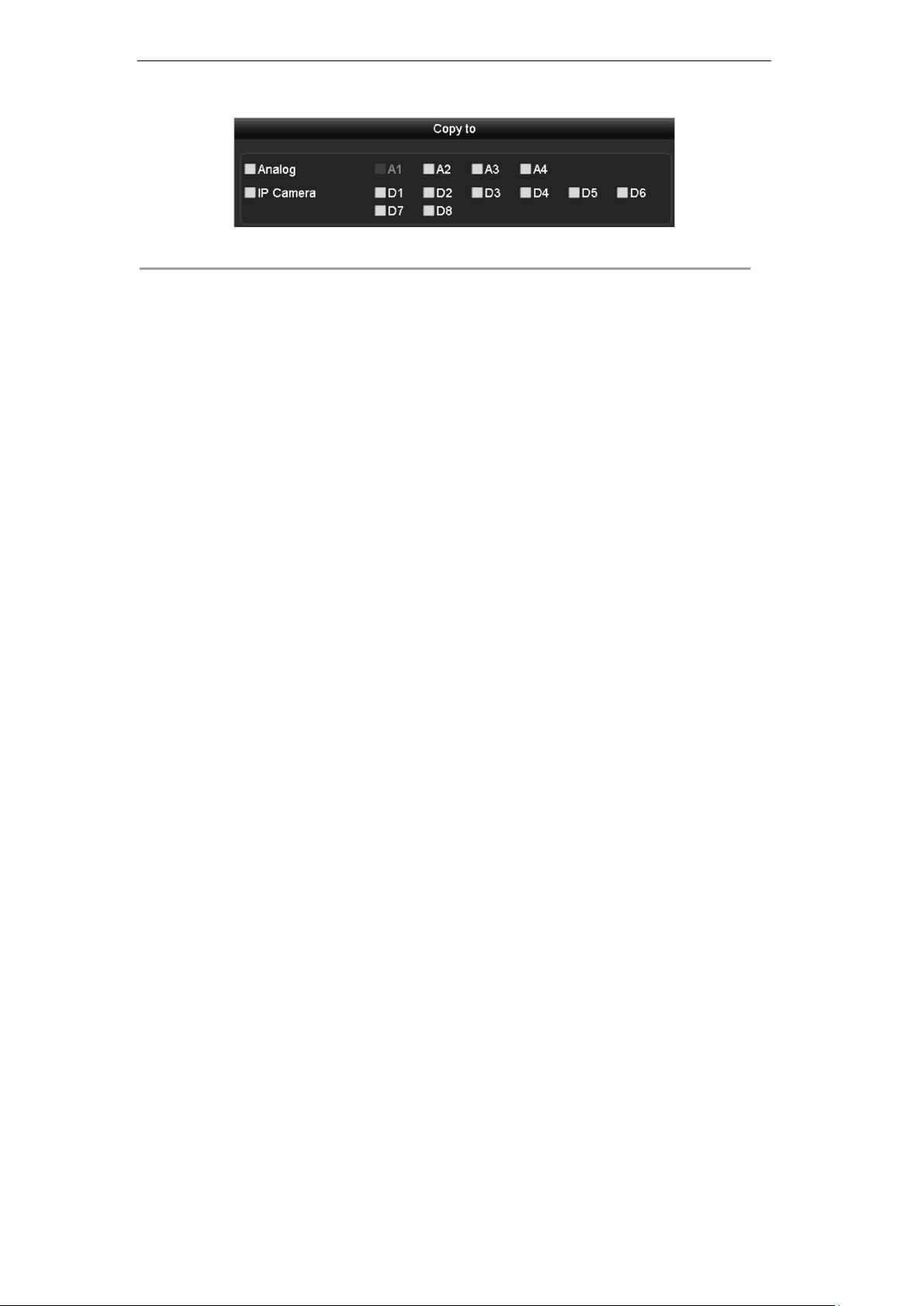

12. Click to copy the settings to other channels, as shown in Figure 2.8.
24
User Manual of Digital Video Recorder
Figure 2. 8 Copy Record Settings
13. Click to complete the start wizard settings.
25
User Manual of Digital Video Recorder
2.2 Adding and Connecting the IP Cameras
2.2.1 Adding the Online IP Cameras
Purpose:
HDVR can connect the network cameras and record the video got from them. So before you can get a live view
or record of the video, you should add the network cameras to the connection list of the device.
Before you start:
Ensure the network connection is valid and correct. For detailed network configuration and checking, please see
Chapter 9.1 Configuring General Settings, Chapter 9.3 Checking Network Traffic and Chapter 9.4 Network
Detection.
Option 1:
Steps:
1. Right-click the mouse when you in the live view mode to show the right-click menu.
2. Select (Auto) or (Manual) on your demand.
• Auto
The device will add the detected IP cameras or encoders automatically by the default user name and
password of administrator.
Figure 2. 9 Auto Adding IP Camera Interface
Note: If the user name and password are changed, the auto adding of IP camera will fail, you may add it
manually.
• Manual
Steps:
1. To add the online cameras with same network segment:
1) The detected online camera will be listed in the camera list, as shown in the figure below.
26
User Manual of Digital Video Recorder
Icon
Explanation
Icon
Explanation
Edit basic parameters of the camera
Add the detected IP camera.
Delete the IP camera
The camera is disconnected; you can
click the icon to get the exception
information of camera.
The camera is connected.

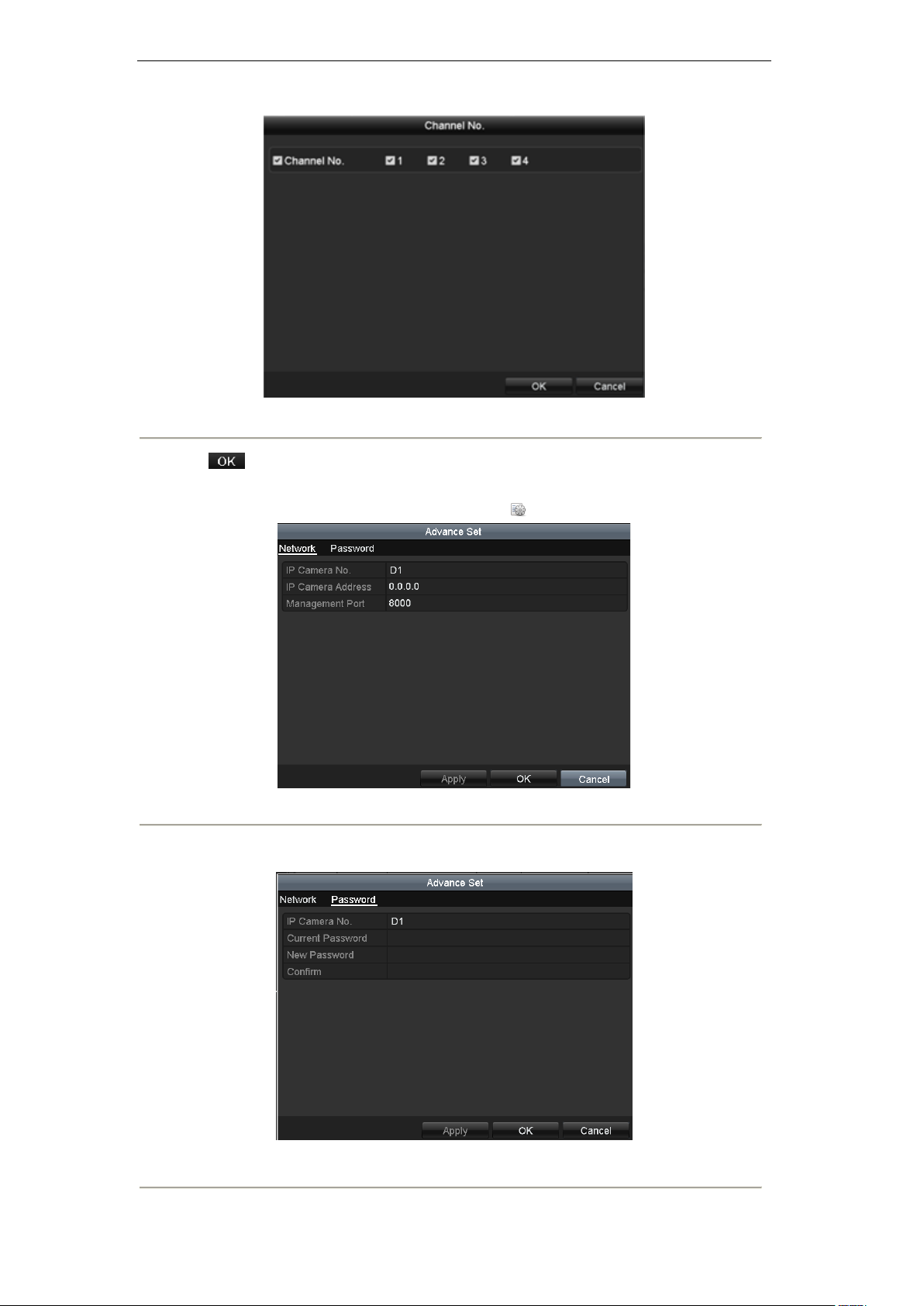

Advanced settings of the camera.
Figure 2. 10 Manual Adding IP Camera Interface
2) Click the button to add the camera.
Table 2. 1 Explanation of the icons:
2. To add other IP cameras:
1) Click the Custom Adding button to pop up the Add IP Camera (Custom) interface.

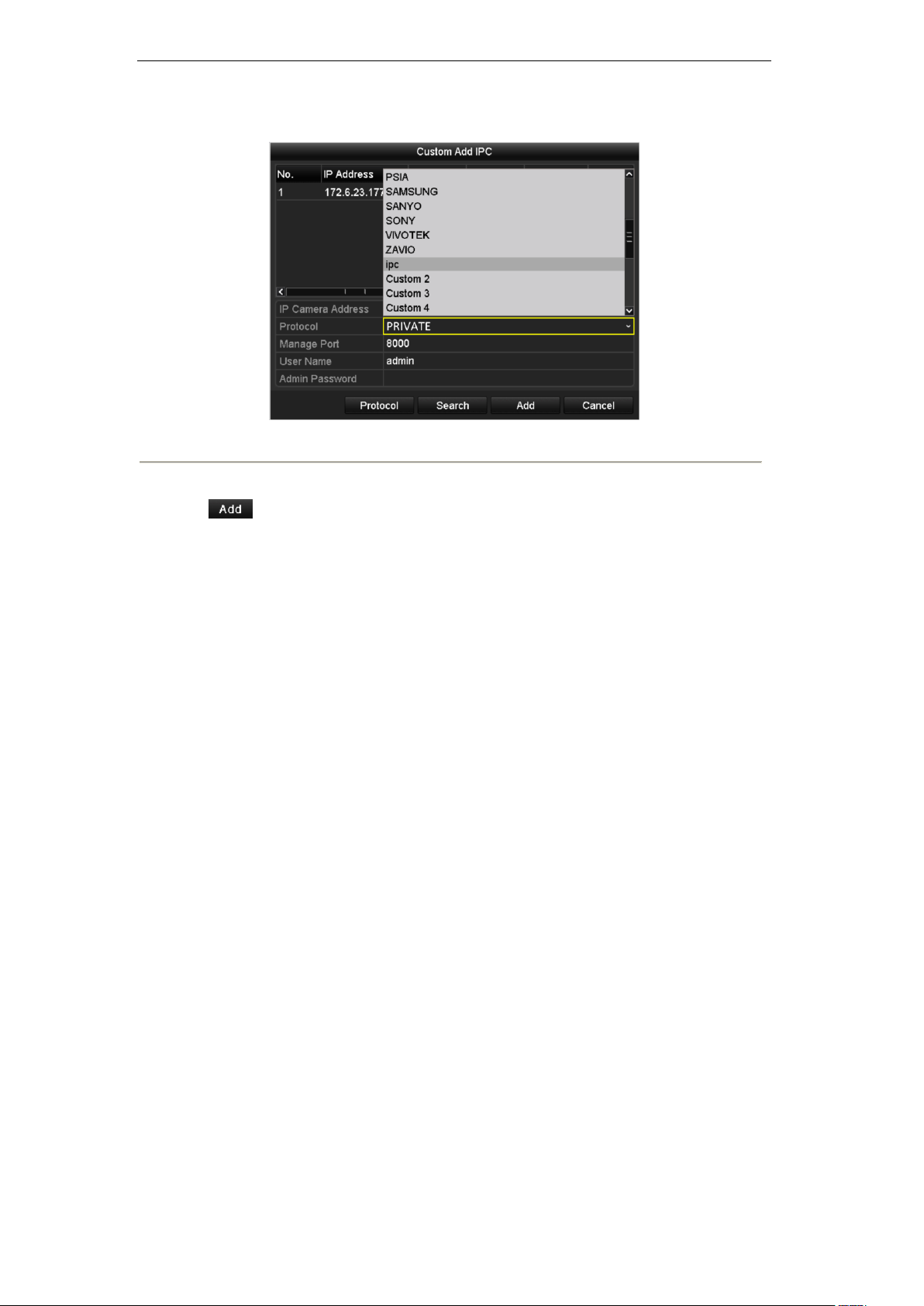

Figure 2. 11 Custom Adding IP Camera Interface
2) You can edit the IP address, protocol, management port, and other information of the IP camera
to be added.
3) Click Add to add the camera.
Option 2:
Steps:
1. Enter the Camera Management interface.
Menu> Camera> Camera
27
User Manual of Digital Video Recorder

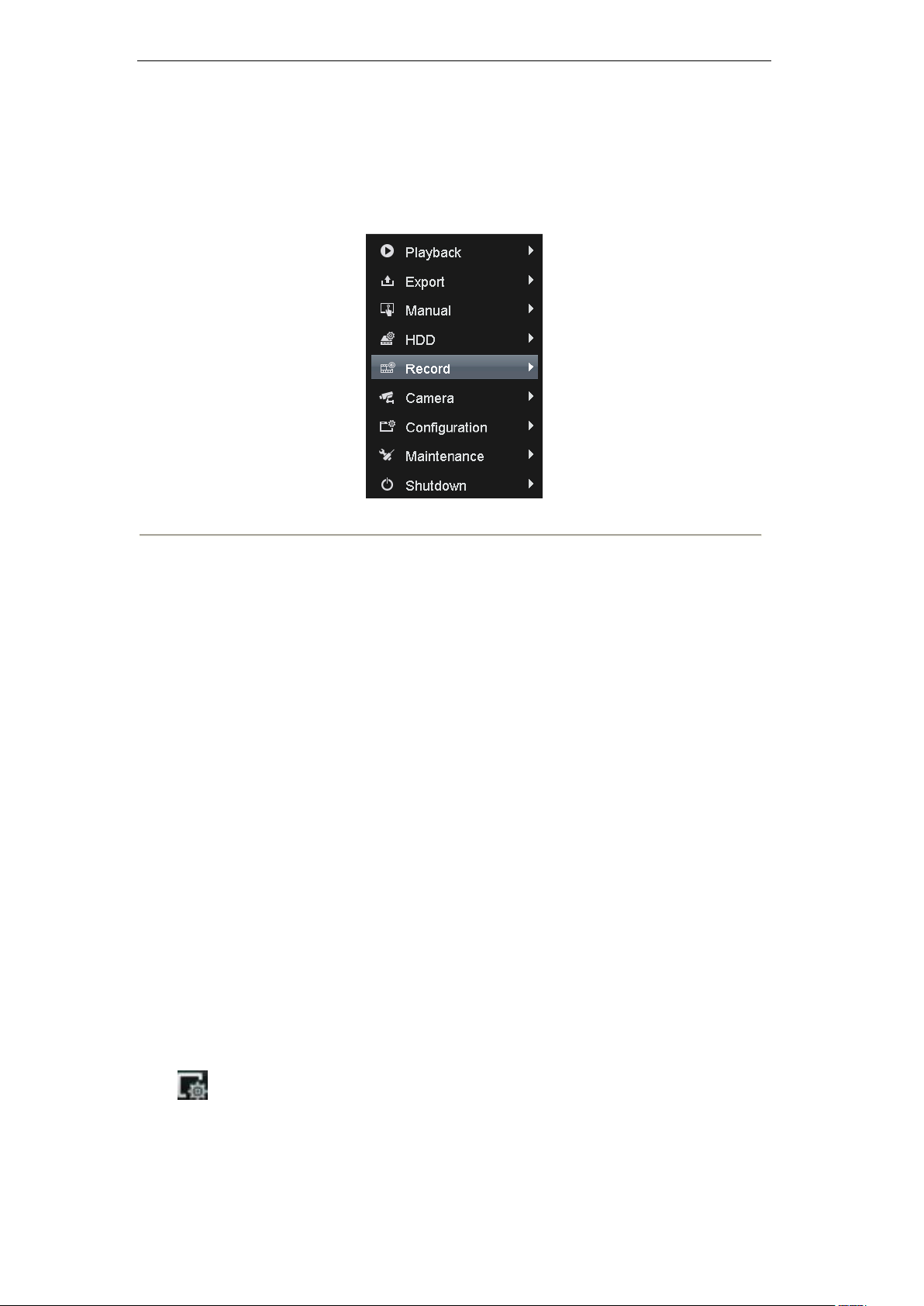

Figure 2. 12 Main Menu
Note: In Analog Camera Management interface, the status of analog cameras display. Disabling the analog
camera can be realized by clearing the checkbox before the analog camera No.. One more network camera
can be added by disabling one analog camera. 16 /8 /4 network cameras can be added to
7616-HT/7608-HT/7604-HT series at most when all the analog cameras are enabled. 32 /16 /8 network
cameras can be added to 7616-HT /7608-HT /7604-HT series at most when all the analog cameras are
disabled.
Figure 2. 13 Analog Camera Management
2. Choose IP Camera tab and perform step 1 and 2 of Manual adding of IP cameras (Option 1) to add the
camera.
Note: The icon indicates the camera is connected and you can click the icon to get the live view of the
camera.
28
User Manual of Digital Video Recorder
Figure 2. 14 IP Camera Management
3. For the encoders with multiple channels, check checkbox in the pop-up window to select the channels
and click to finish adding.
Figure 2. 15 Selecting Multiple Channels
2.2.2 Configuring the Connected IP Cameras
Editing the connected IP cameras
Purpose:
After the adding of the IP cameras, the basic information of the camera lists in the page, and you can configure
the basic setting of the IP cameras.
Steps:
1. Click to edit the parameters; you can edit the IP address, protocol and other parameters.
29
Loading...
+ 163 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
