User Manual

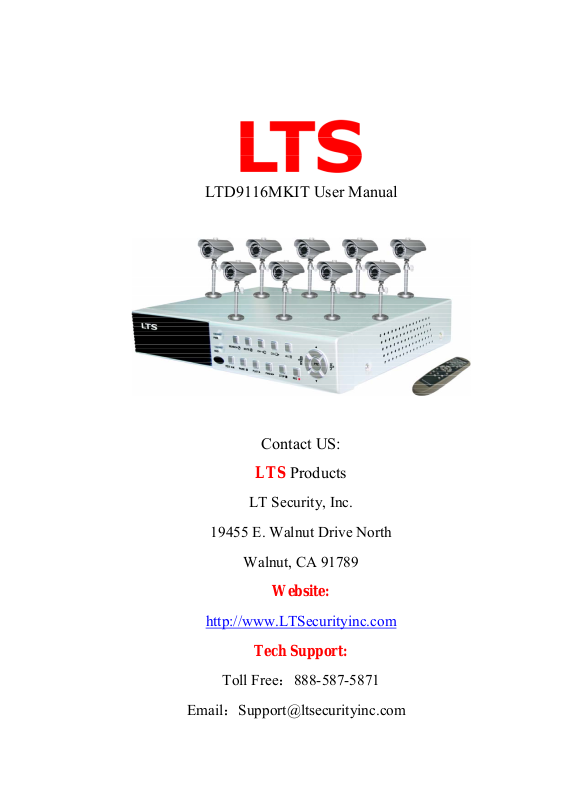

LTD9116MKIT User Manual
Contact US:
LTS Products
LT Security, Inc.
19455 E. Walnut Drive North
Walnut, CA 91789
Website:
http://www.LTSecurityinc.com
Tech Support:
Toll Free：888-587-5871
Email：Support@ltsecurityinc.com
0
User Manual
Contents
Chapter 1: DVR Features........................................................................................................................................3
DVR Feature ......................................................................................................................................................3
Chapter 2: Overview................................................................................................................................................3
2.1 Front Panel ...................................................................................................................................................3
2.2 Rear Panel ....................................................................................................................................................4
2.3 Remote Control ............................................................................................................................................4
Chapter 3: Installation.............................................................................................................................................5
3.1 Install Hard Disk ..........................................................................................................................................5
3.2 Connecting Camera and Monitor .................................................................................................................5
3.3 VGA Output .................................................................................................................................................5
3.4 Connecting Power Supply............................................................................................................................5
Chapter 4: Starting the DVR...................................................................................................................................5
4.1 Firmware Version .........................................................................................................................................5
4.2 Detecting Installed Hard Drive.....................................................................................................................6
4.3 Format Hard Drive .......................................................................................................................................6
Chapter 5: DVR Menu System................................................................................................................................6
5.1 Navigating the Menus ..................................................................................................................................6
5.2 Menu Overview............................................................................................................................................7
5.3 Camera Setup ...............................................................................................................................................7
5.4 Record Setup ................................................................................................................................................7
5.5 Record Frame Rate.......................................................................................................................................8
5.6 Video Quality ...............................................................................................................................................8
5.7 Record Schedule...........................................................................................................................................8
5.8 Sensor Setup.................................................................................................................................................9
5.9 H/W Sensor Setup ........................................................................................................................................9
5.10 Motion Detector Setup .............................................................................................................................10
5.11 Hard Drive Setup......................................................................................................................................10
5.12 Miscellaneous Setup - Change Password................................................................................................. 11
5.13 Miscellaneous Setup - Set Time ...............................................................................................................11
5.14 Miscellaneous Setup - Hidden Channel ...................................................................................................12
5.15 Miscellaneous Setup - Audio Port Setup..................................................................................................12
5.16 Miscellaneous Setup - PTZ Setup ............................................................................................................12
5.17 Miscellaneous Setup - Image Parameters.................................................................................................13
5.18 Miscellaneous Setup - Password Enable ..................................................................................................13
5.19 Miscellaneous Setup - Keypad Tones.......................................................................................................14
5.20 Miscellaneous Setup – SEQ.Dwell Time .................................................................................................14
5.21 Miscellaneous Setup - VGA Setup ...........................................................................................
5.22 Networ
5.23 Language ..................................................................................................................................................18
5.24 Reset Menu...............................................................................................................................................18
5.25 NTSC/PAL Output select .........................................................................................................................18
Chapter 6: Record..................................................................................................................................................19
6.1 Start Recording...........................................................................................................................................19
k Setup..........................................................................................................................................14
................14
1
User Manual
6.2 Audio Recording ........................................................................................................................................19
6.3 Stop Recording...........................................................................................................................................20
6.4 Estimated Recording Length......................................................................................................................20
Chapter 7: Playback...............................................................................................................................................20
Chapter 8: USB Progamming................................................................................................................................21
8.1Driver Installation: ......................................................................................................................................21
8.2 Program Interface.......................................................................................................................................21
8.3 Program Running .......................................................................................................................................22
Chapter 9: Specification ........................................................................................................................................25
9.1 DVR ...........................................................................................................................................................25
9.2 CAMERAS.................................................................................................................................................25
Chapter 10: Appendix............................................................................................................................................26
10.1 System connect sketch map......................................................................................................................26
10.2 Accessories Included With DVR..........................................................................................................26
2
User Manual
DVR Feature
MPEG-4 compression
9 BNC Camera Inputs - 1 BNC Video Output
1 Audio Input -1 Audio Output
System Format : NTSC /PAL
Motion Detection with Sensitivity and Area Settings
Time Schedule, Alarm and Motion Triggered Recording Modes
Hard Disk Support up to 500GB
Supports PTZ Control via RS-485 Port
View and Operate over Network (Broadband Connection Required)
Built-in USB 2.0 Port for Backup to Computer
VGA Output
Chapter 1: DVR Features
Chapter 2: Overview
2.1 Front Panel
.Power LED 11. IR receiver
1
2. HDD LED 12.REW: rewind
3.Search 13.PAUSE
4. MUTE: turn on/off audio output 14.PLAY
5. CH-: view previous channel 15.FWD: forward
6.CH+: view next channel 16.STOP
7.ALL: view all channels 17.REC: record
8. MENU/ESC/LEFT 18.DOWN
9. UP 19.PTZ:enter PTZ mode
10. SEL/EDIT/RIGHT
3
User Manual
2.2 Rear Panel
1. Audio Input
2. Video output
7. Audio output
8.RS-485/Sensor/Alarm
3. CH1-CH9:video input 1- video input 9 9.DC Power Input Jack
4. VGA output
5. USB port
10.Power switch
11. Grounding
6. LAN: Ethernet port
2.3 Remote Control
1-9 Channel Select 1-9
0 Number
ALL Display all Channels
Menu Enter or Exit Menu
▲
▼
◄ / ►
SEL Select /Modify Item
Rewind
Fast Forward
●
■
Audio/Search Search Recorded files
Mute Turn on/off audio output
Move Up
Move Down
Left/ Right
Play Recording
Record
Pause
Stop Recording/Playback
4
User Manual
Chapter 3: Installation
3.1 Install Hard Disk
NOTICE: Don’t take out HDD when DVR is running.
(1) Remove the screws around the top cover.
(2) Remove the top cover carefully.
(3) Connect the power cord and data cable to hard disk carefully.
(4) Use the provided screws to fix hard disk on the rack inside and then replace the
top cover of the case.
3.2 Connecting Camera and Monitor
There are 9 camera inputs and 1 Monitor output with BNC connectors (Refer to 2.2
Rear Panel).
3.3 VGA Output
There is 1 CRT or LCD monitor output with VGA port.
3.4 Connecting Power Supply
Please only use the power adapter supplied with the DVR.
Chapter 4: Starting the DVR
4.1 Firmware Version
V 2.3
V-MLANG
2008.5.5
After connecting the power adapter
and turning on the power button, the system
will boot-up and display the version and
released date of the DVR firmware.
5
User Manual
4.2 Detecting Installed Hard Drive
CHECKING HDD……
MASTER [WDC WD3200AAJB-00T]
SLAVE……
4.3 Format Hard Drive
DVR will detect the installed hard drive and
display the hard drive information.
CHECKING HDD……
MASTER [WDC WD3200AAJB-00T]-NEW-DVR
FORMAT HDD CONFIRM
(SELECT) FORMAT / (MENU) CANCEL?
Chapter 5: DVR Menu System
5.1 Navigating the Menus
CAMERA SETUP
RECORD SETUP
RECORD FRAMERATE
VIDEO QUALITY NORMAL
RECORD SCHEDULE
SENSOR SETUP
HARD DRIVE SETUP
MISCELLANEOUS SETUP
NETWORK SETUP
LANGUAGE E NGLISH
RESET MENU
( )MOVE (SEL)SELECT (MENU)EXIT
MAIN MENU
When the DVR detects a new hard drive,
you will be prompted to format the hard drive
before using the DVR.
Press [SEL] to format or press [MENU]
to cancel.
(1) Press[MENU] to enter Main Menu
(2) Press[▲ or ▼] to m
ove the cursor
(3) Press [SEL] to select/modify
settings
(4)Press [MENU] again to exit or go
back to previous menu.
6
User Manual
5.2 Menu Overview
Camera Setup
Record Setup
Record Frame rate
V
Record Schedule
Main Menu
Sensor Setup
Hard Drive Setup
Menu Directory
ideo Quality
Change Password
Set Time
Hidden Channel
Audio Port Setup
PTZ Setup
Miscellaneous Setup
Network Setup
Language
Reset Menu
5.3 Camera Setup
1 ON 2 OFF 3 ON
4 ON 5 ON 6 ON
7 ON 8 ON 9 ON
( )MOVE （SEL）SELECT (MENU) EXIT
CAMERA SETUP
5.4 Record Setup
Image Parameters
Password Enable
Keypad Tones
Seq.Dwell Time
VGA Setup
Camera Setup allows you to turn
cameras on or off.
Press [▲, ▼, ◄◄ and ►►] buttons
to select a channel and then press [SEL]
to modify the setting ON or OFF.
Note：If a camera channel is set to OFF ,it
will not be recorded(Refer to 6.4 Record
tup)
Se
1 ON 2 OFF 3 ON
4 ON 5 ON 6 ON
7 ON 8 ON 9 ON
( ) MOVE （SEL）SELECT (MENU)EXIT
RECORD SETUP
Record Setup allows you to set up
recording channels.
Press [▲, ▼, ◄◄ and ►►] buttons to
select a channel, and then press [SEL] to
modify the setting to ON or OFF.
If a channel is disabled in Camera Setup, it
will not record and the DVR will display
“NOCAM” on screen.
7
User Manual
5.5 Record Frame Rate
The total frame rate is 50fps (PAL) or
1 5 FPS 2 5 FPS 3 5 FPS
RECORD FRAMERATE
TOTAL 45FPS
4 5 FPS 5 5 FPS 6 5 FPS
7 5 FPS 8 5 FPSN 9 5 FPS
( )MOVE （SEL）+ ( □ ) - (MENU) EXIT
Press [▲, ▼, ◄◄ or ►►] button to select a channel, and then press [SEL] to
0fps (NTSC). You can set the frame rate
6
or the channel which you selecte to record.
f
f the sum of the frame rate you select for
I
ll cameras is more than 50fps (PAL)/60fps
a
NTSC), the DVR will automatically adjust
(
he largest frame rate value to a smaller
t
value.
increase the value or press [
■STOP] to reduce the value.
Note: Higher frame rate shows smooth images, but requires more hard drive
space.
5.6 Video Quality
V
CAMERA SETUP
RECORD SETUP
RECORD FRAMERATE
VIDEO QUALITY NORMAL
RECORD SCHEDULE
SENSOR SETUP
HARD DRIVE SETUP
MISCELLANEOUS SETUP
NETWORK SETUP
LANGUAGE ENGLISH
RESET MENU
( )MOVE (SEL)SELECT (MENU)EXIT
MAIN MENU
Highest, High, Normal and Low.
better quality of Images, however higher
quality images require more hard drive
space.
setting.
ideo Quality has 4 different settings:
The higher the video quality, the
Press [SEL] to change the quality
5.7 Record Schedule
Setting the Record Schedule allows you to customize the type of recording
depending on the time of day.
( )MOVE (SEL)SELECT (MENU)EXIT
RDCORD SCHEDULE
AM PM
0… 3… 6… 9… 0… 3…. 6… 9…
NO-RECORD
NORMAL-RECORD
S
SENSOR-RECORD
The time line indicates 24 hours of a
day based on
Press [▲, ▼, ◄◄ or ►►] button
AM/PM (0 = 12).
to select a time point, press [SEL] to
modify the recording mode.
8
User Manual
NO-RECORD [ white]: DVR will not record during the time.
NORMAL-RECORD [
red]: DVR will record continuously.
SENSOR-RECORD [S]: DVR will record when sensor or motion is triggered.
NOTE: In order to activate the record schedule, press the [] record button when
viewing the cameras. After pressing the [] record button, if schedule is set to
“NORMAL-RECORD” , the DVR will start to record immediately; if the schedule is
set to be “SENSOR-RECORD” , the DVR will not start recording until a motion is
detected by the DVR or an installed sensor is triggered.
5.8 Sensor Setup
SENSOR SETUP
SENSORED RECORD TIME 30
ALARM ON TIME OFF
H/W SENSOR SETUP
MOTION DETECTOR SETUP
( )MOVE (SEL)SELECT (MENU)EXIT
CONT: Continuous alarm until any key is pressed
OFF: No alarm
Note: Sensored Record Time and Alarm On Time are measured in seconds
SensoredRecord Time indicates how
long the recording time is when the
motion or sensor is triggered.
Alarm On Time indicates whether the
buzzer will sound when motion is
detected.
5.9 H/W Sensor Setup
Note: Sensors and extension alarm are not included with the DVR system and may
be purchased separately.
H/W SENSOR SETUP
CHANNEL-1 NOT INSTALLED
CHANNEL-2 TYPE:NORMAL-OPEN
CHANNEL-3 NOT INSTALLED
CHANNEL-4 NOT INSTALLED
CHANNEL-5 NOT INSTALLED
CHANNEL-6 NOT INSTALLED
CHANNEL-7 NOT INSTALLED
CHANNEL-8 NOT INSTALLED
CHANNEL-9 NOT INSTALLED
( )MOVE (SEL)SELECT (MENU)EXIT
HARDWARE SENSOR SETUP:
There are 3 different modes for sensor
setting: NOT INSTALLED,
NORMAL-CLOSE and NORMAL-OPEN.
Consult the alarm purchased for more details
on which setting is required.
9
User Manual
(
5.10 Motion Detector Setup
This section allows you to set up motion detection options for each camera.
MOTION DETECTOR SETUP
CH1 ON LEVEL1 AREA
CH2 ON LEVEL2 AREA
CH3 ON LEVEL2 AREA
CH4 ON LEVEL2 AREA
CH5 ON LEVEL2 AREA
CH6 ON LEVEL2 AREA
CH7 ON LEVEL2 AREA
CH8 ON LEVEL2 AREA
CH9 ON LEVEL2 AREA
)MOVE (SEL)SELECT (MENU)EXIT
MOTION DETECT
OR SETUP:
ON/OFF: Enable or disable motion detection
recording.
LEVEL: Sensi
There are 3 levels sensitivity:
tivity for motion detection.
Level 1-low,
level 3- highest
AREA: Select detectable area on the screen.
Area Selection:
Press [▲, ▼, ◄◄ or ►►]
button to
select a block, and press [SEL] button to set
the block to detect motion. The area is
detectable when it is clear, the area is not
detectable when it is covert by shadow.
Press “Stop” button to disable all areas, press “All” button to enable all areas
5.11 Hard Drive Setup
This section will display the current hard drive status and usage options
( )MOVE (SEL)SELECT (MENU)EXIT
HDD SIZE: Indicates the total
HARD DRIVE SETUP
OVERWRITE ENABLED [ ON ]
ST3160215A
MASTER HDD SIZE 160133MB
MASTER HDD USED 124931MB 78%
MASTER HDD FORMAT
SLAVE HDD SIZE N/A
SLAVE HDD USED N/A
SLAVE HDD FORMAT
capacity of the hard drive installed in the DVR.
HDD USED: Indicates the space used in the hard disk drive for recording and the
percent used.
OVERWRITE ENABLED:
ON: Overwrite oldest video when hard drive
is full.
OFF: Stop recording when hard drive is full.
10
User Manual
HDD FORMAT: Will erase all video and data on the installed hard drive and make it
readable by the DVR
Note: You will be prompted for the password when formatting a hard drive. The
default password is “111111”
5.12 Miscellaneous Setup - Change Password
MISCELLANEOUS SETUP
CHANGE PASSWORD
SET TIME
HIDDEN CHANNEL
AUDIO PORT SETUP
PTZ SETUP
IMAGE PARAMETERS
PASSWORD ENABLE
KEYPAD TONES
SEQ.DWELL TIME
VGA SETUP
( )MOVE (SEL)SELECT (MENU)EXIT
[ 4 ]
[ CH4 ]
[ OFF ]
[ ON ]
[OFF ]
1024*768 75HZ
CURRENT PASSWORD
NEW PASSWORD
CONFIRM PASSWORD
[- - - - -]
[- - - - -]
[- - - - -]
This option allows you to change the
system password. The password m
ust be
composed with six characters.
All keys can be used as password key
except the [MENU] key, which is used to
exit.
Enter the current password first, and
then enter six characters as your new
password, repeat the new password to
confirm.
If you forget your password, please
contact technical support for assistance.
5.13 Miscellaneous Setup - Set Time
( )MOVE (SEL)SELECT (MENU)EXIT
SET TIME
2008/11/11 17:50:01
The system date an
YYYY/MM/DD and HH:MM: SS.
Press [◄◄] or [►►] button to select the
data to modify, press [SEL] to modify. Press
[MENU] to save and return to previous
menu.
11
d time format is
User Manual
5.14 Miscellaneous Setup - Hidden Channel
MISCELLANEOUS SETUP
CHANGE PASSWORD
SET TIME
HIDDEN CHANNEL
AUDIO PORT SETUP
PTZ SETUP
IMAGE PARAMETERS
PASSWORD ENABLE
KEYPAD TONES
SEQ.DWELL TIME
VGA SETUP
( )MOVE (SEL)SELECT (MENU)EXIT
[ 4 ]
[ CH4 ]
[ OFF ]
[ ON ]
[OFF ]
1024*768 60HZ
The system provides a function to hide a
channel in monitoring mode. The selected
channel can still be recorded while it’s hidden;
the hidden picture is viewable during playing
back.
Press [SEL] to select a channel to hide.
5.15 Miscellaneous Setup - Audio Port Setup
AUDIO PORT1-VIDEIO CHANNEL
AUDIO PORT1-RECORD
( )MOVE (SEL)SELECT (MENU)EXIT
AUDIO PORT SETUP
[ 1 ]
[ OFF ]
ou can select the audio recording
Y
function to ON or OFF, and select the
video channel that you like to record the
audio on.
5.16 Miscellaneous Setup - PTZ Setup
SPEED [4800]
PROTOCOL [PELCO-D]
CAMERA- [ 1 ] ID [ 1 ]
( )MOVE ( )CAM ID
(SEL)SELECT (MENU)EXIT
PTZ SETUP
Press [SEL] to select the camera, press[◄◄] and [►►] buttons to assign the ID.
Note: the ID must be unique．
SPEED: Set the baud rate (2400，4800，
9600，19200，38400) to match your speed
dome.
PROTOCOL: Supports “PELCO-D” and
“PELCO-P”. Select the protocol according to
your speed dome’s protocol.
CAMERA: select the camera channel which
is connected with the speed dome.
ID: Assign an ID to your speed dome.
12
User Manual
5.17 Miscellaneous Setup - Image Parameters
MISCELLANEOUS SETUP
CHANGE PASSWORD
SET TIME
HIDDEN CHANNEL
AUDIO PORT SETUP
PTZ SETUP
IMAGE PARAMETERS
PASSWORD ENABLE
KEYPAD TONES
SEQ.DWELL TIME
VGA SETUP
( )MOVE (SEL)SELECT (MENU)EXIT
[ 1 ]
[ CH4 ]
[ OFF ]
[ ON ]
[OFF ]
1024*768 75HZ
You can adjust the image parameters
according to your needs.
Move the cursor to this selection and
press[◄◄] or [►►] button to select a
channel you want to adjust, then press
[SEL] button to edit parameters.
CON: Contrast
BRI: Brightness
HUE: Hue
SAT: Saturation
Press [▲] or [▼] to select the item，
and then press [◄◄] or [►►] buttons
to adjust the value.
5.18 Miscellaneous Setup - Password Enable
MISCELLANEOUS SETUP
CHANGE PASSWORD
SET TIME
HIDDEN CHANNEL
AUDIO PORT SETUP
PTZ SETUP
IMAGE PARAMETERS
PASSWORD ENABLE
KEYPAD TONES
SEQ.DWELL TIME
VGA SETUP
( )MOVE (SEL)SELECT (MENU)EXIT
[ 1 ]
[ CH4 ]
[ OFF ]
[ ON ]
[OFF ]
1024*768 75HZ
The password will be required to
control the DVR when this option is set to
“ON”, and the password is not required
when this option is set to “OFF”.
13
User Manual
5.19 Miscellaneous Setup - Keypad Tones
MISCELLANEOUS SETUP
CHANGE PASSWORD
SET TIME
HIDDEN CHANNEL
AUDIO PORT SETUP
PTZ SETUP
IMAGE PARAMETERS
PASSWORD ENABLE
KEYPAD TONES
SEQ.DWELL TIME
VGA SETUP
( )MOVE (SEL)SELECT (MENU)EXIT
[ 4 ]
[ CH4 ]
[ OFF ]
[ ON ]
[OFF ]
1024*768 75HZ
This function allows you to enable
/disable buzzer sound when pressing a
button. Press [SE
OFF.
5.20 Miscellaneous Setup – SEQ.Dwell Time
L] to select ON or
MISCELLANEOUS SETUP
CHANGE PASSWORD
SET TIME
HIDDEN CHANNEL
AUDIO PORT SETUP
PTZ SETUP
IMAGE PARAMETERS
PASSWORD ENABLE
KEYPAD TONES
SEQ.DWELL TIME
VGA SETUP
( )MOVE (SEL)SELECT (MENU)EXIT
[ 4 ]
[ CH4 ]
[ OFF ]
[ ON ]
[OFF ]
1024*768 75HZ
This function allows you to set the
dwell time for each camera when you
enabe the auto sequence display function.
Press [◄◄] and [►►] buttons to
adjust the value.
After setting, press [◄◄] to turn on
auto-sequence display function and press[◄◄] again to turn off this function in
preview mode
5.21 Miscellaneous Setup - VGA Setup
MISCELLANEOUS SETUP
CHANGE PASSWORD
SET TIME
HIDDEN CHANNEL
AUDIO PORT SETUP
PTZ SETUP
IMAGE PARAMETERS
PASSWORD ENABLE
KEYPAD TONES
SEQ.DWELL TIME
VGA SETUP
( )MOVE (SEL)SELECT (MENU)EXIT
[ 4 ]
[ CH4 ]
[ OFF ]
[ ON ]
[OFF ]
1024*768 75HZ
Select a VGA resolution to match your
CRT or LCD monitor.
5.22 Network Setup
Network Setup allows you to prepare the DVR for viewing over the internet or
local network.
14
User Manual
MAC ADDRESS
IP ALLOCA TION
IP ADDRESS
SUBNET MASK
GATEWAY
DNS1 ADDRESS
DNS2 ADDRESS
HTTP PORT
USER SETUP
DDNS SETUP
(HTTP PORT) 80, 1024-49151
( )MOVE (SEL)SELECT (MENU)EXIT
NETWORK SETUP
<00:11:22:33:44:55>
[STATIC]
[192.168.1.100]
[255.255.255.0]
[192.168.1.1]
[0.0.0.0]
[0.0.0.0]
[ 80]
MAC ADDRESS:
the MAC (Media Access Control) address is
your computer’s unique hardware identity code
(On an Ethernet LAN，it is the same as your
Ethernet address).When you are connected to
the Internet from your computer (or host as the
Internet protocol thinks of it )，a corresponding
table relates your IP address to your computer’s
physical (MAC) address on the LAN.
In a local area network(LAN)，
IMPORTANT: This setting should only be changed if multiple DVRs are being setup on the same
network and the first code “00” must not to be changed.
MAC ADDRESS
IP ALLOCA TION
IP ADDRESS
SUBNET MASK
GATEWAY
DNS1 ADDRESS
DNS2 ADDRESS
HTTP PORT
USER SETUP
DDNS SETUP
(HTTP PORT) 80, 1024-49151
( )MOVE (SEL)SELECT (MENU)EXIT
NETWORK SETUP
<00:11:22:33:44:55>
[STATIC]
[192.168.1.100]
[255.255.255.0]
[192.168.1.1]
[0.0.0.0]
[0.0.0.0]
[ 80]
MAC ADDRESS
IP ALLOCA TION
IP ADDRESS
SUBNET MASK
GATEWAY
DNS1 ADDRESS
DNS2 ADDRESS
HTTP PORT
USER SETUP
DDNS SETUP
(HTTP PORT) 80, 1024-49151
( )MOVE (SEL)SELECT (MENU)EXIT
NETWORK SETUP
<00:11:22:33:44:55>
[STATIC]
[192.168.1.100]
[255.255.255.0]
[192.168.1.1]
[0.0.0.0]
[0.0.0.0]
[ 80]
MAC ADDRESS
IP ALLOCA TION
IP ADDRESS
SUBNET MASK
GATEWAY
DNS1 ADDRESS
DNS2 ADDRESS
HTTP PORT
USER SETUP
DDNS SETUP
(HTTP PORT) 80, 1024-49151
( )MOVE (SEL)SELECT (MENU)EXIT
NETWORK SETUP
<00:11:22:33:44:55>
[STATIC]
[192.168.1.100]
[255.255.255.0]
[192.168.1.1]
[0.0.0.0]
[0.0.0.0]
[ 80]
IP ALLOCATION: DVR supports DHCP and
Static IP modes. If your modem/router supports
DHCP function, you can use DHCP mode. When
using STATIC mode, you will be required to setup
your IP settings manually.
Note: After setting the DVR to DHCP mode restart
the unit.
IP Address: In a local network, the IP address is
a unique designated address for your DVR
recognized by your router. Ensure this number is
within the range usable by your modem/router.
Use the UP “▲” and DOWN “▼” buttons to
move the cursor and use the “SEL” button to
change the numbers. Once you have finished the
changes restart your DVR.
SUBNET MASK: Subnet Mask is used to
determine what subnet an IP address belongs to.
A number that is used to identify a sub network
so that IP addresses can be recognized on a local
area network. Consult your modem/router for
your LAN’s subnet mask.
15
User Manual
MAC ADDRESS
IP ALLOCA TION
IP ADDRESS
SUBNET MASK
GATEWAY
DNS1 ADDRESS
DNS2 ADDRESS
HTTP PORT
USER SETUP
DDNS SETUP
(HTTP PORT) 80, 1024-49151
( )MOVE (SEL)SELECT (MENU)EXIT
NETWORK SETUP
<00:11:22:33:44:55>
[STATIC]
[192.168.1.100]
[255.255.255.0]
[192.168.1.1]
[0.0.0.0]
[0.0.0.0]
[ 80]
GATEWAY: Set this number to the gateway
set by your modem/router.
NOTE: To adjust the IP ADDRESS，SUBNET MASK and GATEWAY value, only when the
[STATIC] mode is being selected.
MAC ADDRESS
IP ALLOCA TION
IP ADDRESS
SUBNET MASK
GATEWAY
DNS1 ADDRESS
DNS2 ADDRESS
HTTP PORT
USER SETUP
DDNS SETUP
(HTTP PORT) 80, 1024-49151
( )MOVE (SEL)SELECT (MENU)EXIT
NETWORK SETUP
<00:11:22:33:44:55>
[STATIC]
[192.168.1.100]
[255.255.255.0]
[192.168.1.1]
[0.0.0.0]
[0.0.0.0]
[ 80]
MAC ADDRESS
IP ALLOCA TION
IP ADDRESS
SUBNET MASK
GATEWAY
DNS1 ADDRESS
DNS2 ADDRESS
HTTP PORT
USER SETUP
DDNS SETUP
(HTTP PORT) 80, 1024-49151
( )MOVE (SEL)SELECT (MENU)EXIT
NETWORK SETUP
<00:11:22:33:44:55>
[STATIC]
[192.168.1.100]
[255.255.255.0]
[192.168.1.1]
[0.0.0.0]
[0.0.0.0]
[ 80]
( )MOVE (SEL)SELECT (MENU)EXIT
USER SETUP
ADMIN ID …… [admin]
ADMIN PASSWORD [admin]
USER ID
USER PASSWORD
[ ]
[ ]
DNS ADDRESS: This code should be provided
by your local ISP.
HTTP PORT: This port number is used to
communicate with PC Client. The default value is
80(Can be changed from 1024 to 49151)
USER SETUP: When accessing the DVR
from a remote location you will be prompted
for a login and password. The default is
“admin” for full administrator rights. Set “User
ID” and password to setup a user with limited
rights to prevent tampering.
16
User Manual
[
]
DDNS PROVIDER
DDNS USER NAME
DDNS PASSWORD
DOMAIN NAME
( )MOVE (SEL)SELECT (MENU)EXIT
DDNS SETUP
[WWW.DynDNS.com ]
[ ]
[ ]
DDNS SETUP： If you require an external
service to maintain a dynamic IP address enter
the user information here.
LAN-DVR C
onnection
See the diagram below for steps to connect your DVR to a local area network or the internet.
For remote monitoring from your computer，you must have a LAN connection available or
broadband Internet access.
You need to register a www.dyndns.com to get a free account .After registration，you will have
a username and password. You can also register your domain name on the website. Please refer to
Chapter 5 “Network Setup” for more details. There you will learn how to input the Dyndns
username，password，and domain name. You can log in from anywhere by using Internet Explorer
and entering your DVR’s domain name.
17
User Manual
5.23 Language
MAIN MENU
CAMERA SETUP
RECORD SETUP
RECORD FRAMERATE
VIDEO QUALITY NORMAL
RECORD SCHEDULE
SENSOR SETUP
HARD DRIVE SETUP
MISCELLANEOUS SETUP
NETWORK SETUP
LANGUAGE E NGLISH
RESET MENU
( )MOVE (SEL)SELECT (MENU)EXIT
from the default English to other languages.
You can change the OSD language
5.24 Reset Menu
If you select this item, the system will restore all your settings to factory default
values. You need to enter your password to reset the menu.
5.25 NTSC/PAL Output select
Change the jumper JS1 to select NTSC
or PAL video output format according to the
silkscreen on the PCB.
18
User Manual
Chapter 6: Record
6.1 Start Recording
Press [●] record button to start recording according to the record schedule you
have set. System will display some information on screen.
[
●]: the red pot next to the channel name indicates that the channel is being
recorded.
[A-REC]: indicates the current record schedule is set to NORMAL-RECORD mode.
[S-REC]: indicates the current record schedule is set to SENSOR-RECORD mode.
[N-REC]: indicates the current record schedule is set to NO-RECORD mode.
[39%]: indicates the percentage of hard disk space used.
[M]: HDD info ([M] Master Hard Disk)
6.2 Audio Recording
[ ]: indicates this video channel is bundled with an audio port, and the audio
output is on.
[
]: indicates the audio output is off.
[
]: indicates the audio is being recorded and the audio output is on.
You could press [MUTE] button on front panel to be mute mode for audio output.
The audio input can be still recorded while the output is mute.
19
User Manual
6.3 Stop Recording
Press [■] stop button will stop recording. If password protection function is
enabled, system will prompt you to input password. Only correct password can stop
recording process.
6.4 Estimated Recording Length
Estimated rec ord time based on 160GB HDD
Standard Quality 60fps 48fps 32fps 16fps 1fps
Highest 62 78 116 232 3720
NTSC
Standard Quality 50fps 36fps 24fps 12fps 1fps
PAL
High 88 110 165 330 5280
Normal 107 134 201 401 6420
Lower 120 150 225 450 7200
Highest 64 89 133 267 3200
High 90 125 188 375 4500
Normal 110 153 229 458 5500
Lower 123 171 256 513 6150
Unit: Hour
Chapter 7: Playback
In preview mode, pressing the [►] PLAY button goes into PLAYBACK mode.
The newest record event will be played.
Press the [MENU] button during in
SEARCH VIDEO
DISK:MASTER SLAVE [NONE]
08/09/19 11:16:31 - 08/09/19 15:05:48
TYPE:EVENT TIME
PLAY:EVENTS
00006 T 2008/09/19 15:07:40
00006 T 2008/09/19 14:07:40
00006 T 2008/09/19 13:07:40
00006 T 2008/09/19 12:07:40
00006 T 2008/09/19 11:07:40
00006 T 2008/09/19 10:07:40
00006 T 2008/09/19 09:07:40
( )MOVE (SEL)SELECT (MENU)EXIT
( )PLAY (MENU)PREV MENU
PLAYBACK mode，then the system will
list all the recorded events. The latest
record will be on top of the list. Press the
［▲］or [▼］button to selecte the event
and then press [►] to play the event.
20
User Manual
SEARCH VIDEO
DISK:MASTER SLAVE [NONE]
08/09/19 11:16:31 - 08/09/19 15:05:48
TYPE:EVENT TIME
PLAY:00006 T 2008/09/19 15:07:40
( )MOVE (SEL)SELECT
( )PLAY (MENU)PREV MENU
Another way to search video is directly
input time period. Press the [MENU]
button then use [◄◄] or [►►] button to
select the TIME search mode. Use [SEL]
button to edit time value, press [►] to play
the video. If the time you selected has no
record event, it will indicates “
on the screen when you press [►] button.
NO EVENTS”
Chapter 8: USB Progamming
8.1Driver Installation:
(1) Insert driver CD in your CD-ROM Drive.
(2) Open CD directory.
(3) Double click the install applications.
(4) Follow the setup wizard to finish the installation.
8.2 Program Interface
12
11 10
14 15 13 17
16 18
19
20
21
1
2
3
4
5
6
7
8
9
21
User Manual
1.PTZ Control 12. Time Search
2.Zoom in，Zoom Out 13.Back One Frame
3.HDD Play Mode 14.Record
4.File Play Mode 15.Stop
5.Net Play Mode 16. Pause
6.Event List 17. Play
7.Control Panel 18.Fast Forward
8.Remote DVR Control
9.Change Storage Device 20.Playback Slider
10.Capture Image 21.Audio Slider
11. Convert Streams to AVI file
19.Forward One Frame
8.3 Program Running
8.3.1 HDD play mode
System will detect the HDD automatically when you connect the USB cable to
your PC.
An USB icon“
screen).
After you’ve seen the USB icon, double click “ ” icon on your desktop to run
the program.
Note: if you do not follow above steps, the program will fail to detect HDD
Press “
” to open the video event lists.
” will appear in the system tray (right bottom corner of the
22
User Manual
Press “ ” to configure the program local settings
Press “ ” to play video.
8.3.2 FILE play mode: (only when you plug a USB Memory Stick into your PC)
23
User Manual
Press “ ” to open a folder and select the file you want play.
Double click the file.
8.3.3 NET play mode:
This mode allows you to remote control your DVR via Internet or Intranet.
Press “
” to pop up the login window.
Fill in Host Name, Host Port, User Name and Password of the DVR that you want
remotely access and then press Login to enter the main page.
24
User Manual
Chapter 9: Specification
9.1 DVR
Items Descriptions
Video Standard NTSC, PAL
Video Input/Output 9Channels BNC/1 Channel BNC
Audio Input/Output 1 Channel/1 Channel
Monitoring
Recording
Audio ADPCM2 CODEC
Video MPEG4
Motion Detection Settable Window/Level
Microprocessor 32-bit RISC Processor
Network Interface TCP/IP (RJ45)
Network Monitor IE (Internet Explorer), PC Viewer Software
PTZ Interface RS-485
USB Interface USB 2.0
VGA Output YES
Remote control IR remote control
Power supply DC 12V
9.2 CAMERAS
Image Sensor: 1/4″ Sony Color CCD
Video Output: 1.0Vp-p 75Ω(BNC)
IR LEDS: 12 PCS
IR LED Control: Photo Control(CDS)
Infrared Lamps Irradiation Distance: 12M
Resolution: 420 TV Lines
Minimum luminance: 0 Lux with 12XIR LEDs
Signal System: NTSC
Lens: 3.6mm
Electronic Shutter: 1/50(1/60) – 1/100,000 second
S/N ratio: ≥48dB(AGC OFF)
Case Material: Aluminium
Operating Temperature: -10°C - +50°C
Dimensions: 59mm x 104m
Resolution
Features Full-D1，1-CH/4-CH/9-CH Display
Resolution
Features
Quality 4-Level (Highest, High, Normal ,Low)
m
NTSC:720X480@30fps (Each Ch)
PAL:720X576@25fps (Each Ch)
NTSC:720X240@60fps (9Ch.Total)
PAL:720X288@50fps (9Ch.Total)
Variable Frame Rate/Variable QL per
Channel
25
User Manual
Chapter 10: Appendix
10.1 System connect sketch map
10.2 Accessories Included With DVR
Camera cables
(9 included)
USB 2.0 Cable
Ethernet Cable
ower Supply
P
For DVR
9 Way Splitter &
Power Supply for
Cameras
Cameras (9
included)
Us
Software CD Remote Control
Camera
Stands
(9 inc
luded)
er Manual
250GB Ha
Drive
rd
BNC to RCA
Cable
26
Loading...
