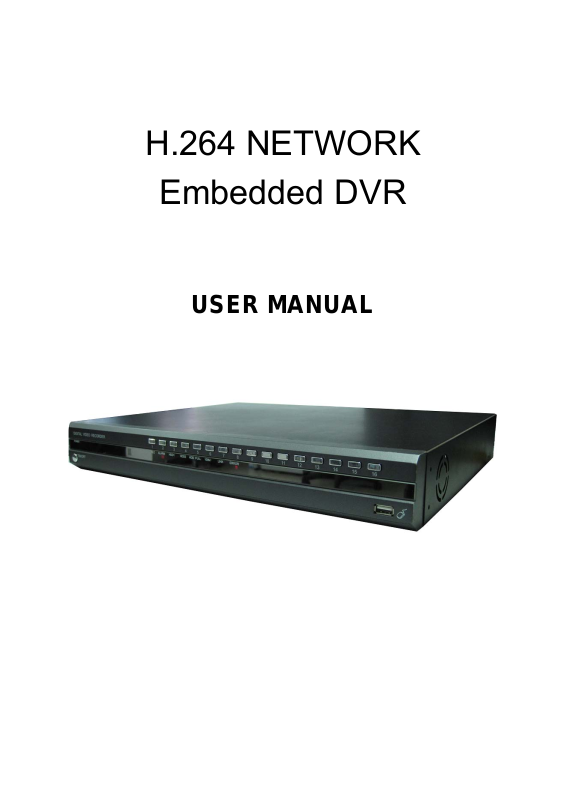

Embedded DVR
USER MANUAL
Page 2
CONTENT
1.1 PREODUCT INTRODUCE...................................................................................................................3
1.2 PRODUCT FEATURE..........................................................................................................................3
1.2.1 SPECIFICATION..............................................................................................................................3
1.2.2 BASIC WORKING PARAMETER..................................................................................................5
1.3 ENTIRONMENT ADAPTABILITY.....................................................................................................5
2 DEVICE OPERATION..................................................................................................................................6
2.1 REMOTE KEY INSTRUCTION...........................................................................................................6
2.1.1 REMOTE CONTROL.......................................................................................................................6
2.1.2 MOUSE OPERATION......................................................................................................................8
2.1.3 MENU TREE...................................................................................................................................10
2.2 SYSTEM OPERSTION.......................................................................................................................11
2.2.1 USER LOGIN..................................................................................................................................11
2.2.2 GUI OPERATION........................................................................................................................... 12
2.2.3 DEVICES SETUP...........................................................................................................................21
2.2.4 SYSTEM SETUP ............................................................................................................................27
3 IE OPERATION ..........................................................................................................................................31
3.1 FEATURE ...........................................................................................................................................31
3.2 USER LOGIN......................................................................................................................................31
3.3 OPERATION INTERFACE................................................................................................................32
3.3.1 LIVE................................................................................................................................................32
3.3.1.1 PTZ CONTROL..........................................................................................................................32
3.3.1.1.1 ZOOM.....................................................................................................................................33
3.3.1.1.2 PTZ PRESET ..........................................................................................................................33
3.3.1.2 PLAY...........................................................................................................................................33
3.3.1.3 OTHER OPERATION................................................................................................................33
3.3.2 REPALY..........................................................................................................................................34
3.3.3 SETUP.............................................................................................................................................36
3.3.3.1 RECORD.....................................................................................................................................36
3.3.3.2 ALARM.......................................................................................................................................36
3.3.3.3 PTZ..............................................................................................................................................37
3.3.3.4 NETWORK.................................................................................................................................38
3.3.3.5 SETTING ....................................................................................................................................38
3.3.3.6 HOST INFO ................................................................................................................................39
4 DVR INSTALLATION...............................................................................................................................40
4.1 PRODUCT OVERVIEW.....................................................................................................................40
4.2 HDD INSTALLATION.......................................................................................................................45
5.FAQ...................................................................................................................................................................46
2
Page 3
INTRODUCTION
1.1 PREODUCT INTRODUCE
DVR-8316 is developed base on new platform. 8316 is 16 channel CIF resolution digital
video recording DVR, which have local recording, playback, support triple code remote network
surveillance, data backup, parameter setting, motion detection, I/O alarm setting, PTZ and USB
mouse, USB2.0 backup, IE browser and back up.
1.2 PRODUCT FEATURE
H.264 compression
Two USB interface, USB2.0 for data backup, USB1.1 for mouse operation.
2 pcses 3.5” SATA HDD at most.
Special file system for security.
16 nature translucence GUI, note for menu selected
Optimized one four channel simultaneously playback
double level user management
Support the live view, parameter setting and copy playback video via network.
1.2.1 SPECIFICATION
Item Device performance index
Language Chinese/English
System
Video
Audio
GUI Graphic menu
password user password, administrator password
Video in
Video out
Video display 1/4/9/16 switch
Video standard
Audio input 4ch audio input, impedance 600Ω,RCA
Audio output 1ch audio output, impedance 600Ω,RCA
Basic electricity
output
16ch complex video input 1.0V
p-p,impedance75Ω,BNC
2ch complex video output 1.0V
p-p,impedance75Ω,BNC
PAL,25f/s,CCIR625line,50scene
NTSC,30f/s,CCIR525line,60scene
Linearity electricity
3
Page 4
Record style Audio video recorded simultaneously
proceeding
and store
Alarm
Connector
Audio
compression
compression
ADPCM
H.264,
(VBR)/(CBR)
Picture resolution CIF/HD1/D1
Streaming style ISO14496-10
Audio style ADPCM
Video code rate
CIF: 384Kbps ~ 768Kbps,8 level optional, 1 is
highest,8 is lowest
Audio code rate 32KB/s
Data storage Support all kinds of storage HDD
Alarm input 8 alarm input
Alarm output 1 alarm output
Serial interface Support 1 RS232
Serial interface Support 1 RS485
Network interface RJ45,10M/100M
Mouse USB1.1
USB
Thumb drive USB2.0
VGA VGA
1 VGA （optional）
Software PC playback Playback video file
Software
upgrade
Support USB,network firmware upgrade
voltage input AC:110~240V
Voltage output DC:19V@3A
others
Voltage input +12V@1A
Power 16W without HDD
Working
temperature
-10----50℃
4
Page 5
1.2.2 BASIC WORKING PARAMETER
item parameter remark
Voltage input 19V DC 19V.
Video impedance
input
75Ω 75Ωeach channel.
Video output 1Vp-p 1Vp-p CVBS signal
0—2V Low voltage alarm
I/O
5V-30v High voltage alarm
RS232 serial port, for extend use
RS485 Connect to PTZ, (Pelco-D,Pelco-P)
SATA HDD 2 SATA with all capability
1.3 ENTIRONMENT ADAPTABILITY
For the safely using DVR and prolong device life, please pay attention on following detail:
1) When installing device, please comply all the electric product safety criterion;
2) Power and ground:
Do not touch the power and DVR with a wet hand
Do not drop liquid on DVR
Do not put others on DVR
Please using soft dry cloth when clean DVR, do not using chymist impregnant
When the power line connects with jack, even don’t startup device. There is still have
voltage
If you do not use device for long time, please take the power line away from jack.
5
Page 6
2 DEVICE OPERATION
In device operation, the enter key on remote control has the same function with mouse left
click.
2.1 REMOTE KEY INSTRUCTION
2.1.1 REMOTE CONTROL
Handheld IR Controller Key Functions:
【0－9】keys: During setup, number keys are used to input values.
For viewing channels 1, 2, 3 and 4, use 1, 2, 3 and 4 on numeric keypad
6
Page 7
respectively.
【＋】,【－】keys: During setup, plus and minus are used to select next or previous values.
: Up, Down directional keys: Move selection up and down in setup menu.
▲,
, : Left, Right directional keys: Move cursor left or right in setup menu.
【OK】: During setup, select and save entry
During Playback and preview, displays the channel name, text number,
driver name, event sensor item and time, year/month/date, time, GPRS/GPS
info on the screen.
【PLAY】:Starts/Resumes playback from any other mode (FF, RR, Frame by Frame etc)
【SLOW】:Reduces playback speed to 1/2X、1/4X、1/8X、1/16X mode. Press PLAY to
return to normal playback speed.
【PAUSE/STEP】:Freezes playback to single frame and can advance one frame at a time.
To advance the frame press Pause/Step to move frame by frame.
Press EXIT to return to normal playback speed.
【FWD】: Fast forward the video while playback. X2, X4, X8 modes available. Press FWD
to switch, press 【PLAY】to return to normal speed;
【REV】: Reverse the video while playback, 2X, 4X, 8X four modes are available. Press
REW to switch, press【PLAY】 to return to normal speed;
【STANDBY】: Reset the MDVR to Power on and Power off mode. (Standby and start up);
【LOGIN/LOCK】: If the security is enabled in the setup, use LOGIN/LOCK key to enter the
user setup. It is important to remember the password due to without
restoration function. Log in（to enter into “User ID select” and “Password”
input interface）and lock functions（To exit setup and operation）
【EXIT】: Exit to the preview or return to the last menu;
【RECORD】:Start manual record
【STOP】: Stop manual record (can’t stop timer record and normal record)
【MENU】:Enter into setup interface and setup the system parameters
【PTZ】:PTZ control, press this key to enter into PTZ control interface when at single live
view;
【EXTRA】【AUDIO】【MUTE】for future use.
7
Page 8
2.1.2 MOUSE OPERATION
You can use mouse to make operation of the menu except IR remote controller. (The
operation usage is the same as PC Windows).Please inserts the mouse into USB1.1.
Enter into main menu: Click the right key on the live view.
Click right
key
Click left
key
Exit the present menu: It won’t save the settings if you click the right key to exit.
Exit the playback interface: Click the right key to exit when you are playback.
Click the left key to enter into the setting interface.
Click the left key to zoom in the window on the live view and playback video. Double
click the left key can exit to the live view and playback multi-window interface.
1. Volume adjustment, colour adjustment, PTZ setting and VGA border operation. It
is for setting the single channel for volume adjustment, PTZ control and colour
adjustment. If it is multi-window, please use the left key to select the single window.
2. The remark when click the left key for volume adjustment,color adjustment,VGA
border is as follow:
a. There is
and on the PTZ setting to adjust parameter, click it can make
the setting for PTZ.
b. There is a sticker to show the volume on the volume adjustment interface.
Move the mouse to the corresponding position and click the left key, The right side
of sticker will show the volume ,click “x”to exit;
c. Colour adjustment and VGA border operation can refer to the volume
adjustment interface operation.
When there are many options in the option frame, click left key to ball out down-pull
menu.
To click the left key on the playback interface can make >> means forward, <<
means REW, >>I means Slow play, I> means frame play,> means Play, X means
exit.
8
Page 9
1. In the input frame, click the left key or right key can activate the keyboard. Click
the right key can make the switch of Chinese and English on the soft keyboard. The
number, symbol, English can be input by clicking the mouse.
Click left
or right
key
2. Pinyin also can be input by the soft keyboard when enter Chinese, the method is
the same as IR remote controller. You can use the left/right key to turn over the
page when check on Pinyin/Chinese word.
3. When input number, click the right key, the number soft keyboard will bob up
firstly, and then use the left key to select the corresponding value. Also click the left
key to exit the number keyboard.
1. Press the left key to move the mouse can adjust the parameter on the volume,
Mouse
move
colour, and VGA border interface. And the corresponding parameter will be display
at the same time.
2. In the Motion Detection setting interface, you can use the left key to drag the
frame to set the motion detection area.
9
Page 10
2.1.3 MENU TREE
You can control the DVR by a lot of menu operation. This tree will show you the menu
structure and it will be in details in after chapter.
10
Page 11
2.2 SYSTEM OPERSTION
2.2.1 USER LOGIN
1. START-UP
Connect the DC19V/3A adapter to DVR. When start up the DVR, 【POW】LED will be on
and 16 images will be display on the screen. If it has setup ignition recording or time recording,
the system will record automatically and the corresponding LED will be on, the system work
normally.
Remark: If there is no HDD in device, or device didn`t read the new HDD, it will display an
【H】 in live view, so please format it when connect a HDD for the first time.
2. SYSTEM LOGIN
When you login, you will find the window as follow if the password is enabled, Input device
ID and user password via numeric key-board, and you can access to main menu via press

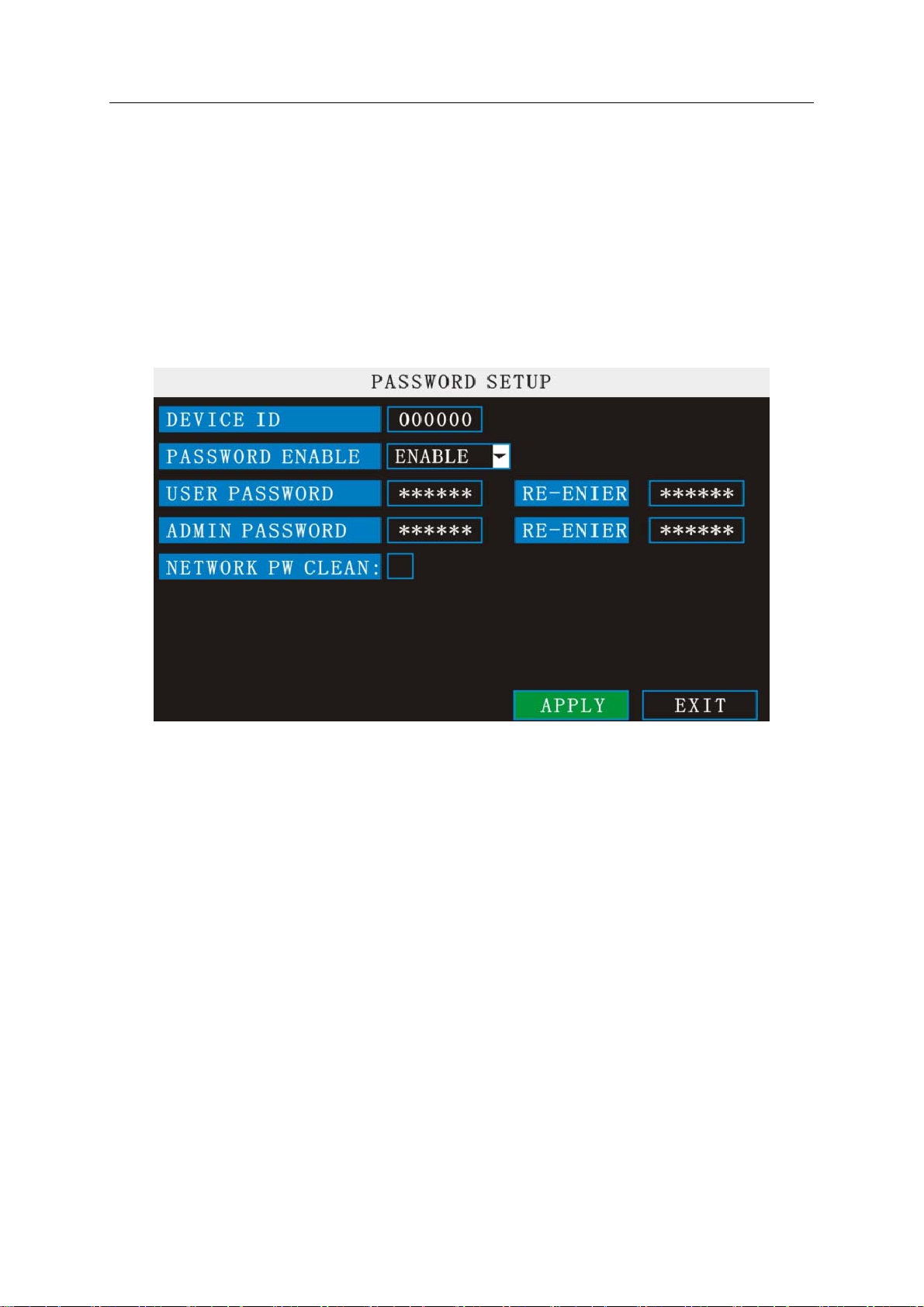

【Apply】
Remark: default device ID is: 000000, and the password is :user password is 000000 and
Admin password is 020818, in order to manage the device more convenience, please setup the
user password and change the device ID in the base setup. You can setup user and admin
password, Administrator has all authorities, operator has limited authorities who they can only
watch, playback, please change the unit ID and default password in time for system security.
DEVICE ID: You just need to enter the unit ID as the right frame.
PASSWORD: enter the admin password or user password.
11
Page 12
2.2.2 GUI OPERATION
The main menu include
“CAMERA”,”RECORD”,”NETWORK”,”SEARCH”,“DEVICES”,and“SYSTEM”.
Remark: You must after pressing “APPLY” to make the setting for submenu valid. It will no use
when exit directly. This DVR have a special feature is: when you move the mouse to everywhere,
there will have the explanation information showed auto.
2.2.2.1 CAMERA
Move the cursor to【CAMERA】（Icon highlighted when selected）, press【Enter】to enter
into the setting interface.
12
Page 13
CH1~CH4: you can select the CH1~CH4, CH5~CH8, CH9~CH12, CH13~CH16 here.
NAME: press【Enter】to enter into the setting interface.
POSITION: press【Enter】 to switch name location, there are 5 options: Bottom left, top left,
bottom right, top right and OFF.
COLOR: press【Enter】to enter into setting interface, as following:
Press【Enter】or【+】【-】key or directly drag the cursor to set colors, including chroma,
brightness, contrast and saturation, press【APPLY】to save the parameters.
LIVE: ON: Means the channel is allowed to view the live mode, OFF means not.
DISPLAY TIME WHILE IN LIVE VIEW: ON: Means yes, OFF means not.
DISPLAY TIME WHILE RECORDING: ON: Means yes, OFF means not.
2.2.2.2 RECORD SETUP
Move the cursor to 【RECORD】（Icon highlighted when selected）,press【Enter】to enter
into the setting interface. Press【Confirm】 and enter into the setup interface, and you can use
direction keys and cursor to change the options.
13
Page 14
CH1~CH4: you can select the CH1~CH4, CH5~CH8, CH9~CH12, CH13~CH16 here.
RECORD: ON: Means the channel enable for recording.
QUALITY: There are BEST, FINE ANDNORMAL three options, corresponding HIGHEST,
HINGAND NORMAL data stream standard
AUDIO: ON: Means enable the audio recording for all channels, OFF: Means disable audio
recording
REC.MODE:
POWER UP: Means the device will start recording when it startup.
TIME: Recording as the schedule, you can setup the schedule as you want as follow.
CHANNEL: You can select all channels or just one channel to setup schedule.
WEEKLY: You can setup each as you want. There are ALARM, NORMAL, NO REC three
modes, if you select this, there will have a √ in the frame, that means when you select the period
of the day it will record as this mode, and you can just setup one day, then copy the setting to all
14
Page 15
other days. Different color means different record mode: Red means alarm record, green means
normal record, grounding means no record.
PACK TIME: There are 15min, 30min, 45min, 60min four options, that means it will pack as
the mode you selected
Scroll to APPLY and press ENTER to save the new settings.
2.2.2.3 NETWORK SETUP
Move the cursor to [NETWORK SETUP] (icon highlighted when selected), and press
【Enter】 to enter into setting interface .
TYPE: There are PPPOE, DHCP & Static three options.
● STATIC
Select [Static] in the type, and press [Enter] to enter into the interface as followings
PORT： For video transmission via IE.
WEB PORT: setup the port of IE browser via HTTP.
IP ADDRESS: setup the IP address, and press [Enter] or number keys to change the value.
NETMASK: press [Enter] or number keys to change the value.
GATEWAY: press [Enter] or number keys to change the value.
15
Page 16

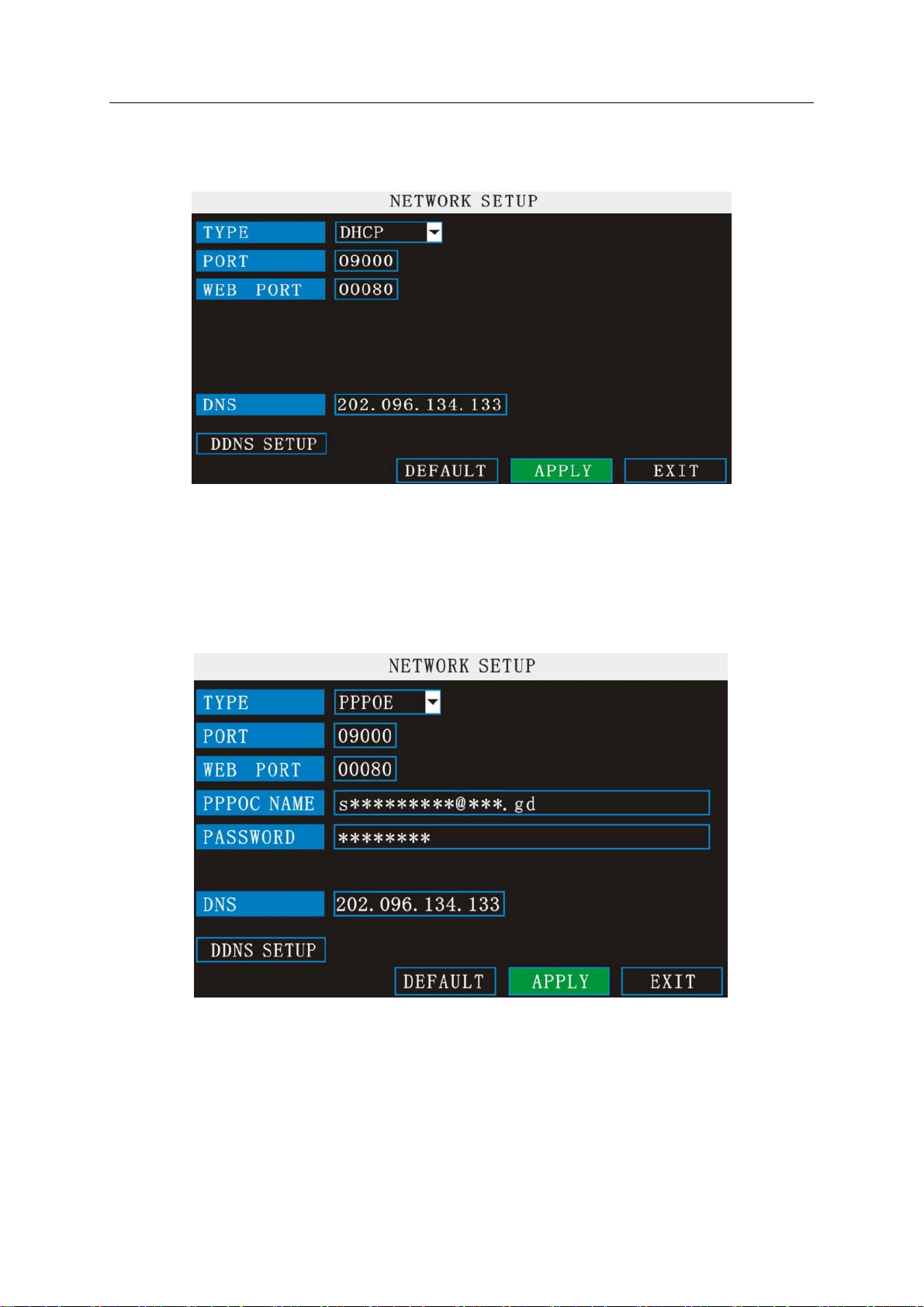

● DHCP
Select the DHCP, and enter into the interface as followings.
PORT: the communicate port between PC and DVR, recommend use default port.
WEB PORT: setup the port of IE browser via HTTP.
Remark: when you setup the net mode as DHCP, the router will arrange a dynamic IP for DVR.
● PPPOE
Select the PPPOE, and enter the interface as followings
MEDIA PORT: the communicate port between PC and DVR, recommend use default port
WEB PORT: setup the port of IE browser via HTTP.
PPPOE username and password: fill the username and password of the internet service offer,
and apply it and reboot the system. After rebooting, the device will save it and set the PPPOE as
default network type. If succeed, the IP address will be automatically config as dynamic IP of
WAN.
16
Page 17

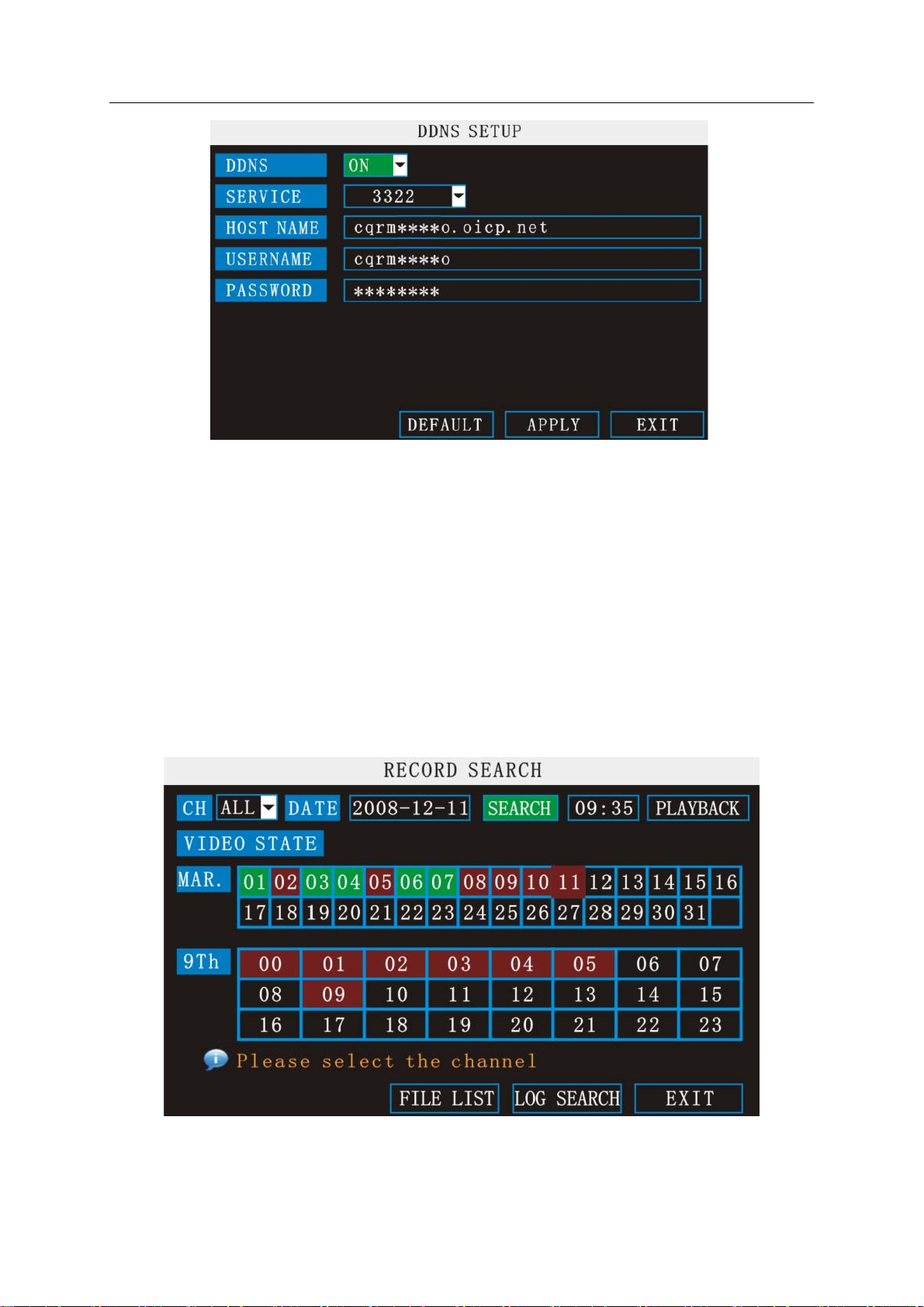

DDNS: There are [ON/OFF], and if there is a DDNS service, please setup it as ON.
SERVICE: There are 3 services to select, 3322, dyndns, and perfecteyes.
HOST NAME: Input the name of the host server.
USERNAME: Input in the name of the user.
PASSWORD: Input the password for DDNS.
2.2.2.4 SEARCH
Move the cursor to 【SEARCH】（ Icon highlighted when selected）,press【Enter】to enter
into the setting interface.
DATE: You can adjust the checking date and time, press【Enter】 input the number directly to
adjust the year,month,date.After finishing the time setting, move the cursor to “SEARCH” and
press”APPLY”,can see the recording status of this date. As follow:
Instruction:
1. MONTH: It will show all the recording status in this month. Green means normal recording,
Red means alarm recording, Grounding means no recording. Click any date in this frame can
17
Page 18
search the recording status of that day, the searching result will be showed in the below date
frame.
2. DAY: It will show all the recording status in this day, you can playback the record file in this
period via click the corresponding period.
PLAY: You can press 【Enter】 input number directly to setup playback time. After setting, move
the cursor to “PLAYBACK”, and then press”APLLY”to enter into video playback of that time. Also
you can select any period of time in the video status frame after searching,press”APLLY”to enter
into the video playback of this period.
FILE LIST: Enter into the video file list interface of the selected date.
LOG SEARCH: Enter into the log searching interface.

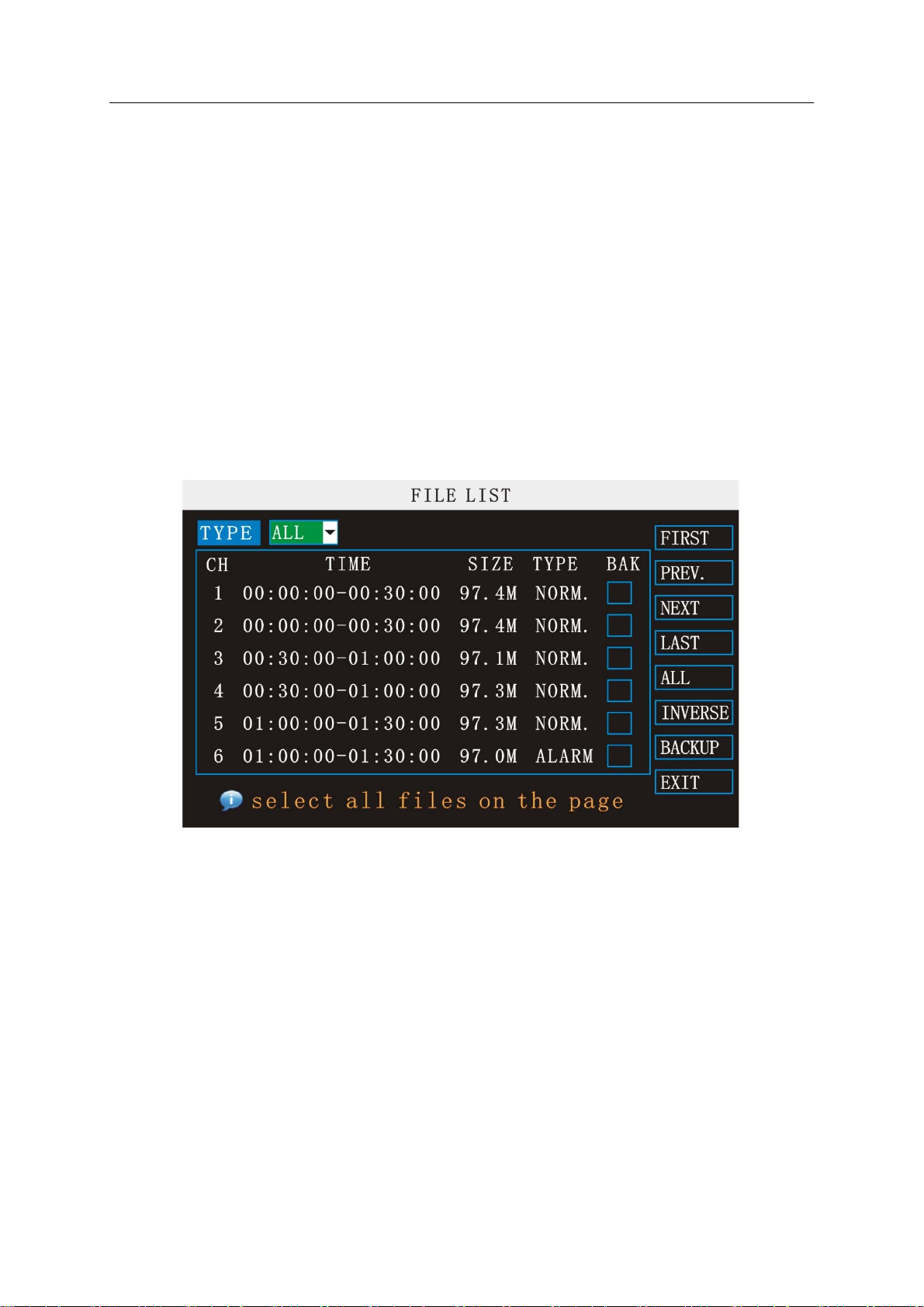

1. FILE LIST
Setup the searching date, after pressing “SERACH”,move the cursor to “FILE LIST” and
press”APPLY”to enter into the video file list of this date.
18
Page 19

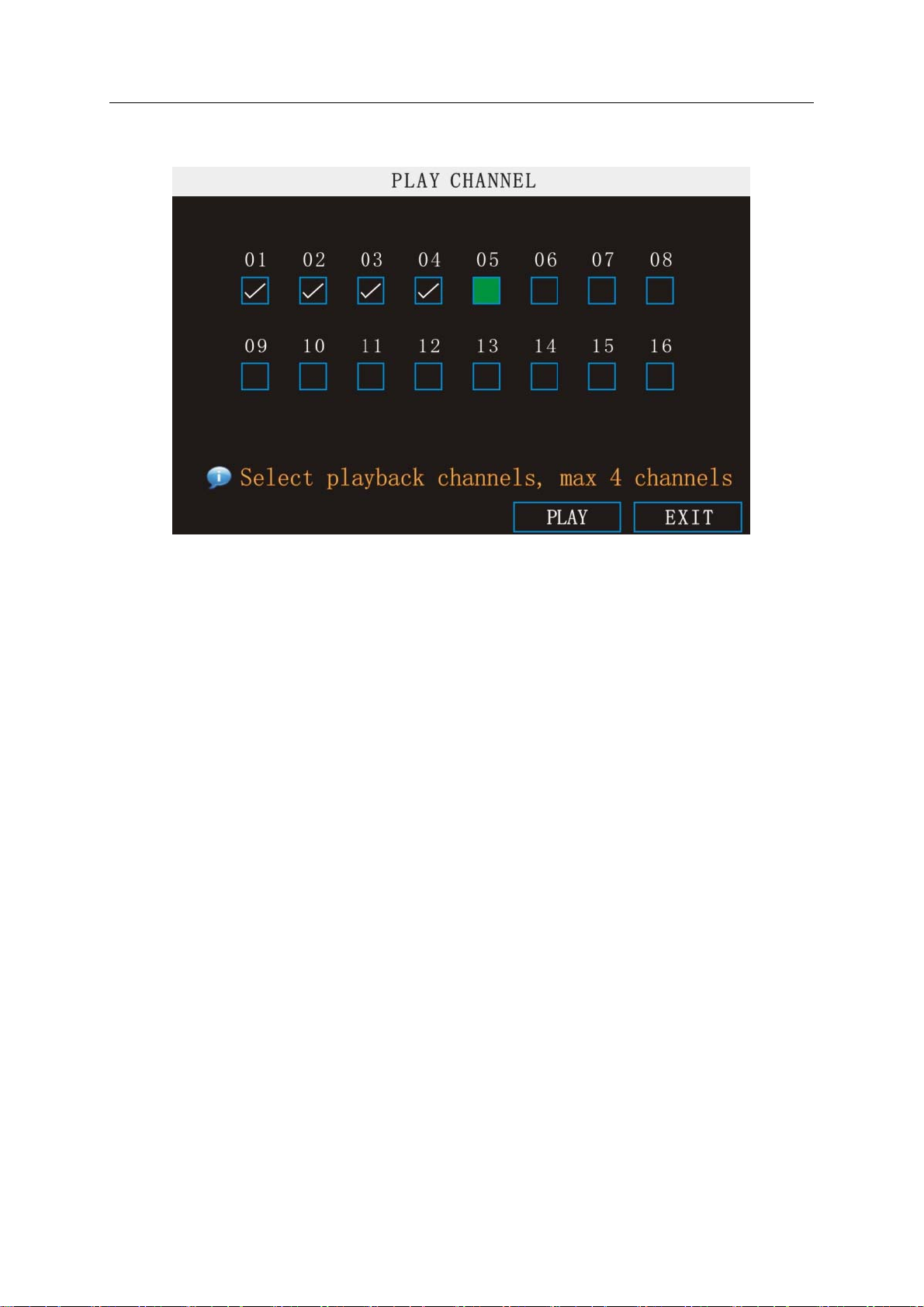

Then you can select four channels as you want to playback, because 16CH DVR support
4channels playback at the same time.
Instruction:

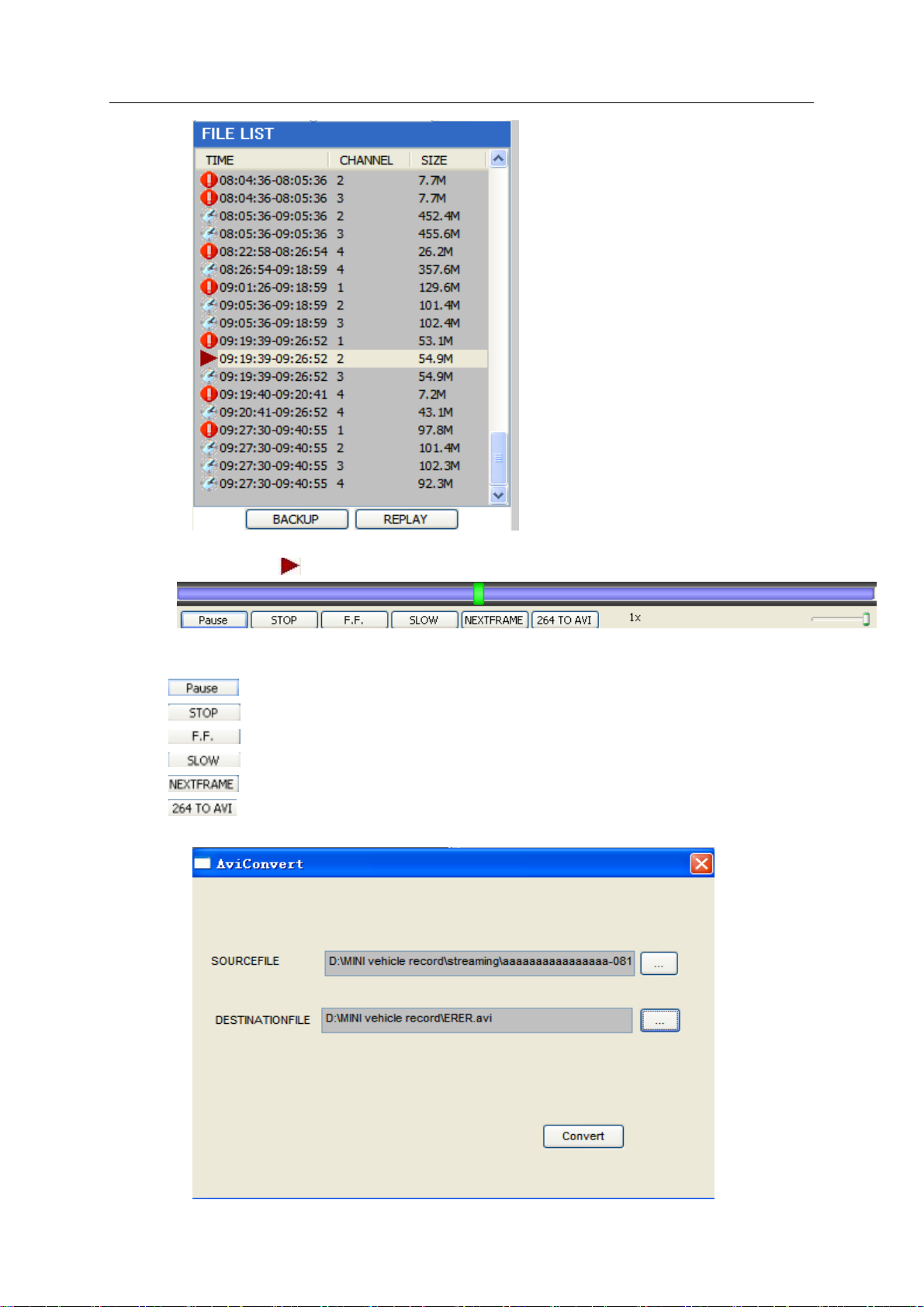

1. 【FILE LIST】,“CHANNEL”is the recording file which belong to which channel, “SIZE” is
display the size of this file（Unit:MB）, “TYPE” is display the type of recording file, there are two
types: normal and alarm,press“BACKUP”button can export the selected files to USB storage;
2. After moving the cursor up and down and select the files, and press【APPLY】to enter into
playback interface. If the all channels have recording files, it will be playback all windows at the
same time.
3. If setup as “on” in the【RECORD TIME】in 【BASIC SETUP】, it will show the date/time
when playback record file; If setup as “off”it will not display time.
4. When playback, can press【SLOW】to play slowly; press【FORWARD】and【REVERSE】
to speed、reverse play; also can press【PAUSE/STEP】to pause and frame by frame play; Press
【Exit】to exit from playback and return to the former menu;
5. When finished playback files, it will return to the file list interface.

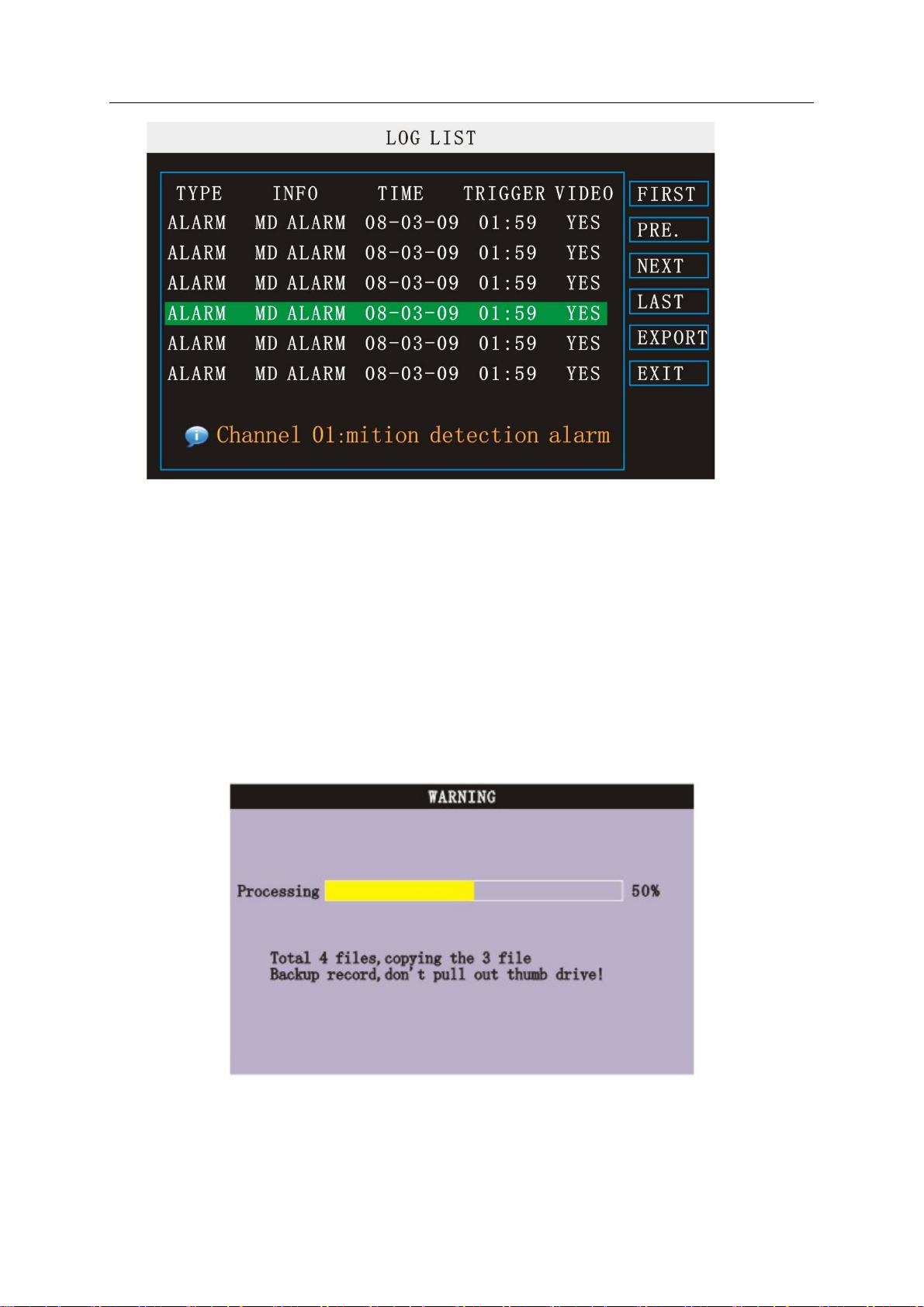

2. LOG SERCH
Move the cursor to “LOG SERACH” and press”APPLY”to enter into the log file list of DVR,
as follow window.
19
Page 20
INFO: means the alarm type.
TRIGGER: means the alarm triggered time.
VIDEO: means whether the log has corresponding video file.
3. BACKUP
You can use USB for backup, should insert USB device into the USB2.0 port before backup
files. And it is support USB OTG.
You can select the recording file by direction keys or 【＋】、【－】, and press【Enter】
means selected OK（There is a “√” at the end of the selected recording files）and press 【Enter】
again the “√” will disappear that means cancel the select, we can start export the recording files
after selecting, and press【BACKUP】to start to backup, as follow:
Instruction:
1．When the space in backup device less than recording file, the system will prompt “Space
no enough”.
2．You can move USB device directly when backup finished.
20
Page 21
2.2.3 DEVICES SETUP
Move the cursor to【DEVICES SETUP】（Icon highlighted when selected）,press【Enter】
to enter into setting interface.
Advanced Features include HDD, ALARM, PTZ, MOBILE and MOTION DETECT.

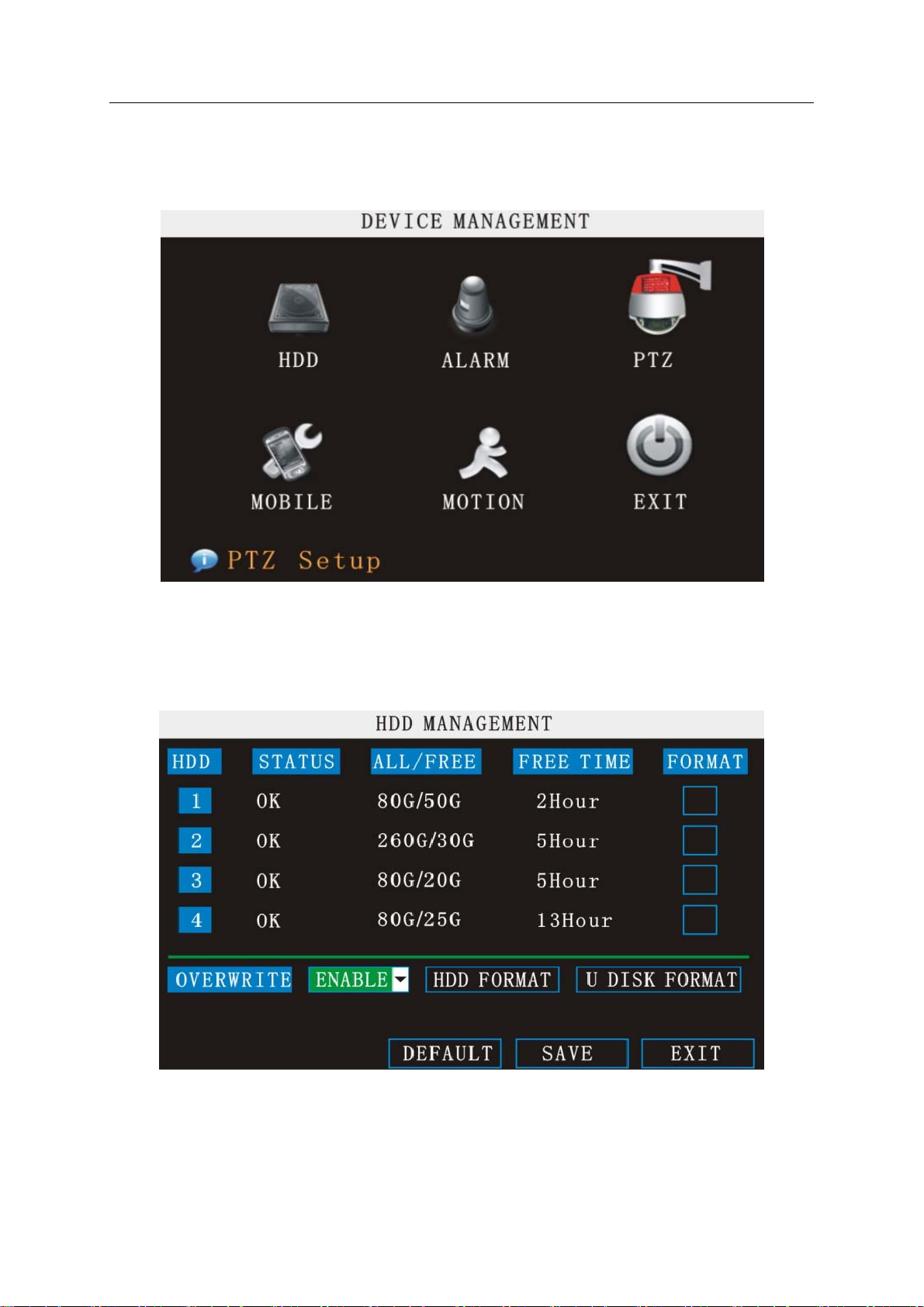

2.2.3.1 HDD MANAGE
Move the cursor to 【HDD】（Icon highlighted when selected）,press【Enter】to enter into
the setting interface, and you can use direction keys and cursor to change the options.
HDD STATUS: There status is ok means the HDD is ok. If HDD can not run normally（including
unformat and no HDD）, there is a 【H】display on video live view, 16CH DVR can support 4 HDD
at most, so you can select the HDD you want to format here.
OVERWRITE:ENABLE: means when HDD space less than 4G, it will delete HDD earliest
recording file, and it will stop deleting when the space is 10G; DISABLE: means when HDD
21
Page 22
space less than 500M it will stop recording, and an prompt will display in live view “please
shutdown and replace HDD”
HDD FORMAT: Move cursor there to select device and press【APLLY】 to start formatting.
U DISK FORMAT: format the external thumble drive.
2.2.3.2 ALARM SETUP

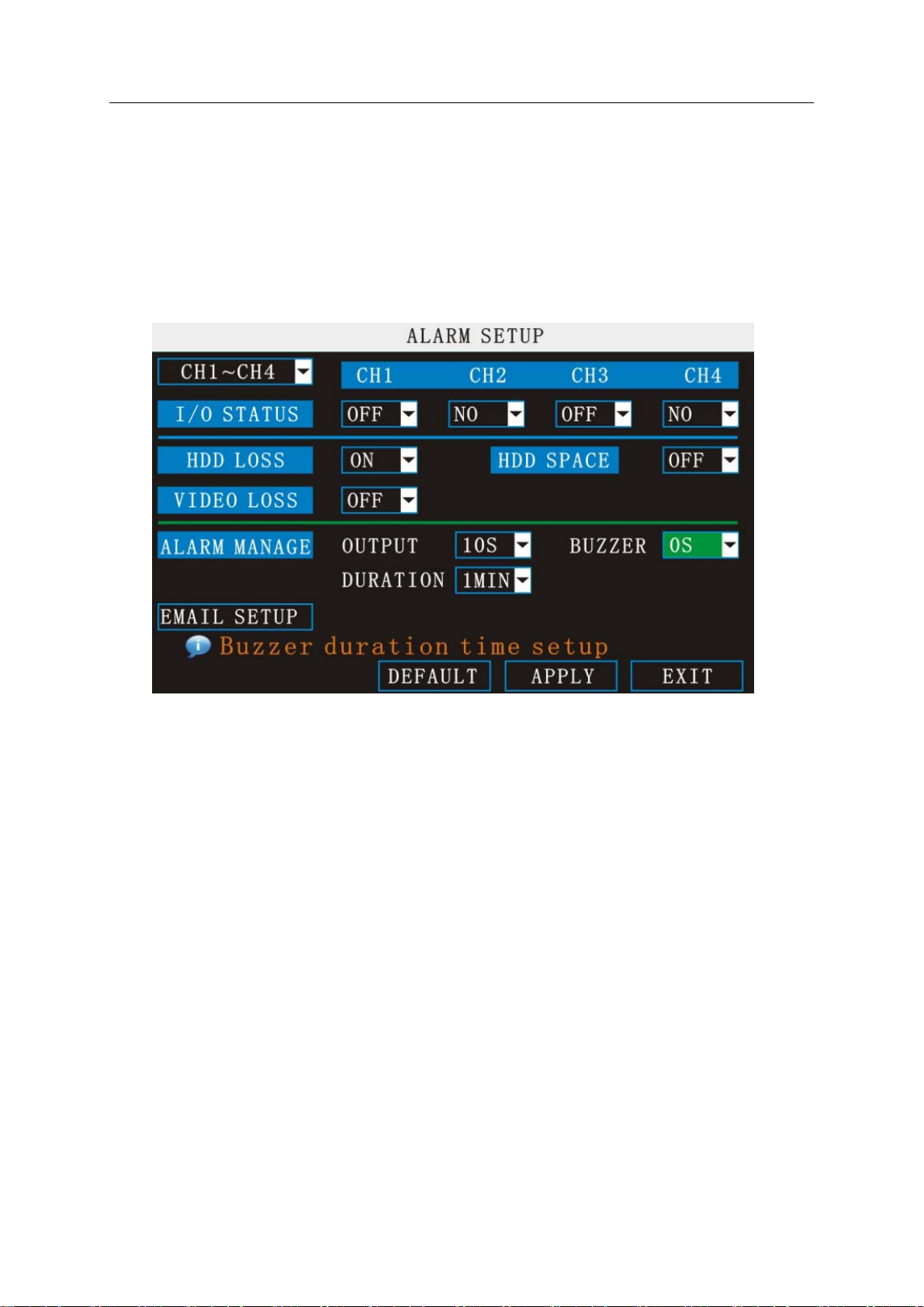

Move the cursor to【ALARM SETUP】（Icon highlighted when selected）,press【Enter】to
enter into setting interface.
CH1~CH4: you can select the CH1~CH4, CH5~CH8, CH9~CH12, CH13~CH16 here.
I/O ALARM: Each channel has an I/O status, that is, when an alarm triggered, it will activate the
corresponding channel to start alarm recording.
N.O: indicate I / O input level from high to low effective
N.C: indicate I / O input level from low to high effective
HDD LOSS:ON means it will trigger a alarm if there is no HDD, and it will display an 【H】
On the bottom left of channel 1 in the live view
HDD SPACE: ON: If the space less than 500M, there is a remark in live view: No enough space,
please change HDD after shutdown.
VIDEO LOSS: ON: when one channel has no video input, it will display “video loss”in live view.
ALARM MANAGE: There are alarm output, buzzer and post REC three items.
OUTPUT: when an alarm triggered, the alarm output time will be:
0 second、10 seconds,20 seconds,40 seconds and 60 seconds
● BUZZER: buzzer calling time setup when alarm triggered: 0 second,10
seconds,20 seconds,40 seconds and 60 seconds
● POST REC.:post recording time setup: 30 seconds,1 minute,2 minutes and 5
minutes
EMAIL SETUP: not finished yet.
2.2.3.3 PTZ SETUP

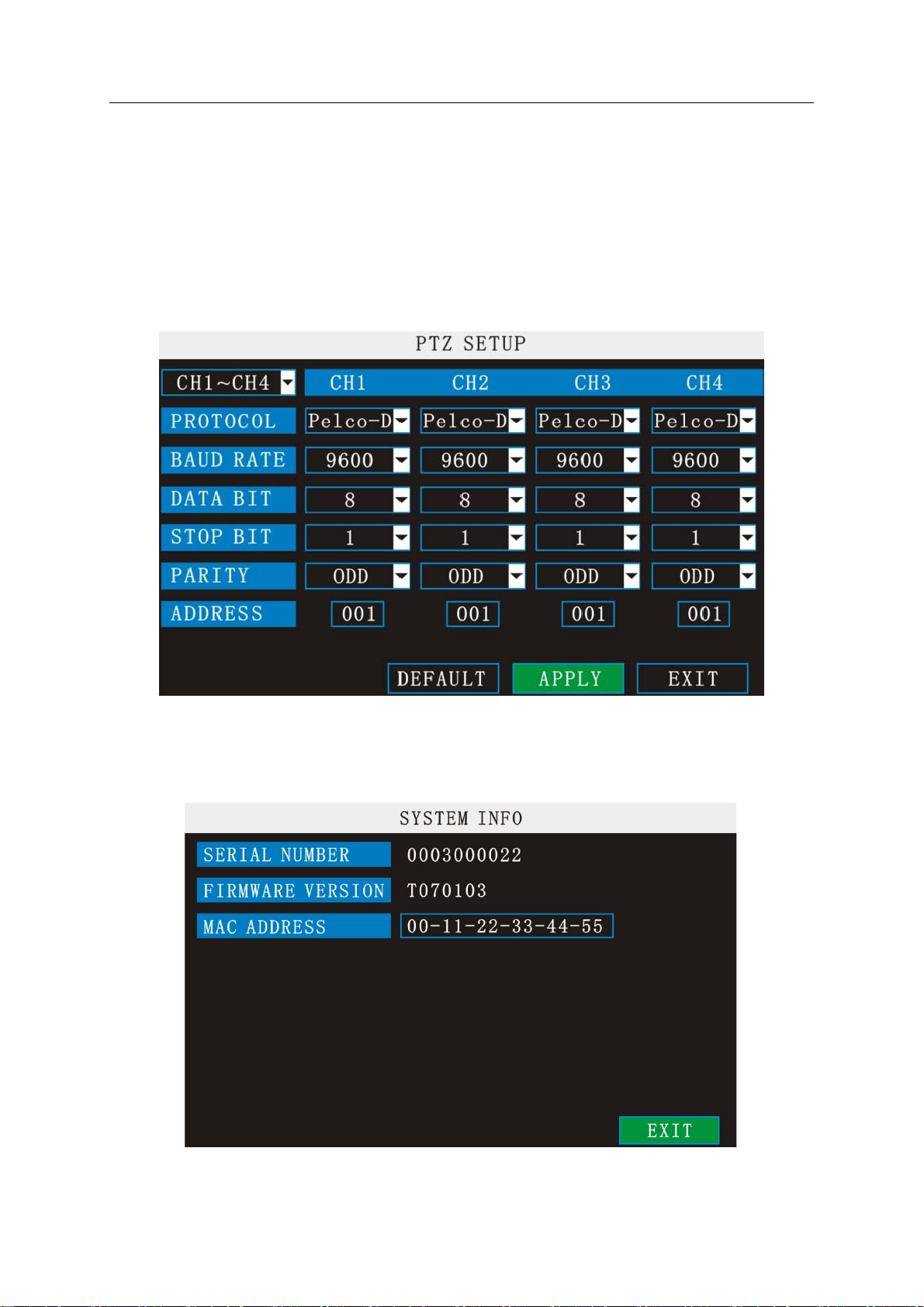

Move the cursor to【PTZ SETUP】（ Icon highlighted when selected）,press【Enter】to enter
22
Page 23
into setting interface, you can setup the parameters for each channel separately.
CH1~CH4: you can select the CH1~CH4, CH5~CH8, CH9~CH12, CH13~CH16 here.
PROTOCOL: select the protocol of different PTZ, there are two protocols to switch, and the
default is Pelco-D
BAUD RATE: select the different baud rate for your PTZ, there are 1200, 2400, 4800, and 9600
DATA BIT: there are 5,6,7,8 options to select, default setting is 8.
STOP BIT: there are 1and 2 to select, the default setting is 1.
VERIFY: there are None/Odd/Even/Mark/Space to select, the default setting is none.
ADDRESS: Fill the code of respective PTZ
2.2.3.4 SYSTEM INFO
Move the cursor to 【SYSTEM INFO】（Icon highlighted when selected）,press【Enter】to
enter into setting interface, at this interface mainly display system hardware features and
firmware version, include : Software version, MAC address and serial number.
23
Page 24
2.2.3.5 MOBILE

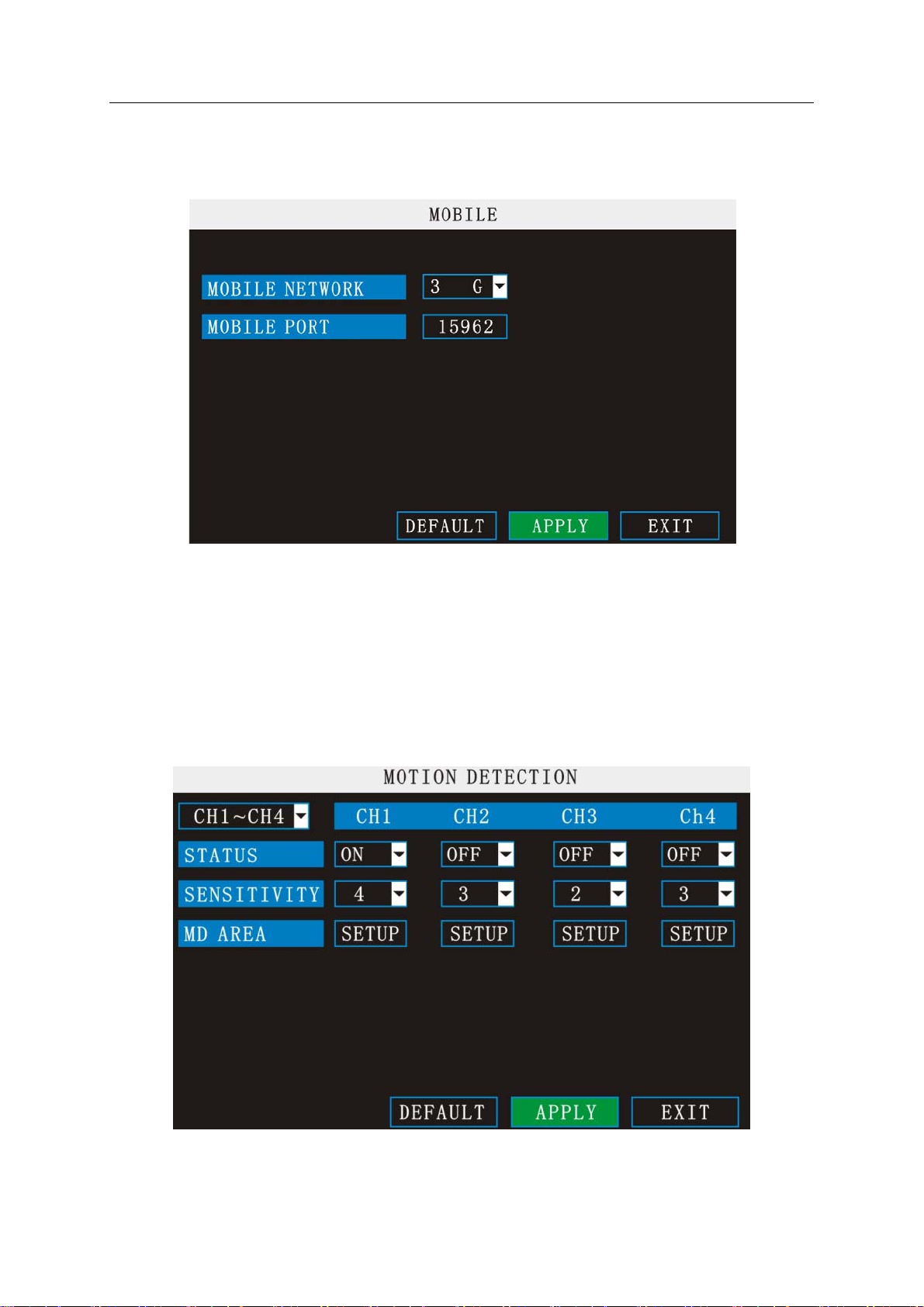

Move the cursor to【MOBLE】（ Icon highlighted when selected）,press【Enter】to enter into
setting interface.
CHANNEL SELECTION: select the channel for mobile view, and press [Enter] to switch
different channels.
MOBLESS LAN: Select different mobile network from the options of 3G, 2.5G and 2.75G,
and press [Enter] to switch different network.
PORT: the port for mobile view, you should open the port in the router for mobile view.
2.2.3.6 MOTION DETECT
Move the cursor to【MOTION DETECT】（Icon highlighted when selected）,press【Enter】
to enter into setting interface.
CH1~CH4: you can select the CH1~CH4, CH5~CH8, CH9~CH12, CH13~CH16 here.
STATUS: Each channel has corresponding channel switch, press 【Enter】to turn on or turn off
the motion detection for each channel..
24
Page 25
SNESITIVITY:Each channel has corresponding sensitivity setting, including four standards
high,higher,medium and low, press【Enter】key to switch
MD AREA: each channel has corresponding regional motion detecting setting, move the cursor
to corresponding 【setting】,press【Enter】to enter regional setting interface, red area means it
have activated motion detection, transparent block means it have not activated motion detection.
Move the direction key on remote control to make cursor move in the small pane, green
frame means the cursor has moved to this pane, press【Enter】to select or cancel motion
detection of this small pane, when setup finished, press【exit】to back to MD setup interface, it will
save automatically.
Remark:
IR Operation: press [Menu] key to select or cancel the entire screen.
Mouse operation: click left and drag the frame to setup the region for motion detection.
2.2.3.7 SYSTEM MAINTAIN
Move the cursor to 【SYSTEM MAINTAIN】(icon highlighted when selected), and press
【Enter】 to enter into system maintain setup interface.
25
Page 26

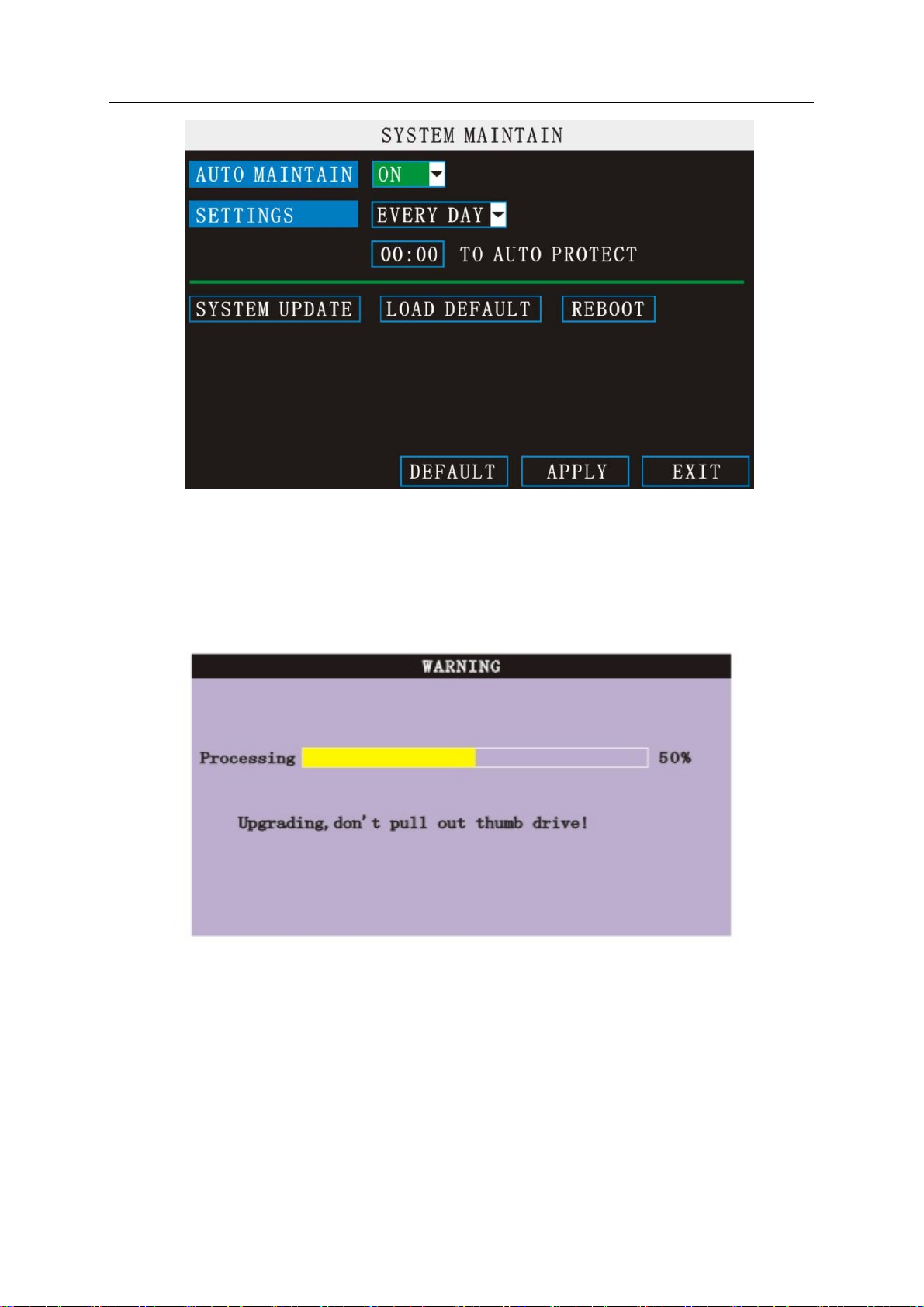

AUTO MAINTAIN: When switch is on, you can setup the time for device to restart.
SYSTEM UPDATE: Copy the update file to the dvrupgrade folder in the root directory of the
thumb driver, and insert it into USB 1.0, then press [Enter] to upgrade the firmware, and it will
display the process of the system upgrading, as following:
LOAD DEFAULT: Restore all the settings as the factory setting.
REBOOT: means restart the device.
2.2.3.8 EXIT
Move the cursor to【EXIT】（ Icon highlighted when selected）,press【Enter】to back to main
menu.
26
Page 27

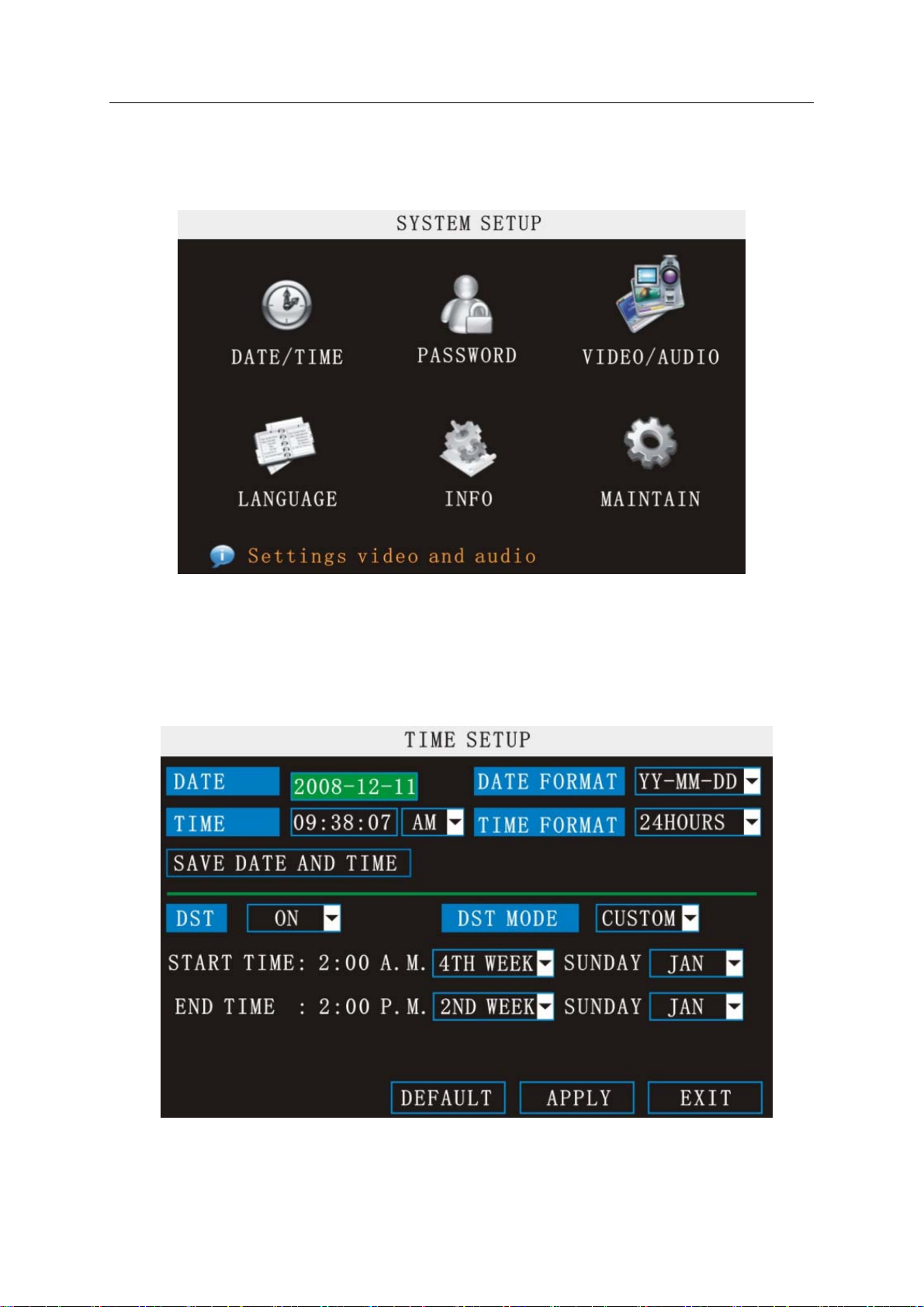

2.2.4 SYSTEM SETUP
Move cursor to select “SYSTEM SETUP” (The big icon means selected)and press【ENTER】
to enter into the system language setup interface.
System setups include time/date, password, video/audio, language, info and maintain six
options.
2.2.4.1 DATE/TIME SETUP
Move cursor to select “date/time” (icon highlighted when selected)and press【ENTER】to
enter into the date/time setup interface.
DATE: Setup system date via numeric key.
DATE FORMAT: Press ENTER to switch between the date patterns, there are YY-MM-DD
and MM/DD/YY two options.
27
Page 28
TIME: Setup system time via numeric key.
TIME FORMAT: Press ENTER to switch between the date patterns, there are 12 HOURS
and 24 HOURS two options.
Remark: You must move the cursor to the 【MODIFY TIME AND DATE】 and press
【APPLY】 to save it, otherwise it won’t save the modify if you exit this interface.
DST: DST settings, you can setup DST as you want here.
2.2.4.2 PASSWORD
Move the cursor to【PASSWORD】（Icon highlighted when selected）, press【Enter】to enter into
the setting interface.
DEVICE ID: Press number key to setup the unite ID
PASSWORD: Press【APPLY】 to start or close user password. If it is “ENABLE”, you must
input password when log in, otherwise, you can enter into main Manu directly.
USER PASSWORD: Press number keys to setup user password.
ADMIN PASSWORD: Press press number keys to setup admin password.
NETWORK PW CLEAN: Means the password for IE, if you select it, you can reset the IE
password, the default password is blank.

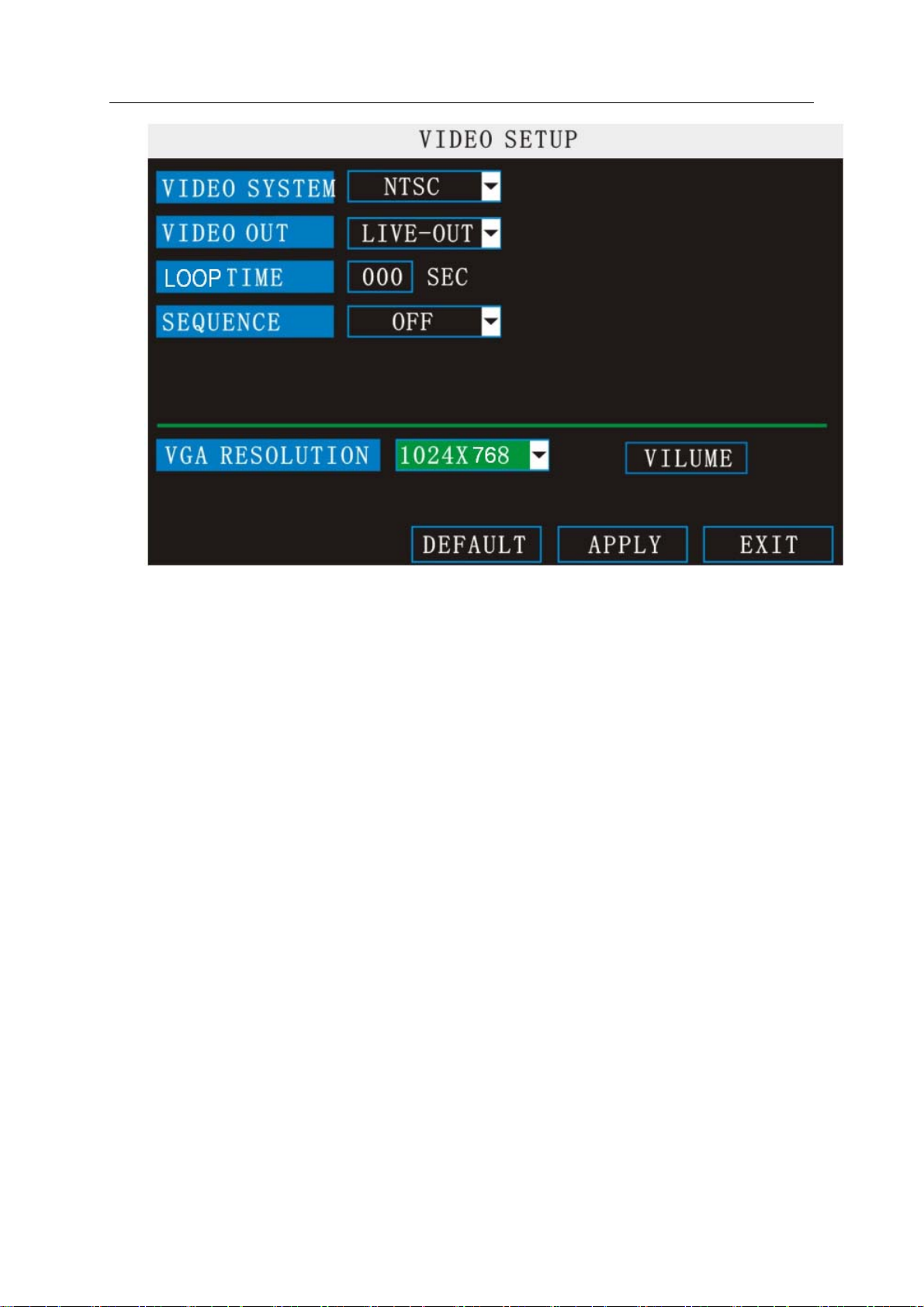

2.2.4.3 VIDEO/AUDIO SETUP
Move the cursor to【VIDE/AUDIO SETUP】（Icon highlighted when selected）,press【Enter】
to enter into setting interface.
28
Page 29
VIDEO SYSTEM: press【Enter】to switch camera system, has PAL and NTSC two options
VIDEO PORT: there are two options: live-out and spot-out, correspond with the two video
out on the back panel of DVR, live out means it will display the channel loop function, and
spot-out means just display the live view.
DWELL TIME: the interval for channel loop function
SEQUENCE: you can setup the channel sequence as you want here.
VGA RESOLUTION: press【Enter】key to setup the VGA resolution, there are
1024*768、 800*600 two options.
VOLUME: move cursor to【VOLUME SETUP】,press【Enter】to enter into volume setup
interface, press number keys or directly drag the cursor to adjust volume.
Remark: it will restart if you modify the video system or VGA resolution.
2.2.4.4 LANGUAGE
Move cursor to select “system language” (The highlighted when selected)and press
【ENTER】to enter into the system language setup interface.
29
Page 30

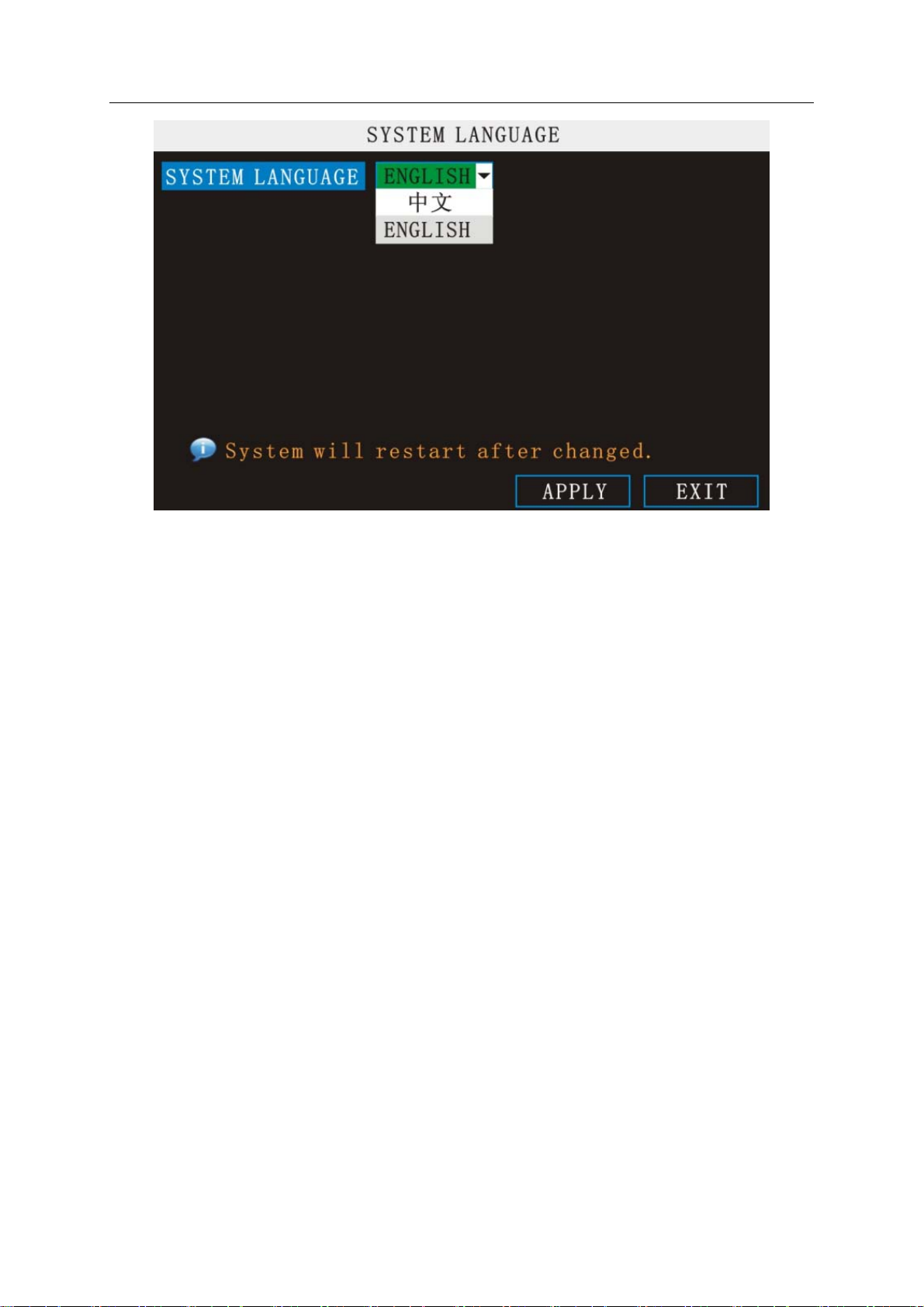

System language have Chinese and English two options, you can setup the language you
want in here.
Remark: The device will restart when you setup system language success.
30
Page 31
3 IE OPERATION
3.1 FEATURE
Through the IE browser of OS and install the software, you are able to do the network
operation remotely, which is much more convenient. DVR support C/S, B/S, and visit in LAN and
WAN, also support IP and domain name visiting.
Remark: Operating system Windows XP, Windows Vista and Browser IE6.0, IE7.0 is
recommended
3.2 USER LOGIN
Input the DVR local IP in IE browser, when changed the port, you should add the port
number after IP address, e.g. if DVR local IP is 192.168.3.97 (LAN) and the port is 8088, you
should input
192.168.3.97
http:// 192.168.3.97:8088. The default port is 8088, and directly input http://

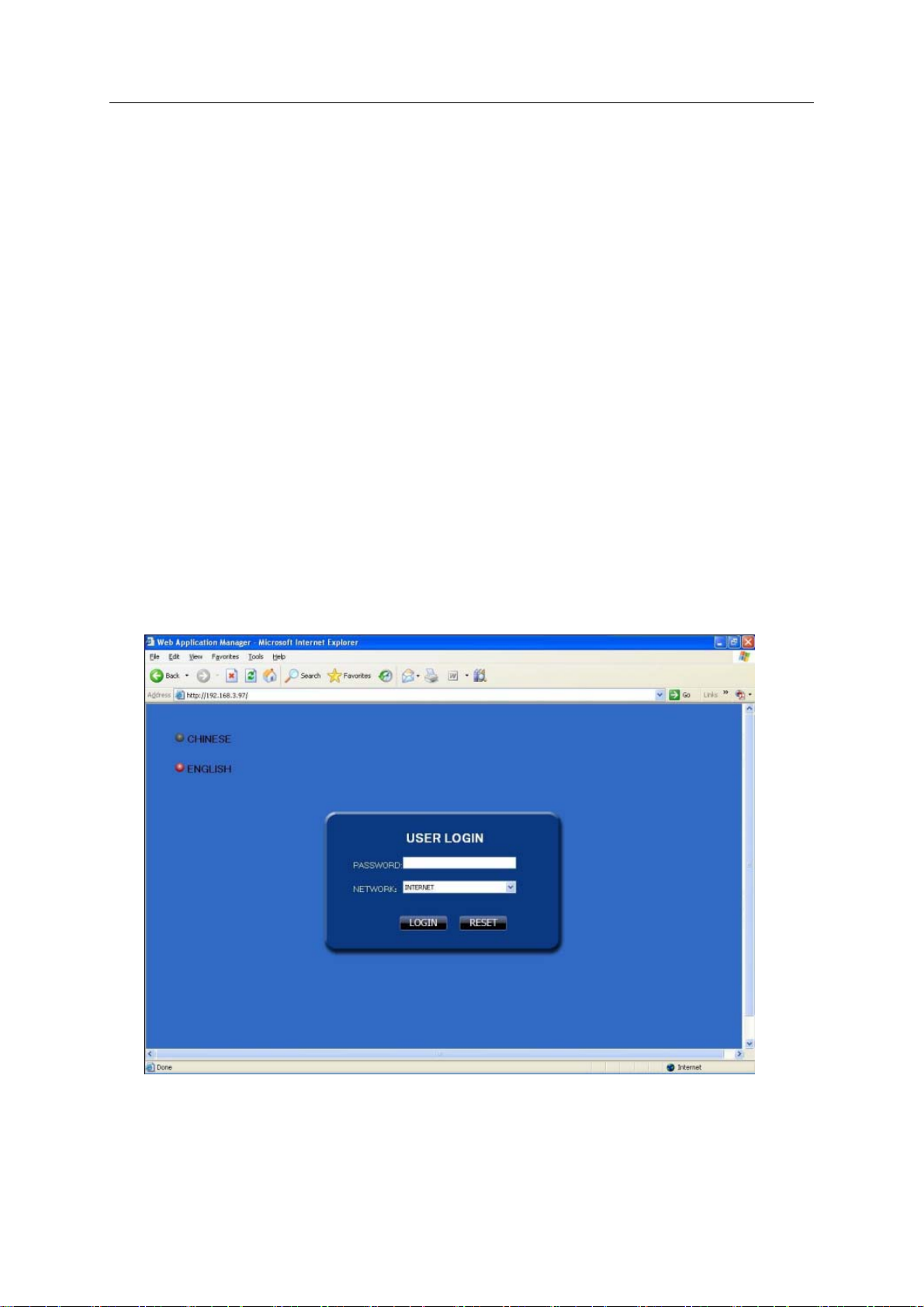

to access the login interface as following.
Select English interface in the top left side. Input username and password to enter into the
system. The username and passport is same as the ones set in DVR.
PASSWORD: Administrator has all authorities, operator has limited authorities who they can
only watch, playback, please change the unit No. and default password is blank.
NETWORK: LAN/WAN
31
Page 32
Remark: If you connect the device in WAN, the IP should be a public IP.
3.3 OPERATION INTERFACE
There are Live view, Playback and Setup options in the main interface, please press them to
access it.

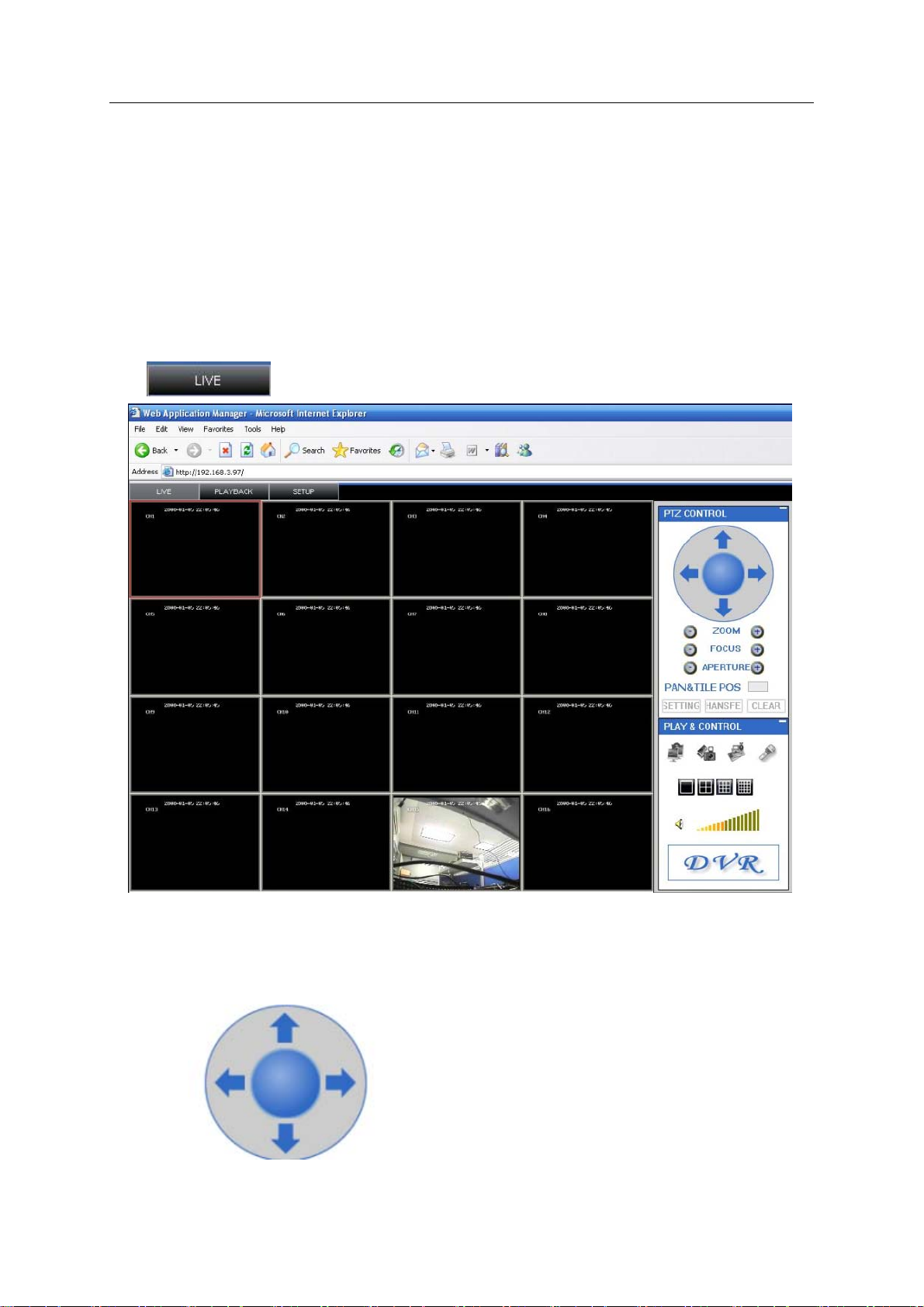

3.3.1 LIVE
Click
to enter into the interface as followings
3.3.1.1 PTZ CONTROL
Change the focus, preset aperture to control the PTZ.
Click
to up/down/left/right control movement of the PTZ. When
hold on the one direction key, the PTZ will keep circling as that direction after user press the stop
32
Page 33
key in the center of the wheel.

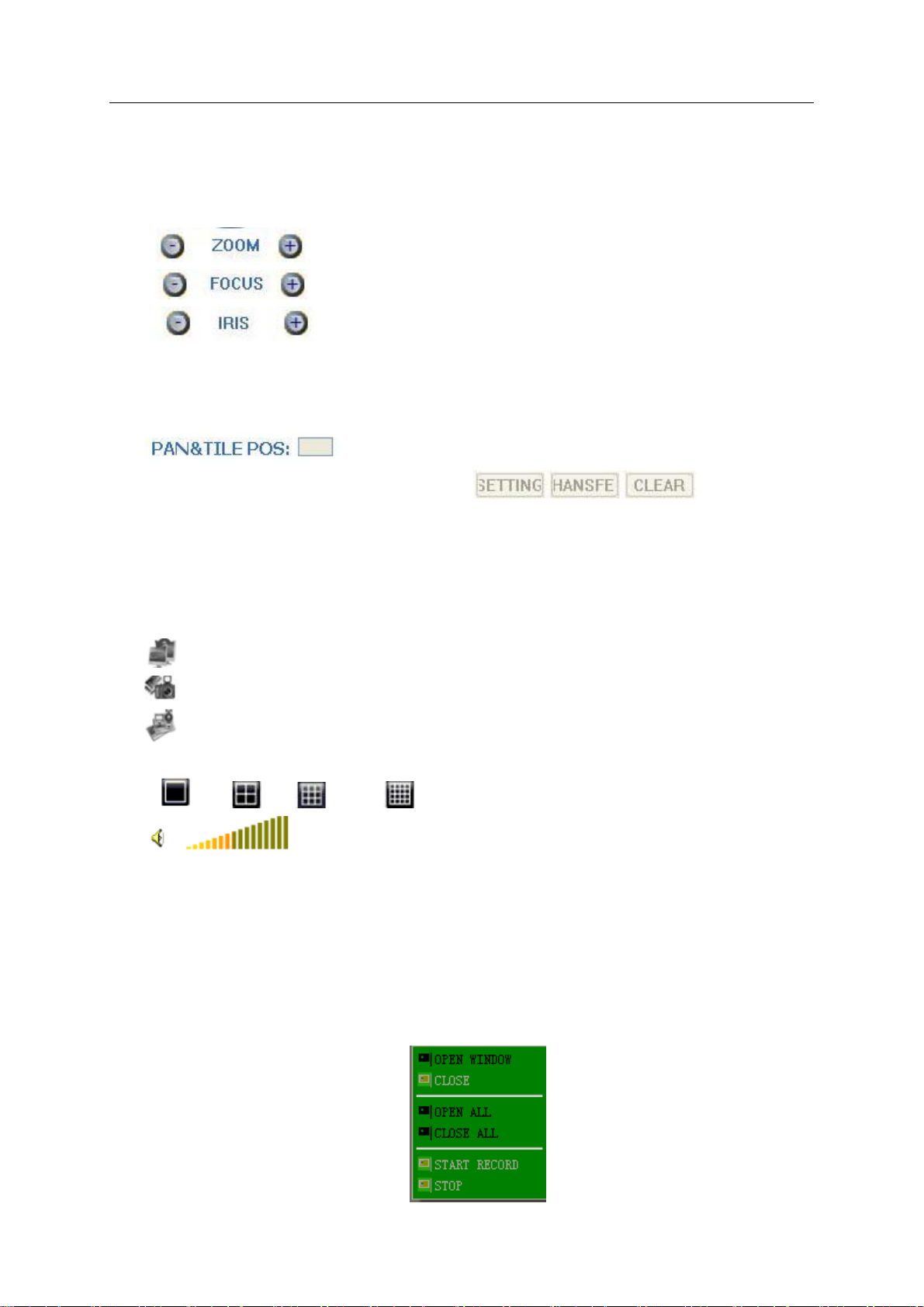

3.3.1.1.1 ZOOM
Click
Click
Click
to zoom in and out.
to focus
to change the size of aperture
3.3.1.1.2 PTZ PRESET
Setup preset point.
You can control it via the below three buttons:
3.3.1.2 PLAY
Move cursor to the icons, it will highlighted when selected
Open all windows.
Capture picture, save in local disk, the default save path is C:/DVR
Quickly start all channels’ recording video, here the left up corner of each channel
have normal recording video symbol 【 R 】 , click icon to switch between single
screen
/quad /nine /16 split .
Volume adjust button
3.3.1.3 OTHER OPERATION
1. Select one channel at preview screen (the selected channel’s frame will be change to RED),
double click left key, enter to the selected channel single screen display.
2. Click one Chanel via left key at preview screen, then click right key, will occur window shortcut
Menu, see below picture
33
Page 34
You can open, shut down and start this channel’s record via shortcut menu.
3.Click right key at one live view screen, click” open all windows” or “ close all windows”, will
quickly open/close all windows.

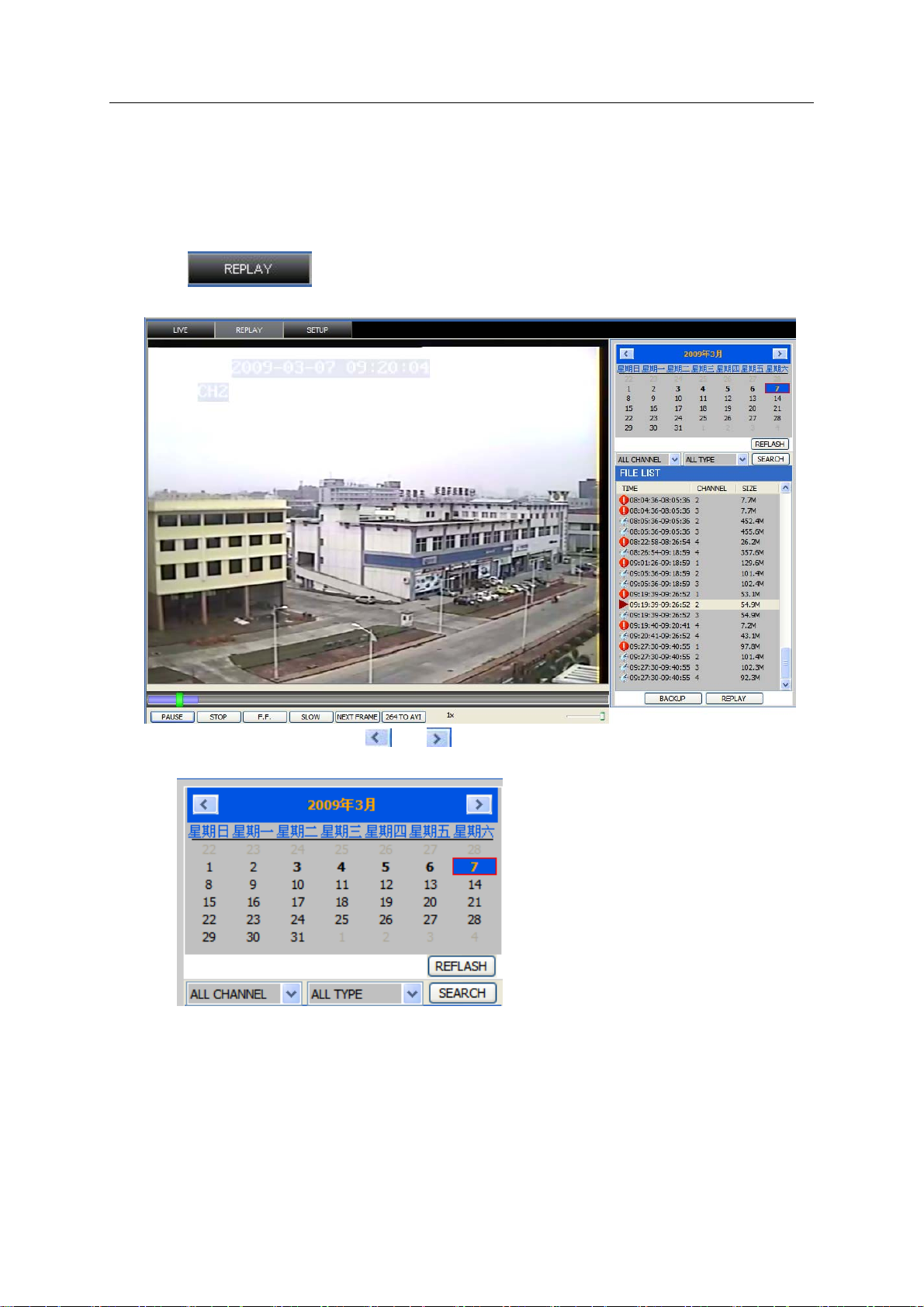

3.3.2 REPALY
Click
to enter into remotely playback interface, which is to playback the
record file in DVR.
Click right up of calendar interface
and , to setup the month for searching, click”
refurbish”, at the calendar interface will display the recording information of current month
The highlighted date means that day have recording video, RED FRAME means the date
is system date, click the date will search that days’ recording file list. For example, the above
picture display 2008, Dec. 3
th
system date is 18
, Dec, 2008, currently search date is 17th, Dec.
rd,4th,5th,6th,8th,9th
,10th,11th,12th,17th,18th have recording video, and
At the below of calendar select channel and type, click SEARCH, the result will display,
as follow.
34
Page 35
Double click one item of listed recording video, the recording video will playback, meanwhile the
file icon will change to
, and will occur the below picture play buttons:
The above purple progress bar shows download progress, green progress bar shows playback
progress
Switch between pause/play
Stop play
Fast play
Slow play
Pause at next frame
Convert H.264 file to H.avi file, click this button access into file convert
setting interface, as follow.
35
Page 36
SOURCE FILE: Click to setup the H.264 file to convert
DESTINATION FILE: Click
to setup the directory for saving AVI file
After setting, click , file convert start, the convert progress bar (see below
picture) will see the progress of convert.
3.3.3 SETUP
Click
to enter into setup interface, this interface include record, alarm, PTZ,
network, setting and system information six menus.

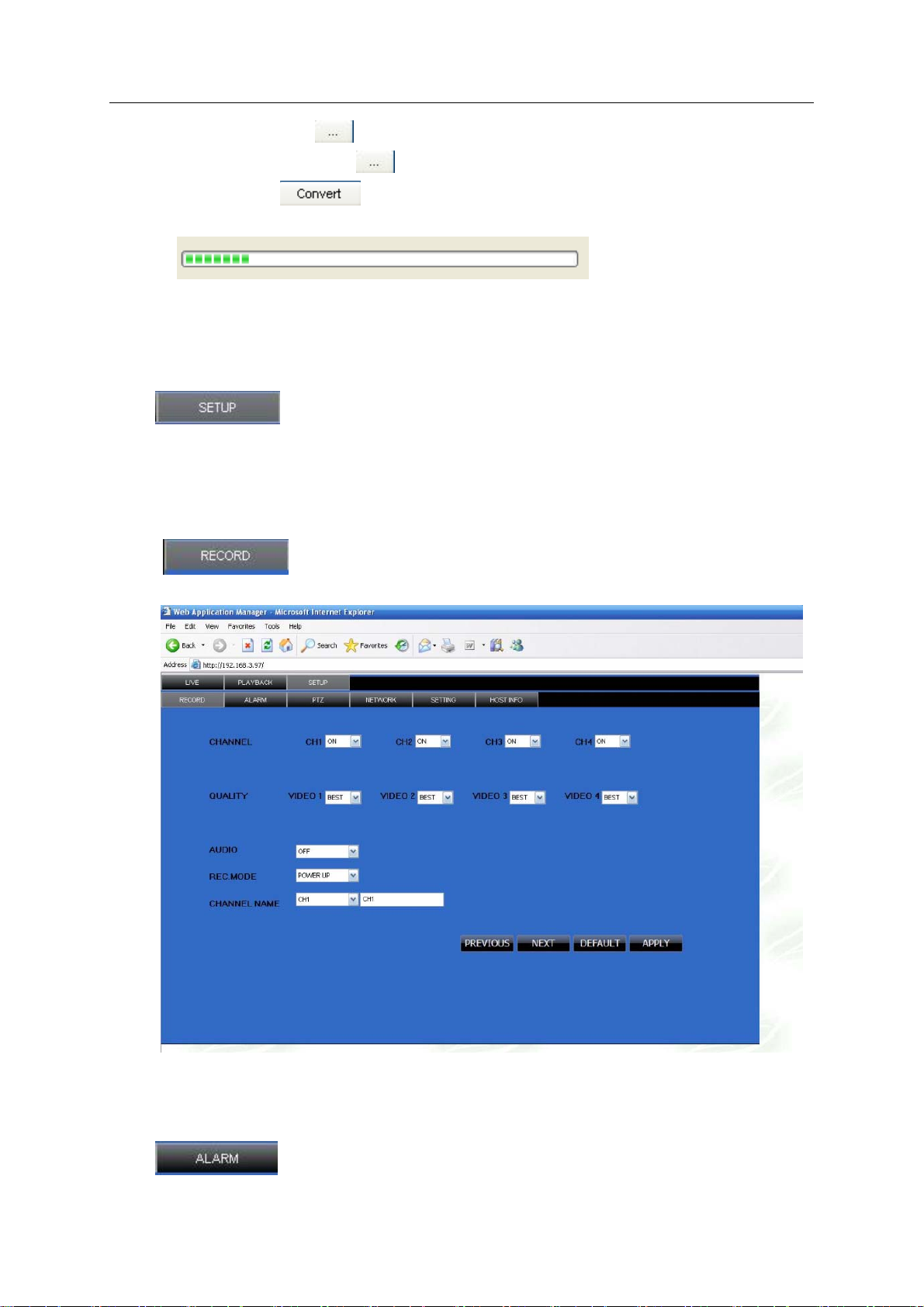

3.3.3.1 RECORD
Click
to enter into setup interface; you can check the parameter settings as
in GUI of DVR.
3.3.3.2 ALARM
Click
GUI of DVR.
to enter into setup interface; you can check the parameter settings as in
36
Page 37

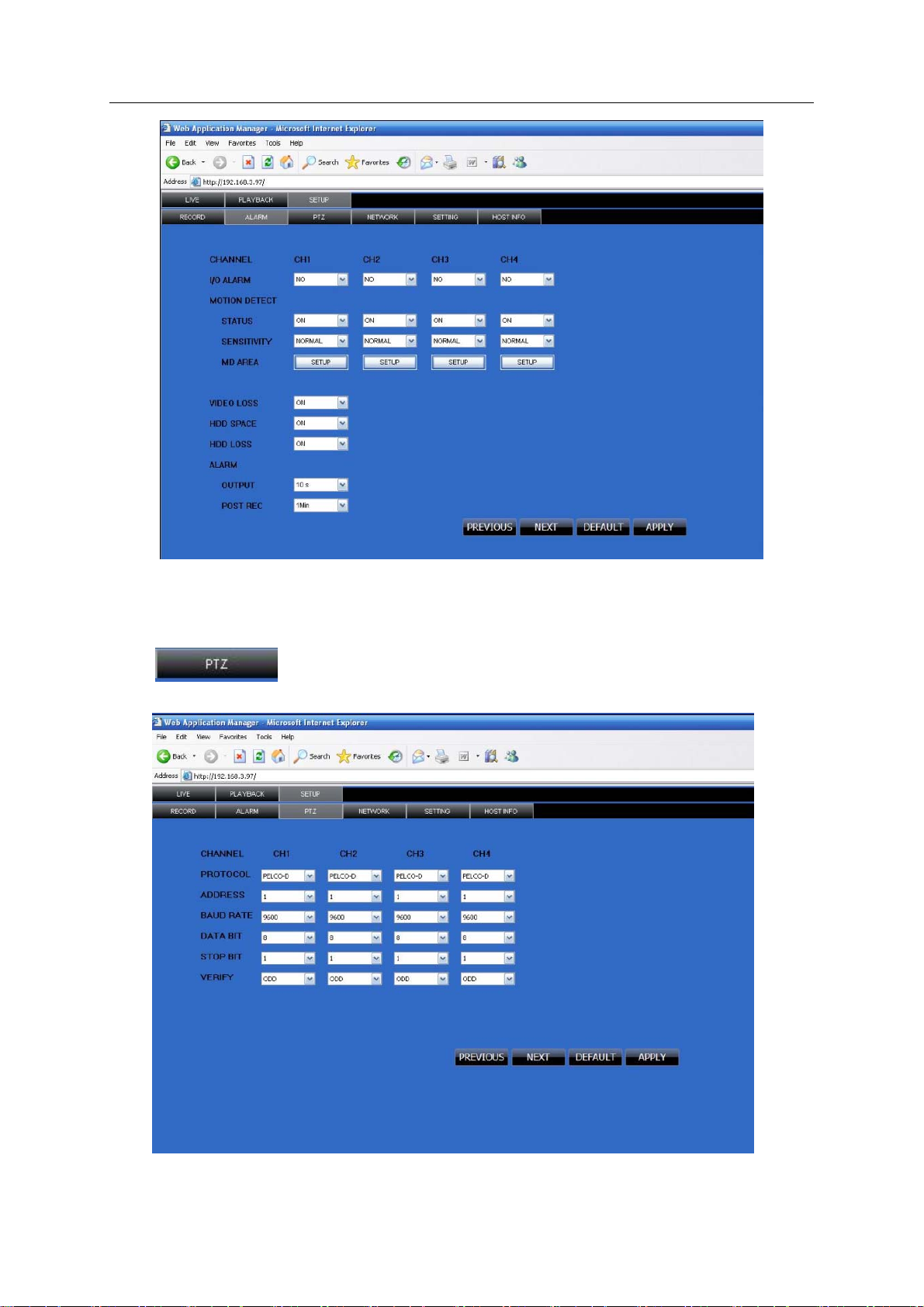

3.3.3.3 PTZ
Click
f DVR. GUI o
to enter into setup interface; you can check the parameter settings as in
37
Page 38

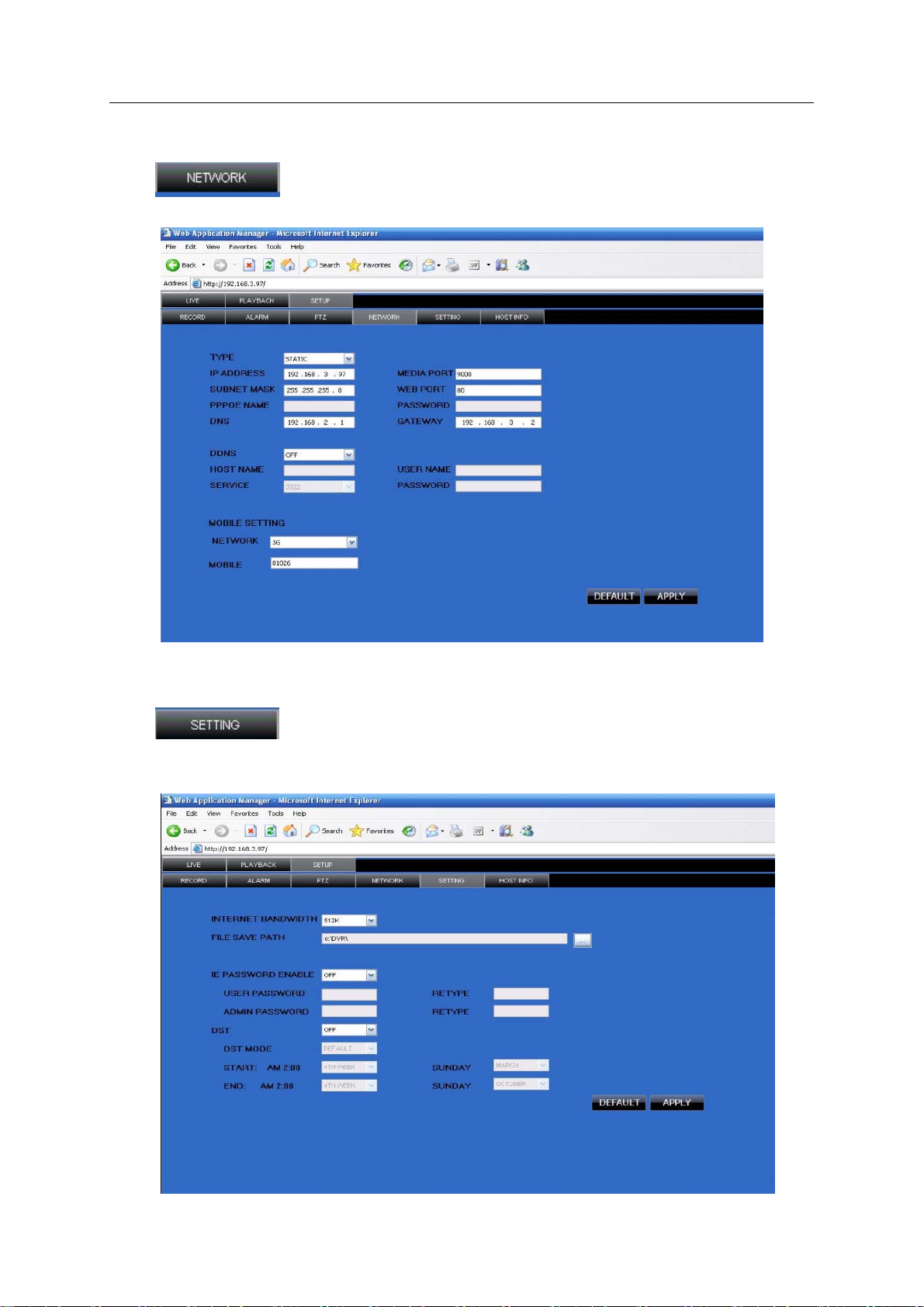

3.3.3.4 NETWORK
Click
GUI of DVR.
to enter into setup interface; you can check the parameter settings as in
3.3.3.5 SETTING
Click
to enter into setup interface; you can check the parameter settings as in
GUI of DVR.
38
Page 39
BANDWIDTH: Set the amount of bandwidth in kbps (128k、192k、256k、384k、512k、1024k) that
you want to allocate for traffic that matches internet, this bandwidth not include audio.
Remark: the normal ADSL network is between 256k and 384k
FILE SAVE PATH: capture picture and recording video save path.
IE PASSWORD: setup the password when you login IE
DST settings you can check as DVR setting.

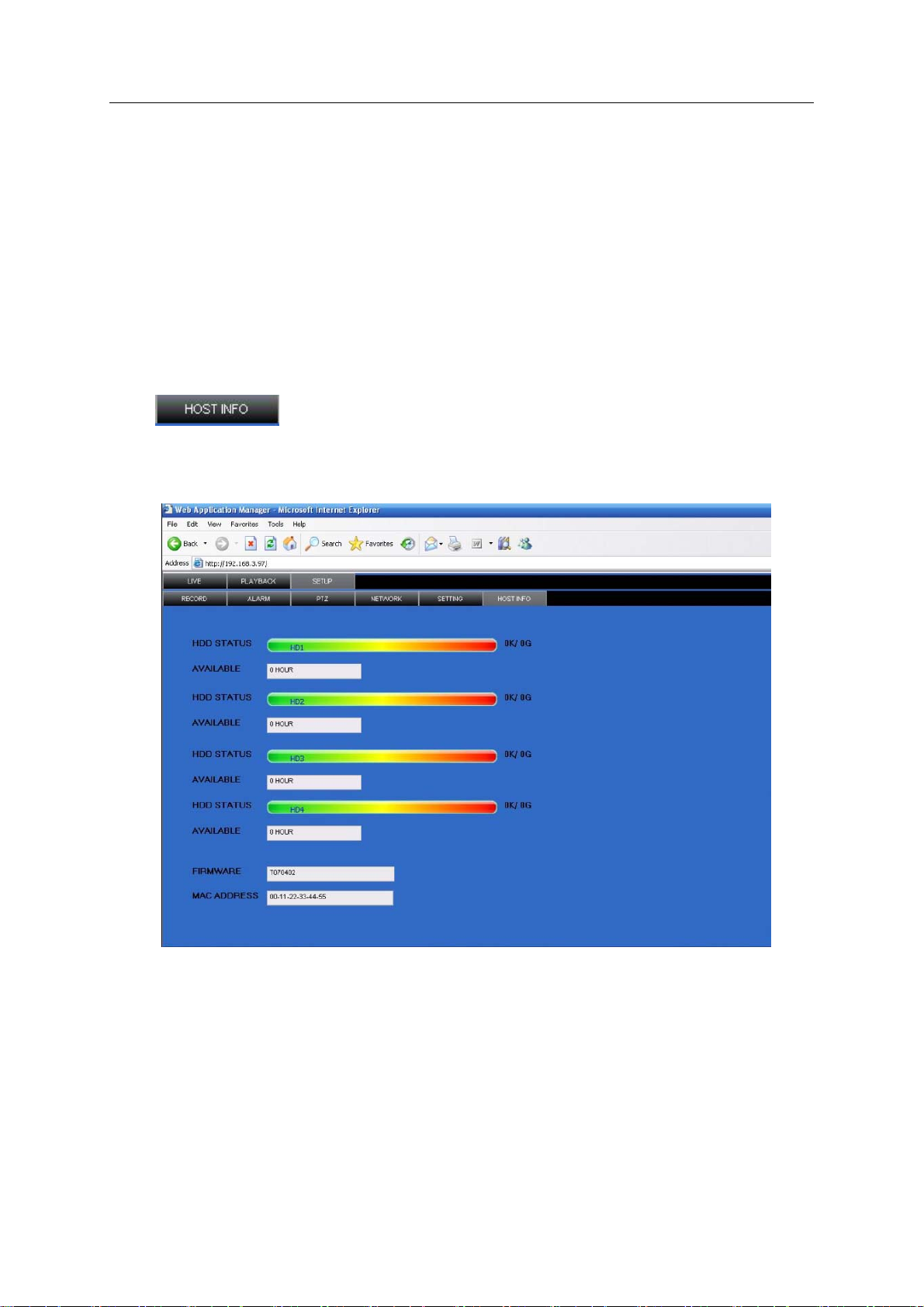

3.3.3.6 HOST INFO
Click
to enter into system information interface (see below picture), this
interface shows HDD status, remain record time, firmware version, MAC Address, and all the
information is fixed.
39
Page 40
4 DVR INSTALLATION
4.1 PRODUCT OVERVIEW

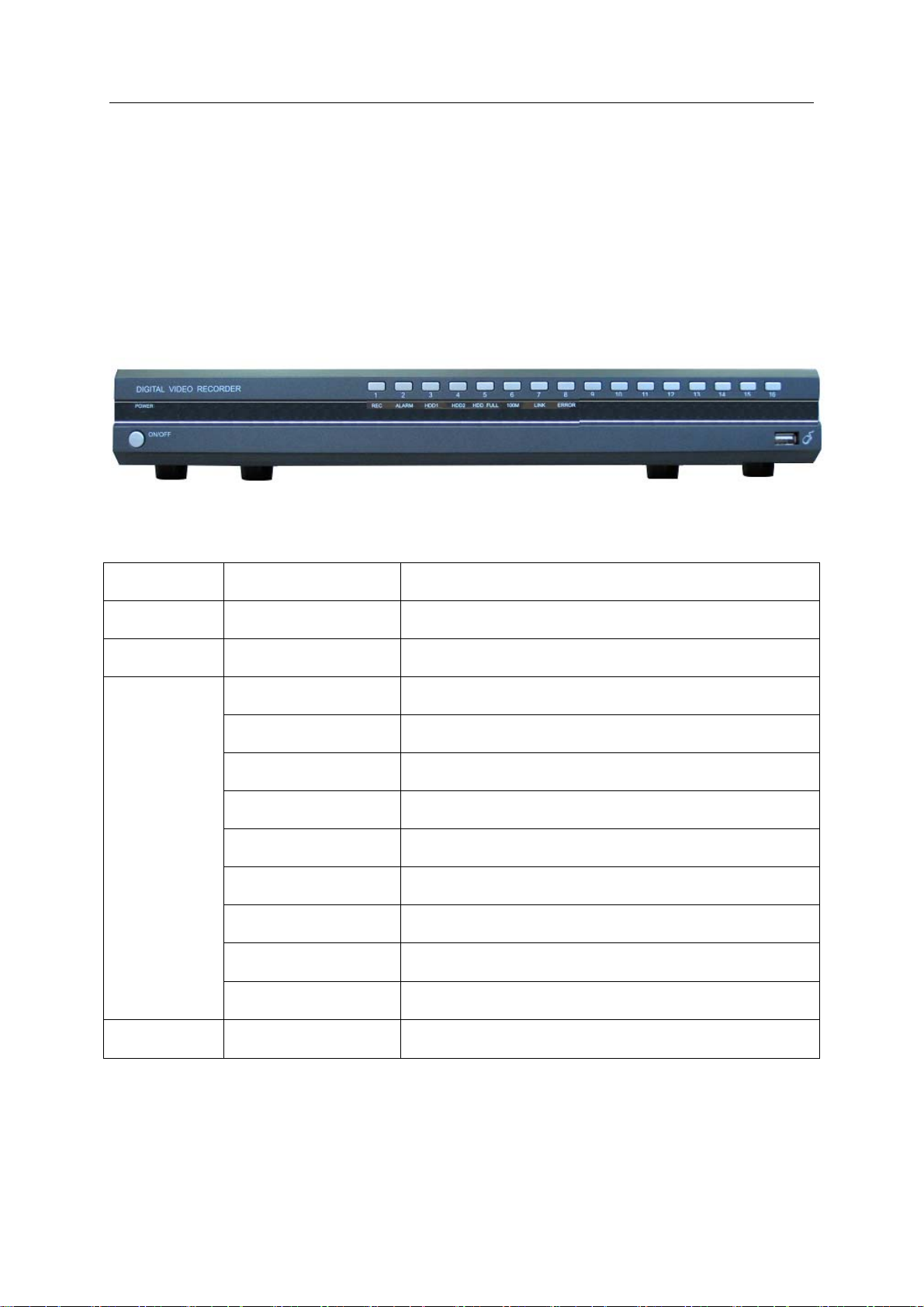

1. The Definition of Buttons and Connectors on Front Panel
Buttons on Front Panel
Item Silk-Screen Description
1 ON/OFF POWER ON/OFF
2 Mouse USB mouse
4
REC
ALARM
HDD1
HDD2
HDD FULL
100M
LINK
ERROR
POWER
On means the HDD is full.
On means network is 100M
On means network has connected
Recording
Alarm
HDD1 Status
HDD2 Status
Error
Power
5 IR
Remote control receiver
40
Page 41

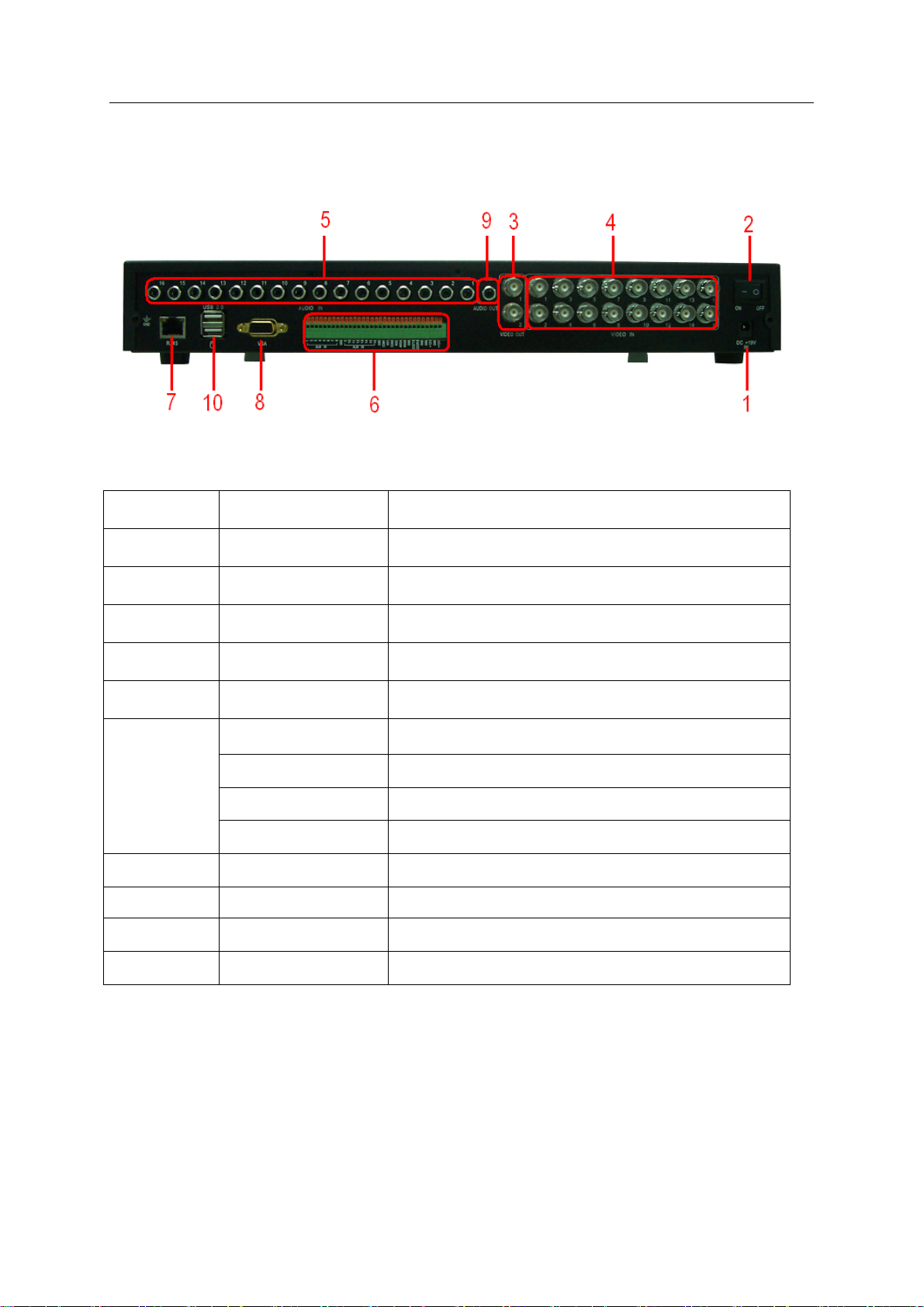

2. The definition of buttons and connectors on fear panel
Connectors on Rear Panel
Item Physical connector Connector description
1 POWER input DC 19V/3A
2 POWER SWITCH POWER ON/OFF
3 Video output Two video output for connecting TV or monitor (BNC)
4 Video input For connecting analog video signal input (BNC)
5 Audio Input For connecting audio signal
Alarm Input 8 I/O alarm input
Alarm Output I/O output for alarm
6
RS485 RS 485 for connecting PTZ
RS232 For connecting PC
7 Network For connecting Ethernet
8 VGA For connecting VGA monitor
9 Audio Output For connection audio output
10 USB USB2.0/USB mouse
41
Page 42

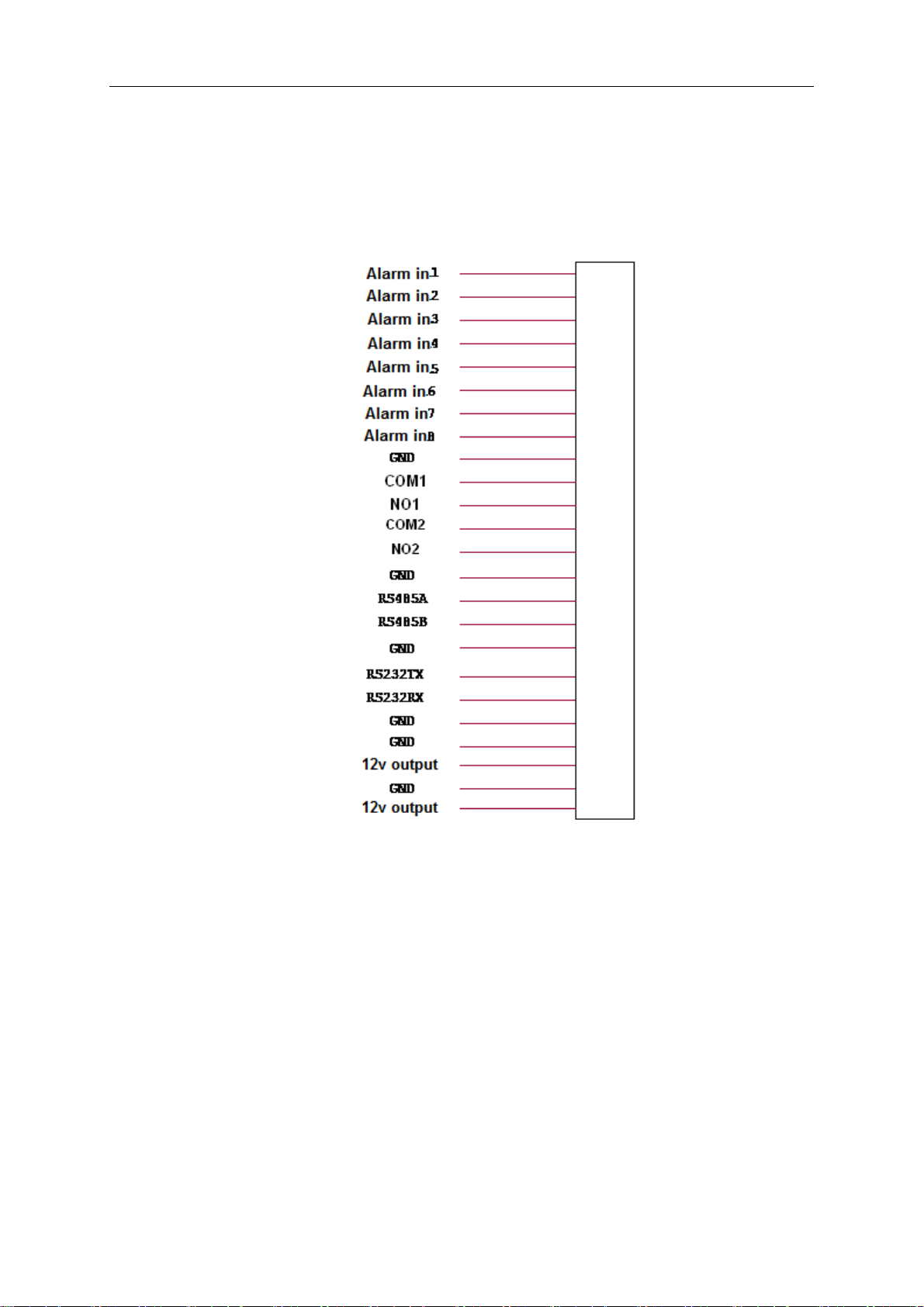

3. Connectors for Alarm
Peel off the color skin of the cable and then insert the cable into the slot on the rear panel
DVR (The connection part for alarm).
42
Page 43

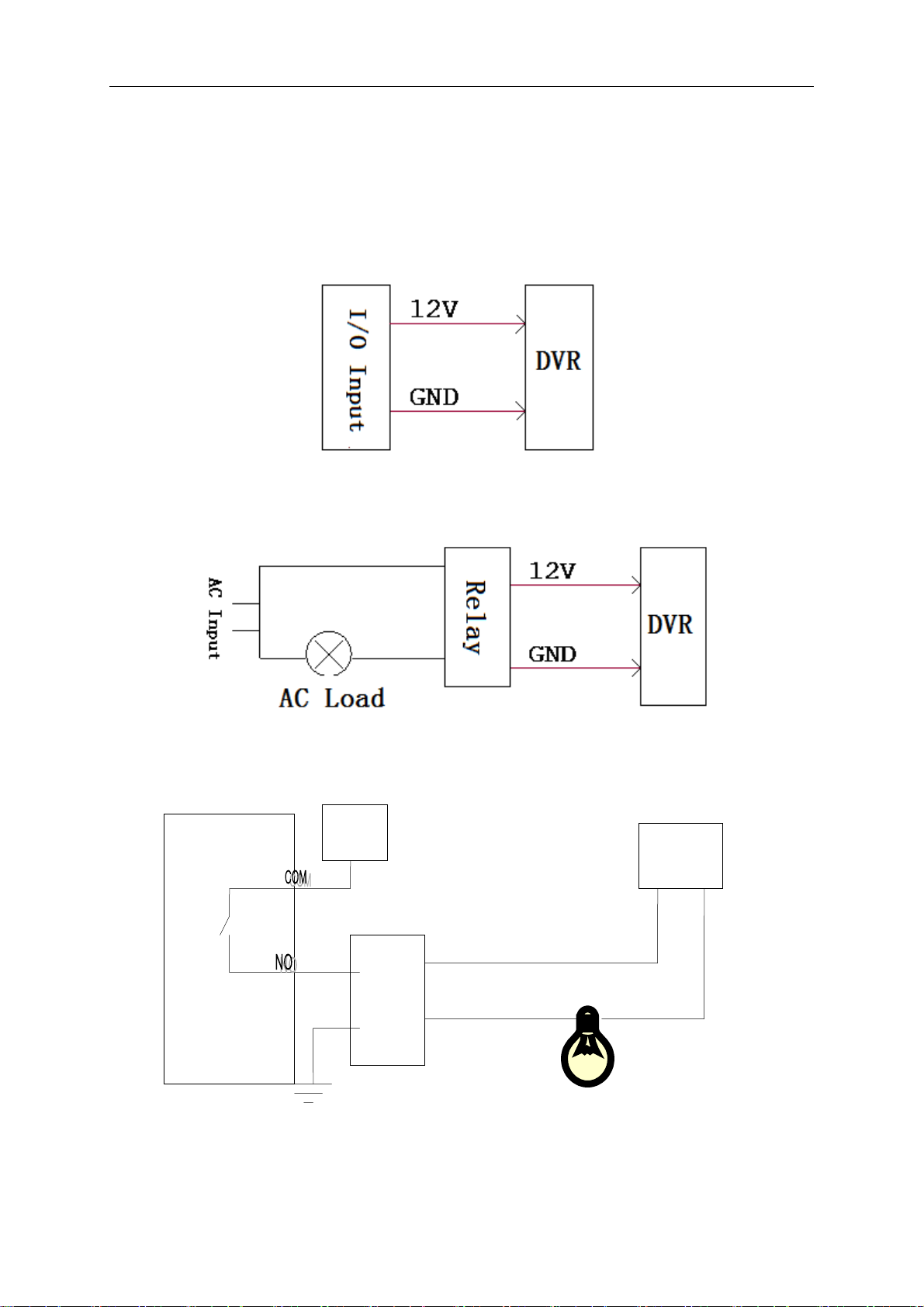

4． Alarm Input and Output
There are 8 sets alarm input connector and 1 set output for this DVR. Alarm input is for
connection IR annunciator, fog sensor. The connection diagram of DC alarm input as
following:
Connection diagram of AC alarm input as following:
The connection diagram of alarm output as following:
12V
24V
RELAY
DVR I/O output
220V
AC
43
Page 44

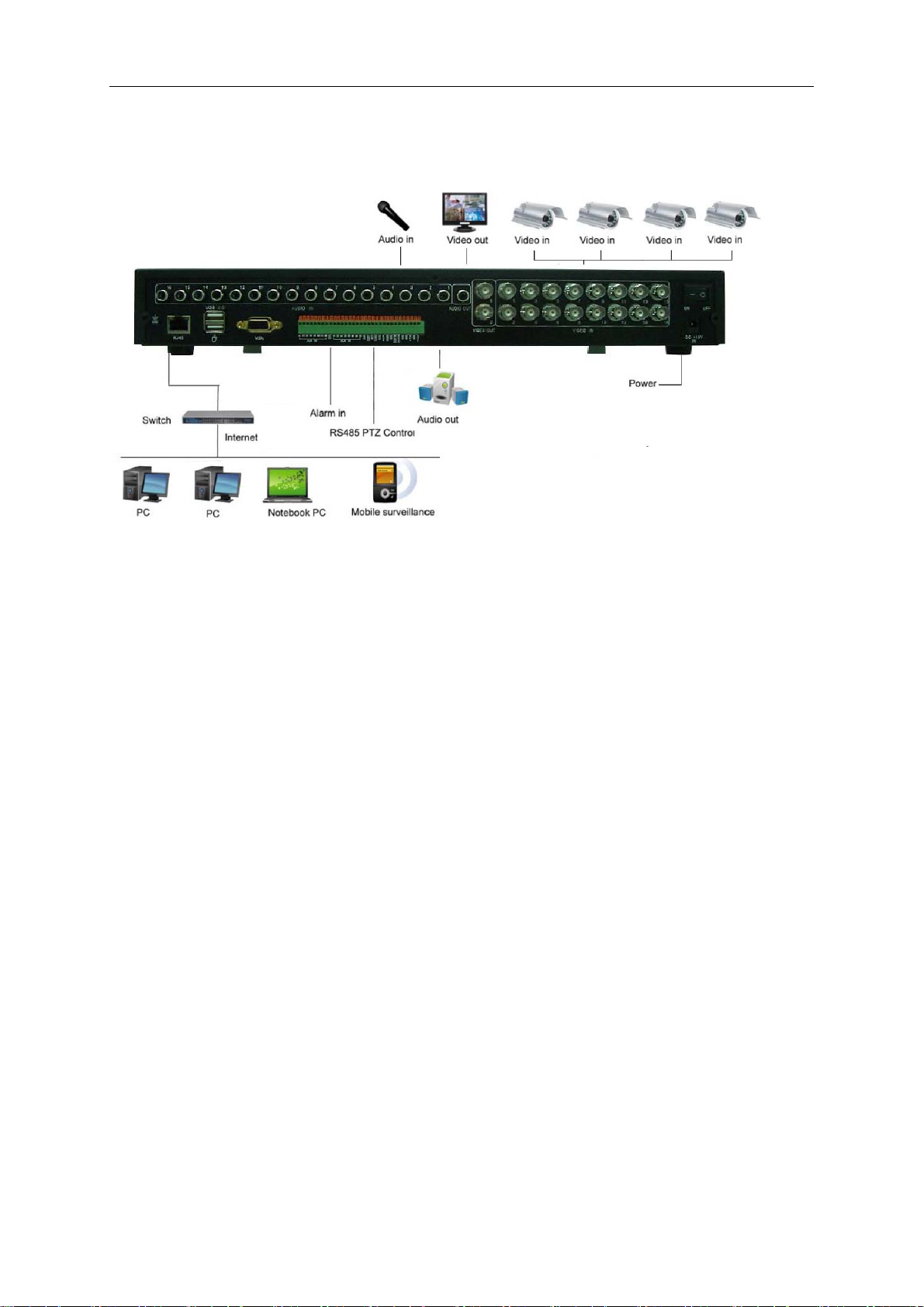

5. System Network Diagram
44
Page 45
4.2 HDD INSTALLATION

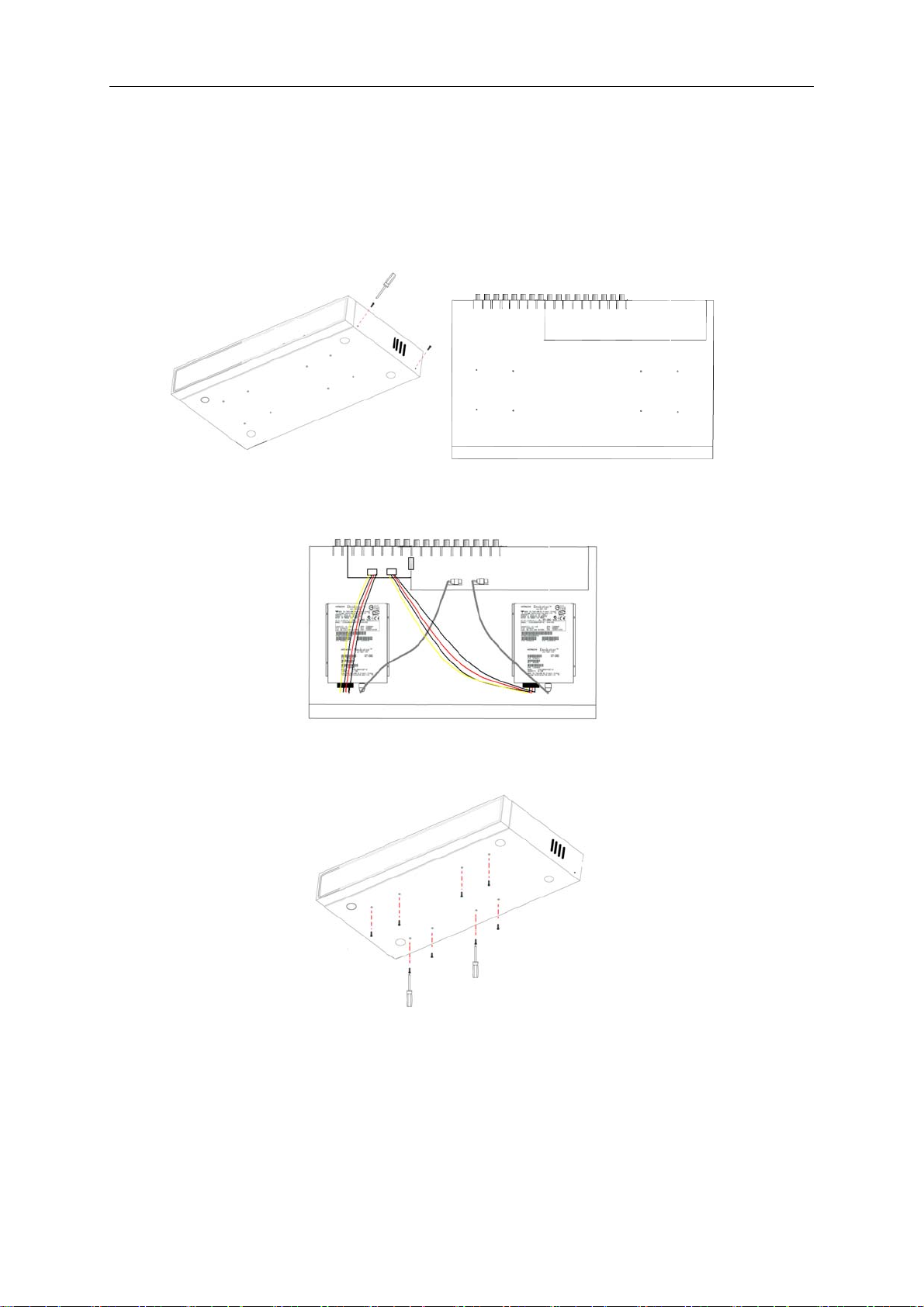

Please installation the HDD as the following steps:
1）Open the cover of the DVR and then you will see one HDD plate as follow.
2）Connect HDD line as follow
.
3）Affix HDD on HDD plate as indicated below with the screws around.
4）Install the HDD plate back into DVR and close cover .
Notice: Newly installed HDD should format before recording
45
Page 46
5.FAQ
If your problem is not listed below, please call our toll-free number for more support.
1. Question: DVR is not working after starting？
Answer:
Check the adaptor input
Check the on-off power line, is it well-connected?
Check the power on-off
Check the upgrade procedure
Check the main board of DVR
2. Question: DVR is rebooting automatically or stopped after starting the DVR for
several minutes?
Answer:
Instability or low input voltage
Bad track hard drive or the line of hard drive is bad
On-off power supply is not enough
The front-end video signal instability
High temperature, too much dust, too bad the DVR operating environment
The main board is not well-connected with other boards
The hardware of DVR is defective
3. Question: No output of single channel, multi channel or all channel video?
Answer:
Please check the adaptor of camera whether to see if it is well-connected
Please check the cable for connecting video input/output in the back panel of
DVR
Please insert the video source directly into the display device and check If they
are causing the problem.
Check the brightness of the picture and bring it back to its original default
setting
No video input signal or too weak
Display settings in the preview set to be closed
The hardware of DVR is defective
4. Question: DVR cannot record after startup and the interface is showing "H"
Answer:
Make sure power adaptor is DC 19V
Make sure HDD is formatted
Check the power and data connection cables of the HDD
The HDD is defective
The SATA port is not working
46
Page 47
5. Question: What is meaning of“R”“M”“I”“H” showed in interface?
Answer:
“R”means the channel is recording
“M” means the channel is on motion detection
“I”means the channel is on alarm
“H” means there is either no HDD. the HDD is bad or the HDD is full
6. Question: DV R is having problem with real-time images, such as bad image color
or serious brightness distortion
Answer:
If PAL and NTSC is not correctly selected on the BNC output, the images will
be in black and white
DVR is not compatible with monitor
The video transmission distance is too far
The setting of DVR color, brightness and so on are wrong
7. Question: No audio sound when monitoring?
Answer:
Check sound box or speaker functions. Also check possible short circuit.
Audio source may be connected to the video channel. You can click to
full-screen to check.
The hardware of DVR is defective
8. Question: No audio sound when playing back?
Answer:
Setting problem: open audio-video item
Check the audio to see if it is closed in playback interface
9. Question: System time is not correct?
Answer:
Wrong setting or user did not click "Edit" to confirm
Battery is not connected properly
Battery is dead. Please change.
10. Question: Why the “Stop recording” by the right mouse button does not work,
how to stop recording?
Answer: :
The “Stop recording” by the right mouse button is only suitable for Manual
recording. It can’t stop recording when it’s in “start recording” or the video in
video plan.
If you want to stop recording, please set the time is not recording.
11. Question: "Stop recording" function by the right mouse button does not work.
How to stop recording?
Answer:
The "Stop recording" by the right mouse button is for Manual Recording only. It can not
47
Page 48
stop recording when it is in "start recording" or the video is in video plan. If you want to stop
recording, please set the time to not recoding.
12. Question: Motion detection is not working?
Answer: :
The setting of motion detection area is not correct
Sensitivity is too low
13. Question: CD-writer /USB backup error
Answer:
The data exceeds the capacity of backup device
The backup device is incompatible
The backup device is damaged
14. Question: Remote control cannot work?
Answer: :
The address of remote control is not correct
The distance of remote control is too far or the angle is too biased
Remote control batteries run out
Remote control is damaged or the front panel of DVR is damaged
15. Question: WEB cannot login?
Answer:
Please check the network to see if it is connected. Check if LINK or 100M LED
is displayed normally on the panel; use ping xxx.xxx.xxx.xxx (DVR IP) to
check if the Internet is linked properly.
Recommended to use Windows XP or Vista operating system, also use IE6.0
browser or IE7.0 browser
ActiveX control has been blocked. Please manually install ActiveX control
again.
Please install DX8.1 and upgrade your video card driver
16. Question: There is no picture or picture is not clear when you preview the
recording or playback the recording via IE
Answer:
If you access DVR by IE, please choose "Wan" in "web environment"
Please try "Close windows" by the right mouse button, and try "Open windows"
again
17. Question: It displays "other members are setting......" while setting DVR by IE
Answer:
It probably means someone else is setting the DVR. Please check the DVR
configuration interface or exit DVR.
48
Loading...
